TPA-10C Hydraulic Manual Steel Hole Drilling Machine Hand Hole Digger

TPA-10C Hydraulic Manual Steel Hole Drilling Machine Hand Hole Digger

Output:	8T
stroke:	22mm
Model Number:	TPA-10C
lron plate punch range:	3mm

Minimum Order Quantity:	1 set
Price:	US$95.00
Packaging Details:	Plastic box
Delivery Time:	≥3 day
Payment Terms:	customizable
Supply Ability:	Available

Email:[email protected]

WhatsApp:+86-13777608392

Overview
Description
Specifications
Recommended Products

tpa 10c hydraulic manual steel hole drilling machine hand hole digger-1

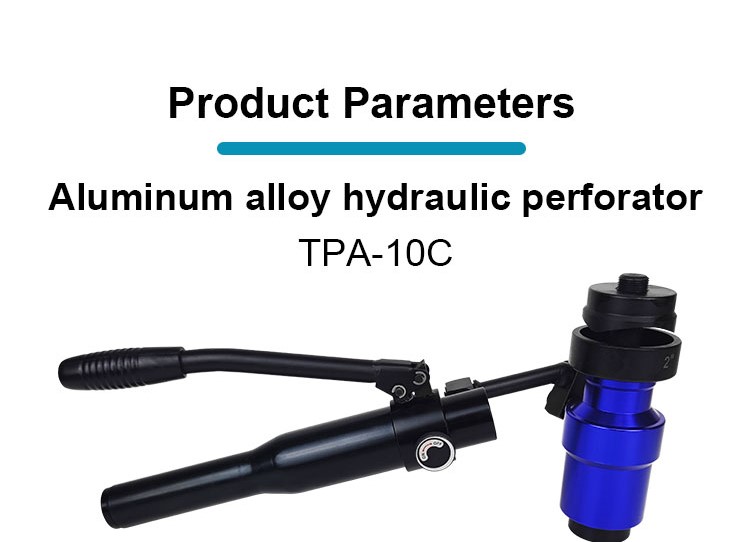

Hydraulic perforator After thousands of hole tests, the hole will not destroy the product table

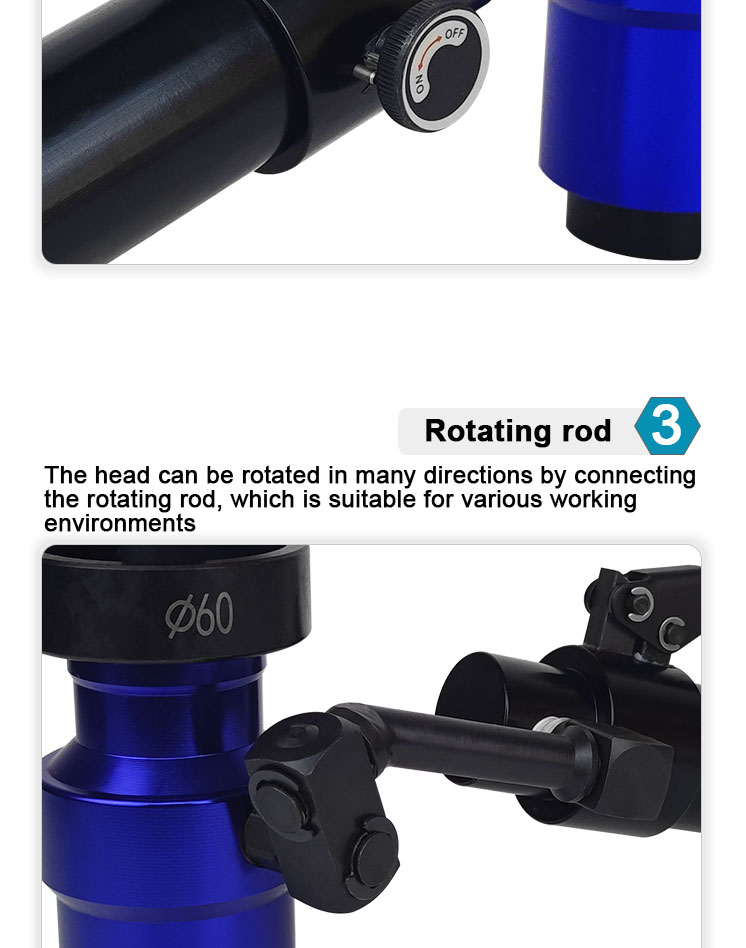

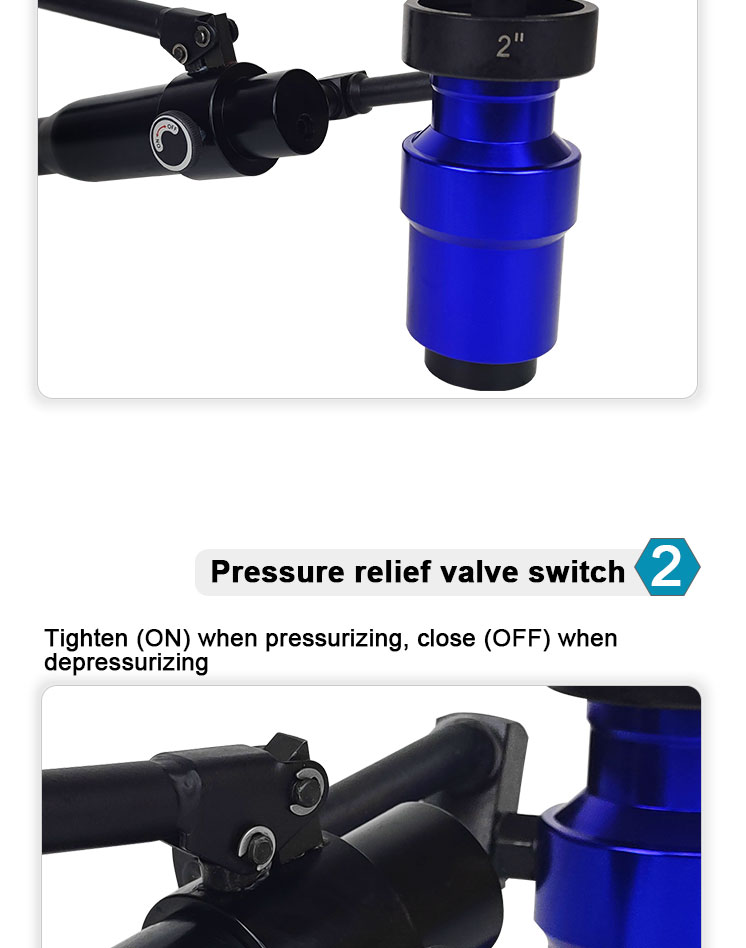

Pressure relief valve switch Tighten(ON)when pressurizing, close(OFF) when depressurizing
Rotating rod The head can be rotated in many directions by connecting the rotating rod, which is suitable for various working environments

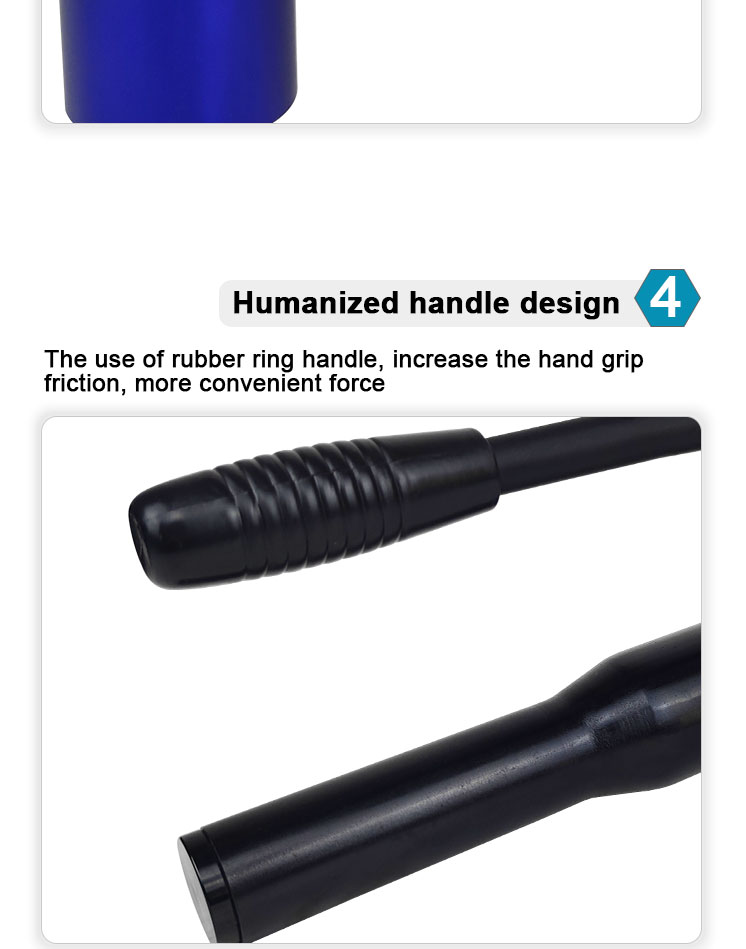

Humanized handle design The use of rubber ring handle, increase the hand grip friction, more convenient force

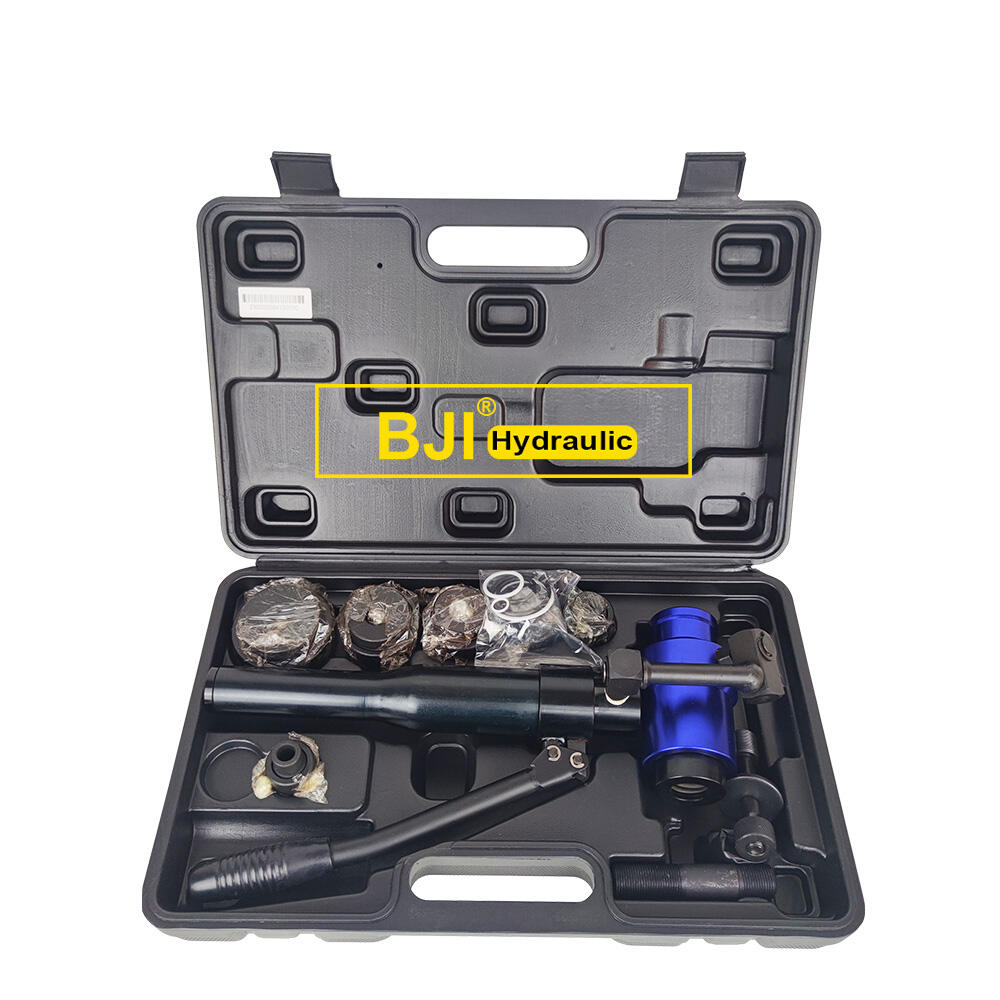

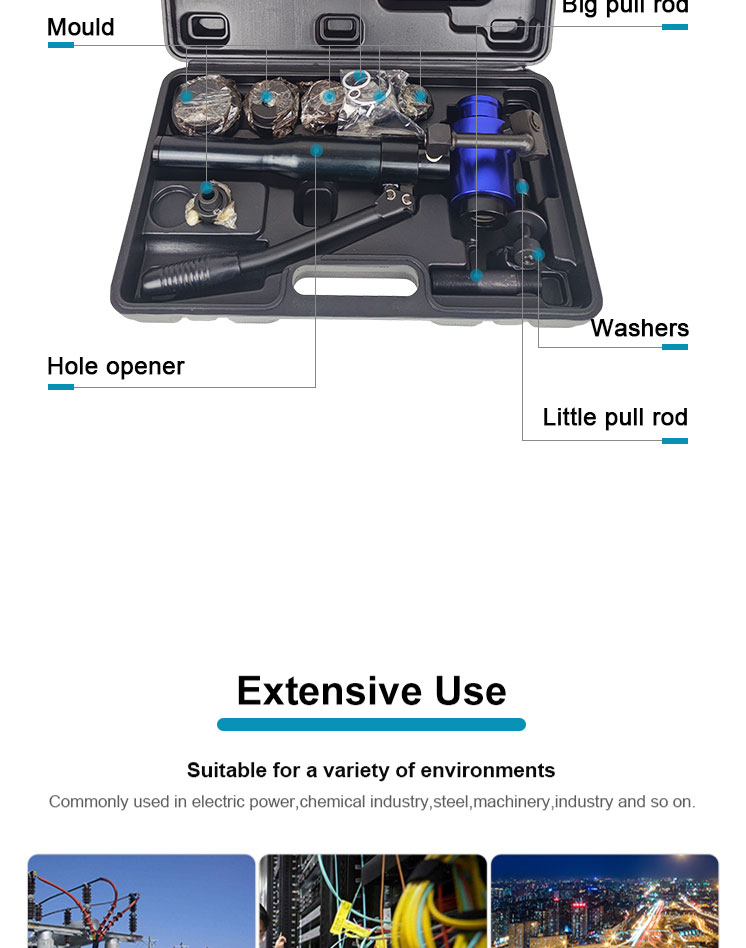

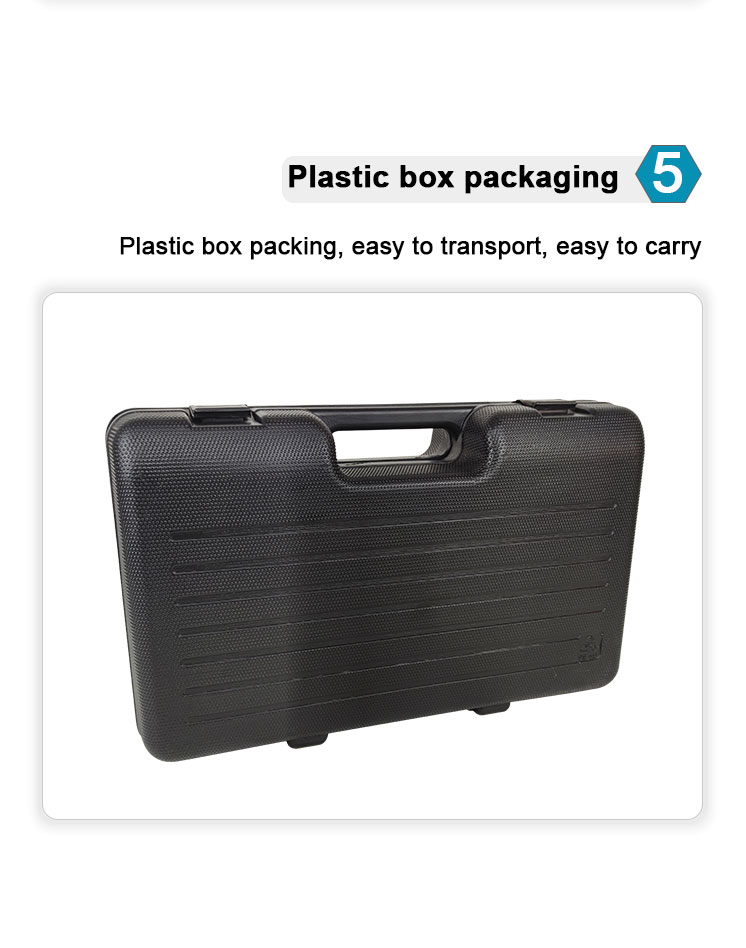

Plastic box packing, easy to transport, easy to carry

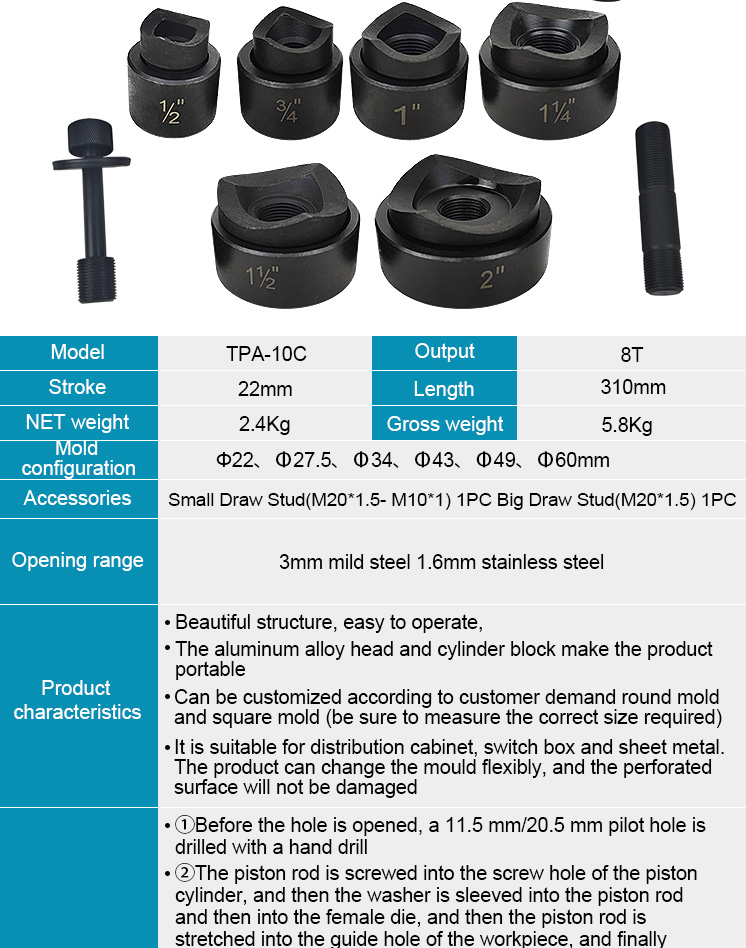

Model	TPA-10C	Output	8t
Stroke	22mm	Length	310mm
NET weight	2.4Kg	Gross weight	5.8Kg
Mold configuration	Ф22、Ф27.5、Ф34、Ф43、Ф49、Ф60mm
Accessories	Small Draw Stud(M201.5- M101)1PC Big Draw Stud(M20*1.5)1PC
Opening range	3mm mild steel 1.6mm stainless steel
Product characteristics	Beautiful structure, easy to operate, The aluminum alloy head and cylinder block make the productportable Can be customized according to customer demand round moldand square mold (be sure to measure the correct size required) It is suitable for distribution cabinet, switch box and sheet metal The product can change the mould flexibly, and the perforatedsurface will not be damaged

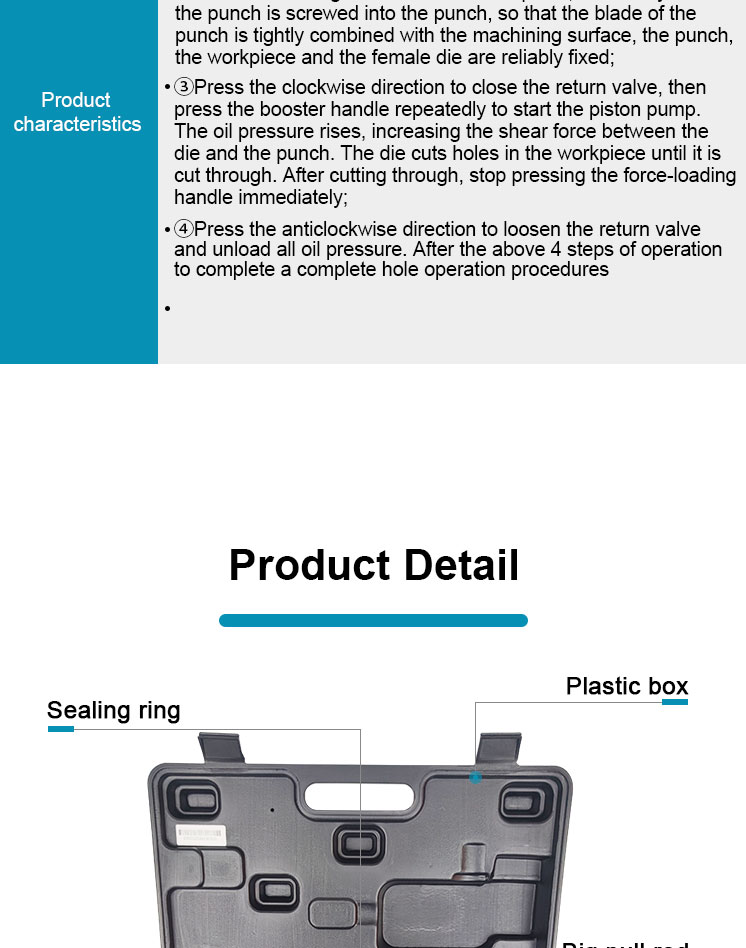

Product characteristics	①Before the hole is opened, a 11.5 mm/20.5 mm pilot hole isdrilled with a hand drill ②The piston rod is screwed into the screw hole of the pistoncylinder, and then the washer is sleeved into the piston rodand then into the female die, and then the piston rod isstretched into the guide hole of the workpiece, and finallythe punch is screwed into the punch, so that the blade of thepunch is tightly combined with the machining surface, the punch,the workpiece and the female die are reliably fixed; ③Press the clockwise direction to close the return valve, thenpress the booster handle repeatedly to start the piston pump.The oil pressure rises, increasing the shear force between thedie and the punch. The die cuts holes in the workpiece until it iscut through.After cutting through, stop pressing the force-loadinghandle immediately; ④Press the anticlockwise direction to loosen the return valveand unload all oil pressure. After the above 4 steps of operationto complete a complete hole operation procedures
