Introduction

Output:	35T
Stroke:	25mm
Model Number:	FYQ-630
crimping range:	150-630mm
Minimum Order Quantity:	1 set
Price:	US$118.00
Packaging Details:	Wooden box
Delivery Time:	≥3 day
Payment Terms:	customizable
Supply Ability:	Available

Description

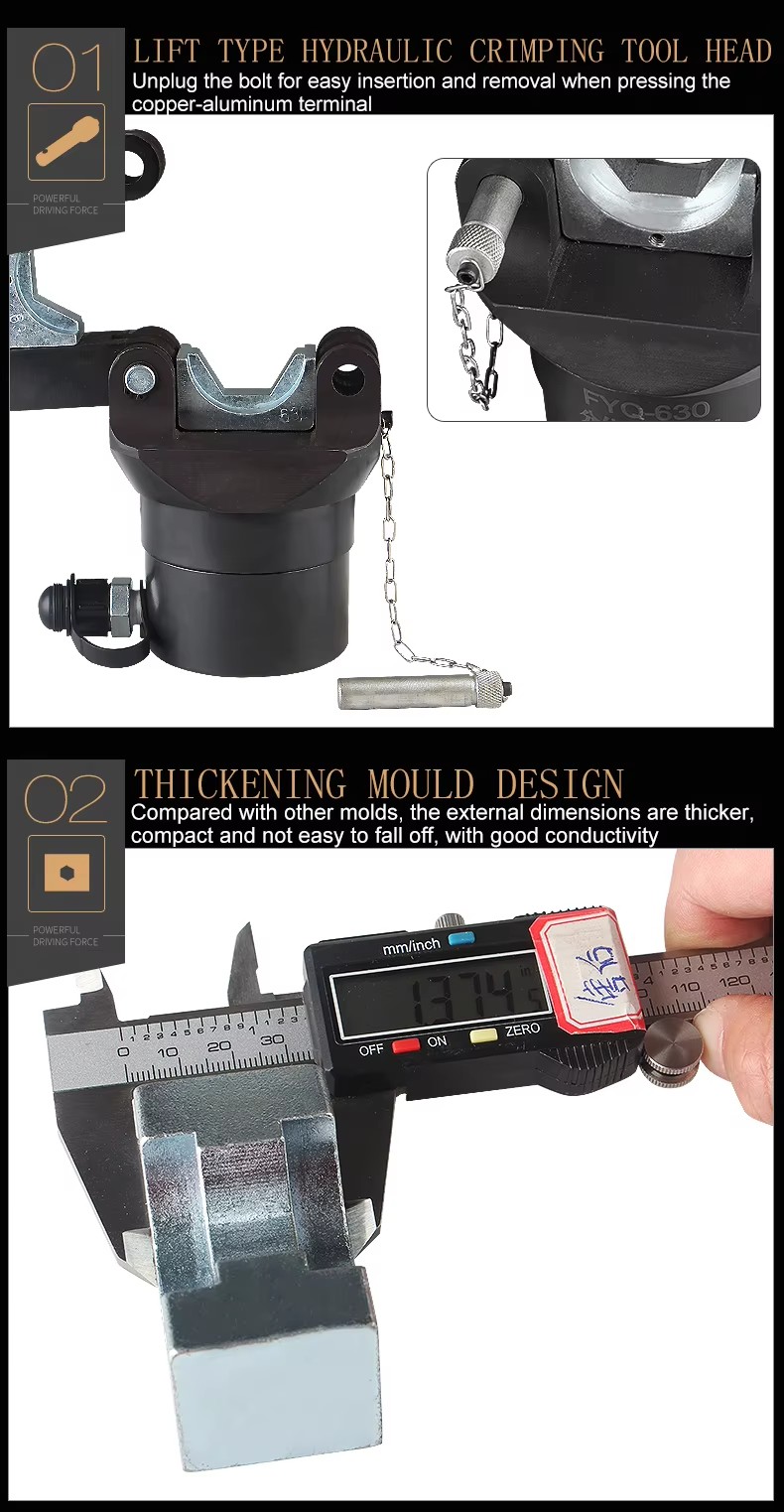

1.LIFT TYPE HYDRAULIC CRIMPING TOOL HEAD Unplug the bolt for easy insertion and removal when pressing the copper-aluminum terminal

2.THICKENING MOULD DESIGN Compared with other molds, the external dimensions are thicker compact and not easy to fall off, with good conductivity

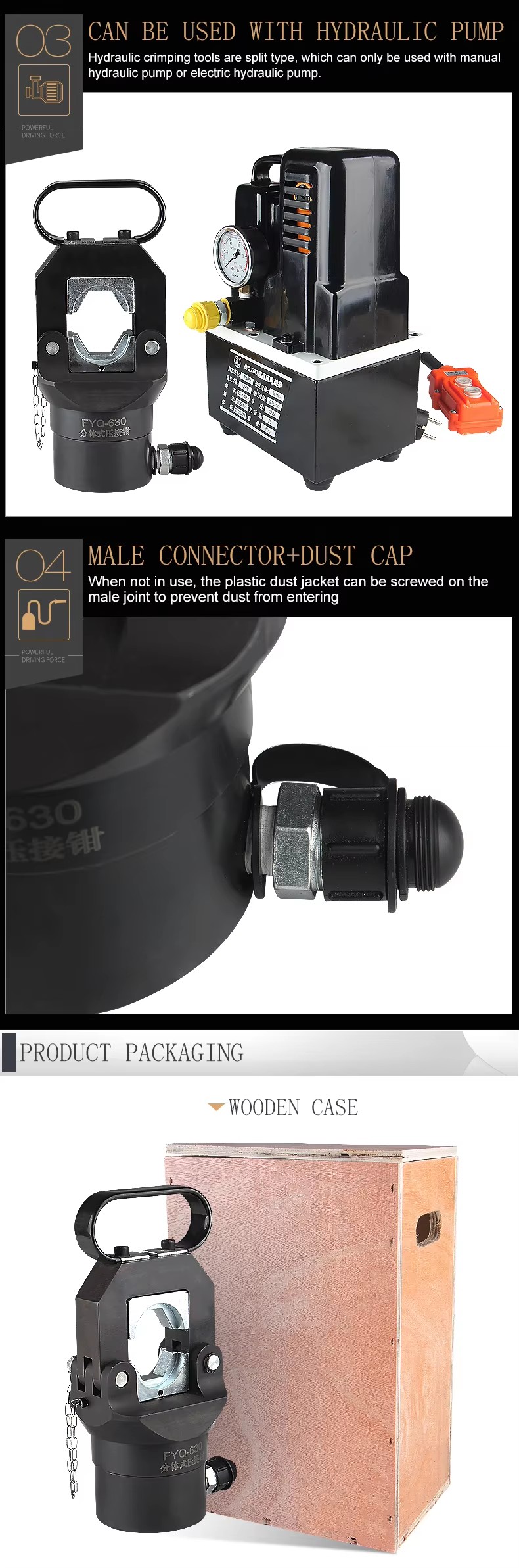

3.CAN BE USED WITH HYDRAULIC PUMP Hydraulic crimping tools are split type, which can only be used with manual hydraulic pump or electric hydraulic pump.

4.MALE CONNECTOR+DUST CAP When not in use, the plastic dust jacket can be screwed on the male joint to prevent dust from entering

Specifications

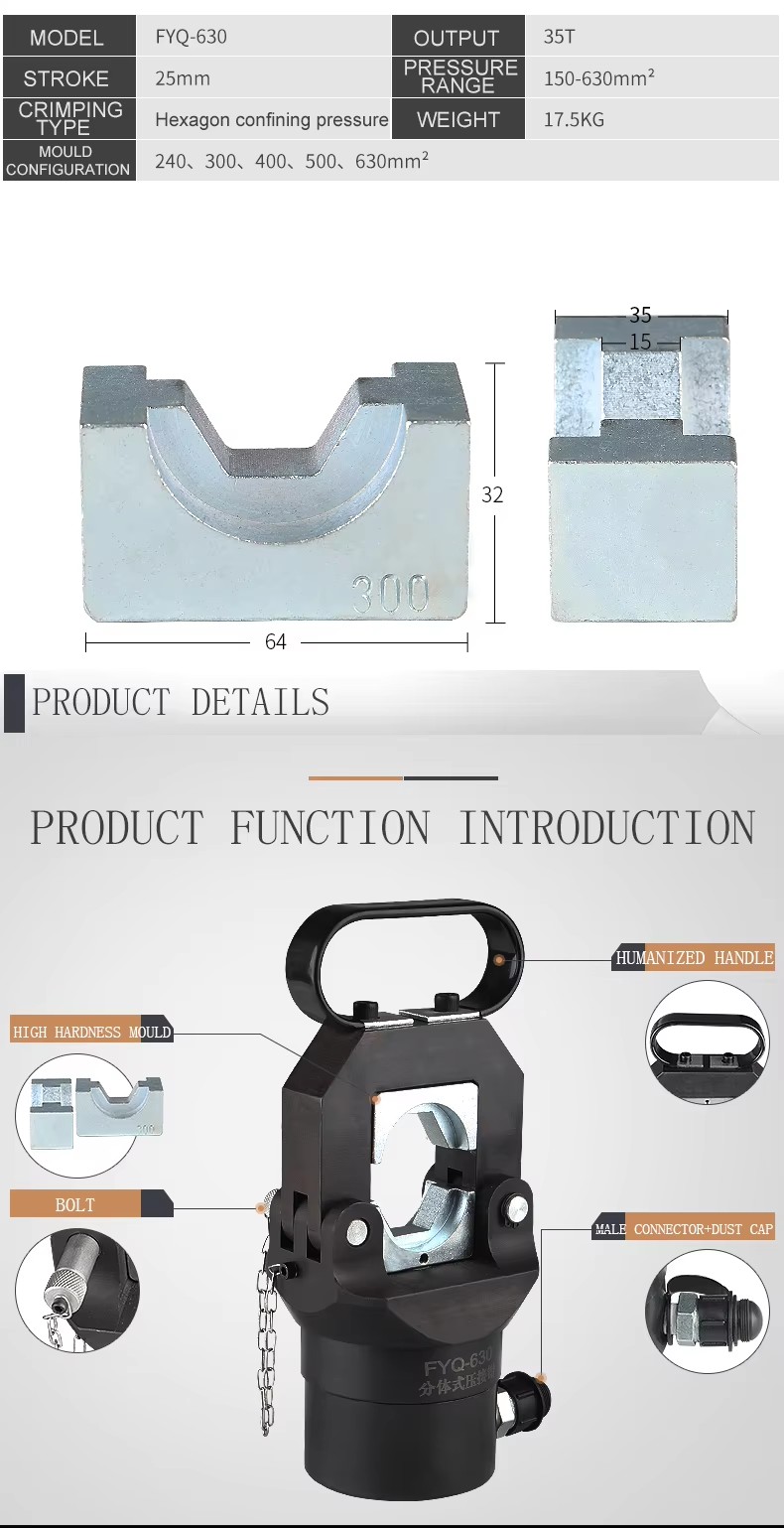

MODEL	FYQ-630	OUTPUT	35T
STROKE	25mm	PRESSURE RANGE	150-630mm2
CRIMPING TYPE	Hexagon confining pressure	WEIGHT	17.5KG
MOULD CONFIGURATION	240、300、400、500、630mm2
