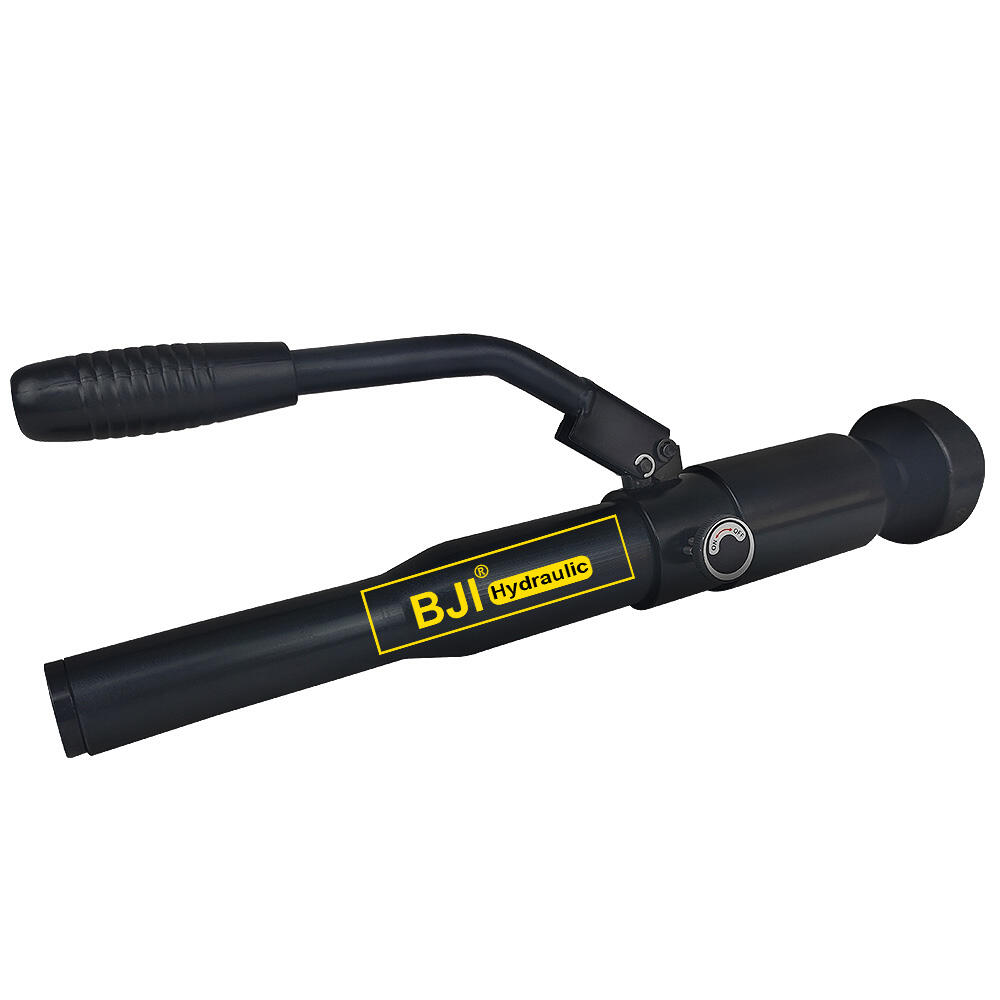

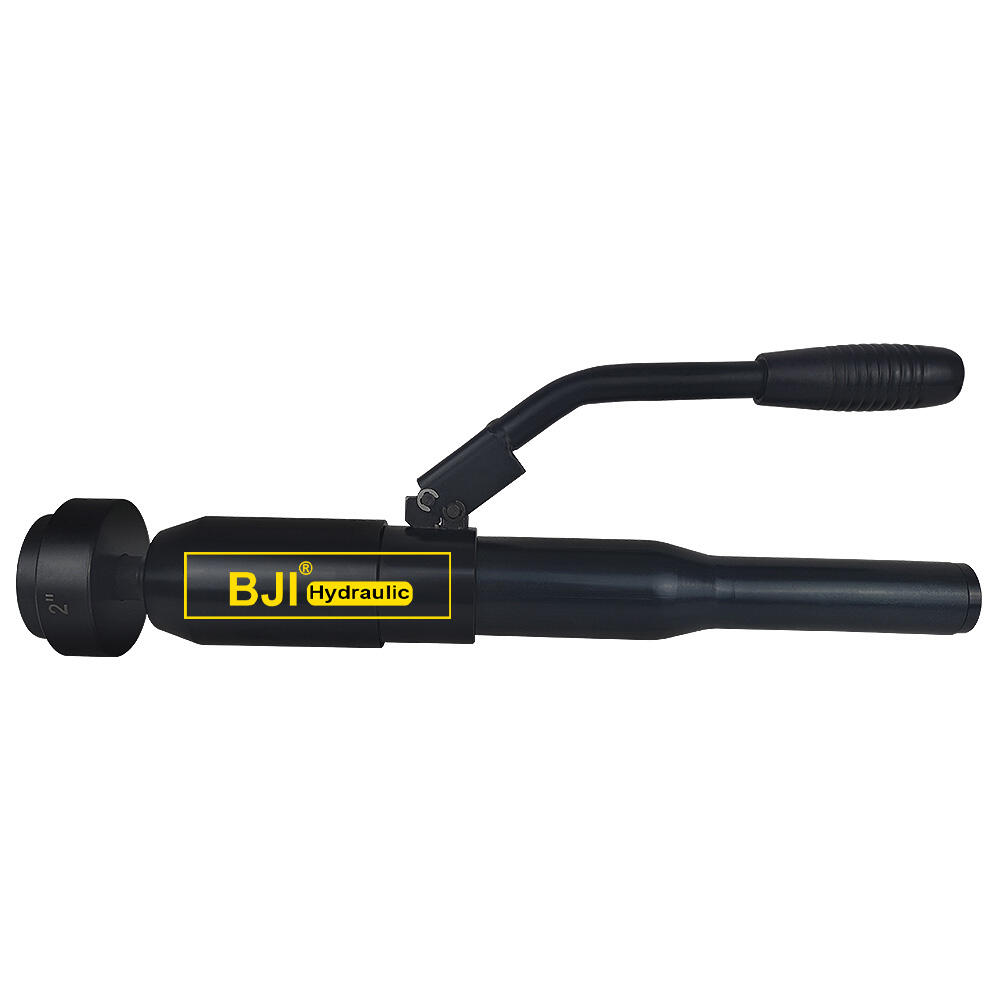

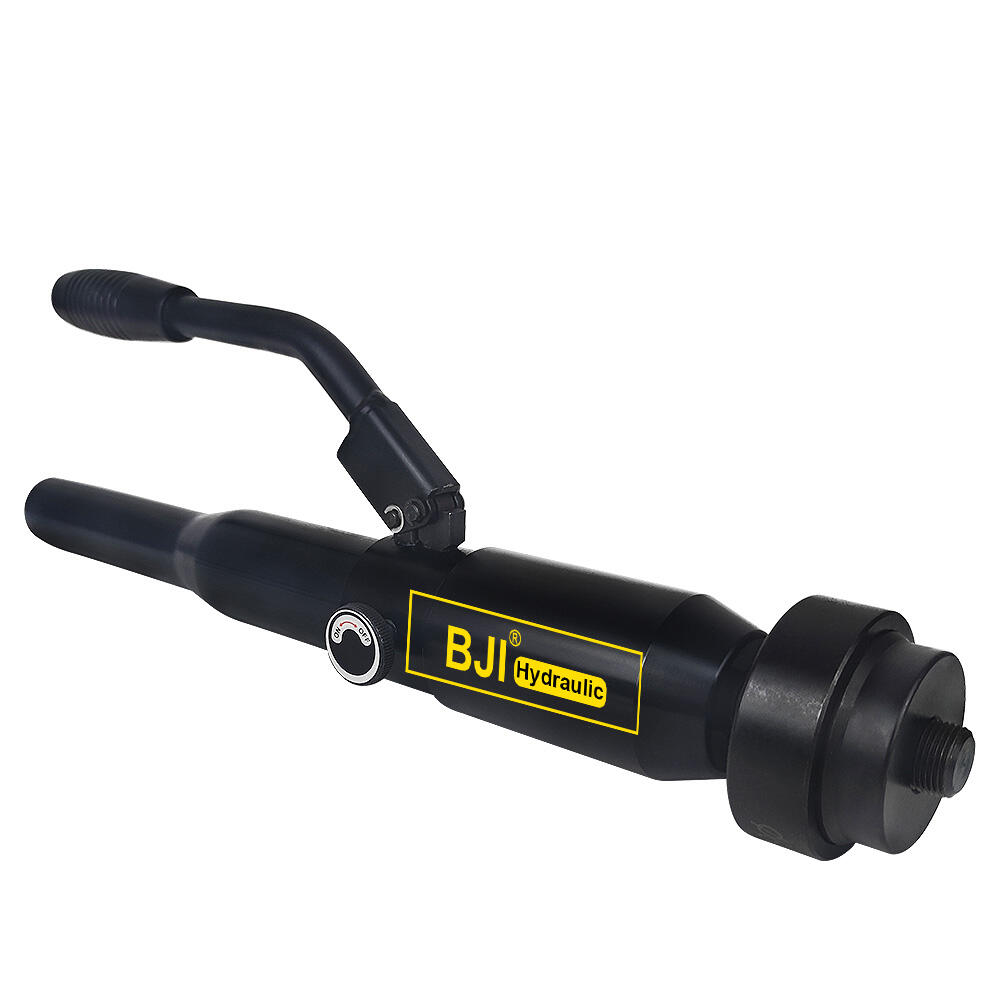

TPA-10B Hydraulic Hand Hole Digger

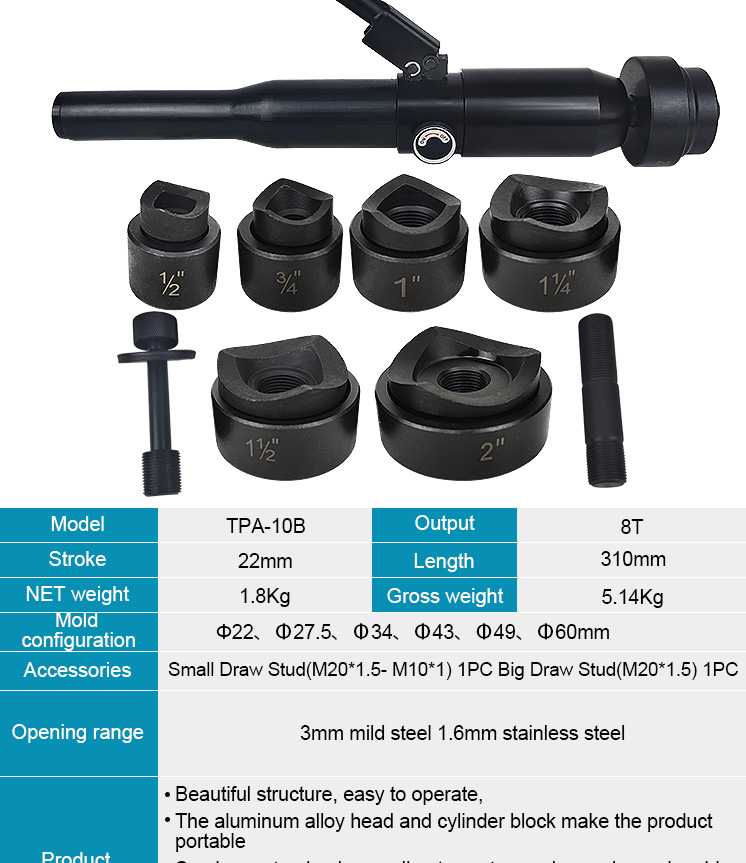

Output:

8T

stroke:

22mm

Model Number:

TPA-10B

lron plate punch range:

3mm

Minimum Order Quantity:

1 set

Price:

US$84.00

Packaging Details:

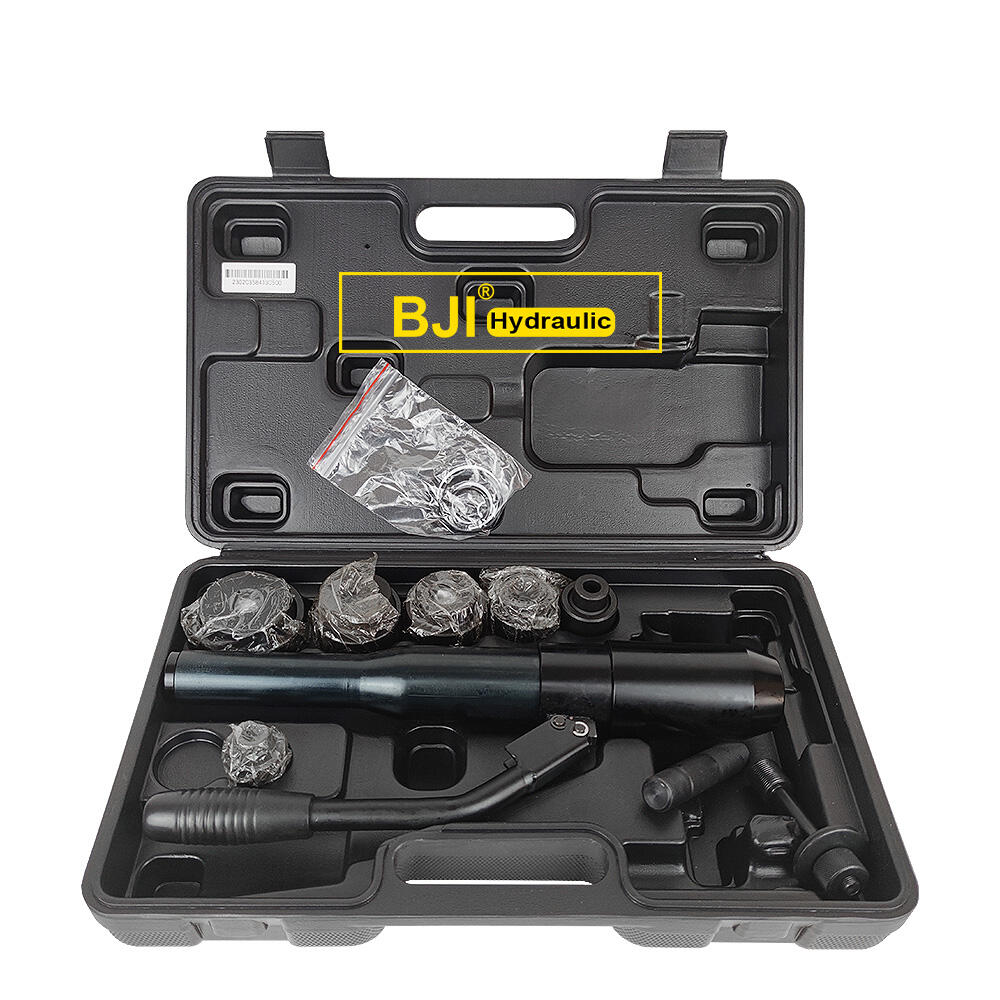

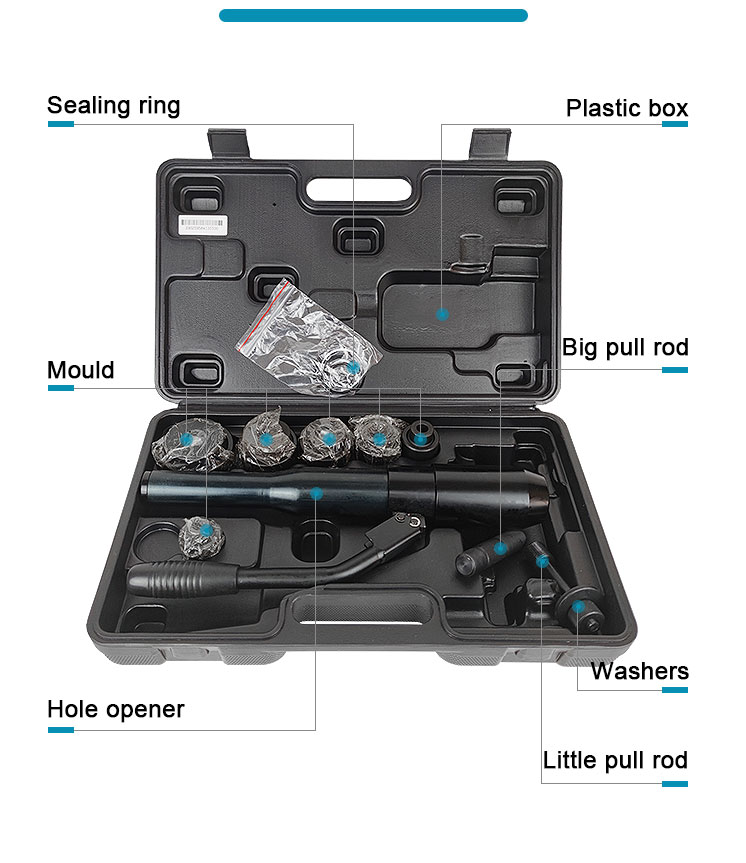

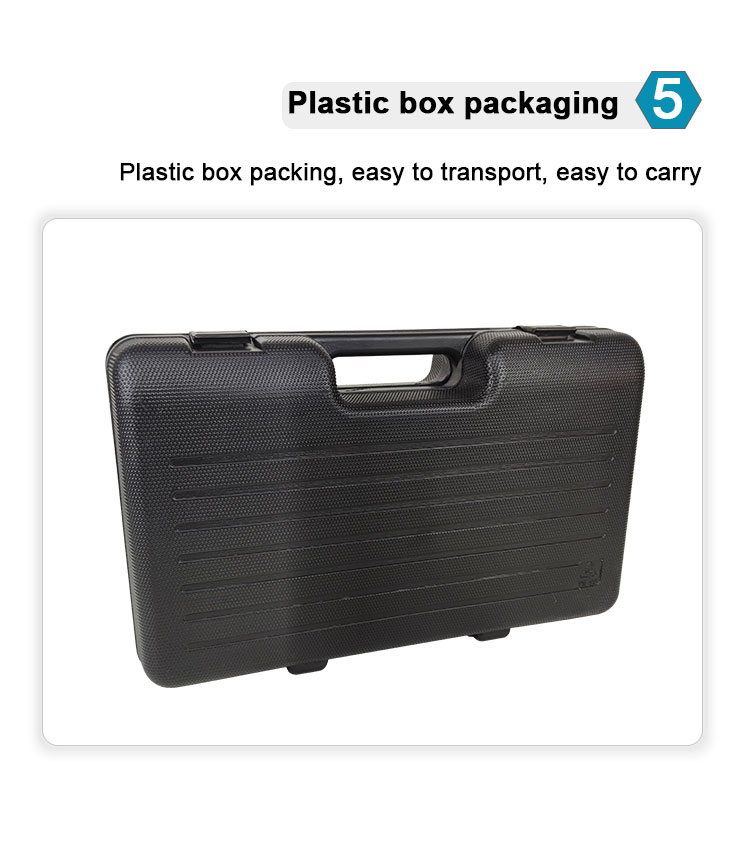

Plastic box

Delivery Time:

≥3 day

Payment Terms:

customizable

Supply Ability:

Available

• Beautiful structure, easy to operate,
• The aluminum alloy head and cylinder block make the productportable

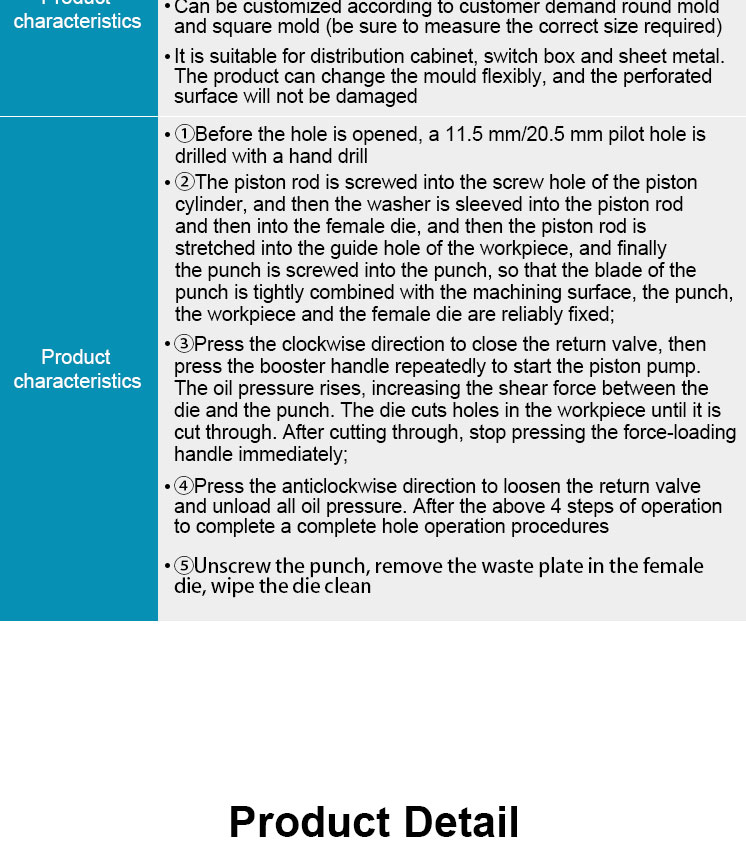

• Can be customized according to customer demand round moldand square mold (be sure to measure the correct size required)
• It is suitable for distribution cabinet. switch box and sheet metalThe product can change the mould flexibly, and the perforatedsurface will not be damaged

• ①Before the hole is opened, a 11.5 mm/20.5 mm pilot hole isdrilled with a hand drill

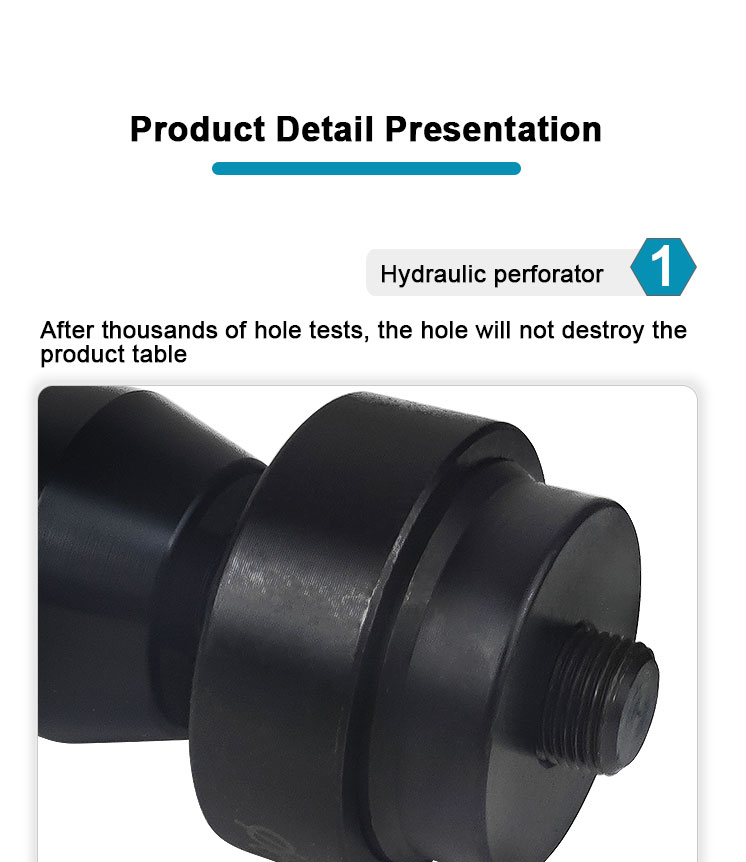

• ②The piston rod is screwed into the screw hole of the pistoncylinder, and then the washer is sleeved into the piston rodand then into the female die, and then the piston rod isstretched into the guide hole of the workpiece, and finallythe punch is screwed into the punch, so that the blade of thepunch is tightly combined with the machining surface, the punch,the workpiece and the female die are reliably fixed;

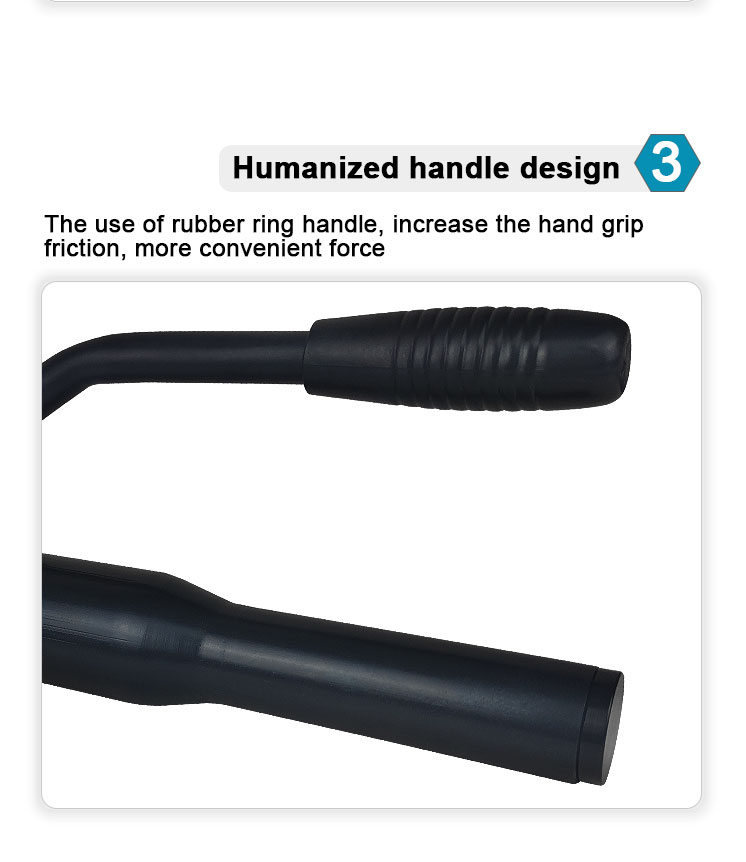

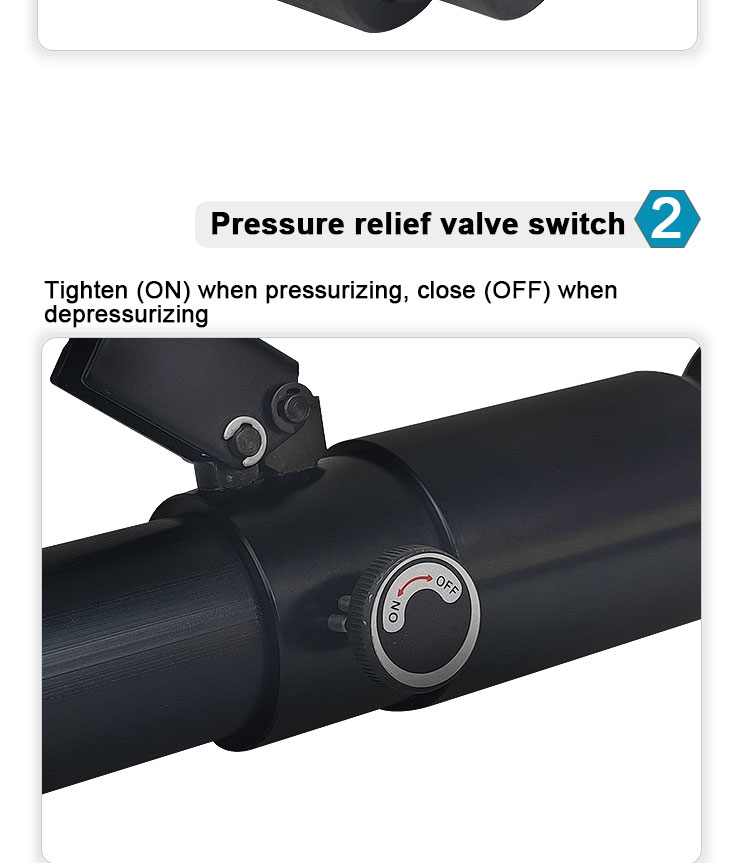

• ③Press the clockwise direction to close the return valve, thenpress the booster handle repeatedly to start the piston pump.The oil pressure rises, increasing the shear force between thedie and the punch. The die cuts holes in the workpiece until it iscut through. After cutting through, stop pressing the force-loadinghandle immediately;
• ④Press the anticlockwise direction to loosen the return valveand unload all oil pressure. After the above 4 steps of operationto complete a complete hole operation procedures
• ⑤Unscrew the punch, remove the waste plate in the femaledie, wipe the die clean
