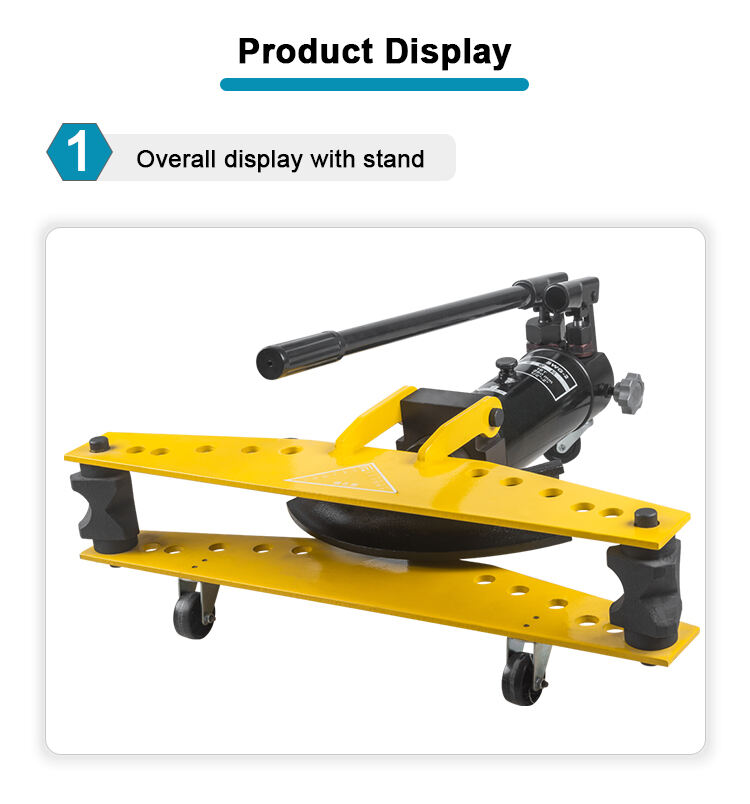

SWG-2 Steel Pipe Bending Machine Hydraulic Bending Machine, China SWG-2 Steel Pipe Bending Machine Hydraulic Bending Machine Manufacturers, Suppliers, Factory - Yuhuan Changyou Hydraulic Tools Co., Ltd.

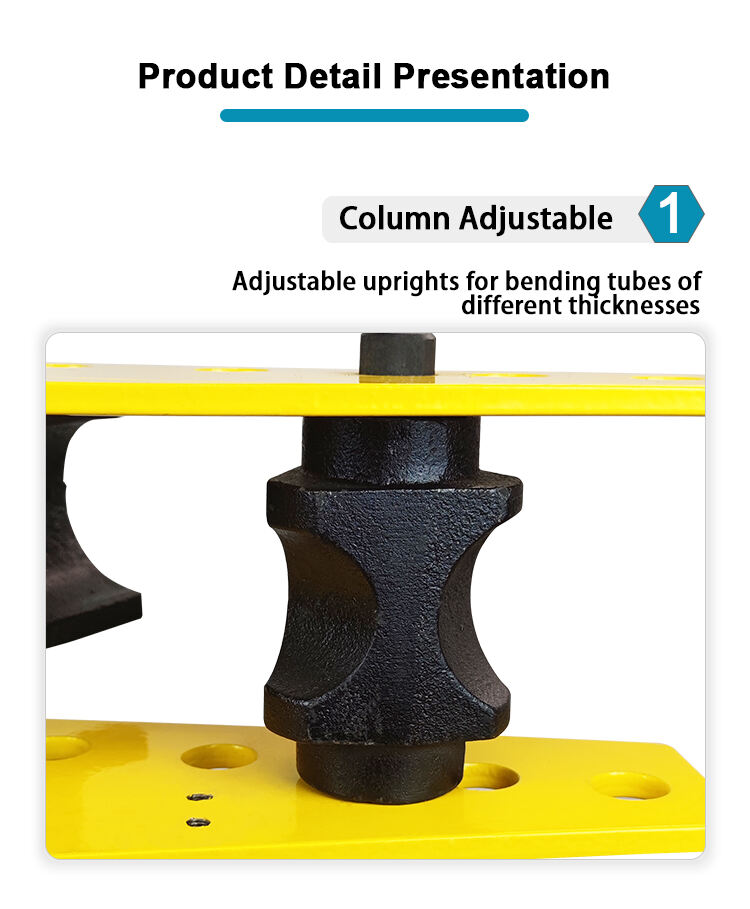

1.Column Adjustable Adjustable uprights for bending tubes of different thicknesses

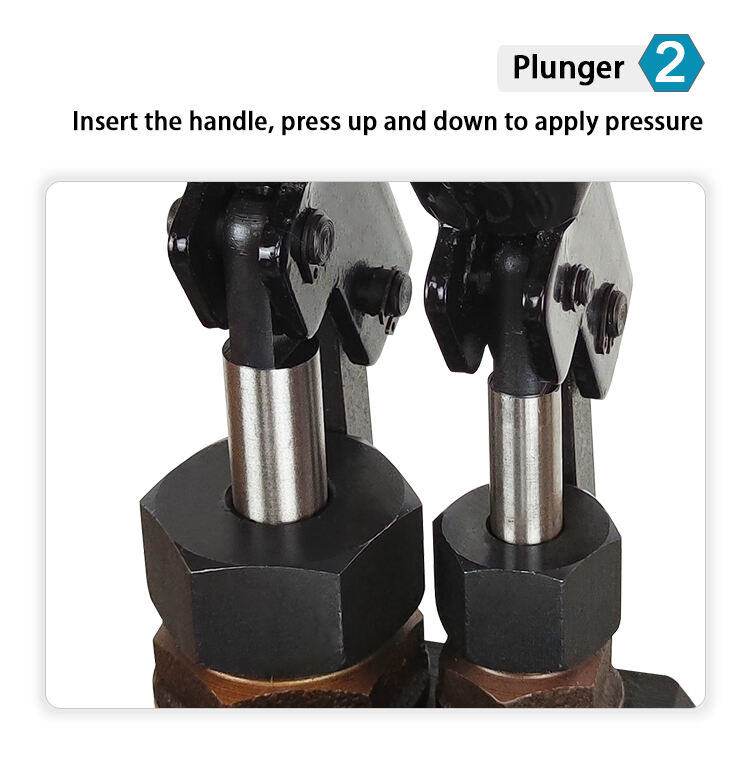

2.Plunger insert the handle, press up and down to apply pressure

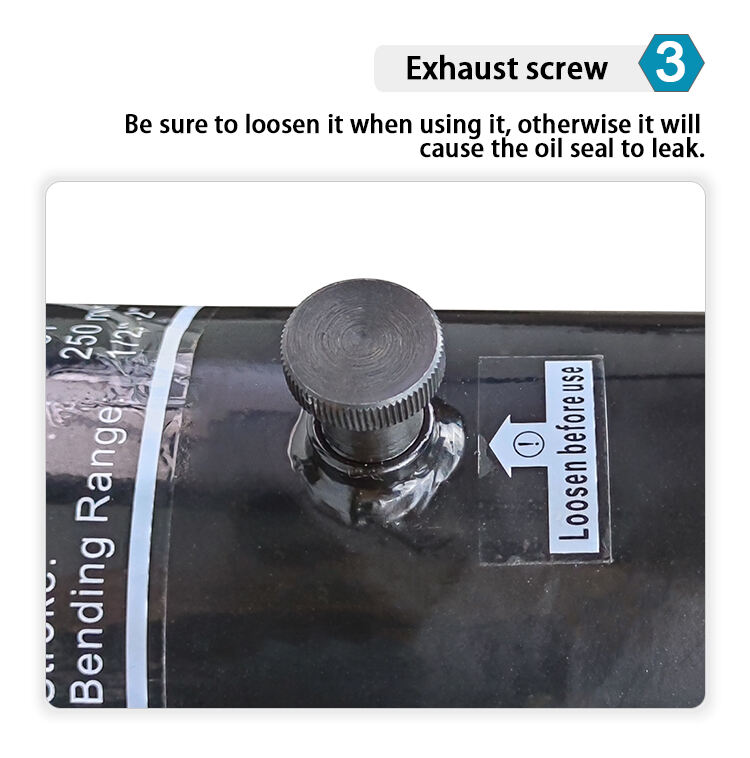

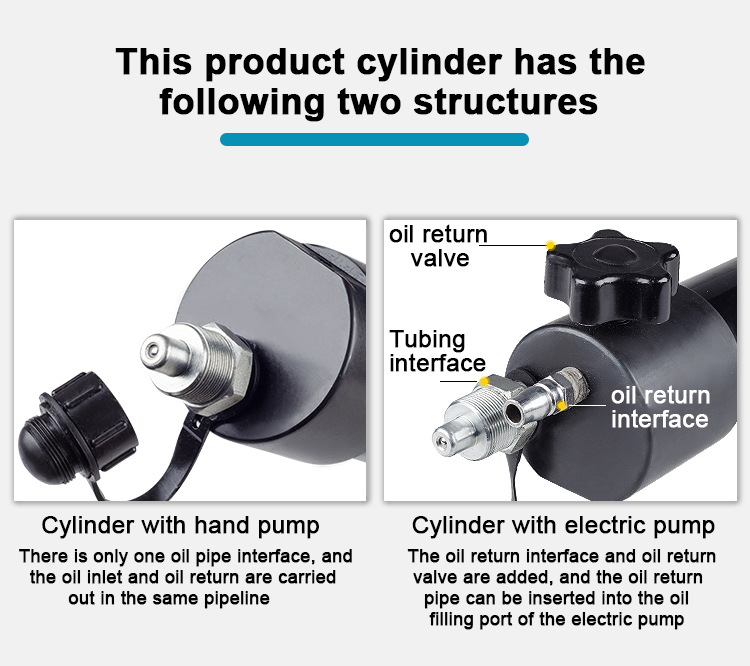

3.Exhaust screw Be sure to loosen it when using it, otherwise it will cause the oil seal to leak

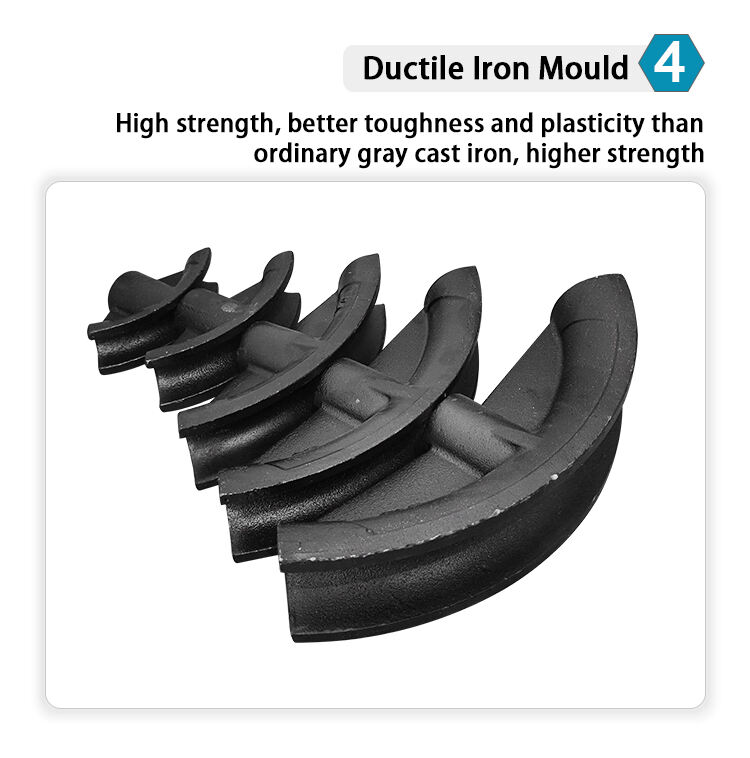

4.Ductile iron Mould High strength, better toughness and plasticity than ordinary gray cast iron, higher strength

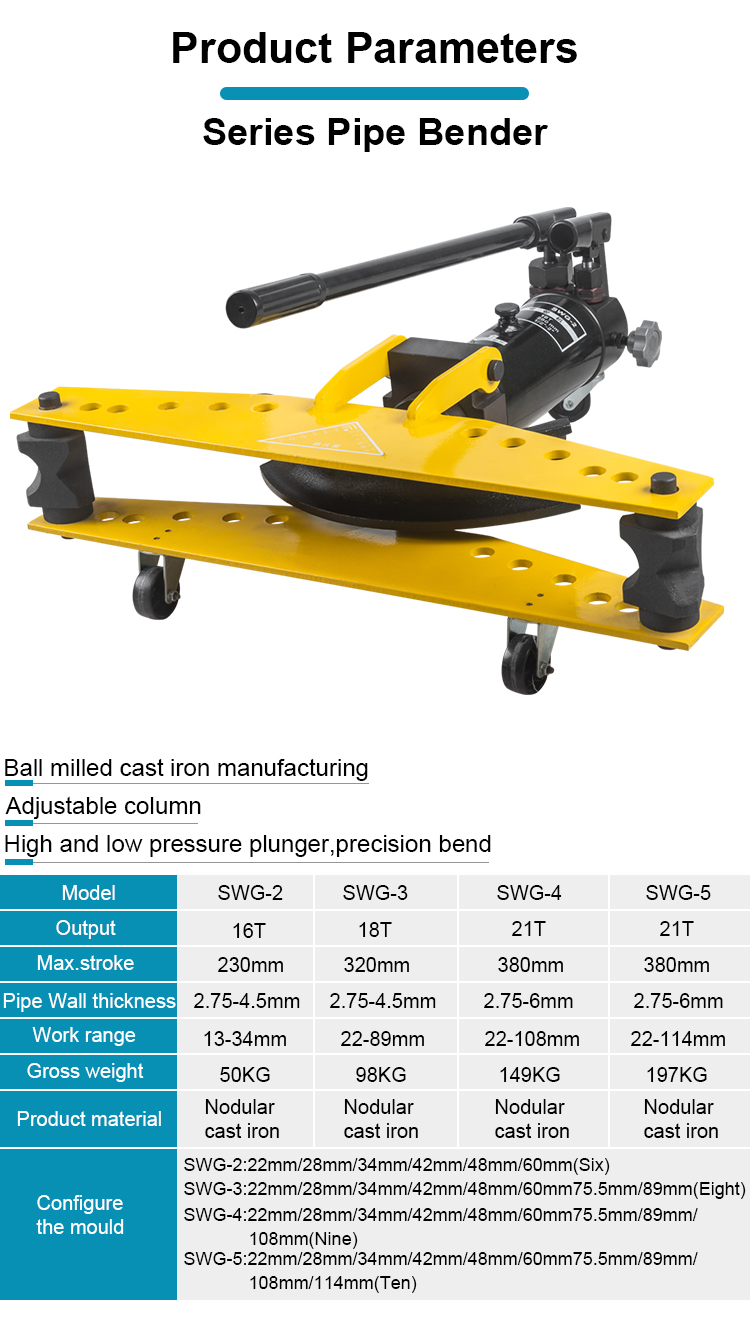

Model	SWG-2	SWG-3	SWG-4	SWG-5
Output	16T	18T	21T	21T
Max.stroke	230mm	320mm	380mm	380mm
Pipe Wall thickness	2.75-4.5mm	2.75-4.5mm	2.75-6mm	2.75-6mm
Work range	13-34mm	22-89mm	22-108mm	22-114mm
Gross weight	50KG	98KG	149KG	197KG
Product material	Nodular cast iron	Nodular cast iron	Nodular cast iron	Nodular cast iron
Configure the mould	SWG-2:22mm/28mm/34mm/42mm/48mm/60mm(Six) SWG-3:22mm/28mm/34mm/42mm/48mm/60mm75.5mm/89mm(Eight) SWG-4:22mm/28mm/34mm/42mm/48mm/60mm75.5mm/89mm/108mm(Nine) SWG-5:22mm/28mm/34mm/42mm/48mm/60mm75.5mm/89mm/108mm/114mm(Ten)
