DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine

Home / Products / Busbar Processing Machine / DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine

DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine

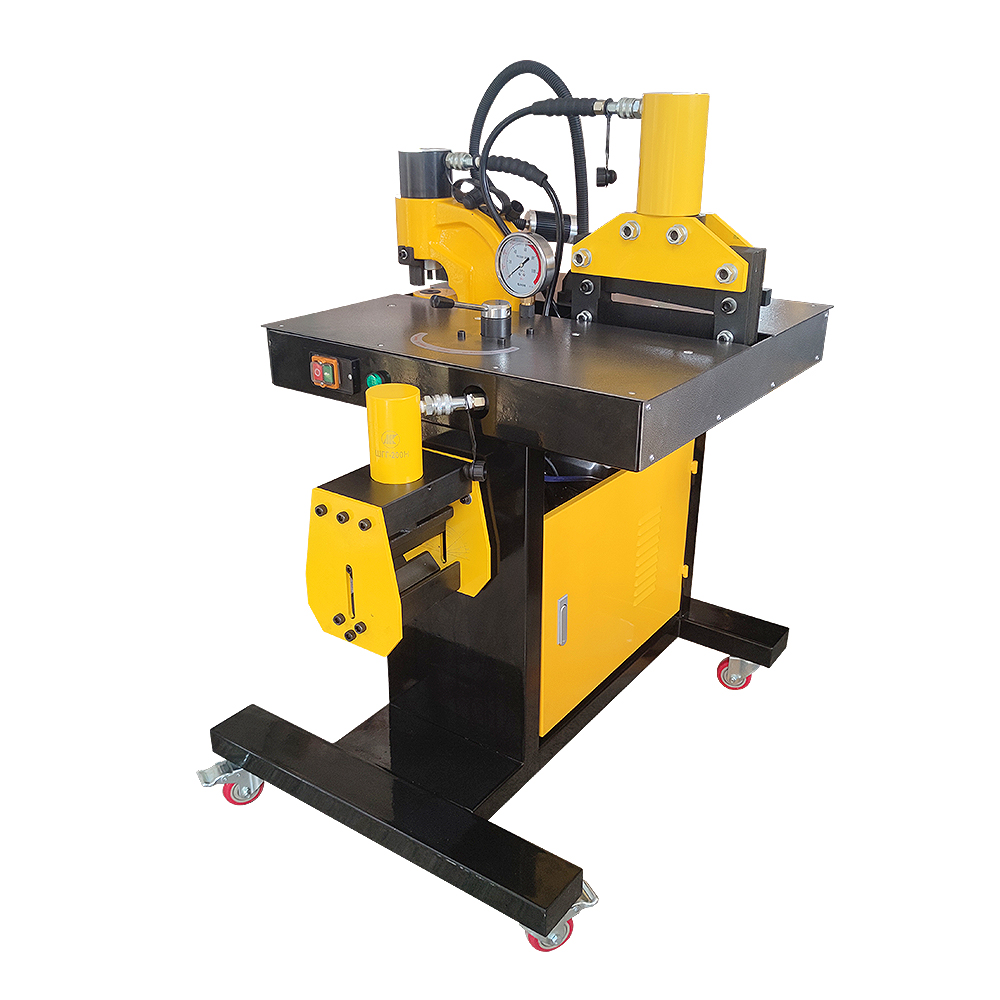

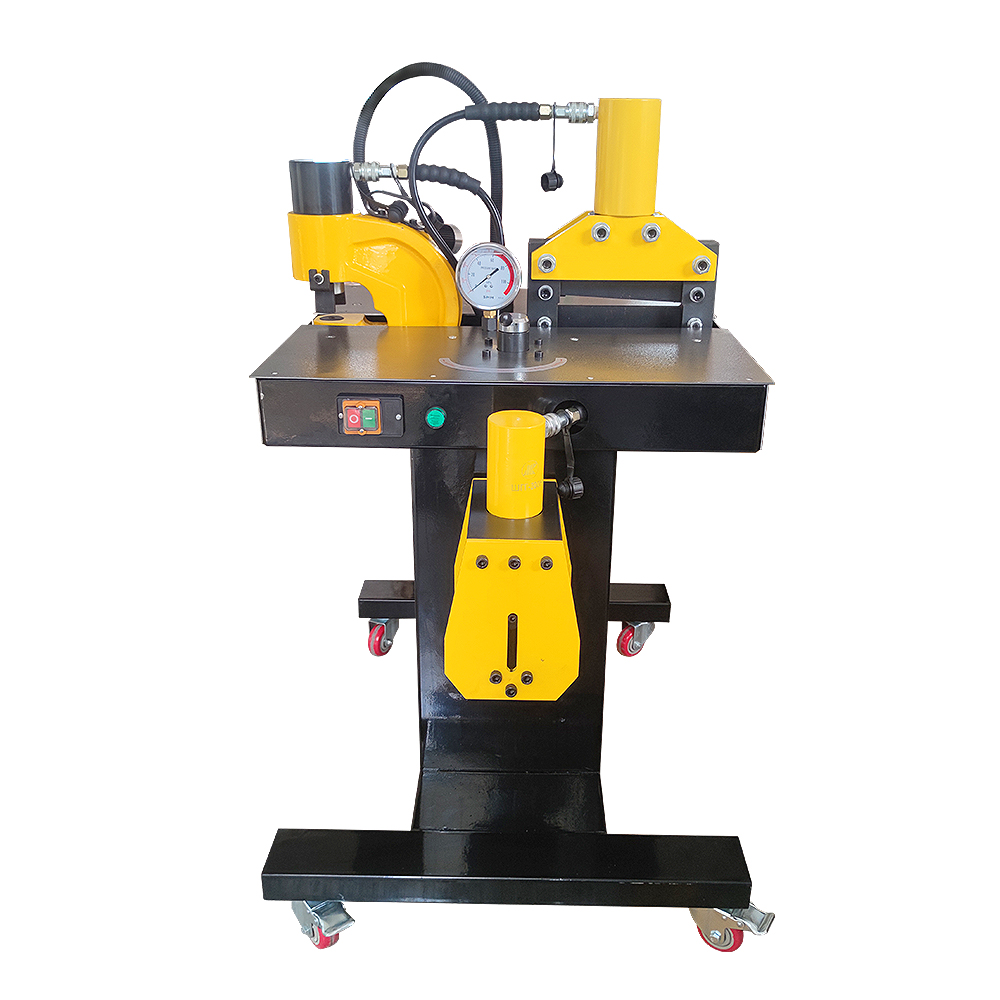

DHY Series 3-in-1 Hydraulic Busbar Processing Machine is the ultimate solution for fast, precise, and reliable busbar fabrication. Designed for panel manufacturers, electrical workshops, and industrial assembly, this machine combines cutting, punching, and bending in a single, compact unit.

Contact Us
PREV：DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching MachineNEXT：DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
  • Specification
  • Contact Us
Specification Cutting, punching, horizontal bending
Item No. DHY-200
Input voltage/control voltage Single phase 50Hz/220v
Rating working oil pressure 700kgf/cm²
Busbar cutting capability (Copper busbar/aluminum busbar) 200×12mm
Outlet force of busbar cutter 35Ton
Cutting Range 200mm(Width) × 12mm(Thickness)
Outlet force of the puncher 35Ton
Distance from hole to sheet side 110mm
Punching capability-copper /aluminum busbar Φ6-Φ20.5 (Max. Thickness): 12mm
Standard punching dies 7/9/10.5/13.8/17/20.5mm
Outlet force of bender 20Ton
Horizontal bending capability 200×12mm
Weight 206kgs
Package size 97cm×77.8cm×129cm
