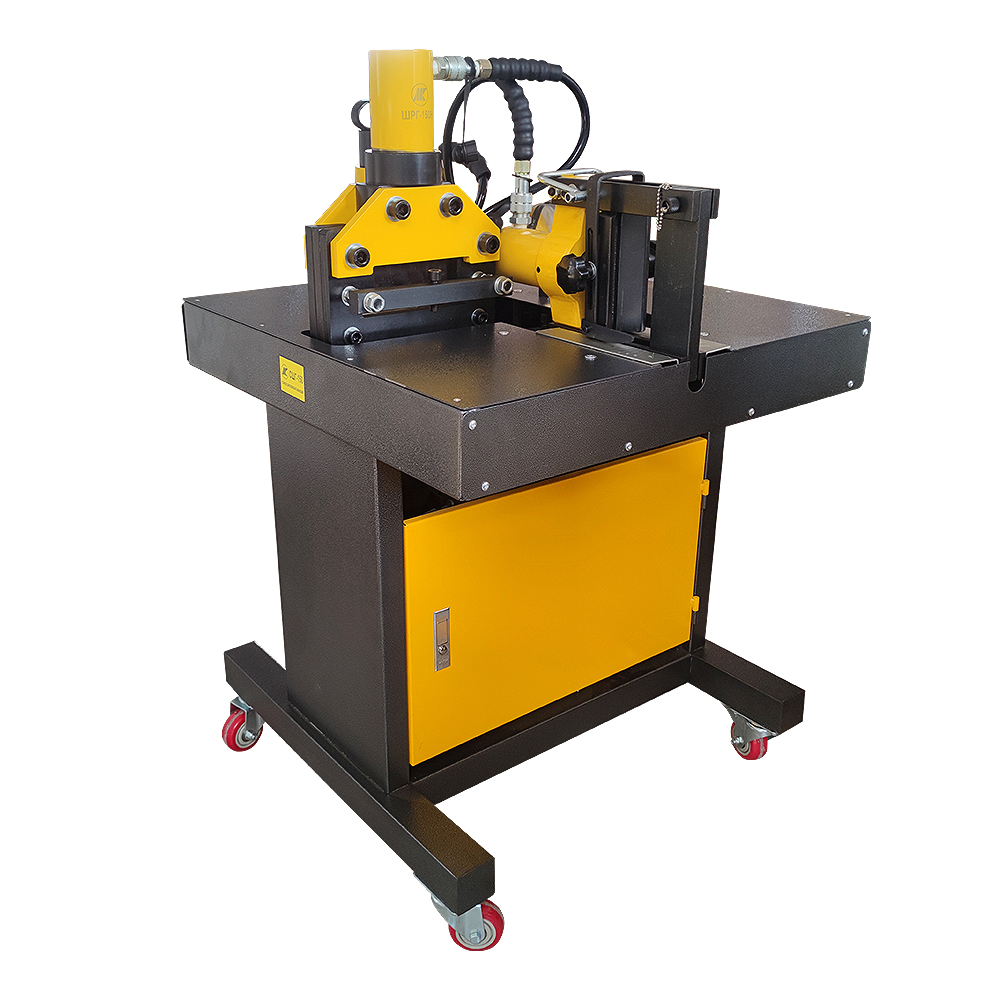

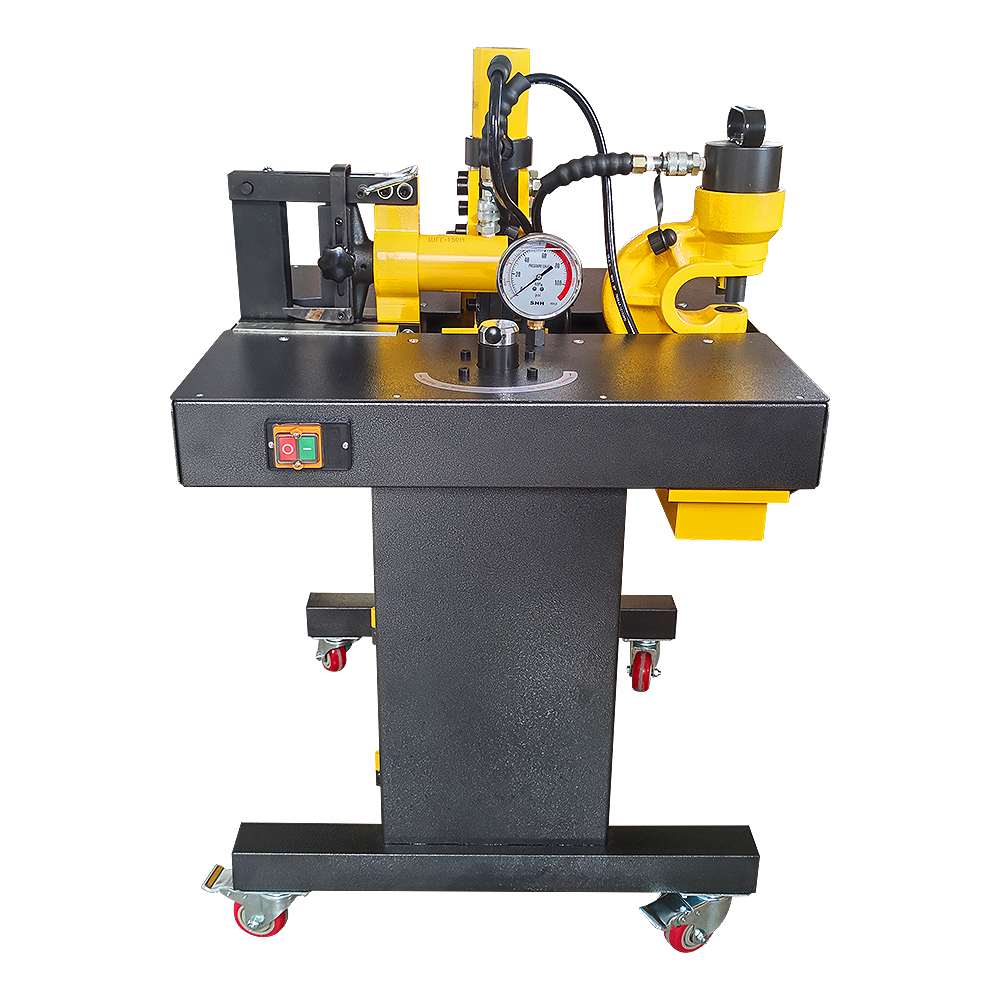

DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine

Home / Products / Busbar Processing Machine / DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine

DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine

DHY Series 3-in-1 Hydraulic Busbar Processing Machine is the ultimate solution for fast, precise, and reliable busbar fabrication. Designed for panel manufacturers, electrical workshops, and industrial assembly, this machine combines cutting, punching, and bending in a single, compact unit.

Contact Us
PREV：No previous articleNEXT：DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
  • Specification
  • Contact Us
Model DHY-150
Cut off range Copper-aluminium row width＜150mm, thickness 3-10mm
Bending range Copper-aluminium row width＜150mm, thickness 3-10mm
Punching range Copper-aluminium row width＜150mm, thickness 3-10mm
Standard punching die Φ7, Φ9, Φ10.5, Φ13.8, Φ17, Φ20.5
Distance from hole center to edge 95mm
Input voltage 220V/380V
Rated working oil pressure 700Kgf/cm²  10000Psi
Weight 170Kg
The following products are selected with the following parameters
Processing range of flat bending Copper-aluminium row width 40,50,60,80,100,125;
Copper-aluminium row thickness 4,6,8,10;
Processing range of the embossing machine Copper-aluminium row width is less than 150 mm, and the thickness is less
300 hydraulic clamp range Copper terminal 16- 300 mm; Aluminum terminal 25- 400 mm
500 hydraulic clamp range Copper terminal 16- 300 mm; Aluminum terminal 16-400mm
