300 Series 2-in-1 Battery-Powered Hydraulic Cable Cutter and Crimper

Home / Products / Cutting Tools / Battery Cable Cutter / 300 Series 2-in-1 Battery-Powered Hydraulic Cable Cutter and Crimper
300 Series 2-in-1 Battery-Powered Hydraulic Cable Cutter and Crimper
300 Series 2-in-1 Battery-Powered Hydraulic Cable Cutter and Crimper
300 Series 2-in-1 Battery-Powered Hydraulic Cable Cutter and Crimper
300 Series 2-in-1 Battery-Powered Hydraulic Cable Cutter and Crimper
300 Series 2-in-1 Battery-Powered Hydraulic Cable Cutter and Crimper
300 Series 2-in-1 Battery-Powered Hydraulic Cable Cutter and Crimper
300 Series 2-in-1 Battery-Powered Hydraulic Cable Cutter and Crimper
300 Series 2-in-1 Battery-Powered Hydraulic Cable Cutter and Crimper

300 Series 2-in-1 Battery-Powered Hydraulic Cable Cutter and Crimper

Professional Cable Cutting and Crimping in One Tool

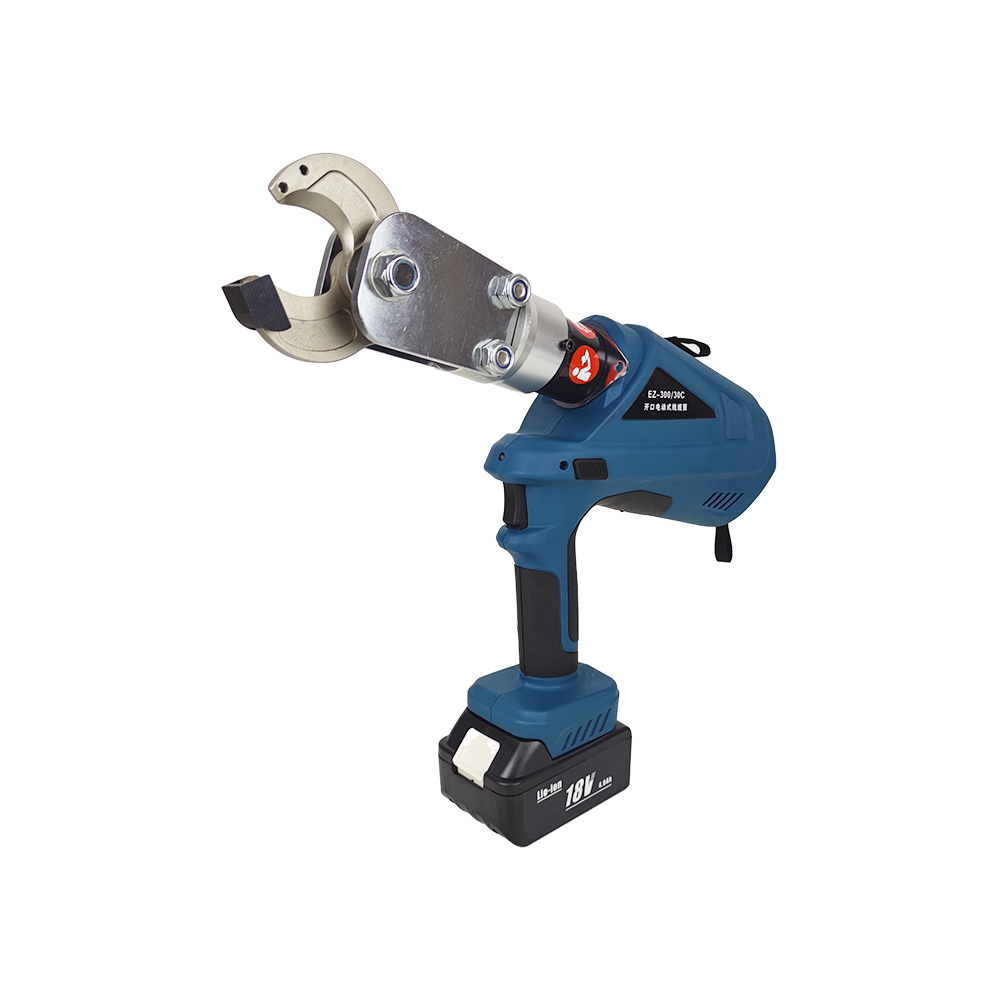

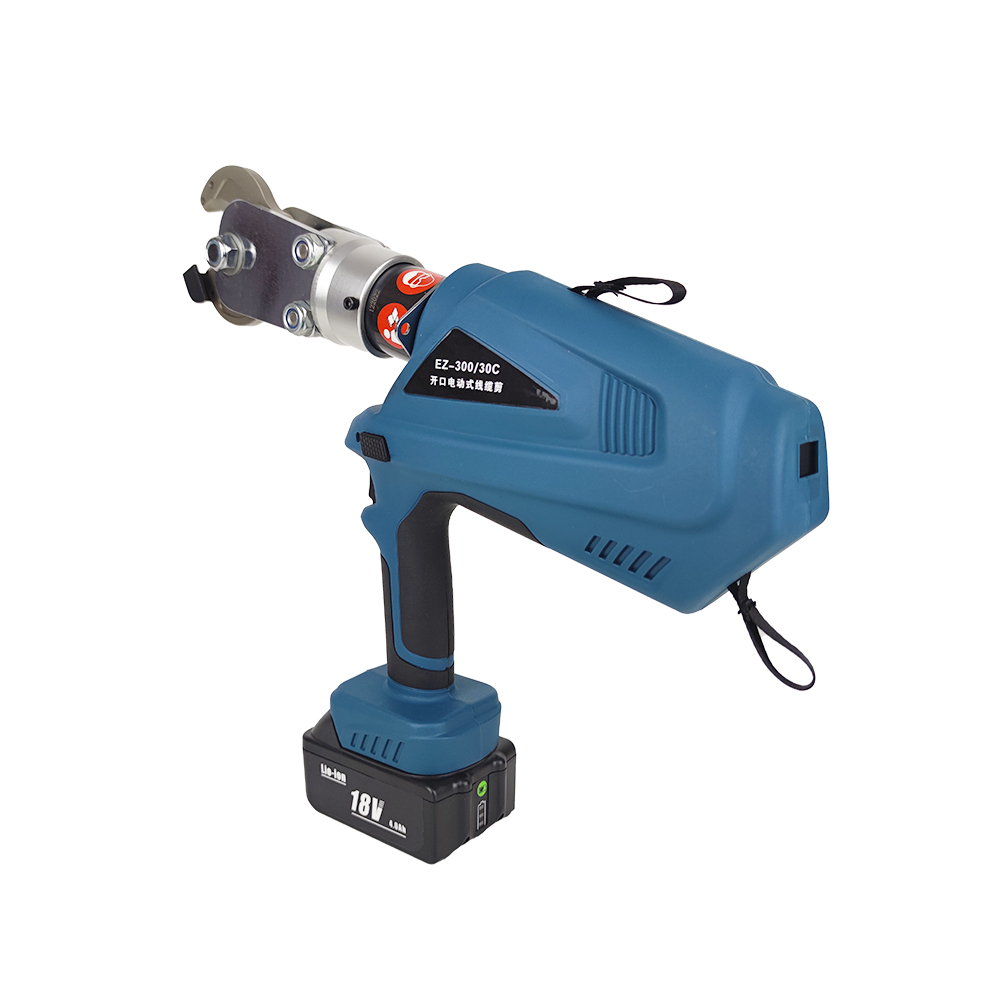

The CHANGYOU MasterCut 300 Series combines high-strength cutting, precise crimping, and reliable hydraulic power in a single, compact battery-powered tool. Designed for copper, aluminum, armored cables, and ACSR, it is ideal for power, construction, machinery, and industrial applications.



Contact Us
PREV：300 Series 2-in-1 Battery-Powered Hydraulic Cable Cutter and CrimperNEXT：300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
  • Specification
  • Contact Us
Model EZ-300/30C Voltage 18V
Net weight 6.25Kg Gross weight 13.7Kg
Cutting force 60KN Capacity 4.0Ah
Rated Pressure 70Mpa Charging time 2 Hours
Cutting range Copper and aluminum armored cables below 30mm
Cutting/Charge 320 Times per saturation voltage
Cutting/Cycle 3-6 seconds (depending on the size of the cable diameter)

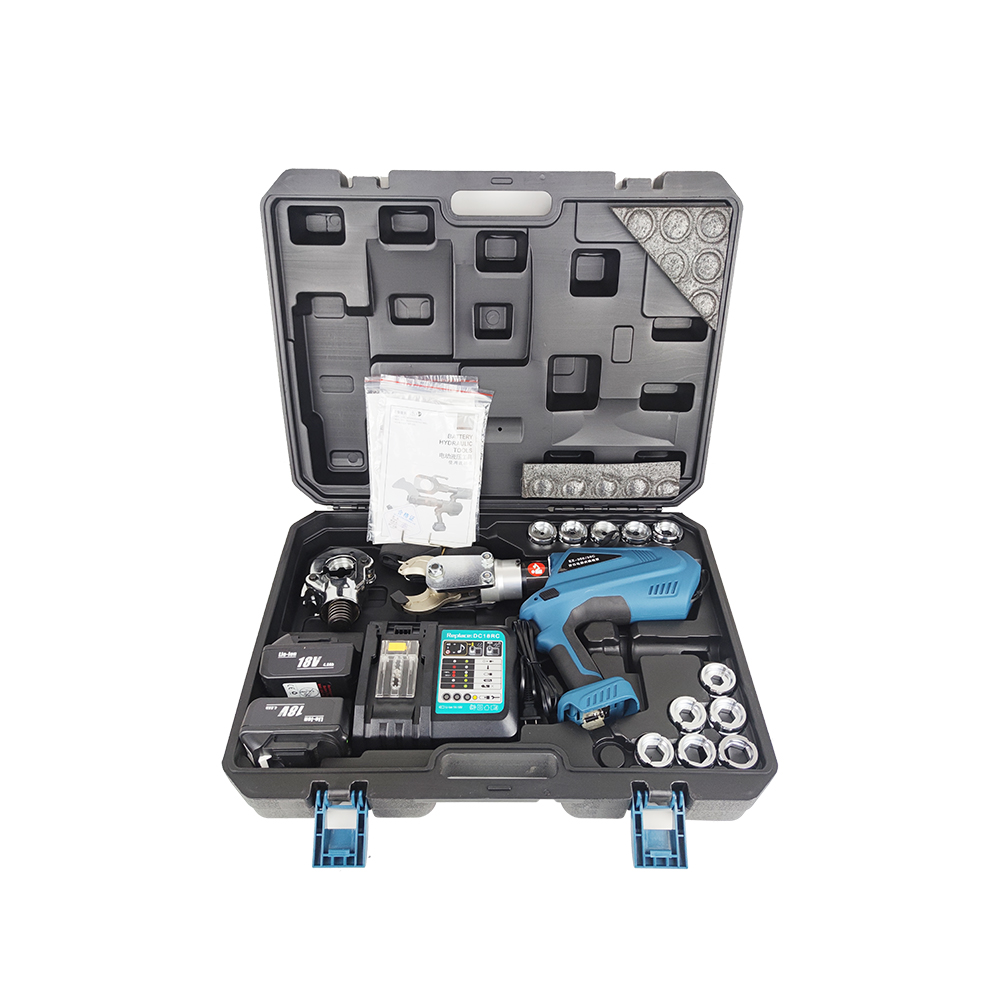

Accessories Battery:2PC, Charger:1PC, Seals:1Set
Mould 10/16/25/35/50/70/95/120/150/185/240/300mm²
Packing size 580mm*450mm*150mm

Key Features by Model
ES-300/32: Cuts copper and aluminum cables up to 30mm, crimps 16–300mm² terminals. Supports remote control operation within 20 meters.
LS-300/30C: Cuts up to 30mm armored and Cu/Al cables, crimp range 10–300mm², up to 130 cuts per charge. Quick die replacement and precise LED monitoring.
EZ-300/30C: Cuts up to 40mm ACSR/Cu/Al armored cables, crimp range 10–300mm², 120 cycles per charge, fast crimping 6–18 seconds depending on cable size.

Upgrade your cable cutting and crimping workflow with the all-in-one MasterCut 300—powerful, efficient, and ready for any job.
