300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper

Home / Products / Cutting Tools / Battery Cable Cutter / 300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper

300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper

Power through any cable job with the 300/400 Series, the ultimate 2-in-1 hydraulic tool for cutting and crimping copper, aluminum, armored cables, and ACSR. Engineered for speed, precision, and durability, it is the choice of professionals in power, construction, machinery, and industrial fields.

Contact Us
PREV：300/400 Series 2-in-1 Hydraulic Cable Cutter and CrimperNEXT：Large-caliber 100 Series Battery-Powered Hydraulic Cable Cutter
  • Specification
  • Contact Us
Model EZ-55 Voltage 18V
Cutting Force 120 KN Capacity 4.0Ah
Stroke φ58mm Charging time 2 hours
Cutting range φ58mm (Cu/Al cable and armoured cable)
Cutting/Charge 130 Times per saturation voltage (Copper-aluminium wire)
Cutting/Cycle 10-14 seconds (According to the diameter of the cable)

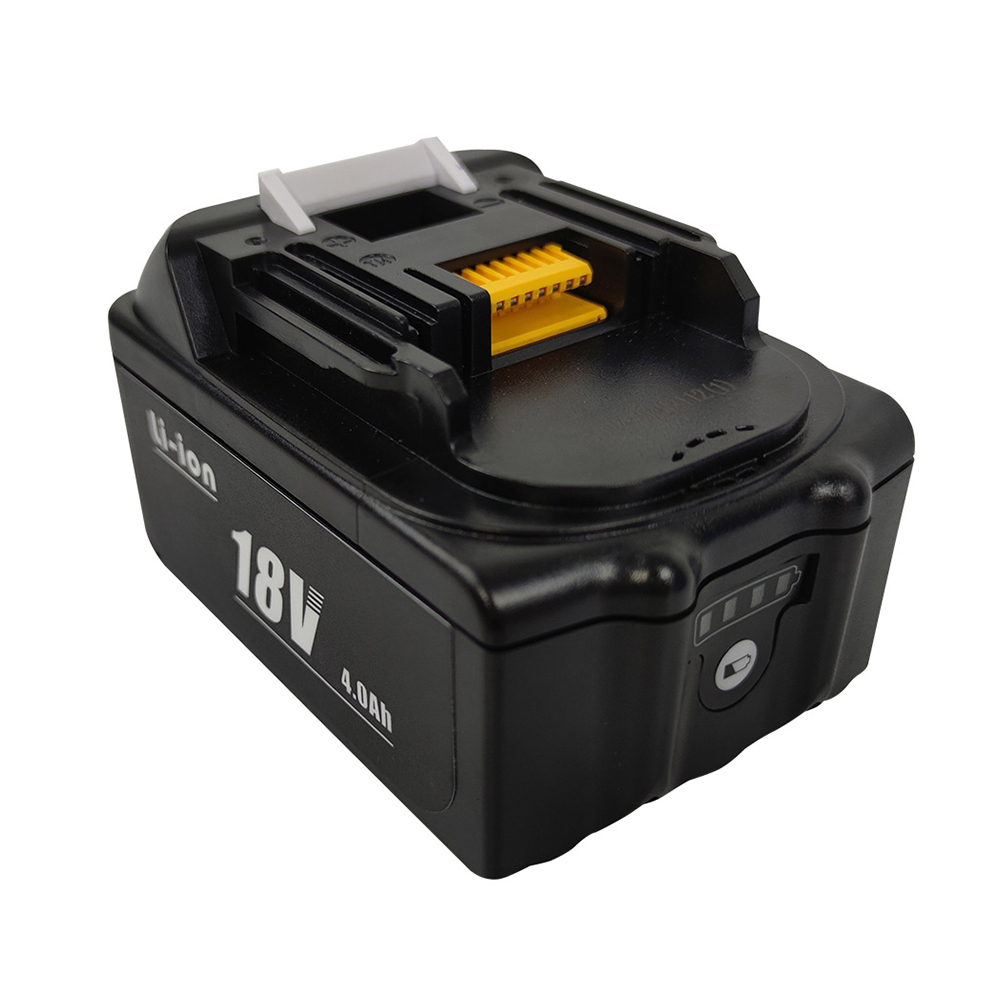

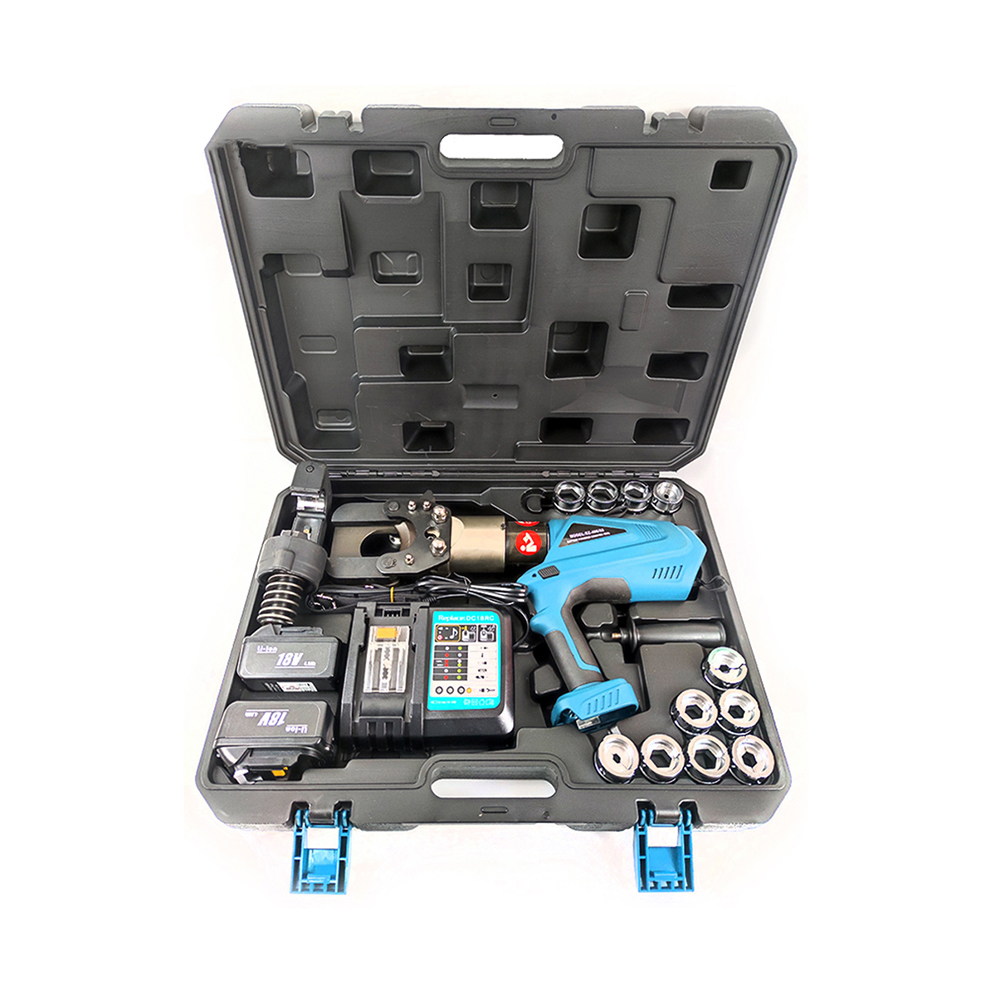

Accessories Battery:2 pc, Charger:1 pc, Seals: 1 set

Model EZ-400 Output 120KN
Stroke 42mm Crimping range 16-400mm²
Battery voltage 18V Battery capacity 4.0Ah
Charging time 2 hours Weight 8.0Kg
Crimping times 320 times per saturation voltage (copper wire:150mm²)
Crimping time 3-6 seconds (according to the diameter of the cable)

Models Highlights
EZ-300/40: Cuts up to 40mm, crimp 10–300mm², fast 6–18s cycles.
EZ-300/65C: Cuts up to 65mm, crimp 10–300mm², 120 cycles per charge.
EZ-400/55: Cuts up to 58mm, crimp 16–400mm², up to 320 cycles, ultra-fast 3–6s per crimp.

Effortless, fast, and reliable—upgrade your workflow with the 300/400 Series.
