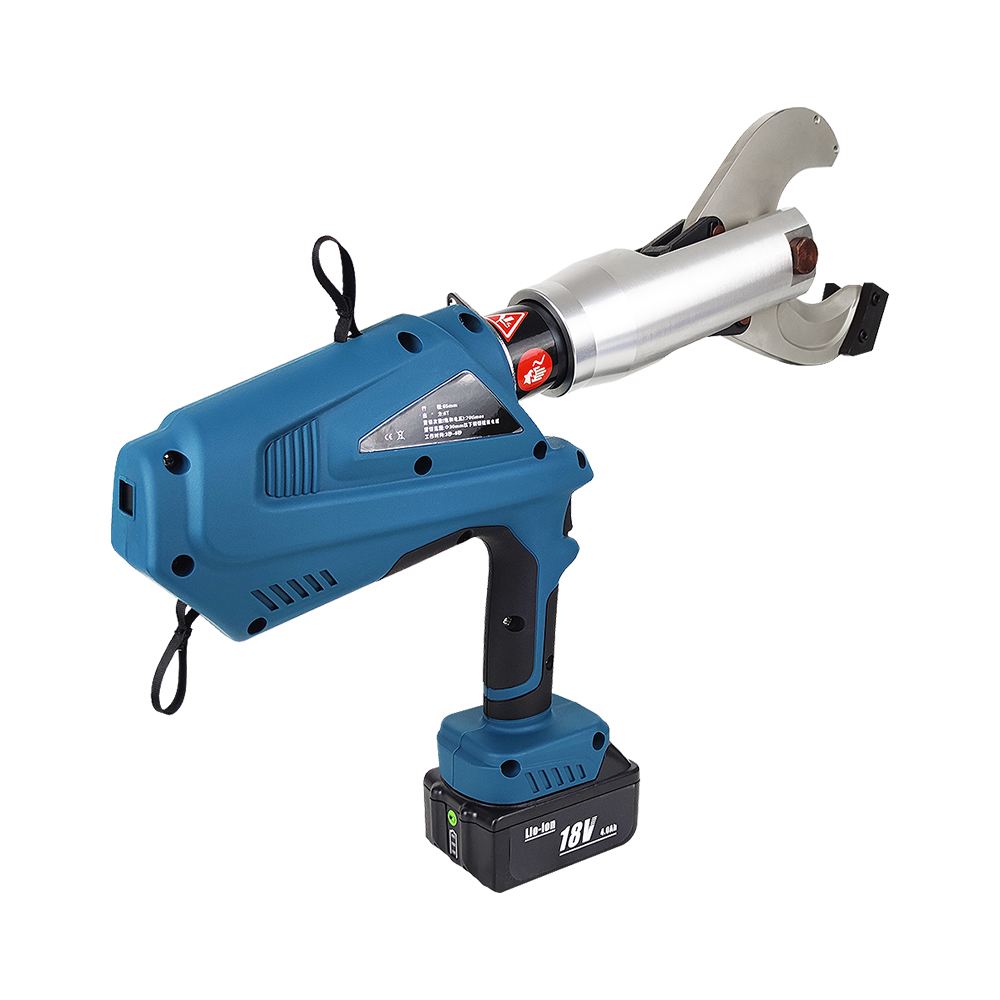

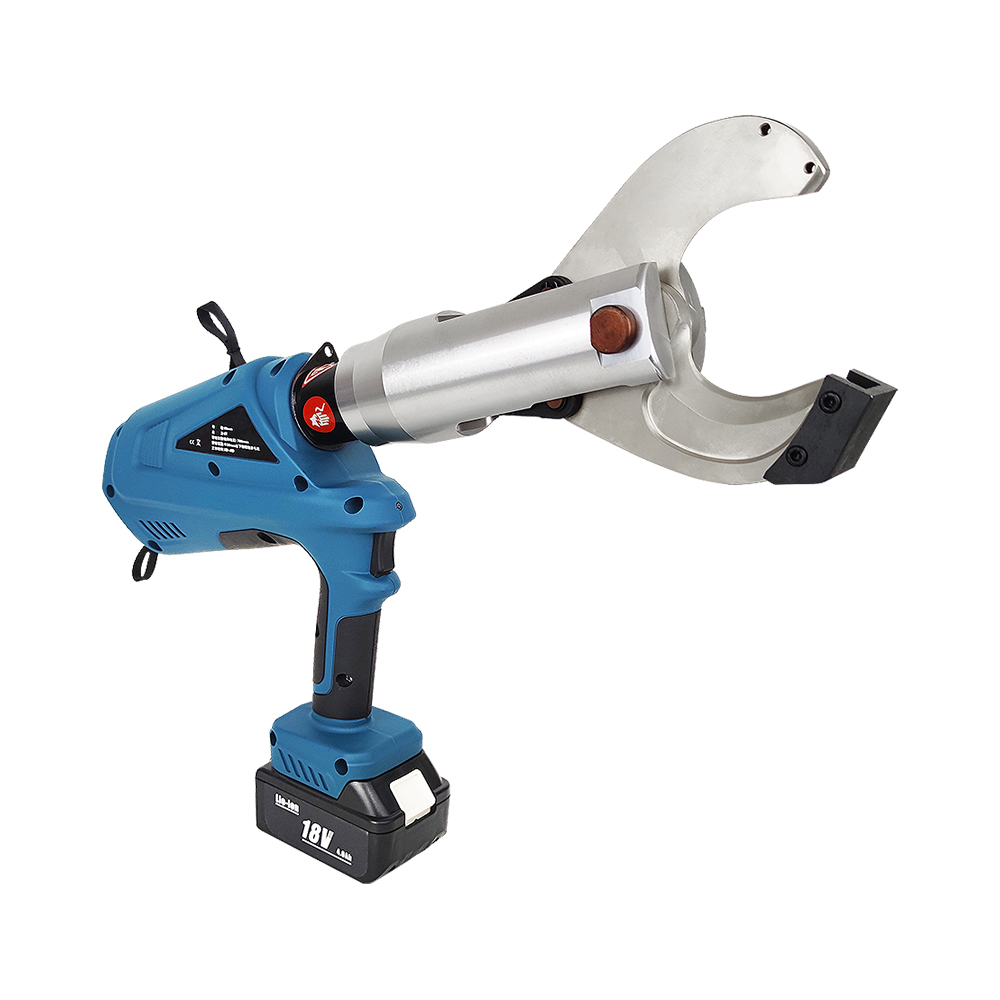

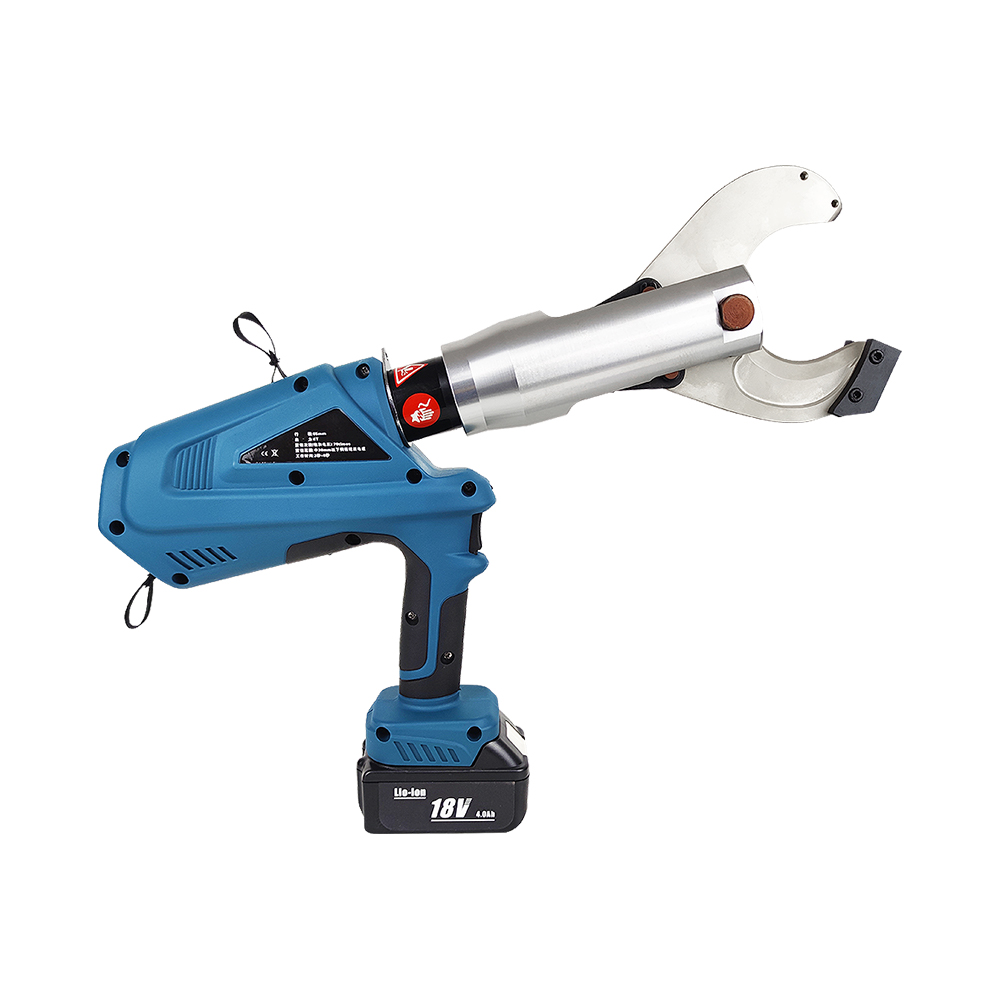

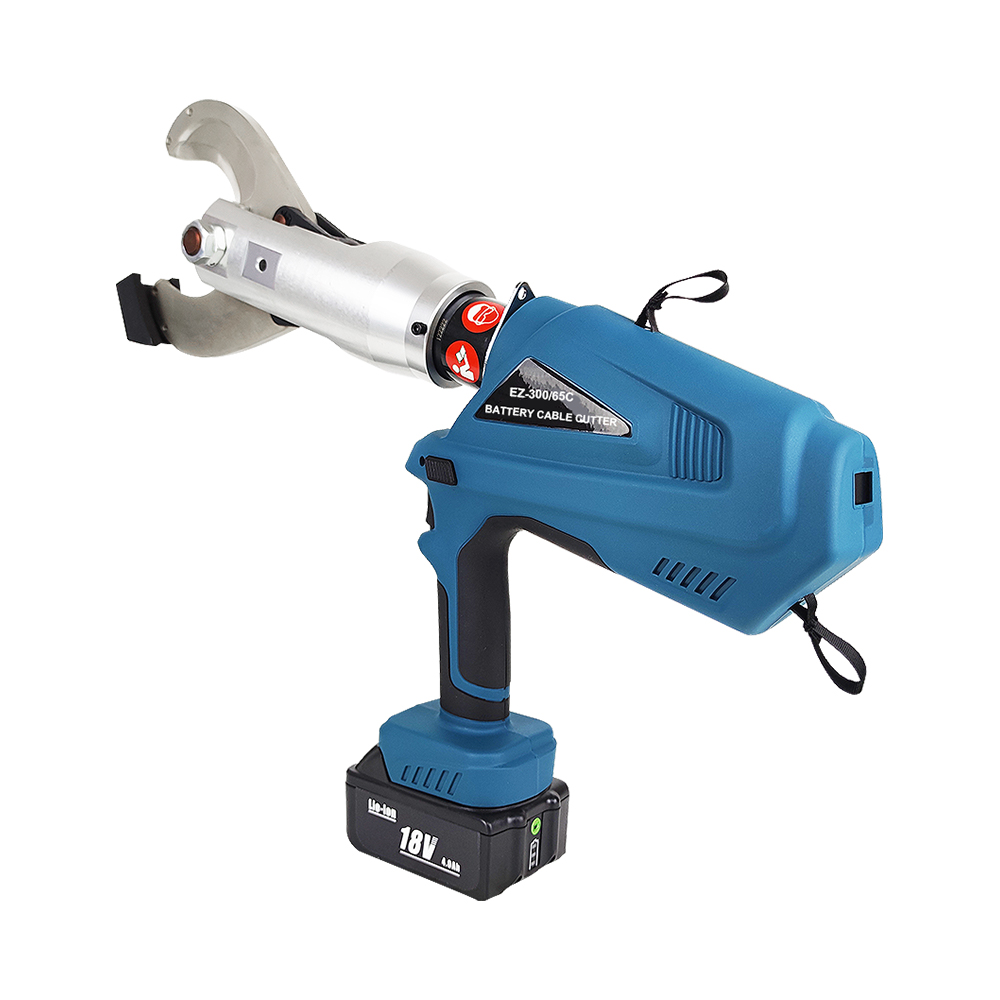

300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper

Home / Products / Cutting Tools / Battery Cable Cutter / 300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper

300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper

Power through any cable job with the 300/400 Series, the ultimate 2-in-1 hydraulic tool for cutting and crimping copper, aluminum, armored cables, and ACSR. Engineered for speed, precision, and durability, it is the choice of professionals in power, construction, machinery, and industrial fields.

Contact Us
PREV：300/400 Series 2-in-1 Hydraulic Cable Cutter and CrimperNEXT：300/400 Series 2-in-1 Hydraulic Cable Cutter and Crimper
  • Specification
  • Contact Us
Model EZ-300/65C Voltage 18V
Net weight 7.52Kg Gross weight 14.5Kg
Cutting force 60KN Capacity 4.0Ah
Rated Pressure 70Mpa Charging time 2 Hours
Cutting range Copper and aluminum armored cables below 65mm
Cutting/Charge 70 Times per saturation voltage
Cutting/Cycle 10-15 seconds (depending on the size of the cable diameter)
Accessories Battery:2PC, Charger:1PC, Seals:1Set
Mould 10/16/25/35/50/70/95/120/150/185/240/300mm²
Packing size 580mm*450mm*15mm

Models Highlights
EZ-300/40: Cuts up to 40mm, crimp 10–300mm², fast 6–18s cycles.
EZ-300/65C: Cuts up to 65mm, crimp 10–300mm², 120 cycles per charge.
EZ-400/55: Cuts up to 58mm, crimp 16–400mm², up to 320 cycles, ultra-fast 3–6s per crimp.

Effortless, fast, and reliable—upgrade your workflow with the 300/400 Series.
