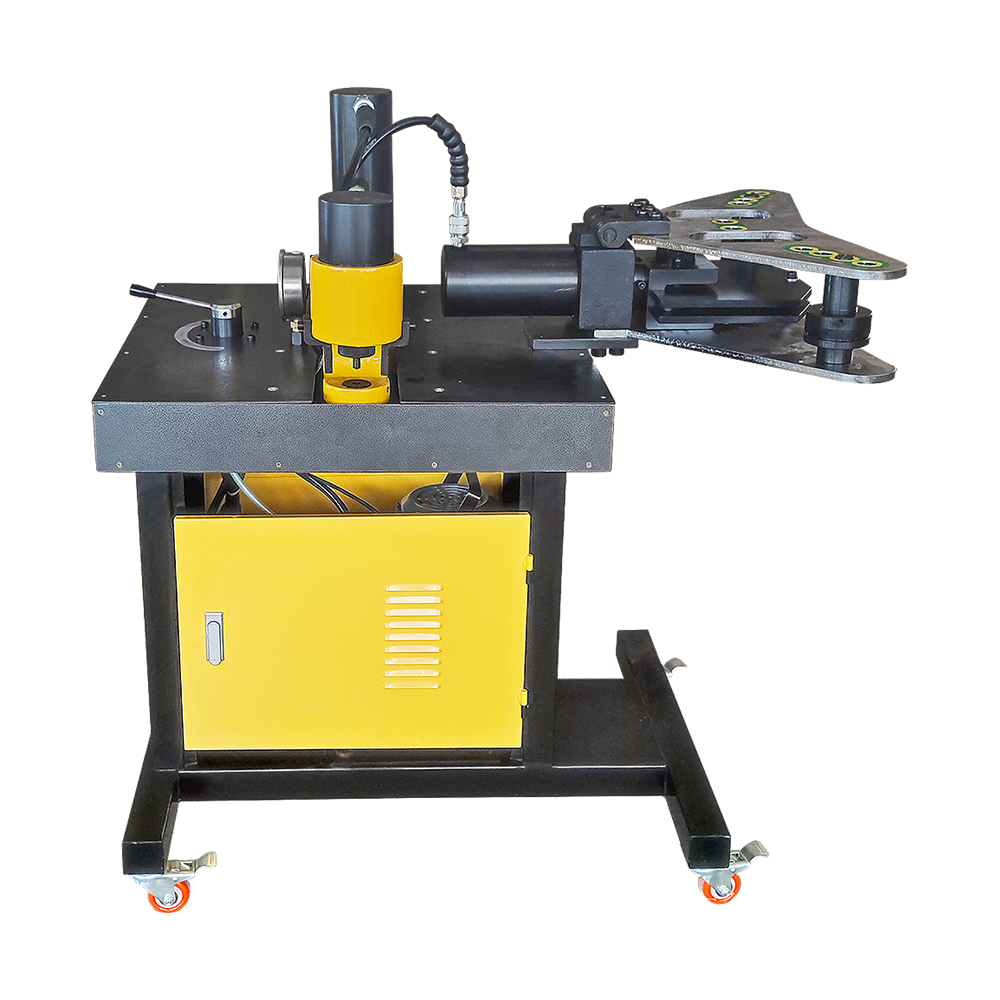

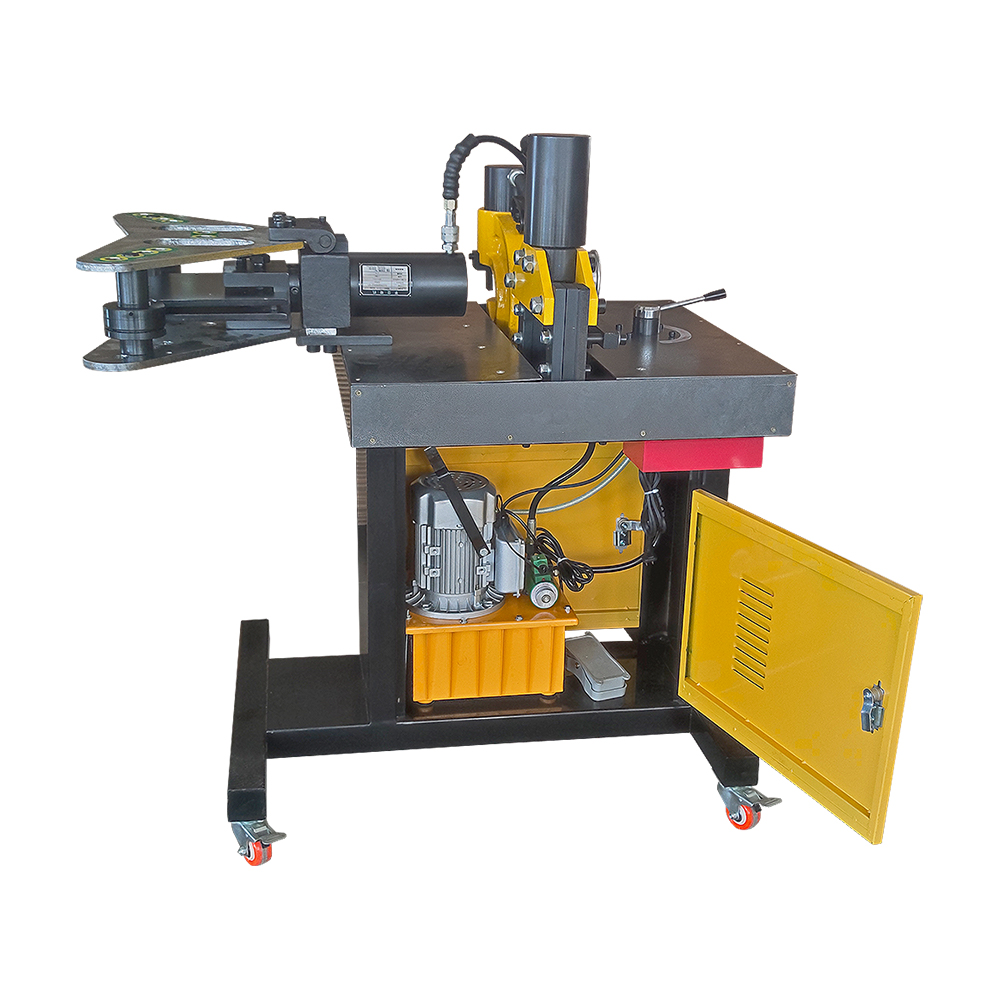

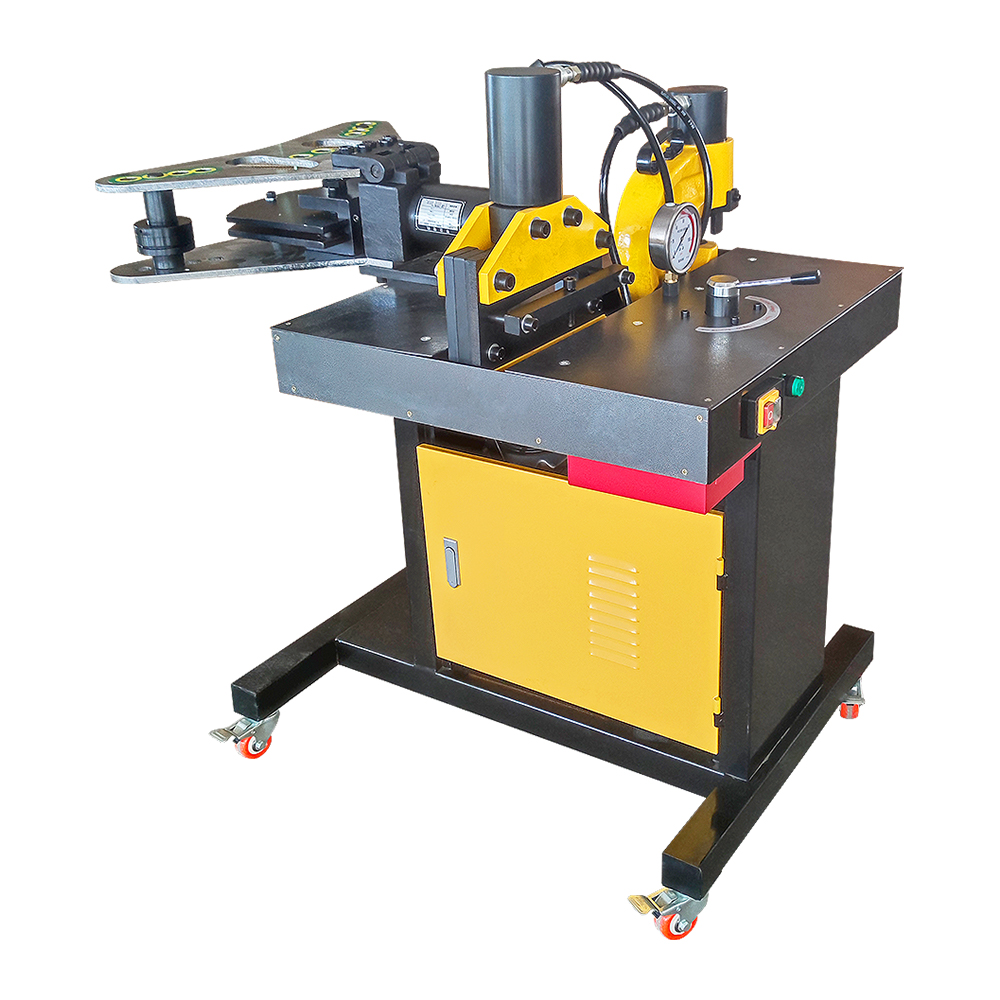

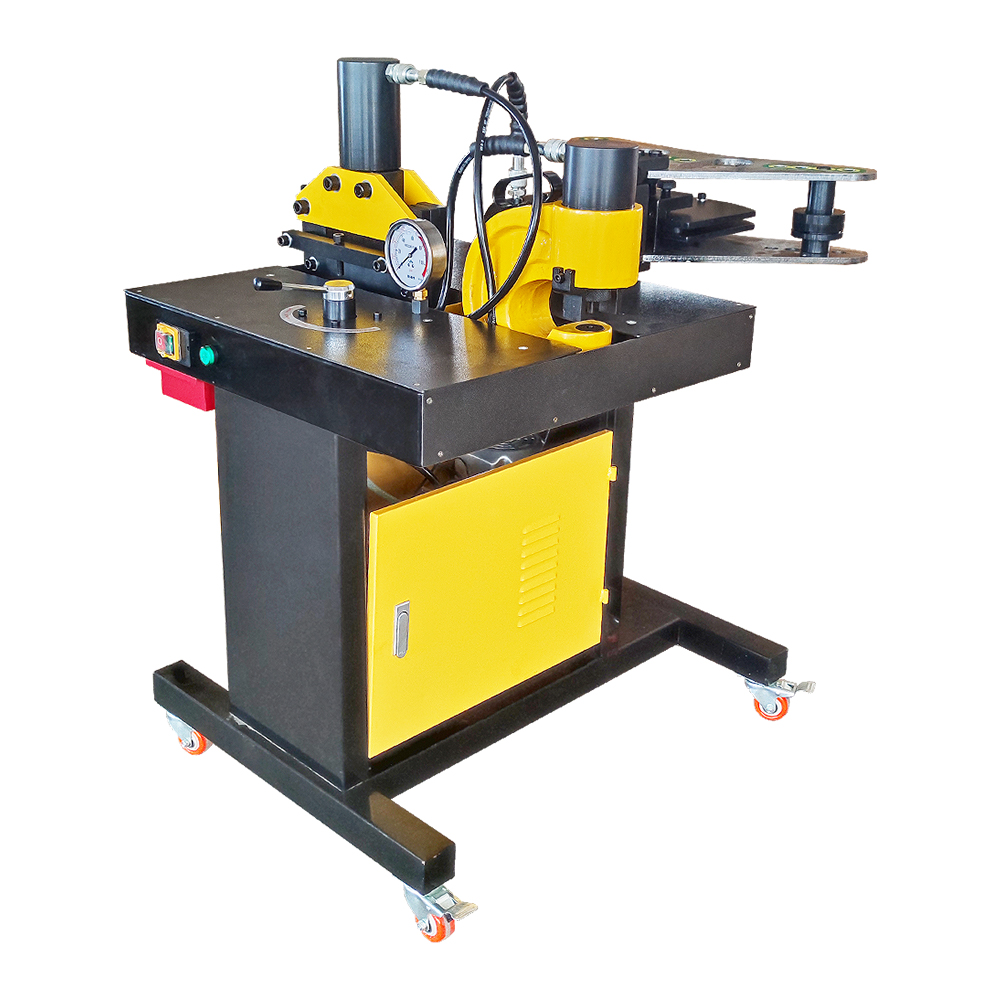

DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine

Home / Products / Busbar Processing Machine / DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine
DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine

DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching Machine

DHY Series 3-in-1 Hydraulic Busbar Processing Machine is the ultimate solution for fast, precise, and reliable busbar fabrication. Designed for panel manufacturers, electrical workshops, and industrial assembly, this machine combines cutting, punching, and bending in a single, compact unit.

Contact Us
PREV：DHY Series 3-in-1 Hydraulic Busbar Cutting Bending Punching MachineNEXT：VHB Series 3-in-1 Hydraulic Angle Iron Processing Machine
  • Specification
  • Contact Us
Model DHY-401
Functions With three functions, cutting, punching, and bending
Input/control voltage Single phase 50Hz, 220V
Rating working oil pressure 700kgf/cm²
Cutting output 35Ton
Busbar cutting capability Copper bus bar/aluminum bus bar 200mm×12mm
Punching output 35Ton
Hole to edge distance 110mm
Punching Capability Copper: 6- 20.5 mm / Aluminium 12 mm
Standard assembled punching dies 7、9、10.5、13.8、17、20.5mm
Bending output 35Ton
Horizontal bending capability 125×12.5mm
