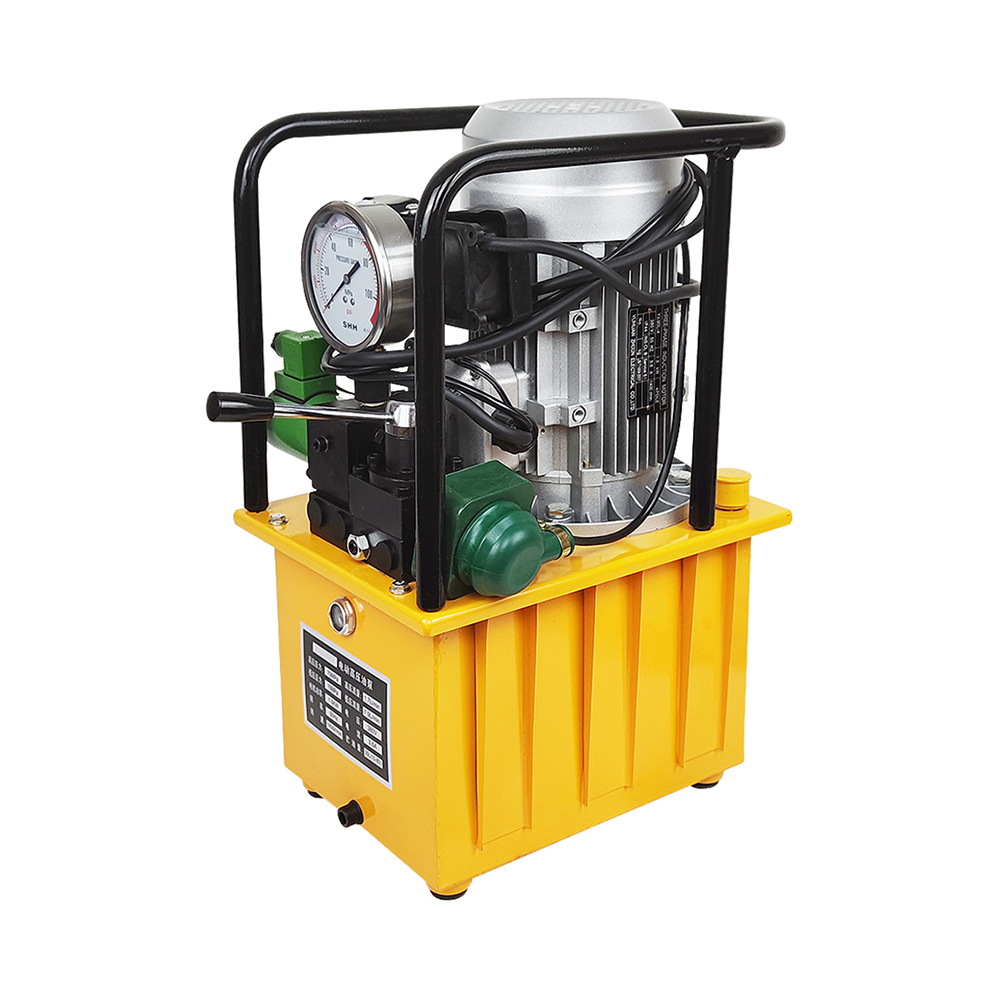

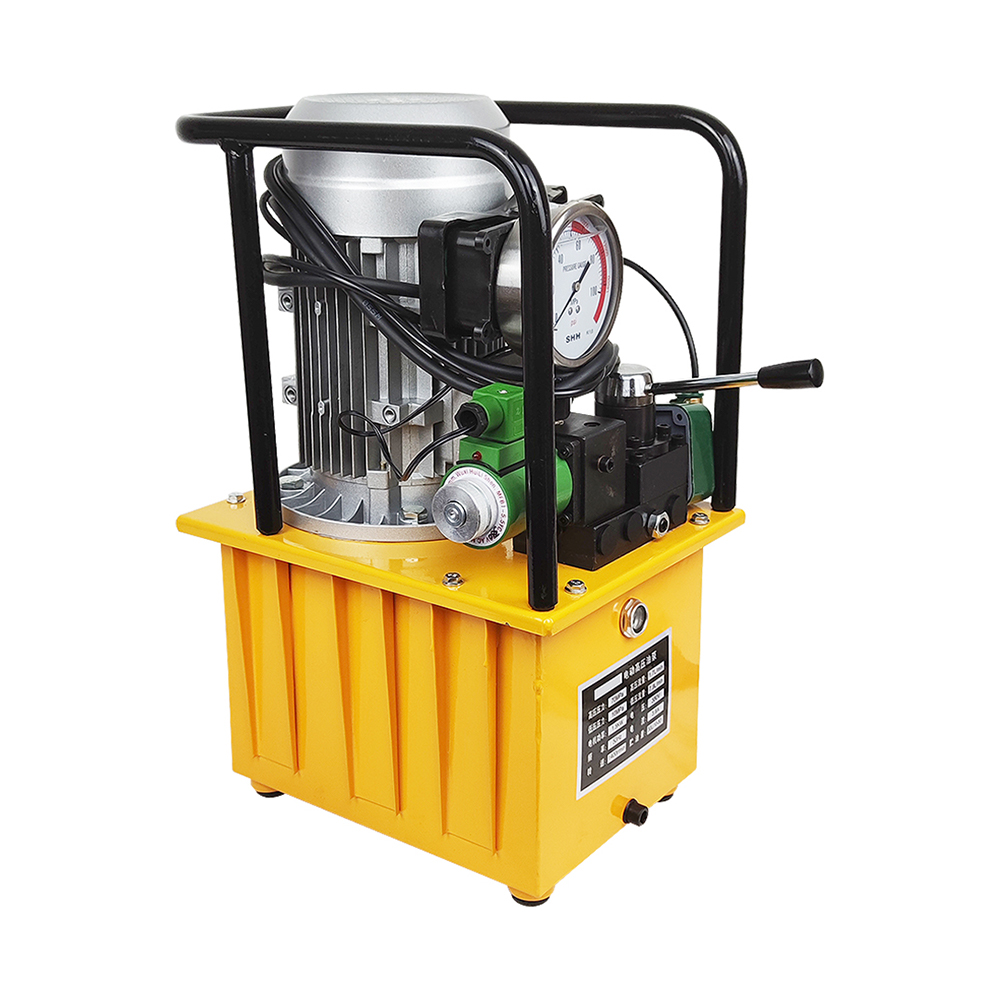

750W–1.5KW Three Way Hydraulic Electric Pump 700 Bar High Pressure Power Pack

Run Three Hydraulic Tools at Once — Without Switching Lines.
This three-circuit hydraulic electric pump is built for operations that can't afford downtime between tool changes. With three independent output circuits, you can connect a cutting machine, bending machine, and punching machine simultaneously — then switch between them electrically, without manually disconnecting and reconnecting hydraulic lines. Three jobs, one pump, zero interruption.
Enough pressure and flow for demanding work.
Delivering up to 70 MPa (10,000 PSI) at high pressure and up to 7.9 L/min at low pressure, this hydraulic electric pump handles the full range from precision pressing to high-volume flow applications. Available in 750W and 1500W motor options to match your cycle frequency and load requirements.
Electromagnetic valve control on all three circuits.
Each circuit is independently controlled by a solenoid valve, meaning you select which tool is active with a switch — not a wrench. Compared to manual multi-circuit valves, electromagnetic control is faster, easier, and significantly reduces operator fatigue over a full workday.
Manual pressure relief valve for direct override.
When you need hands-on pressure control, the manual relief valve is right there — pull up to pressurize, pull down to release. Instant, mechanical, no electronics in the loop.
Shockproof gauge keeps readings honest.
Even when your tooling is vibrating heavily, the shockproof pressure gauge holds a stable, clear reading. You always know your working pressure without waiting for the needle to settle.
Full visibility into pump health.
The oil level window gives you a real-time check on hydraulic fluid without opening anything. The built-in thermometer monitors fluid temperature in the tank continuously, protecting the pump during long or back-to-back cycles.
Solid copper throughout where it counts.
All hydraulic interfaces are pure copper — high hardness, rust-resistant, and rated for long service life under high-cycle industrial use. The motor uses an aluminum casing with copper core winding for stable efficiency and effective heat management.
Simple to maintain.
Fill with 15#–46# anti-wear hydraulic oil, keep the level above the oil window, and the pump is ready to run. Oil tank capacity starts at 7L (750W model) and 10L (1500W model), with customization available for higher-demand setups.
Motor: 750W / 1500W | Voltage: 220V / 380V | Max Pressure: 70 MPa / 10,000 PSI | High Pressure Flow: 0.9–1.7 L/min | Low Pressure Flow: 5–7.9 L/min | Oil Capacity: 7L–10L (customizable) | Speed: 1400 RPM
