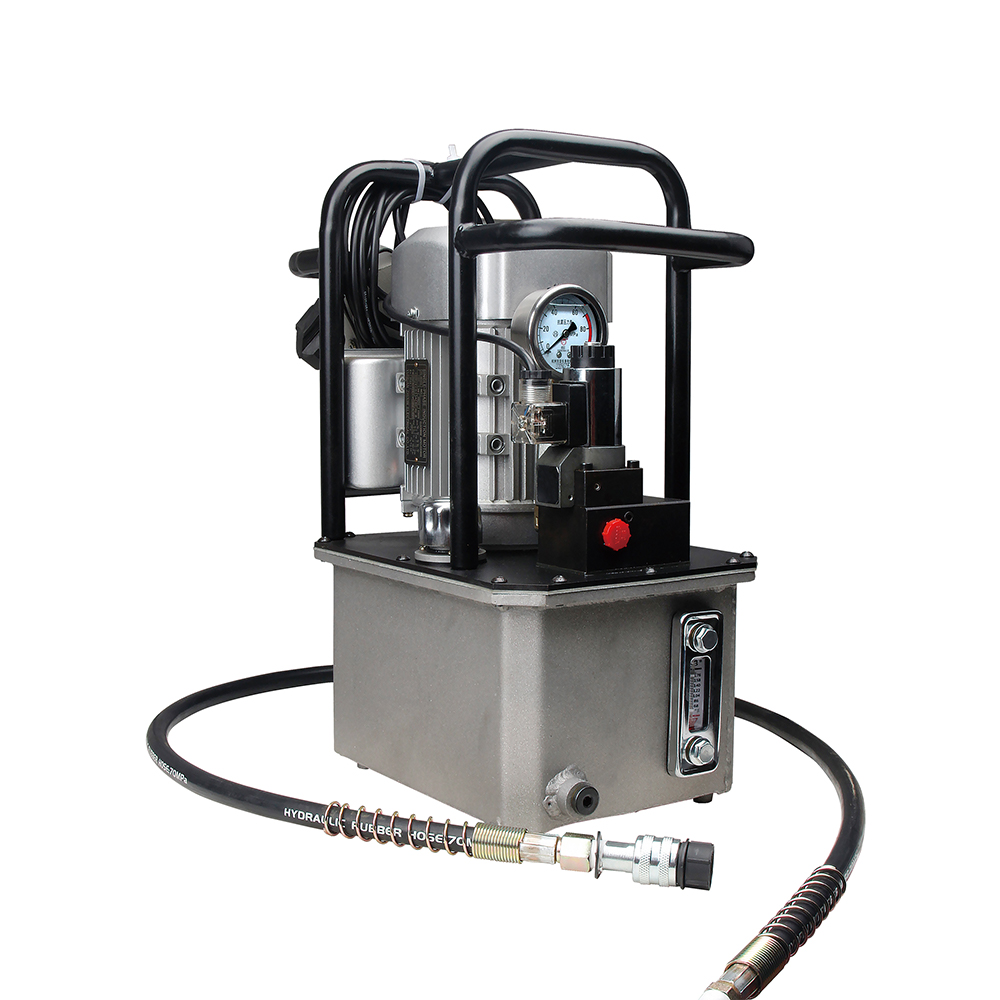

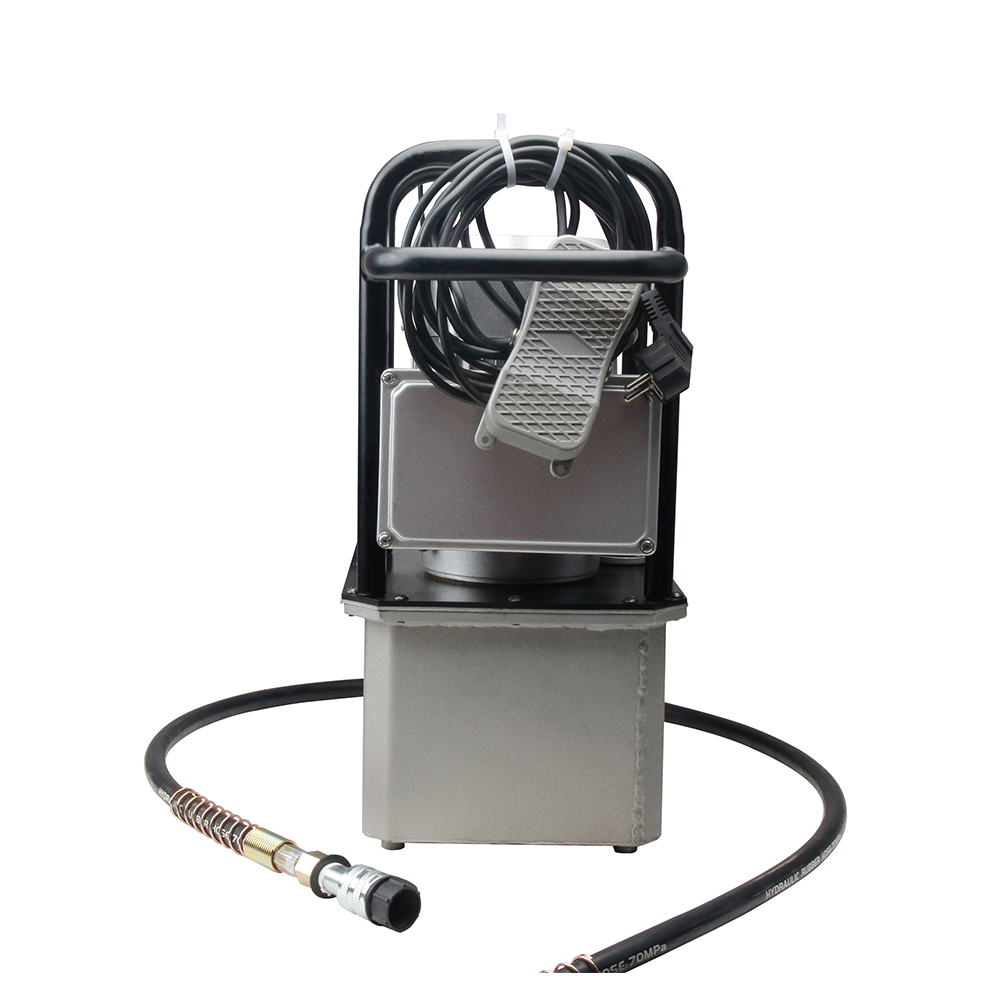

750W–3KW Single Acting Hydraulic Electric Pump 700 Bar High Pressure Power Pack

The Single Acting Hydraulic Electric Pump That Grows With Your Operation.
From light-duty punching and clamping to heavy industrial cutting, bending, and flange work, this single-acting hydraulic electric pump delivers consistent 70 MPa (10,000 PSI) pressure across every application. Available in 750W, 1500W, and 3000W configurations, you choose the power level that fits your workload — and upgrade when your operation demands it.
Dual-stage output: pressure when you need force, flow when you need speed.
The two-stage high/low-pressure system automatically shifts between high-pressure output (up to 70 MPa) for heavy work and high-flow low-pressure output (up to 14 L/min on the 3KW model) for fast cylinder travel. The pump reads your load and boosts pressure on its own — no manual adjustment mid-cycle.
Automatic protection keeps your equipment safe.
Built-in pressure overload protection prevents the system from exceeding safe operating limits, protecting both the pump and your connected tools. Automatic sealing protection ensures no leakage under pressure, so you stay focused on the work instead of watching for problems.
Electromagnetic valve control — simple and fast.
The solenoid valve configuration means the pump is ready to go the moment you press the switch. Motor run-in takes just 1–2 minutes, then the output hydraulic oil builds pressure automatically with the load. When work is done, switch off, release pressure, and disconnect — the whole sequence is straightforward even for first-time operators.
Built to take the bumps of real job sites.
The reinforced all-around handle design protects the pump from impacts and makes it genuinely easy to carry between work positions. The aluminum housing keeps the unit light without sacrificing structural integrity.
See everything without opening anything.

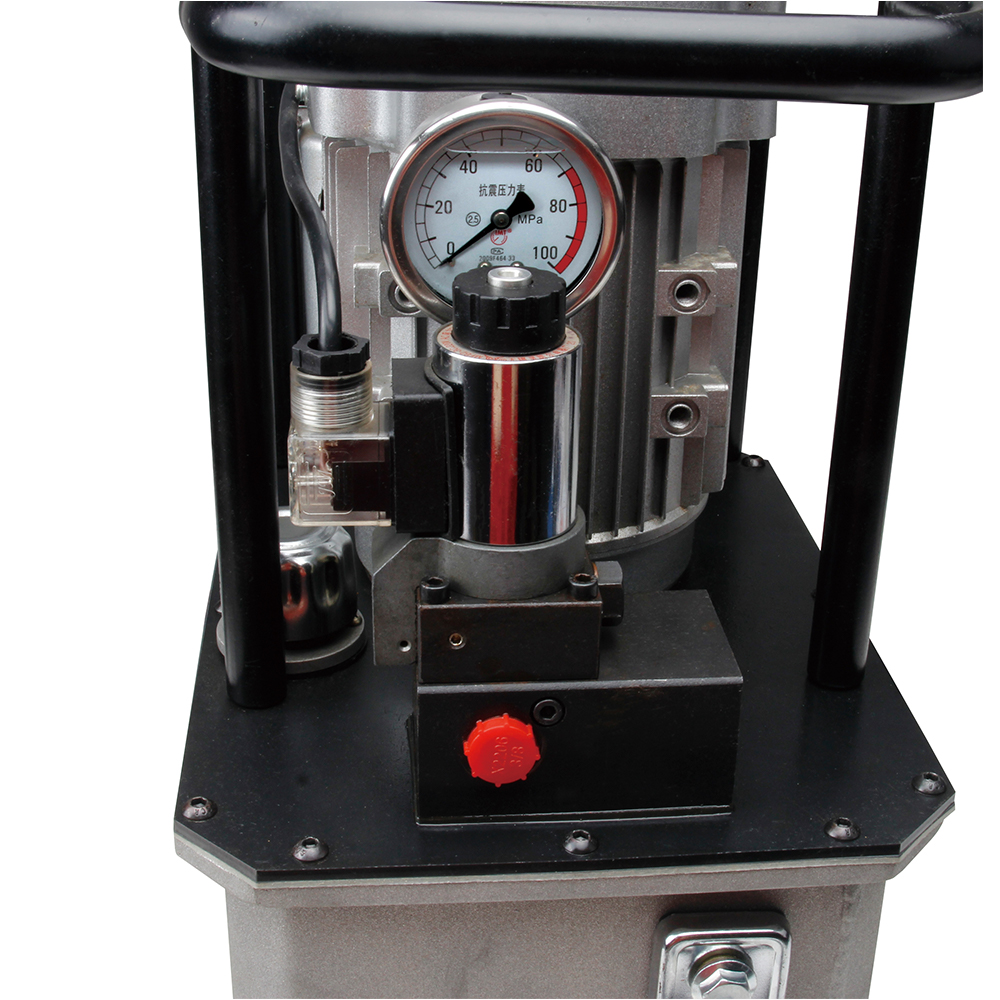

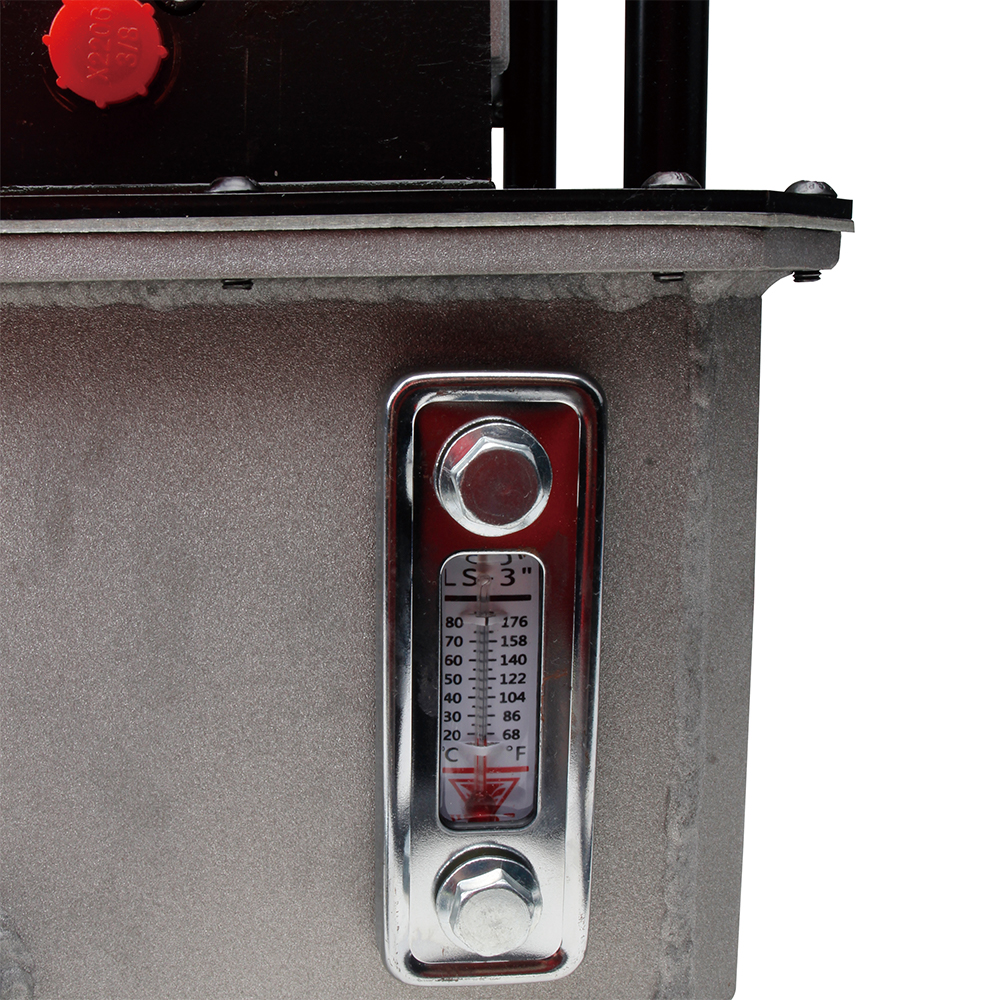

The shockproof pressure gauge gives you a stable pressure reading even under heavy vibration. The dual oil temperature and level display lets you read both fluid volume and temperature at a glance — with both °C and °F readouts — so you always know the pump's condition during operation.

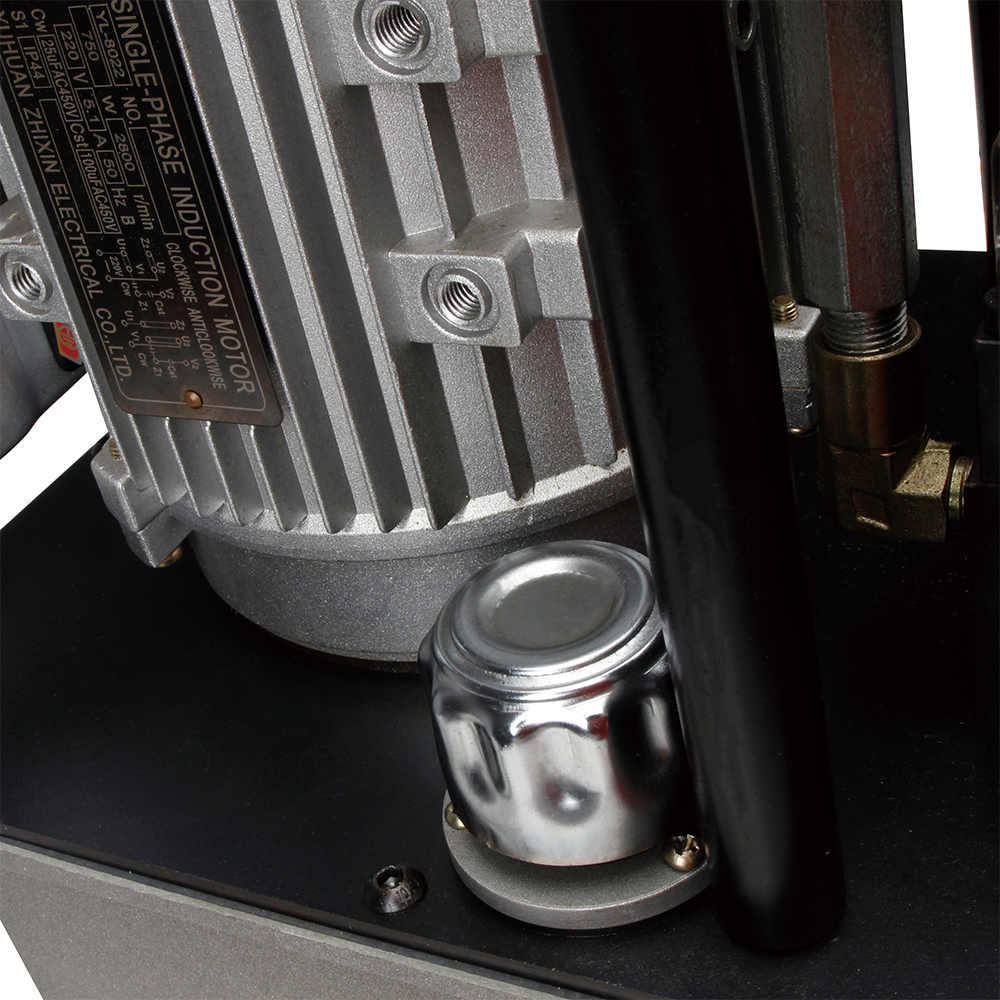

Solid copper interfaces, aluminum core motor.
All hydraulic connection interfaces are pure copper — rust-resistant and built for long service life under repeated high-pressure cycling. The motor uses an aluminum casing with copper core winding for efficient heat dissipation and long-term output stability.
Easy to maintain, compatible with standard hydraulic oil.
Compatible with 15#–46# anti-wear hydraulic oil (thinner is better for smaller models). Oil tank capacity ranges from 8L to 30L, depending on the model, with larger capacity options available on request. Always fill above the oil window line before starting.
Motor: 750W / 1500W / 3000W | Voltage: 220V / 380V | Max Pressure: 70 MPa / 10,000 PSI | High Pressure Flow: 0.6–2.8 L/min | Low Pressure Flow: 3.5–14 L/min | Oil Capacity: 8L–30L (customizable) | Speed: 1400–2800 RPM
