Large-caliber 100 Series Battery-Powered Hydraulic Cable Cutter

Home / Products / Cutting Tools / Battery Cable Cutter / Large-caliber 100 Series Battery-Powered Hydraulic Cable Cutter
Large-caliber 100 Series Battery-Powered Hydraulic Cable Cutter
Large-caliber 100 Series Battery-Powered Hydraulic Cable Cutter
Large-caliber 100 Series Battery-Powered Hydraulic Cable Cutter
Large-caliber 100 Series Battery-Powered Hydraulic Cable Cutter
Large-caliber 100 Series Battery-Powered Hydraulic Cable Cutter
Large-caliber 100 Series Battery-Powered Hydraulic Cable Cutter
Large-caliber 100 Series Battery-Powered Hydraulic Cable Cutter
Large-caliber 100 Series Battery-Powered Hydraulic Cable Cutter
Large-caliber 100 Series Battery-Powered Hydraulic Cable Cutter
Large-caliber 100 Series Battery-Powered Hydraulic Cable Cutter
Large-caliber 100 Series Battery-Powered Hydraulic Cable Cutter
Large-caliber 100 Series Battery-Powered Hydraulic Cable Cutter

Large-caliber 100 Series Battery-Powered Hydraulic Cable Cutter

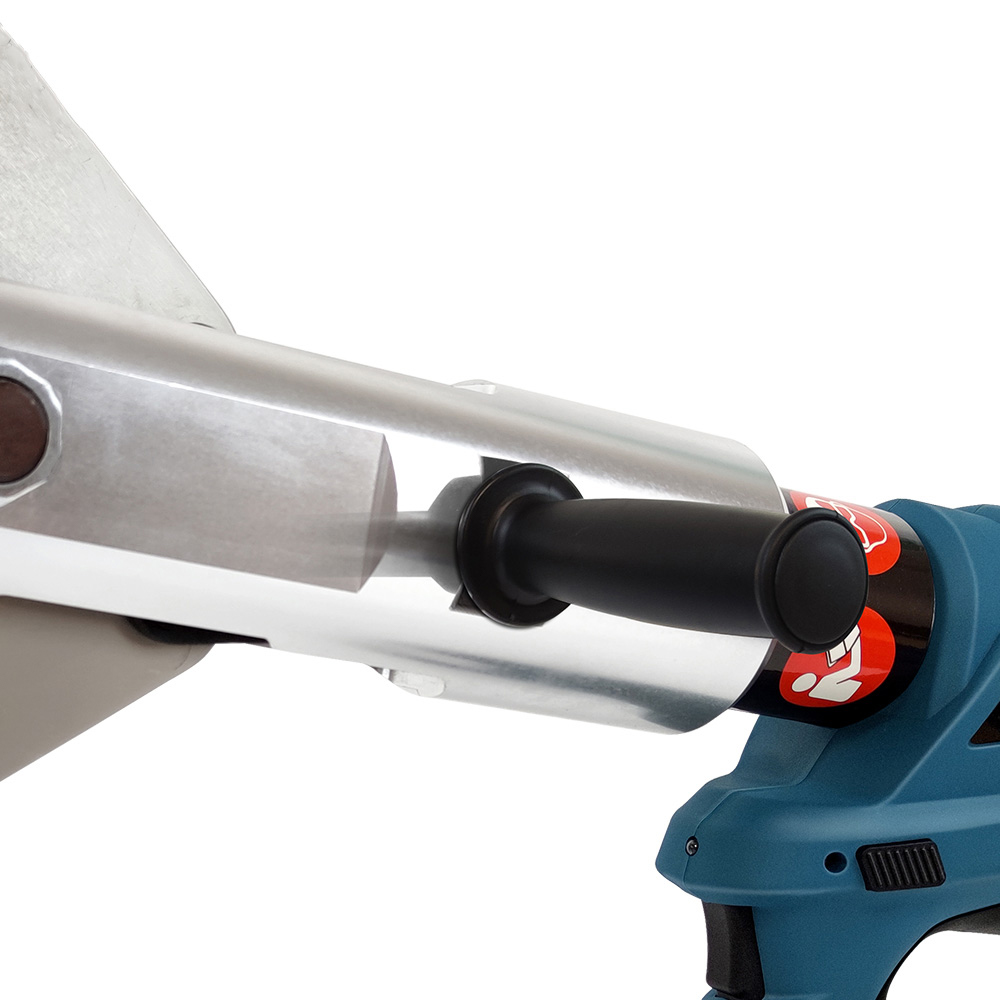

The Large-caliber 100 Series is a professional battery-powered hydraulic cable cutter engineered for cutting copper, aluminum, armored cables, and ACSR up to 105mm. Built for high performance, reliability, and efficiency, it is the ultimate tool for power utilities, construction, steel, and industrial applications.

Contact Us
PREV：Large-caliber 100 Series Battery-Powered Hydraulic Cable CutterNEXT：Large-caliber 100 Series Battery-Powered Hydraulic Cable Cutter
  • Specification
  • Contact Us
Model EZ-105C Voltage 18V
Crimping Force 120KN Capacity 4.0Ah
Stroke 105mm Charging time 2 hours
Cutting range Φ105mm (Cu/Al cable and armoured cable)
Crimp/Charge 130 Times per saturation voltage (Copper-aluminum wire)
Crimping Cycle 10-14 seconds (According to the diameter of the cable)
Accessories Battery: 2 pc, Charger: 1 pc, Seals: 1 set

Key Features
Extreme Cutting Capacity: Effortlessly cut cables up to 105mm in diameter, suitable for large-scale industrial and electrical projects.

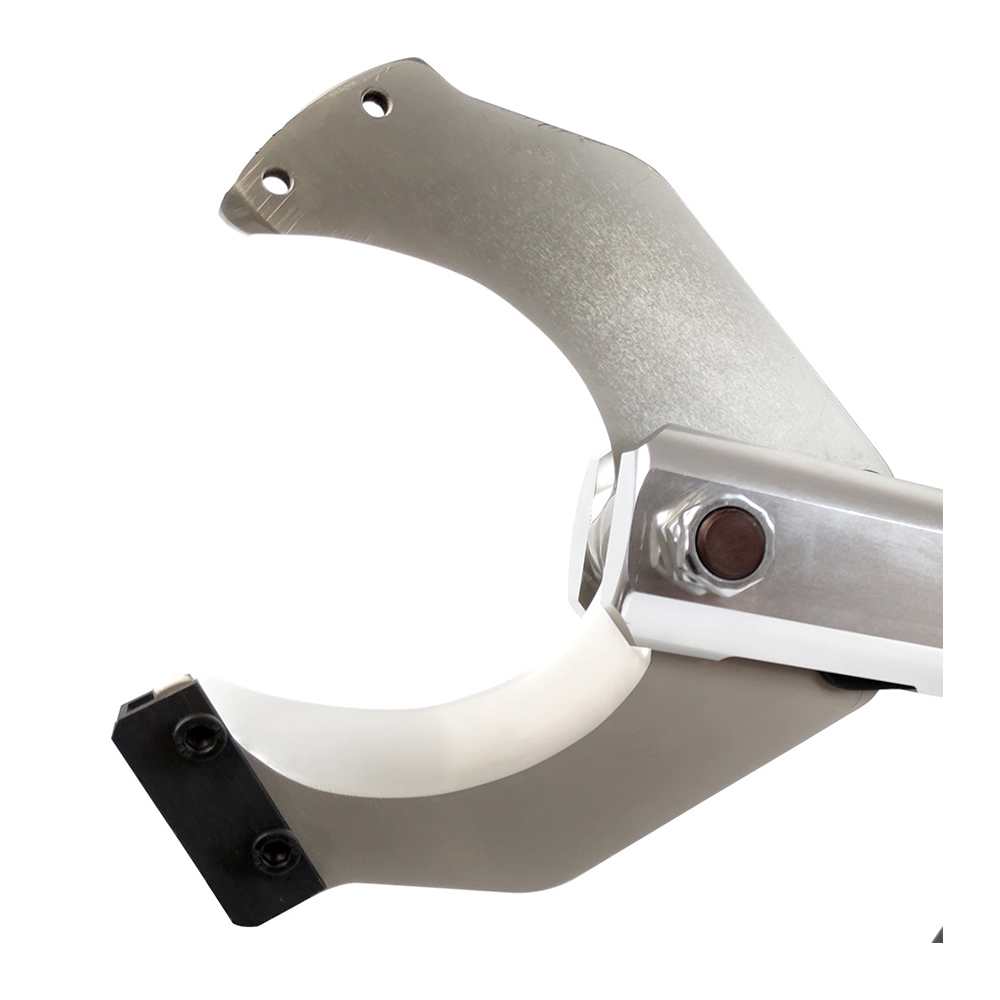

High-Strength Alloy Blades: Precision-hardened blades provide smooth, clean cuts every time, ensuring maximum safety and durability.

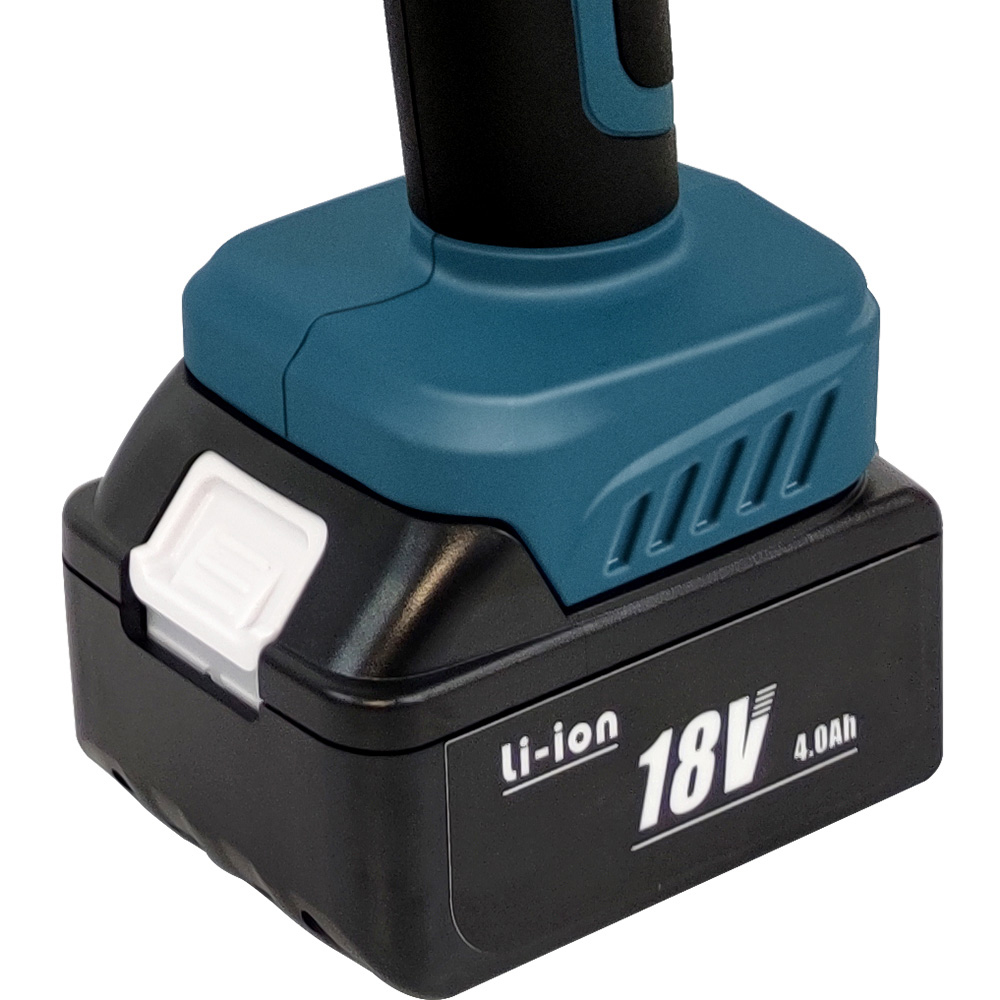

Powerful 18V 4.0Ah Lithium Battery: Supports up to 130–320 cycles per charge, depending on the model, with dual batteries for continuous operation. Recharge in just 2 hours.

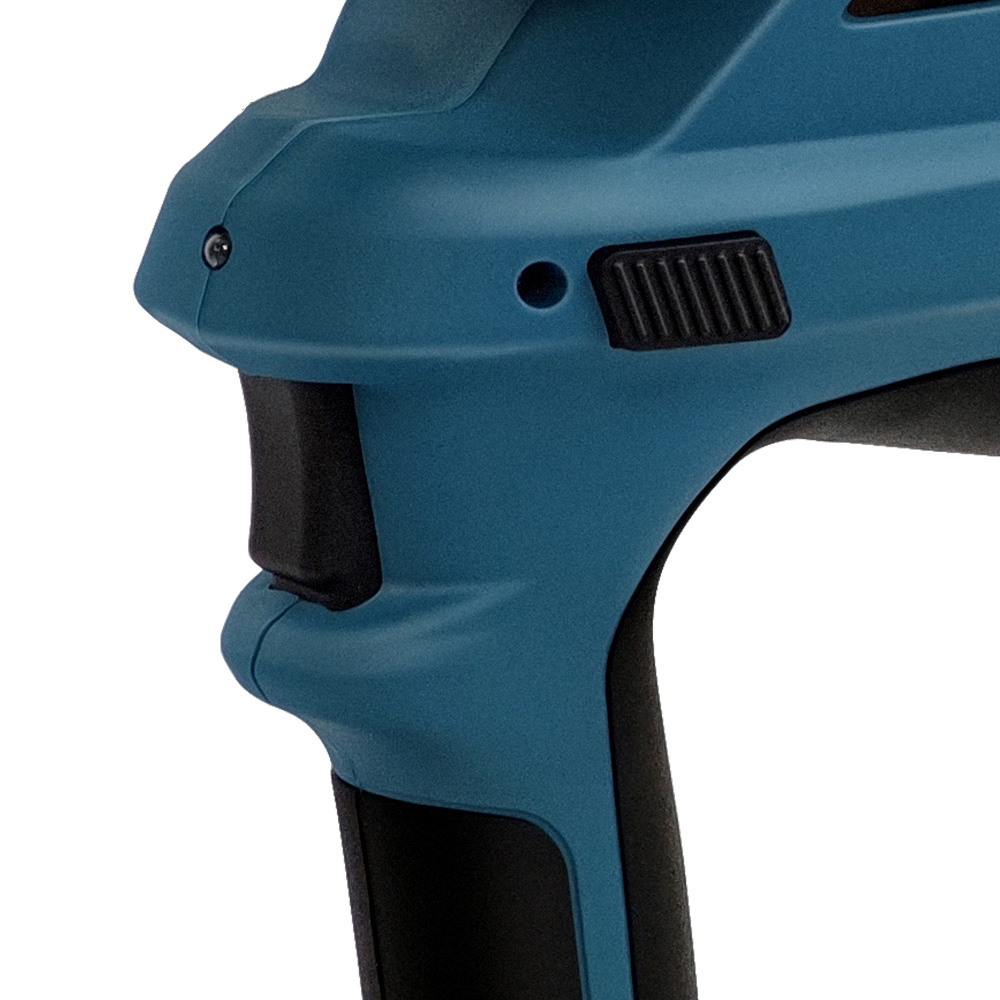

Ergonomic Design & Portability: Optimized balance and non-slip handles allow easy operation even in challenging environments. Tool weight ranges from 10 to 12.5kg.
Intelligent LED Display: Displays battery level, number of cycles, mechanical status, and error codes for professional monitoring.
One-Key Operation & Manual Reset: Simple and convenient controls; automatic and manual reset options ensure safe operation.
350° Rotating Clamp Head: Provides precise cutting at any angle, ideal for tight spaces and complex cable layouts.

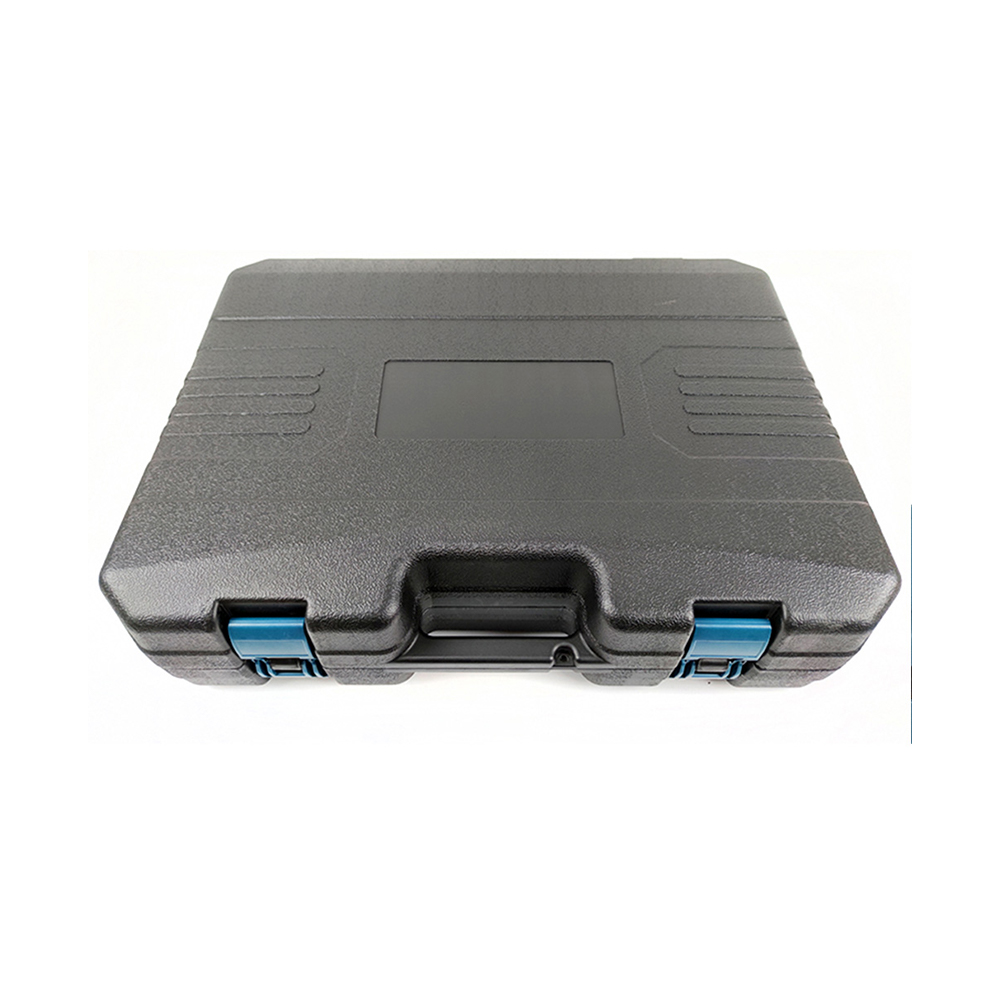

Complete Accessories Included: Comes with dual batteries, charger, and carrying case for effortless transport.

Models Combined
Large-caliber 85C: Cuts up to 85mm; crimp 16–400mm²; fast 6–18s cycles.
Large-caliber 105C / EZ-105 / EZ-120C: Cuts up to 105mm; crimp 16–400mm²; high-efficiency operation with 130 cycles per charge.
