JX Series 1 ton / 2 ton / 3 ton Ratchet Cable Puller

Home / Products / Wire Stripper / Cable Puller / Rope Grip / JX Series 1 ton / 2 ton / 3 ton Ratchet Cable Puller
JX Series 1 ton / 2 ton / 3 ton Ratchet Cable Puller
JX Series 1 ton / 2 ton / 3 ton Ratchet Cable Puller
JX Series 1 ton / 2 ton / 3 ton Ratchet Cable Puller
JX Series 1 ton / 2 ton / 3 ton Ratchet Cable Puller
JX Series 1 ton / 2 ton / 3 ton Ratchet Cable Puller
JX Series 1 ton / 2 ton / 3 ton Ratchet Cable Puller
JX Series 1 ton / 2 ton / 3 ton Ratchet Cable Puller
JX Series 1 ton / 2 ton / 3 ton Ratchet Cable Puller
JX Series 1 ton / 2 ton / 3 ton Ratchet Cable Puller
JX Series 1 ton / 2 ton / 3 ton Ratchet Cable Puller
JX Series 1 ton / 2 ton / 3 ton Ratchet Cable Puller
JX Series 1 ton / 2 ton / 3 ton Ratchet Cable Puller

JX Series 1 ton / 2 ton / 3 ton Ratchet Cable Puller

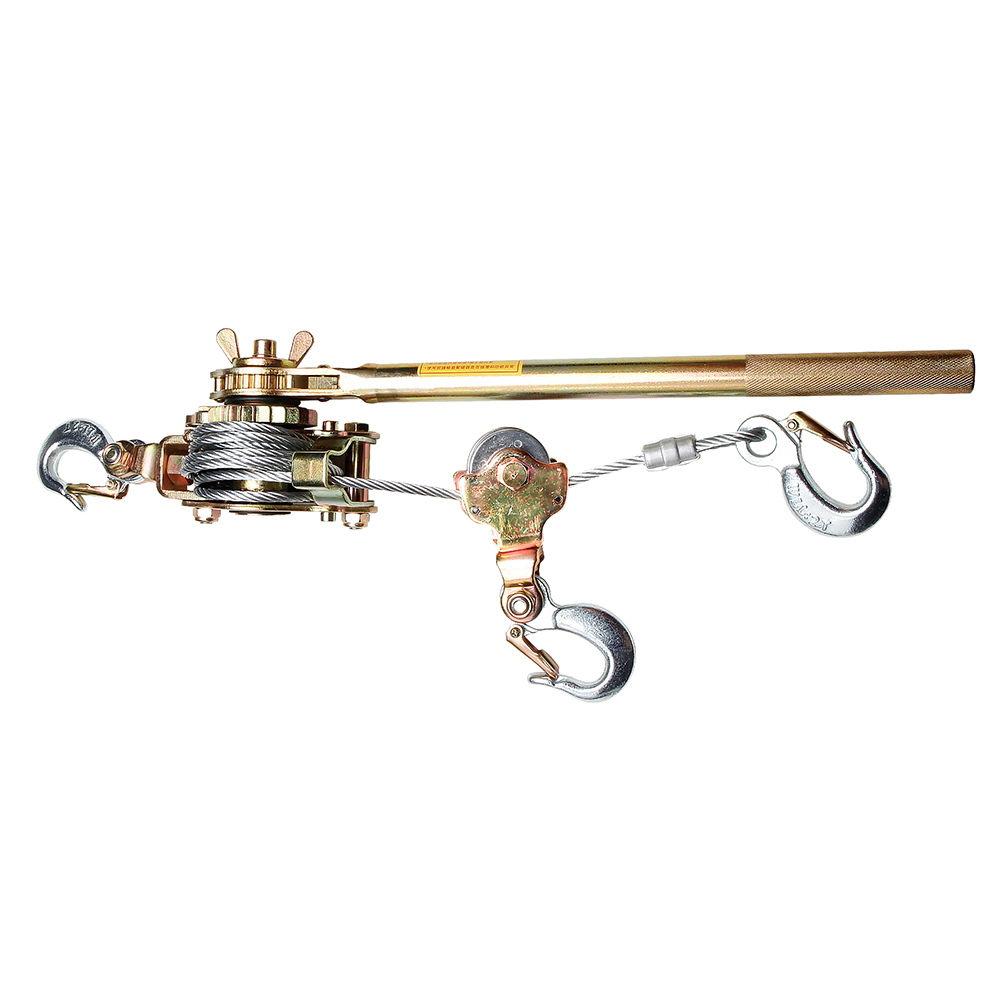

The JX Series Ratchet Cable Puller is a versatile and heavy-duty tool designed for lifting, pulling, and tensioning cables and heavy loads. Available in 1 ton (JX-10), 2 ton (JX-20), and 3 ton (JX-30) models, it is built to meet the needs of construction, power, telecommunications, and port operations.

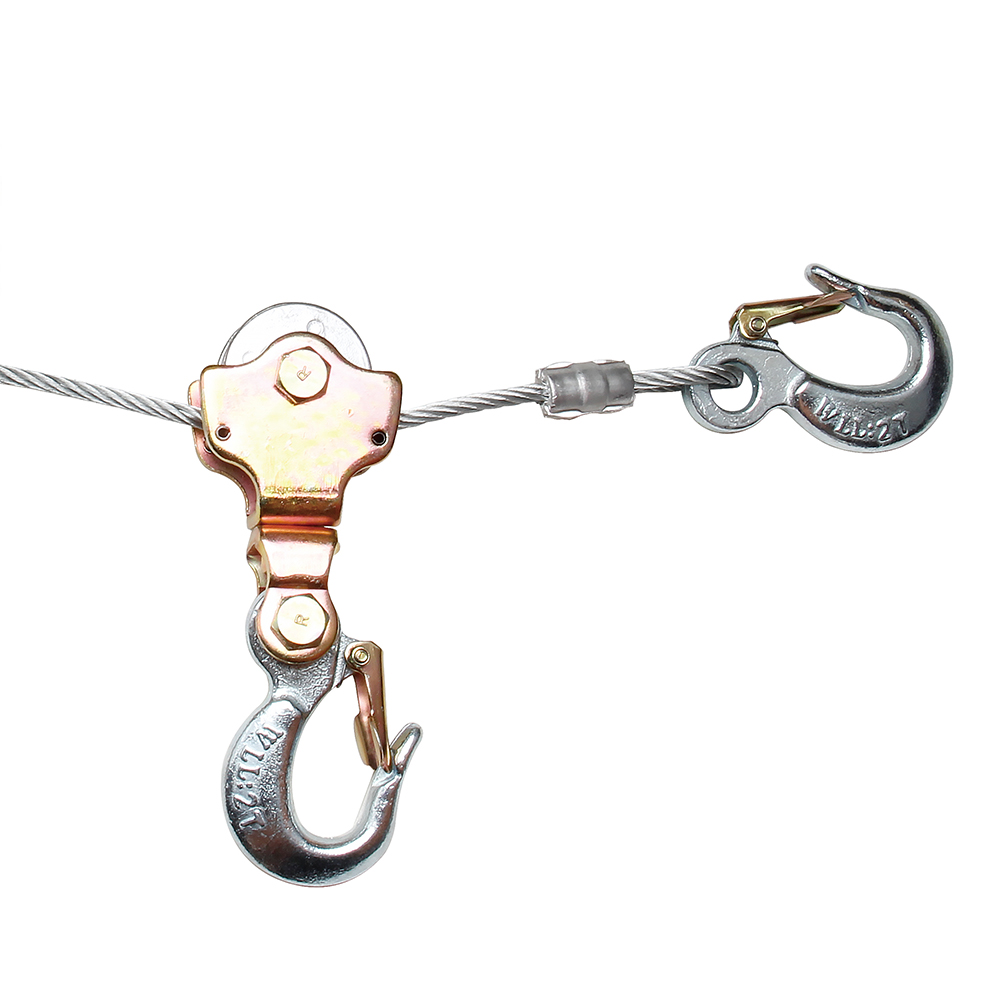

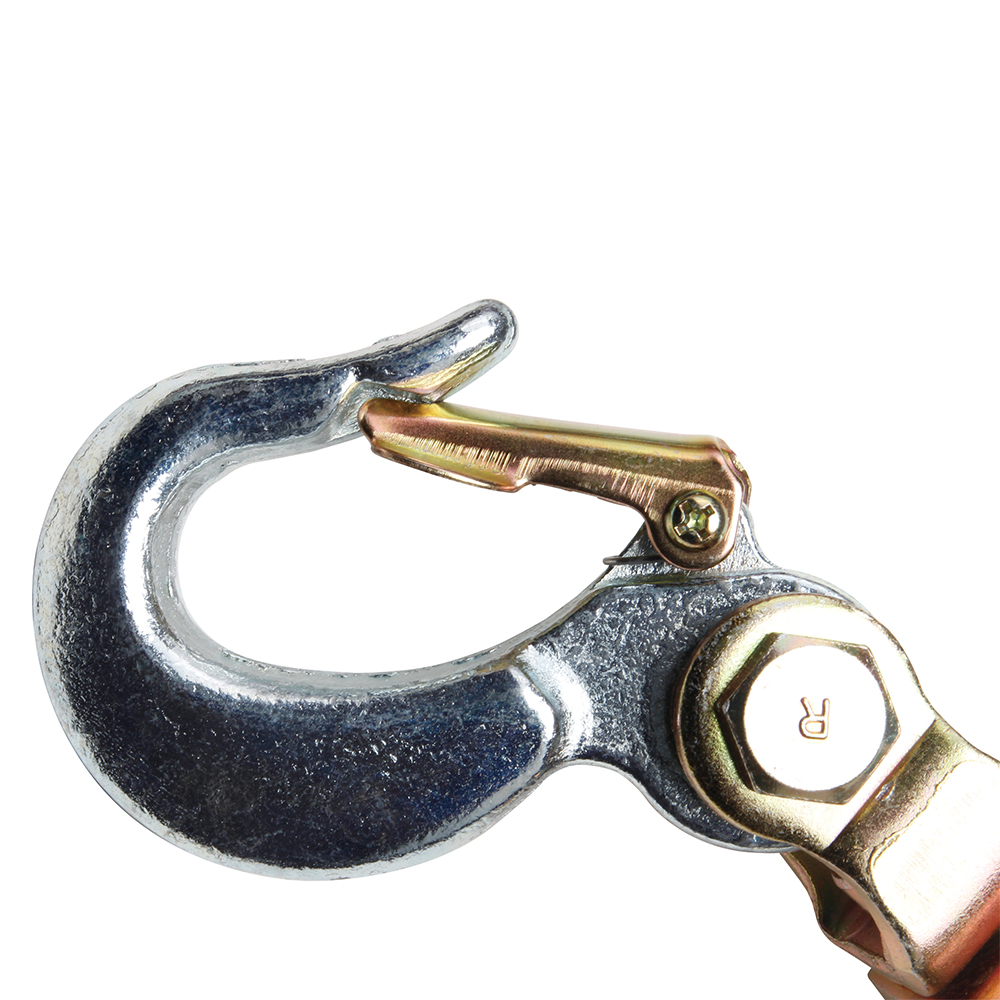

Crafted with high-strength alloy steel hooks, each hook is equipped with an anti-slip safety tongue and X-shaped anti-fall design to ensure secure lifting. The torsion-resistant steel wire rope offers high tension, minimal looseness, and durability, with a mechanical lock at the end that rotates 360° without detachment.

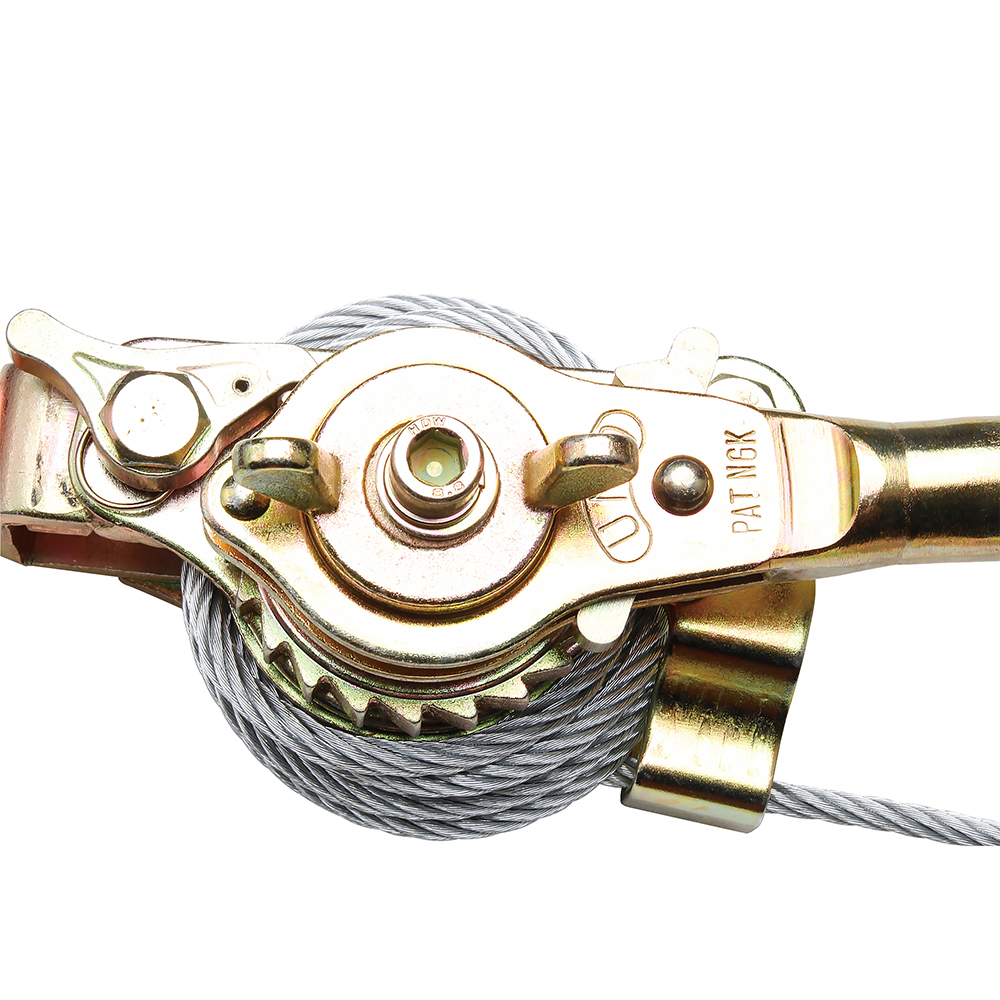

This ratchet puller features an advanced lifting gear system, an anti-reverse brake device, and a 360° rotating bearing ring, making it reliable and safe for prolonged use. The non-slip handle provides excellent grip, even after extended use, while locking screws prevent accidental loosening.

Usage: Hang the puller on the cargo, fasten it with the hook, and turn the handle left or right to lift or tension the rope.

Applications: Ideal for construction site lifting, cable pulling, grid construction, port terminal freight handling, and various industrial cable or wire operations. It is widely used in the power and telecommunications industries and for pulling and fixing heavy objects safely and efficiently.

Contact Us
PREV：JX Series 1 ton / 2 ton / 3 ton Ratchet Cable PullerNEXT：JX Series 1 ton / 2 ton / 3 ton Ratchet Cable Puller
  • Specification
  • Contact Us
Model JX-20 Rated load 2000
Load test load 2.5ton Net weight 4.25kgs
Wire rope specification length 6mm×2400mm
