| Model |
CM-32 |
Maximum output force |
90KN |
| Throat depth |
70mm |
Output |
6T |
| Oil storage capacity |
About 60ml |
Hydraulic oil |
15# low condensation anti-wear hydraulic oil |
| Battery/Capacitor |
18V/3.0A |

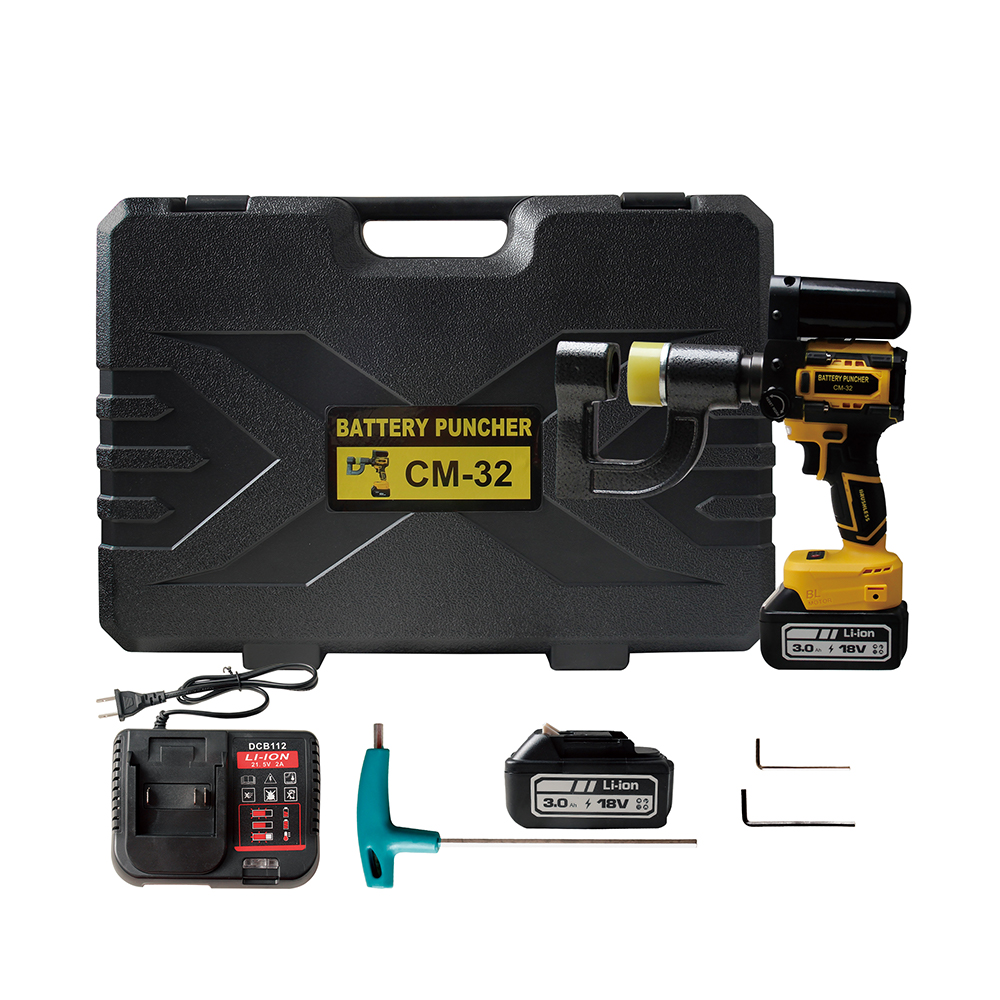

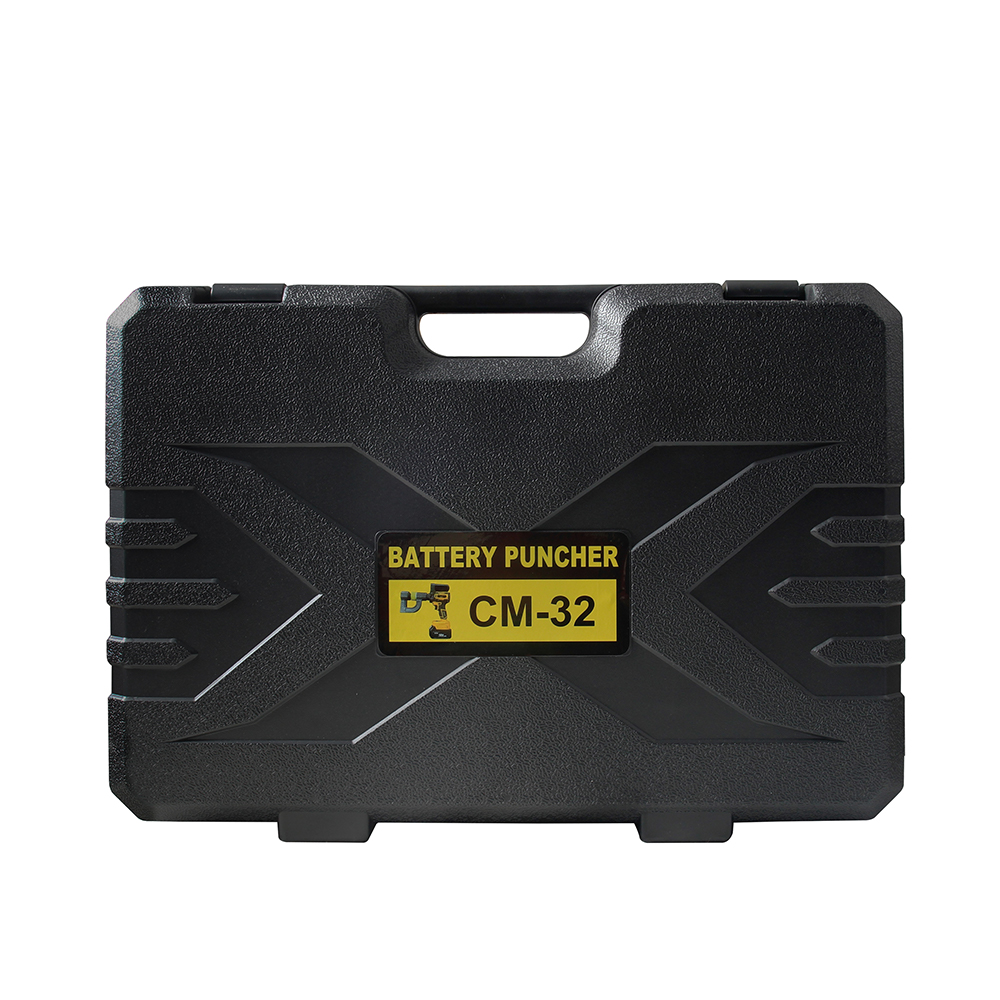

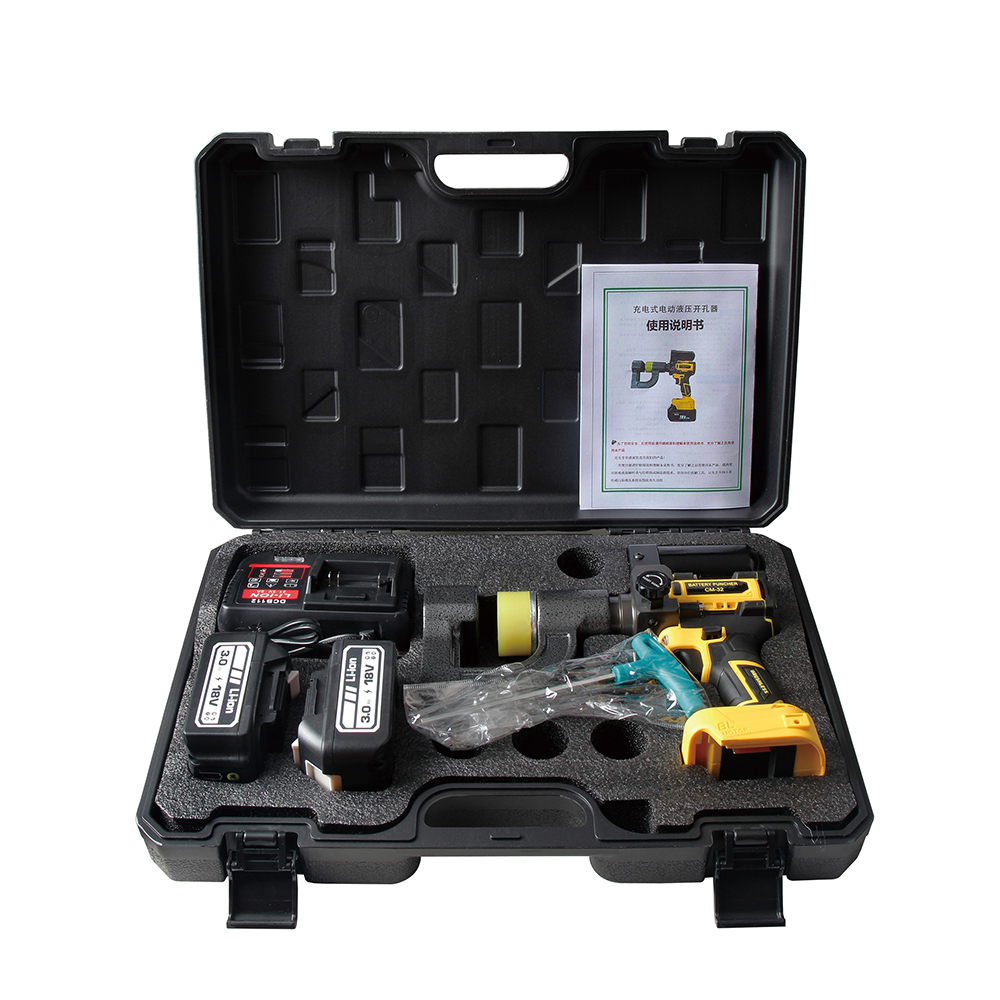

Packaging |
Plastic box |
| Hole opening ability |
The thickness of the iron plate is less than 2mm, and the thickness of the stainless steel is less than 1.0mm. |
| Mold configuration (mm²) |
CM-32: 16、20、22、25、28、32 (Other specifications can be customized) |
Key features include
Rechargeable lithium battery (18V, 3.0Ah) for cordless operation or connection to a hydraulic pump for continuous work
Interchangeable mold system supporting multiple hole sizes, including 16, 20, 22, 25, 28, and 32mm
Auxiliary rubber return mechanism ensures the punch automatically resets after each operation
One-button start and instant oil return switch for safe, smooth, and fast punching
Male coupler (ZG3/8) and dust cap for secure, convenient hydraulic connection
Durable forged machine head and high-strength molds for long service life and consistent precision
Compact, portable design for easy transport and use on-site
This tool seamlessly adapts to diverse environments, making it ideal for metal fabrication, electrical cabinet installation, channel steel processing, and general maintenance. With its combination of battery-powered mobility and hydraulic punch power, it is the ultimate choice for professionals seeking efficiency, precision, and versatility in a single hydraulic punching solution.
