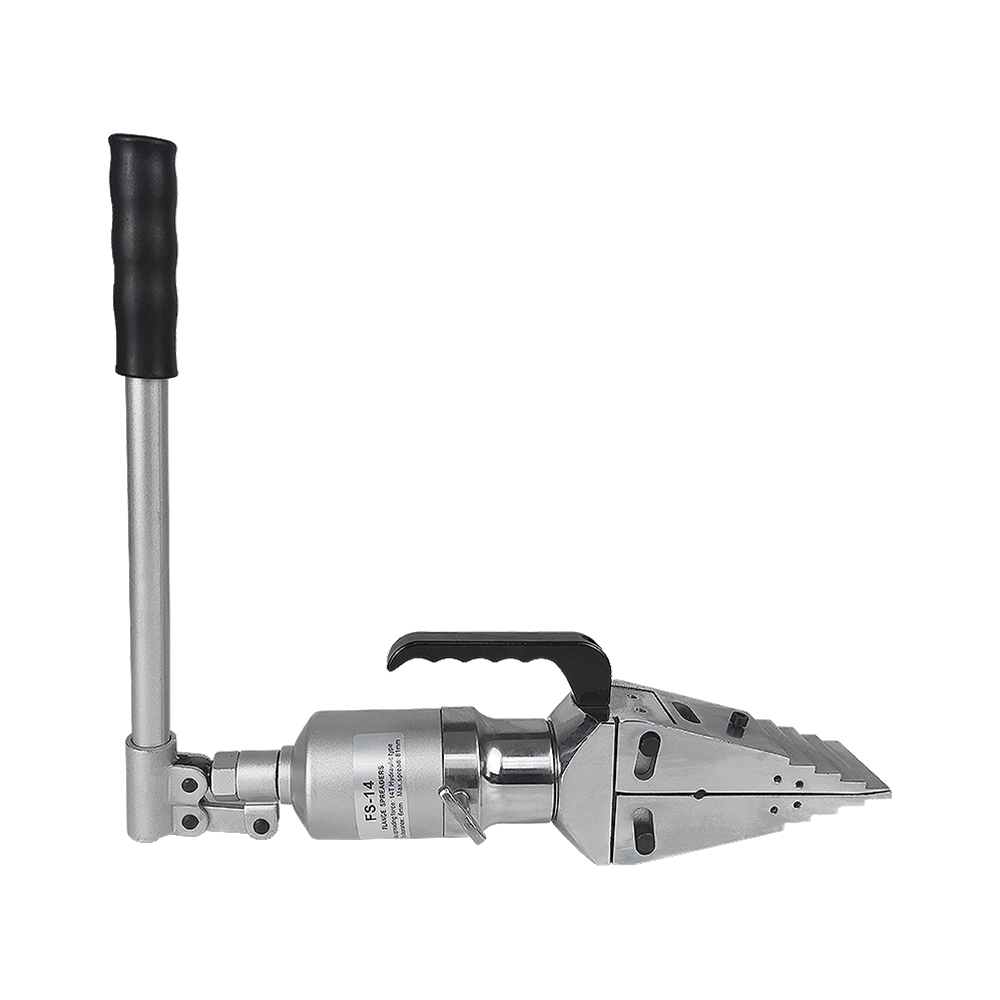

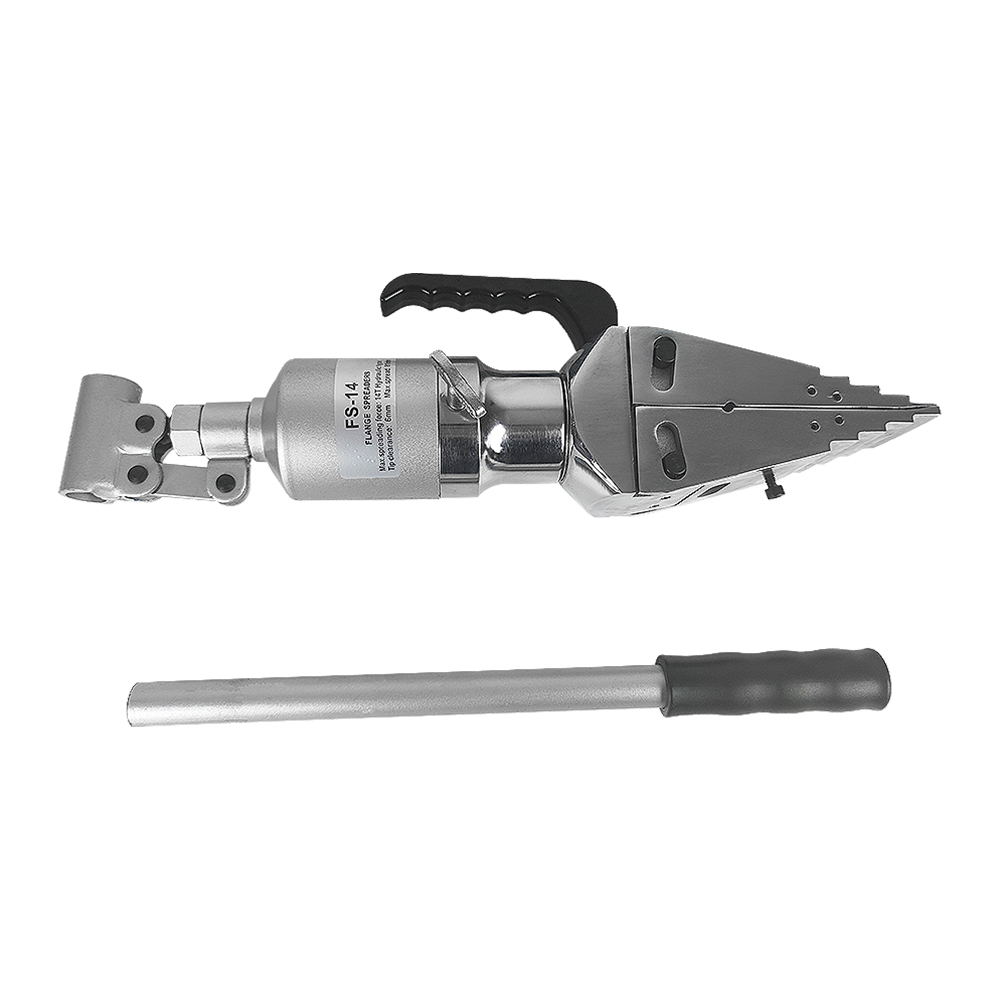

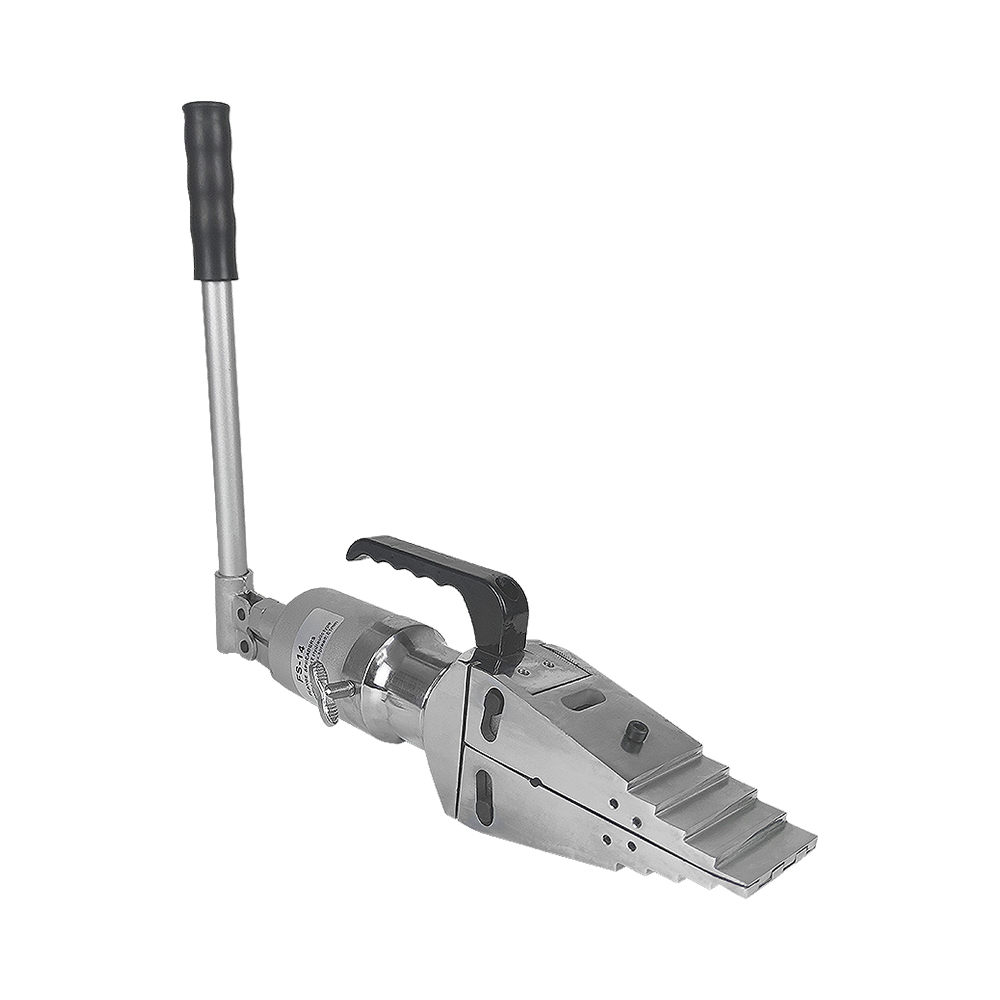

FS-14 Portable 14-Ton Hydraulic Flange Spreader Wedge Separator

Home / Products / Hydraulic Flange Spreader / Hydraulic Nut Splitter / FS-14 Portable 14-Ton Hydraulic Flange Spreader Wedge Separator
FS-14 Portable 14-Ton Hydraulic Flange Spreader Wedge Separator
FS-14 Portable 14-Ton Hydraulic Flange Spreader Wedge Separator
FS-14 Portable 14-Ton Hydraulic Flange Spreader Wedge Separator
FS-14 Portable 14-Ton Hydraulic Flange Spreader Wedge Separator
FS-14 Portable 14-Ton Hydraulic Flange Spreader Wedge Separator
FS-14 Portable 14-Ton Hydraulic Flange Spreader Wedge Separator
FS-14 Portable 14-Ton Hydraulic Flange Spreader Wedge Separator
FS-14 Portable 14-Ton Hydraulic Flange Spreader Wedge Separator

FS-14 Portable 14-Ton Hydraulic Flange Spreader Wedge Separator

Spread Narrow Gaps. Separate Stubborn Flanges. Work Anywhere.
Why Choose FS-14?
【14-Ton Massive Spreading Force】
Rated 10-ton hydraulic output, peaks at 14 tons
Tackles high-pressure flanges, pipeline valves, and heavy equipment connections with ease
Industrial-grade hydraulic system, zero pressure loss during operation
【6mm Ultra-Thin Wedge Tip】
Wedge entry point just 6mm thick — slips into the tightest gaps
Maximum spreading distance 81mm, covers most flange separation needs
Step cushion blocks included for smooth, controlled expansion
【Human-Centered Portable Design】
Total weight is only 11kg, carry with one hand
Compact 390mm body, maneuvers in confined spaces effortlessly
Shockproof iron case packaging, job site ready

Contact Us
PREV：8-10T Heavy-Duty Tool Hydraulic Nut & Screw CutterNEXT：YP-30 8T Hydraulic Flange Spreader – Integral Manual Wedge Separator
  • Specification
  • Contact Us
Model FS‑14 Output 10T
Top gap 6mm Max distance 81mm
Available oil 70cm² Weight 11Kg

Key Specifications
Model: FS-14
Rated Output: 10 tons (14-ton peak)
Top Gap: 6mm
Max Spreading Distance: 81mm
Hydraulic Oil Capacity: 70cm³
Dimensions: 390 × 130 × 445mm
Weight: 11kg

Built for Professionals Across Industries
Petrochemical — Pipeline flange maintenance & separation
Power & Energy — Valve flange rapid disassembly
Shipbuilding — Confined compartment flange work
Heavy Machinery — Equipment joint expansion & repair
Emergency Rescue — Accident pipeline quick breakout

Three-Step Rapid Operation
① Insert Wedge Tip → ② Pump Handle to Spread → ③ Release Oil Switch for Instant Reset
Ergonomic grip handle + rapid return system = Double the efficiency, half the effort!

Crafted for Performance
Pressure Relief Valve — Precise pressure control, safety guaranteed
Humanized Handle — Comfortable grip, fatigue-free extended use
Quick Oil Return — One-touch reset, dramatically improved workflow
Iron Case Packaging — Shockproof & drop-resistant, transport worry-free
