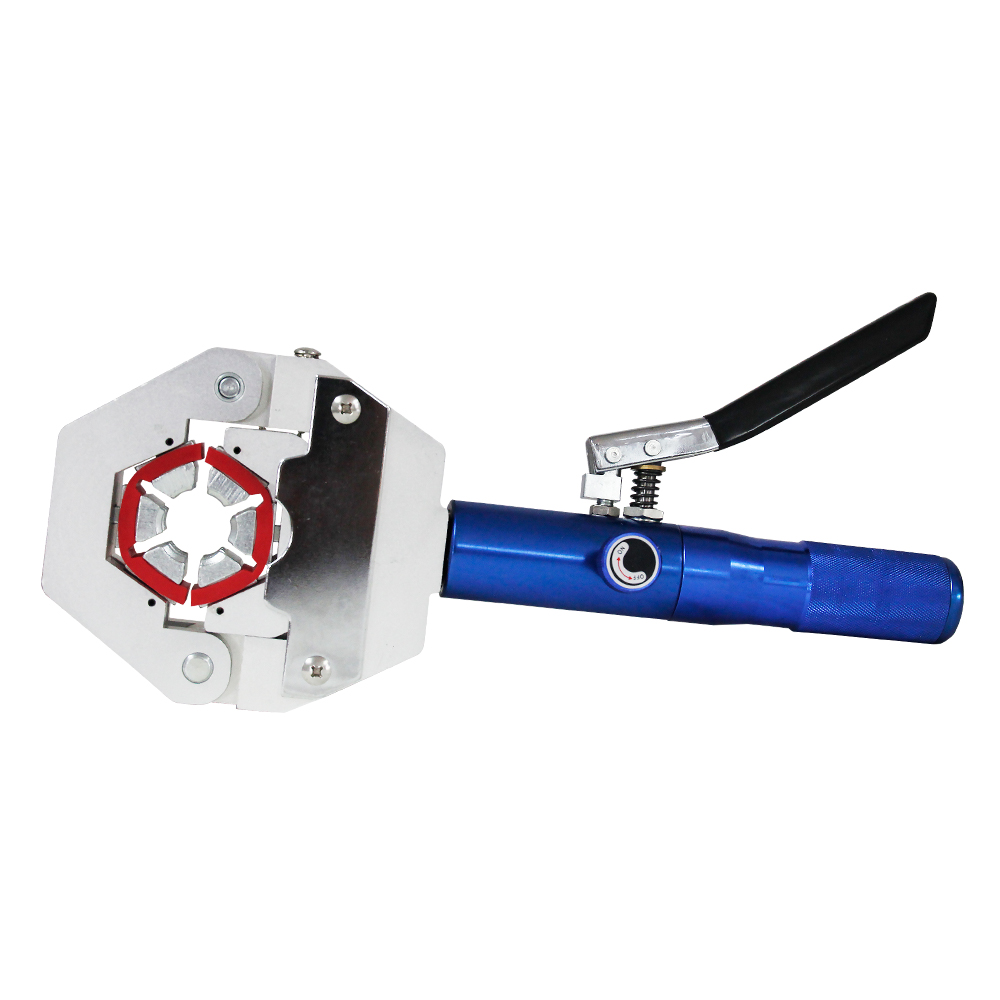

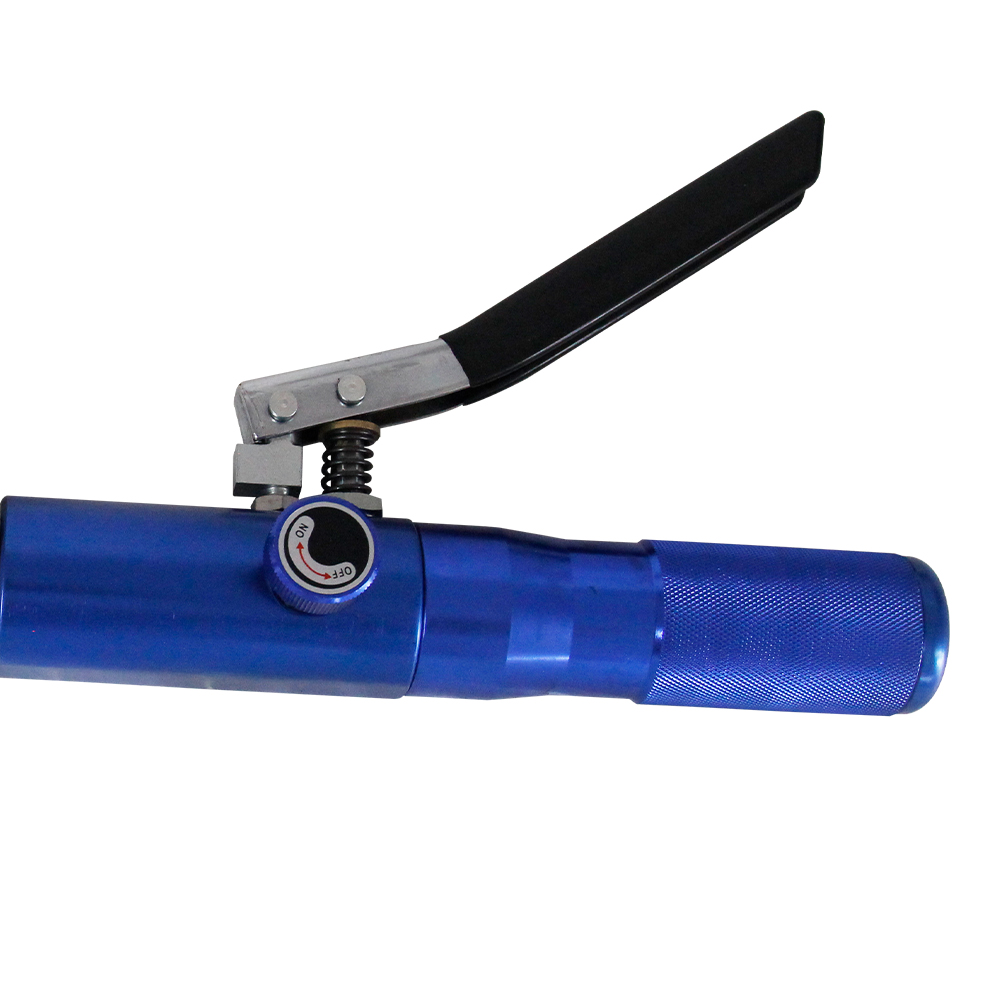

FS-7842 Hydraulic A/C Hose Crimper 8T Output

Home / Products / Pipe Plumbing Tools / Pipe Pressing Tool / FS-7842 Hydraulic A/C Hose Crimper 8T Output
FS-7842 Hydraulic A/C Hose Crimper 8T Output
FS-7842 Hydraulic A/C Hose Crimper 8T Output
FS-7842 Hydraulic A/C Hose Crimper 8T Output
FS-7842 Hydraulic A/C Hose Crimper 8T Output
FS-7842 Hydraulic A/C Hose Crimper 8T Output
FS-7842 Hydraulic A/C Hose Crimper 8T Output
FS-7842 Hydraulic A/C Hose Crimper 8T Output
FS-7842 Hydraulic A/C Hose Crimper 8T Output
FS-7842 Hydraulic A/C Hose Crimper 8T Output
FS-7842 Hydraulic A/C Hose Crimper 8T Output

FS-7842 Hydraulic A/C Hose Crimper 8T Output

The FS-7842 series hydraulic A/C hose crimper is designed for quick, precise, and safe crimping of air conditioning and industrial hoses. With an 8T high-output hydraulic system and point-type hexagonal crimping, this tool ensures tight, secure, and reliable connections.
High-strength aluminum alloy construction with one-time molding and uniform heat treatment provides durability and prevents breakage. The latch uses thread locking technology to prevent accidental mold ejection, improving operational safety. The new oil leakage prevention technology with a double-layer piston seal ensures stable, tight crimps.

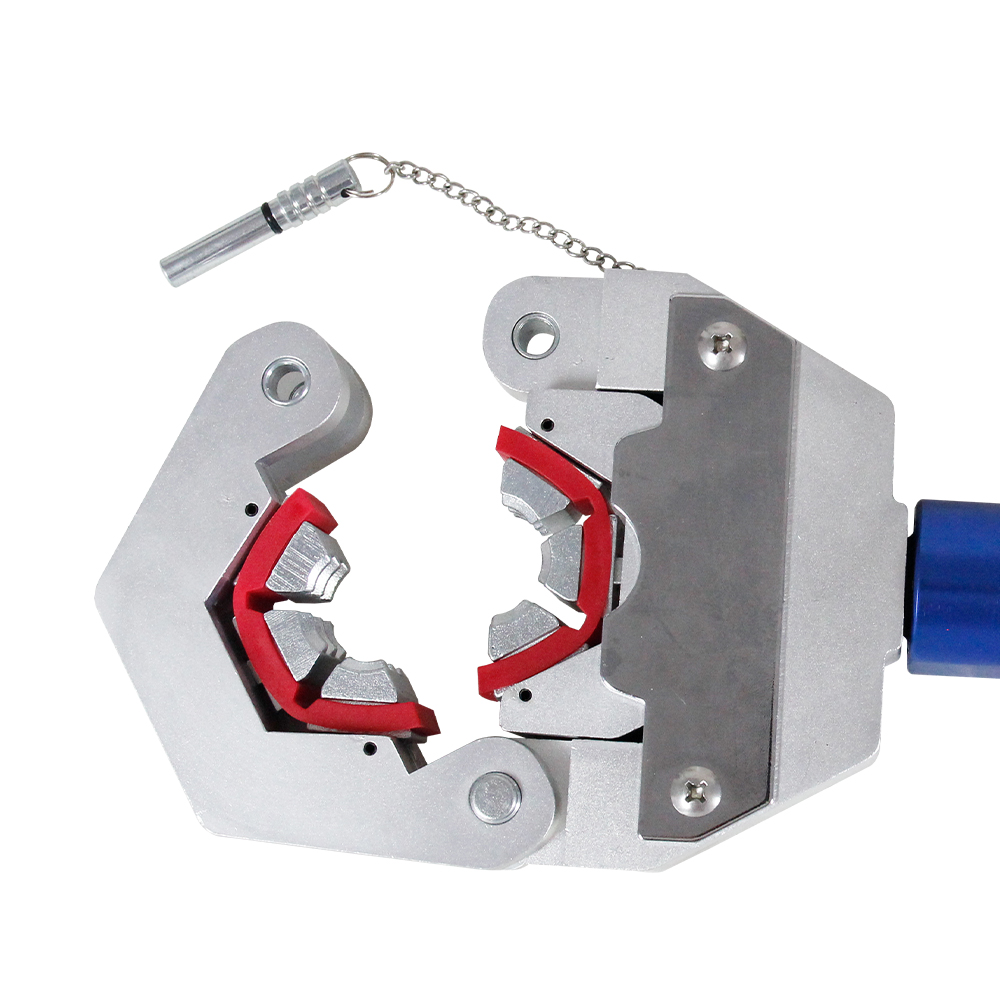

The FS-7842 features a straightforward, step-by-step installation and operation process: select the correct die, insert the pin, close the jaws, rotate the body, turn the valve to working position, and pump the handle until the crimping is complete. The clamp head can accommodate multiple dies (#6, #8, #10, #12, etc.) for versatile applications.

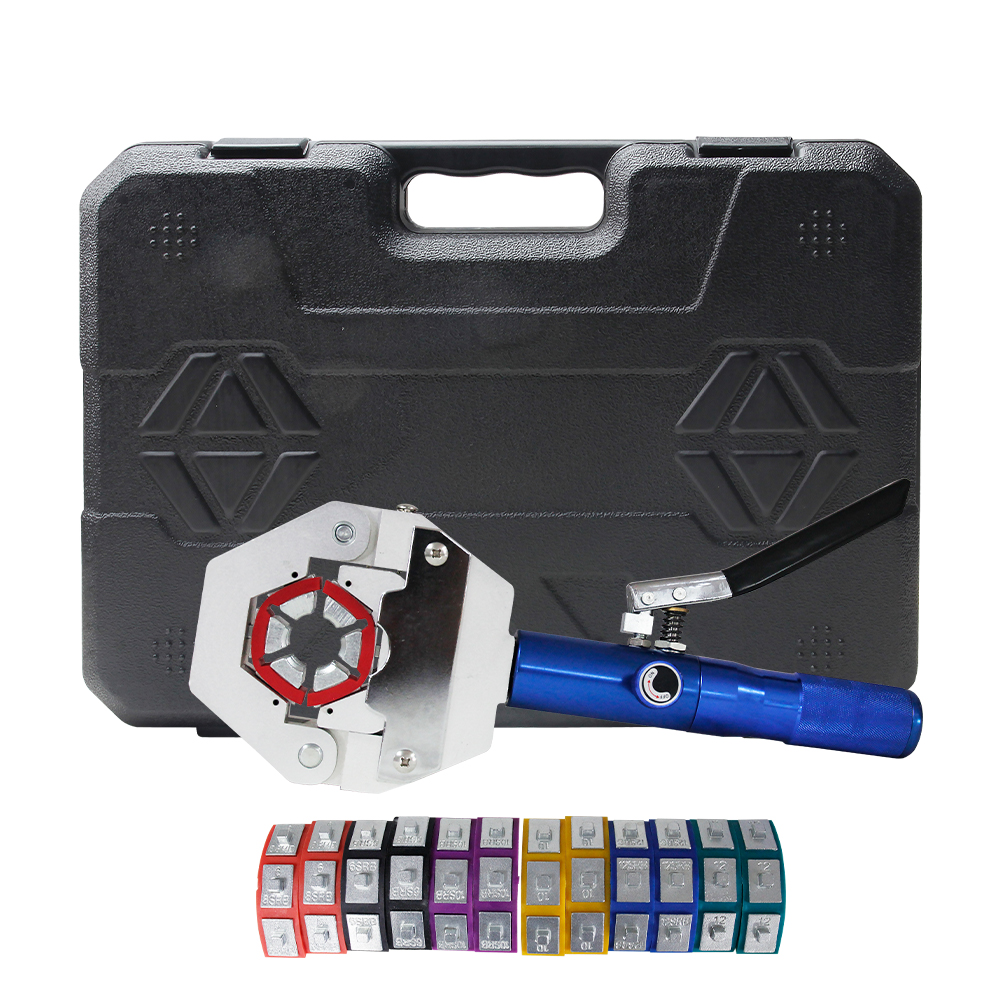

Packaged in a sturdy plastic box, the tool is easy to carry and store, making it ideal for on-site HVAC, automotive, industrial maintenance, and repair operations.

Contact Us
PREV：Manual & Hydraulic Pipe Crimper 360° Rotatable Multi-PipeNEXT：PEX & Multi-Layer Pipe Expander Hydraulic Manual Tool Set
  • Specification
  • Contact Us
Name Integrated Split type Mechanical
Model FS-7842 FS-7842A 71550
Output 8T 8T 8T
Stroke 15mm 15mm 15mm
Crimping range 3/8 - 7/8 3/8 - 7/8 3/8 - 7/8
(3 to 7 points) (3 to 7 points) (3 to 7 points)
Crimping form Point-type hexagonal confining pressure Point-type hexagonal confining pressure Point-type hexagonal confining pressure
Hydraulic oil 7-32# Hydraulic oil 7-32# Hydraulic oil 7-32# Hydraulic oil
Product Size 38x14.5x6.2cm 29x14.5x4.3cm 22.5x14.5x7.5cm
Net/Gross 2.6Kg/6.9Kg 2.4Kg/6.7Kg 2.6Kg/4.4Kg
Package Plastic box Plastic box Plastic box
Package dimensions 45x33x11.5cm 45x33x11.5cm 32x25.5x8.5cm
Mold configuration 6SRB, 6-8SRB, 8, 10SRB, 10, 12SRB, 12 6-8SRB, 8, 10, 12

Key Features
Hydraulic A/C hose crimper with 8T high output
Crimping range: 3/8"–7/8" (3–7 points)
Point-type hexagonal crimping for secure connections
High-strength aluminum alloy pliers, one-time molded, heat-treated
Thread locking latch for accessory and mold safety
Oil leakage prevention with a double-layer piston seal
Quick & easy die installation and operation
Sturdy plastic box packaging for protection and portability
Suitable for air conditioning, automotive, and industrial hose maintenance
Models: FS-7842, FS-7842A, 71550 with integrated or split dies
