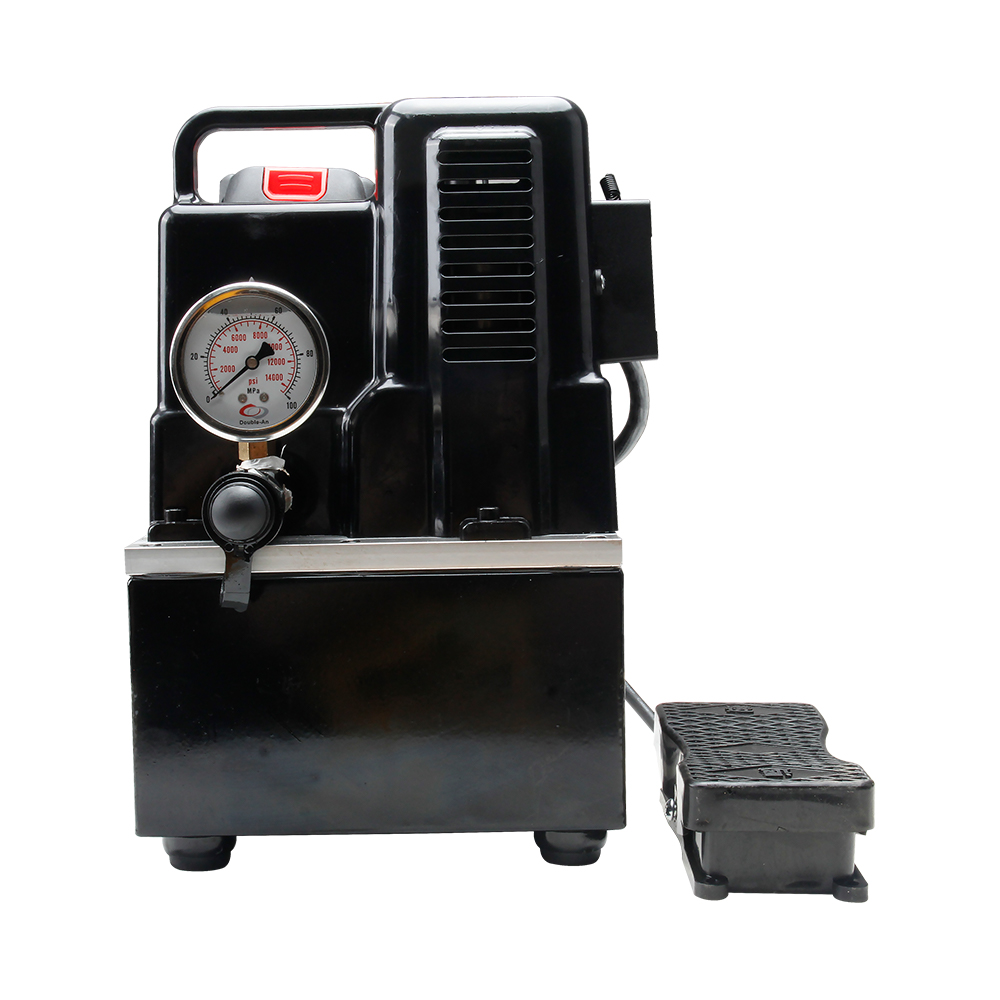

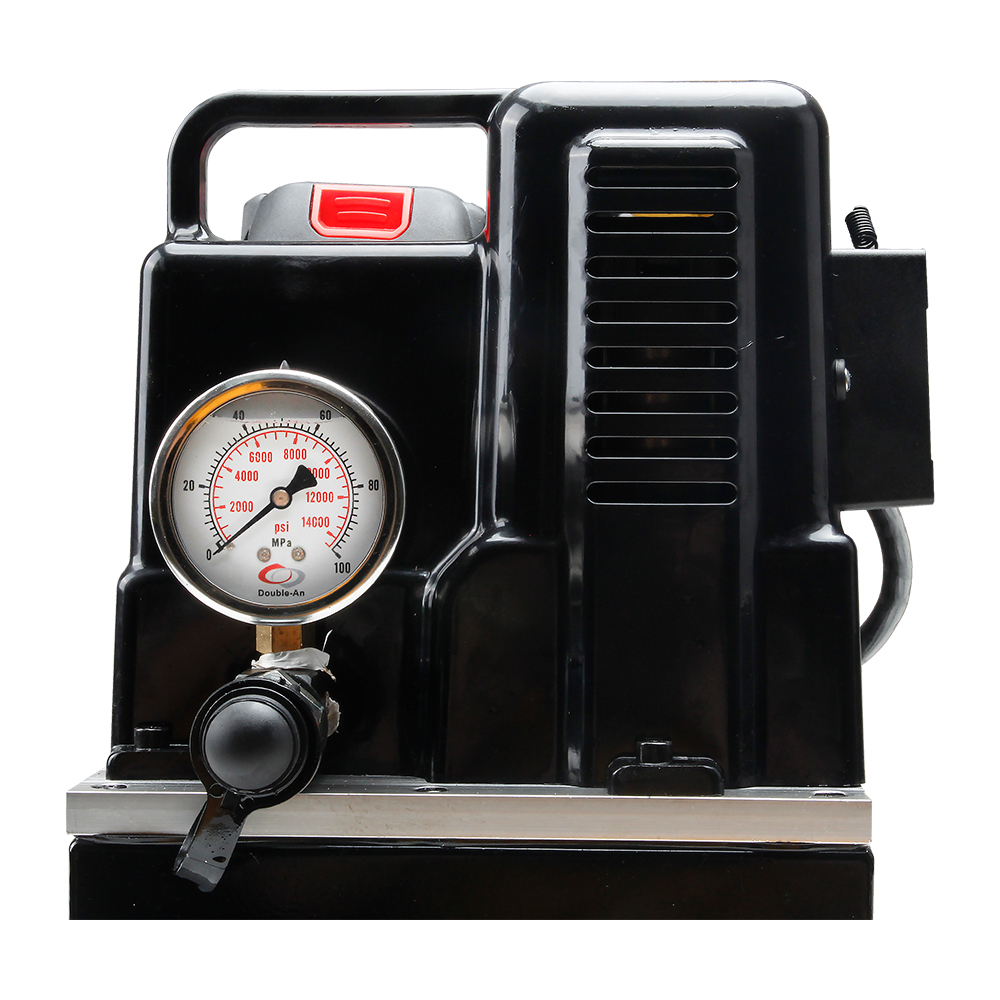

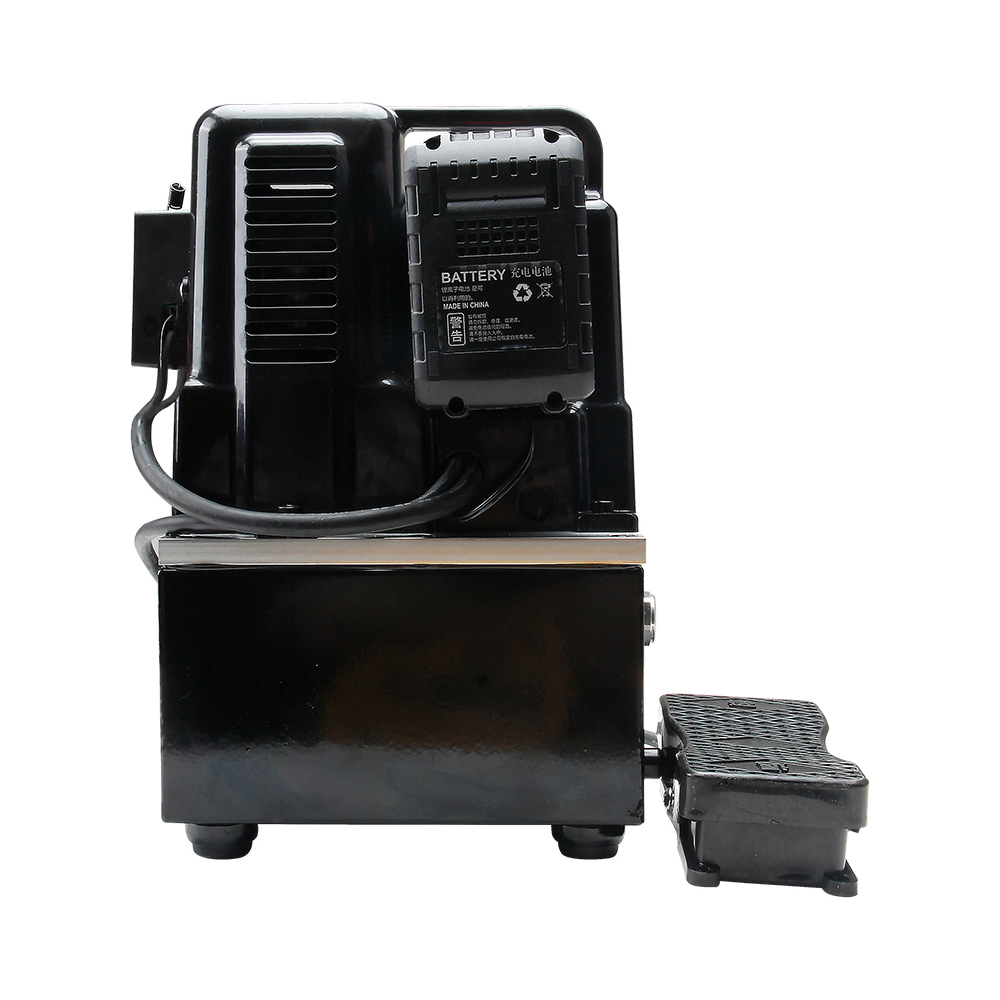

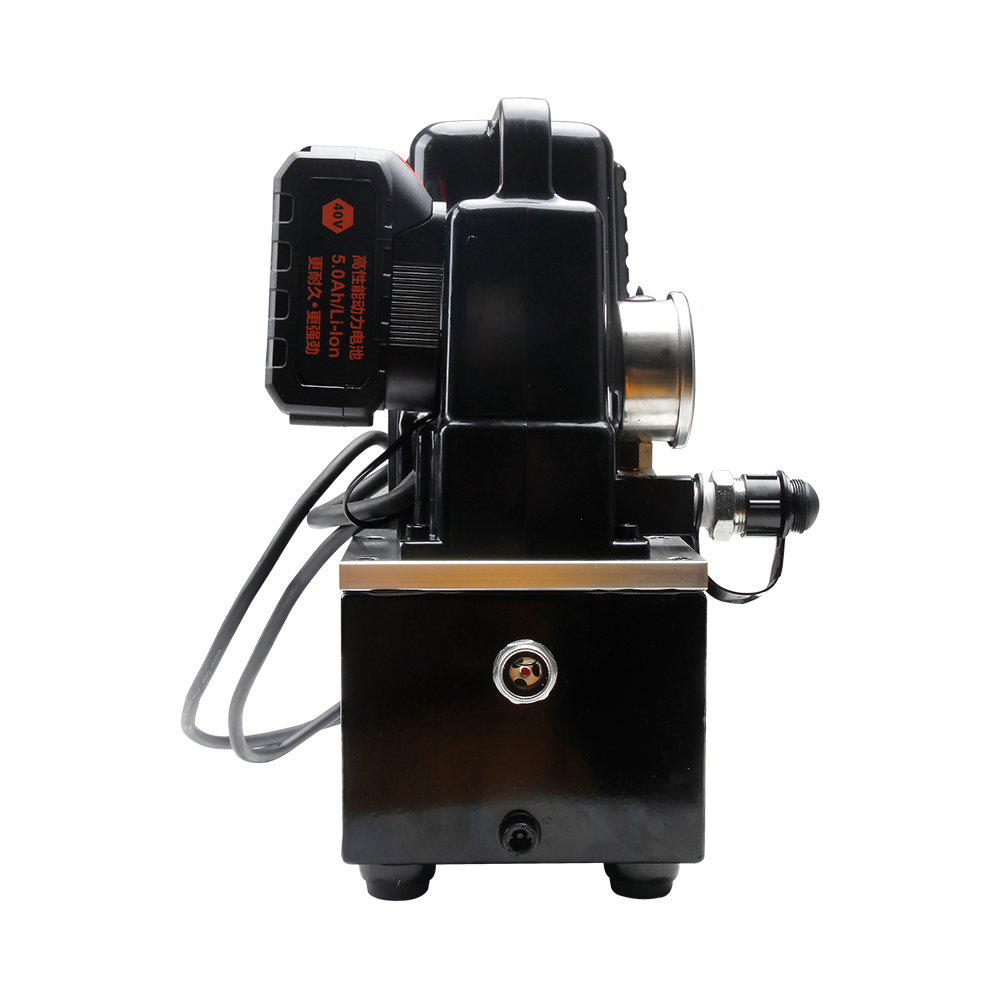

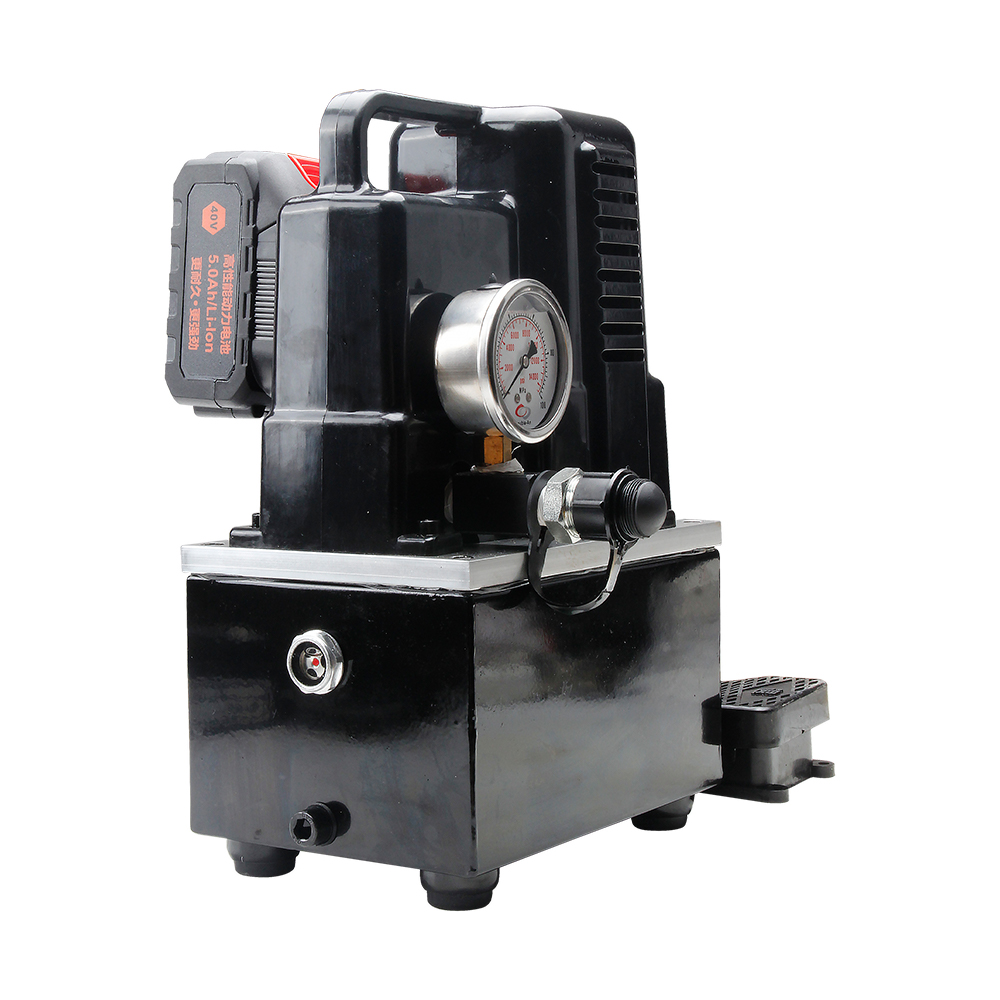

QQ-700B Portable Single Action Hydraulic Pump 220V

Home / Products / Hydraulic Pump / Hydraulic Electric Pump / QQ-700B Portable Single Action Hydraulic Pump 220V
QQ-700B Portable Single Action Hydraulic Pump 220V
QQ-700B Portable Single Action Hydraulic Pump 220V
QQ-700B Portable Single Action Hydraulic Pump 220V
QQ-700B Portable Single Action Hydraulic Pump 220V
QQ-700B Portable Single Action Hydraulic Pump 220V
QQ-700B Portable Single Action Hydraulic Pump 220V
QQ-700B Portable Single Action Hydraulic Pump 220V
QQ-700B Portable Single Action Hydraulic Pump 220V
QQ-700B Portable Single Action Hydraulic Pump 220V
QQ-700B Portable Single Action Hydraulic Pump 220V
QQ-700B Portable Single Action Hydraulic Pump 220V
QQ-700B Portable Single Action Hydraulic Pump 220V

QQ-700B Portable Single Action Hydraulic Pump 220V

The QQ-700B Portable Single Action Hydraulic Pump is a rechargeable, high-performance hydraulic power unit designed for on-site flexibility and reliable operation. With a 40V 5.0Ah lithium battery, it eliminates the need for a socket and provides long-lasting power for mobile hydraulic tools.

This pump features a pedal pressure relief system and a shockproof pressure gauge to ensure safe and accurate operation even in vibration-prone environments. A hydraulic visible oil window allows users to monitor oil levels clearly, while the full copper quick connectors ensure durability and stable connections for various hydraulic tools.

The QQ-700B supports a maximum control distance of 500 meters, enabling remote operation for enhanced convenience. Its compact and portable design, combined with one-click activation, allows operators to start high-pressure operations easily and efficiently. The unit is ideal for electric power, chemical, steel, machinery, and industrial applications, providing reliable performance for cutting, bending, punching, and lifting hydraulic tools.

Net weight: 10kg | Gross weight: 16kg | Dimensions: 320 × 250 × 410mm

Contact Us
PREV：QQ-630B Battery Hydraulic Pump Portable PowerNEXT：Gasoline Powered Hydraulic Pump 700 Bar High Pressure Dual Circuit Power Pack
  • Specification
  • Contact Us
Model QQ-700B Rated pressure 70Mpa
Low voltage flow 5L/min High voltage flow 0.7L/min
Motor power 1200W Speed 1800r/min
Voltage DC 40V Volume 2118.532cm
Oil storage capacity 2L weight 12kg
Oil species Anti-wear hydraulic oil below 32# or 7-15# hydraulic transmission oil
Features 1. Pressure overload protection device to avoid overpressure damage to the equipment;
2. The charging model is more suitable for outdoor use, and is more stressful than traditional manual, with more oil storage and electric drive without manual operation;
3. The output at both ends of high and low voltages, the pressure reaches 7Mpa, automatically jumps to high voltage, and automatic conversion does not require manual operation;
4. 2 large-capacity battery 5.0Ah, durable and suitable for more different hydraulic tools
Features 1. Take out the battery and charge it. When charging, be sure to use it after fullness to increase the battery life;
2. Install the charged battery and turn on the dust cover of the fast interface;
3. Connect the high-pressure oil pipe to the quick connector. Connect the hydraulic equipment that needs to work again;
4. Turn on the switch and check whether it is running normally
