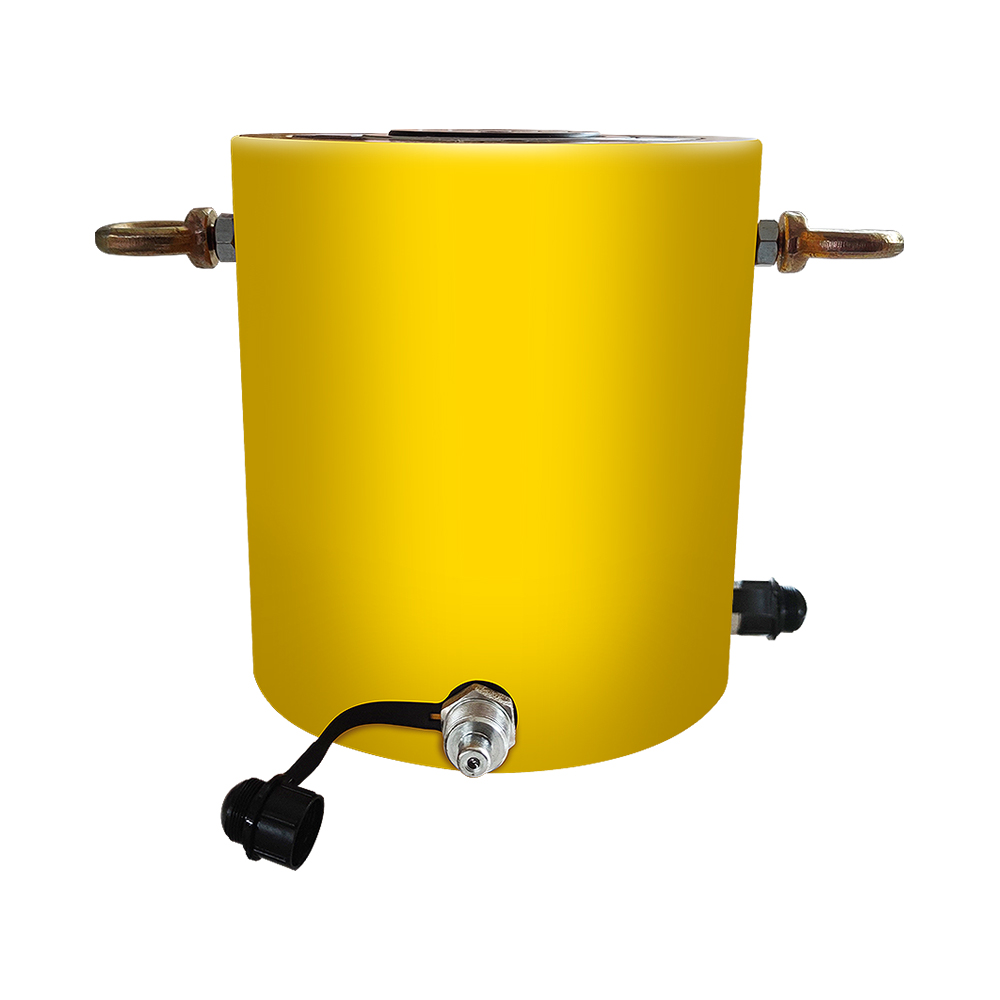

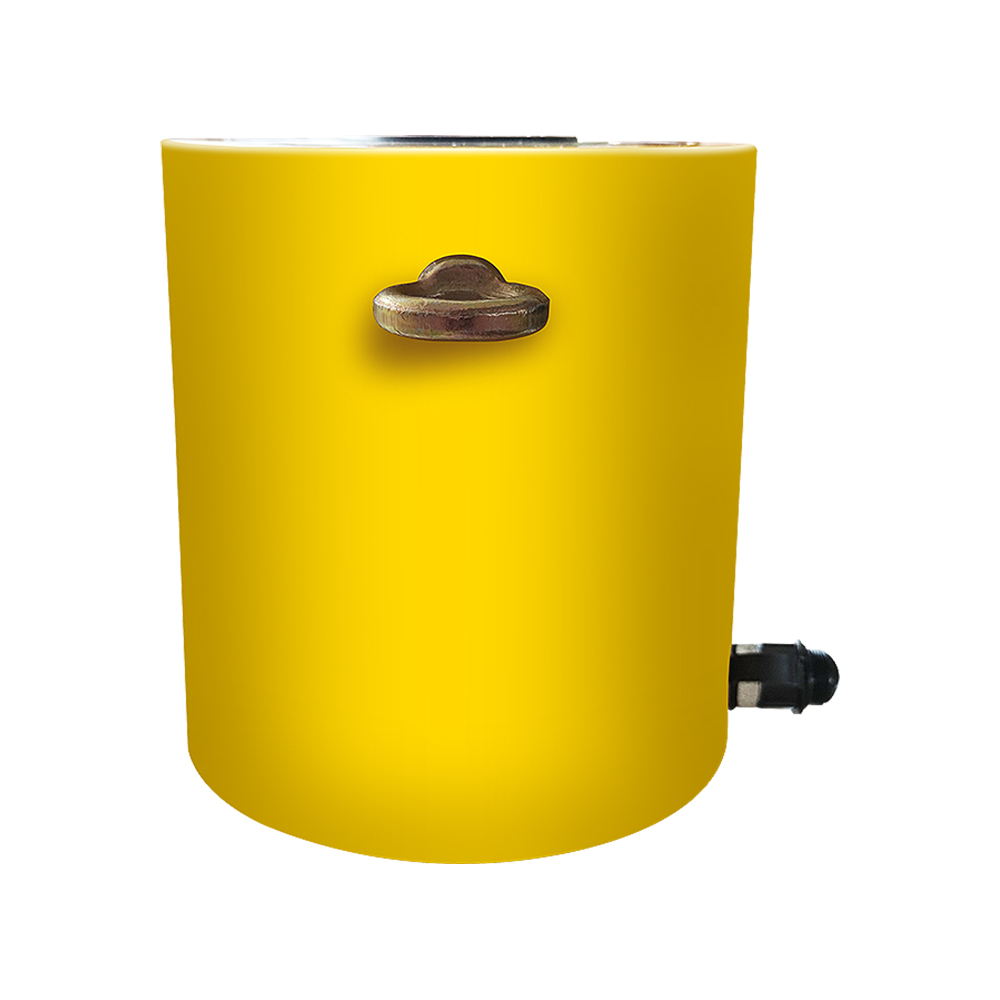

RSC Series 20-200 Ton Long Stroke Single-Acting Hydraulic Cylinder Jack

Home / Products / Hydraulic Cylinder / Hydraulic Cylinder Jack / RSC Series 20-200 Ton Long Stroke Single-Acting Hydraulic Cylinder Jack
RSC Series 20-200 Ton Long Stroke Single-Acting Hydraulic Cylinder Jack
RSC Series 20-200 Ton Long Stroke Single-Acting Hydraulic Cylinder Jack
RSC Series 20-200 Ton Long Stroke Single-Acting Hydraulic Cylinder Jack
RSC Series 20-200 Ton Long Stroke Single-Acting Hydraulic Cylinder Jack
RSC Series 20-200 Ton Long Stroke Single-Acting Hydraulic Cylinder Jack
RSC Series 20-200 Ton Long Stroke Single-Acting Hydraulic Cylinder Jack

RSC Series 20-200 Ton Long Stroke Single-Acting Hydraulic Cylinder Jack

Unlock extended lifting performance with the RSC Long Stroke Hydraulic Cylinder Jack, engineered for heavy-duty applications that demand greater stroke and higher efficiency. Designed with a 150mm long stroke and powerful load capacity up to 150 tons, this series is ideal for lifting, positioning, and supporting heavy equipment in industrial environments where both reach and strength matter.
Built with a compact yet robust structure, the RSC long stroke series ensures stable, full-range lifting without jamming, even under maximum load conditions.

Contact Us
PREV：RSC Series 20-200 Ton Long Stroke Single-Acting Hydraulic Cylinder JackNEXT：Single Acting Aluminum Hydraulic Cylinder Jack 10T–30T 50mm Stroke Lightweight Portable Lifting Ram
  • Specification
  • Contact Us
Model no. Tons(T) Effective Area(cm²) Oil Capacity(cm³) Inner Dia(mm) Outer Dia(mm) Travel(mm) Piston Dia(mm) Weight(kg) Collapsed Height Pump
RSC-1050 10 15.9 79 φ45mm φ64mm 50mm φ38mm 2.3 103mm CP-180
RSC-10100 10 15.9 159 φ45mm φ64mm 100mm φ38mm 3.1 150mm CP-700
RSC-10150 10 15.9 238 φ45mm φ64mm 150mm φ38mm 4.6 200mm CP-700
RSC-2050 20 28.3 141 φ60mm φ84mm 50mm φ50mm 4 105mm CP-700
RSC-20100 20 28.3 283 φ60mm φ84mm 100mm φ50mm 5.7 155mm CP-700B
RSC-20150 20 28.3 424 φ60mm φ84mm 150mm φ50mm 7.4 205mm CP-700B
RSC-3050 30 44.2 221 φ75mm φ103mm 50mm φ65mm 6.5 110mm CP-700
RSC-30100 30 44.2 442 φ75mm φ103mm 100mm φ65mm 9 160mm CP-700B
RSC-30150 30 44.2 663 φ75mm φ103mm 150mm φ65mm 11.6 210mm CP-700A
RSC-5050 50 70.8 354 φ95mm φ118mm 50mm φ65mm 8.4 113mm CP-700B
RSC-50100 50 70.8 708 φ95mm φ118mm 100mm φ80mm 11.5 165mm CP-700A
RSC-50150 50 70.8 1062 φ95mm φ118mm 150mm φ80mm 14.6 215mm CP-700A
RSC-10050 100 143 715 φ135mm φ178mm 50mm φ100mm 22 132mm CP-700B
RSC-100100 100 143 1430 φ135mm φ178mm 100mm φ100mm 29 182mm CP-700A
RSC-100150 100 143 2145 φ135mm φ178mm 150mm φ100mm 35.3 232mm CP-700A
RSC-15050 150 213.7 1068 φ165mm φ208mm 50mm φ115mm 43 132mm CP-700A
RSC-150100 150 213.7 2137 φ165mm φ208mm 100mm φ115mm 53 182mm CP-700A
RSC-150150 150 213.7 3205 φ165mm φ208mm 150mm φ115mm 63 232mm CP-700A
RSC-20050 200 268.6 1343 φ185mm φ242mm 50mm φ120mm 57 158mm CP-700A
RSC-200100 200 268.6 2686 φ185mm φ242mm 100mm φ120mm 70 208mm DYB-63A
RSC-200150 200 268.6 4029 φ185mm φ242mm 150mm φ120mm 83 258mm DYB-63A

Key Features
Extended 150mm Stroke: Provides greater lifting range, reducing the need for repositioning and improving work efficiency.
High Load Capacity: Available from 20T to 150T, suitable for a wide range of heavy-duty lifting applications.
Single-Acting Hydraulic System: Reliable upward force with gravity return, ensuring simple operation and low maintenance.
Smooth & Stable Performance: Precision cylinder design guarantees full-tonnage output with no sticking or sudden drops.
Heavy-Duty Steel Construction: Built from high-strength steel with anti-corrosion coating for long-lasting durability in tough environments.
Dust-Proof Sealing System: Reinforced dust ring effectively prevents debris from entering, extending service life.
Quick & Secure Connection: Equipped with 3/8″ NPT male coupler and dust cap for fast, leak-free hydraulic connection.
Compact Yet Powerful Design: Combines long stroke capability with a relatively compact body for versatile use.
Pump Required: Compatible with manual or electric hydraulic pumps (not included) for flexible operation.
