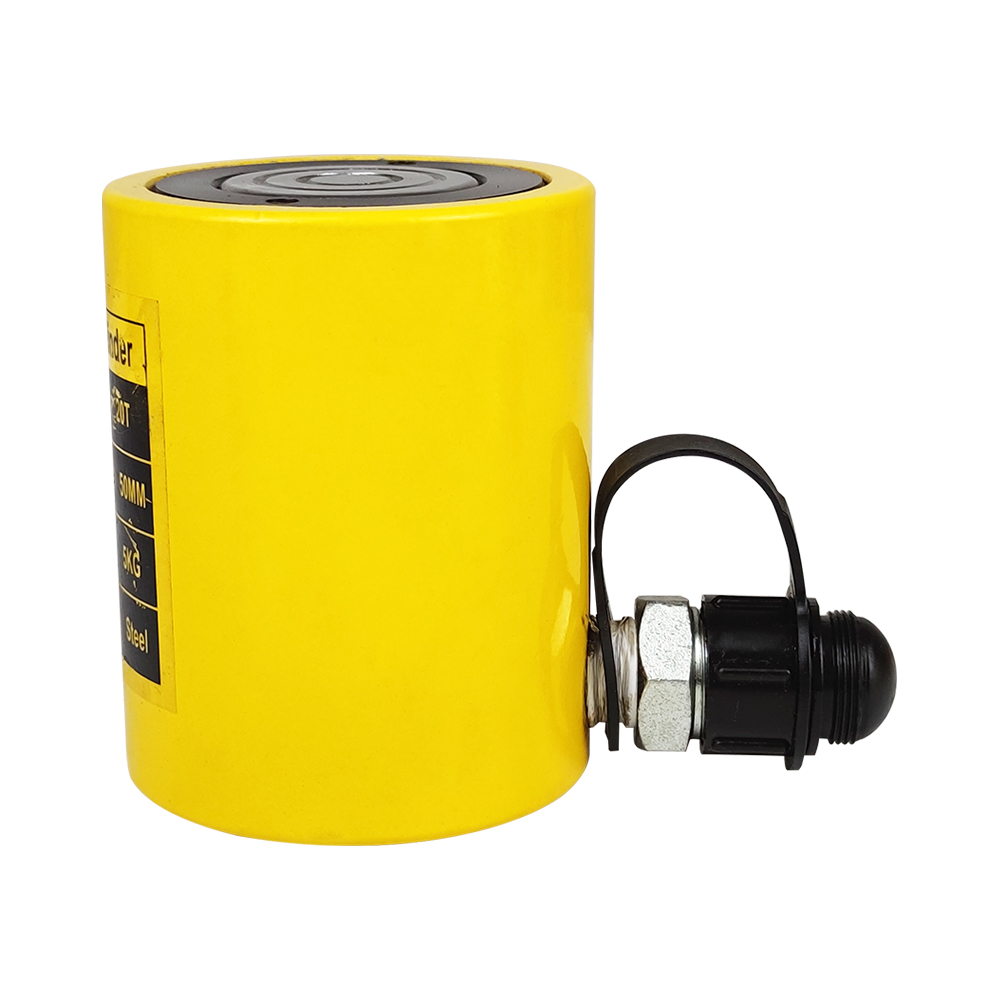

RSC Low Profile Hydraulic Cylinder Lifting Jack

Home / Products / Hydraulic Cylinder / Hydraulic Cylinder Jack / RSC Low Profile Hydraulic Cylinder Lifting Jack
RSC Low Profile Hydraulic Cylinder Lifting Jack
RSC Low Profile Hydraulic Cylinder Lifting Jack
RSC Low Profile Hydraulic Cylinder Lifting Jack
RSC Low Profile Hydraulic Cylinder Lifting Jack

RSC Low Profile Hydraulic Cylinder Lifting Jack

Built for tight spaces and heavy lifting, the RSC Low Profile Hydraulic Cylinder Jack delivers powerful performance where standard cylinders simply cannot fit. Designed with a compact body and high load capacity, this series is the ideal solution for industrial lifting tasks in confined environments such as machinery installation, bridge support, shipbuilding, and factory maintenance.
Engineered for stability and efficiency, the RSC series ensures smooth, full-stroke lifting without jamming, even under maximum load conditions.

Contact Us
PREV：FPY-D Series Multistage Hydraulic Flat JacksNEXT：RSC Low Profile Hydraulic Cylinder Lifting Jack
  • Specification
  • Contact Us
Model no. Tons(T) Effective Area(cm²) Oil Capacity(cm³) Inner Dia(mm) Outer Dia(mm) Travel(mm) Piston Dia(mm) Weight(kg) Collapsed Height Pump
RSC-1050 10 15.9 79 φ45mm φ64mm 50mm φ38mm 2.3 103mm CP-180
RSC-10100 10 15.9 159 φ45mm φ64mm 100mm φ38mm 3.1 150mm CP-700
RSC-10150 10 15.9 238 φ45mm φ64mm 150mm φ38mm 4.6 200mm CP-700
RSC-2050 20 28.3 141 φ60mm φ84mm 50mm φ50mm 4 105mm CP-700
RSC-20100 20 28.3 283 φ60mm φ84mm 100mm φ50mm 5.7 155mm CP-700B
RSC-20150 20 28.3 424 φ60mm φ84mm 150mm φ50mm 7.4 205mm CP-700B
RSC-3050 30 44.2 221 φ75mm φ103mm 50mm φ65mm 6.5 110mm CP-700
RSC-30100 30 44.2 442 φ75mm φ103mm 100mm φ65mm 9 160mm CP-700B
RSC-30150 30 44.2 663 φ75mm φ103mm 150mm φ65mm 11.6 210mm CP-700A
RSC-5050 50 70.8 354 φ95mm φ118mm 50mm φ65mm 8.4 113mm CP-700B
RSC-50100 50 70.8 708 φ95mm φ118mm 100mm φ80mm 11.5 165mm CP-700A
RSC-50150 50 70.8 1062 φ95mm φ118mm 150mm φ80mm 14.6 215mm CP-700A
RSC-10050 100 143 715 φ135mm φ178mm 50mm φ100mm 22 132mm CP-700B
RSC-100100 100 143 1430 φ135mm φ178mm 100mm φ100mm 29 182mm CP-700A
RSC-100150 100 143 2145 φ135mm φ178mm 150mm φ100mm 35.3 232mm CP-700A
RSC-15050 150 213.7 1068 φ165mm φ208mm 50mm φ115mm 43 132mm CP-700A
RSC-150100 150 213.7 2137 φ165mm φ208mm 100mm φ115mm 53 182mm CP-700A
RSC-150150 150 213.7 3205 φ165mm φ208mm 150mm φ115mm 63 232mm CP-700A
RSC-20050 200 268.6 1343 φ185mm φ242mm 50mm φ120mm 57 158mm CP-700A
RSC-200100 200 268.6 2686 φ185mm φ242mm 100mm φ120mm 70 208mm DYB-63A
RSC-200150 200 268.6 4029 φ185mm φ242mm 150mm φ120mm 83 258mm DYB-63A

Key Features
Low Profile Design: Compact structure with reduced closed height, perfect for operations in narrow or limited spaces.
Wide Capacity Range: Available from 20T up to 150T, covering a broad range of industrial lifting requirements.
Single-Acting System: Hydraulic lifting with gravity return, providing reliable and simple operation.
Smooth & Stable Lifting: Precision-machined cylinder ensures full-tonnage output with no sticking or sudden drops.
Heavy-Duty Steel Construction: High-strength steel body with anti-corrosion coating for long service life in harsh environments.
Dust-Proof Protection: Equipped with a reinforced dust ring to prevent debris from entering the cylinder, extending durability.
Quick Hydraulic Connection: 3/8″ threaded coupler with dust cap ensures fast, secure, and leak-free connection.
Flexible Pump Compatibility: Compatible with manual or electric hydraulic pumps (sold separately) for different working conditions.

Performance Range
Multiple models available within the RSC series, typically featuring a 50mm stroke with lifting capacities ranging from 20 tons to 150 tons. Designed to maintain high stability and consistent output across all tonnage levels.
