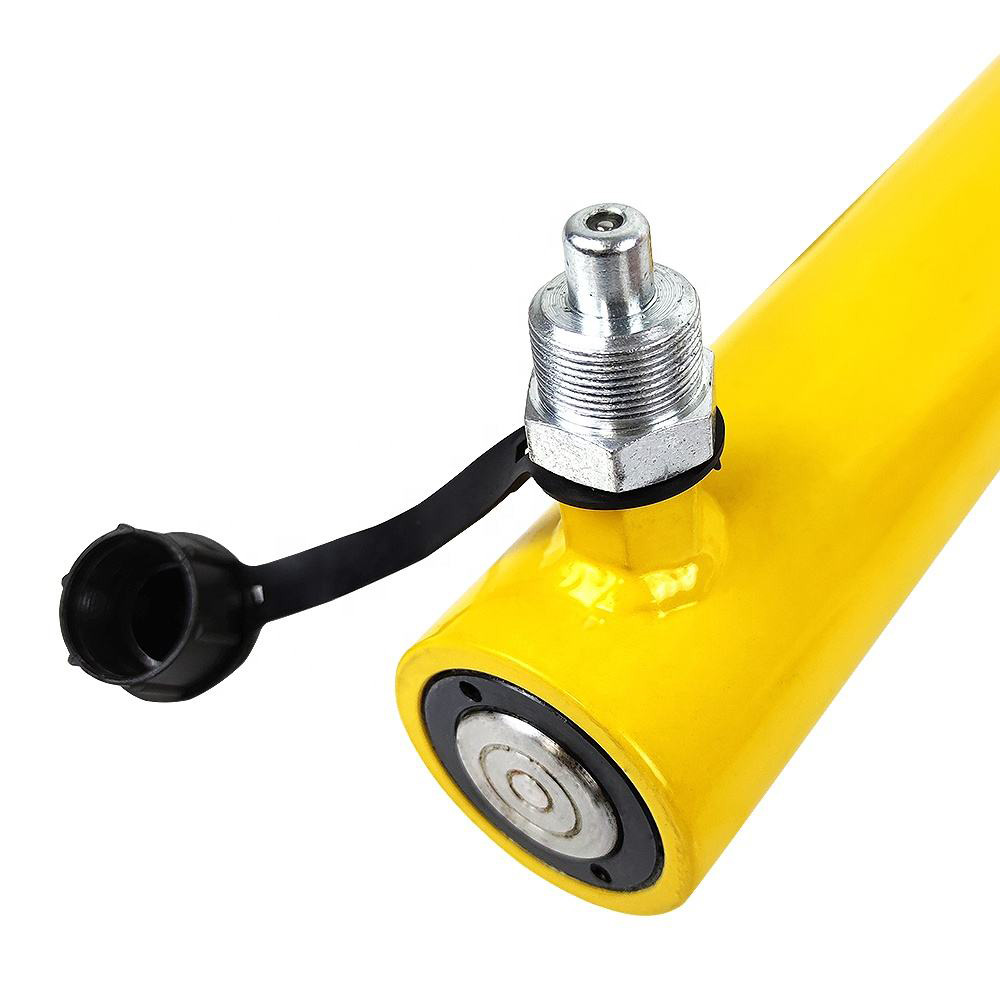

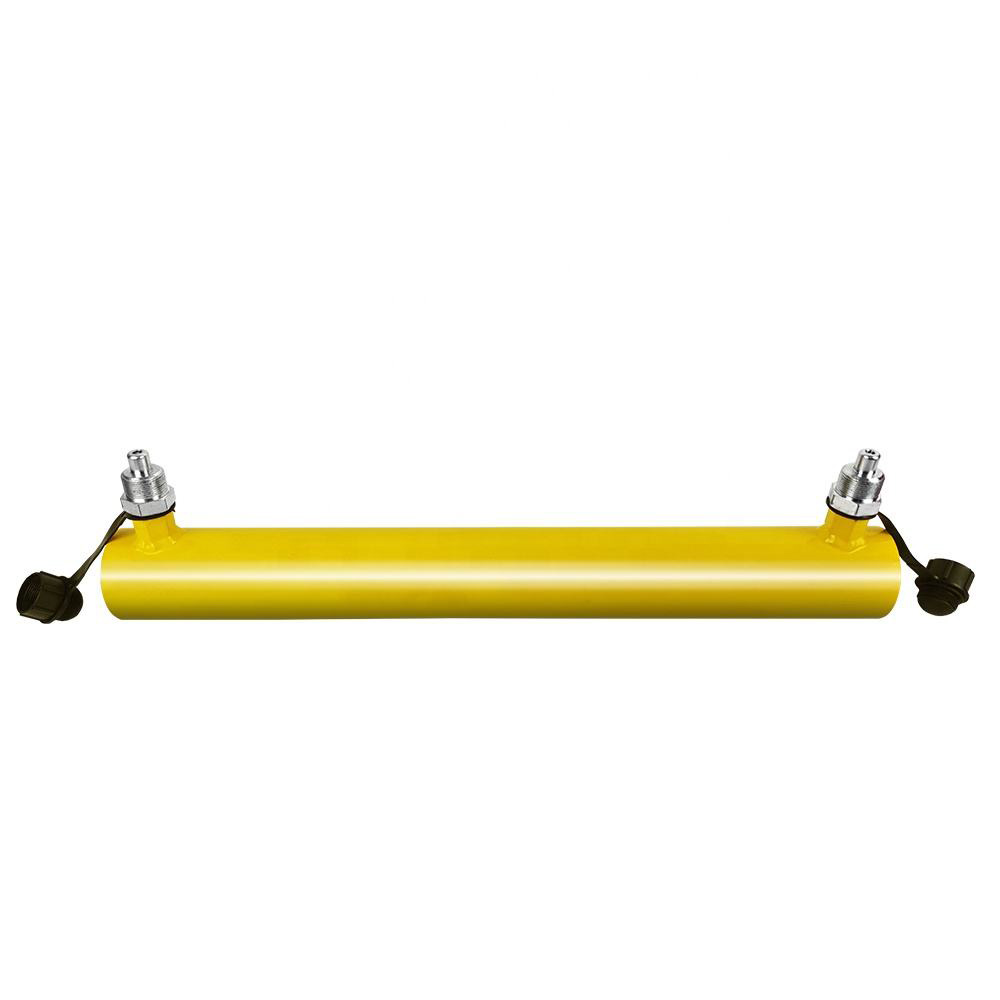

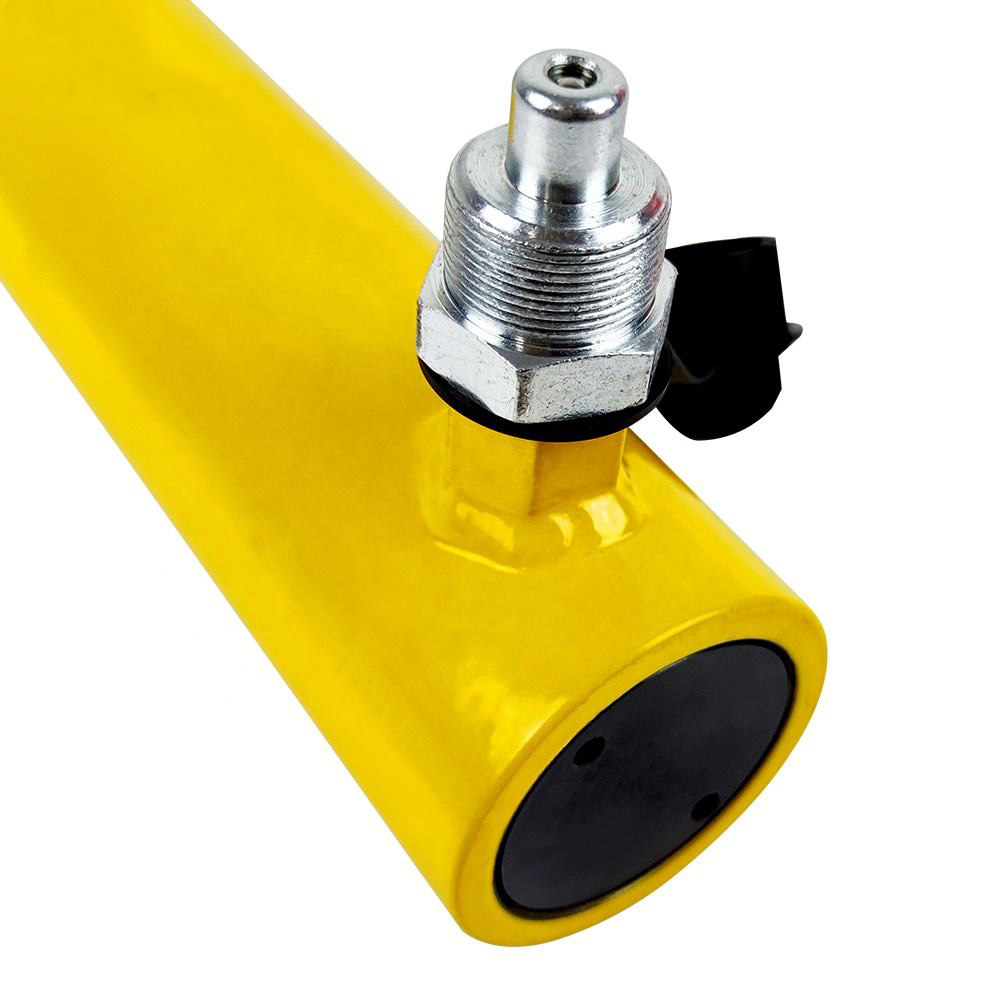

RR-Series Ultra-Precision Double-Acting High-Tonnage Hydraulic Cylinders

Home / Products / Hydraulic Cylinder / Hydraulic Cylinder Jack / RR-Series Ultra-Precision Double-Acting High-Tonnage Hydraulic Cylinders
RR-Series Ultra-Precision Double-Acting High-Tonnage Hydraulic Cylinders
RR-Series Ultra-Precision Double-Acting High-Tonnage Hydraulic Cylinders
RR-Series Ultra-Precision Double-Acting High-Tonnage Hydraulic Cylinders
RR-Series Ultra-Precision Double-Acting High-Tonnage Hydraulic Cylinders
RR-Series Ultra-Precision Double-Acting High-Tonnage Hydraulic Cylinders
RR-Series Ultra-Precision Double-Acting High-Tonnage Hydraulic Cylinders
RR-Series Ultra-Precision Double-Acting High-Tonnage Hydraulic Cylinders
RR-Series Ultra-Precision Double-Acting High-Tonnage Hydraulic Cylinders
RR-Series Ultra-Precision Double-Acting High-Tonnage Hydraulic Cylinders
RR-Series Ultra-Precision Double-Acting High-Tonnage Hydraulic Cylinders

RR-Series Ultra-Precision Double-Acting High-Tonnage Hydraulic Cylinders

Precision Dual-Circuit Power for Massive Industrial Lifting and Positioning

Engineered for Absolute Control
When standard jacks reach their limit, the RR Series takes over. Designed for heavy-duty industrial applications, these Double-Acting cylinders provide hydraulic power for both extension and retraction. Unlike single-acting springs that can be slow or unreliable under load, our dual-circuit system ensures rapid, controlled retraction and the ability to apply "pulling" force, making it the ultimate tool for complex bridge engineering, shipbuilding, and structural maintenance.

Contact Us
PREV：RR-Series Ultra-Precision Double-Acting High-Tonnage Hydraulic CylindersNEXT：RR-Series Ultra-Precision Double-Acting High-Tonnage Hydraulic Cylinders
  • Specification
  • Contact Us
Model no. Tons(T) Inner Dia(mm) Outer Dia(mm) Travel(mm) Weight(kg) Collapsed Height Pump
RR-10200 10 45 65 200 5.5 290 CP-800S
RR-10500 10 45 65 500 7 590 CP-800S
RR-20200 20 60 80 200 9.6 300 CP-800S
RR-20300 20 60 80 300 11 400 CP-800S
RR-30200 30 70 110 200 21 305 CP-800S
RR-30300 30 70 110 300 29 405 CP-800S
RR-50200 50 90 130 200 28 315 HHB-700AB
RR-50300 50 90 130 300 32 415 HHB-700AB
RR-50400 50 90 130 400 47 515 HHB-700AB
RR-100200 100 130 170 200 37 350 HHB-700AB
RR-100300 100 130 170 300 66 450 HHB-700AB
RR-100400 100 130 170 400 83 550 HHB-700AB
RR-150200 150 165 218 200 86 350 DB300-S2
RR-200200 200 185 240 200 88 360 DB300-S2
