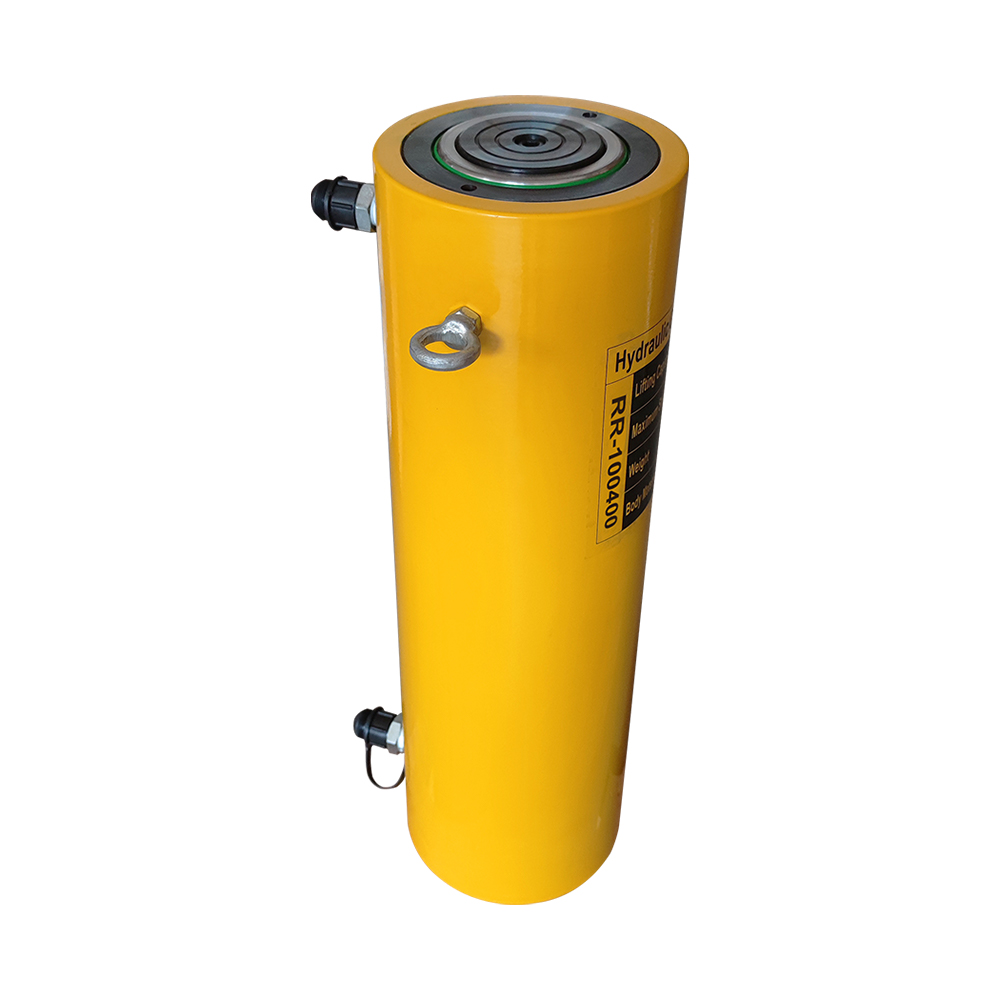

RR Series Double Acting Hydraulic Cylinder Jacks

Home / Products / Hydraulic Cylinder / Hydraulic Cylinder Jack / RR Series Double Acting Hydraulic Cylinder Jacks
RR Series Double Acting Hydraulic Cylinder Jacks
RR Series Double Acting Hydraulic Cylinder Jacks
RR Series Double Acting Hydraulic Cylinder Jacks
RR Series Double Acting Hydraulic Cylinder Jacks

RR Series Double Acting Hydraulic Cylinder Jacks

The RR Series Double-Acting Hydraulic Cylinder Jacks are engineered for heavy-duty lifting, pushing, and positioning applications. Designed with a dual-acting system, these cylinders provide both extension and retraction force, ensuring higher efficiency and precise control in demanding industrial environments.

Contact Us
PREV：RR Series Double Acting Hydraulic Cylinder JacksNEXT：RR Series Double Acting Hydraulic Cylinder Jacks
  • Specification
  • Contact Us
Model no. Tons(T) Effective Area(cm²) Oil Capacity(cm³) Inner Dia(mm) Outer Dia(mm) Travel(mm) Weight(kg) Collapsed Height Pump
RR-10200 10 15.9 318 φ45mm φ65mm 200mm 5.5 290mm CP-800S
RR-10250 10 15.9 397 φ45mm φ65mm 250mm 6.5 440mm CP-800S
RR-10300 10 15.9 477 φ45mm φ65mm 300mm 7.5 390mm CP-800S
RR-10400 10 15.9 636 φ45mm φ65mm 400mm 8.5 490mm CP-800S
RR-10500 10 15.9 795 φ45mm φ65mm 500mm 8.5 590mm CP-800S
RR-20200 20 28.3 566 φ60mm φ80mm 200mm 9.6 300mm CP-800S
RR-20300 20 28.3 849 φ60mm φ80mm 300mm 11 400mm CP-800S
RR-20400 20 28.3 1132 φ60mm φ80mm 400mm 12 500mm CP-800S
RR-20500 20 28.3 1415 φ60mm φ80mm 500mm 13 600mm CP-800S
RR-30200 30 38.5 770 φ70mm φ110mm 200mm 21 305mm CP-800S
RR-30300 30 38.5 1155 φ70mm φ110mm 300mm 29 405mm CP-800S
RR-30400 30 38.5 1540 φ70mm φ110mm 400mm 30 505mm CP-800S
RR-30500 30 38.5 1925 φ70mm φ110mm 500mm 31 605mm CP-800S
RR-50200 50 63.6 1272 φ90mm φ130mm 200mm 28 315mm HHB-700AB
RR-50300 50 63.6 1980 φ90mm φ130mm 300mm 32 415mm HHB-700AB
RR-50400 50 63.6 2544 φ90mm φ130mm 400mm 47 515mm HHB-700AB
RR-50500 50 63.6 3180 φ90mm φ130mm 500mm 60 615mm HHB-700AB
RR-100200 100 132.6 2652 φ130mm φ168mm 200mm 37 350mm HHB-700AB
RR-100300 100 132.6 3978 φ130mm φ168mm 300mm 66 450mm HHB-700AB
RR-100400 100 132.6 5304 φ130mm φ168mm 400mm 83 550mm HHB-700AB
RR-100500 100 132.6 6630 φ130mm φ168mm 500mm 93 650mm HHB-700AB
RR-150150 150 213.7 3205 φ165mm φ218mm 150mm 68 300mm HHB-700AB
RR-150200 150 213.7 4274 φ165mm φ218mm 200mm 86 350mm DB300‑S2
RR‑150300 150 213.7 6411 φ165mm φ218mm 300mm 88 450mm DB300‑S2
RR‑200200 200 213.7 4274 φ185mm φ240mm 200mm 88 360mm DB300‑S2
RR‑200300 200 213.7 6411 φ185mm φ240mm 300mm 98 460mm DB300‑S2
RR‑30050 300 415.3 2076 φ230mm φ299mm 50mm 130 250mm DB300‑S2
RR‑300100 300 415.3 4153 φ230mm φ299mm 100mm 152 300mm DB300‑S2
RR300200 300 415.3 8306 φ230mm φ299mm 200mm 167 400mm DB300‑S2

Key Features
Double Acting Design
Provides hydraulic power in both directions for faster operation and improved efficiency.
Wide Tonnage Range (10T–300T)
Covers light to ultra-heavy lifting requirements across multiple industries.
Smooth & Stable Operation
High-precision cylinder structure ensures stable lifting without jamming.
Durable Construction
Manufactured from high-strength alloy steel with a smooth surface finish for long service life.
Reliable Sealing System
Equipped with dust rings and high-quality seals to prevent leakage and extend durability.
Fast Hydraulic Connection
Standard coupler design allows quick and secure connection to hydraulic pumps.
Superior Mobility (Selected Models)
PU wheels provide excellent shock absorption and easy transportation.
