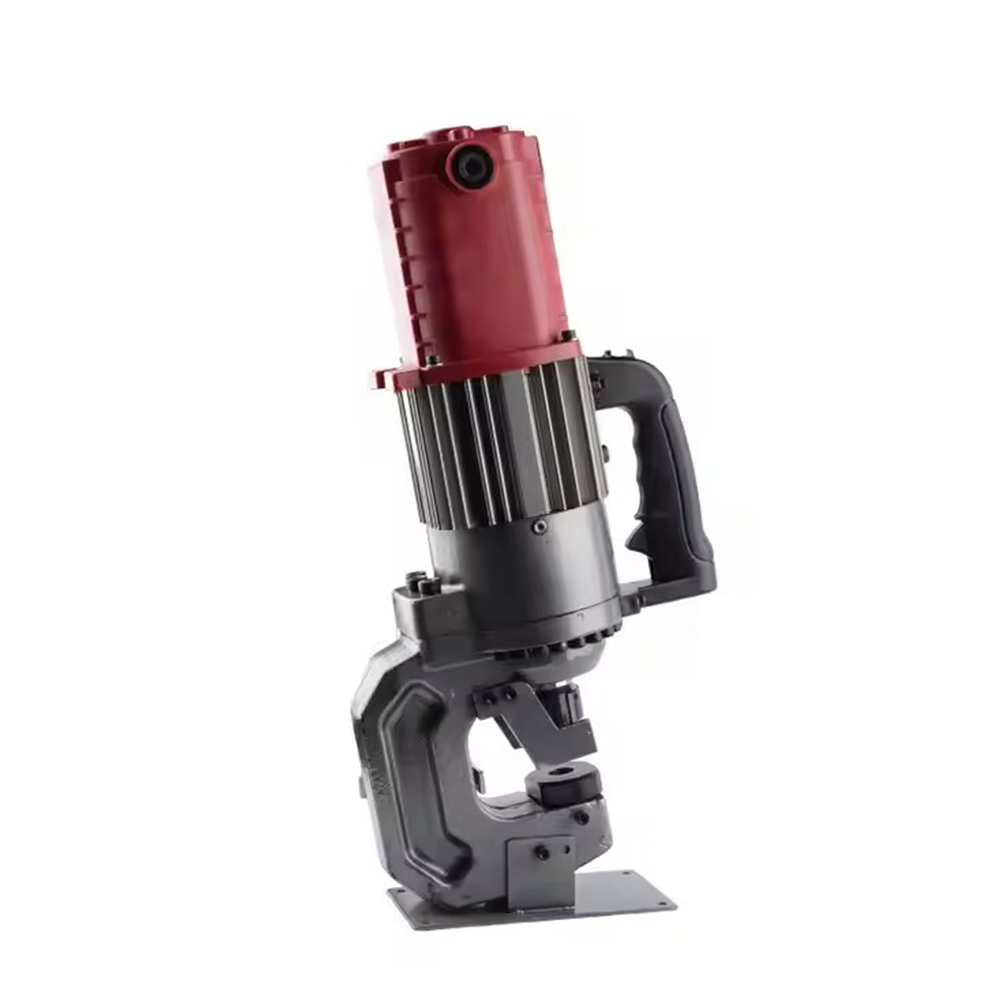

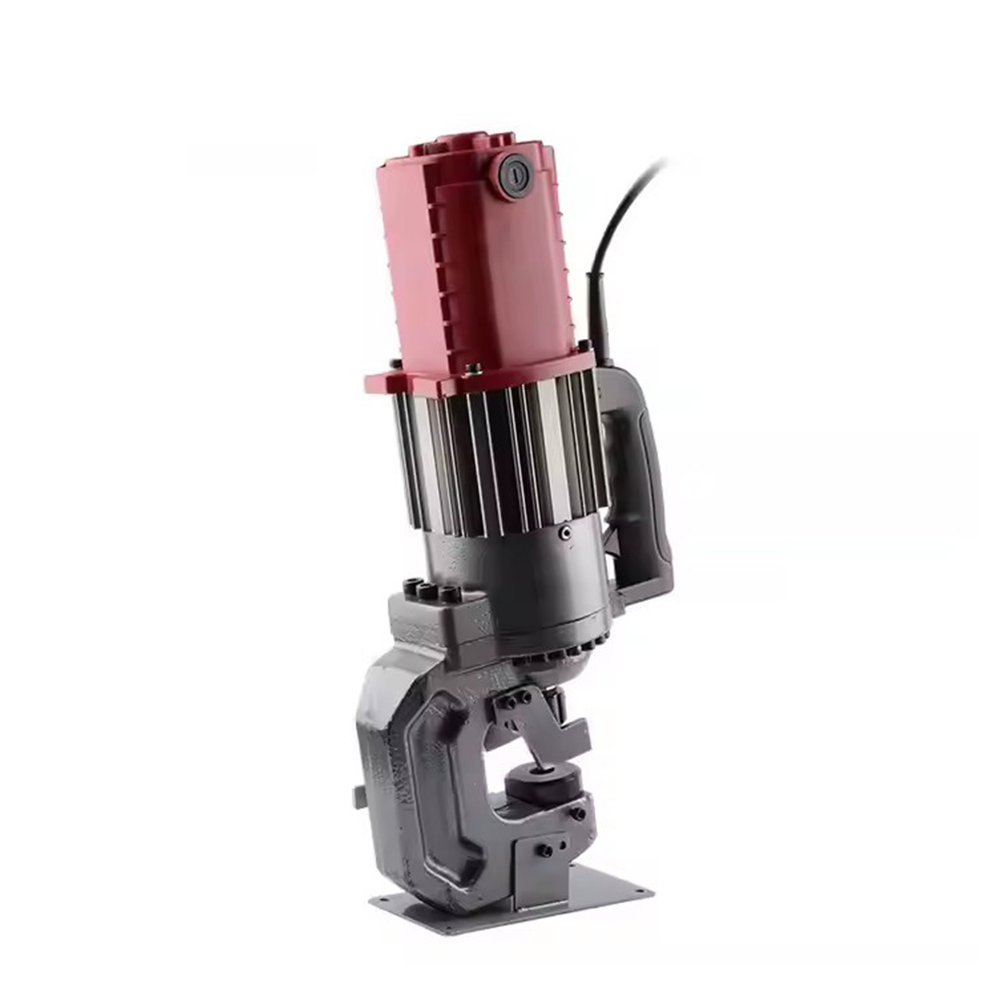

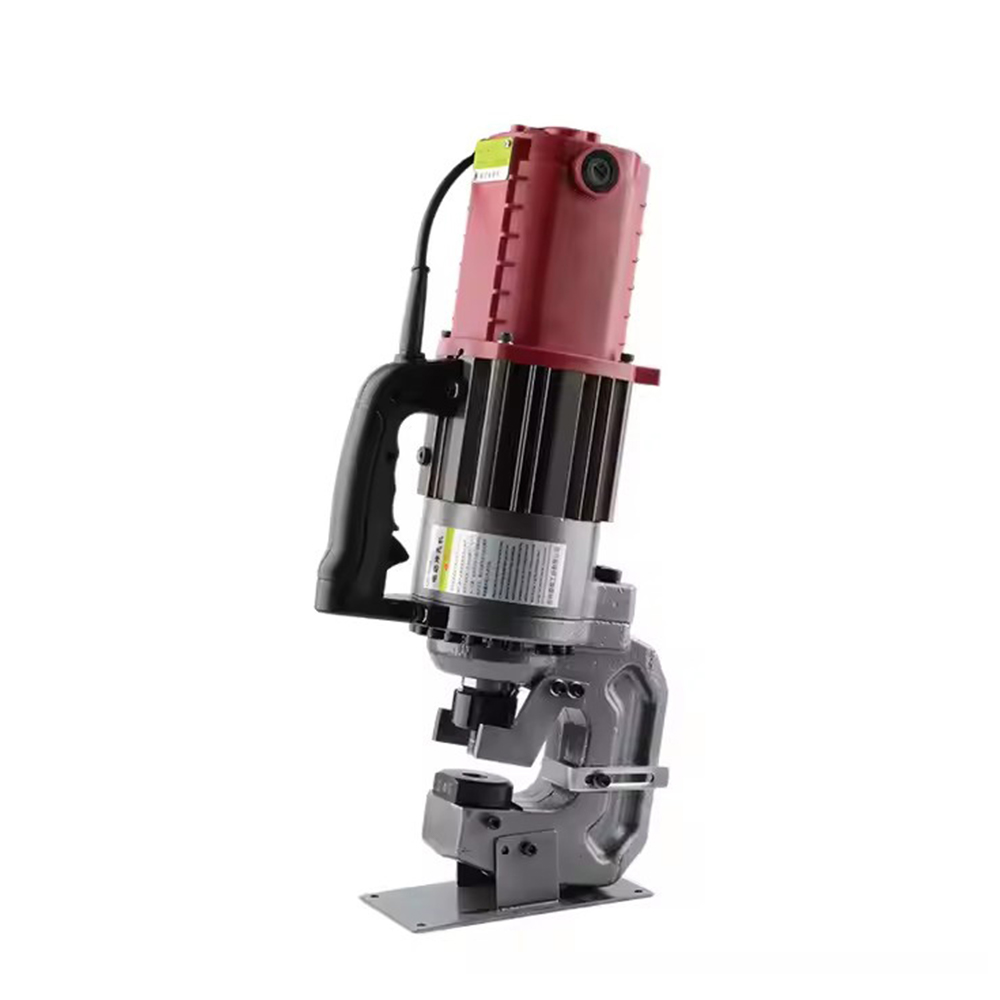

LZ Series Portable Electric Hydraulic Puncher Up to 25T Adjustable Throat Depth

Home / Products / Punching Tools / Busbar Punching Machine / LZ Series Portable Electric Hydraulic Puncher Up to 25T Adjustable Throat Depth
LZ Series Portable Electric Hydraulic Puncher Up to 25T Adjustable Throat Depth
LZ Series Portable Electric Hydraulic Puncher Up to 25T Adjustable Throat Depth
LZ Series Portable Electric Hydraulic Puncher Up to 25T Adjustable Throat Depth
LZ Series Portable Electric Hydraulic Puncher Up to 25T Adjustable Throat Depth
LZ Series Portable Electric Hydraulic Puncher Up to 25T Adjustable Throat Depth
LZ Series Portable Electric Hydraulic Puncher Up to 25T Adjustable Throat Depth
LZ Series Portable Electric Hydraulic Puncher Up to 25T Adjustable Throat Depth
LZ Series Portable Electric Hydraulic Puncher Up to 25T Adjustable Throat Depth
LZ Series Portable Electric Hydraulic Puncher Up to 25T Adjustable Throat Depth
LZ Series Portable Electric Hydraulic Puncher Up to 25T Adjustable Throat Depth
LZ Series Portable Electric Hydraulic Puncher Up to 25T Adjustable Throat Depth
LZ Series Portable Electric Hydraulic Puncher Up to 25T Adjustable Throat Depth

LZ Series Portable Electric Hydraulic Puncher Up to 25T Adjustable Throat Depth

Experience the ultimate in precision and power with the GHANGYOU LZ Series Portable Electric Hydraulic Puncher, engineered for professionals who demand speed, durability, and versatility. Perfect for workshops, construction sites, and steel processing plants, this all-in-one hydraulic punching machine combines advanced design, high-efficiency performance, and user-friendly operation.

Contact Us
PREV：LZ Series Portable Electric Hydraulic Puncher Up to 25T Adjustable Throat DepthNEXT：No next article
  • Specification
  • Contact Us
Model No: LZ-32
Output 25T
Voltage 220V/50HZ
Power 2500W
Depth of throat 70mm (Distance from the center of the mold to the inside)
Cu/Al row 3-12mm thick
Iron/steel plate 3-12mm thick
Angle steel ≤12#
U-bar 6-14#
Weight 25Kg/29Kg
Packing Plastic box
Standard mold Φ11-Φ13-Φ17-Φ22-Φ25.5mm
Moulds can be customized, contact the customer

Key Features
High-Power Pure Copper Motor
Equipped with a high-capacity pure copper motor, delivering fast speed, strong torque, and long-lasting performance.
Power output options from 18T to 25T, suitable for a wide range of punching tasks.

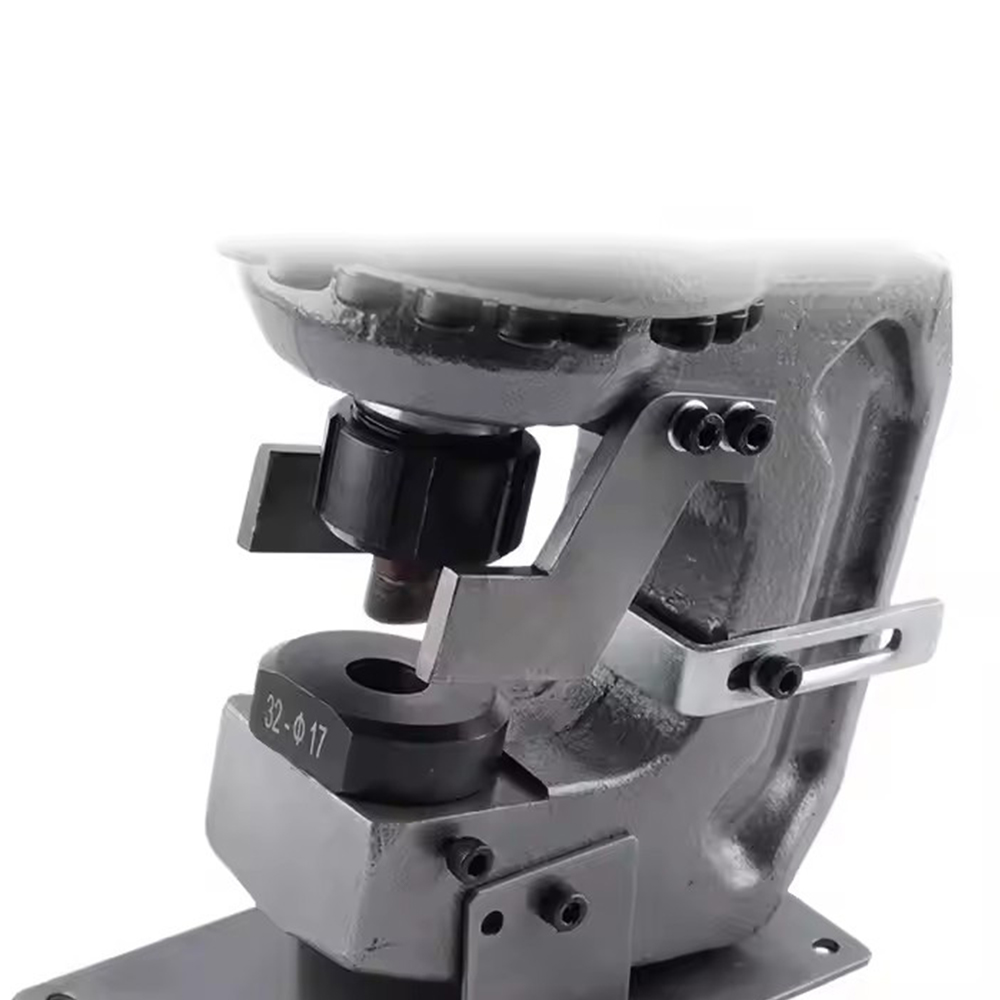

Adjustable Throat Depth & Precision Positioning
The new baffle system allows easy adjustment of throat depth for more accurate punching.
Supports various materials, including steel, angle iron, copper, and aluminum plates,with a  thickness from 3mm up to 12mm.
Durable & Safe Design
Loop nut uniformly distributed design ensures a stronger head, better sealing, and safer operation.
Portable carrying handle and waterproof starter switch tested for tens of thousands of cycles without failure.
High-strength housing and rolling cylinder construction for long-lasting durability.
Versatile Mold Options
Supports multiple punching molds with up to 5000+ cycles, made from high-strength, high-frequency quenched steel.
Custom mold options available to match specific project requirements.
Efficient & Labor-Saving Operation
Smooth surface treatment for effortless handling.
Two working modes: hand-held operation with auxiliary handle or base-mounted platform work.
Heat Dissipation & Continuous Cooling
Built-in vent design efficiently dissipates heat generated during extended operations, ensuring stable and continuous performance.
