EZ-400/55 Cutting and Crimping 2-in-1 Battery Electric Hydraulic Tool
|
Cutting stroke: |
42mm |
|
Crimp range: |
16-400mm2 |
|
Model Number: |
EZ-400/55 |
|
Output: |
120Kn |
|
Minimum Order Quantity: |
2set |
|
Price: |
US$360.00 |
|

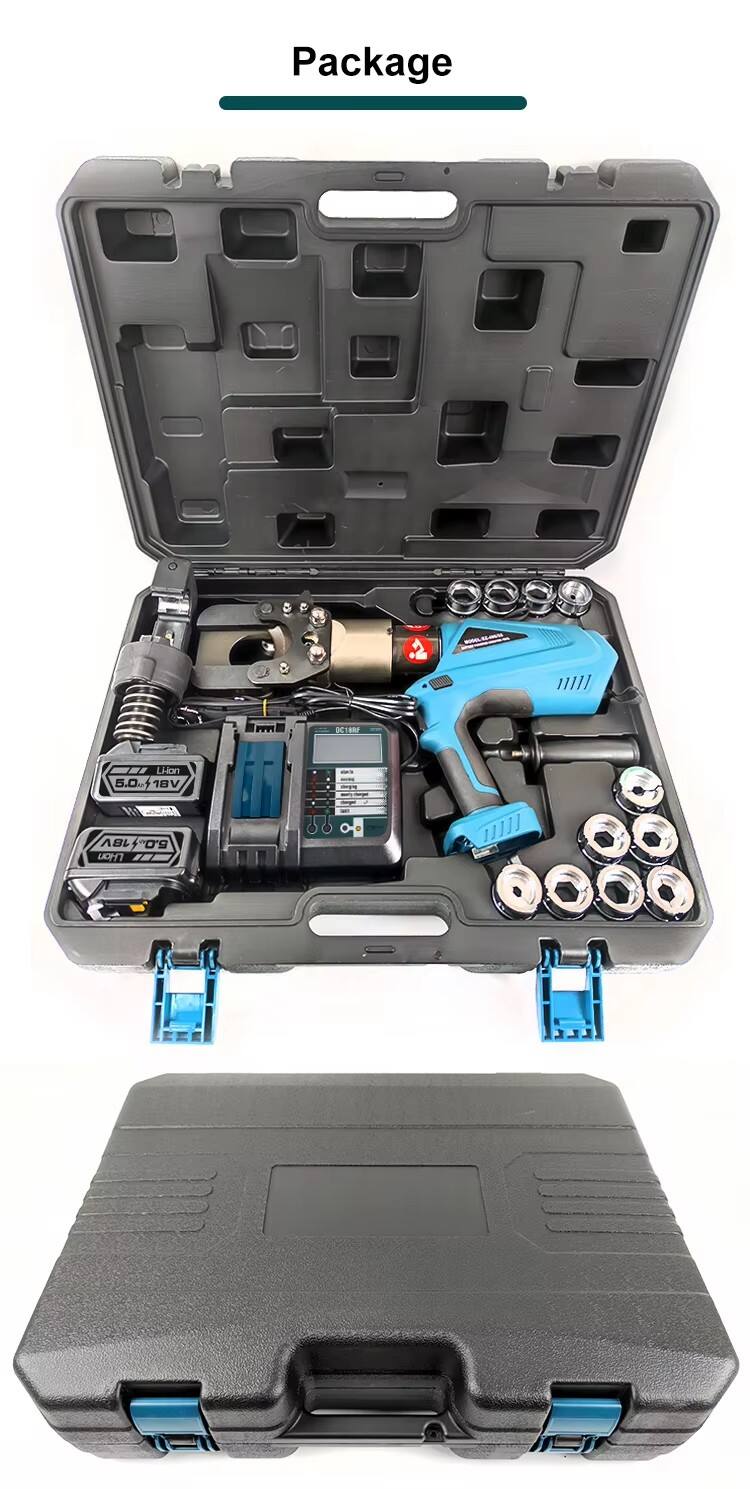

Packaging Details: |
Plastic box |
|
Delivery Time: |
≥3 day |
|
Custom made: |
customizable |
|
Supply Ability: |
Available |
- Overview
- Specifications
- Recommended Products
|

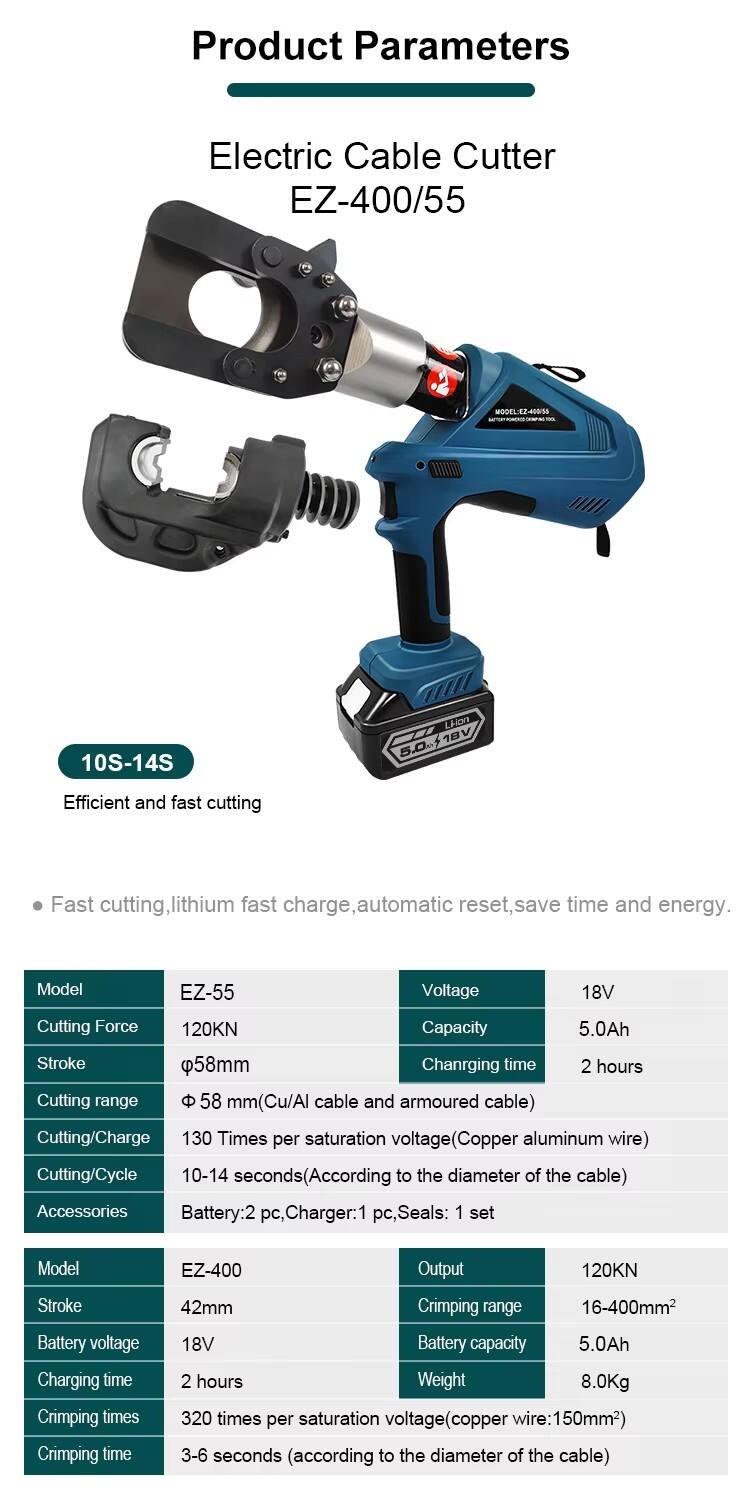

Model |
EZ-55 |
Voltage |
18V |
|
Cutting Force |
120KN |
Capacity |
5.0Ah |
|
Stroke |
Φ58mm |
Charging time |
2 hours |
|

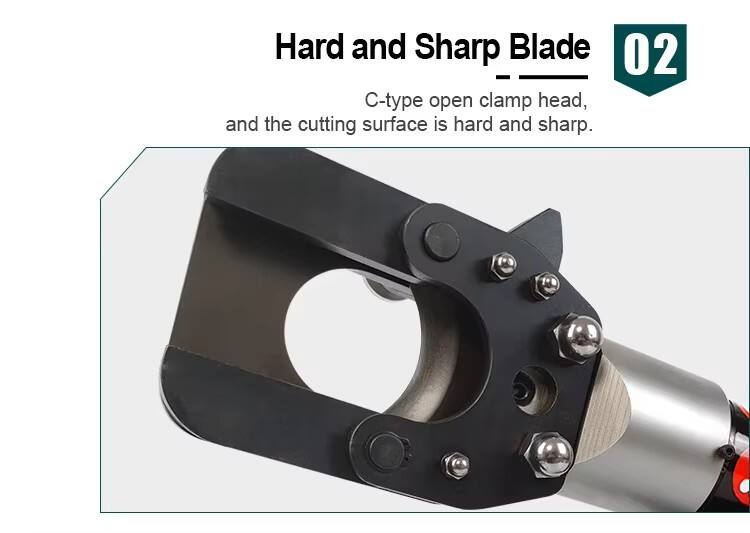

Cutting range |
Φ 58 mm(Cu/Al cable and armoured cable) |
||
|
Cutting/Charge |
130 Times per saturation voltage(Copper aluminum wire) |
||
|
Cutting/Cycle |
10-14 seconds(According to the diameter of the cable) |
||
|
Accessories |

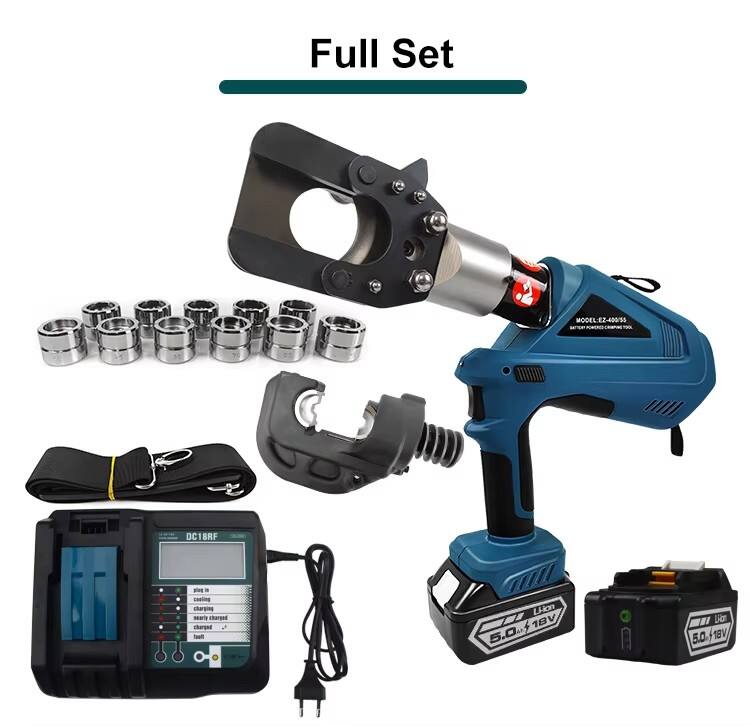

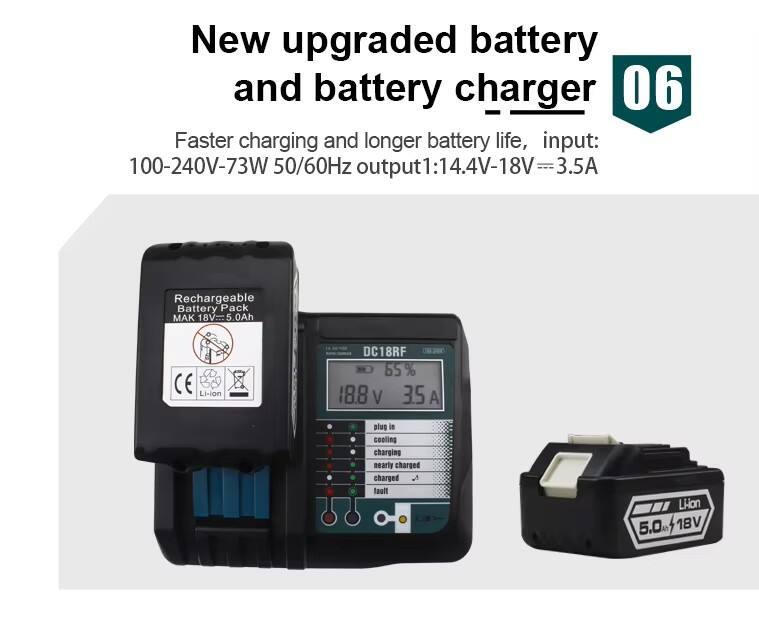

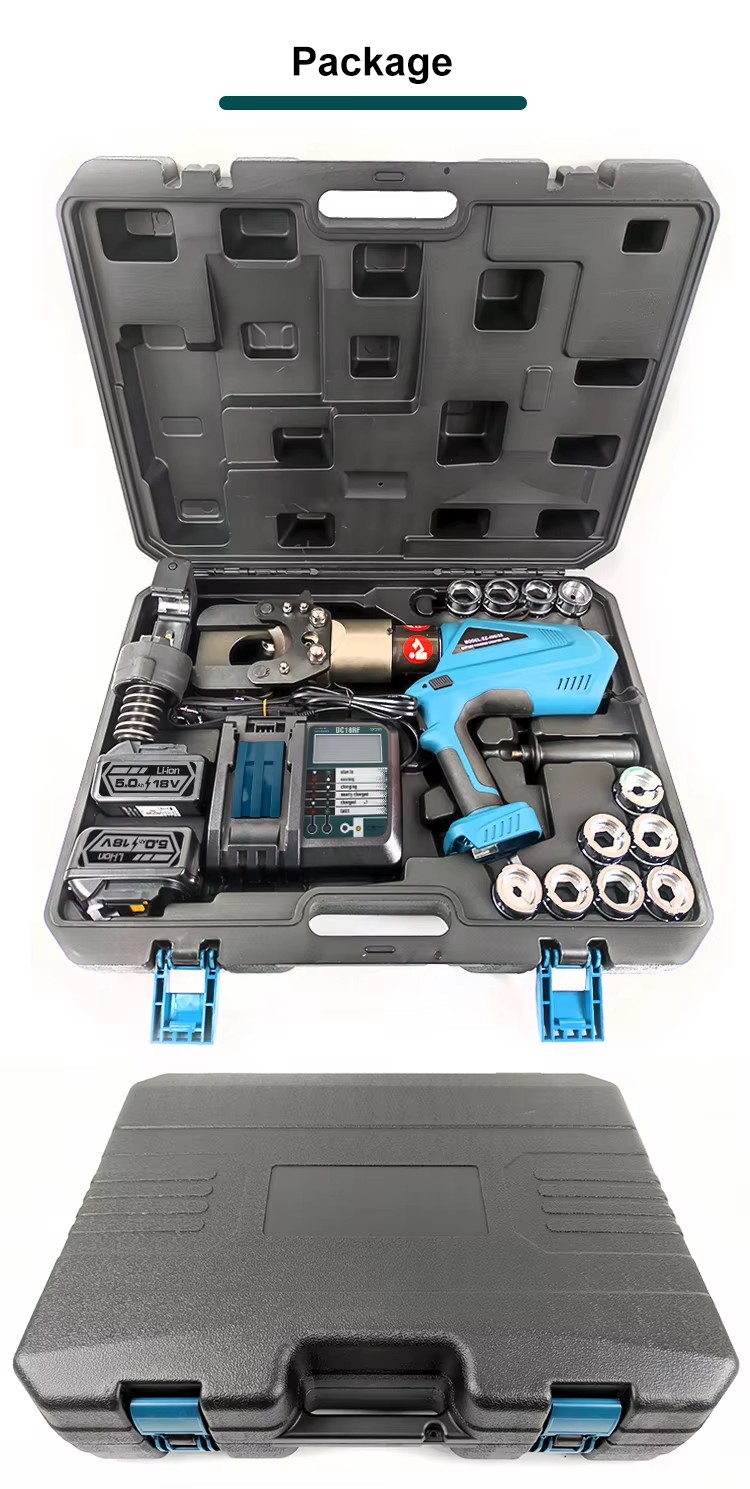

Battery:2 pc,Charger:1 pc,Seals:1 set |
||
|
Model |
EZ-400 |
Output |
120KN |
|
Stroke |
42mm |
Crimping range |
16-400mm2 |
|

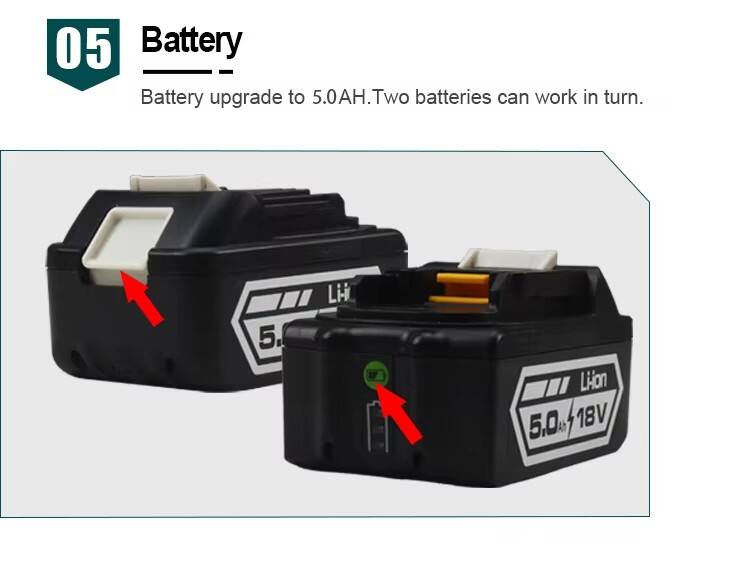

Battery voltage |
18V |
Battery capacity |
5.0Ah |
|
Charging time |
2 hours |
Weight |
8.0Kg |
|
Crimping times |
320 times per saturation voltage(copper wire:150mm2) |
||
|
Crimping time |
3-6 seconds (according to the diameter of the cable) |
||
