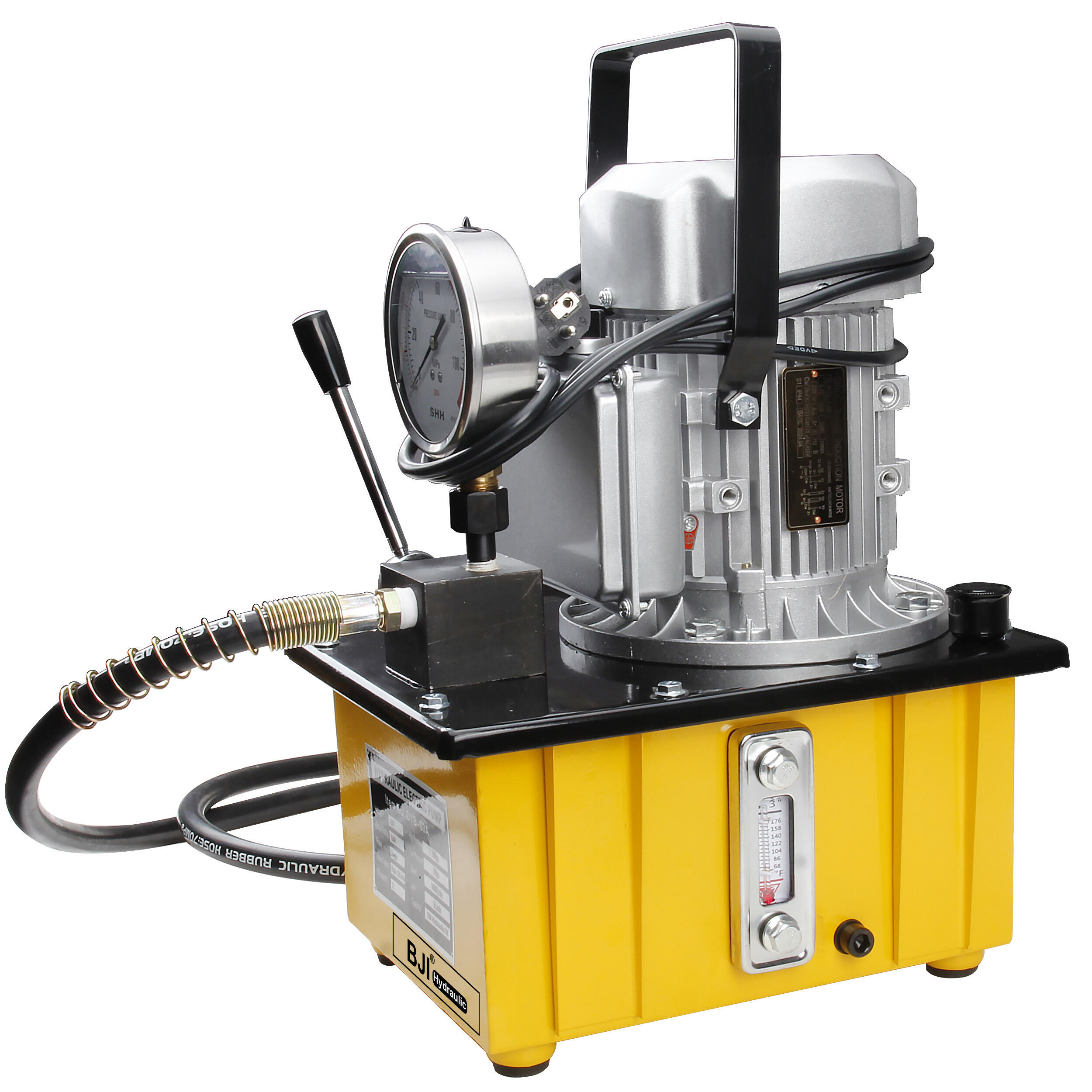

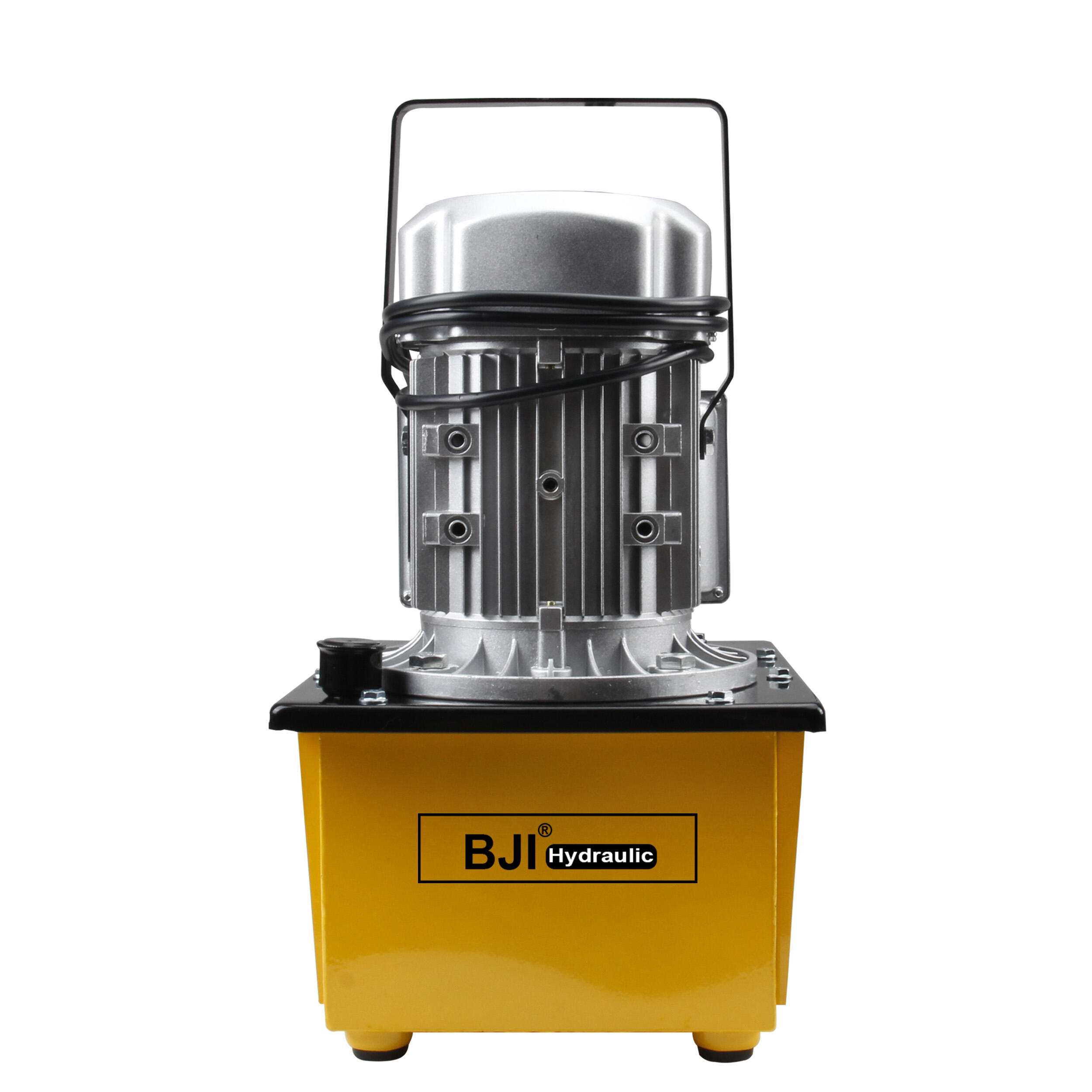

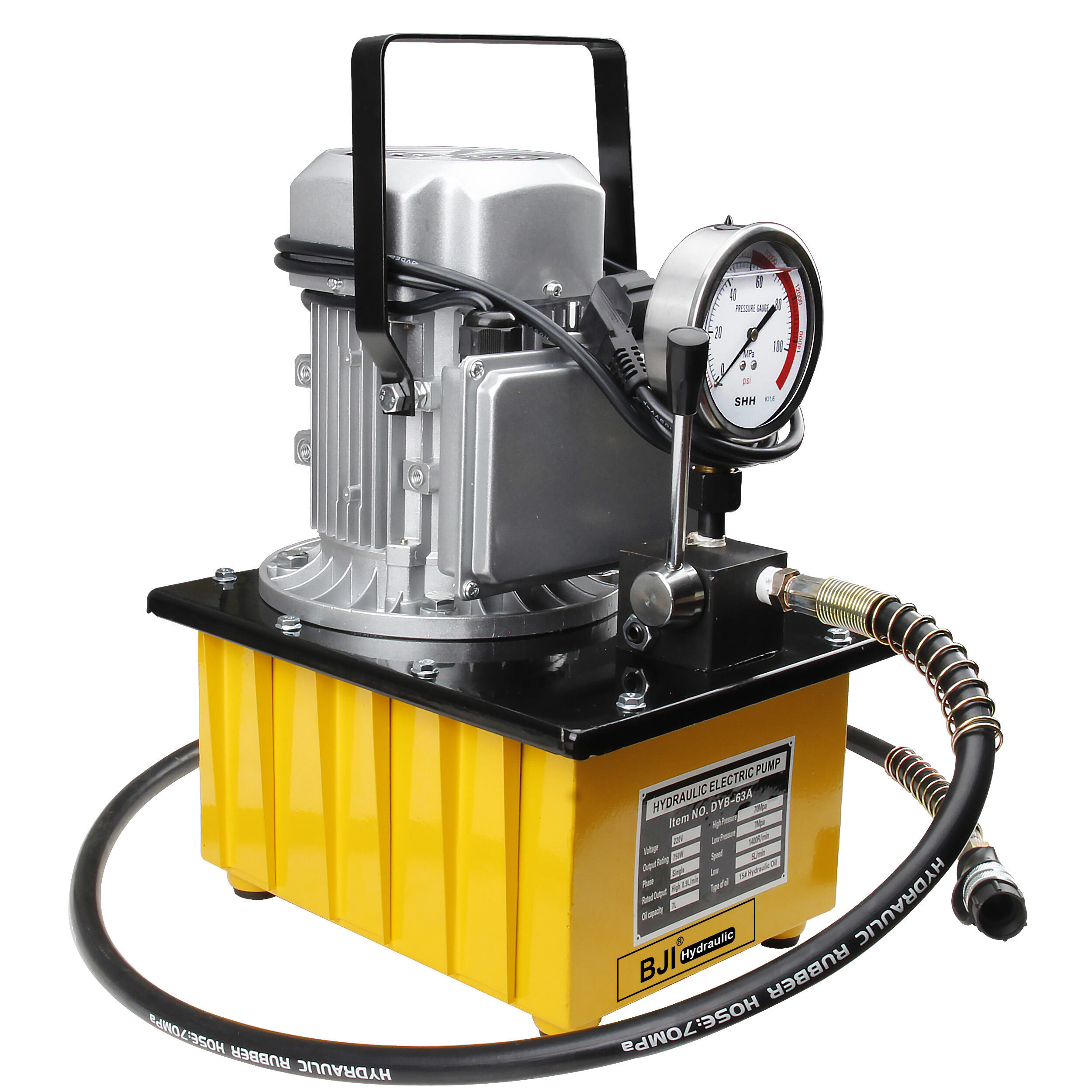

DYB-63A Hydraulic Electric Pump with 700 Bar Working Pressure

  • Introduction
  • Description
  • Specifications
Introduction

power:

0.75KW

Speed:

1400r/min

Model Number:

DYB-63A

Oil Reserves:

7L

Minimum Order Quantity:

1 set

Price:

US$152.00

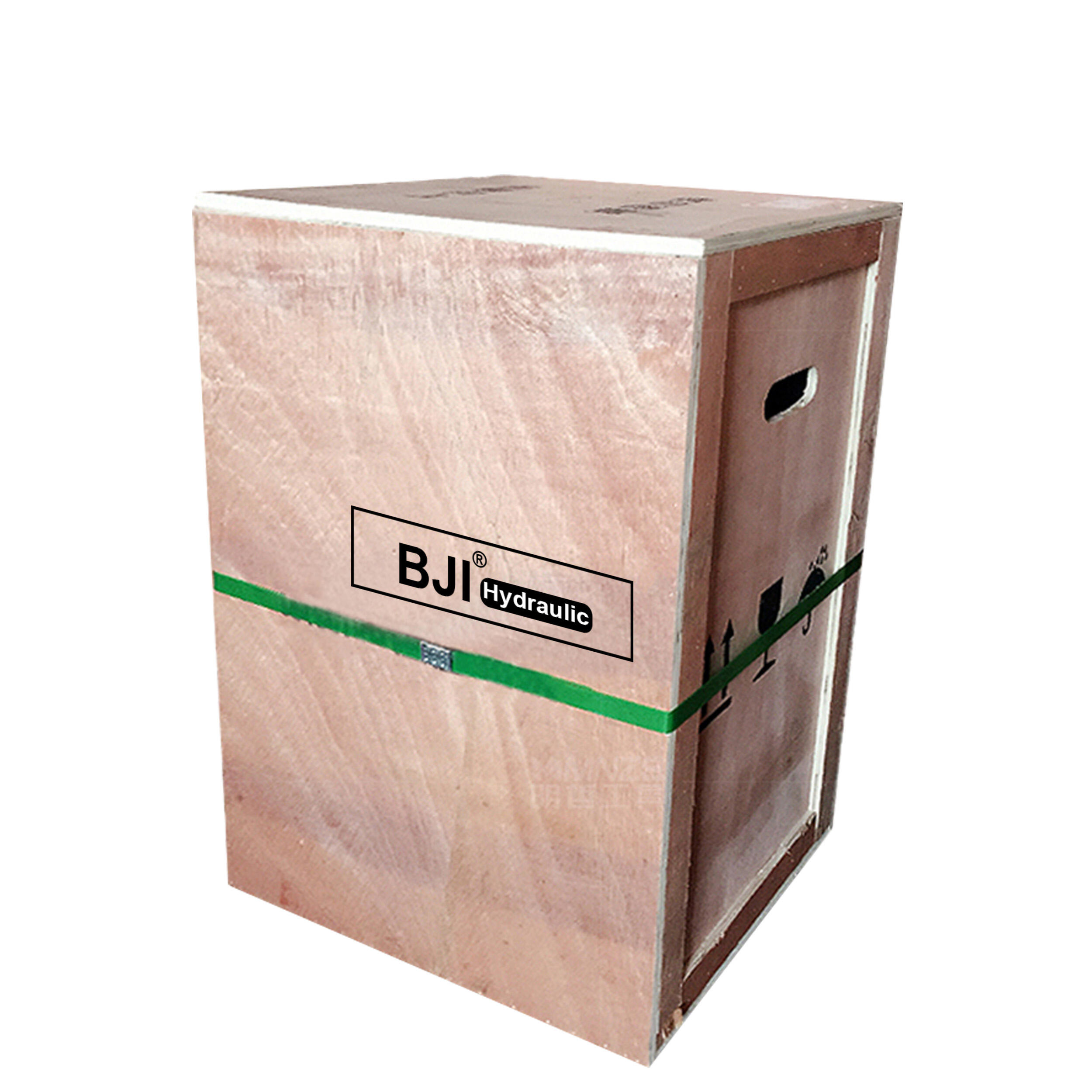

Packaging Details:

Wooden box

Delivery Time:

3 day

Payment Terms:

customizable

Supply Ability:

Available

Description

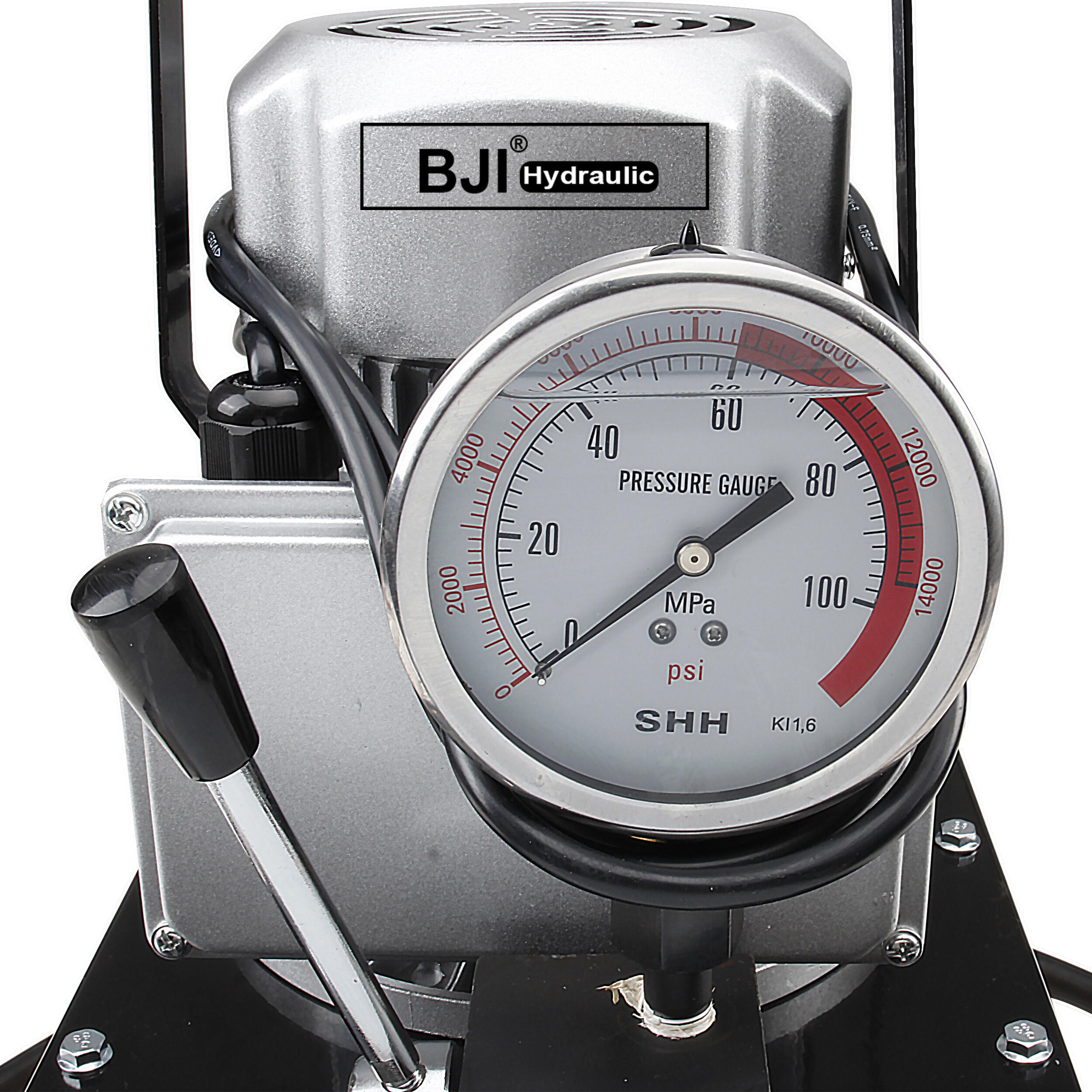

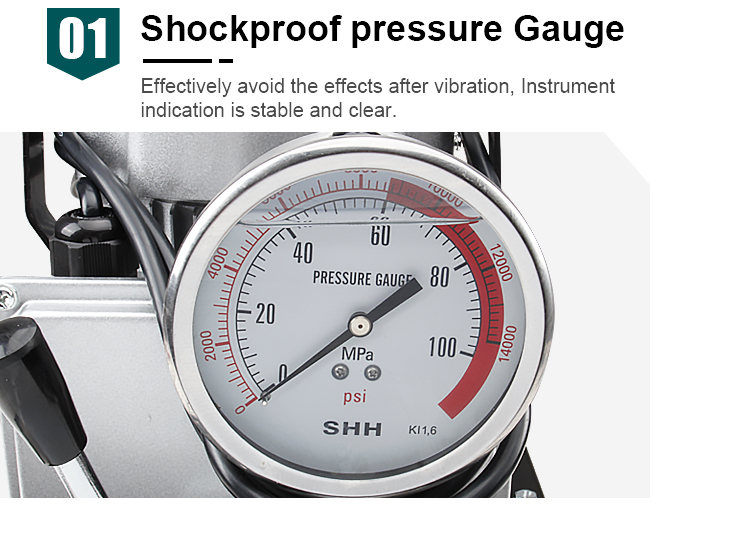

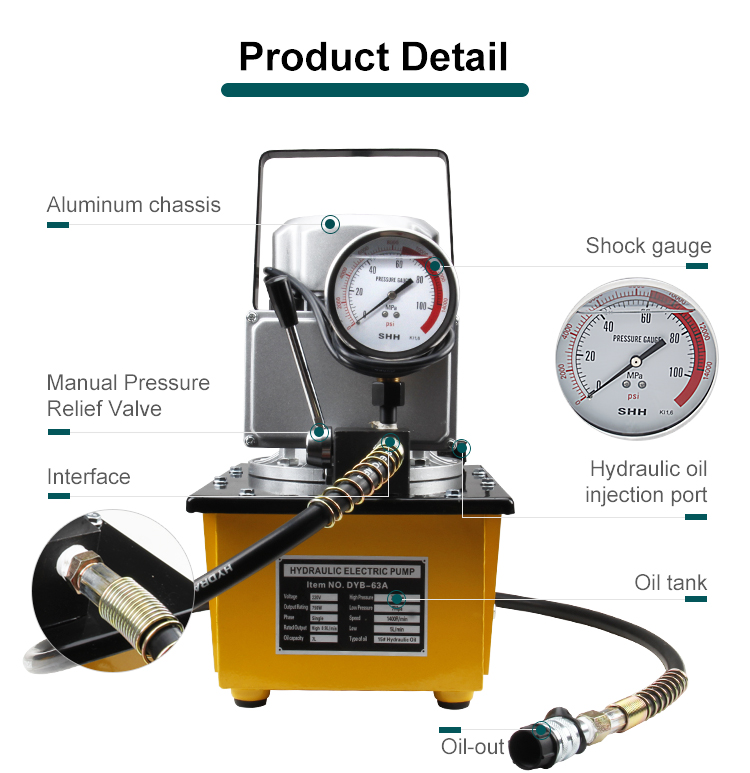

  1. Shockproof pressure Gauge Effectively avoid the effects after vibration, Instrument indication is stable and clear.

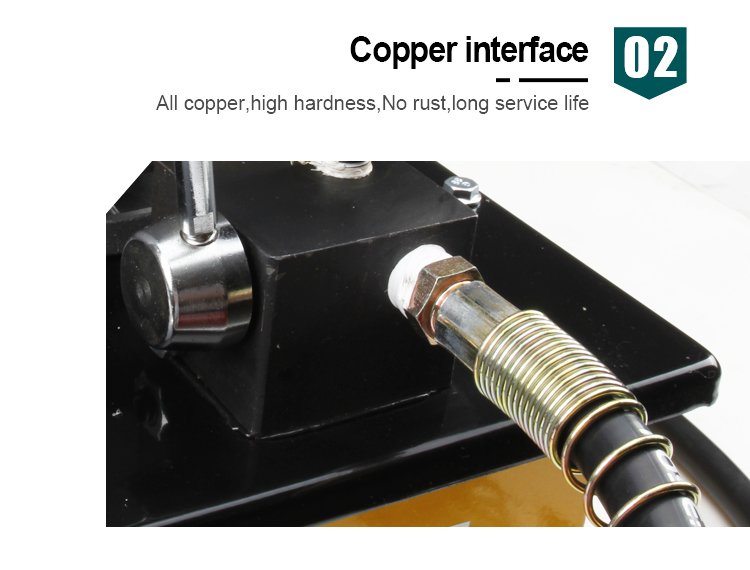

  2. Copper interface All copper,high hardness,No rust,long service life

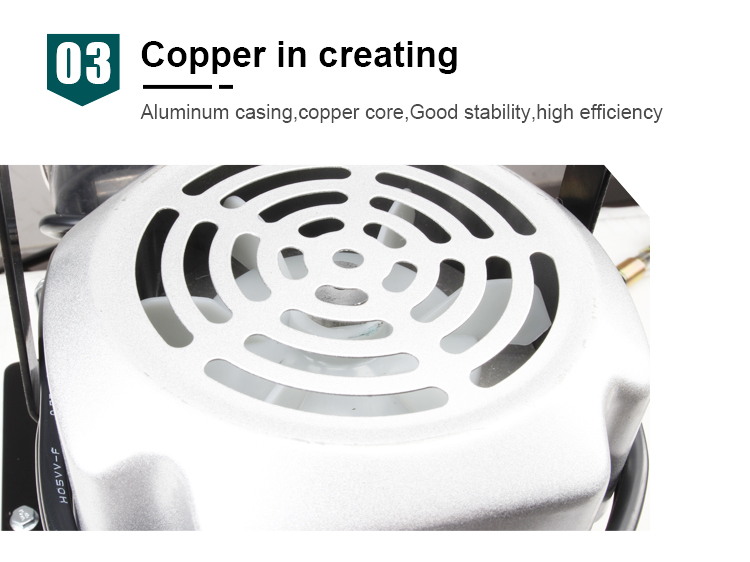

  3. Copper in creating Aluminum casing,copper core,Good stability,high efficiency

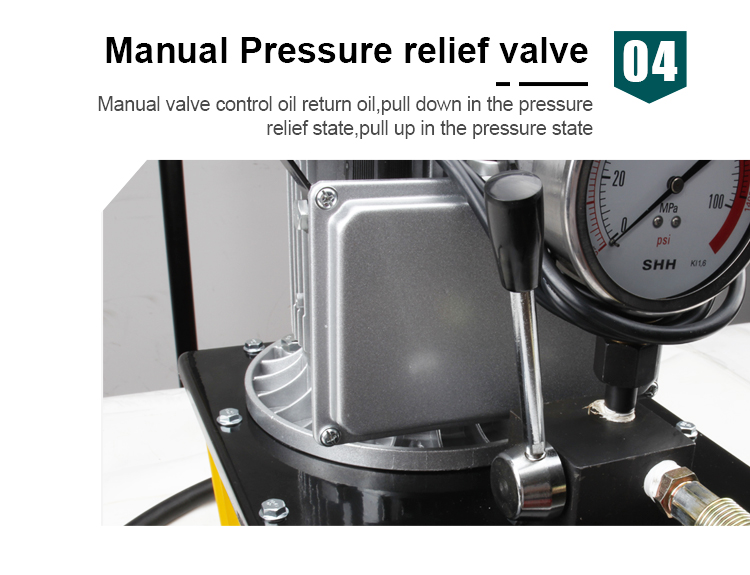

  4. Manual Pressure relief valve Manual valve control oil return oil,pull down in the pressure relief state,pull up in the pressure state

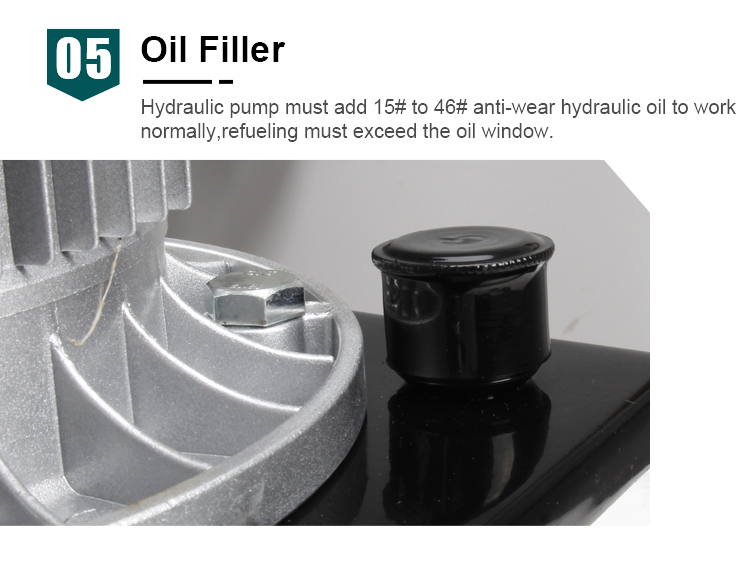

  5. Oil Filler Hydraulic pump must add 15# to 46# anti-wear hydraulic oil to work normally,refueling must exceed the oil window.

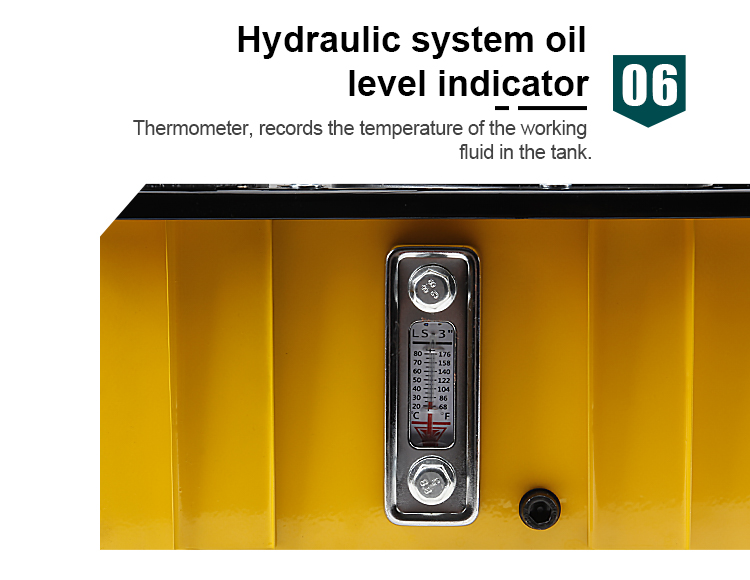

  6. Hydraulic system oillevel indicator Thermometer, records the temperature of the working fluid in the tank.

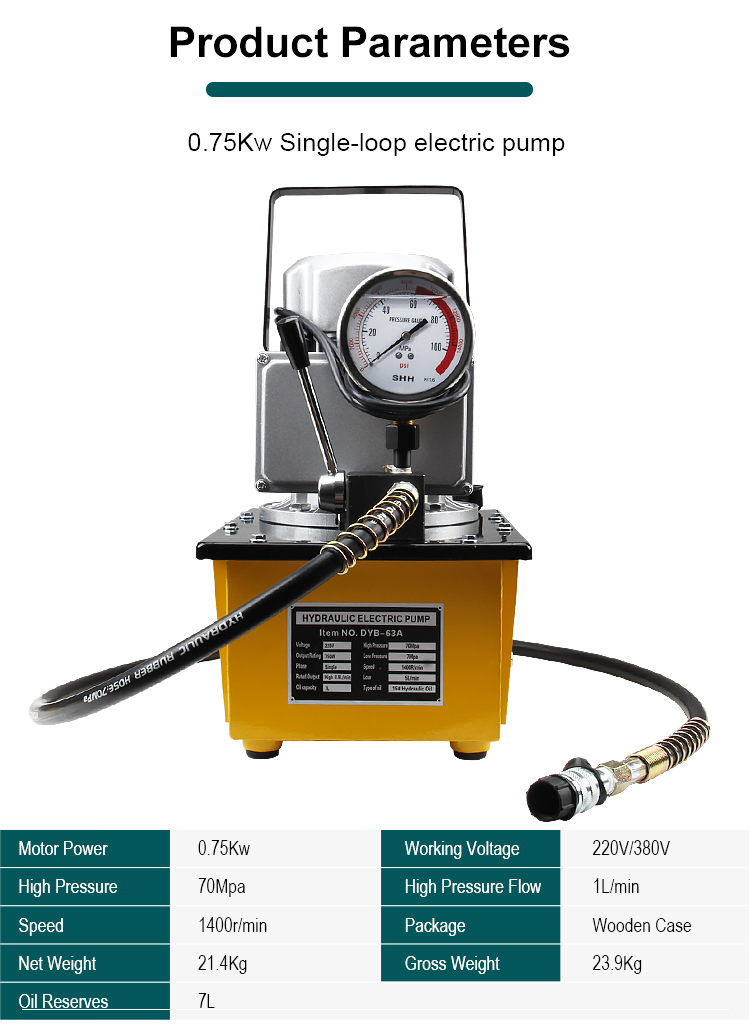

Specifications
Motor Power 0.75Kw Working Voltage 220V/380V
High Pressure 70Mpa High Pressure Flow 1L/min
Speed 1400r/min Package Wooden Case
Net Weight 21.4Kg Gross Weight 23.9Kg
Oil Reserves 7L
