Output: |
60kn |
Stroke: |
17mm |
Model Number: |
ES-300 |
crimping range: |
10-300m2 |
Minimum Order Quantity: |
1 set |
Price: |
US$280.00 |
Packaging Details: |
plastic box |
Delivery Time: |
≥3 day |
Payment Terms: |
customizable |
Supply Ability: |
Available |
1.Microcomputer control system Automatic pressure detection, automatic reset after crimping
2.High strength durable turn on key Optimized center of gravity design makes operation easier
3.18V lithium-ion battery Strong power, ultra-low power consumption,ultra-long standby
4.LED display Real-time display temperature, battery power, etc
5.Plastic box packaging Plastic box packing, easy to transport, easy to carry
|
Model |
ES-300 |
Output |
60KN |
|
Stroke |
17mm |
Crimping range |
10-300mm2 |
|
Battery Voltage |
18V |
Battery capacity |
2.5Ah |
|
Charging time |
Approx.60mins |
Crimping time |
3S-6S |
|
weight |
Approx.9.5Kg |

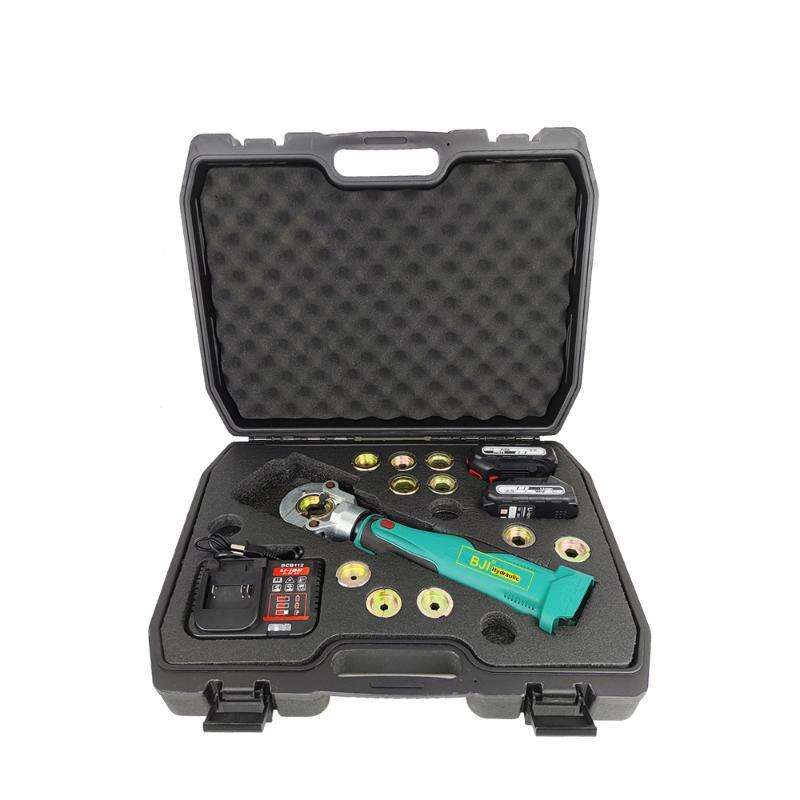

Package |
plastic case |
|
Accessories |
|||
|
Moulds |
10,16.25,35.50,70,95,120,150,185,240,300mm2 |
||
|
Battery |
2PCS |
||
|
Charger |
1PC |
||
|
Straps |
1PC |
||
|
Die Size |
10 |
16 |
25 |
35 |
50 |
70 |
|
Crimping Size |
CU18/AL8 |
CU16/AL10 |
CU25/AL16 |
CU35/AL25 |
CU50/AL35 |
CU70/AL50 |
|
Die Size |
95 |
120 |
150 |
185 |
240 |
300 |
|
Crimping Size |
CU95/AL70 |
CU150/AL95 |
CU150/AL120 |
CU185/AL150 |
CU240/AL185 |
CU300/AL240 |
