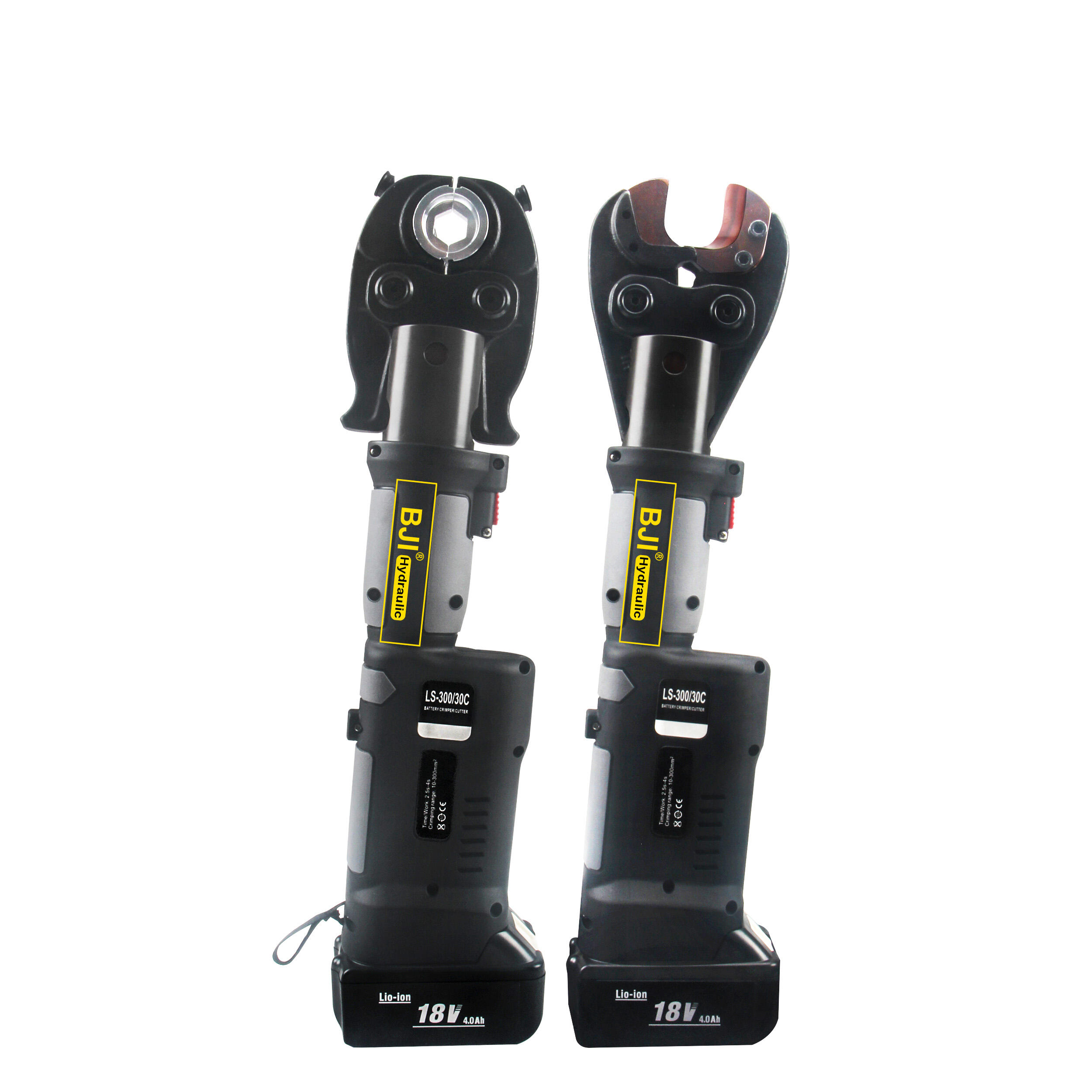

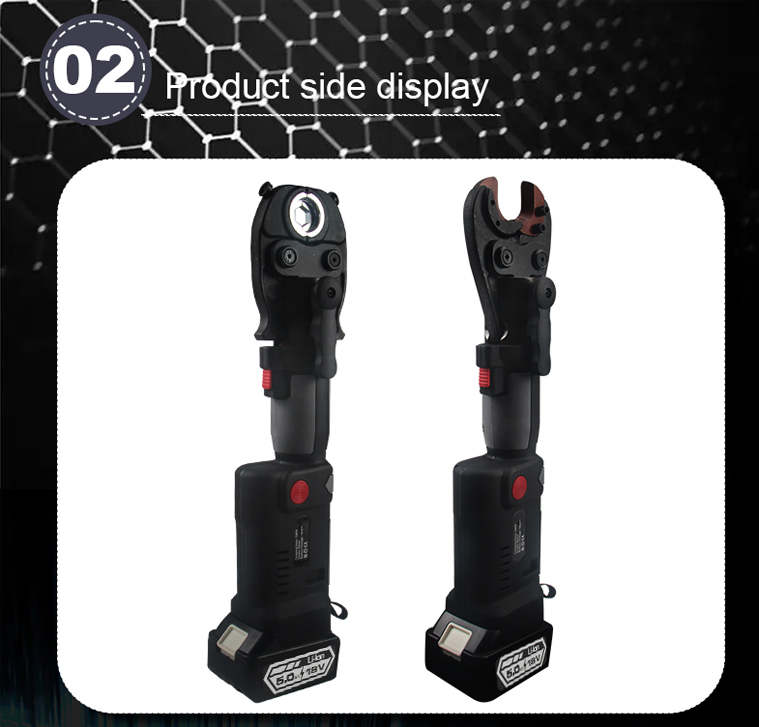

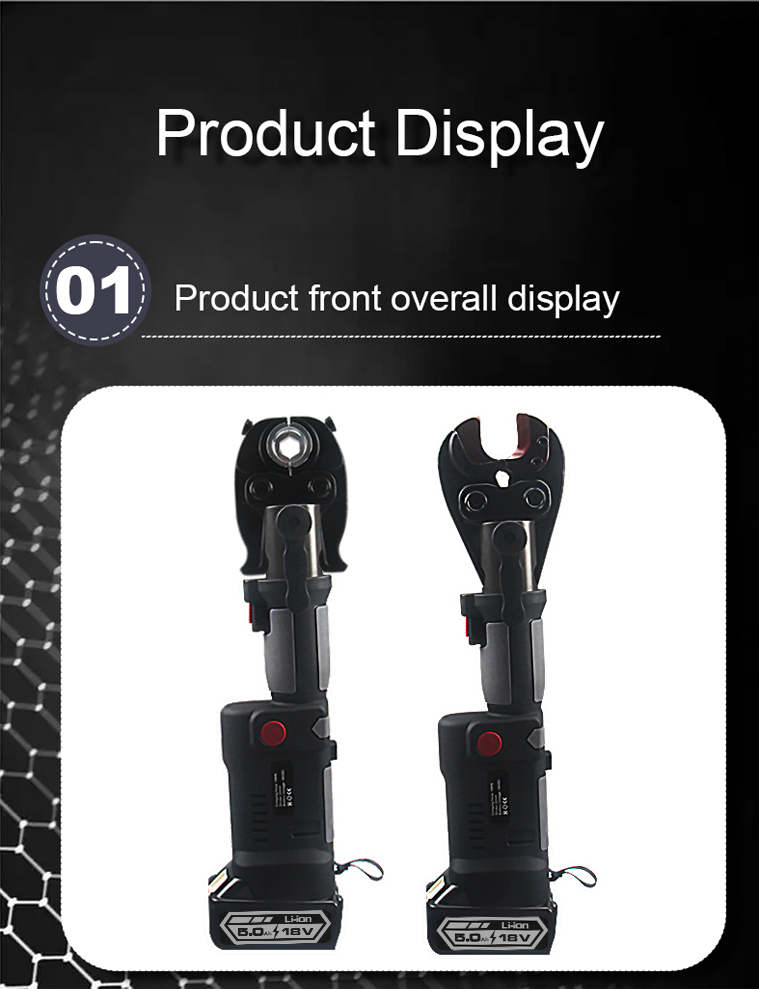

LS-300/30C Two in One Battery Crimper/cutter
|
Output: |
19kn |
|
Crimping range: |
10-300m3 |
|
Model Number: |
LS-300/30C |
|
cutting range: |
30mm Cu/Al Cable |
|
Minimum Order Quantity: |
1 set |
|
Price: |
US$370.00 |
|
Packaging Details: |
Plastic box |
|
Delivery Time: |
≥3 day |
|
Payment Terms: |
customizable |
|
Supply Ability: |
Available |
- Overview
- Description
- Specifications
- Recommended Products

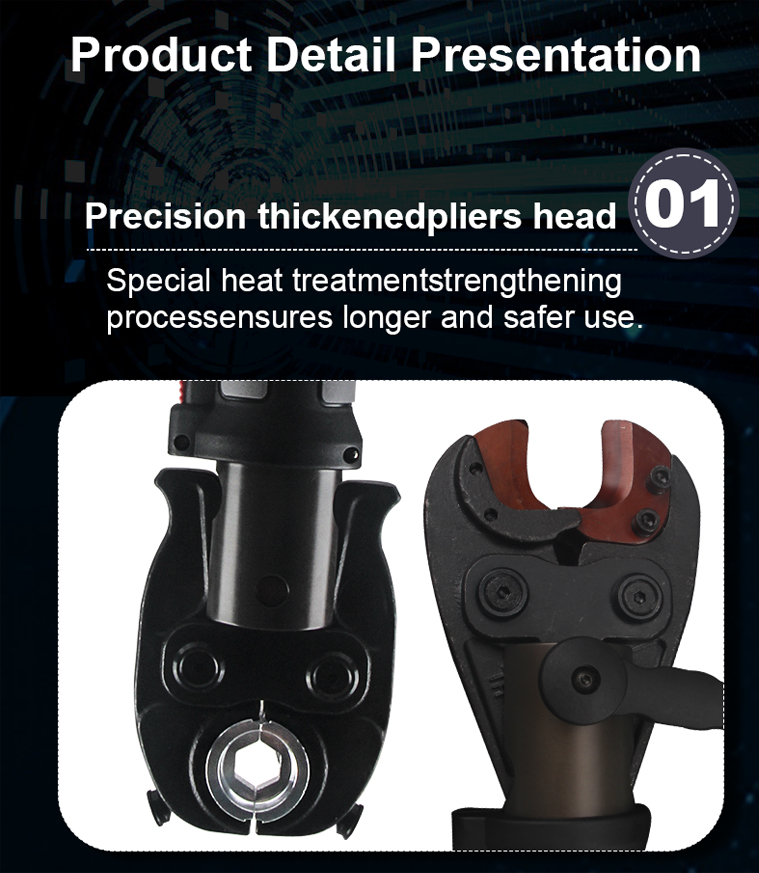

- Precision thickened pliers head Special heat treatmentstrengthening processensures longer and safer use

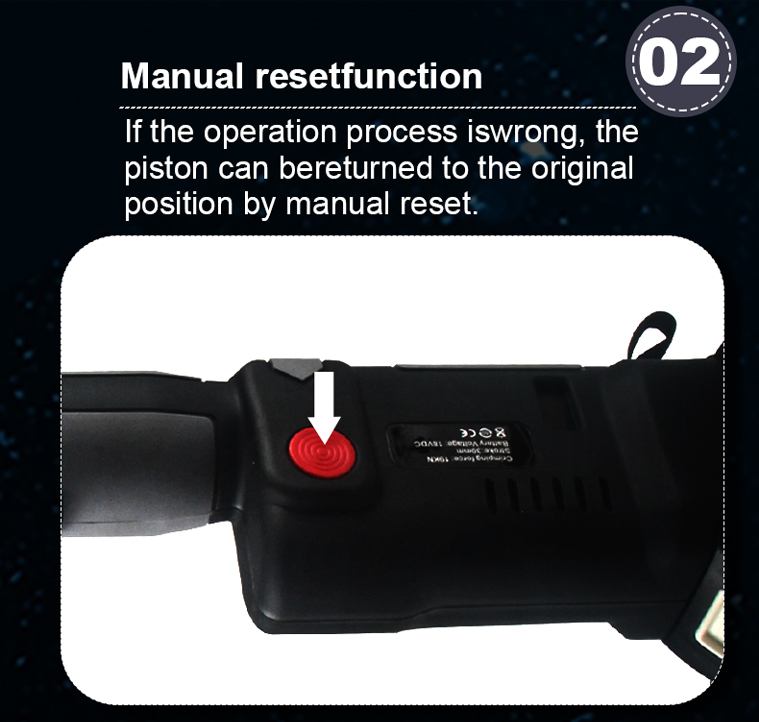

- Manual resetfunction If the operation process is wrong, thepiston can bereturned to the original position by manual reset,

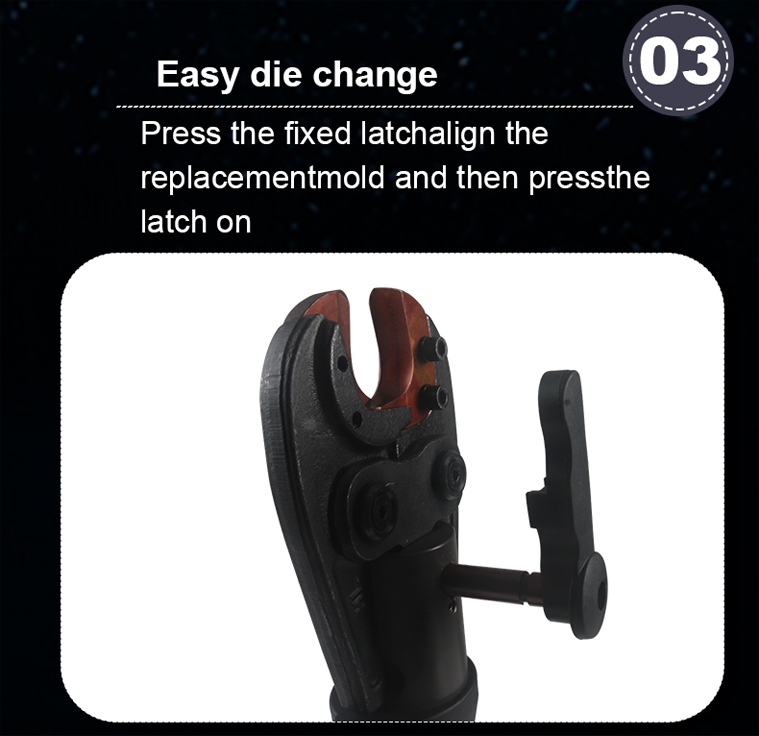

- Easy die change Press the fixed latchalign the replacement mold and then pressthelatch on

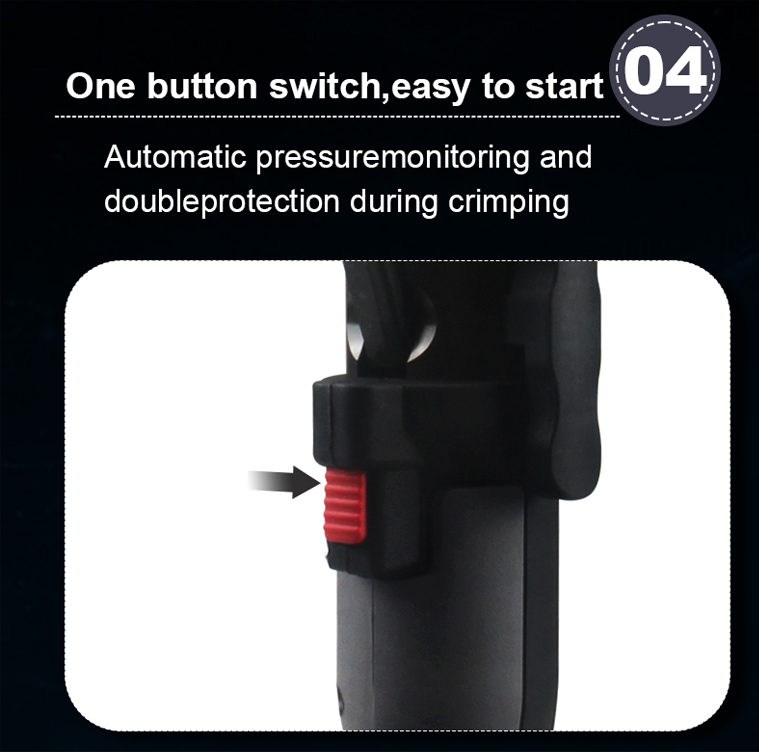

- One button switch,easy to start Automatic pressuremonitoring and doubleprotection during crimping

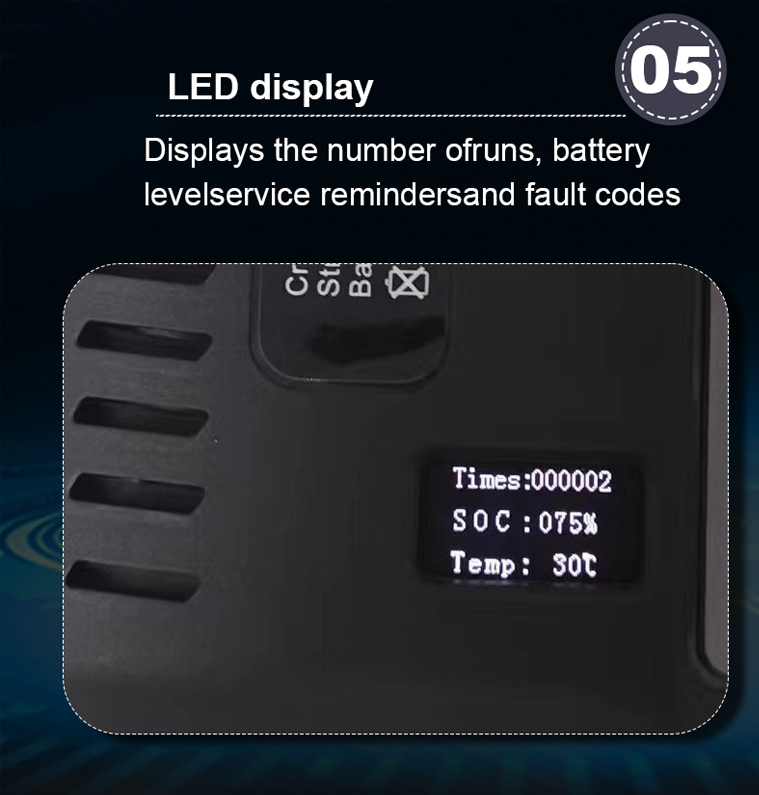

- LED display Displays the number ofruns, battery levelservice remindersand fault codes

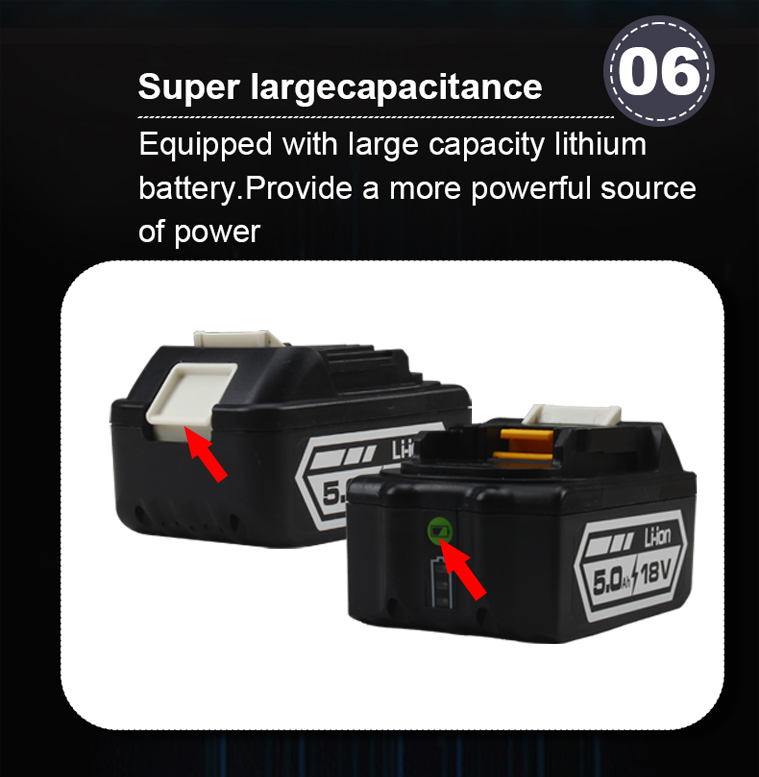

- Super largecapacitance Equipped with large capacity lithium battery.Provide a more powerful sourceof power

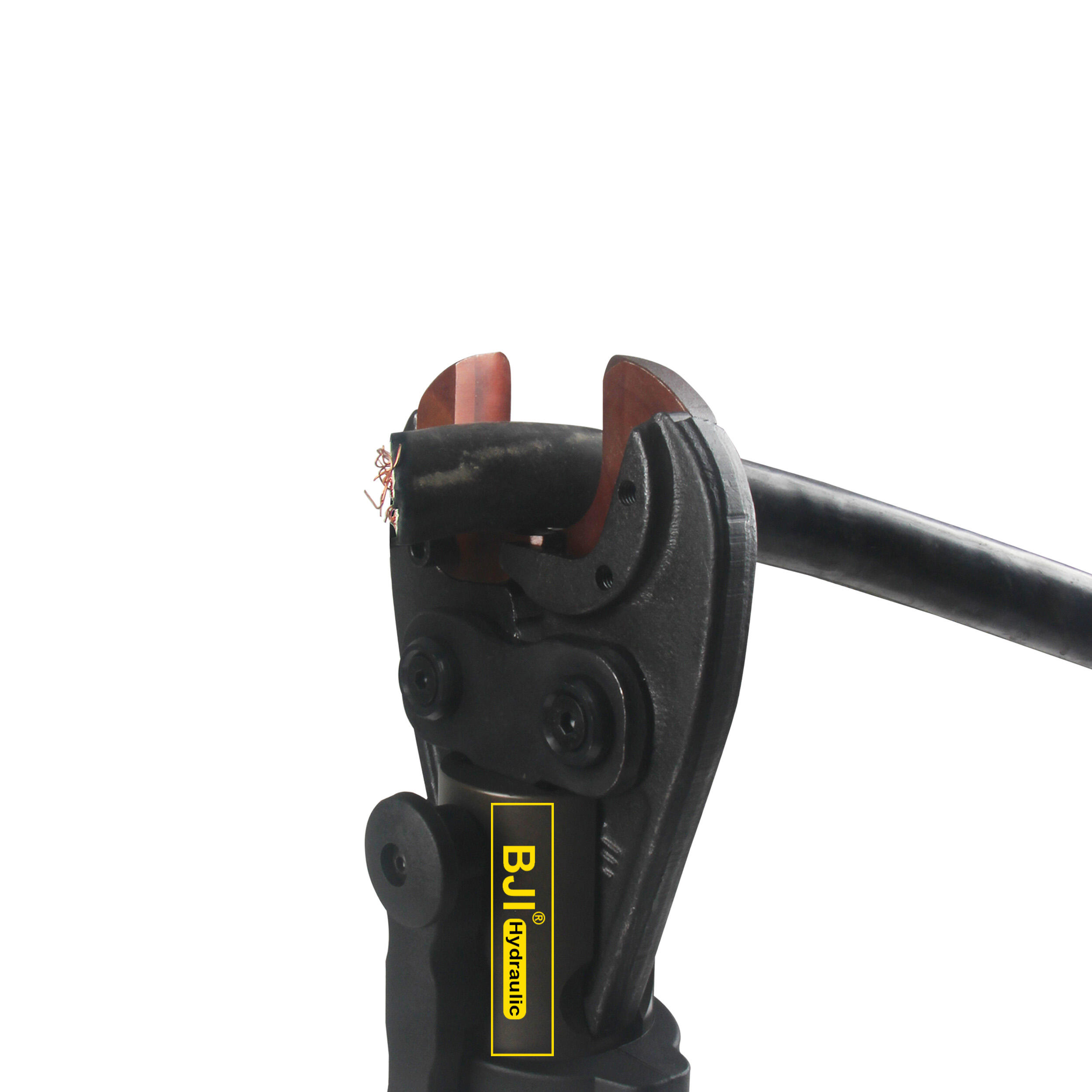

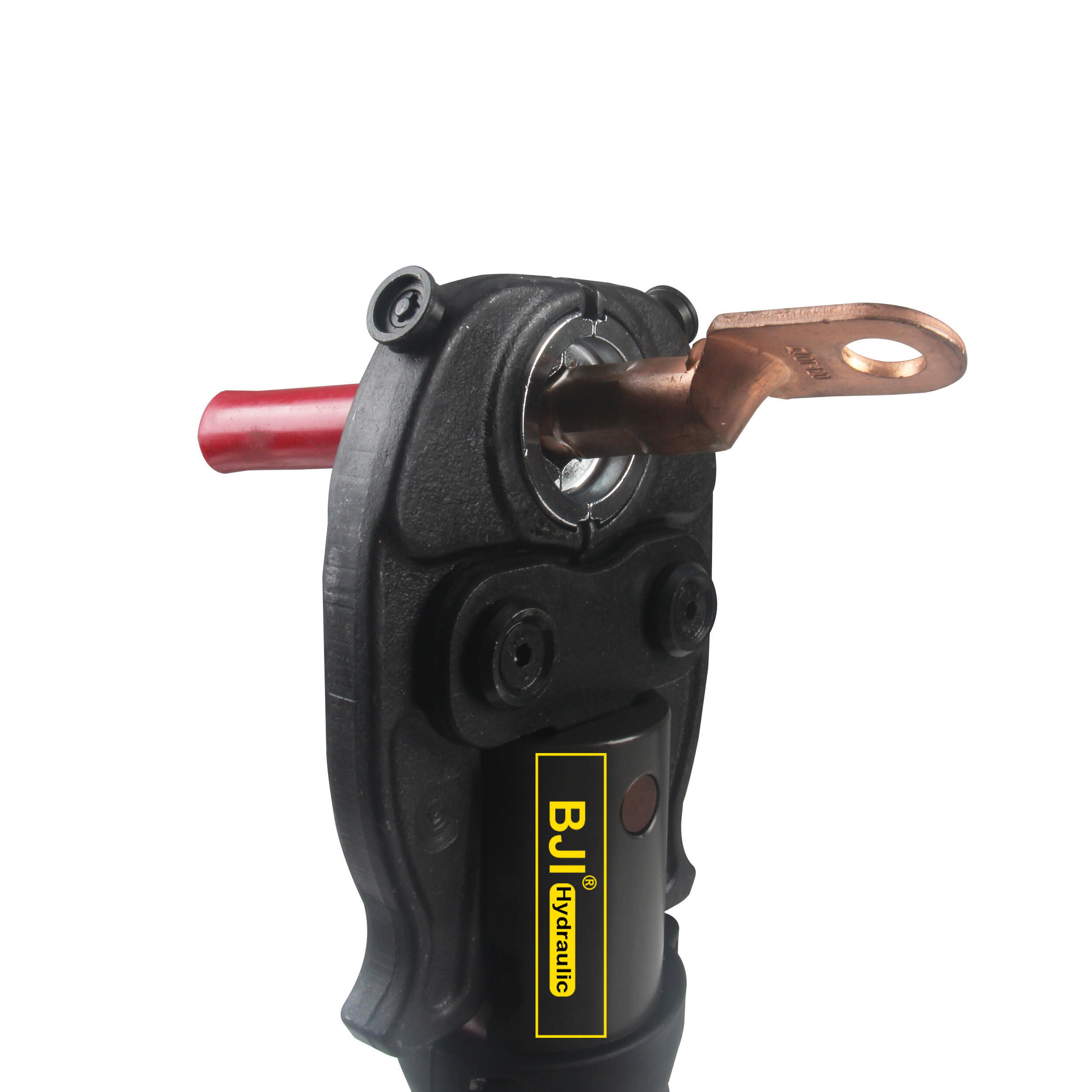

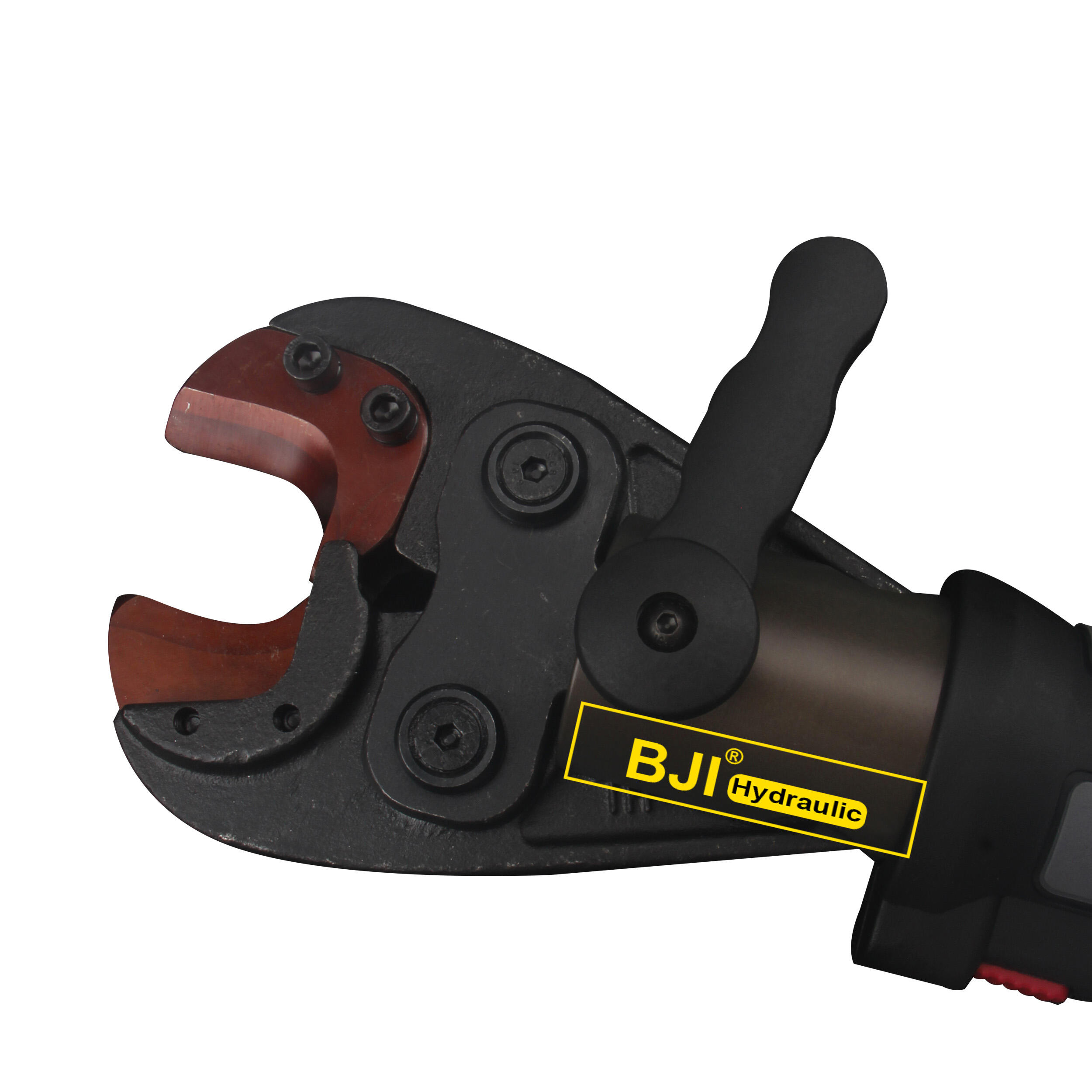

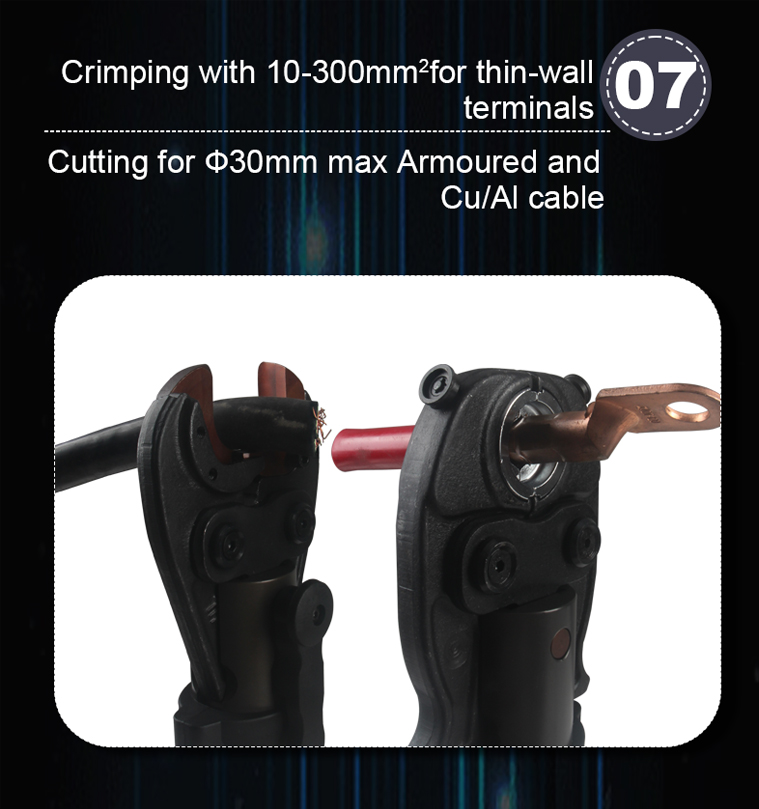

- Crimping with 10-300mm?for thin-wall terminals Cutting for Ф30mm max Armoured and Cu/Al cable

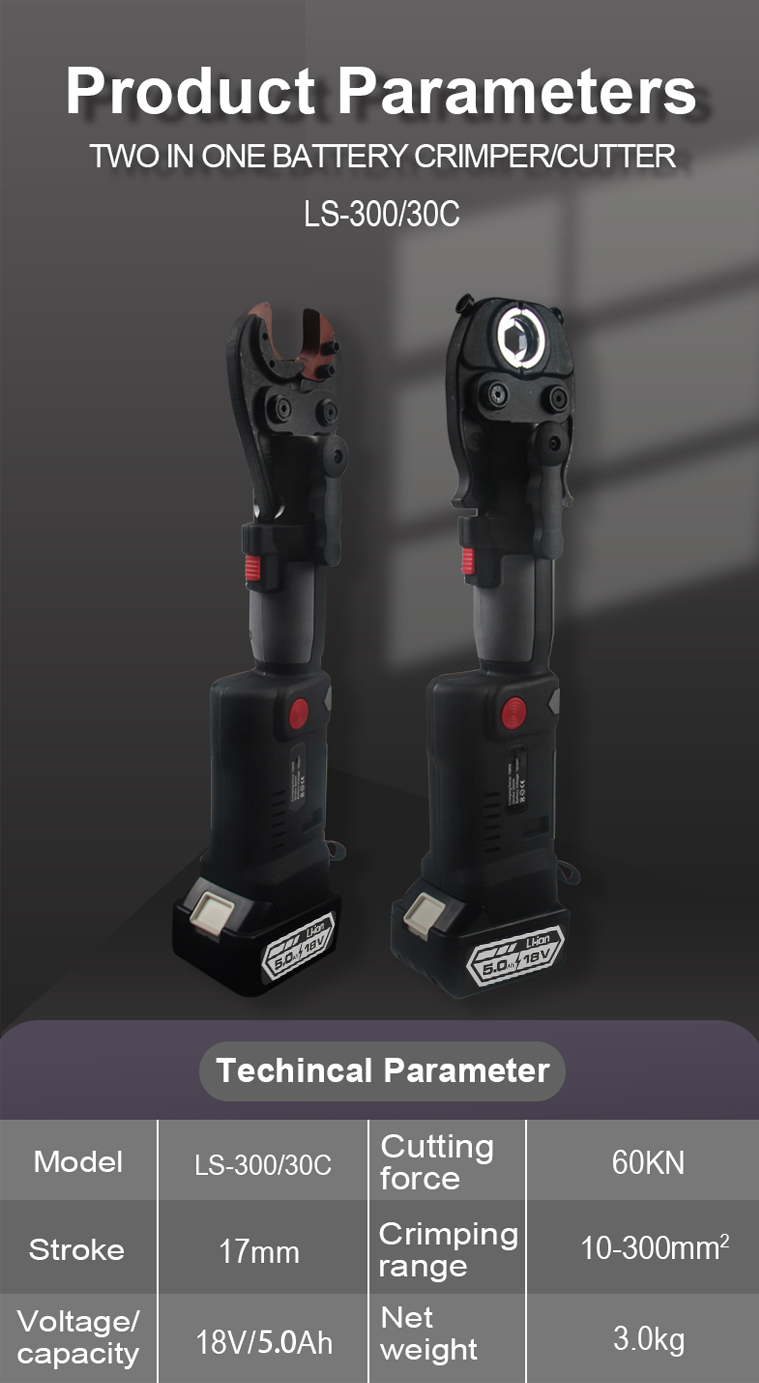

| Model | LS-300/30C | Cutting force | 60KN |
| Stroke | 17mm | Crimping range | 10-300mm² |
| Voltage/capacity | 18V/4.0Ah | Net weight | 3.0kg |

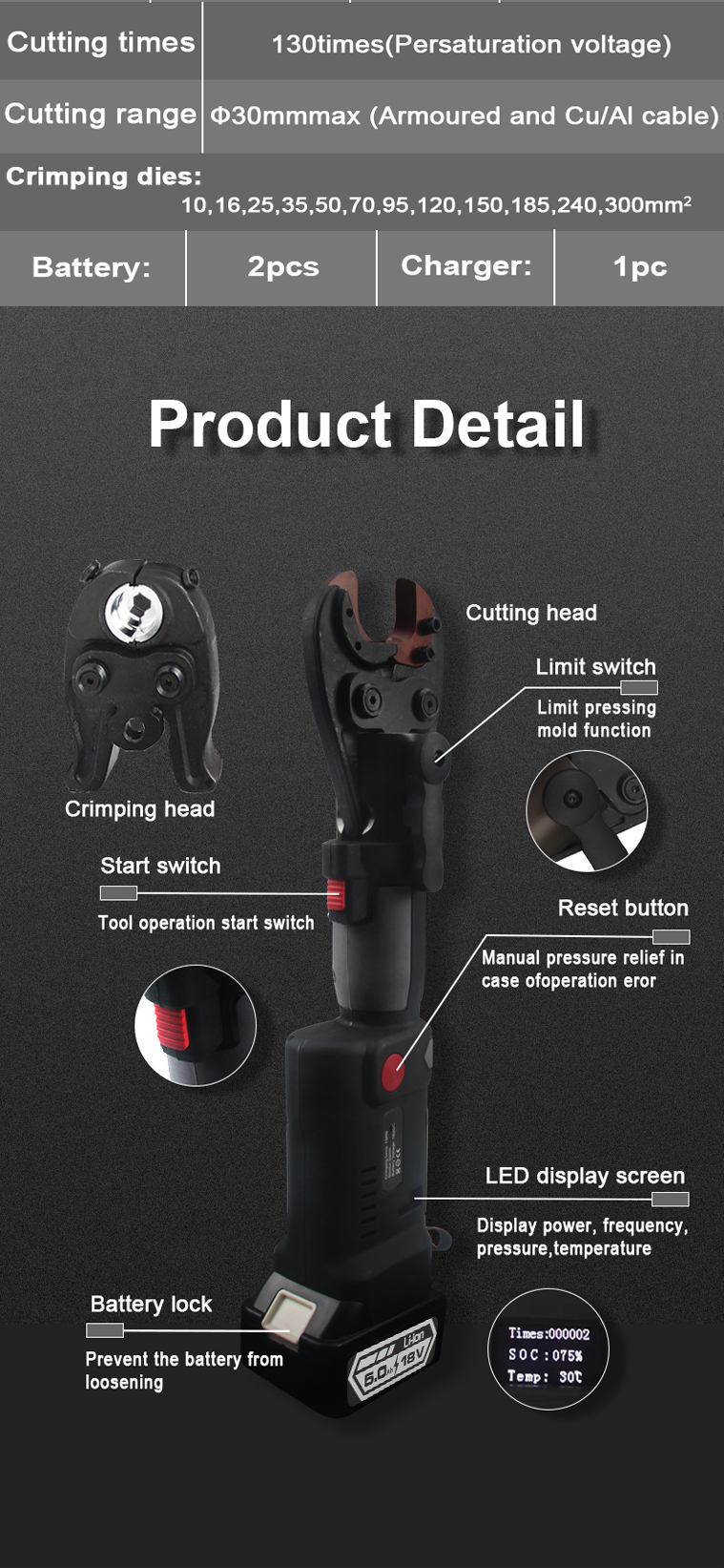

| Cutting times | 130times(Persaturation voltage) | ||
| Cutting range | Ф30mm max(Armoured and Cu/Al cable) | ||
| Crimping dies | 10,16,25,35,50,70,95,120,150,185,240,300mm² | ||

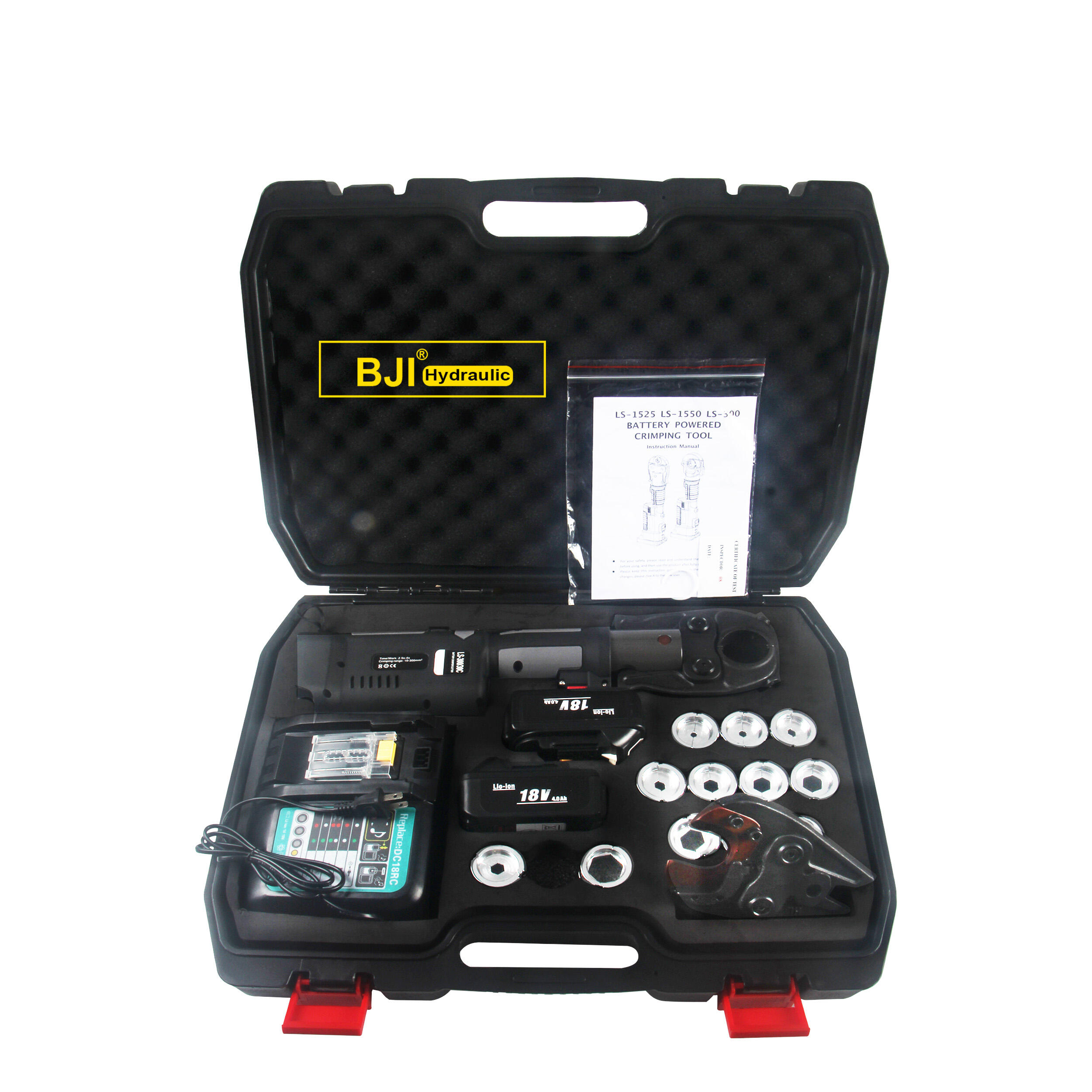

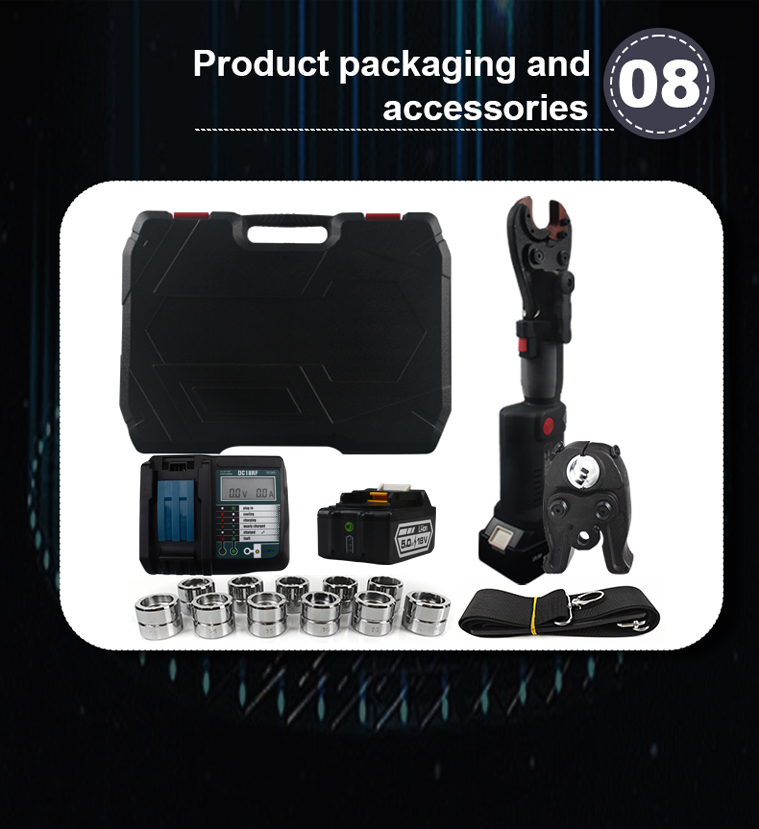

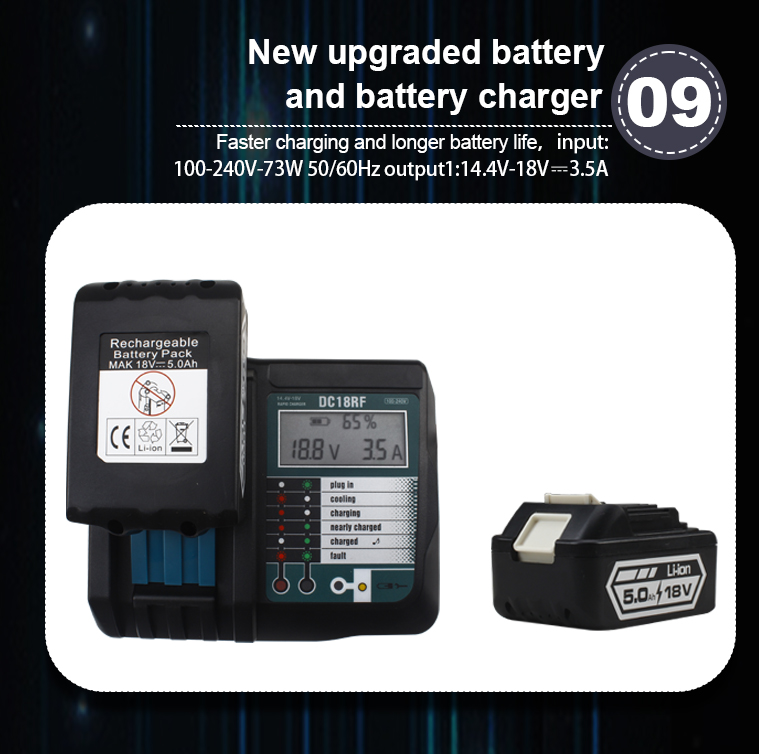

| Battery: | 2pcs | Charger: | 1pc |
