DYF-20 Gear Puller Kits Hydraulic 20 Ton 2/3 Legs
|
Output: |
20T |
|
Axes Stroke: |
50mm |
|
Model Number: |
DYF-20 |
|
Thread diameter: |
73mm |
|
Minimum Order Quantity: |
1 set |
|
Price: |
US$64.00 |
|
Packaging Details: |
Plastic box |
|
Delivery Time: |
≥3 day |
|
Payment Terms: |
customizable |
|
Supply Ability: |
Available |
- Overview
- Description
- Specifications
- Recommended Products

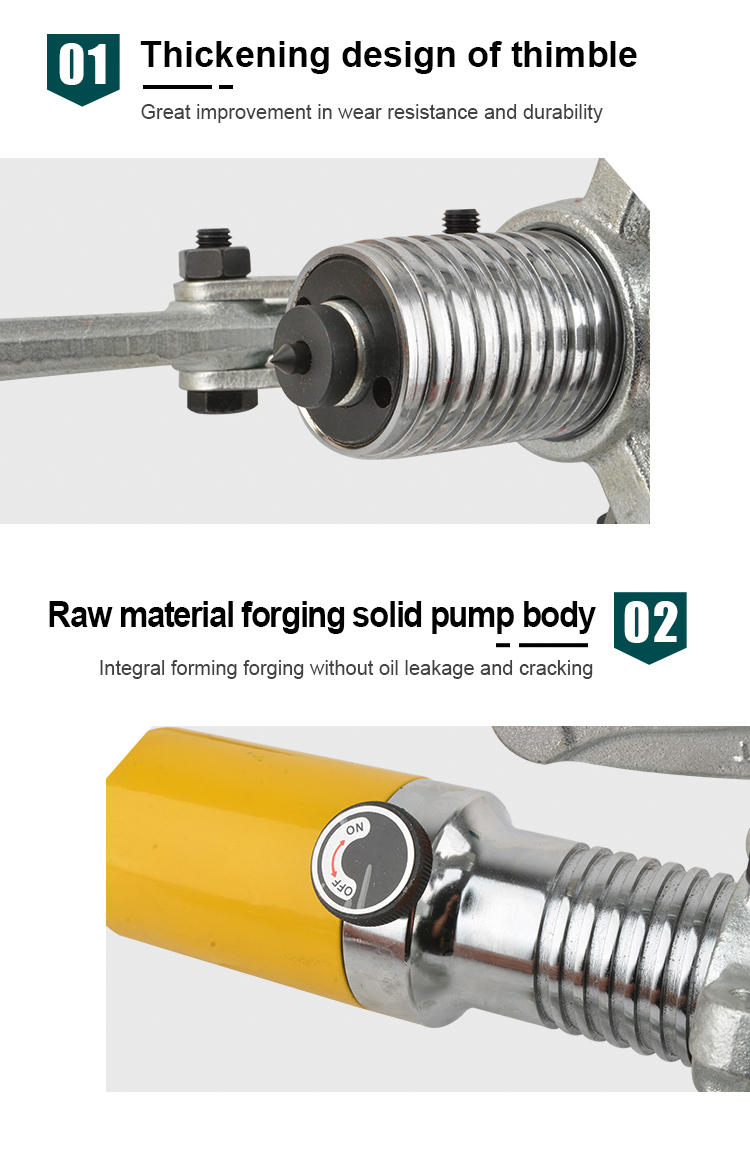

- Thickening design of thimble Great improvement in wear resistance and durability
- Raw material forging solid pump body Integral forming forging with out oil leakage and cracking

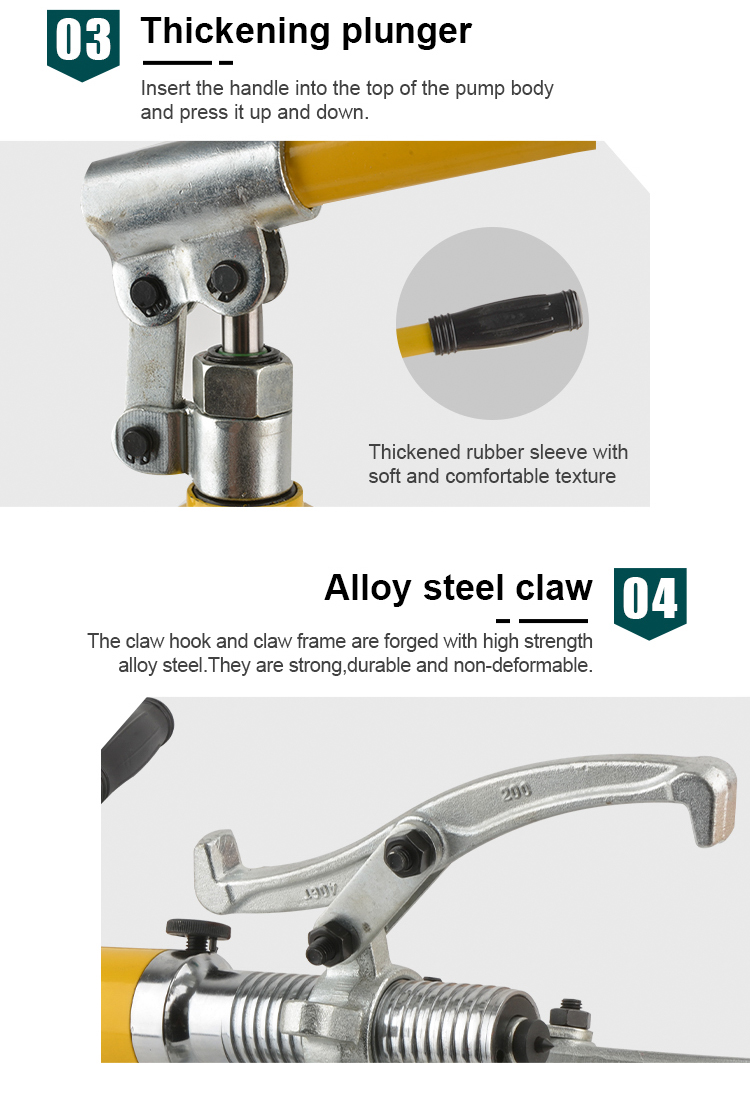

- Thickening plunger Insert the handle into the top of the pump body and press it up and down.
- Alloy steel claw The claw hook and claw frame are forged with high strength alloy steel.They are strong,durable and non-deformable.

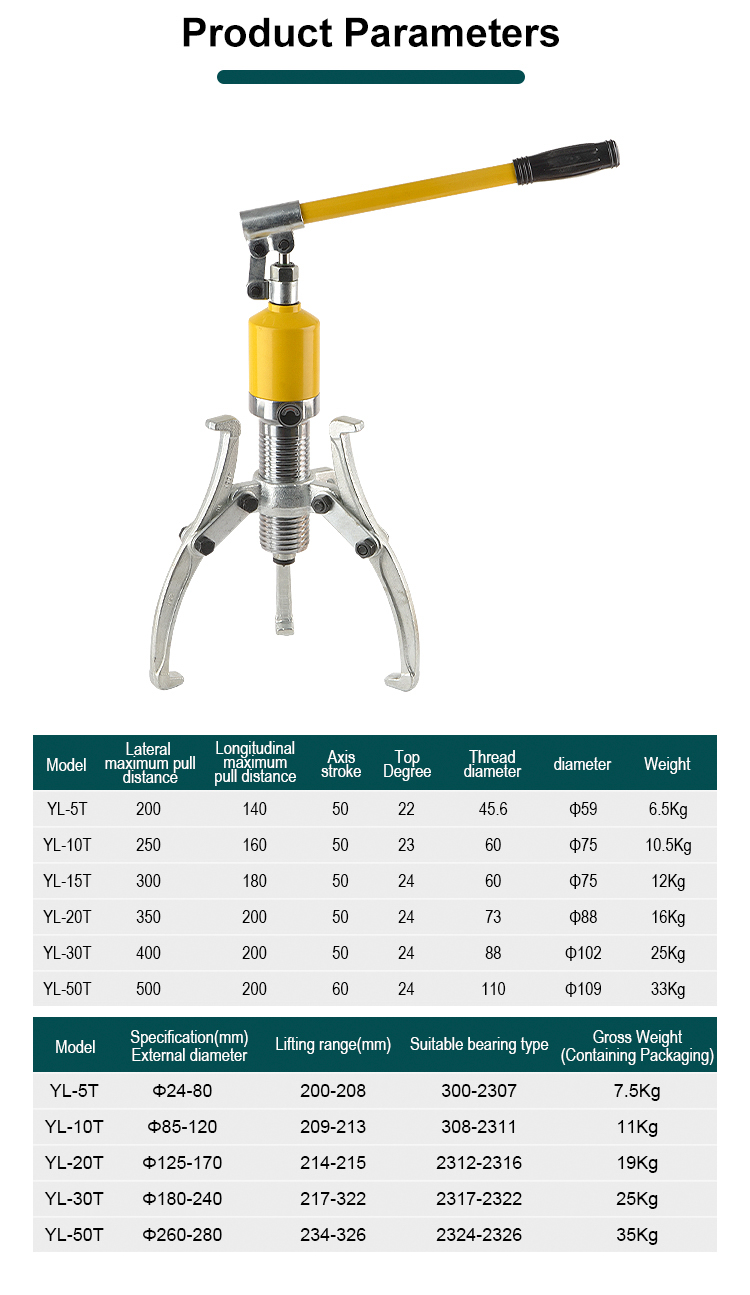

| Model | DYF-20 | Lateral maximum pull distance | 350 |
| Longitudinal maximum pull distance | 200 | Axis stroke | 50 |
| Top Degree | 24 | Thread dameter | 73 |
| diameter | Φ88 | Weight | 16Kg |
| Specifcation(mm)External diameter | Φ125-170 | Lifting range(mm) | 214-215 |
| Suitable bearing type | 2312-2316 | ||
