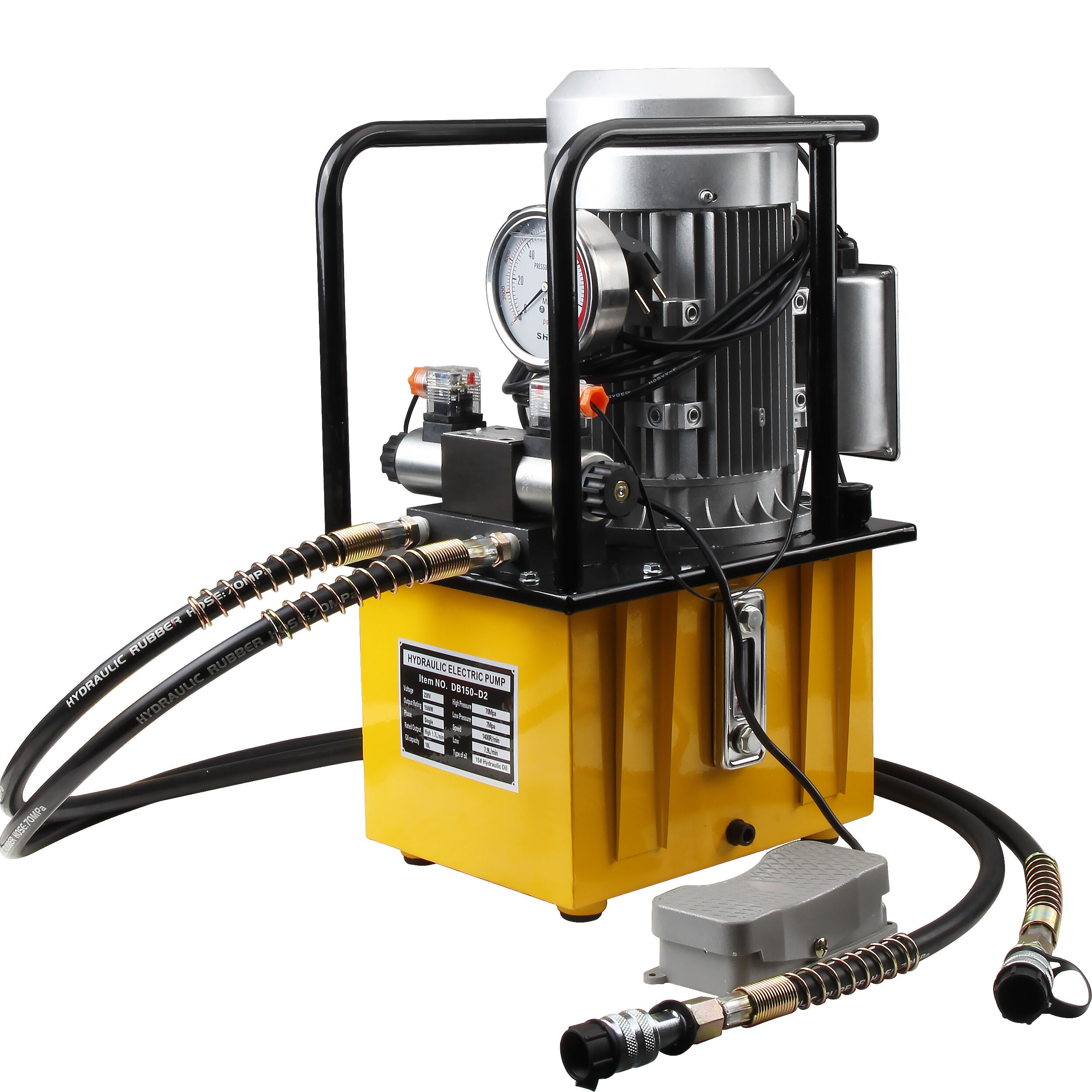

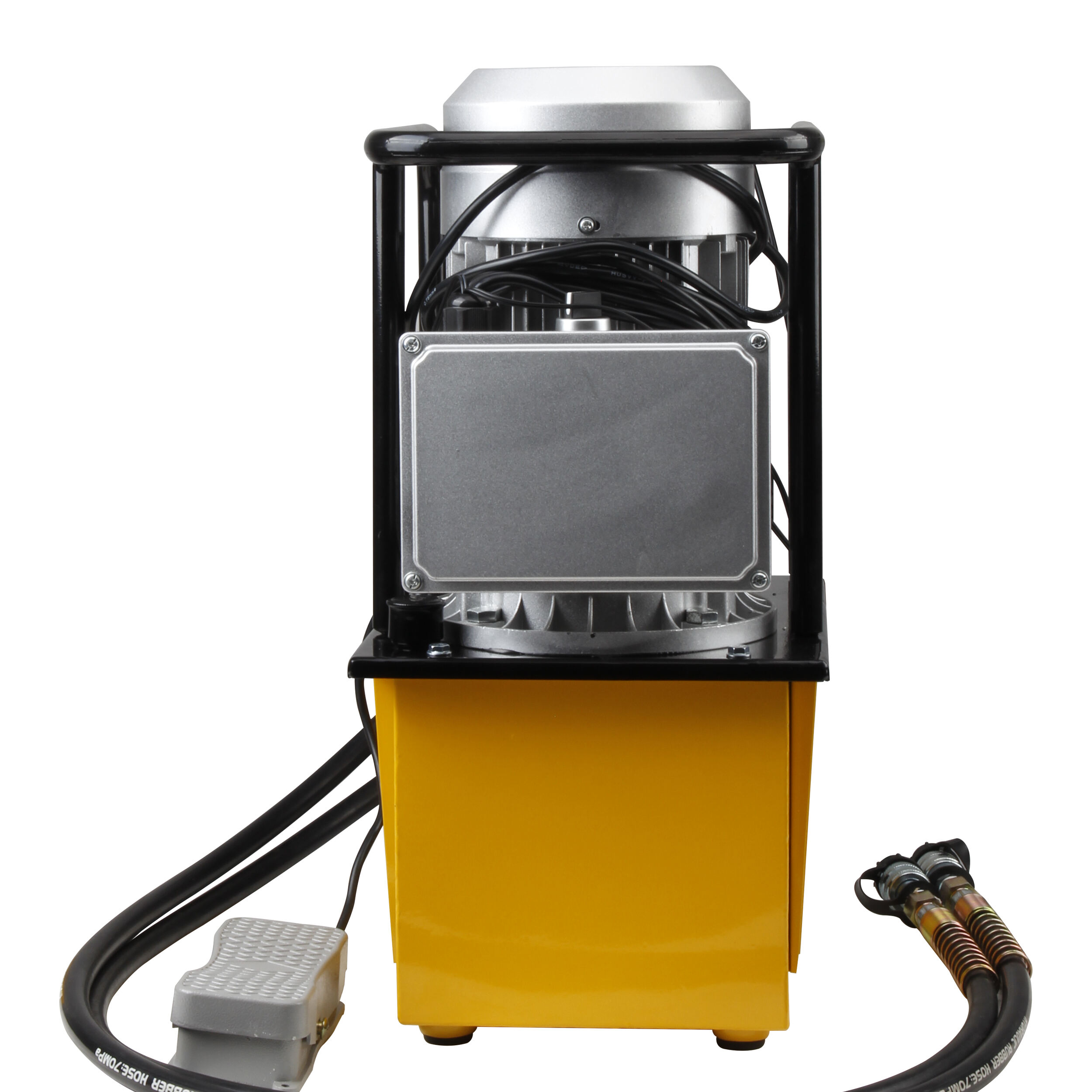

DB150-D2 10L 700bar Hydraulic Electric Pumps 10L Power Pack for Electric Vehicles High Pressure Electric Hydraulic Systems

  • Introduction
  • Description
  • Specifications
Introduction

High Pressure:

70Mpa

Speed:

1400r/min

Model Number:

DB150-D2

motor power:

1.5KW

Minimum Order Quantity:

2 set

Price:

US$290.00

Packaging Details:

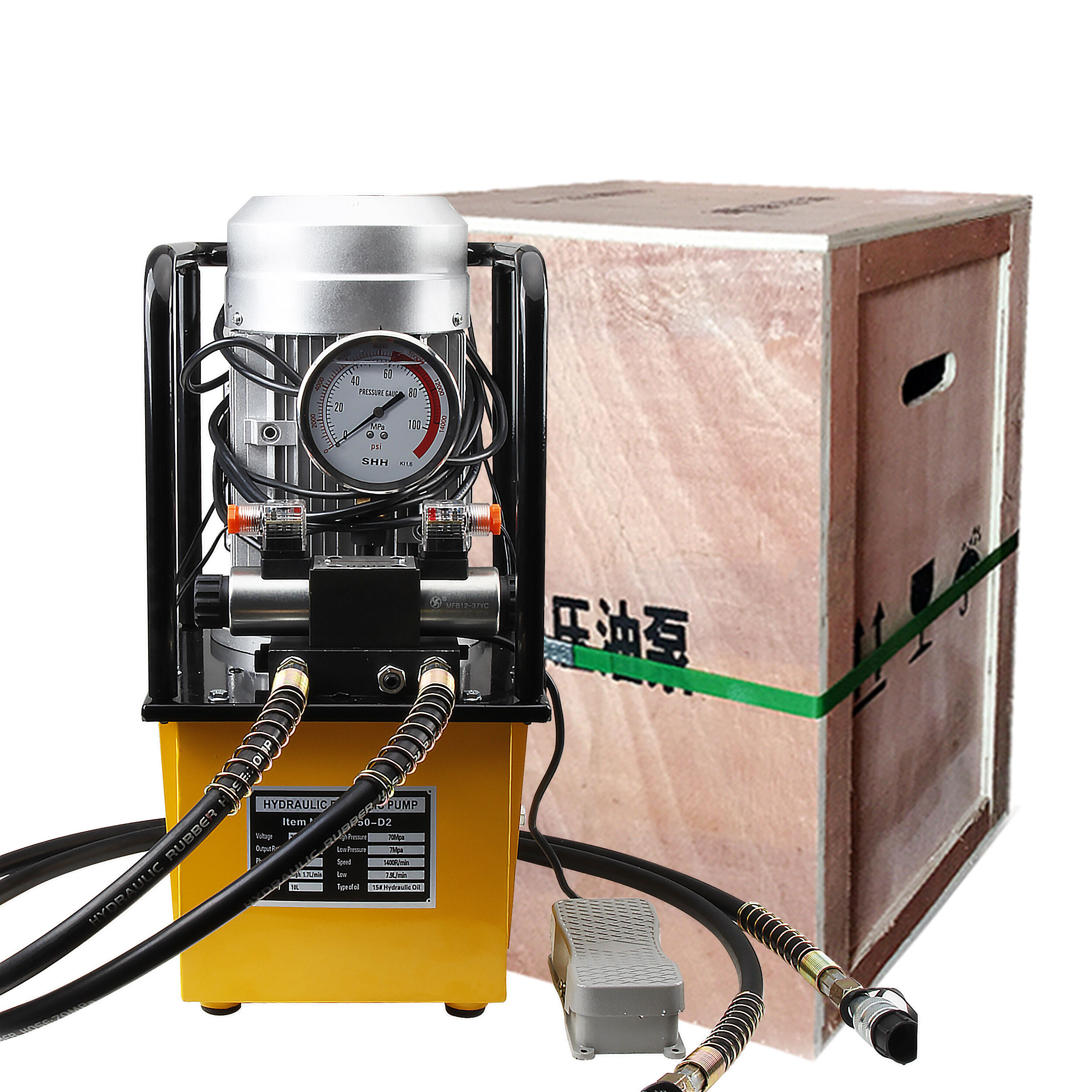

Wooden box

Delivery Time:

3 day

Payment Terms:

customizable

Supply Ability:

Available

Description

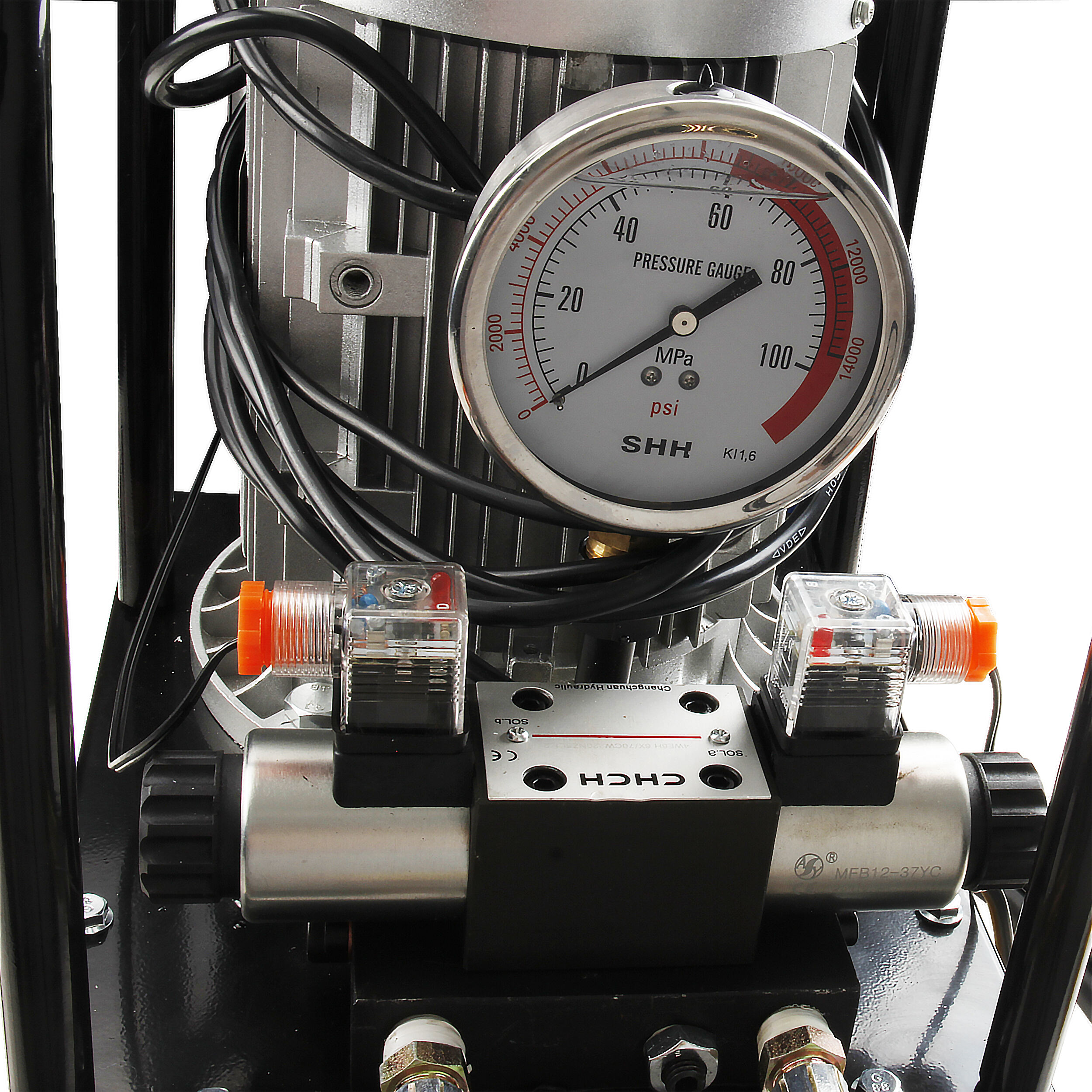

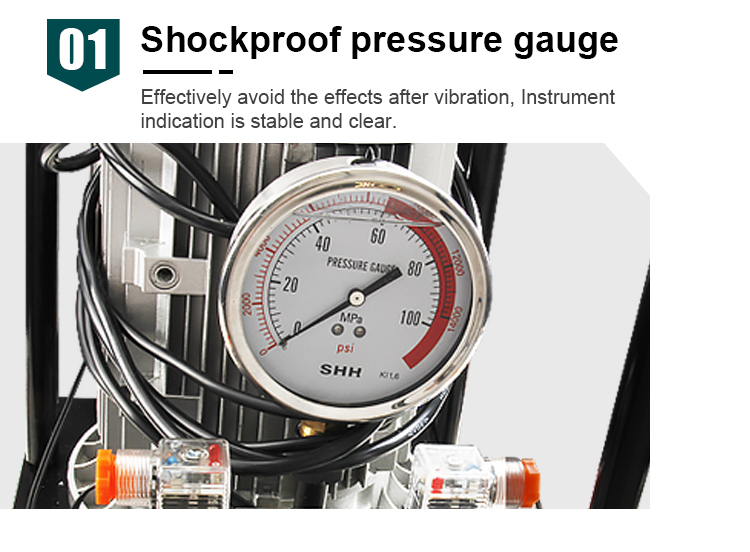

  1. Shockproof pressure gauge Effectively avoid the effects after vibration, Instrument indication is stable and clear.

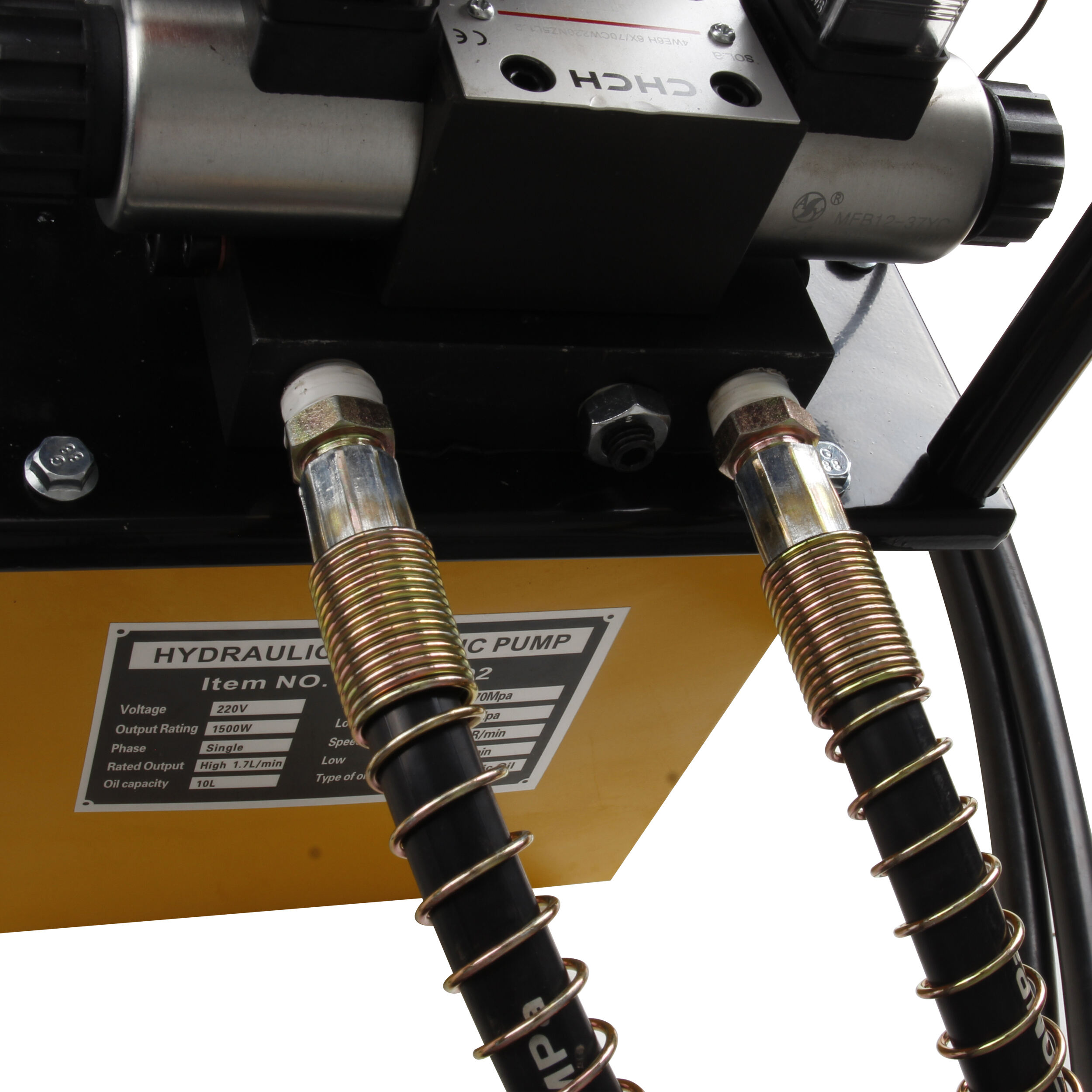

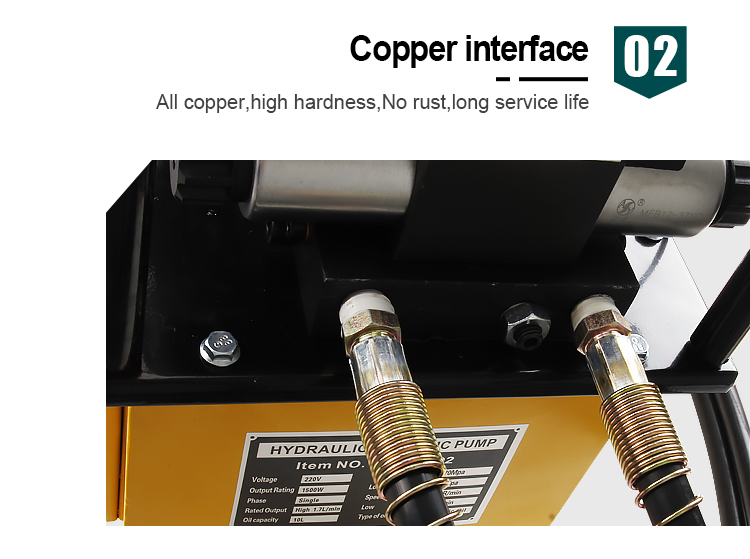

  2. Copper interface All copper,high hard ness,No rust,long service life

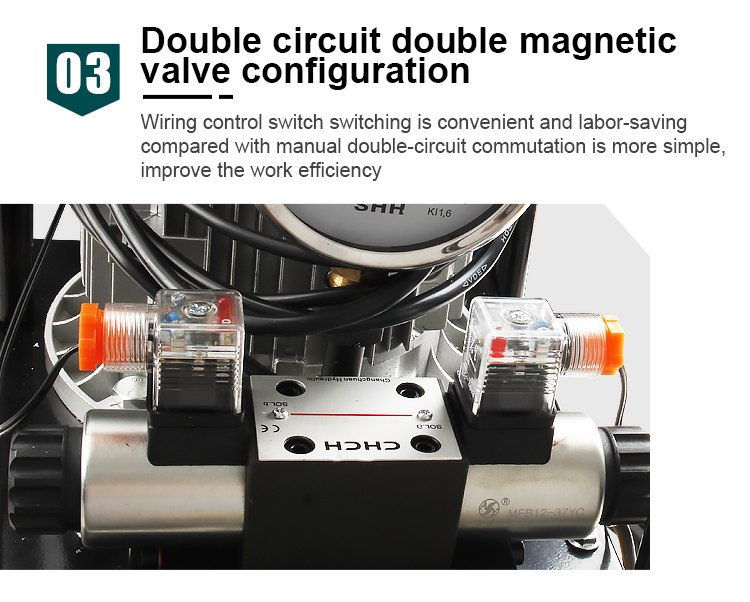

  3. Double circuit double magnetic valve configuration Wiring control switch switching is convenient and labor-saving compared with manual double-circuit commutation is more simple,improve the work efficiency

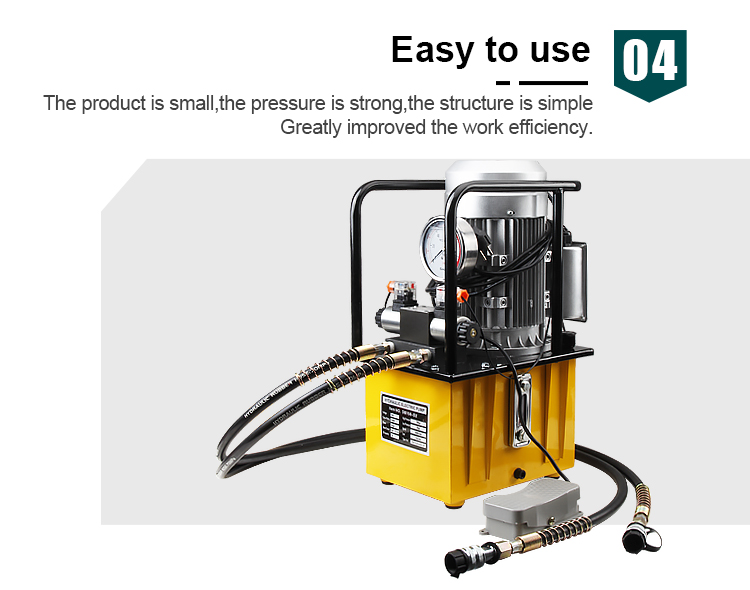

  4. Easy to use The product is small,the pressure is strong,the structure is simple Greatly improved the work efficiency

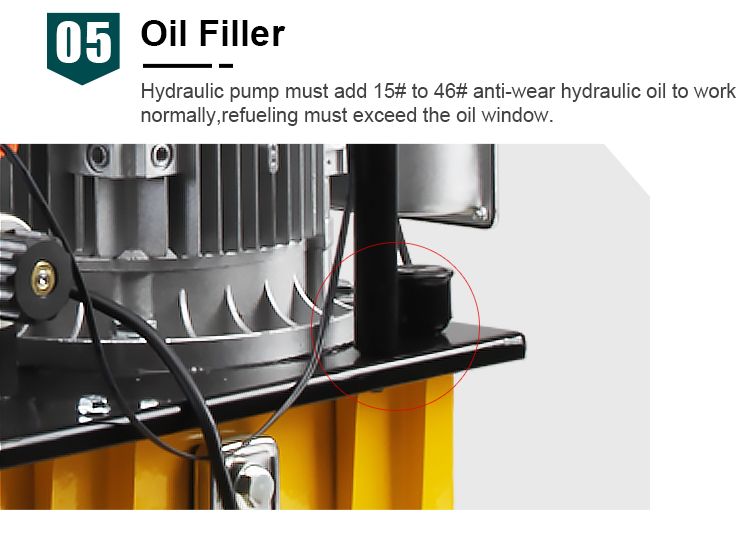

  5. Oil Filler Hydraulic pump must add 15# to 46# anti-wear hydraulic oil to work normally,refueling must exceed the oil window.

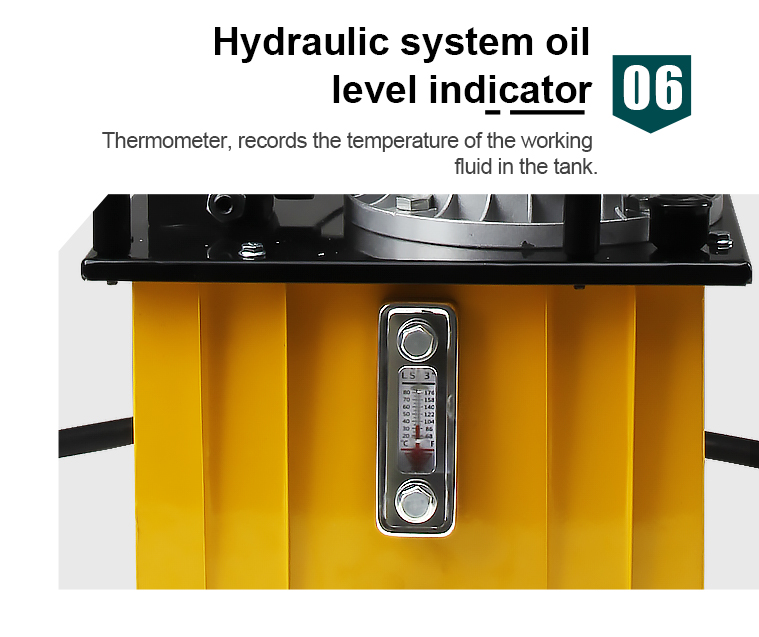

  6. Hydraulic system oil level indicator Thermometer, records the temperature of the working fluid in the tank.

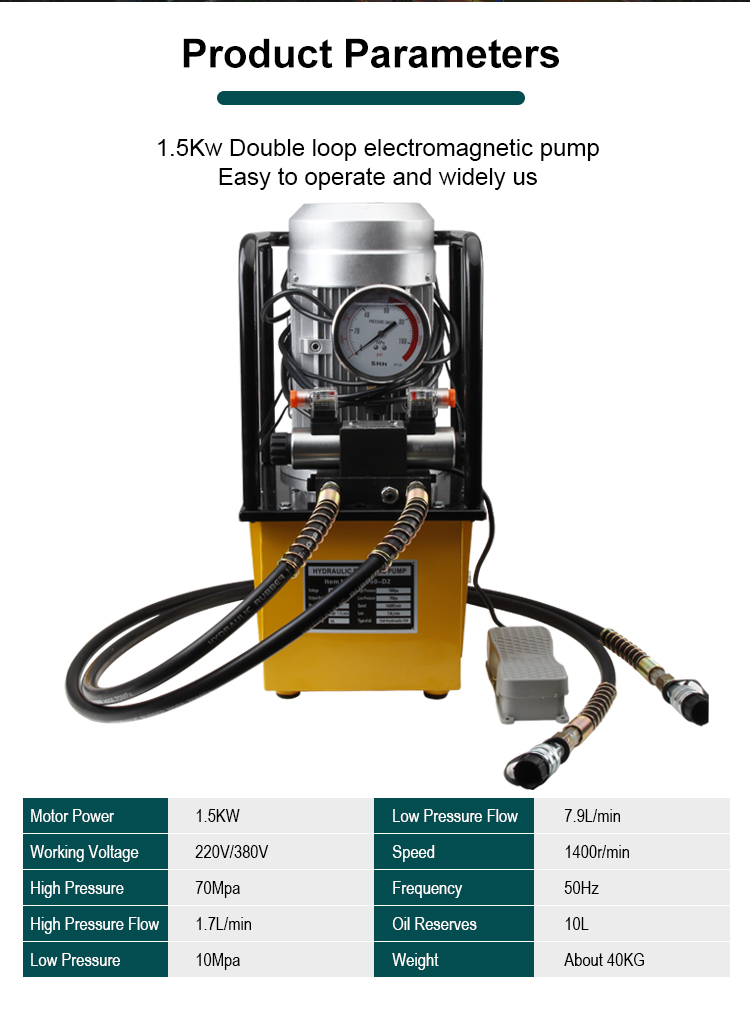

Specifications
Motor Power 1.5KW Low Pressure Flow 7.9L/min
Working Voltage 220V/380V Speed 1400r/min
High Pressure 70Mpa Frequency 50Hz
High Pressure Flow 1.7L/min Oil Reserves 10L
Low Pressure 10Mpa Weight About 40KG
