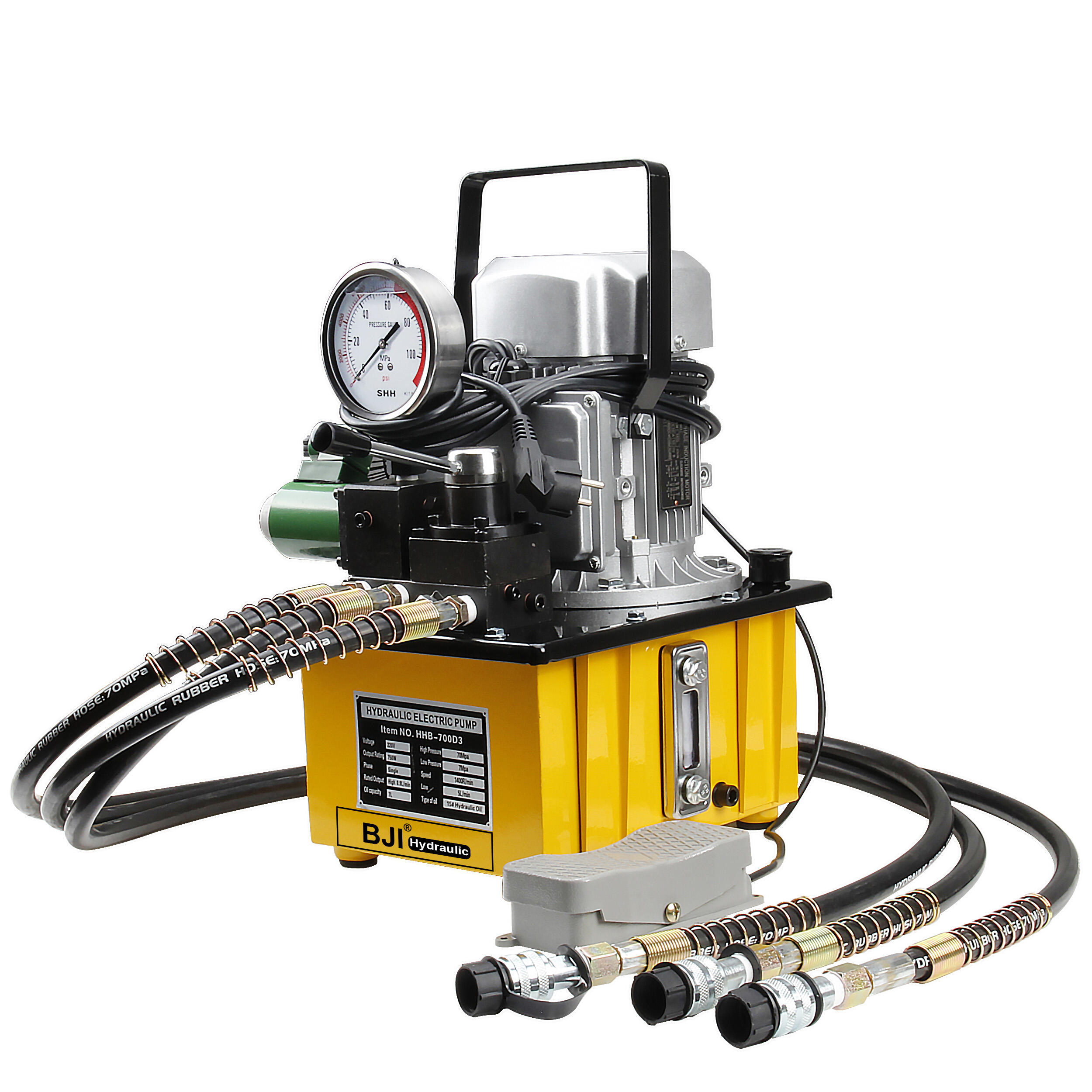

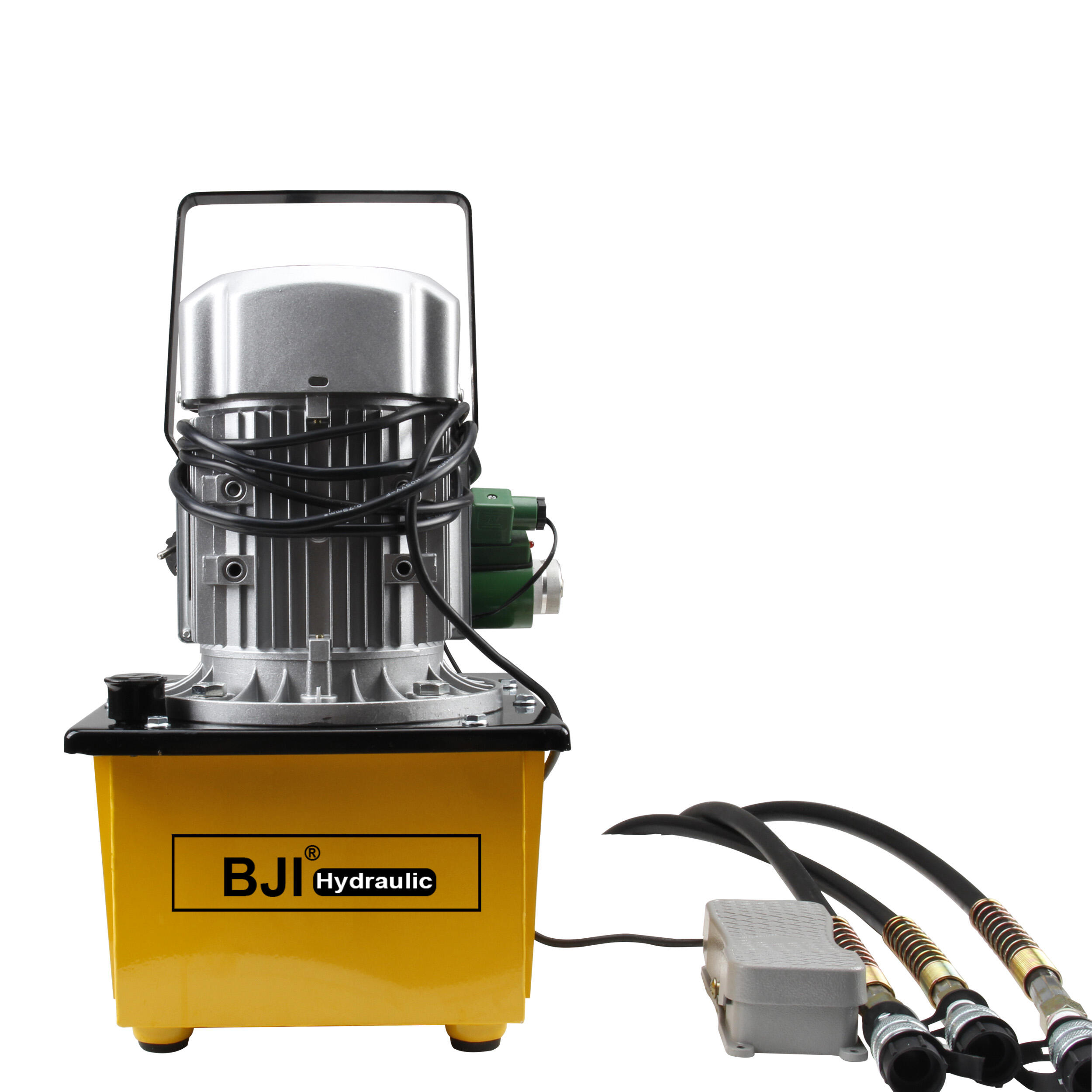

HHB-700D3 Electric Pump High Pressure 700 Bar Three-Action Hydraulic Power Source
|
Motor Power: |
0.75KW |
|
Working Voltage: |
220V/380V |
|
Model Number: |
HHB-700D3 |
|
Oil Reserves: |
7L |
|
Minimum Order Quantity: |
1 set |
|
Price: |
US$260.00 |
|
Packaging Details: |
Wooden box |
|
Delivery Time: |
≥3 day |
|
Payment Terms: |
customizable |
|
Supply Ability: |
Available |
- Overview
- Description
- Specifications
- Recommended Products

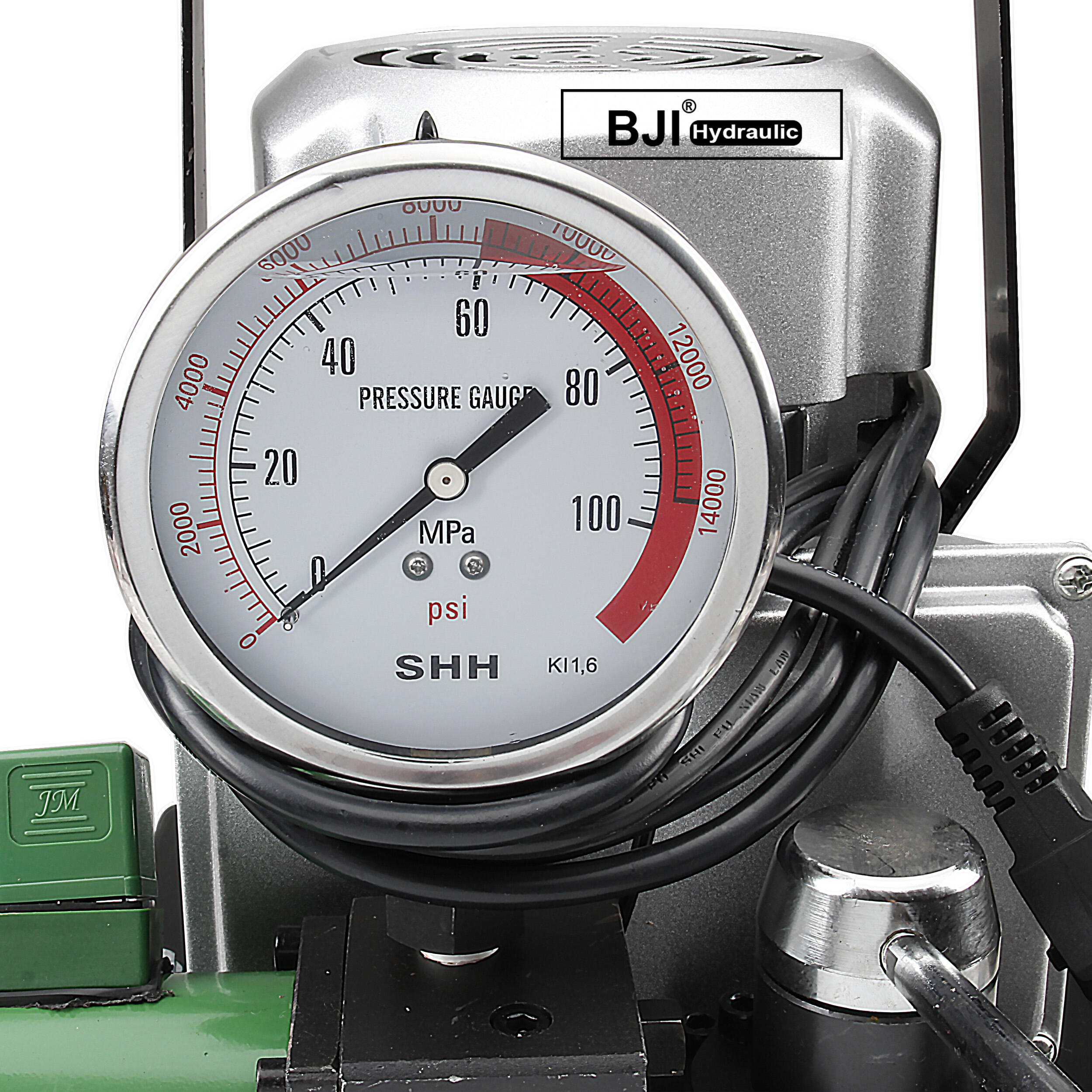

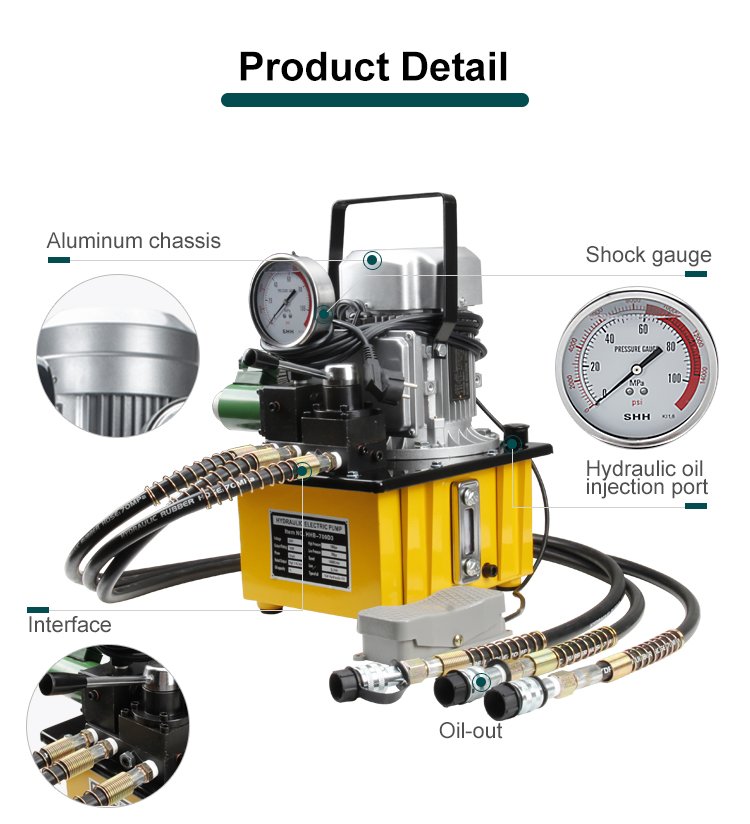

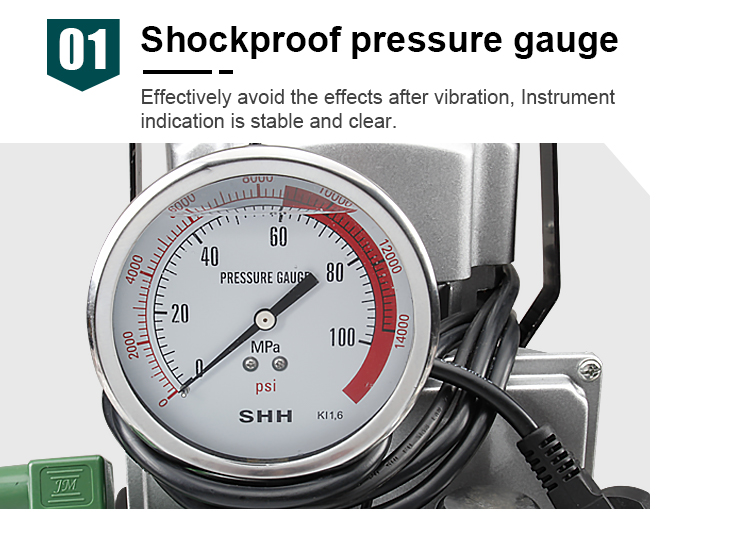

- Shockproof pressure gauge Effectively avoid the effects after vibration, Instrument indication is stable and clear.

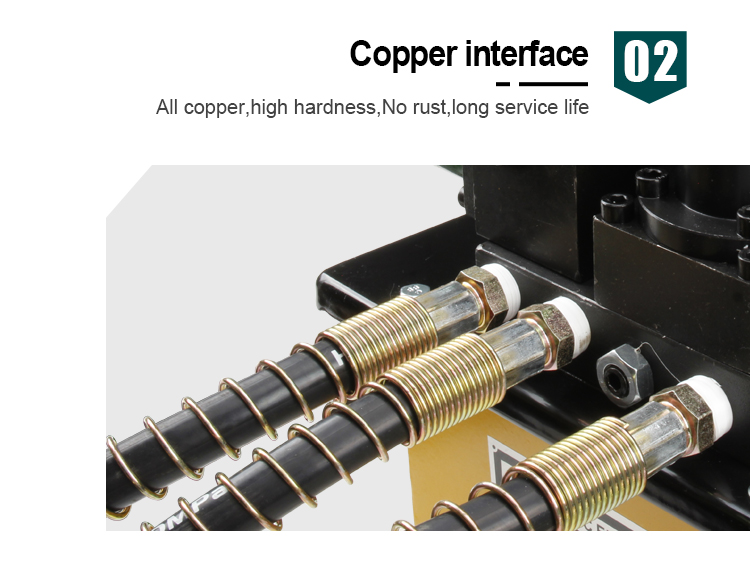

- Copper interface All copper,high hardness,No rust,long service life

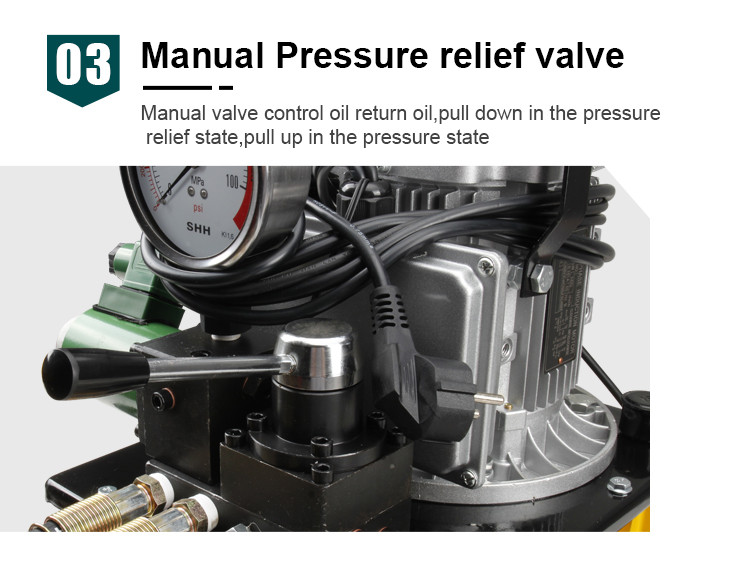

- ManualPressure relief valve Manual valve control oil return oil,pull down in the pressure relief state,pull up in the pressure state

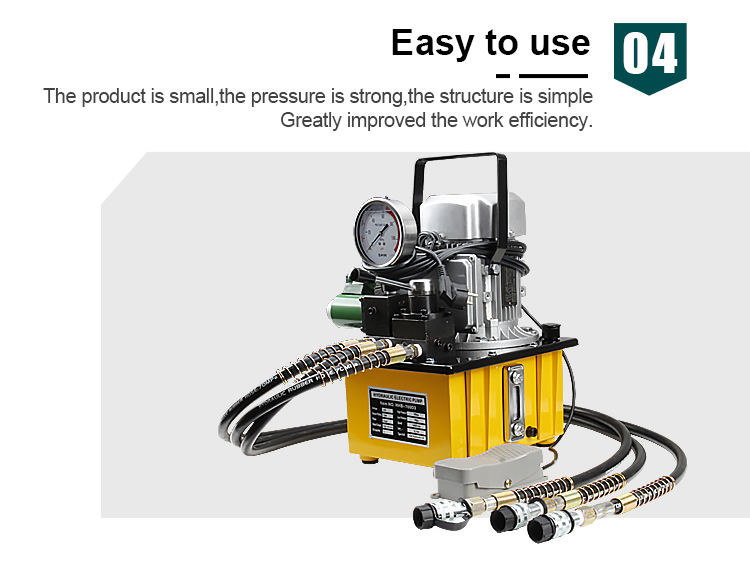

- Easy to use The product is small,the pressure is strong,the structure is simple Greatly improved the work efficiency

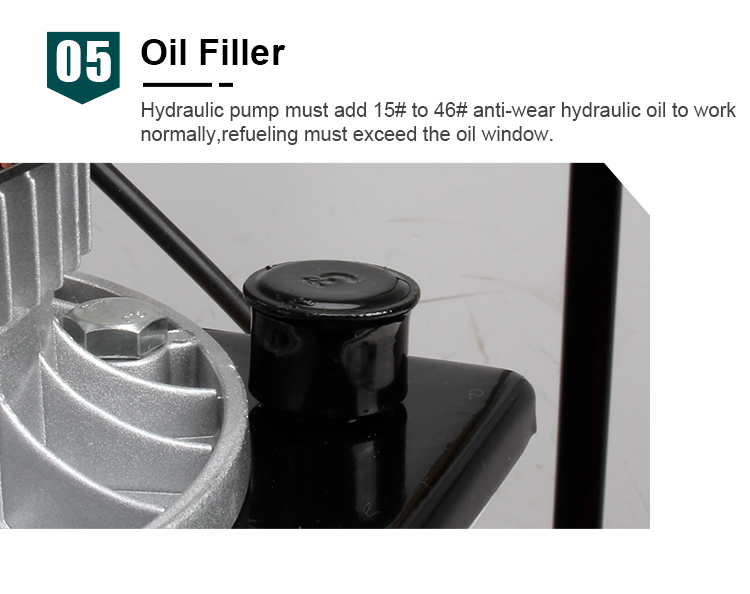

- Oil Filler Hydraulic pump must add 15# to 46# anti-wear hydraulic oil to work normally,refueling must exceed the oil window.

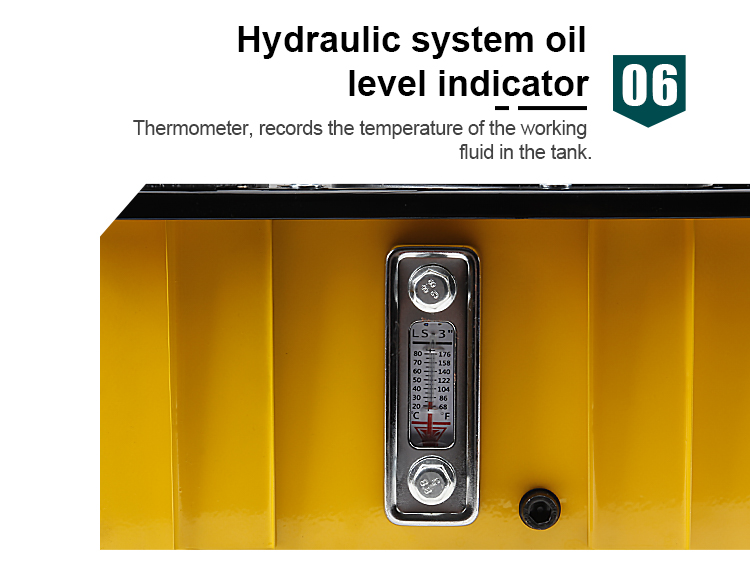

- Hydraulic system oilevel indicator Thermometer, records the temperature of the working fuid in the tank.

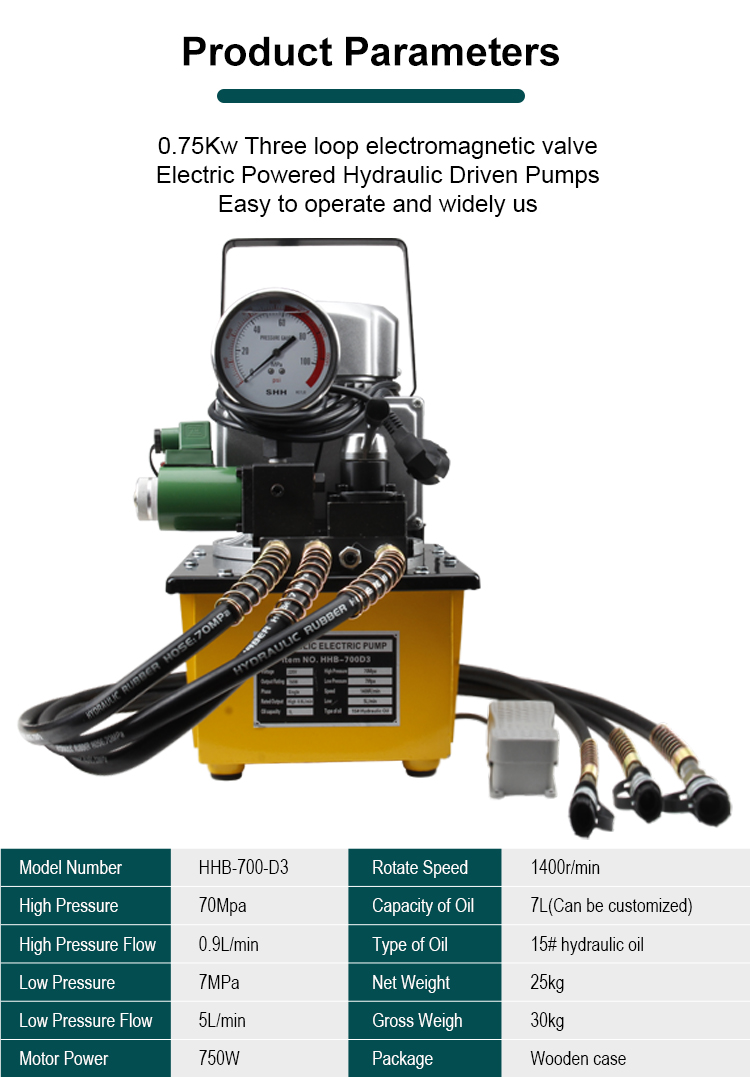

| Model Number | HHB-700-D3 | Rotate Speed | 1400r/min |
| High Pressure | 70Mpa | Capacity of Oil | 7L(Can be customized) |
| High Pressure Flow | 0.9L/min | Type of Oil | 15# hydraulic oil |
| Low Pressure | 7MPa | Net Weight | 25kg |
| Low Pressure Flow | 5L/min | Gross Weigh | 30kg |
| Motor Power | 750W | Package | Wooden case |
