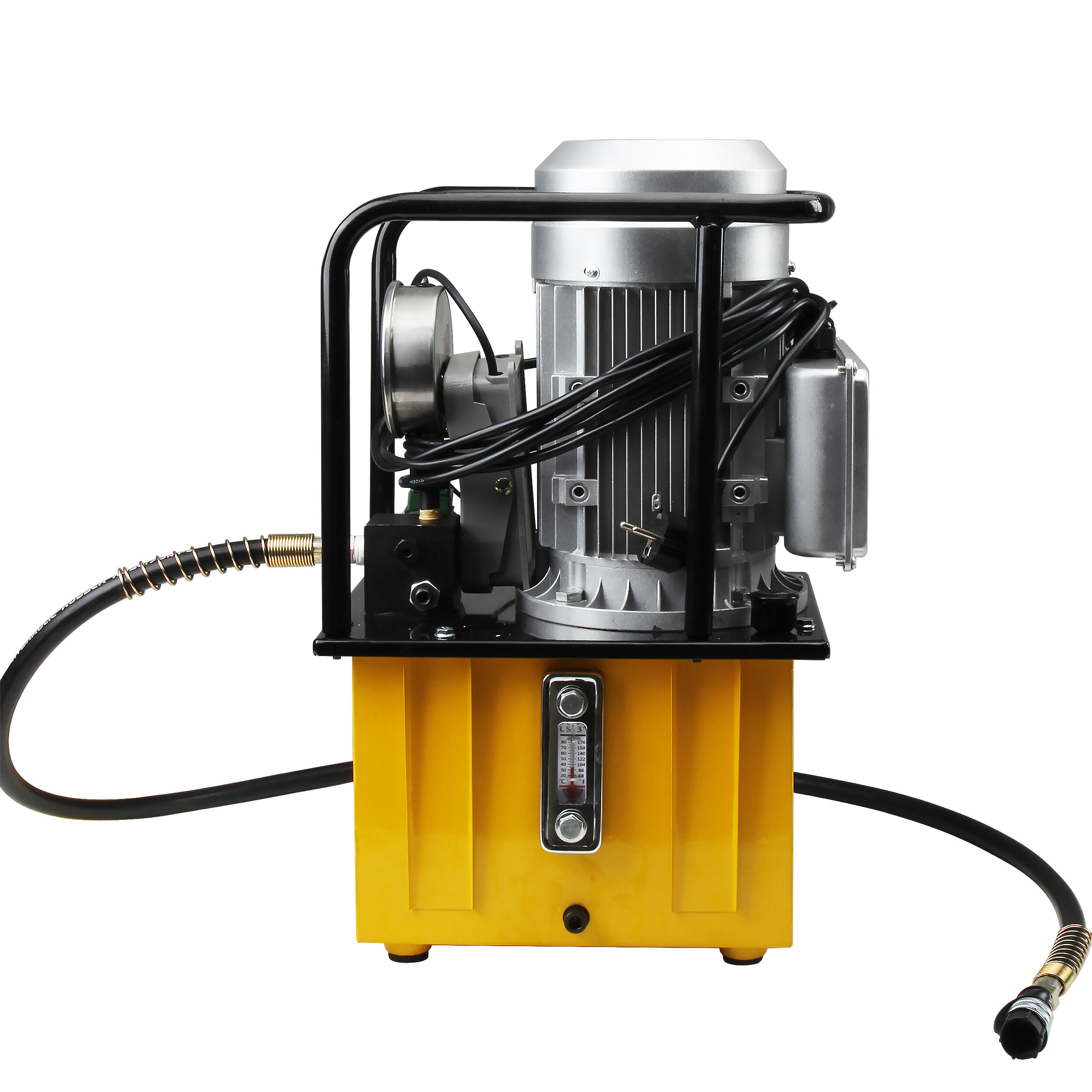

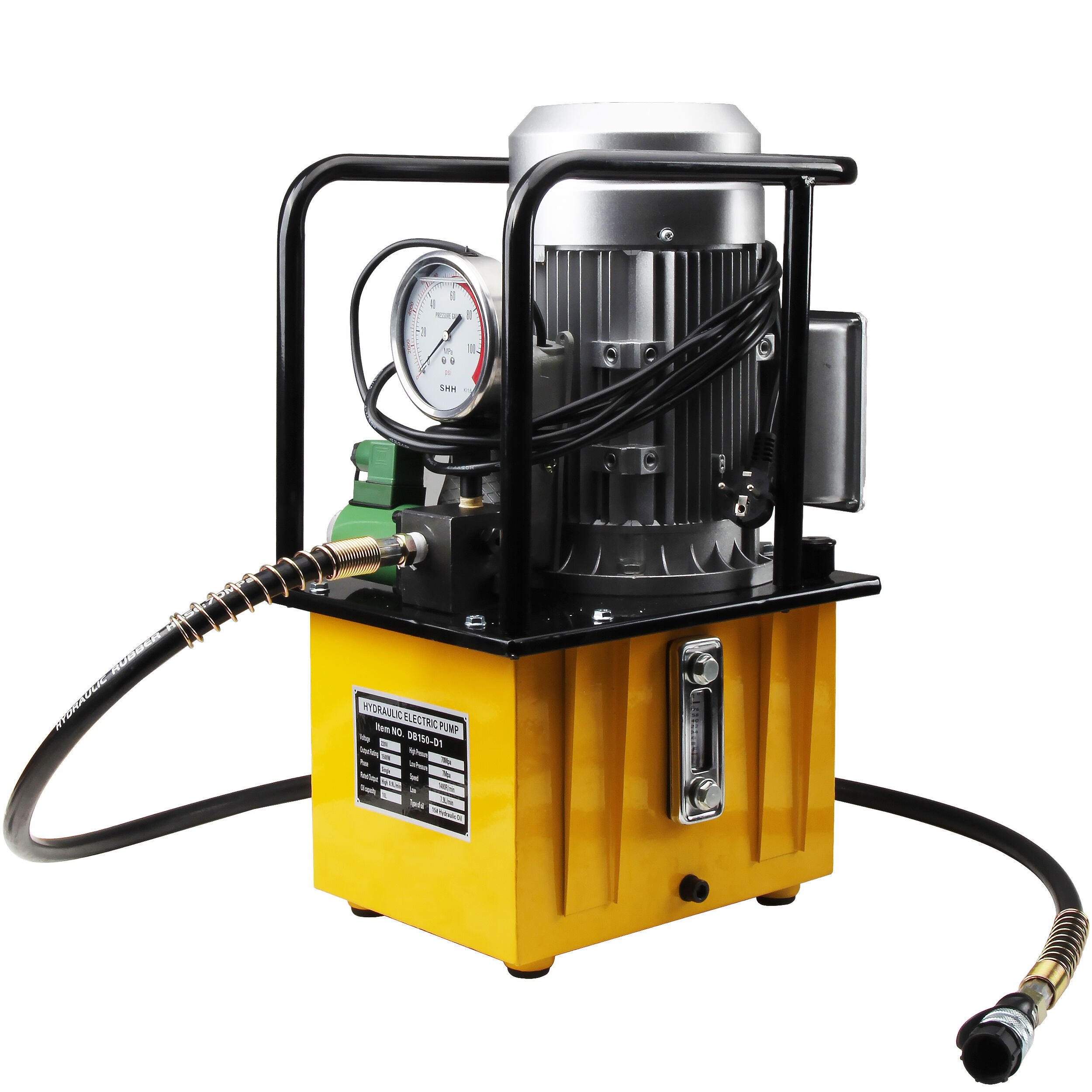

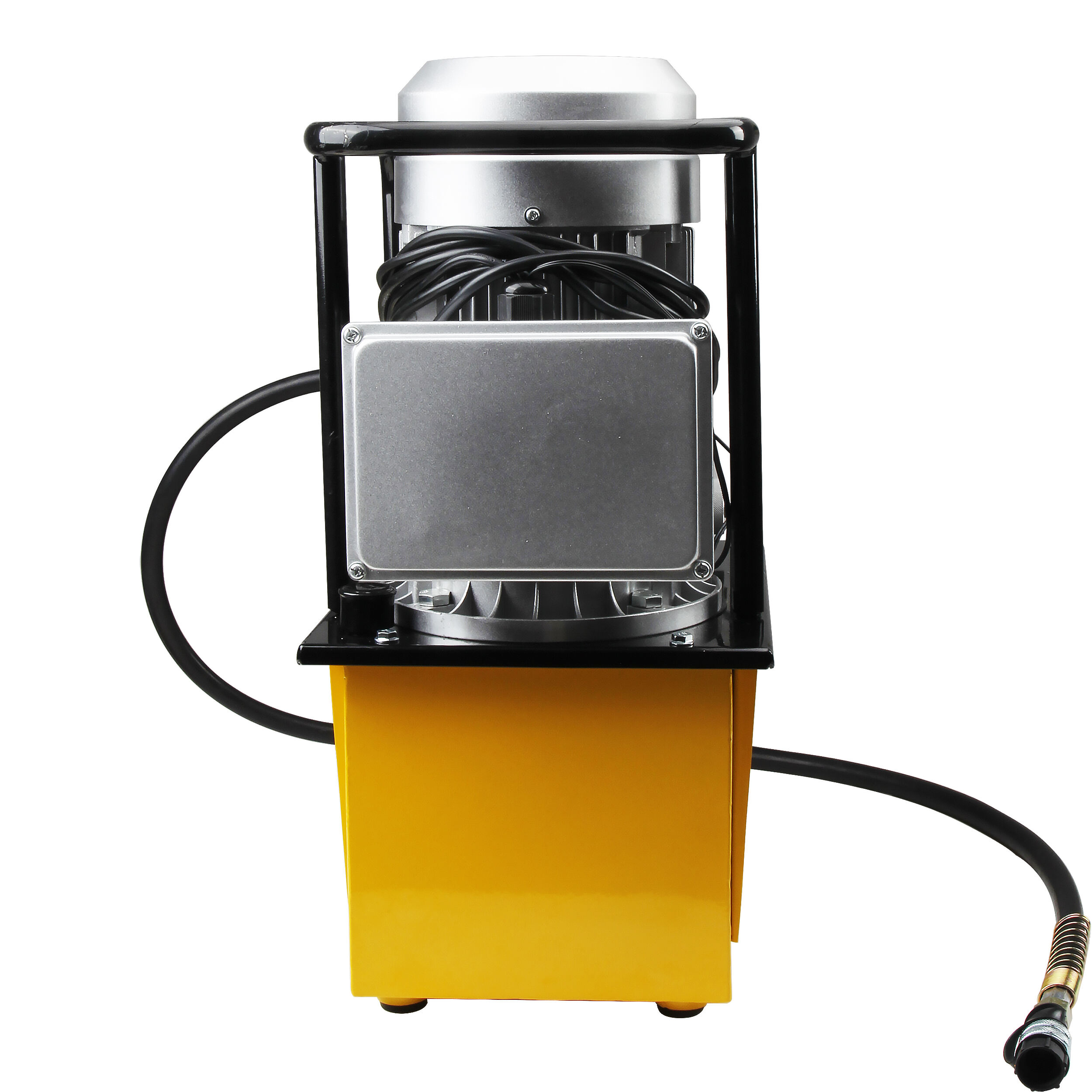

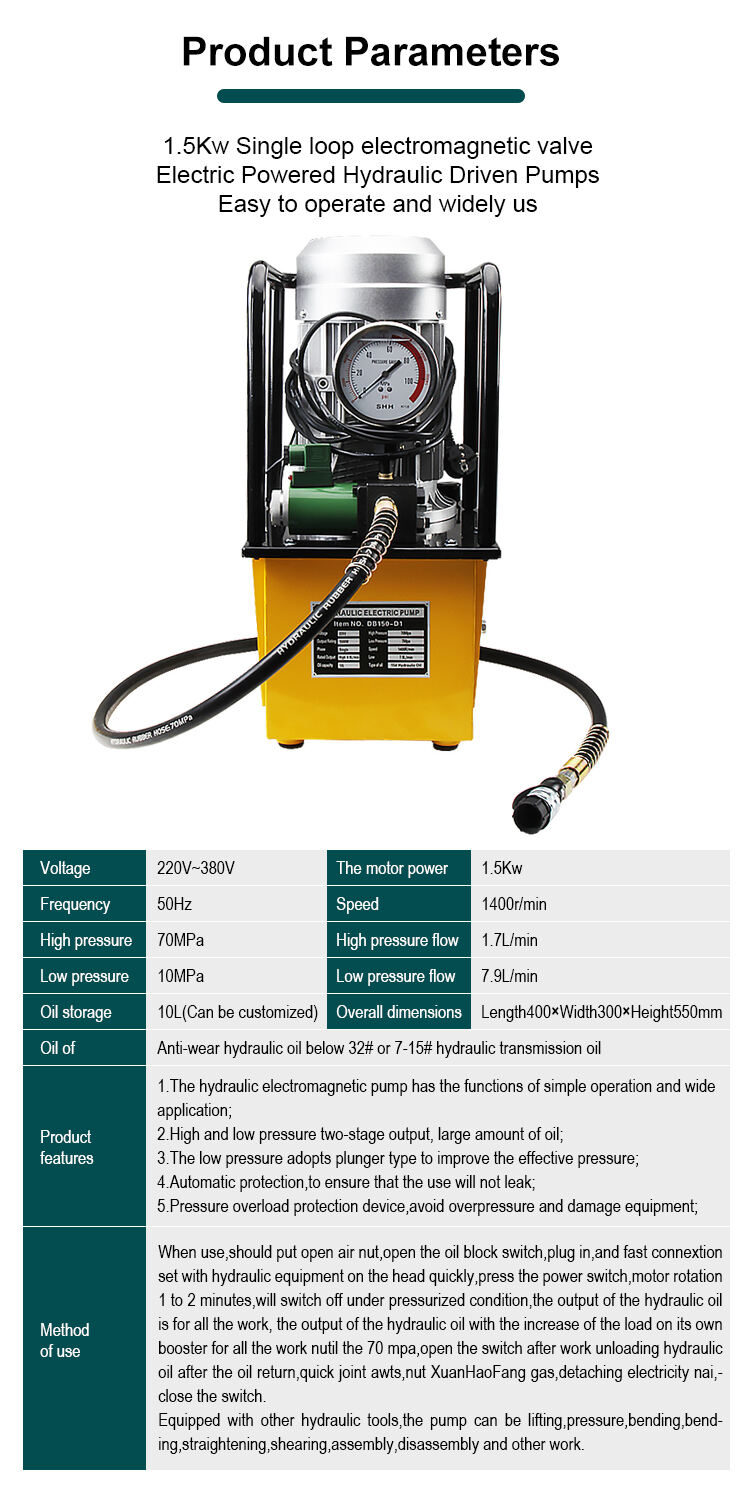

DB150-D1 single-action 700 bar high-voltage electric pump for hydraulic applications

Voltage

220V-380V

The motor power

1.5Kw

Frequency

50Hz

Speed

1400r/min

High pressure

70MPa

High pressure flow

1.7L/min

Low pressure

10MPa

Low pressure flow

7.9L/min

Oil storage

10L(Can be customized)

Overall dimensions

Length400xWidth300xHeight550mm

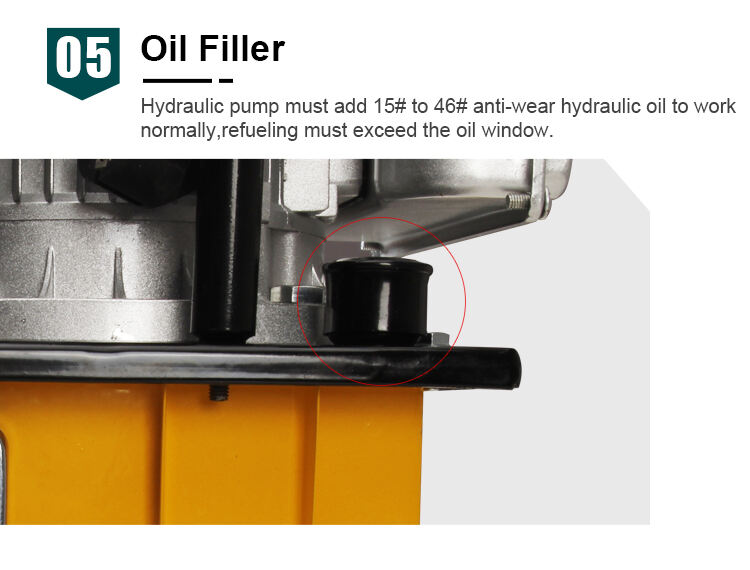

Oil of

Anti-wear hydraulic oil below 32# or 7-15# hydraulic transmission oil

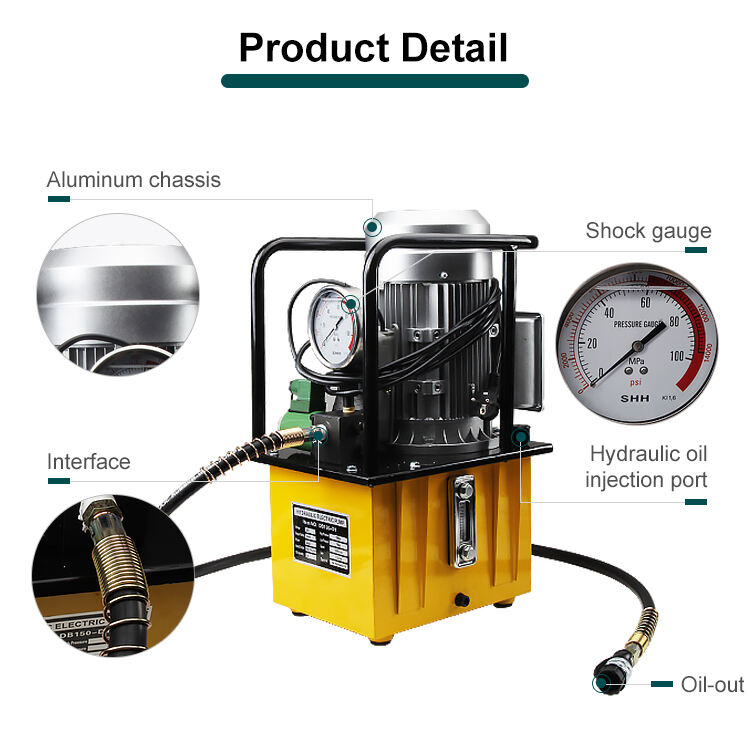

Product features

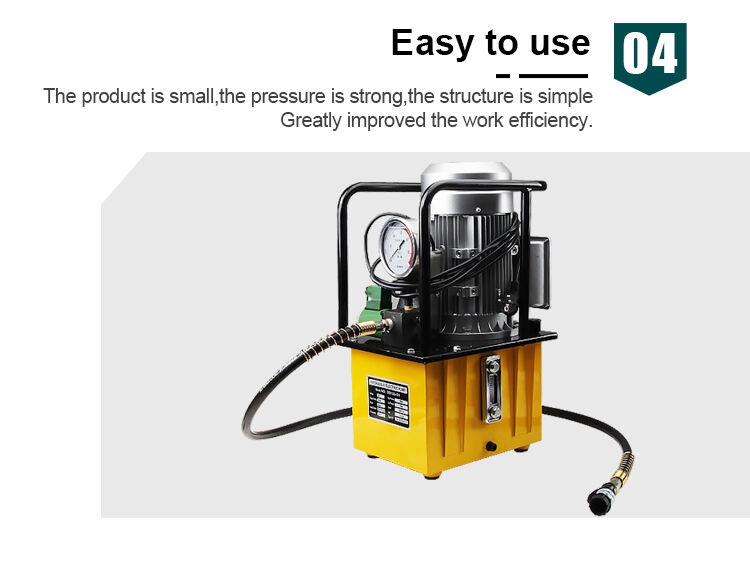

1.The hydraulic electromagnetic pump has the functions of simple operation and wide application;

2.High and low pressure two-stage output, large amount of oil;

3.The low pressure adopts plunger type to improve the effective pressure,

4.Automatic protection,to ensure that the use will not leak;

5.Pressure overload protection device,avoid over pressure and damage equipment,

Method of use

When use,should put open air nut,open the oil block switch,plug in,and fast connextion set with hydraulic equipment on the head quickly,press the power switch,motor rotation1 to 2 minutes,will switch off under pressurized condition,the output of the hydraulic oil is for all the work, the output of the hydraulic oil with the increase of the load on its own booster for all the work nutil the 70 mpa,open the switch after work unloading hydraulic oil after the oil return,quick joint awts,nut XuanHaoFang gas,detaching electricity nai,close the switch.

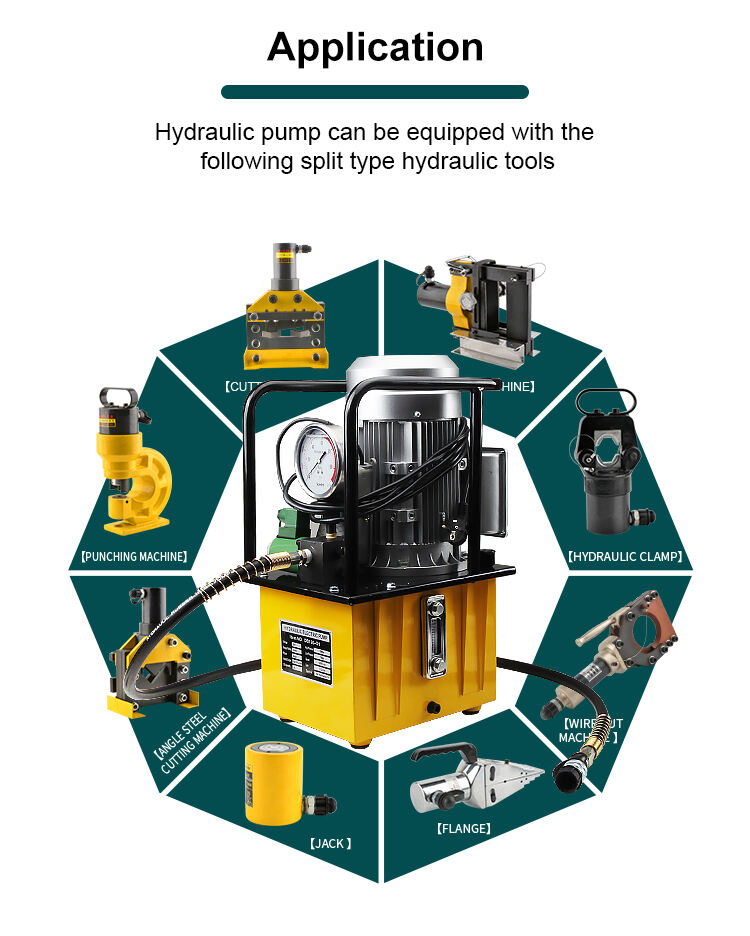

Equipped with other hydraulic tools,the pump can be lifting,pressure,bending,bending,straightening,shearing,assembly,disassembly and other work.
