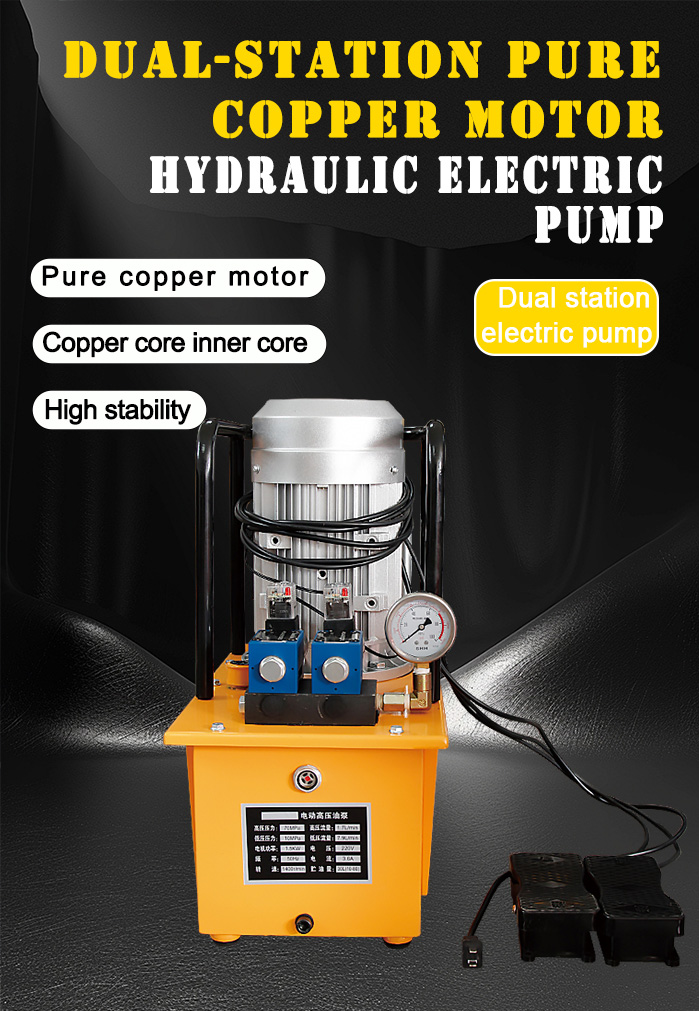

DB150-Z2 1500W High Pressure Hydraulic Electric Pump Double Acting, China DB150-Z2 1500W High Pressure Hydraulic Electric Pump Double Acting Manufacturers, Suppliers, Factory - Yuhuan Changyou Hydraulic Tools Co., Ltd.

Introduction

High Pressure:	70Mpa
Speed:	1400r/min
Model Number:	DB150-Z2
Oil Reserves:	30L

Minimum Order Quantity:	2set
Price:	US$250.00
Packaging Details:	Wooden box
Delivery Time:	≥3 day
Custom made:	customizable
Supply Ability:	Available

Description

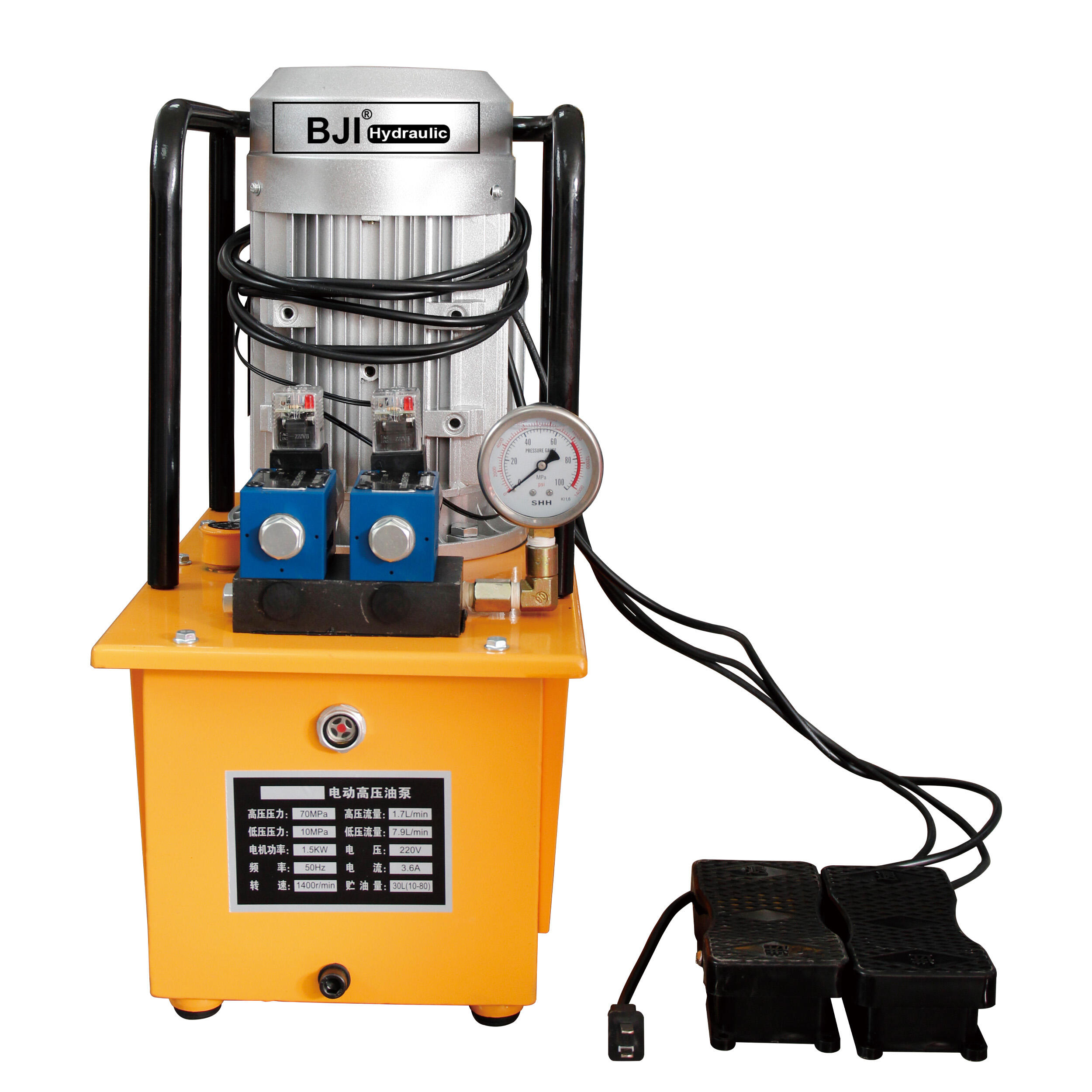

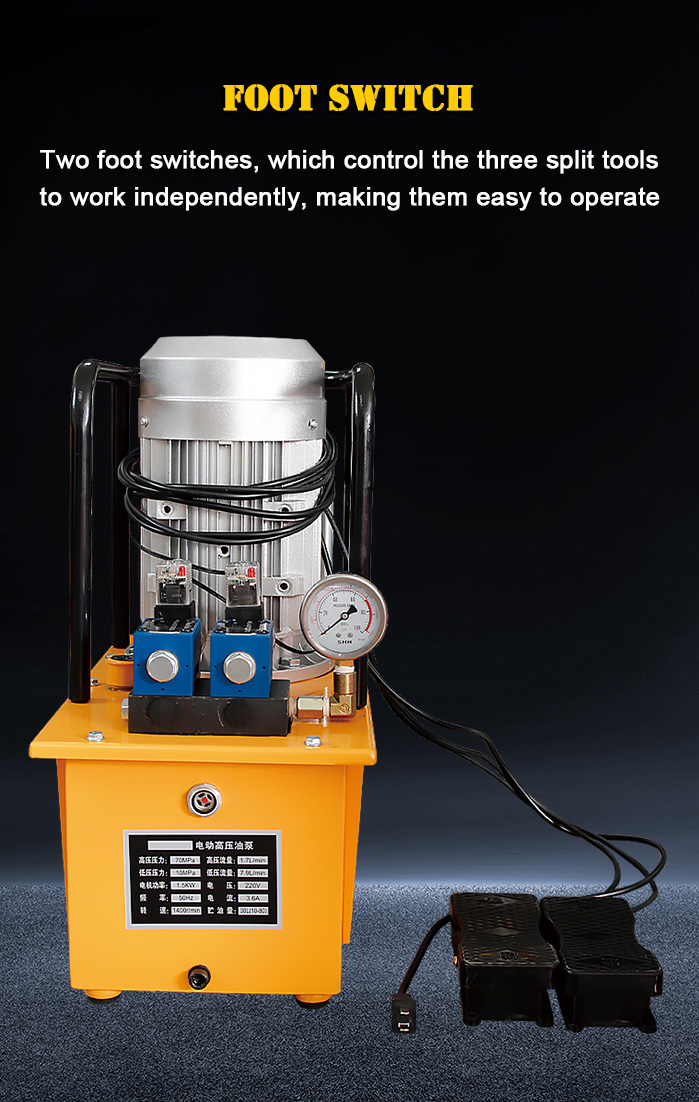

FOOT SWITCH Two foot switches, which control the three split tools to work independently, making them easy to operate

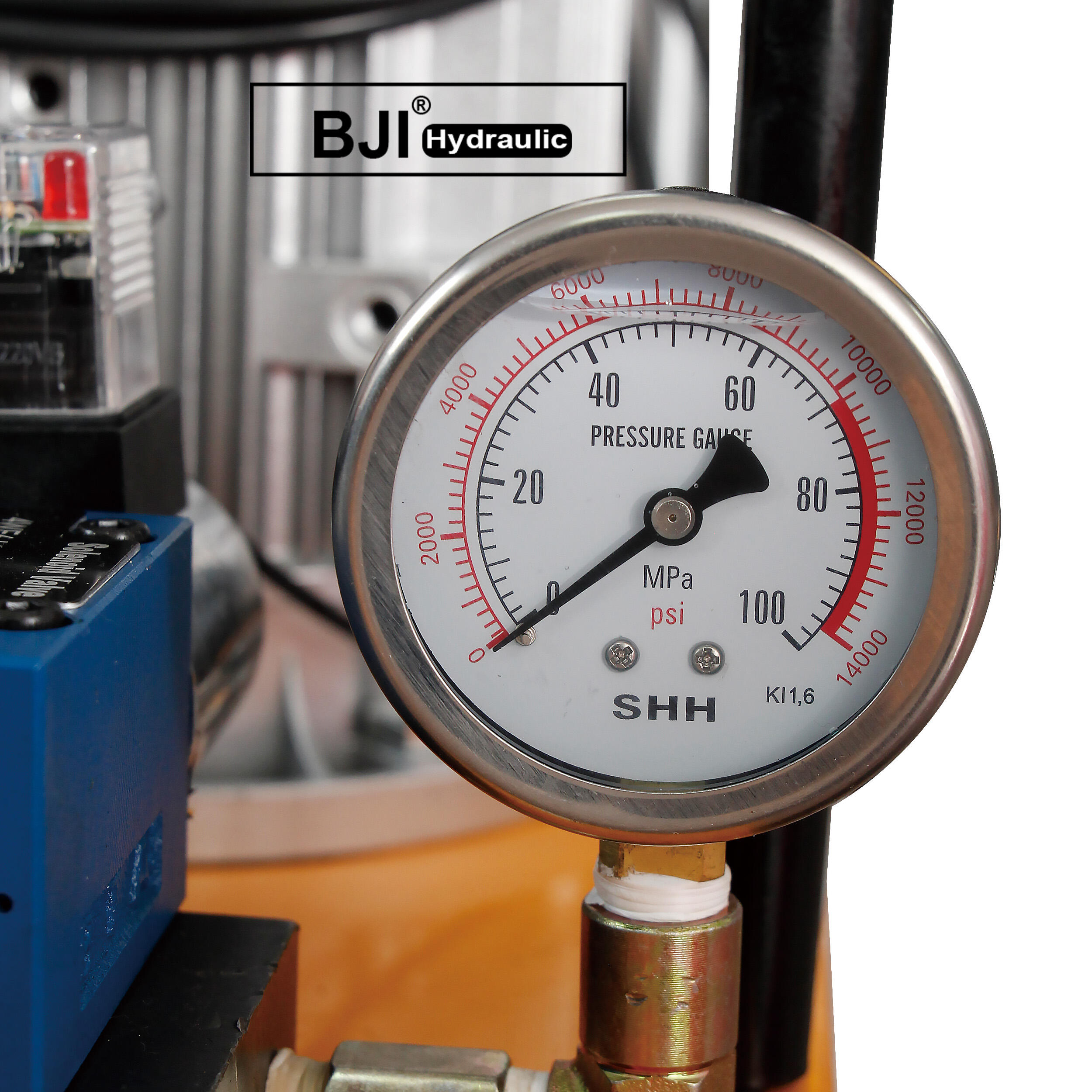

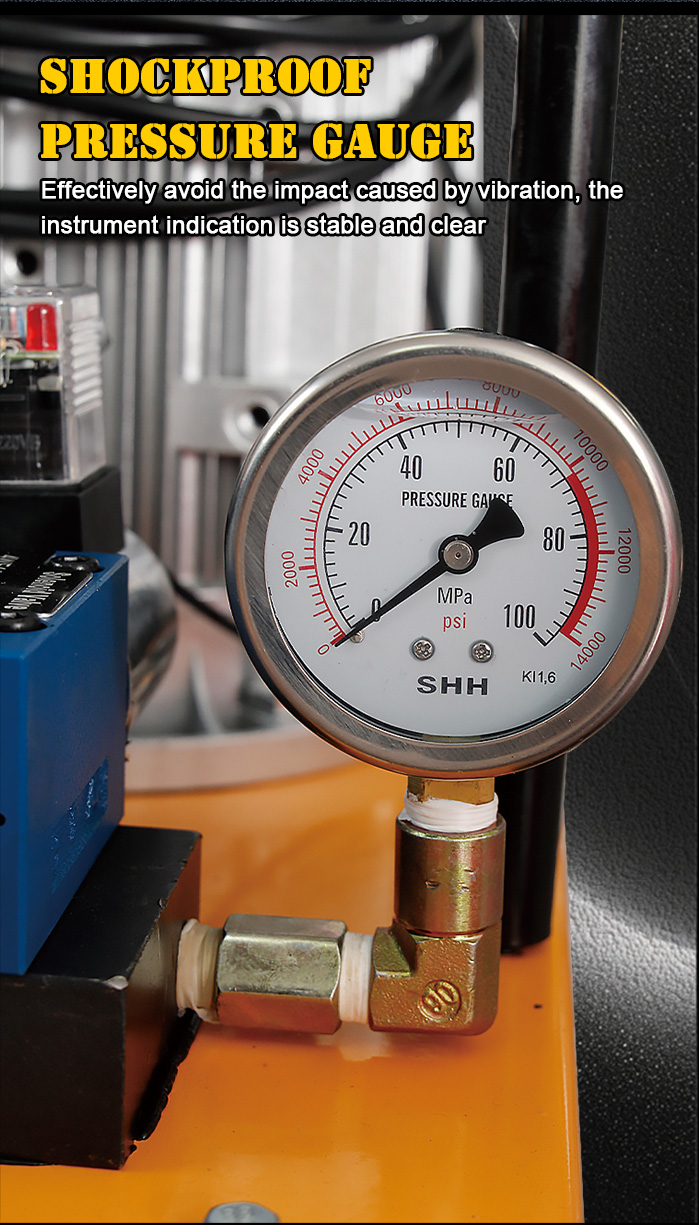

SHOCKPROOF PRESSURE GAUGE Effectively avoid the impact caused byvibration, the instrument indication is stable and clear

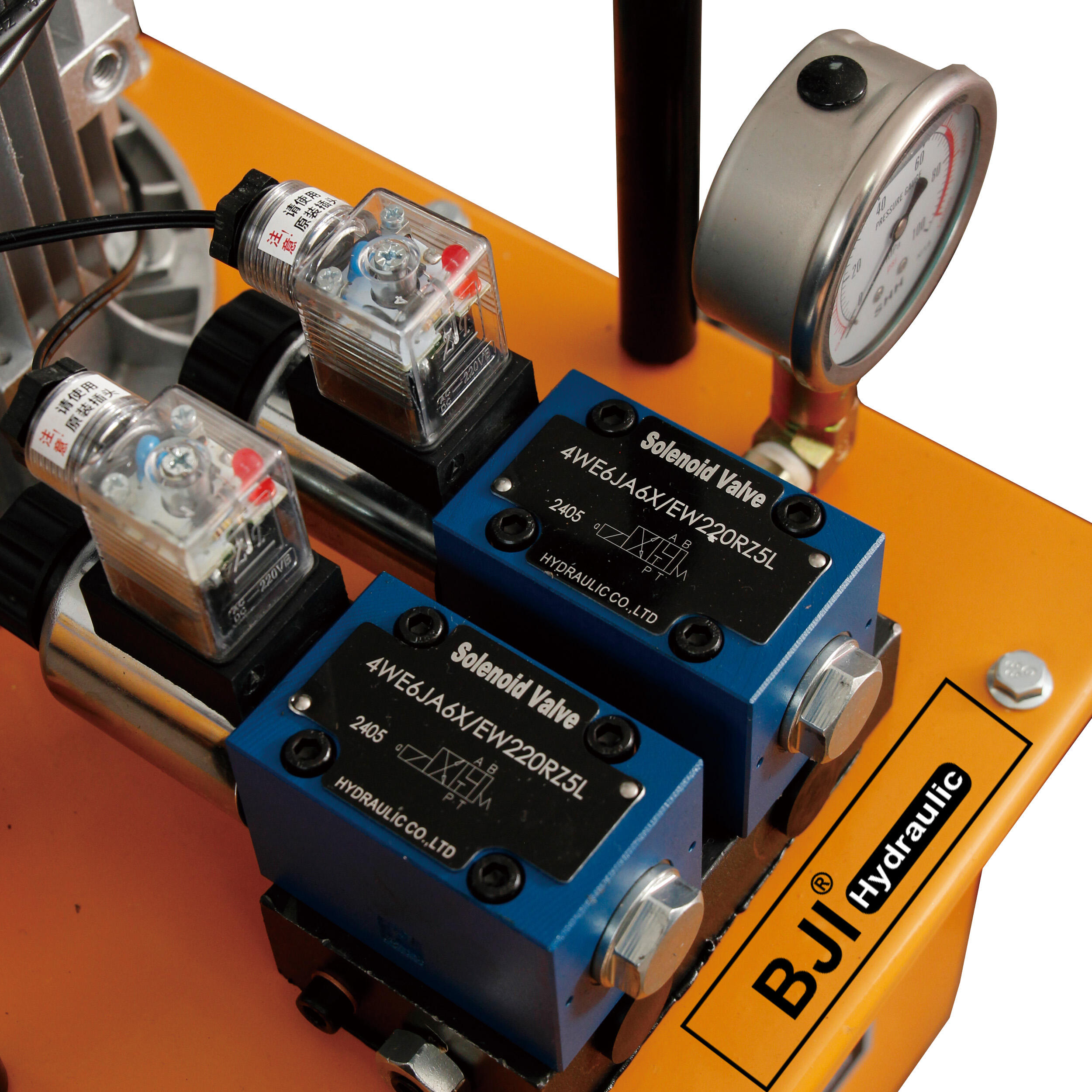

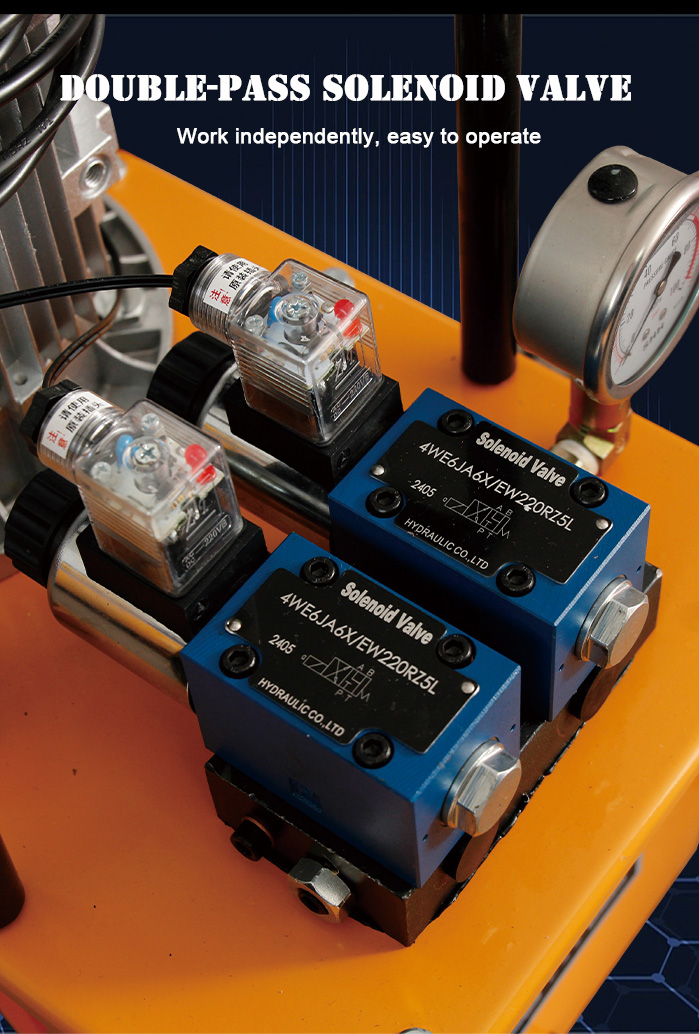

DOUBLE-PASS SOLENOID VALVE Work independently, easy to operate

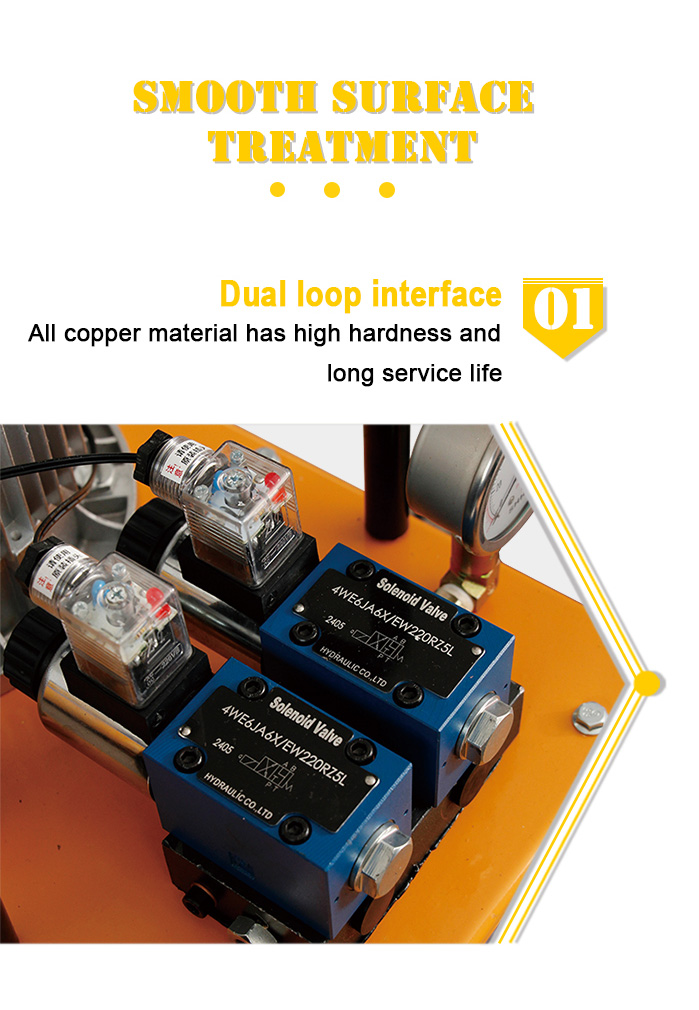

Dual loop interface All copper material has high hardness and long service life

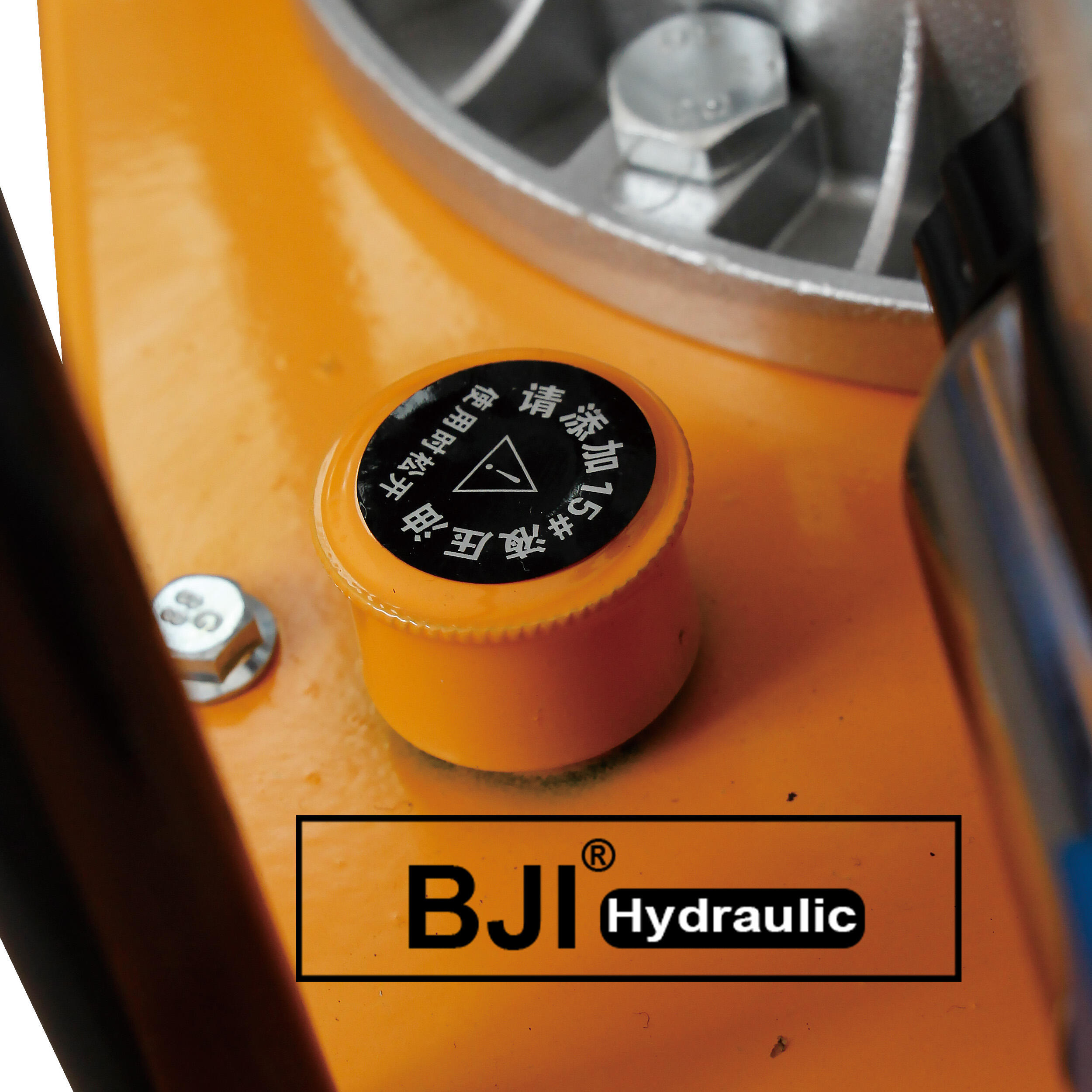

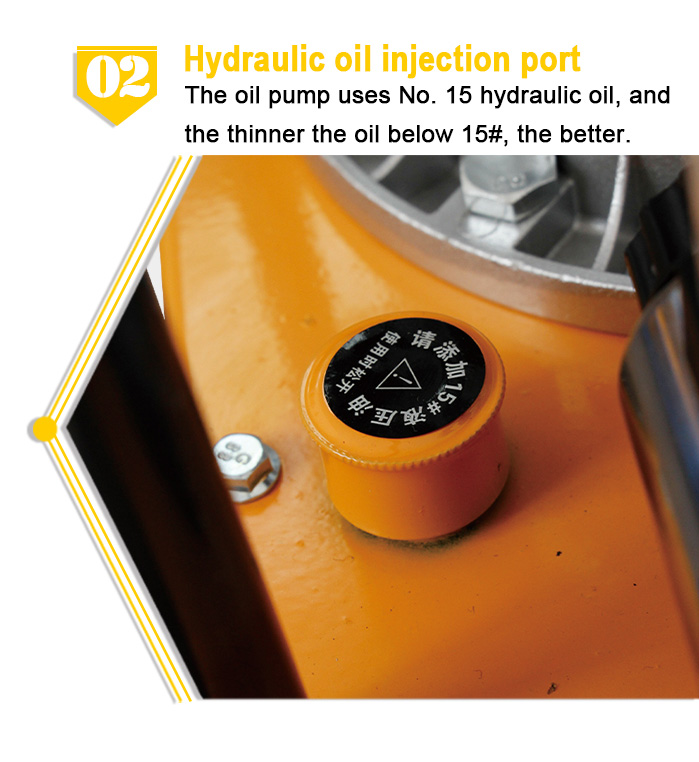

Hydraulic oil injection port The oil pump uses No. 15 hydraulic oil, and the thinner the oil below 15#, the better.

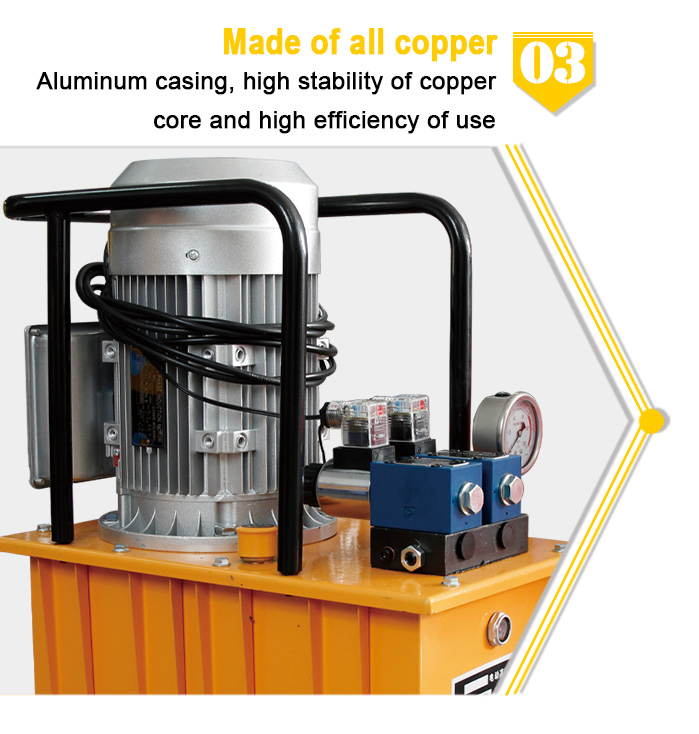

Made of all copper Aluminum casing, high stability of copper core and high efficiency of use

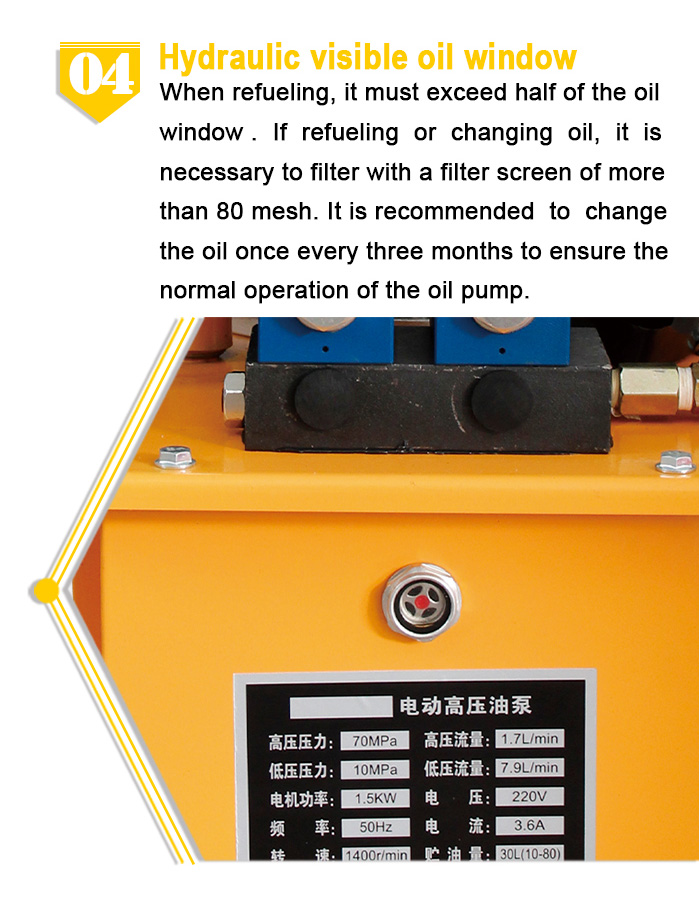

Hydraulic visible oil window When refueling, it must exceed half of the oil window.If refueling or changing oil, it is necessary to filter with a filter screen of more than 80 mesh.lt is recommended to change the oil once every three months to ensure the normal operation of the oil pump.

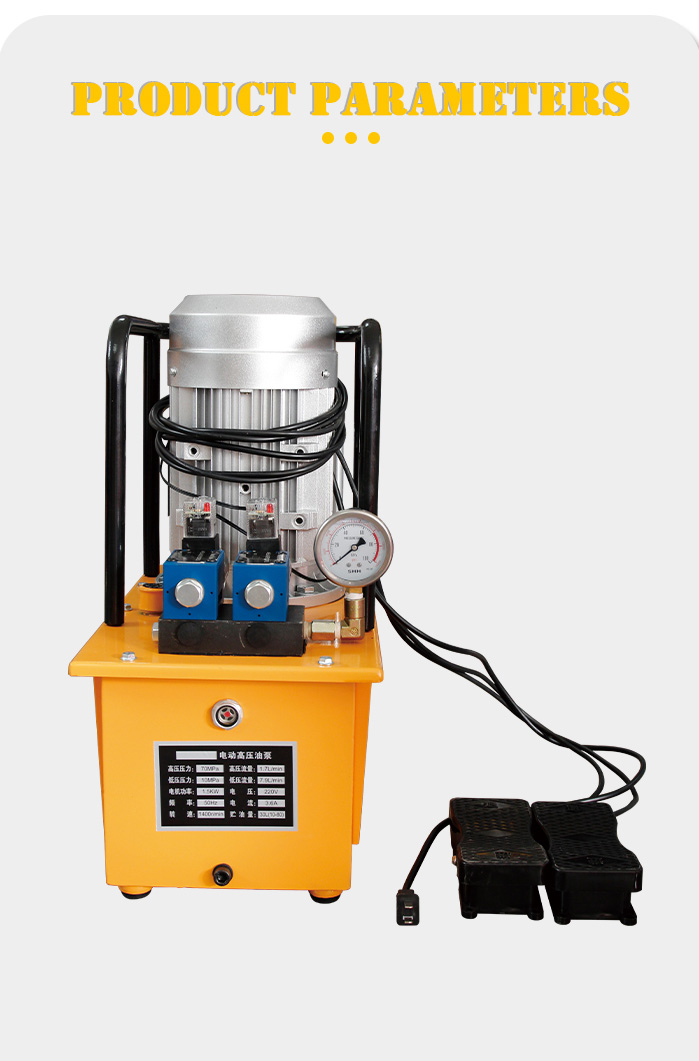

Specifications

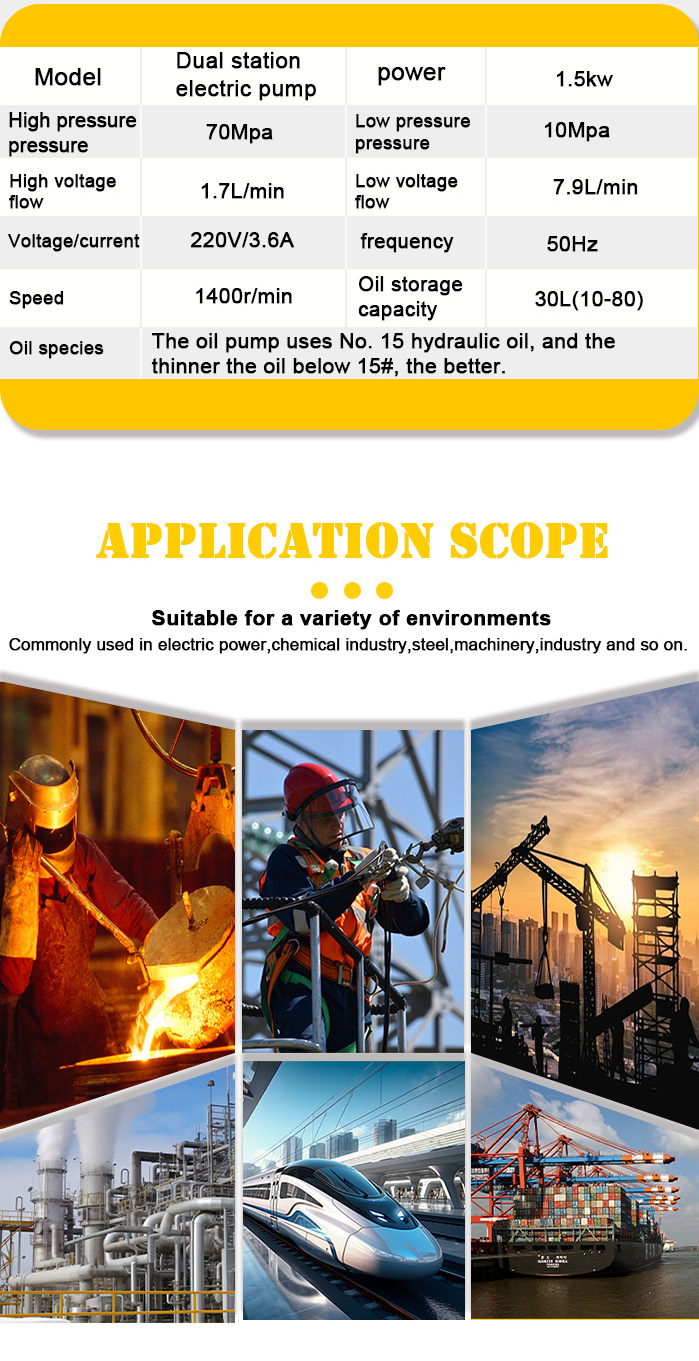

Model	Dual station electric pump	power	1.5kw
High pressure pressure	70Mpa	Low pressure pressure	10Mpa
Hilgh voltage flow	1.7L/min	Low voltage flow	7.9L/min
Voltage/current	220V/3.6A	frequency	50Hz
Speed	1400r/min	Oil storage capacity	30L(10-80)
Oil species	The oil pump uses No. 15 hydraulic oil, and the thinner the oil below 15#,the better.
