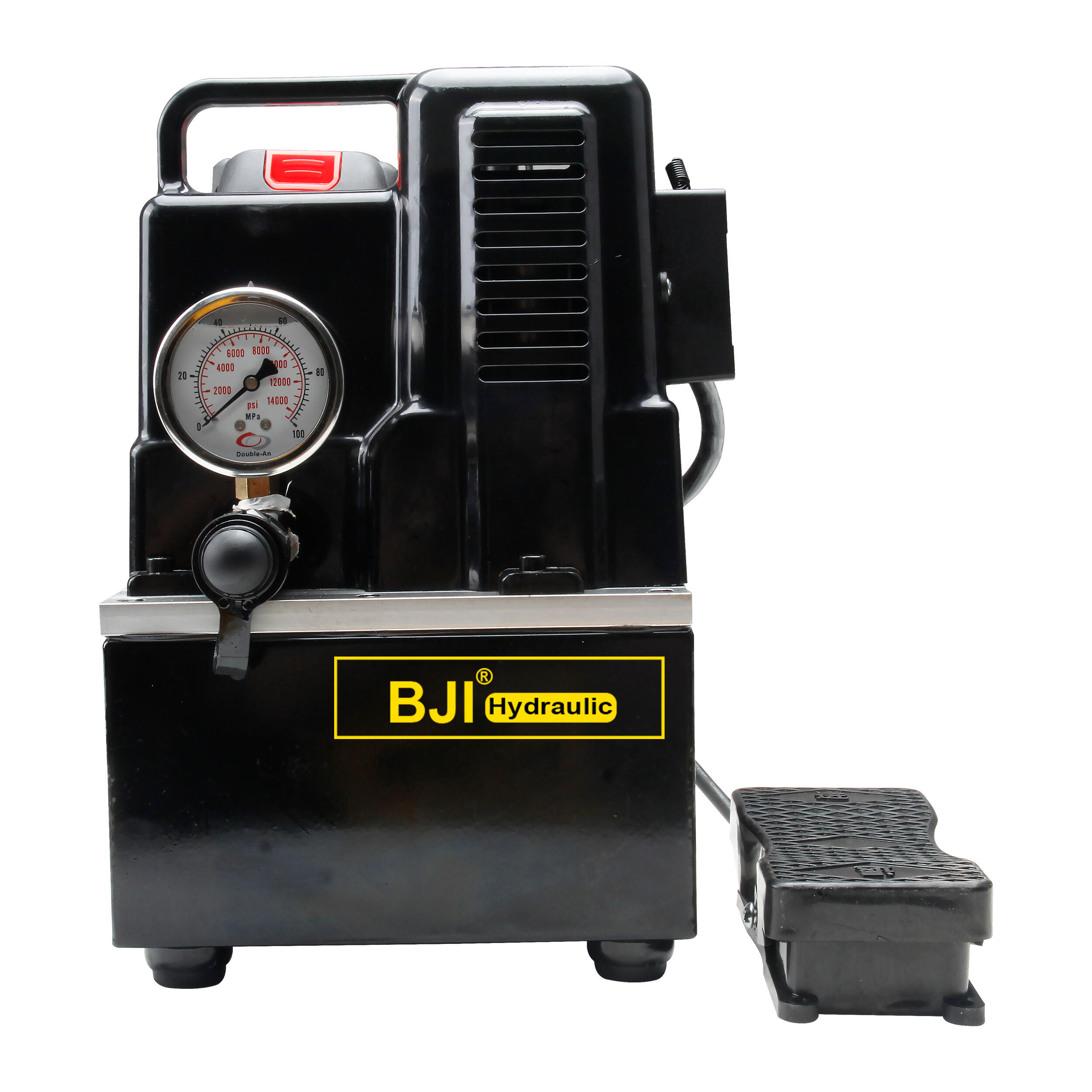

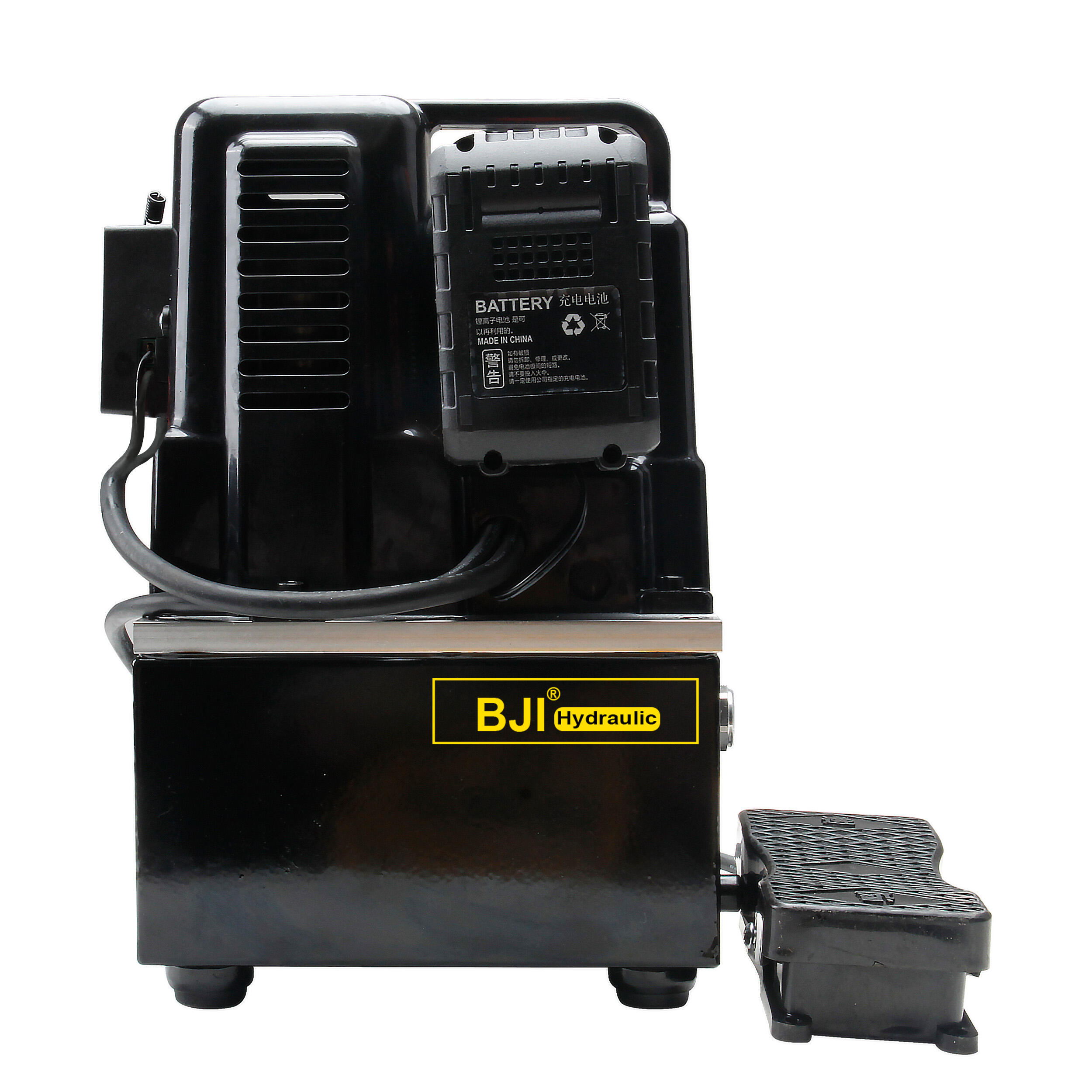

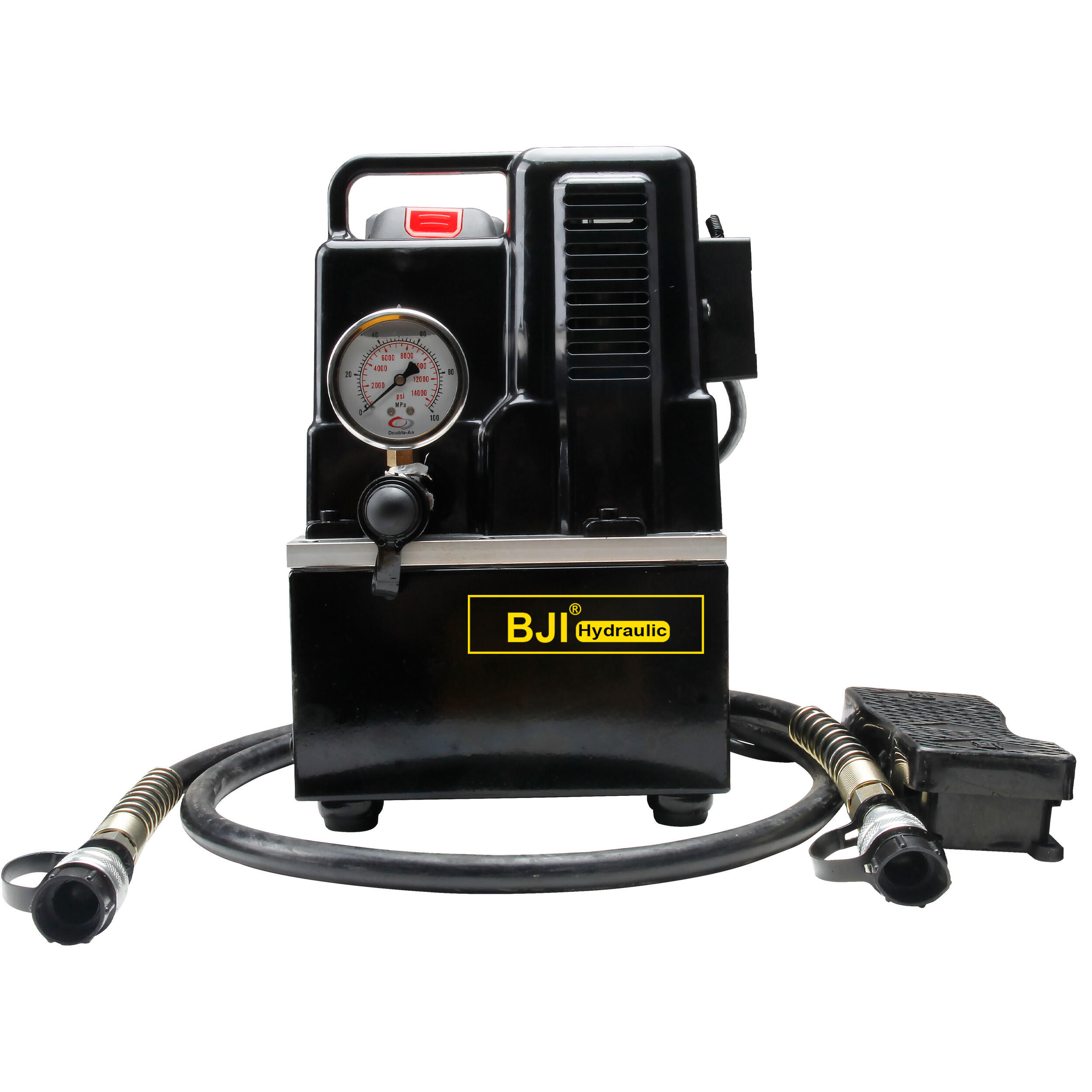

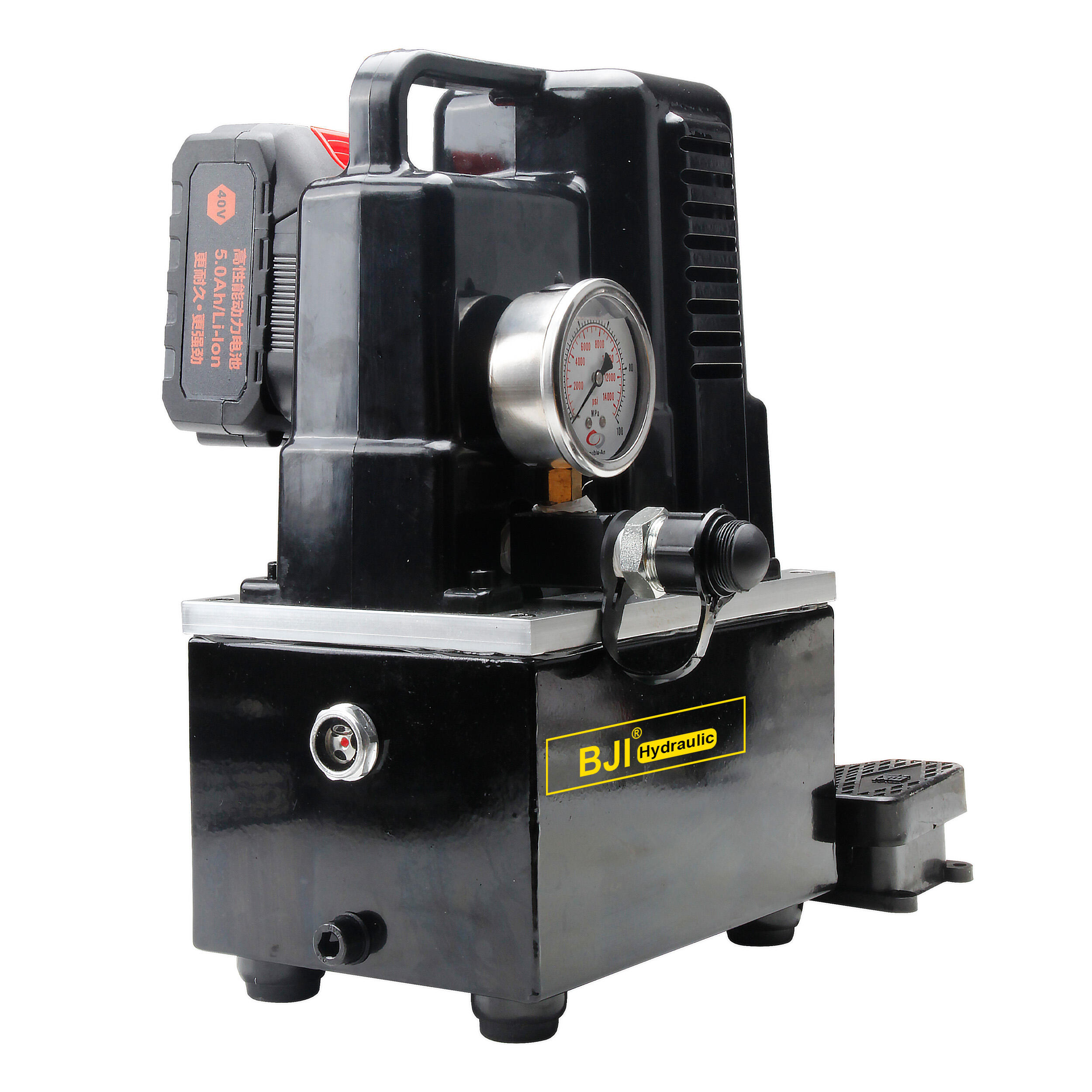

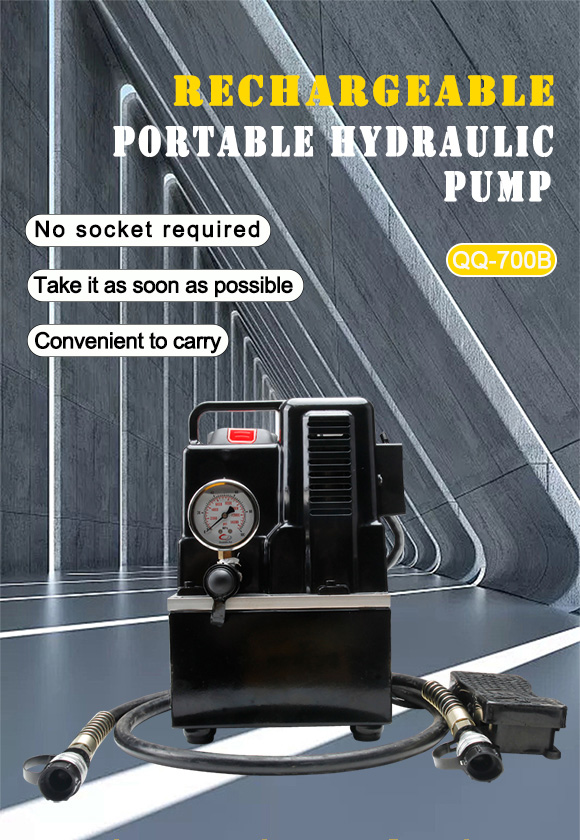

QQ-700B Portable Single Action Hydraulic Pump Dc 220v Battery Power Pack
|
Rated Pressure: |
70Mpa |
|
Motor power: |
1.2KW |
|
Model Number: |
QQ-700B |
|
Oil capacitiy: |
2L |
|
Minimum Order Quantity: |
1 set |
|
Price: |
US$270.00 |
|
Packaging Details: |
Wooden box |
|
Delivery Time: |
≥3 day |
|
Payment Terms: |
customizable |
|
Supply Ability: |
Available |
- Overview
- Description
- Specifications
- Recommended Products

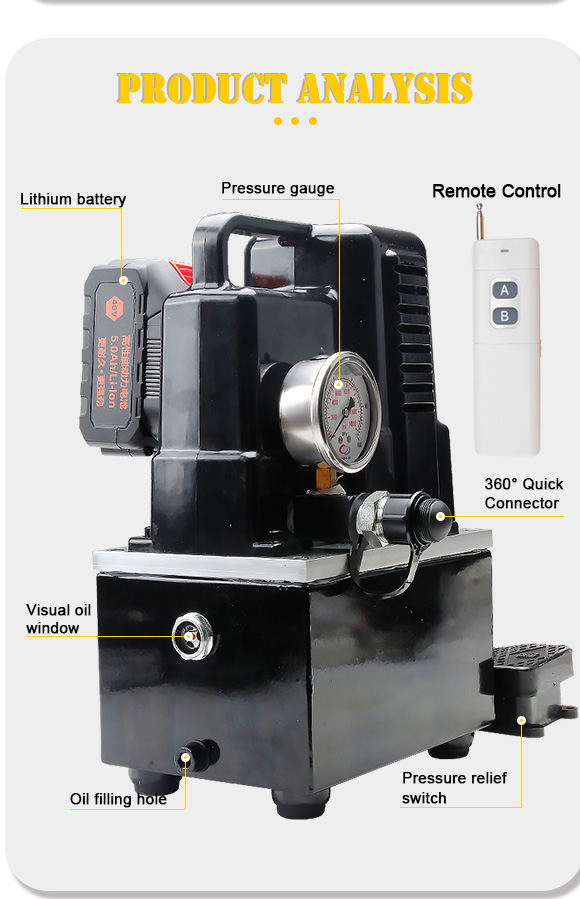

- PEDAL PRESSURE RELIEF Press the pedal to relieve pressure

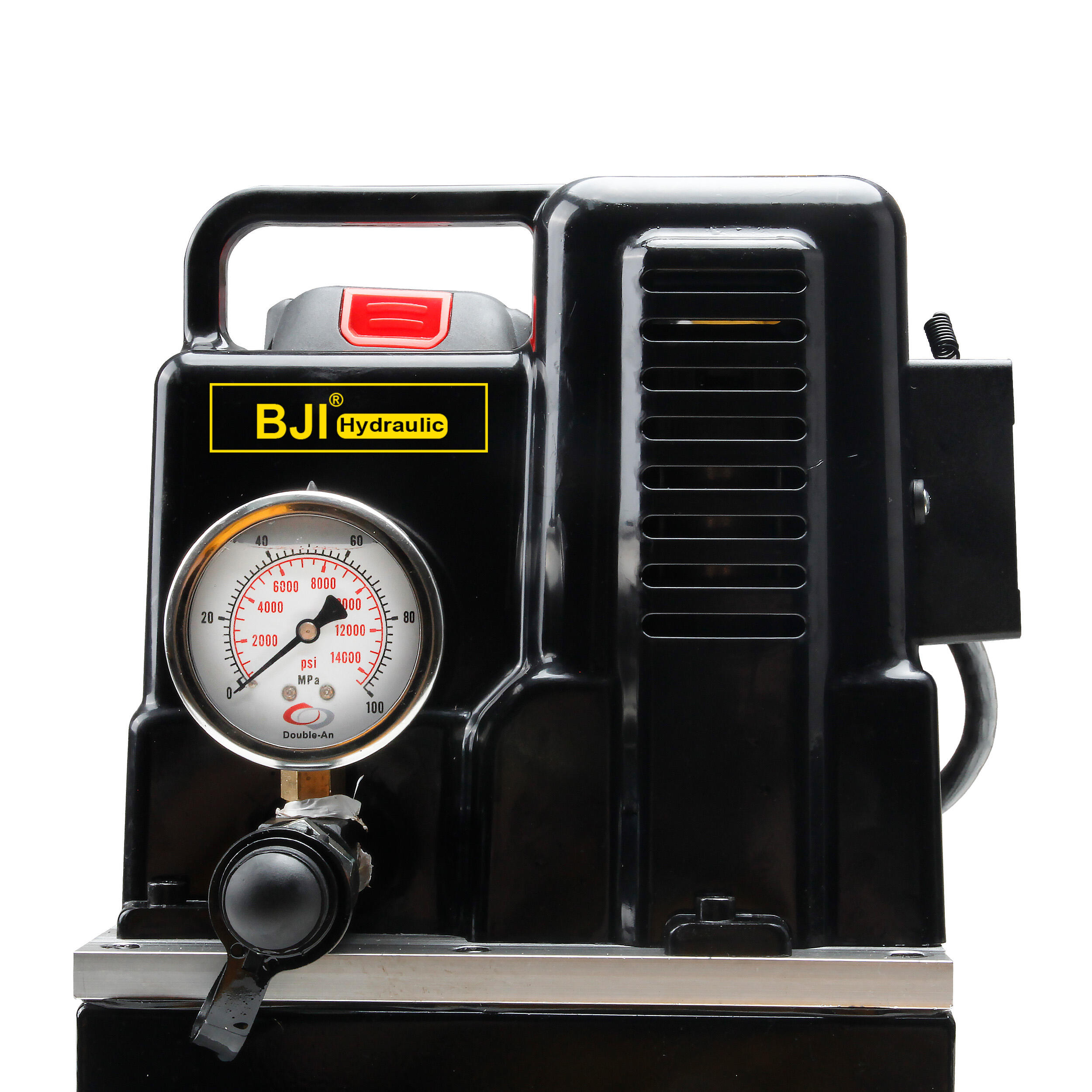

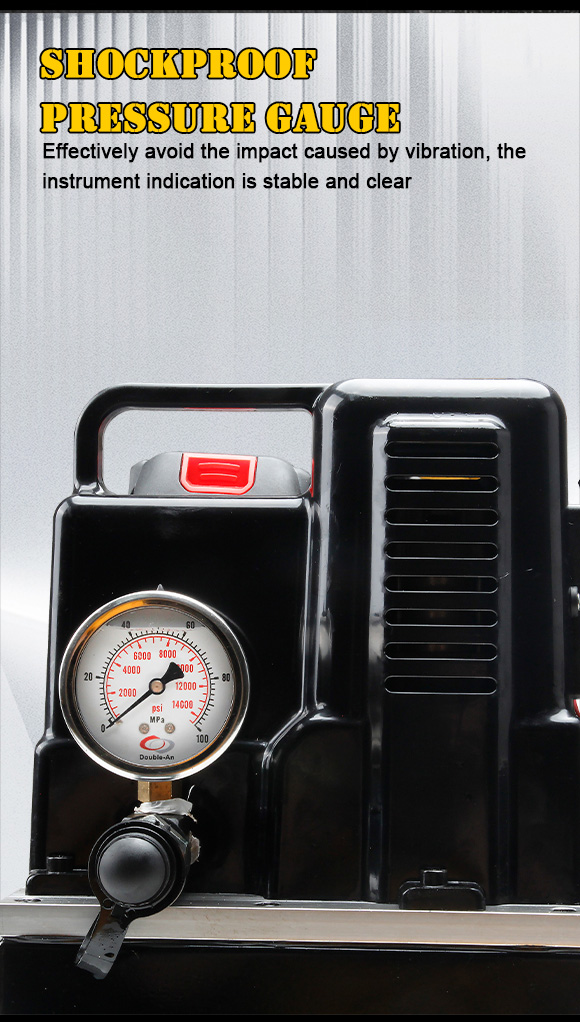

- SHOCKPROOF PRESSURE GAUGE Effectively avoid the impact caused by vibration, the instrument indication is stable and clear
- LARGE CAPACITY LITHIUM BATTERY 40V/5.0Ah battery life is longer
- Activate the surging power with one click Simple and convenient operation can be completed with one click

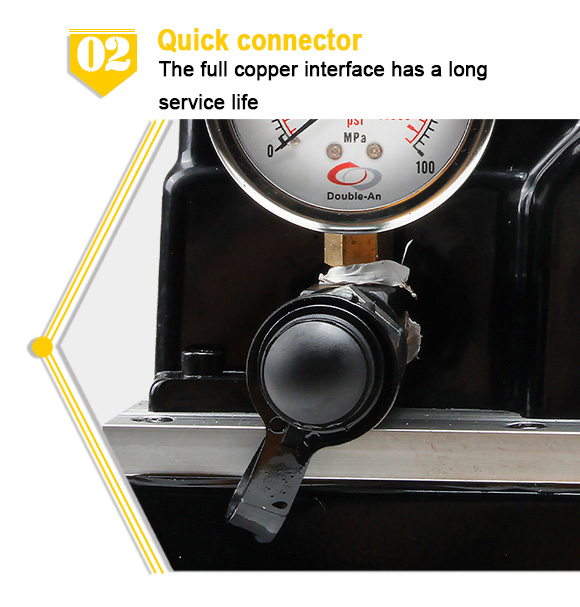

- Quick connector The full copper interface has a long service life

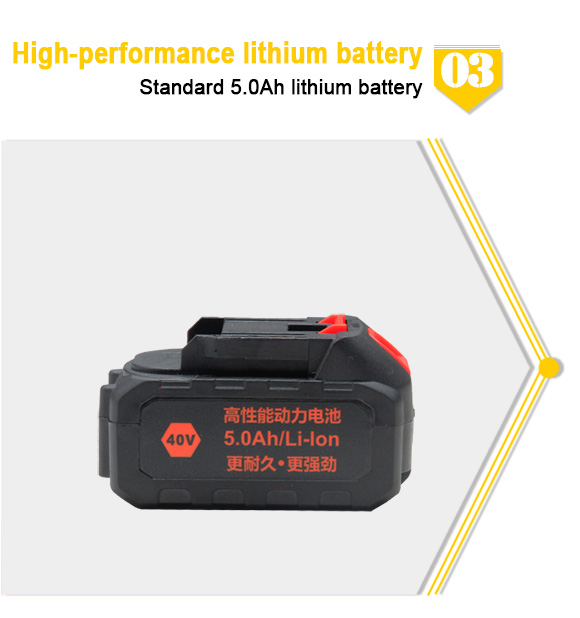

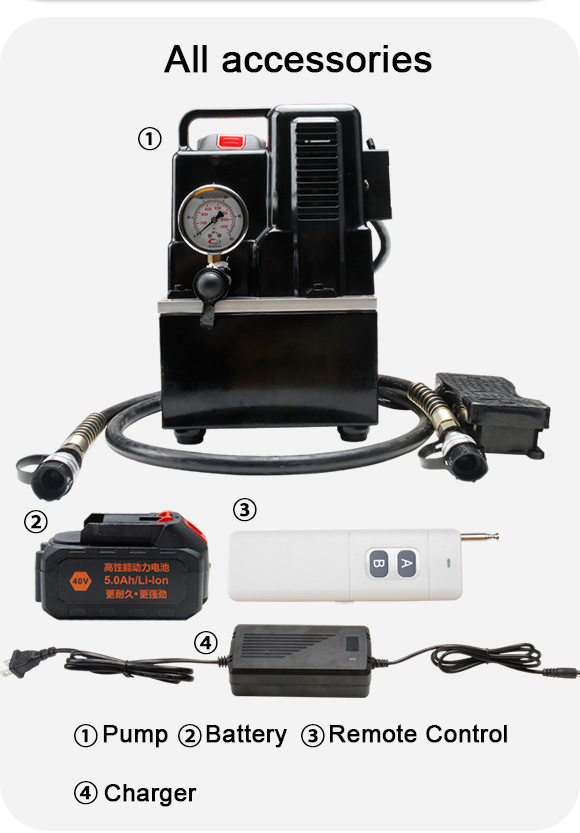

- High-performance lithium batteryStandard 5.0Ah lithium battery
- Charger Fast charging
- Hydraulic visible oil window You can clearly see whether the hydraulic oil is within the normal range, which help sprotect the normal use of the hydraulic pump and has a pressure-keeping function.
- Oil filling hole The thinner the oil, the better.

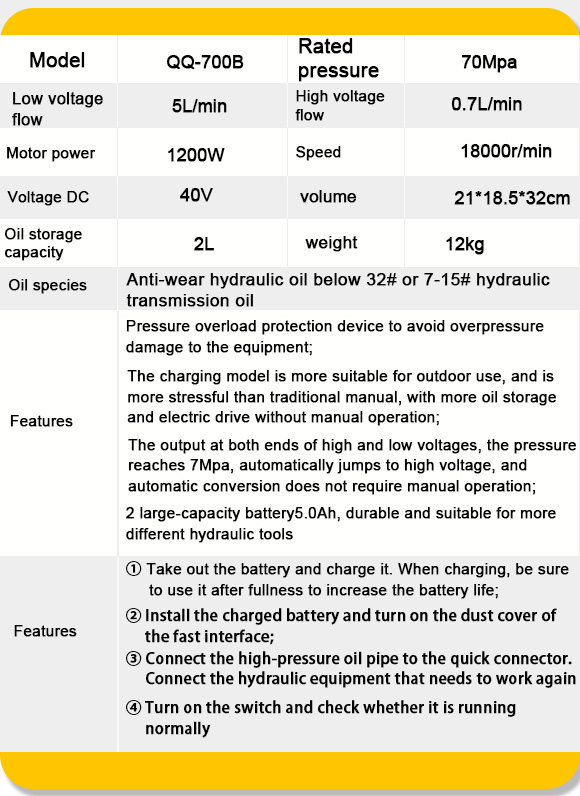

| Model | QQ-700B | Rated pressure | 70Mpa |
| Low voltage flow | 5L/min | High voltage flow | 0.7L/min |
| Motor power | 1200W | Speed | 1800r/min |
| Voltage DC | 40V | yolume | 21*18.5*32cm |
| Oil storage capacity | 2L | weight | 12kg |
| Oil species | Anti-wear hydraulic oil below 32# or 7-15# hydraulic transmission oil | ||
| Features |
Pressure overload protection device to avoid overpressuredamage to the equipment; The charging model is more suitable for outdoor use, and is more stressful than traditional manual, with more oil storage and electric drive without manual operation; The output at both ends of high and low voltages, the pressure reaches 7Mpa, automatically jumps to high voltage, and automatic conversion does not require manual operation; 2 large-capacity battery5.0Ah, durable and suitable for moredifferent hydraulic tools |
||
| Features |

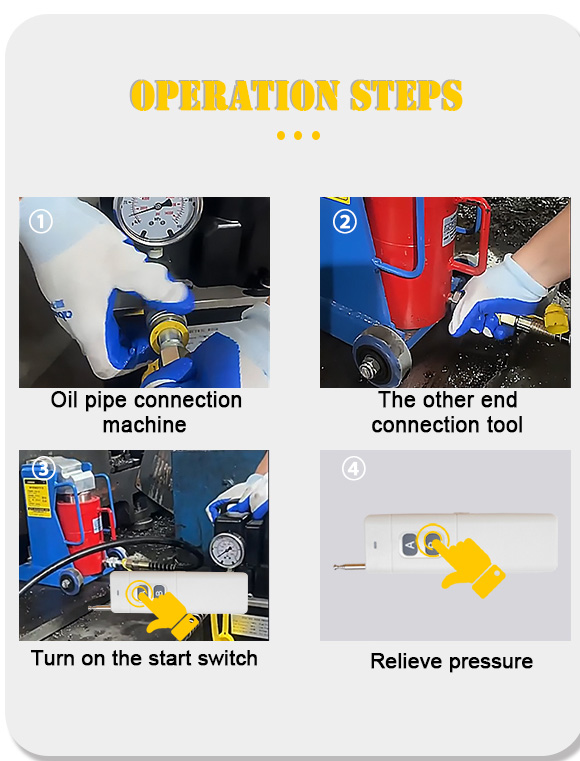

① Take out the battery and charge it. When charging, be sureto use it after fullness to increase the battery life; ②Install the charged battery and turn on the dust cover ofthe fast interface; ④Turn on the switch and check whether it is runningnormally |
||
