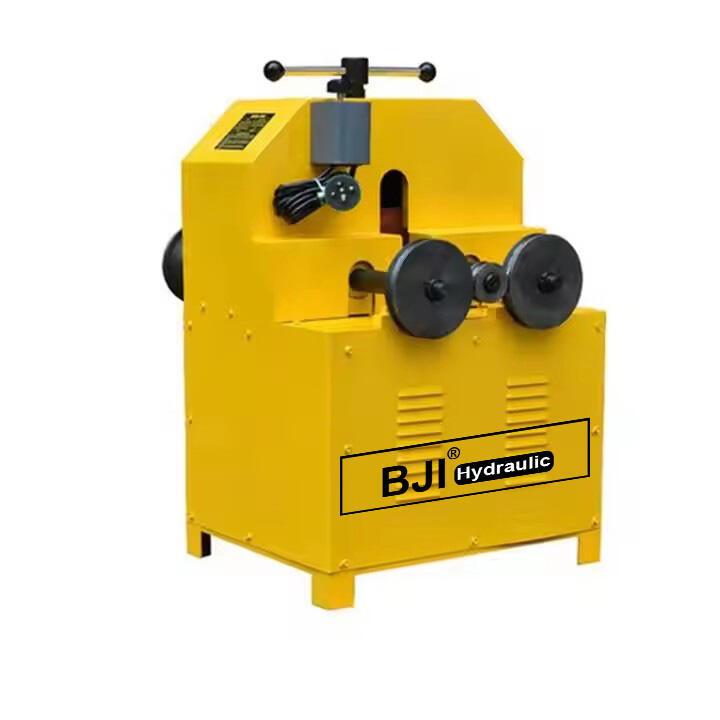

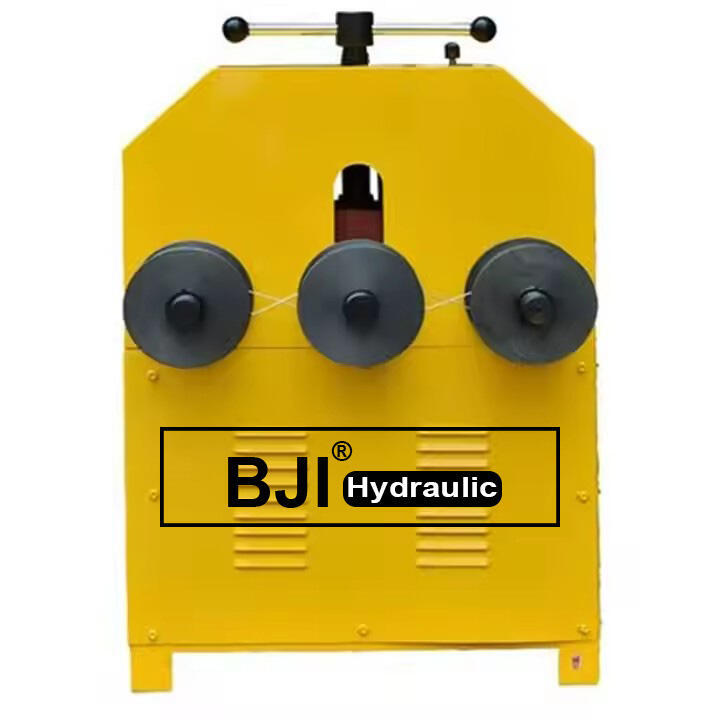

CYW-76B Semi-automatic Electric Rolling Pipe Bender Machine
- Overview
- Description
- Specifications
- Recommended Products
round bending dies: |
16,19,22,25,32,38,51,63,76mm |
square bending dies: |
16,19,22,25,30,38,40,50mm |
Model Number: |
CYW-76B |
power (kw): |
1.05 |
Minimum Order Quantity: |
1 set |
Price: |
US$710.00 |
Packaging Details: |
Wooden box |
Delivery Time: |
≥3 day |
Payment Terms: |
customizable |
Supply Ability: |
Available |
- Quickly create large radius arcs and complete circles.
- It is especially suitable for the operation of steel greenhouses
- Can bend stainless steel thin round tubes, thin square tubes and soft steel tubes

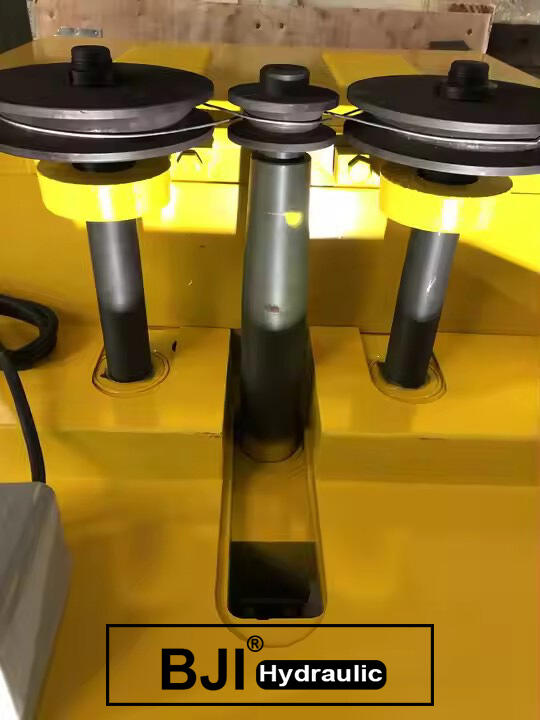

- Manual adjustment of the upper shaft, two drive shafts and one driven shaft
- lf the tube needs to be bent into a circle, the circular diameter needs to be more than 20 times the diameter of the tube.
- Electric operation, the motor can be equipped with 220V or 380V
- The mould is cast from special steel and has a long service life.

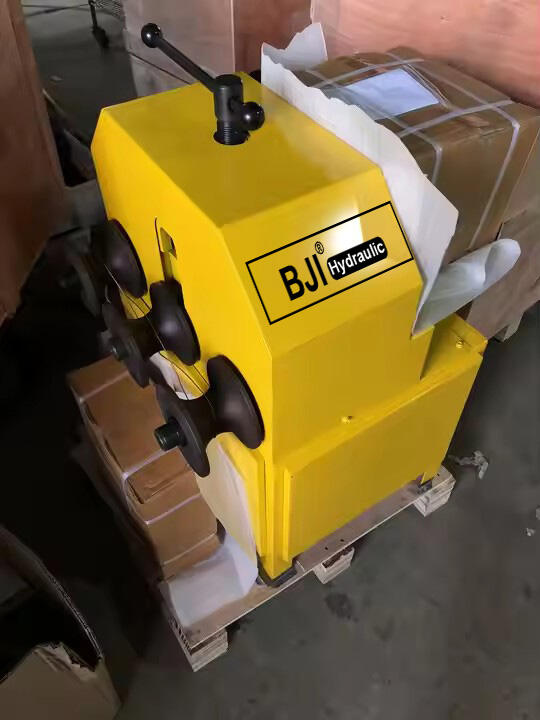

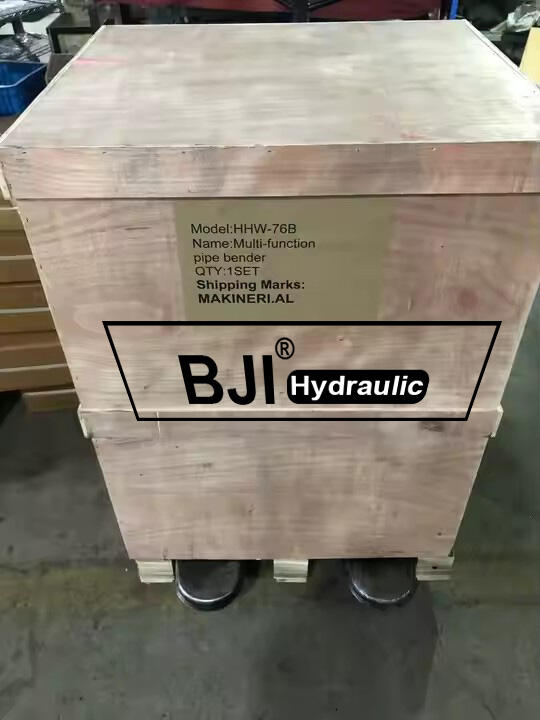

- The product and mould are placed in a wooden box.
- Configure the round and square tube moulds.
| Model no. | CYW-76B |
| Motor | 1.5KW |
| Power | 50-60hz/110V-380v |
| Thickness of pipe(mm) | 0.5-2mm |
| Round Mould(mm) | 16/19/22/25/32/38/51/63/76 |
| Square Mould(mm) | 16/19/22/25/30/38/40/50 |
| Weight | 260 |
| Size(cm) | 73x63x103 |
