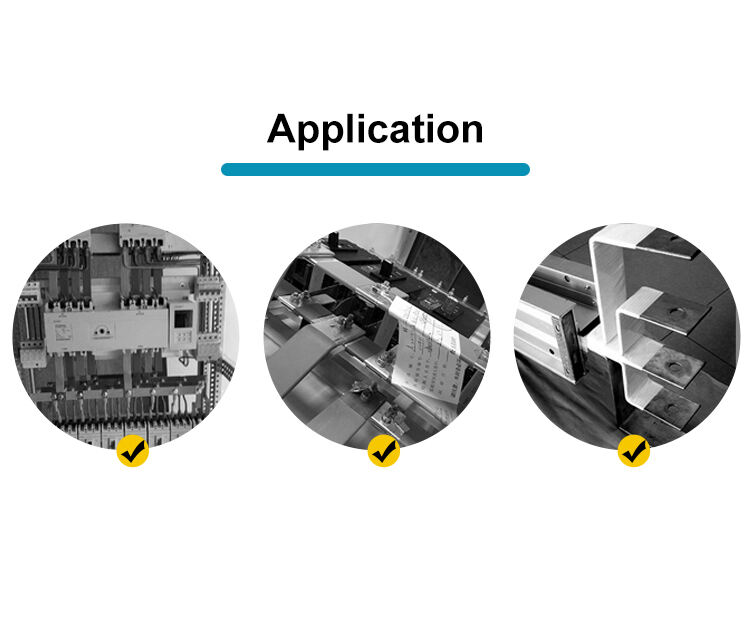

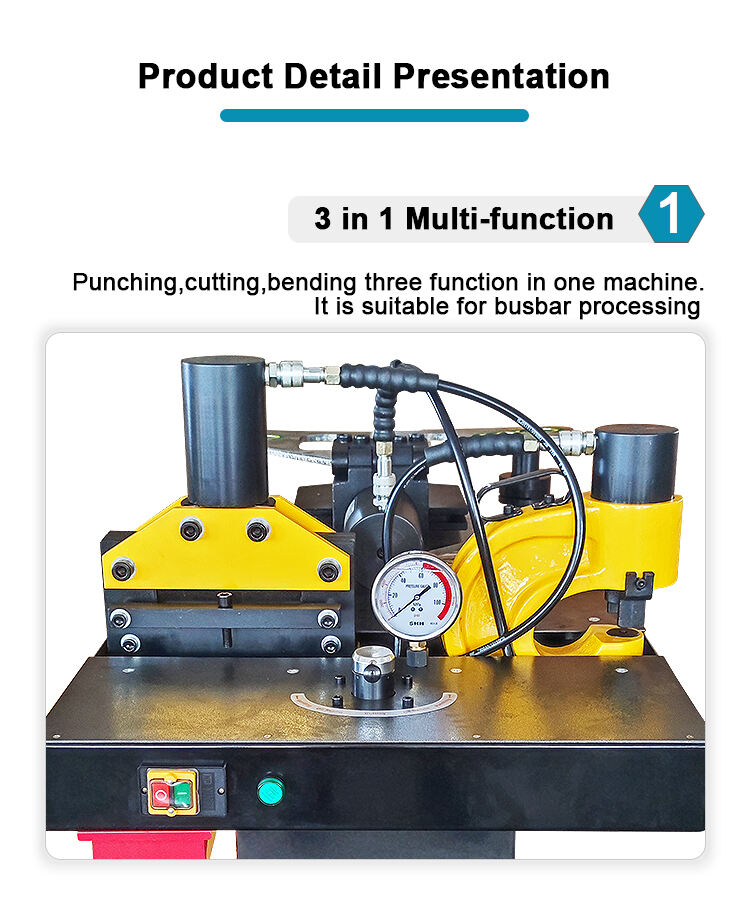

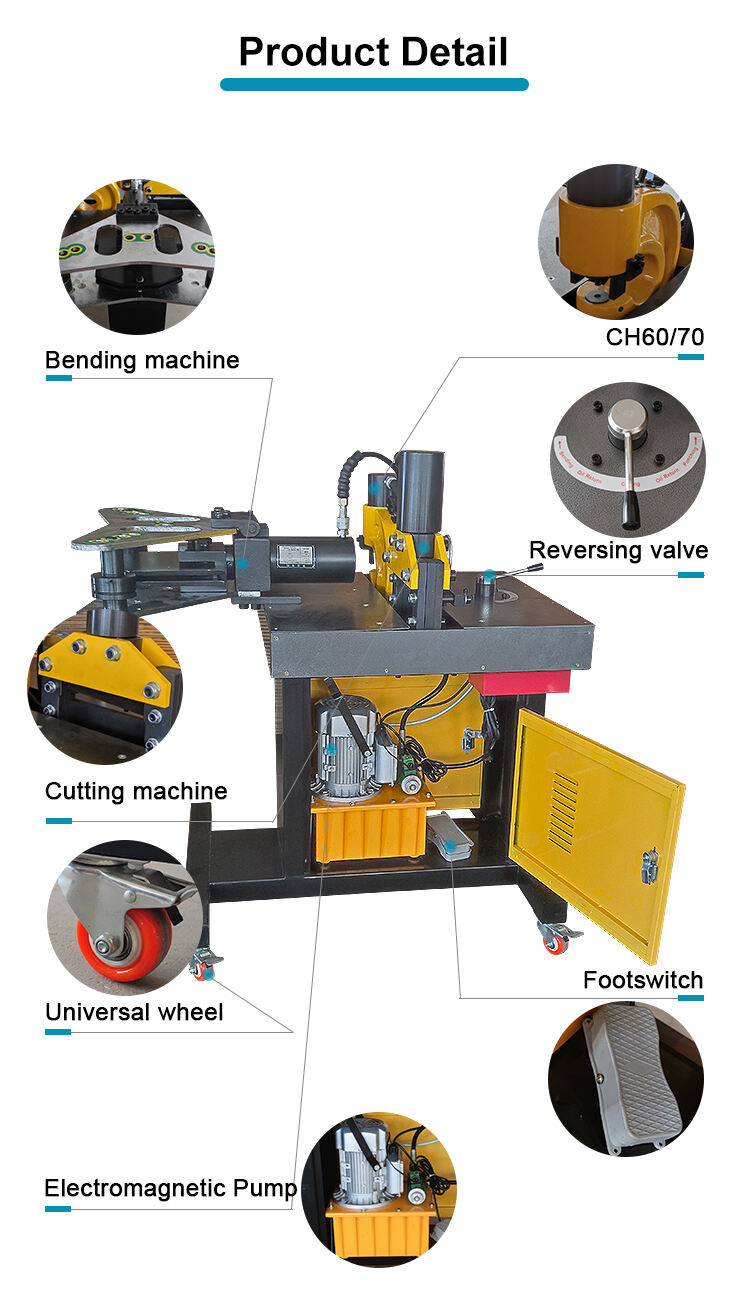

1. 3 in 1 Multi-function Punching,cutting,bending three function in one machine.It is suitable for busbar processing

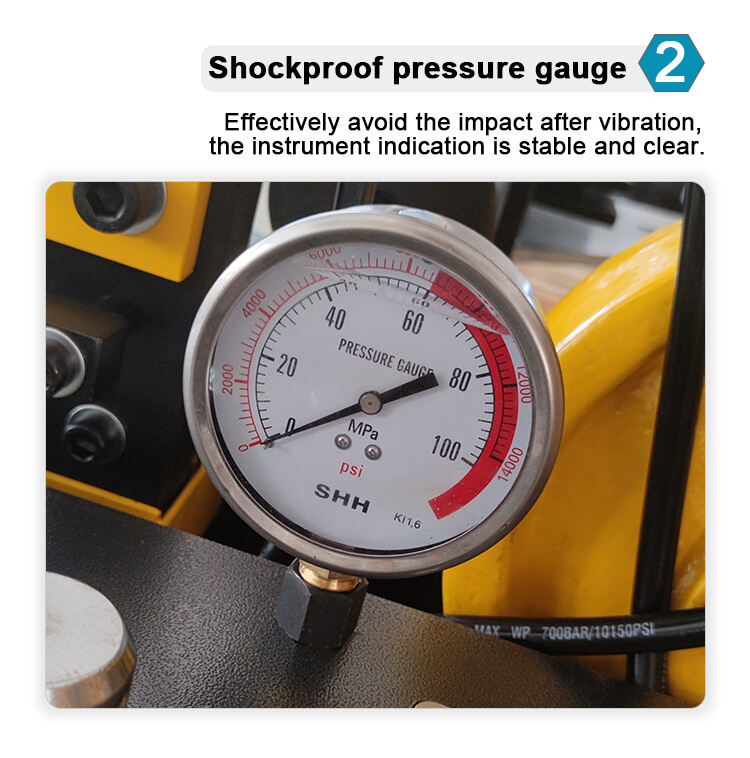

2. Shockproof pressure gauge Effectively avoid the impact after vibration,the instrument indication is stable and clear

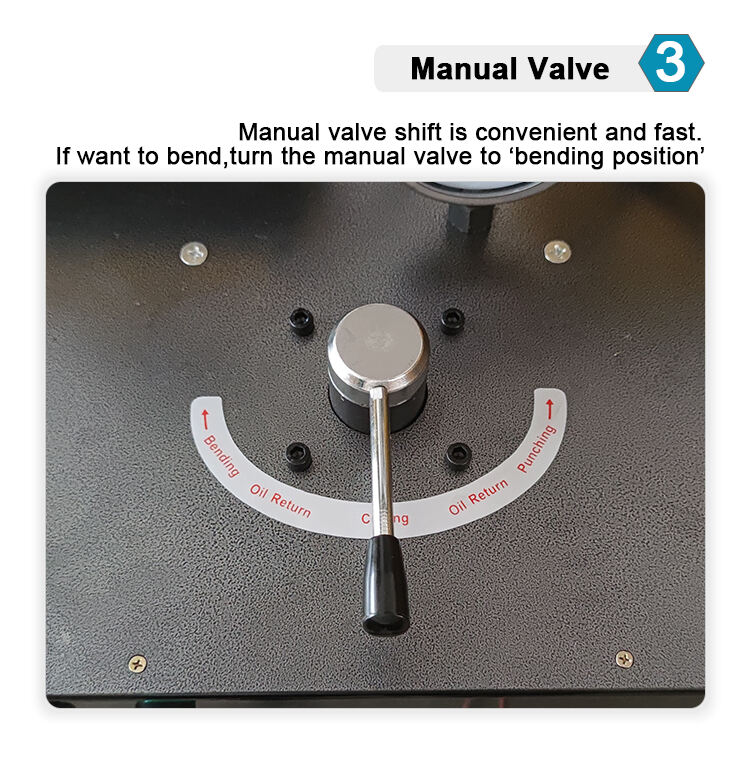

3. Manual valve shift is convenient and fast If want to bend,turn the manual valve to 'bending position

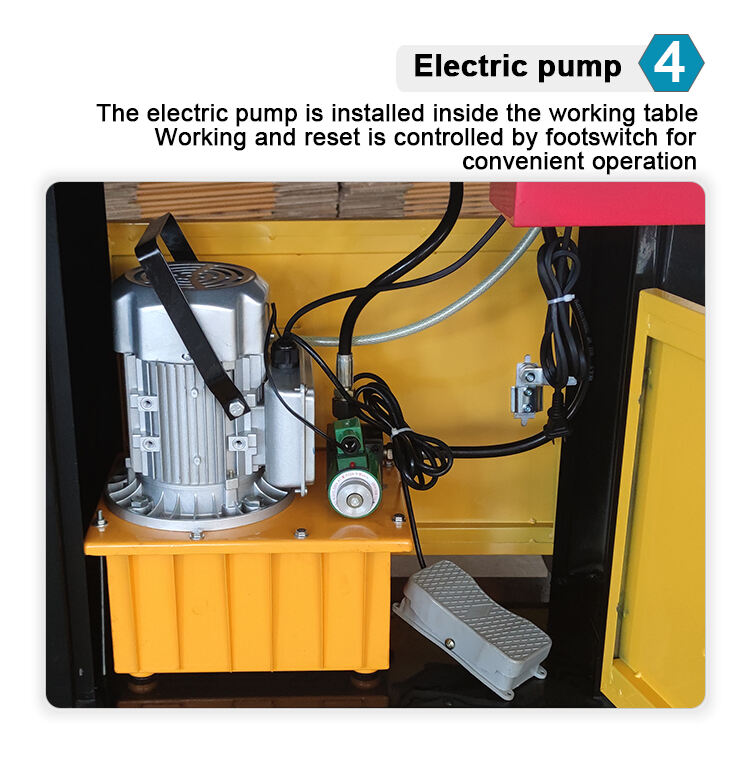

4. The electric pump is installed inside the working table Working and reset is controlled by foot switch for convenient operation

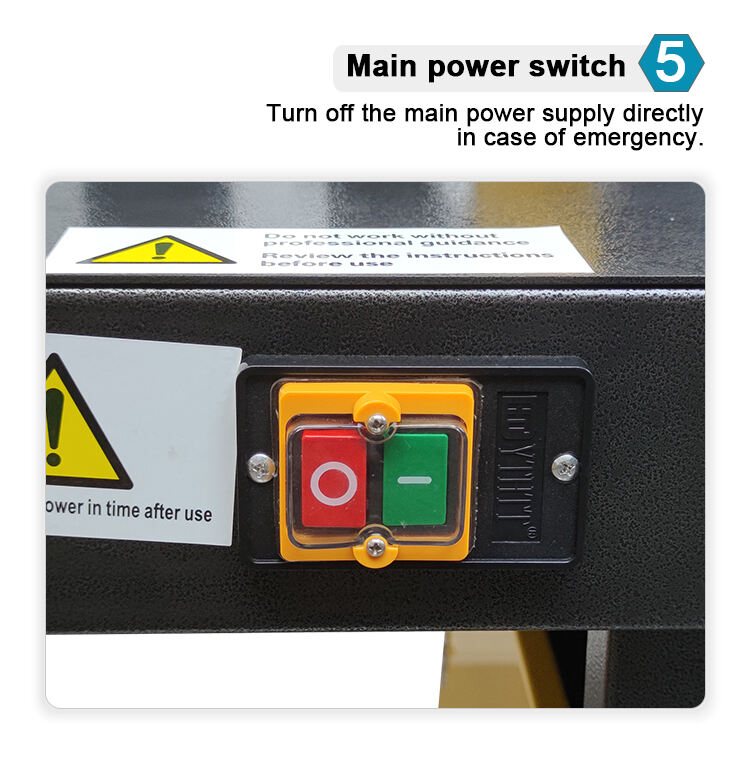

5. Main power switch Turn off the main power supply directly in case of emergency

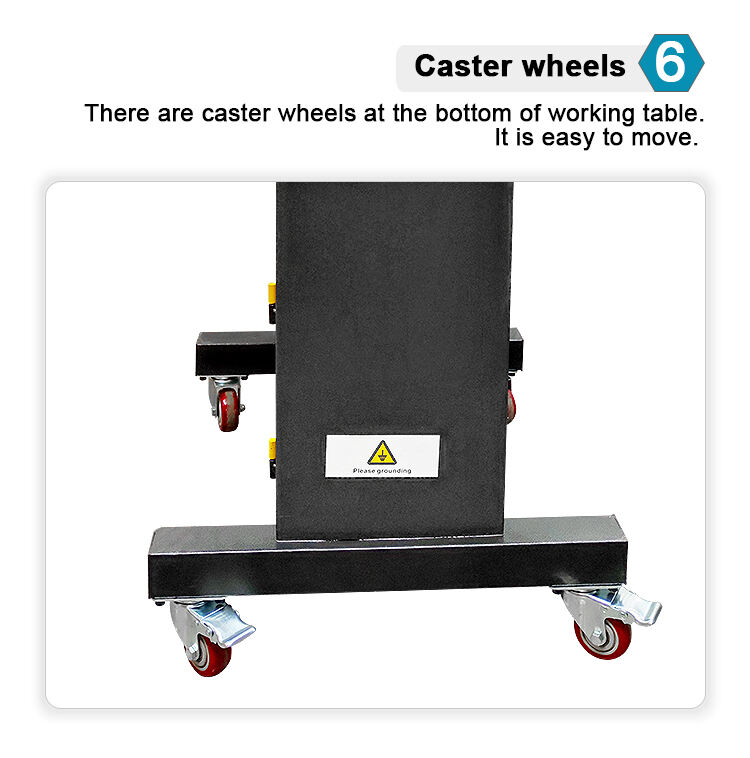

6. There are caster wheels at the bottom of working table It is easy to move.

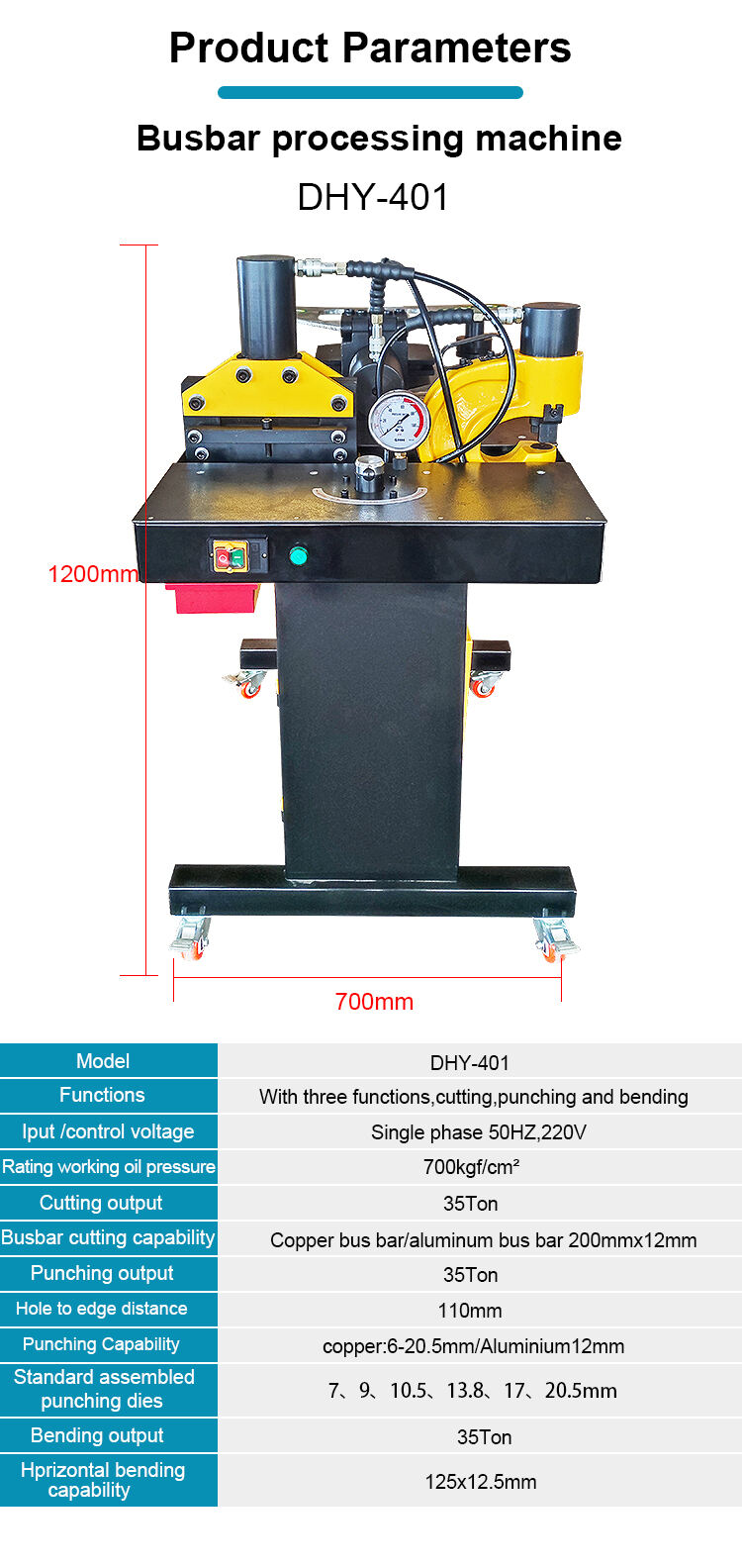

Model	DHY-401
Functions	With three functions,cutting,punching and bending
Input/control voltage	Single phase 50HZ,220V
Rating working oil pressure	700kgf/cm2
Cutting output	35Ton
Bus cutting capability	Copper bus bar/aluminum bus bar 200mmx12mm
Punching output	35Ton
Hole to edge distance	110mm
Punching Capability	copper:6-20.5mm/Aluminium12mm
Standard assembled punching dies	7、9、10.5、13.8、17、20.5mm
Bending output	35Ton
Horizontal bending capability	125x12.5mm
