50 Ton Hand Pump Hydraulic Bearing Gear Puller Hydraulic Puller Tool DYF-50
|
Output: |
50T |
|
Axes Stroke: |
60mm |
|
Model Number: |
DYF-50 |
|
Thread diameter: |
110mm |
|
Minimum Order Quantity: |
1 set |
|
Price: |
US$130.00 |
|
Packaging Details: |
Plastic box |
|
Delivery Time: |
≥3 day |
|
Payment Terms: |
customizable |
|
Supply Ability: |
Available |
- Overview
- Description
- Specifications
- Recommended Products

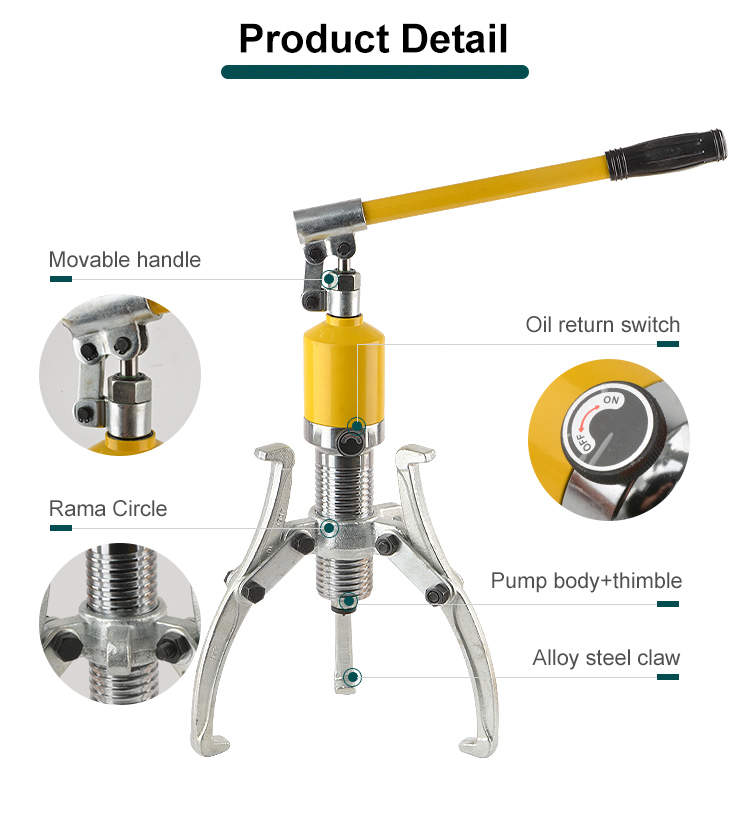

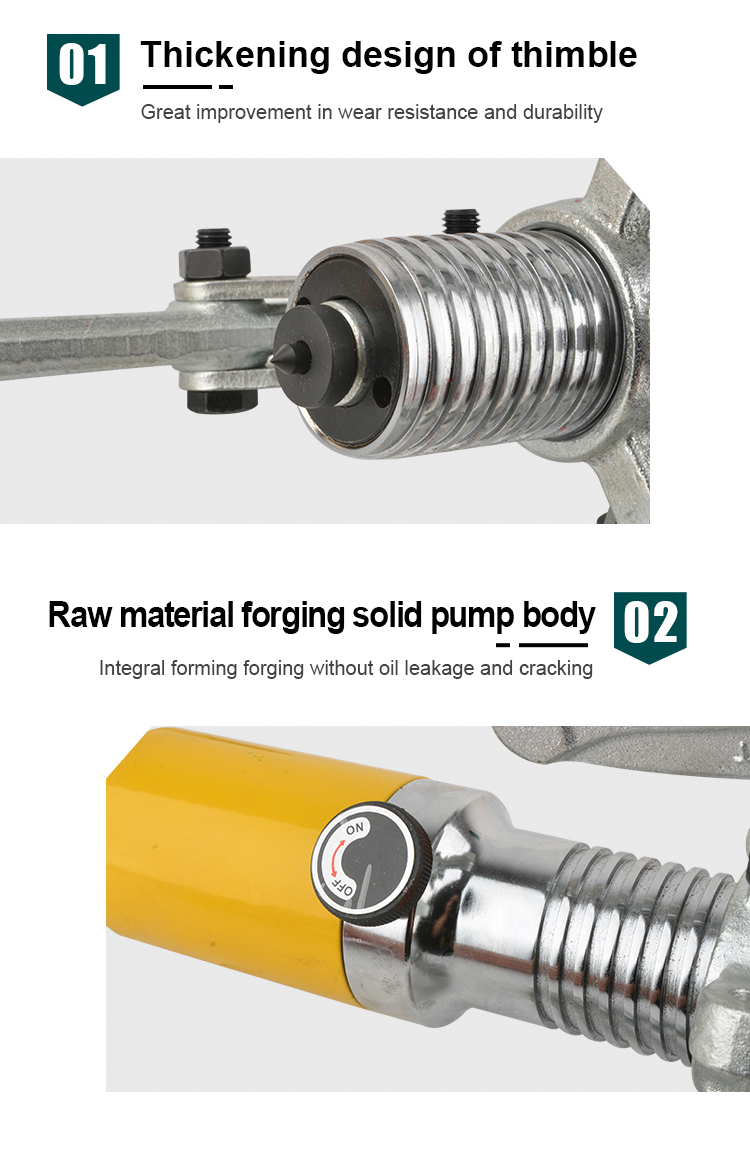

- Thickening design of thimble Great improvement in wear resistance and durability
- Raw material forging solid pump body Integral forming forging without oil leakage and cracking

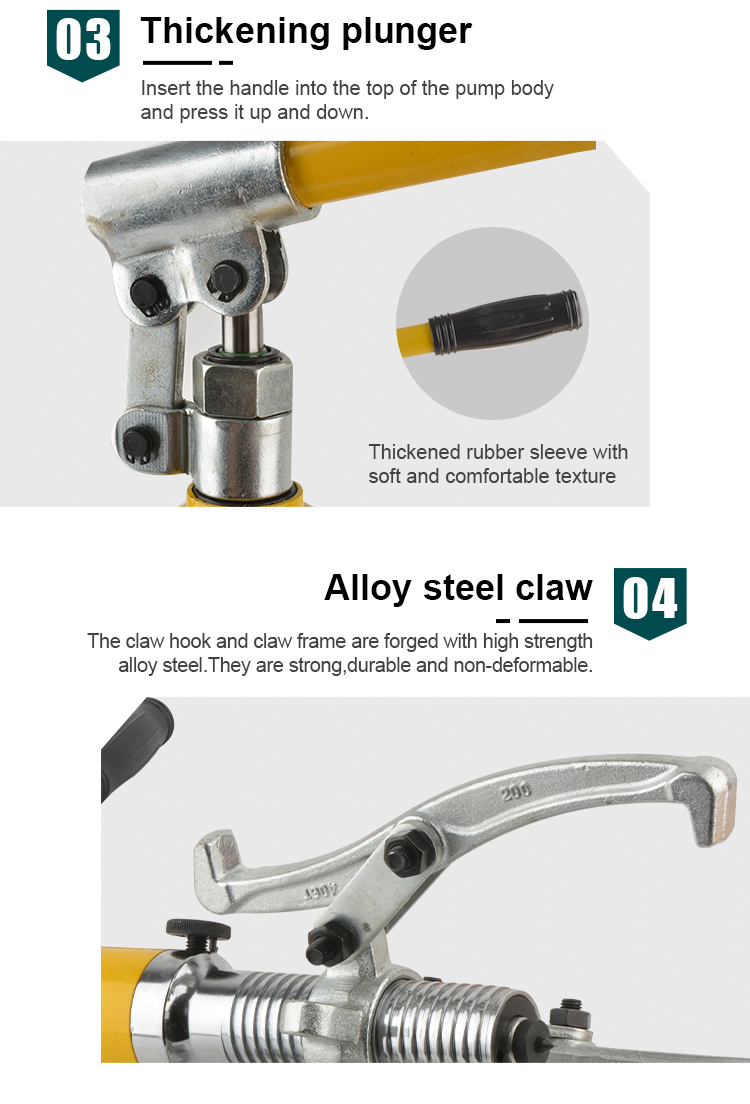

- Thickening plunger Insert the handle into the top of the pump body and press it up and down
- Alloy steel claw The claw hook and claw frame are forged with high strength alloy steel.They are strong,durable and non-deformable.

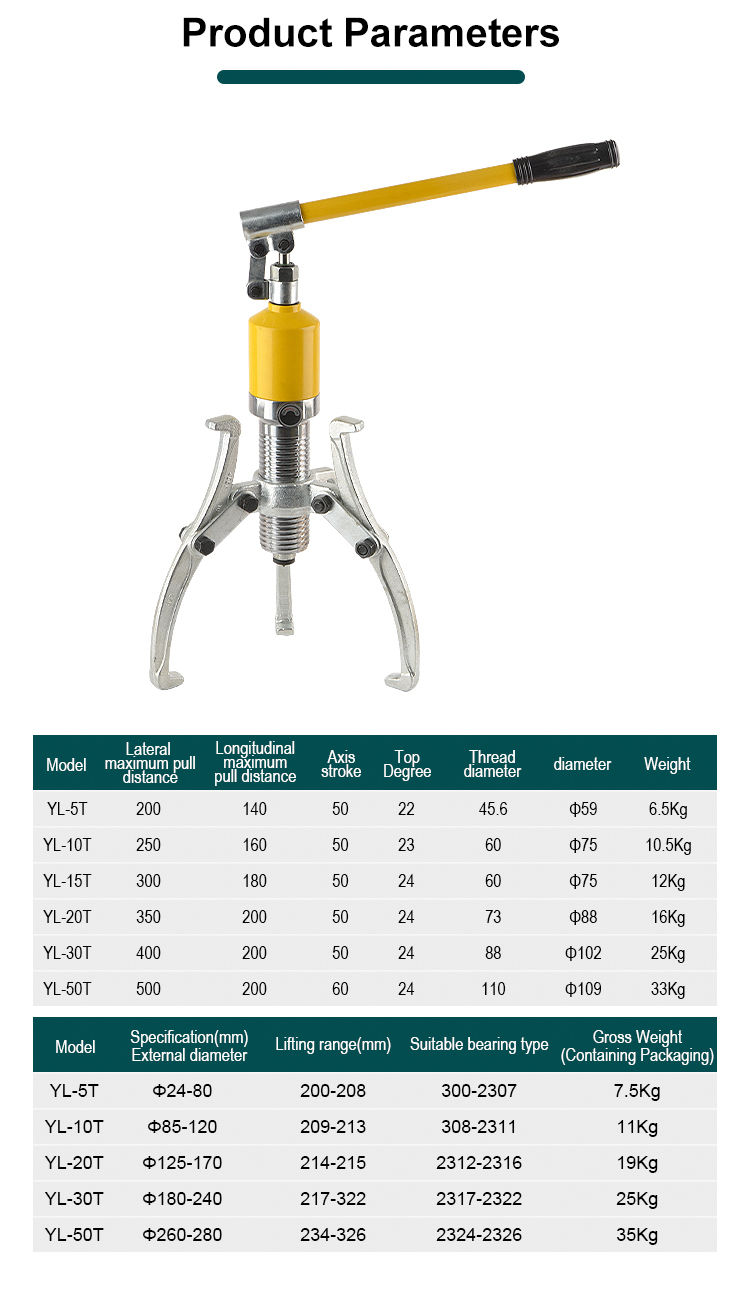

| Model | DYF-50 | Lateral maximum pull distance | 500 |
| Longitudinal maximum pull distance | 200 | Axis stroke | 60 |
| Top Degree | 24 | Thread diameter | 110 |
| diameter | Φ109 | Weight | 33Kg |
| Specification(mm)External diameter | Φ260-280 | Lifting range(mm) | 234-326 |
| Suitable bearing type | 2324-2326 | ||
