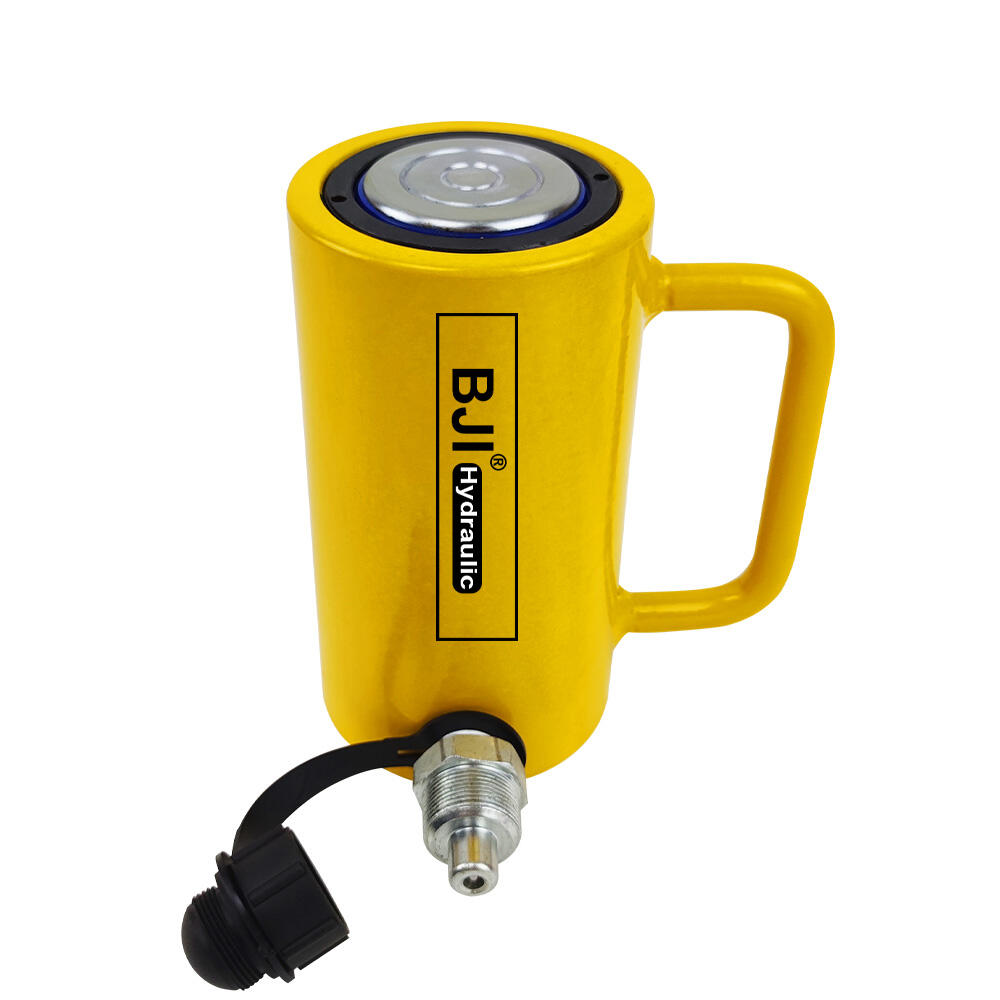

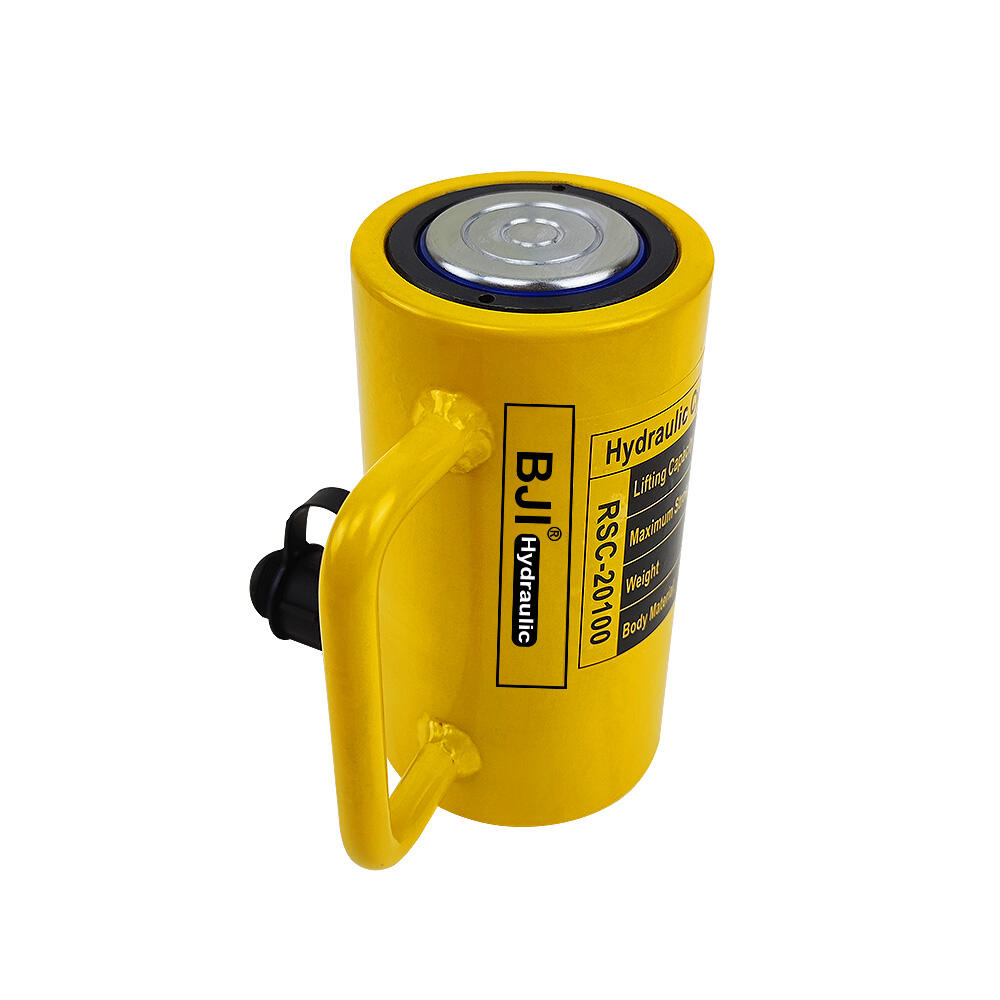

RSC-20100 20 Ton 100mm Stroke Hydraulic Cylinders
|
Output: |
20T |
|
stroke: |
100mm |
|
Model Number: |
RSC-20100 |
|
collapsed height: |
155mm |
|
Minimum Order Quantity: |
1 set |
|
Price: |
US$38.00 |
|
Packaging Details: |

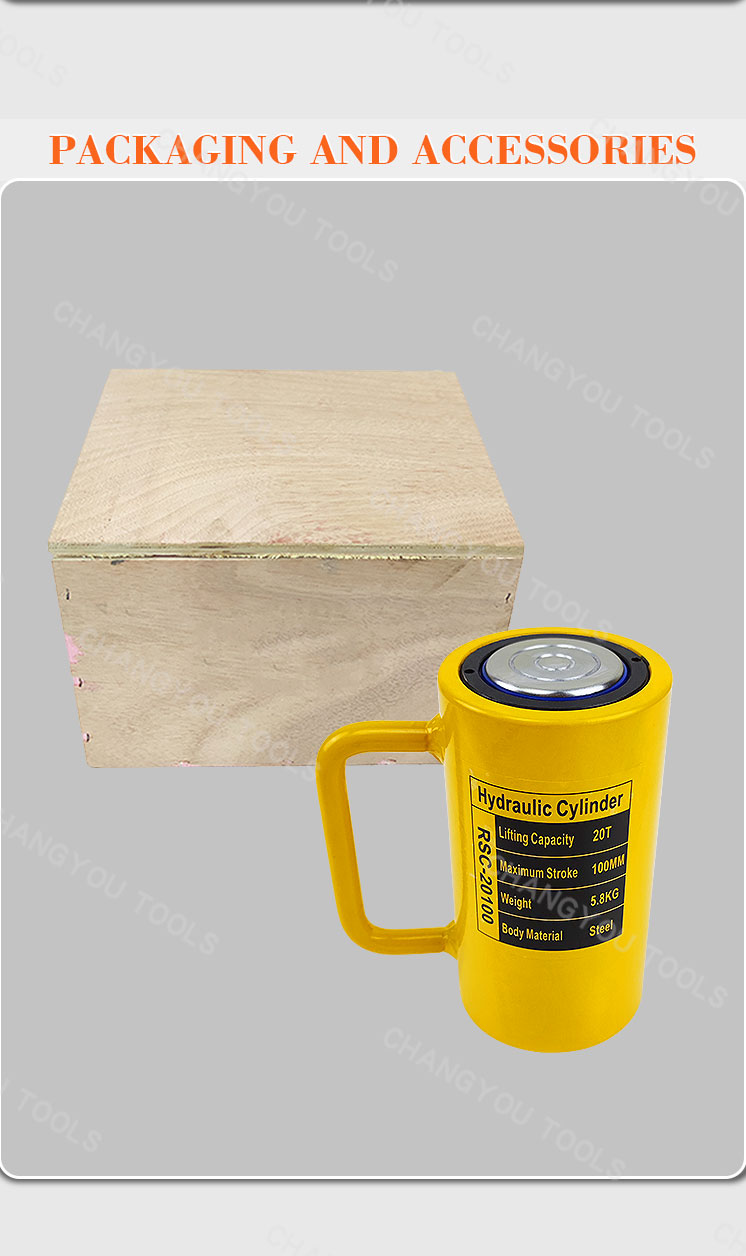

Wooden box |
|
Delivery Time: |
≥3 day |
|
Payment Terms: |
customizable |
|
Supply Ability: |
Available |
- Overview
- Description
- Specifications
- Recommended Products

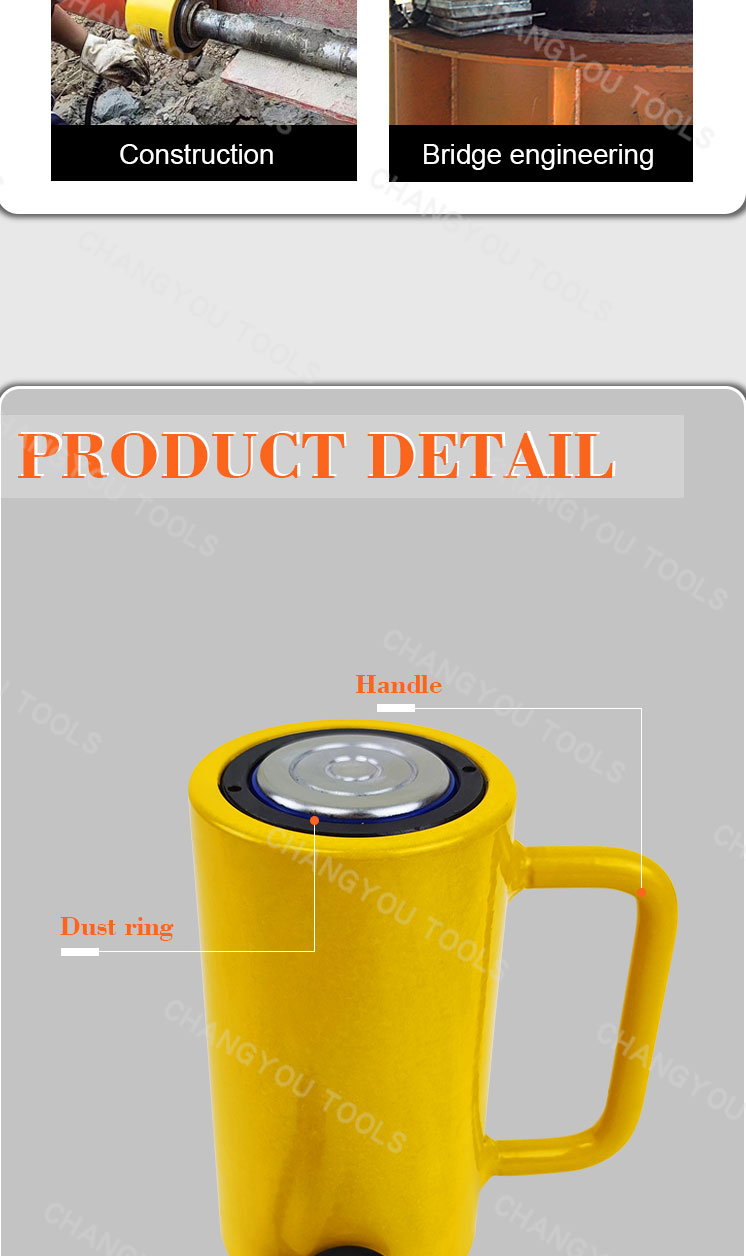

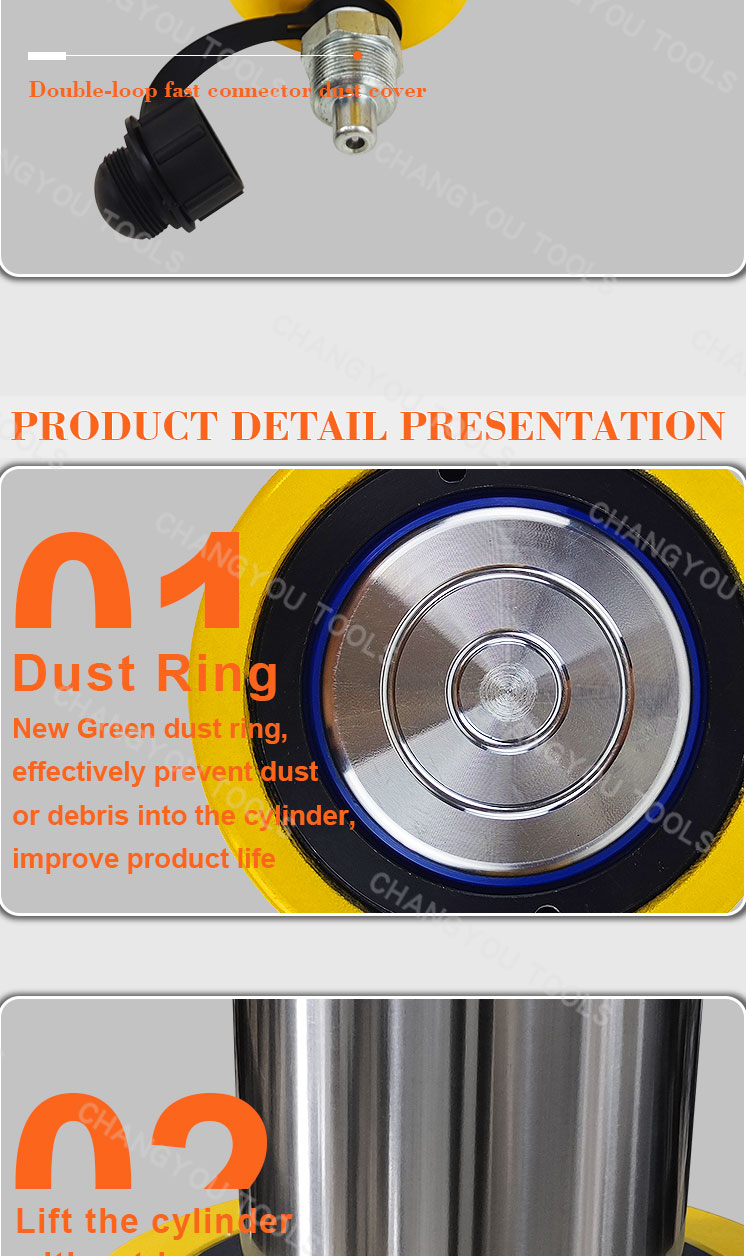

- Dust Ring New Green dust ring,effectively prevent dustor debris into the cylinder improve product life

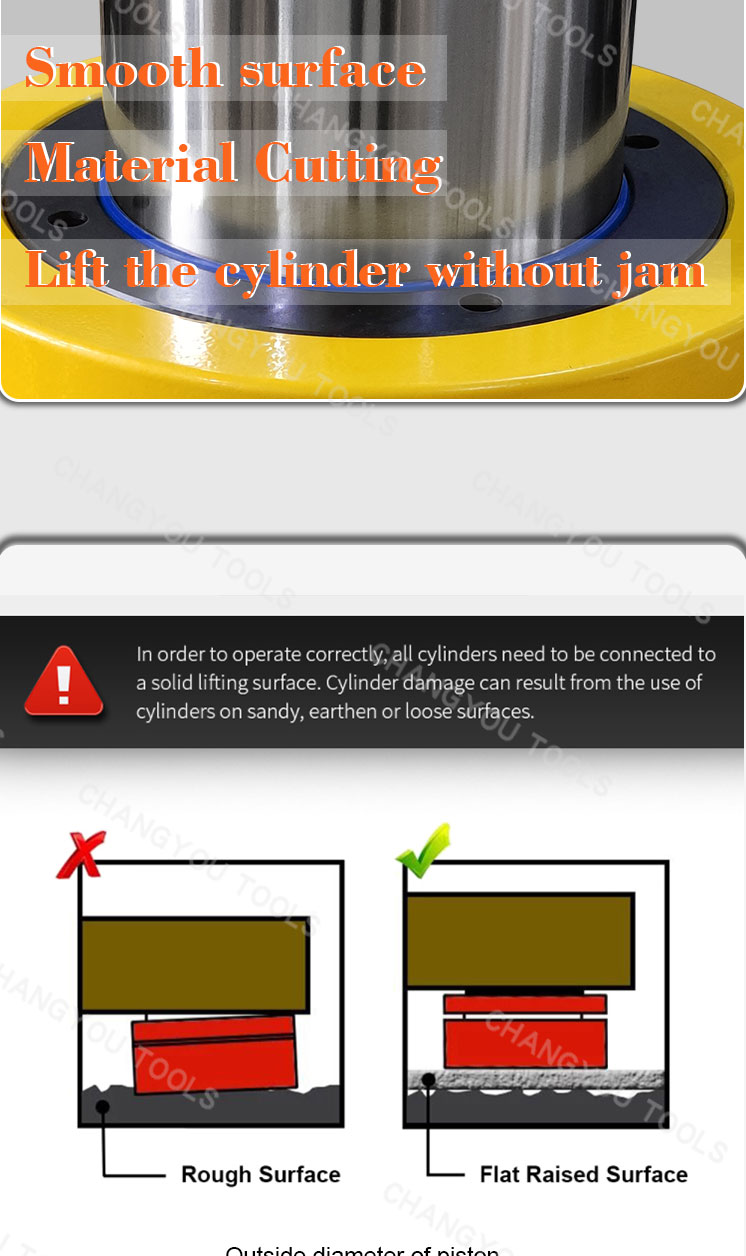

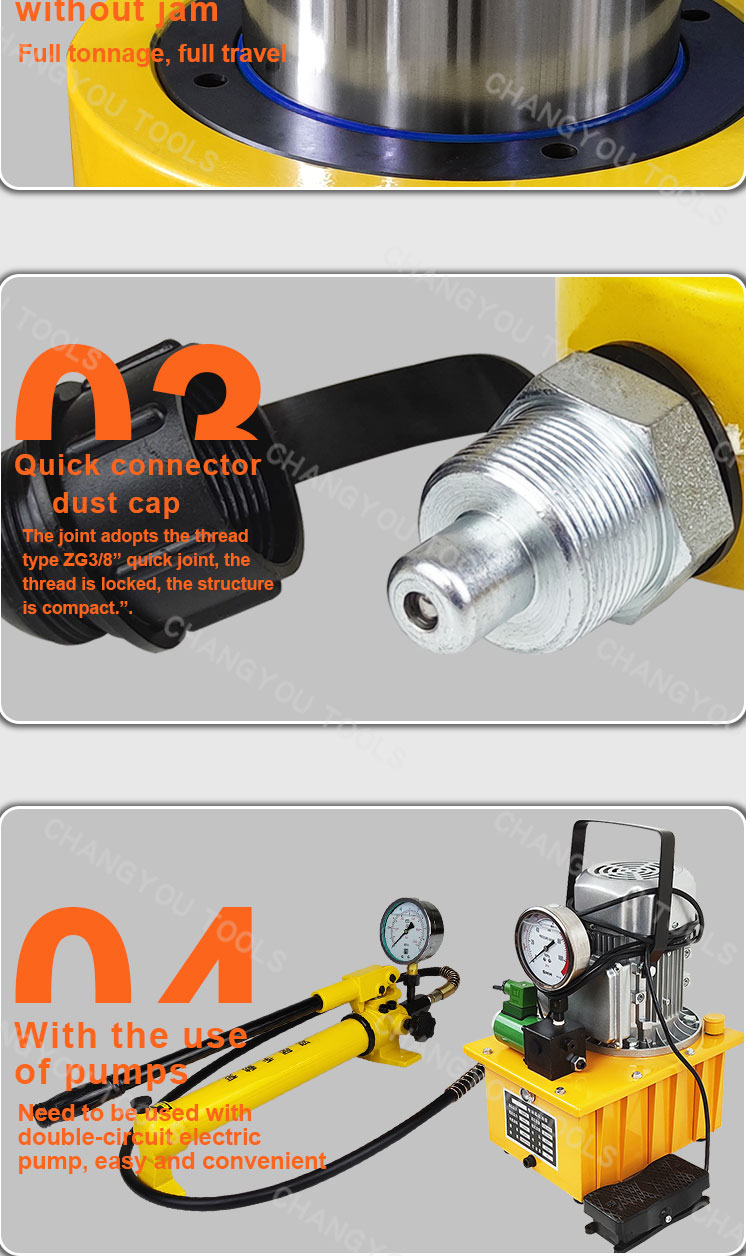

- Lift the cylinder without jam Full tonnage, full travel
- Quick connector dust cap The joint adopts the thread type zG3/8" quick joint, the thread is locked, the structure is compact.”

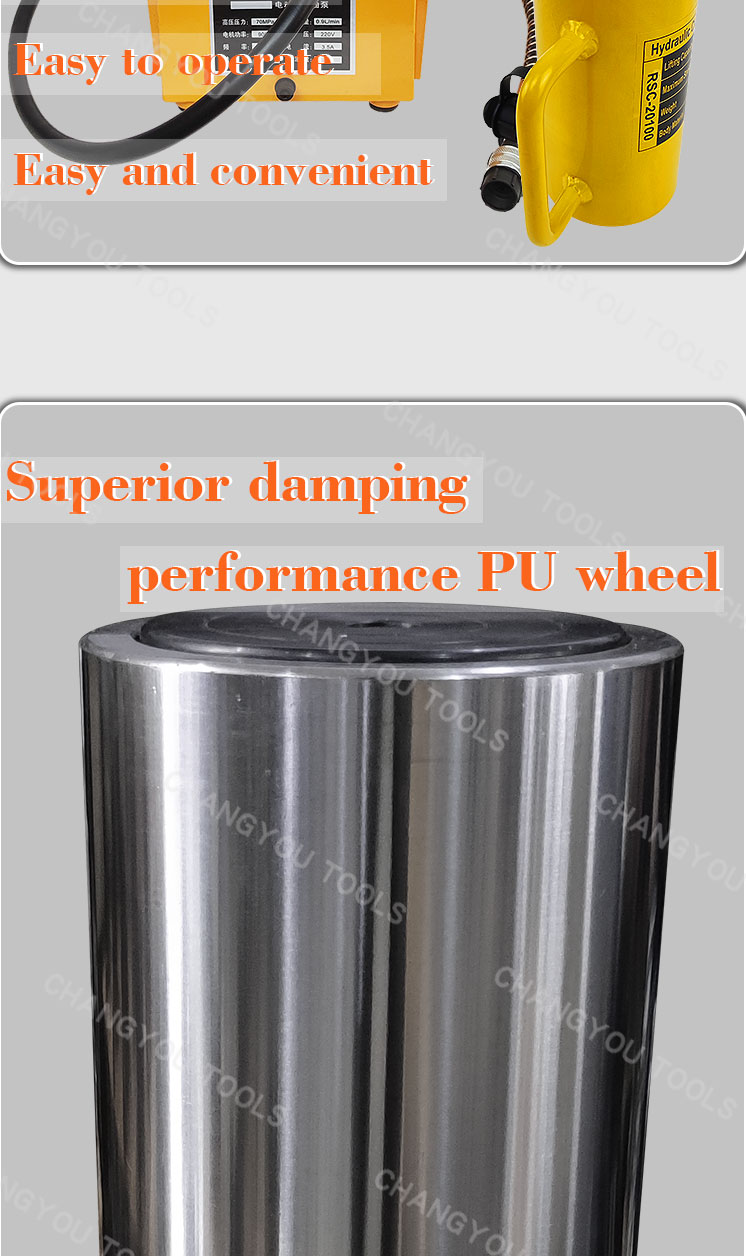

- With the use of purs Need to be sed with double-circuit electric pump, easy and convenient

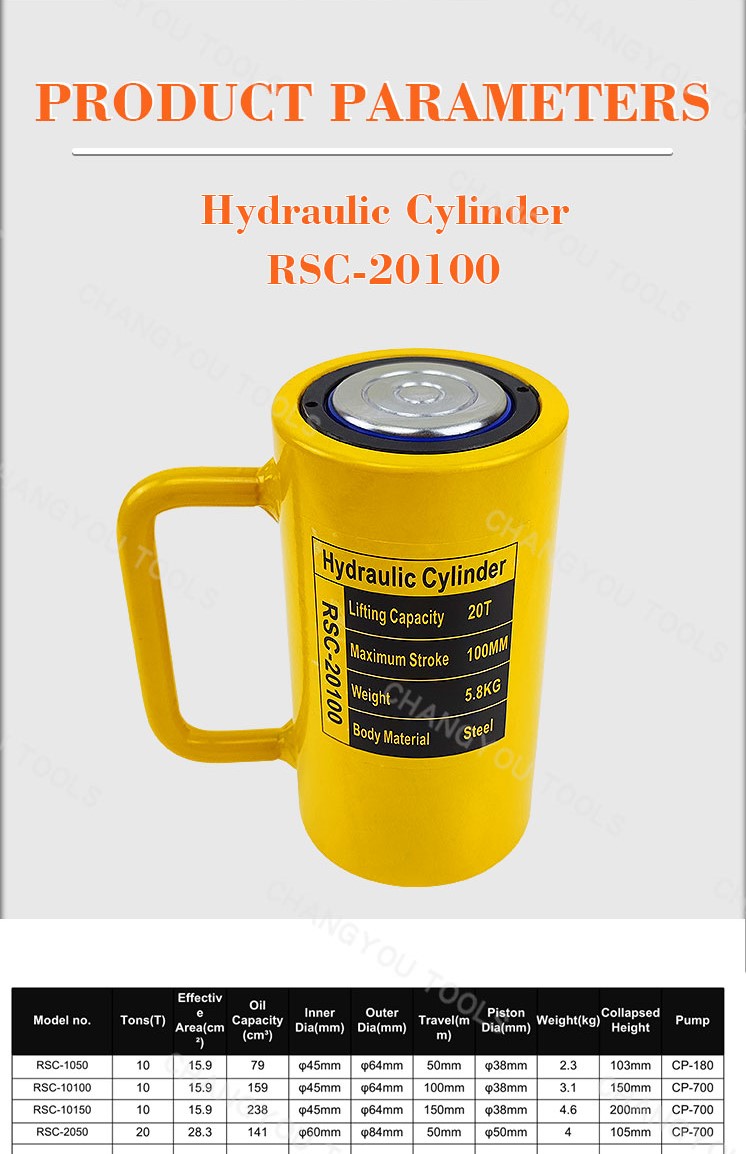

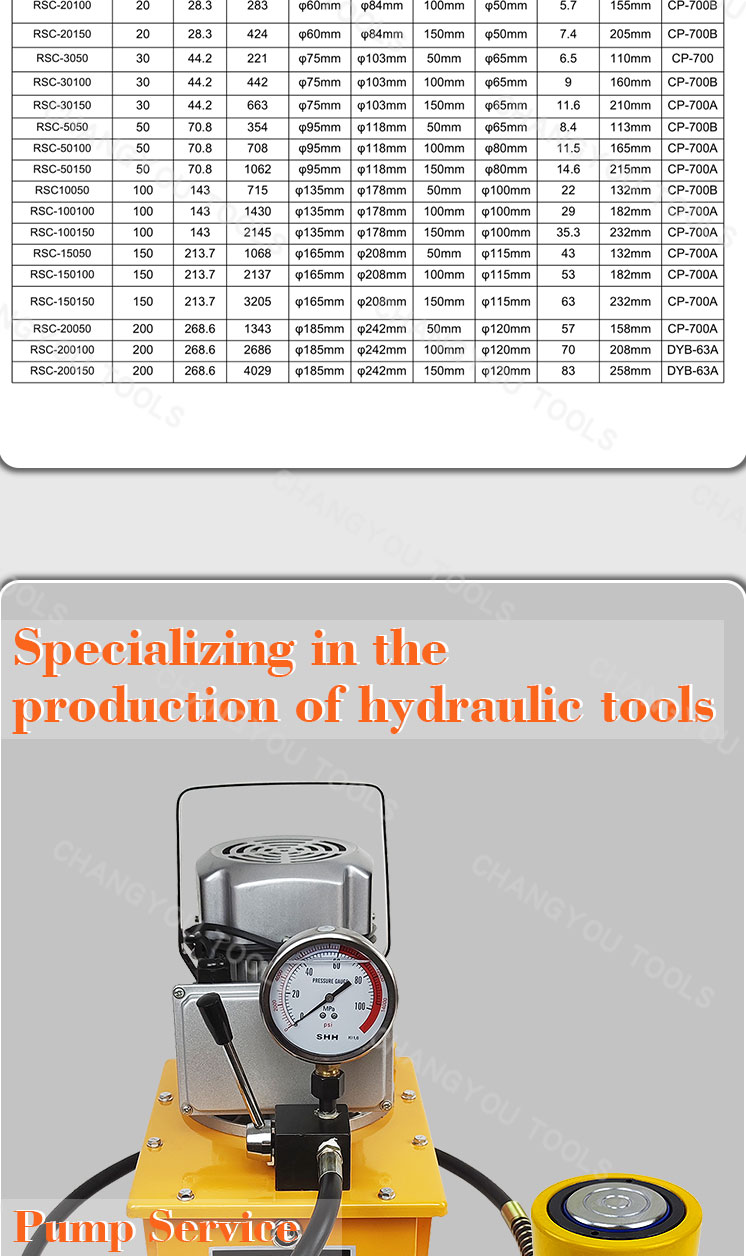

| Model no. | RSC-20100 | Tons(T) | 20 |
| Effective Area(cm²） | 28.3 | Oil Capacity(cm³) | 283 |

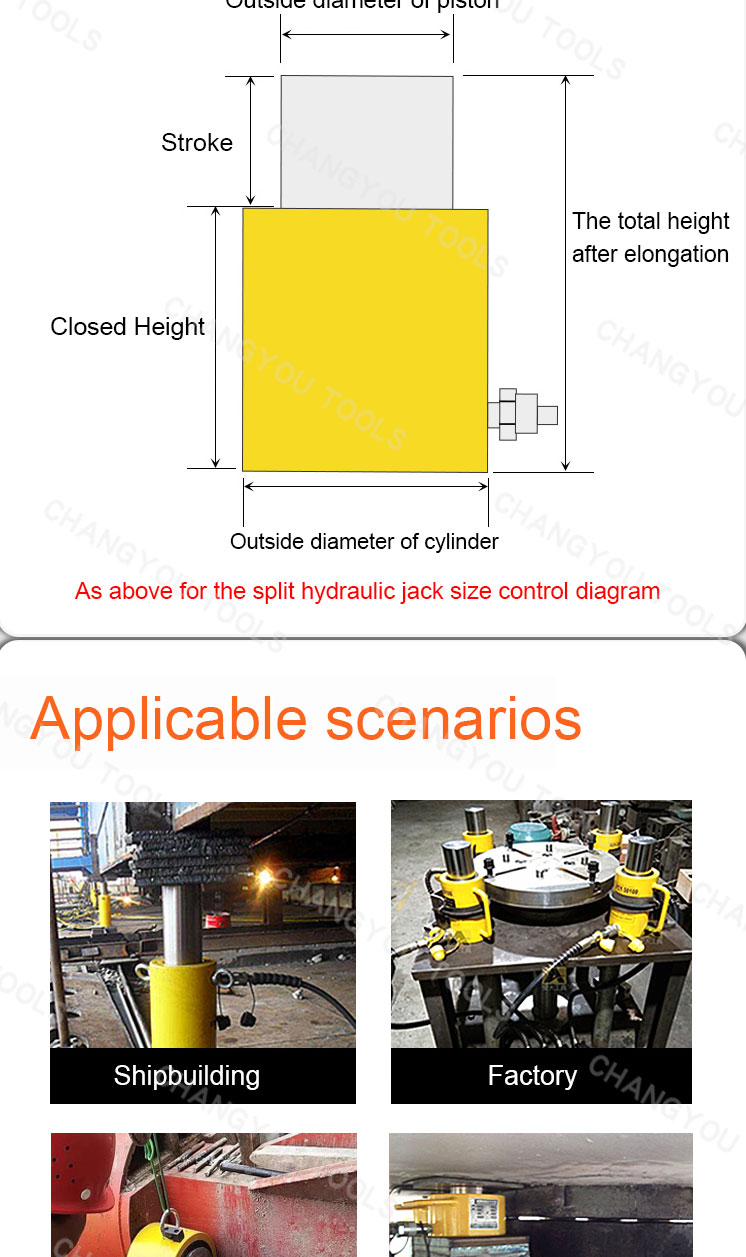

| Inner Dia(mm) | φ60mm | Outer Dia(mm) | φ84mm |
| Travel(mm) | 100mm | Piston Dia(mm) | φ50mm |
| Weight(kg) | 5.7 | Collapsed Height | 155mm |
