BJI-J Series Telescopic Ratchet Cable Cutter for ACSR, Armored & CU/AL Cables

Home / Products / Cutting Tools / Ratchet Cable Cutter / BJI-J Series Telescopic Ratchet Cable Cutter for ACSR, Armored & CU/AL Cables

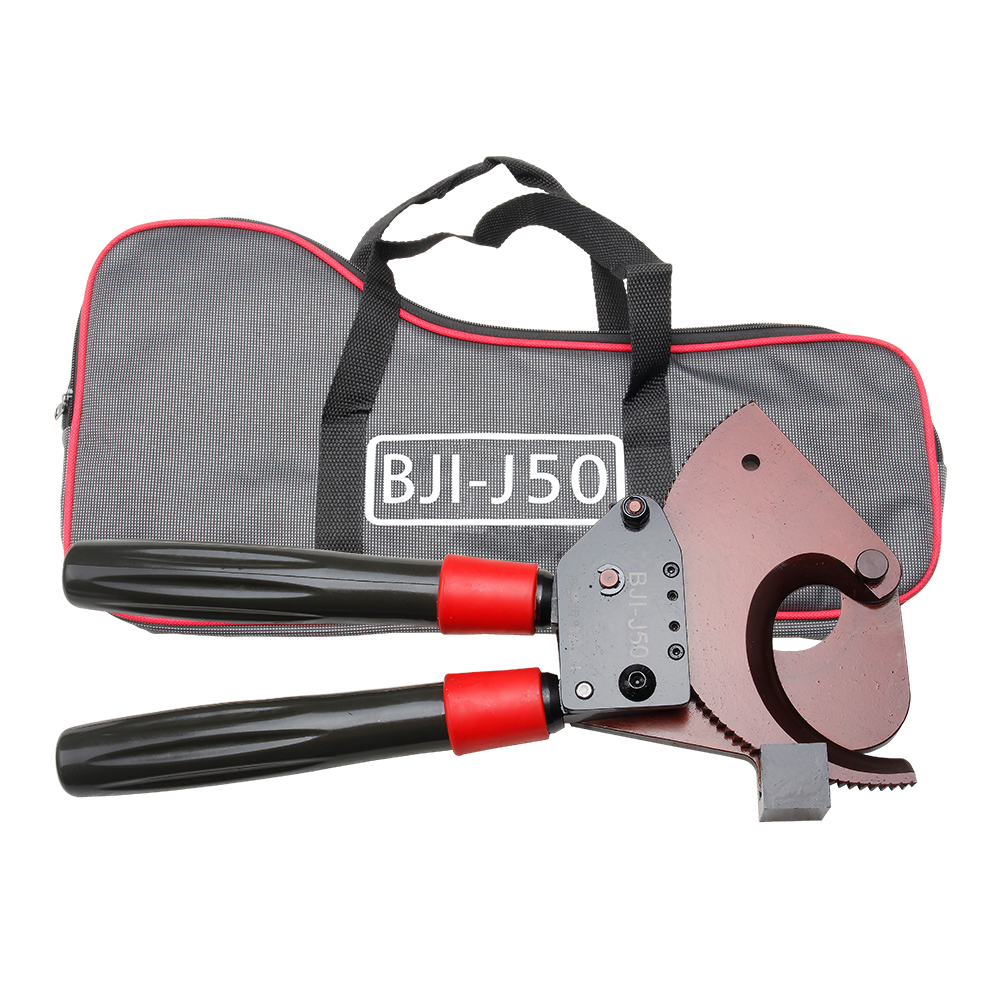

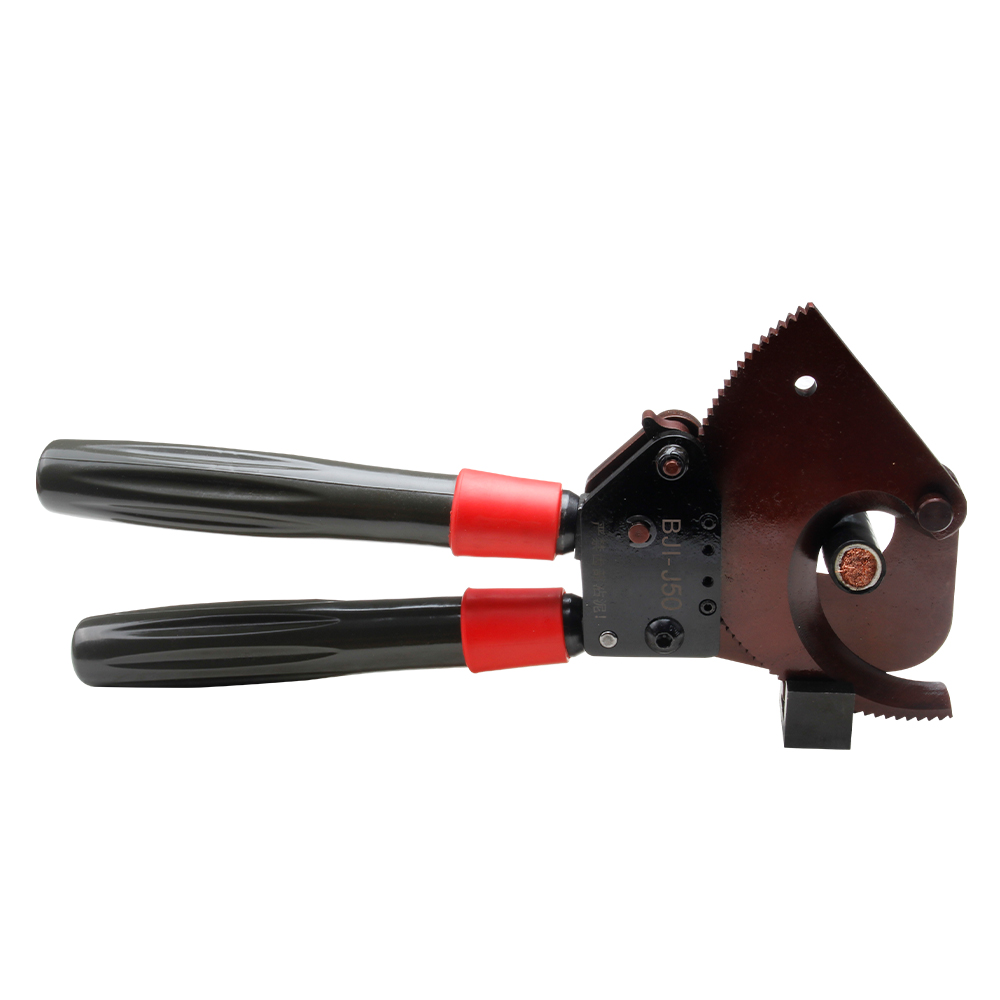

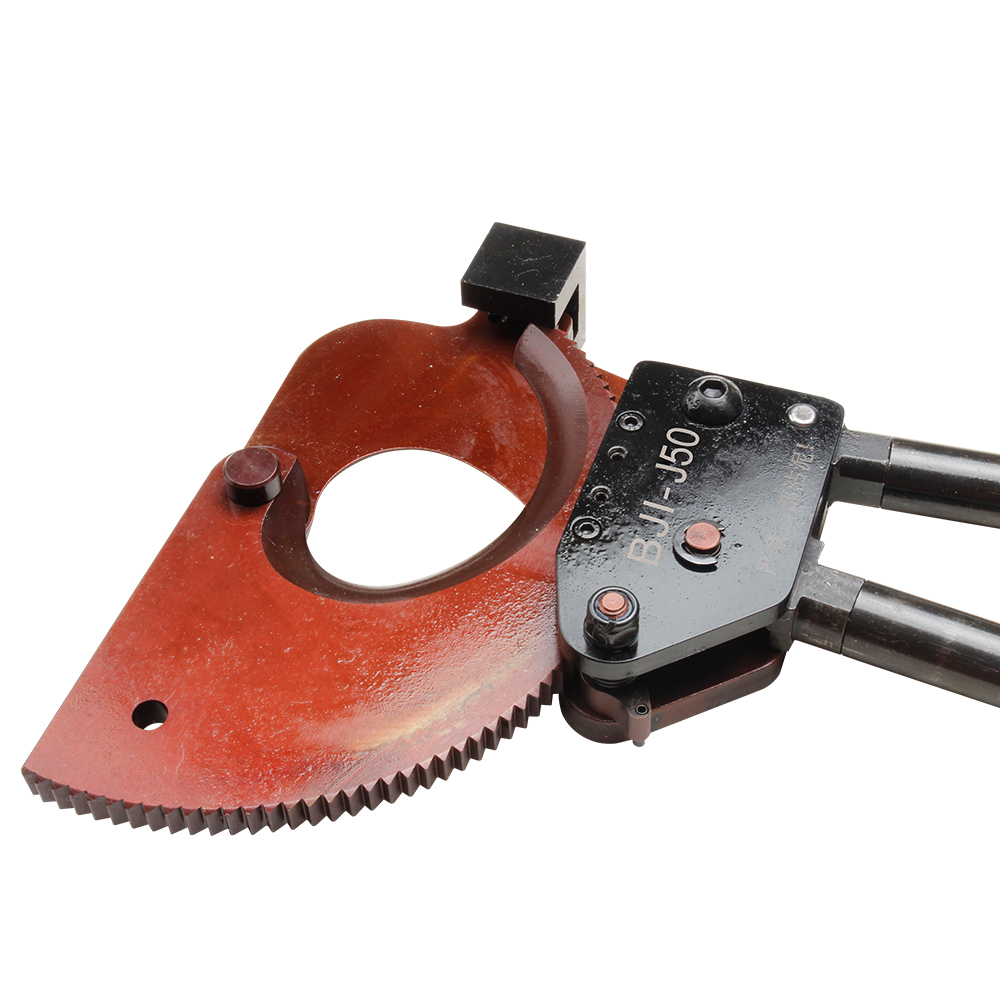

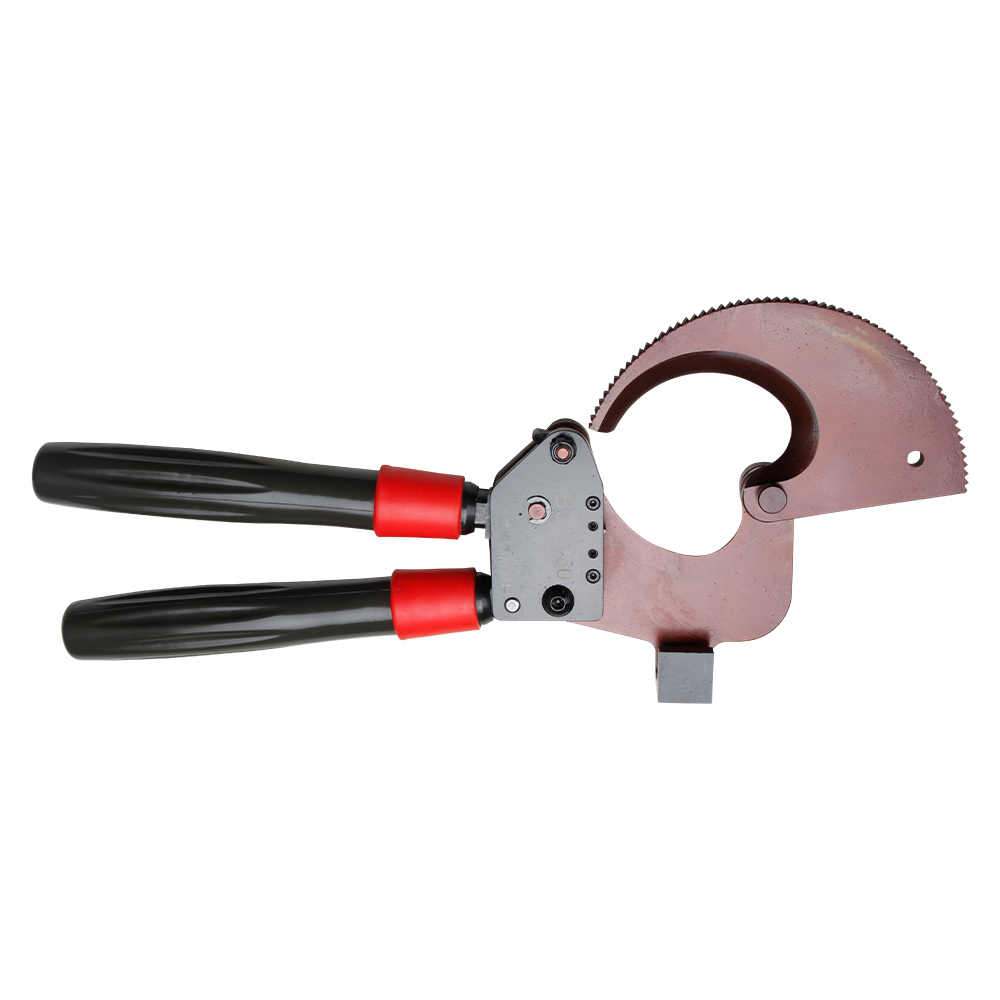

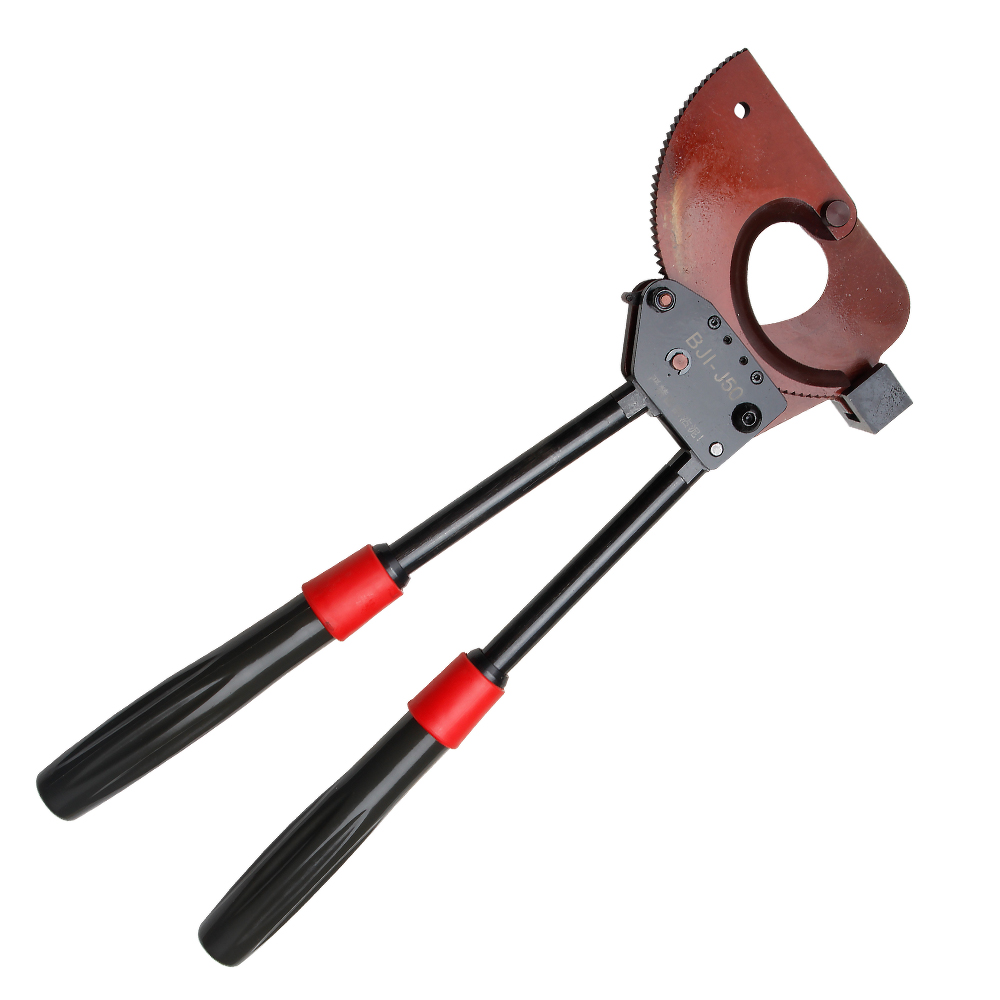

BJI-J Series Telescopic Ratchet Cable Cutter for ACSR, Armored & CU/AL Cables

When standard cable cutters are not enough, the BJI-J Series steps in.

Designed for demanding field operations and heavy-duty cable cutting, the BJI-J Series Telescopic Ratchet Cable Cutter delivers unmatched cutting power, flexibility, and control. Built for professionals working in power distribution, infrastructure, and industrial environments, this series handles everything from ACSR conductors to large armored cables with ease.

The standout feature of the BJI-J series is its telescopic handle design, which significantly increases leverage and reduces operator effort—especially when cutting large or high-strength cables. Combined with a precision-engineered ratchet mechanism, it ensures smooth, controlled cutting even under heavy load.

Each cutter is equipped with a high-strength forged steel blade that maintains exceptional sharpness and durability over time. The rotating blade design allows for a wider opening and greater flexibility, making it easier to work in complex or confined job site conditions.

Safety and comfort are built into every detail. The insulated, non-slip handle provides a secure grip while protecting the operator during electrical work. Reinforced structural components and precision parts ensure long-term reliability, even in harsh environments.

From medium-duty cutting to extreme heavy-duty applications, the BJI-J series is the professional’s choice when power, reach, and efficiency are critical.

  • Specification
  • Contact Us
Model BJI-J50
Shear range Cut off the steel core aluminum stranded wire below Φ50MM(1440MM2).
Retract and elongate Product length Product width Open the clamp head Product weight
shrink 420mm 230mm 380mm 4.25kg
elongation 580mm 230mm 530mm

Armored Cable CU-AL Cable Communication Cable Prestressed Steel Wire AC SR Steel Wire Ropes
NO NO NO YES YES YES

Model Size Weight Application
BJI-J13 350(500)*130(160) 2.15kg Cut 150mm² steel stranded wire: Φ30mm (720mm²) steel core aluminum stranded wire
BJI-J25 380(550)*160 3.35kg Cut 150mm² steel stranded wire Φ40mm (720mm²) steel core aluminum stranded wire
BJI-J30 400(560)*180 3.75kg Cut 100mm² steel stranded wire Φ30mm (630mm²) steel core aluminum stranded wire
BJI-J40 350*130 1.20kg Cut off copper and aluminum cables below 300mm², and cut off 1000 pairs of communication cables
BJI-J50 420(580)*230 4.25kg Cut off the steel core aluminum stranded wire below Φ50mm (1440mm²)
BJI-J52 400(580)*180 3.20kg Cut off copper and aluminum cables below Φ50mm: armored cables
BJI-J75 420(580)*230 3.75kg Cut off 3×120mm² Φ75mm copper and aluminum cable, armored cable
BJI-J95 450(600)*320 4.9kg Cut off 3×185mm² Φ90mm copper-aluminum core armored cable
BJI-J100 500(630)*360 7.25kg Cut off 3×300mm² and copper-aluminum core armored cables below 100mm diameter
BJI-J130 530(680)*380 9.5kg Cut off the copper-aluminum core armored cables below 130mm in diameter

Key Selling Points
Telescopic handle design for maximum leverage and reduced effort
Powerful ratchet mechanism for smooth, controlled cutting
Rotating blade for wider opening and flexible operation
High-strength forged steel blade for durability and precision
Insulated anti-slip handle for safe and comfortable use
Designed for armored cables, ACSR, and large CU/AL cables
Ideal for heavy-duty and high-load applications
