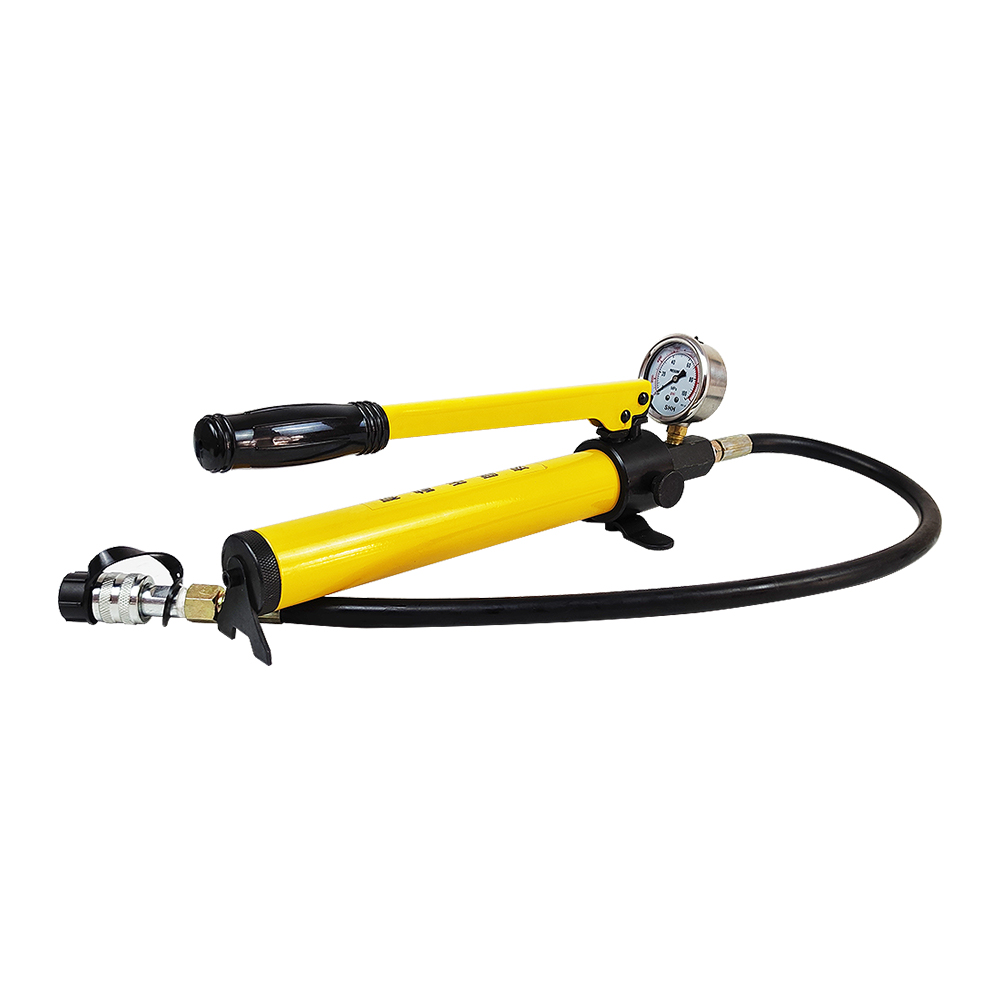

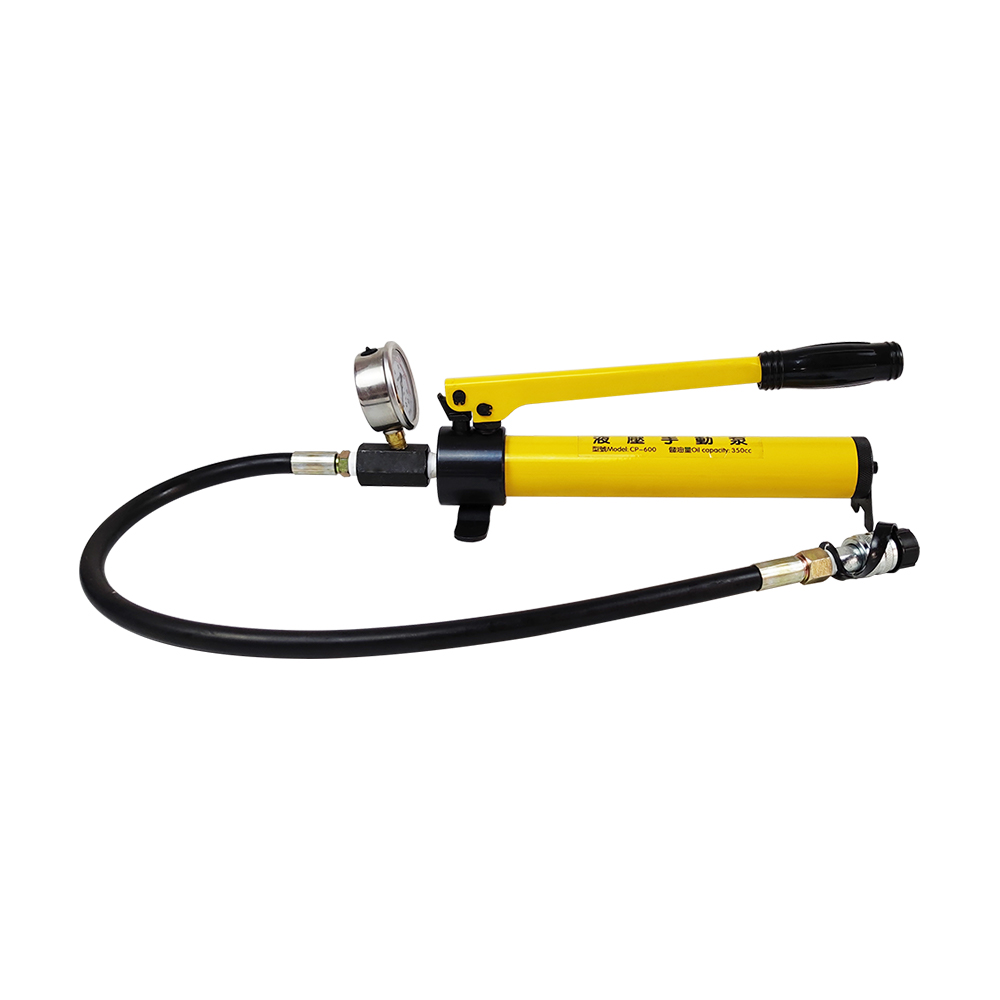

Lightweight Hand Operated Hydraulic Pump 600 Bar High Pressure Manual Pump with Pressure Gauge

600 Bar. 5 kilograms. Stands on its own.
There's a category of hydraulic work that doesn't need the biggest pump on the site — it needs the most manageable one. Precise pressure. Readable output. Light enough to carry to the job instead of bringing the job to the pump. At just 5kg with a built-in shockproof pressure gauge and a self-standing base, the CP-600 is built for operators who value control as much as raw force.
You can always see your exact pressure.
The shockproof pressure gauge is built in as standard — not an optional add-on. It holds a stable, clear reading even when the workpiece is vibrating, so you know your exact working pressure at every point in the cycle. For precision work where overpressure can damage the tool or workpiece, visibility is the difference between a good result and a ruined one.
The oil tank is seamless. That matters more than it sounds.
The oil tank is made from seamless pipe — no welded seams, no weak points, no potential leak paths under repeated pressure cycling. It's a construction detail that most manufacturers cut corners on. This one didn't.
It stands up by itself. Your hands stay free.
The pump tail is fitted with a base, so the CP-600 stands upright and stable on its own without needing to be held or propped. When you need both hands on the tool, the pump stays exactly where you put it.
Precision-ground plunger. Built to stay precise.
The pump plunger is cylindrical-ground to tight tolerances for a smooth, consistent fit in the cylinder. Heat-treated for high hardness. The result is a plunger that doesn't wear unevenly, doesn't develop slop over time, and maintains its sealing performance through a long service life.
Relief valve: clockwise on, counterclockwise off.
Tighten clockwise when working to direct oil into the tool. Unscrew counterclockwise to release pressure and return oil. Consistent, mechanical, exactly the same every cycle. No surprises.
1.2m tubing included. Ready to connect.
Like the rest of the CP series, the CP-600 ships with 1.2 meters of hydraulic tubing included. Enough reach to keep the pump in a stable, comfortable position while you work. When the oil needs topping up, loosen the tail screw — no disassembly required.
Max Pressure: 600 Bar | High Pressure Output: 20cc/stroke | Oil Capacity: 450cc | Weight: 5.0 kg | Gauge: Shockproof, built-in | Tubing: 1.2m included | Drive: Manual
