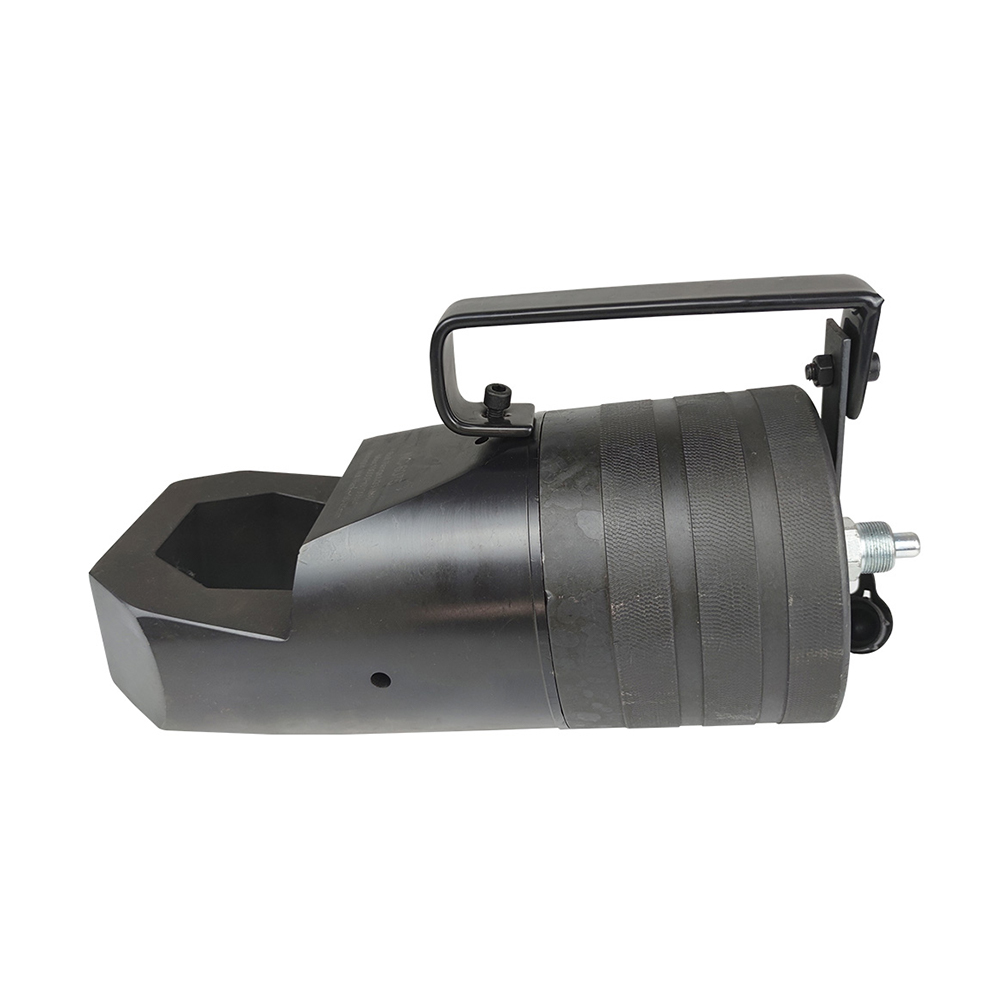

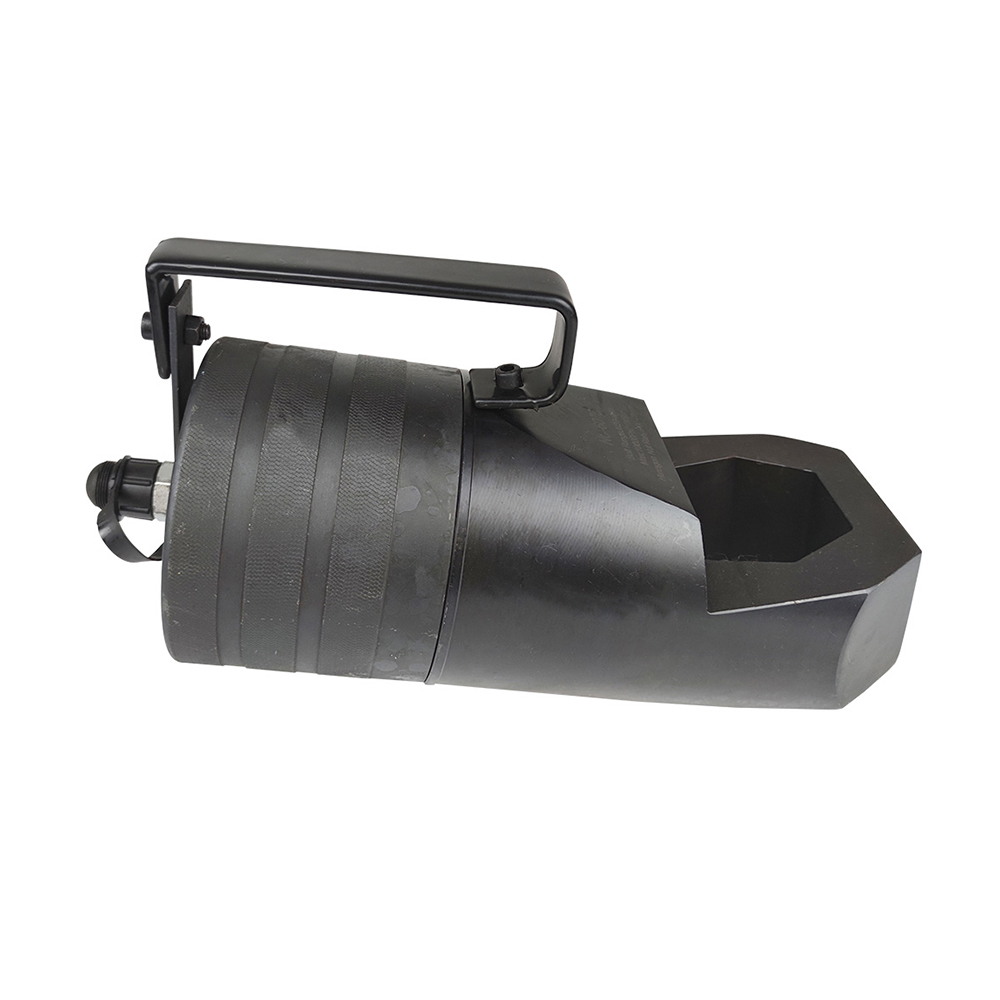

NC Series 5-90 Ton All-Range Power Separable Hydraulic Nut Splitter

Key Differentiators & Strengths (Company Expertise Highlighted)
Unique 13° Angled Head Design – Proprietary innovation for easier access to flush or recessed nuts (e.g., tight flanges, protruding plates), reducing awkward positioning and improving efficiency in confined spaces – a feature refined through extensive field testing.

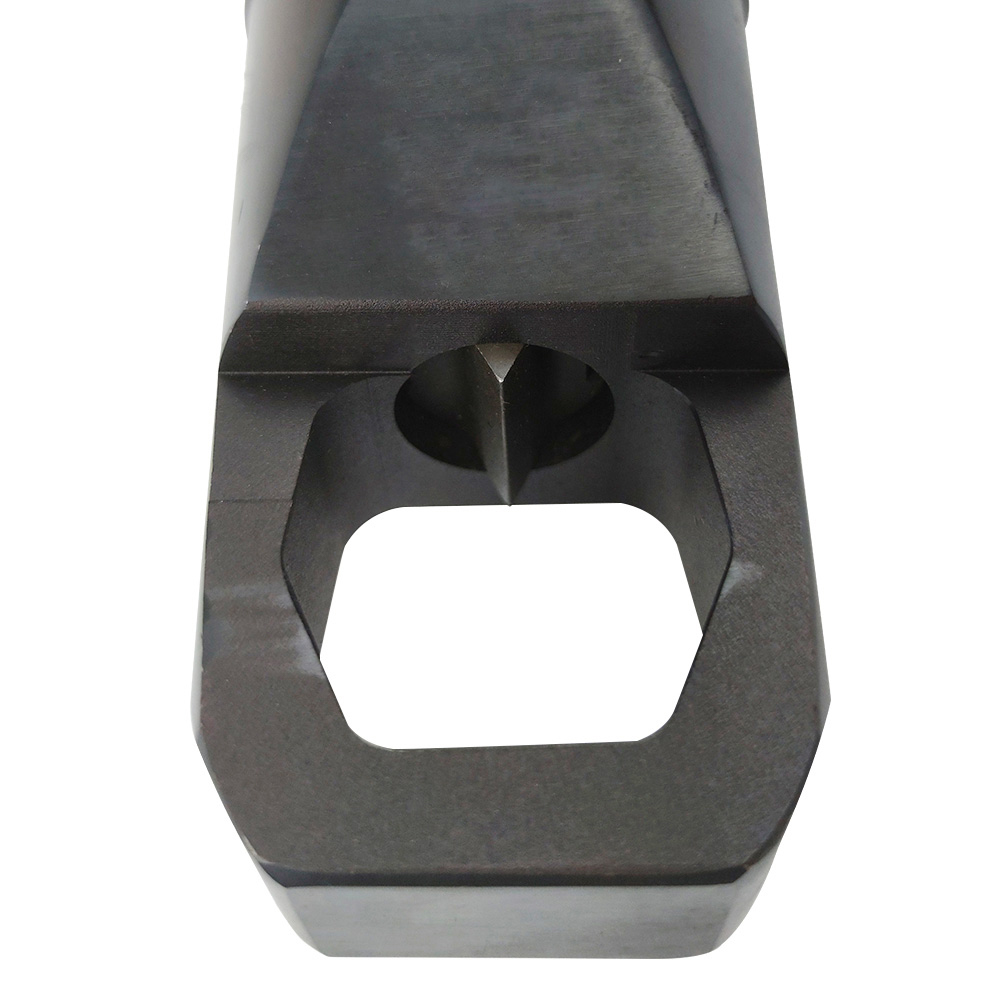

Heavy-Duty Special Steel Cutting Head – Forged from premium alloy steel with semi-hexagonal shape for perfect nut alignment; resists deformation, maintains sharpness longer, and can be reground for extended service life – showcasing our commitment to superior metallurgy and longevity.
Full Coverage Power Range – One series covers 5-90 Ton output (integrating NC-1319 to NC-6075 capabilities), handling hexagon nuts from 10-75mm and bolt threads M6-M48 – eliminating the need for multiple tools and demonstrating our comprehensive engineering portfolio.

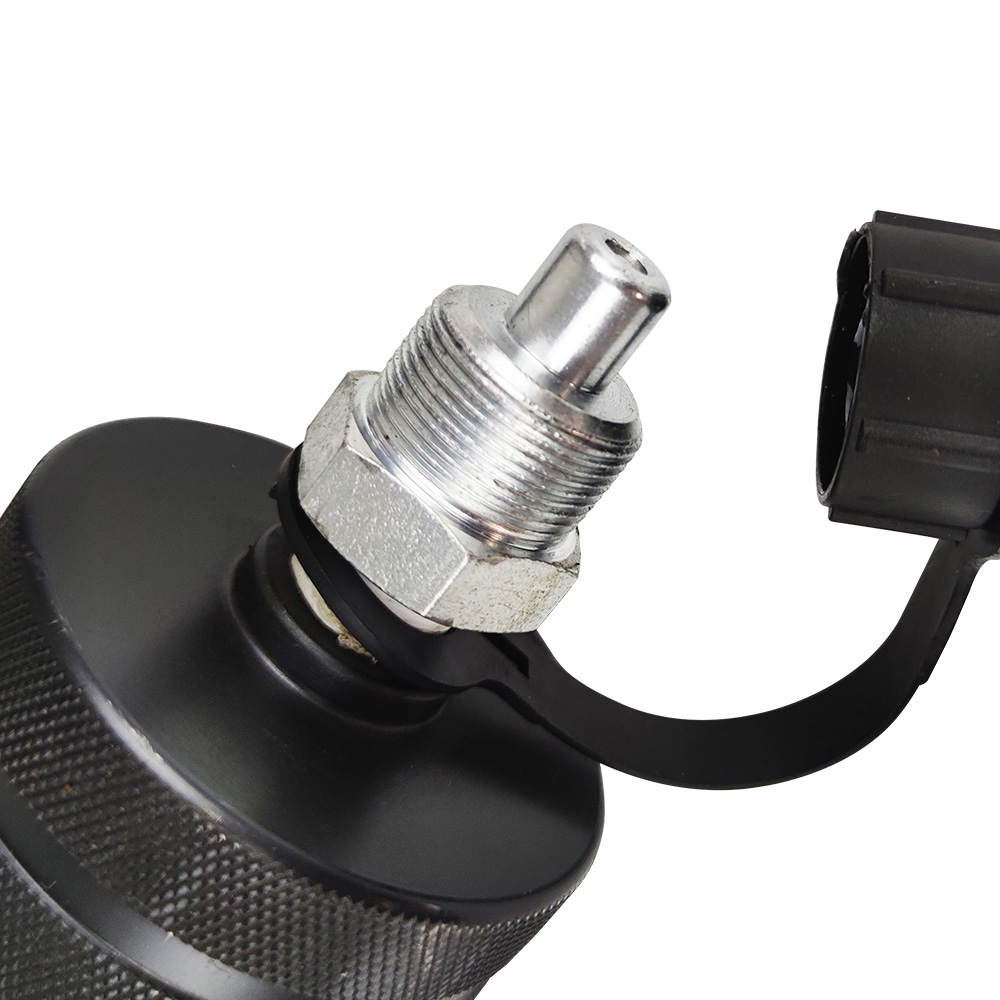

Separable/Split Hydraulic Design – Equipped with ZG3/8 quick connector + dust cap; connects seamlessly to any hydraulic pump up to 70 MPa (10,000 psi) – flexible, compatible, and built for high-pressure reliability.
Spring Automatic Return & Compact Build – Single-acting with fast reset; ergonomic knurled cylinder body for secure grip and beautiful, professional finish – lightweight yet robust (1.2-34kg depending on model), ideal for overhead or repeated use.
Explosion-Proof & Safety-Focused – Certified safe for hazardous environments; precise control prevents over-pressurisation – engineered with safety as priority, reflecting our adherence to international industrial standards.

How to Use (Simple & Safe Operation)
Fill the manual pump with 20# or hydraulic oil, and close the unloading valve.
Insert the angled head over the nut, align flat.
Pump gradually to advance the blade; ease pressure at halfway to avoid excess force.
Stop at "beep" cracking sound – nut split, bolt freed.
Release valve for spring return, remove tool.
