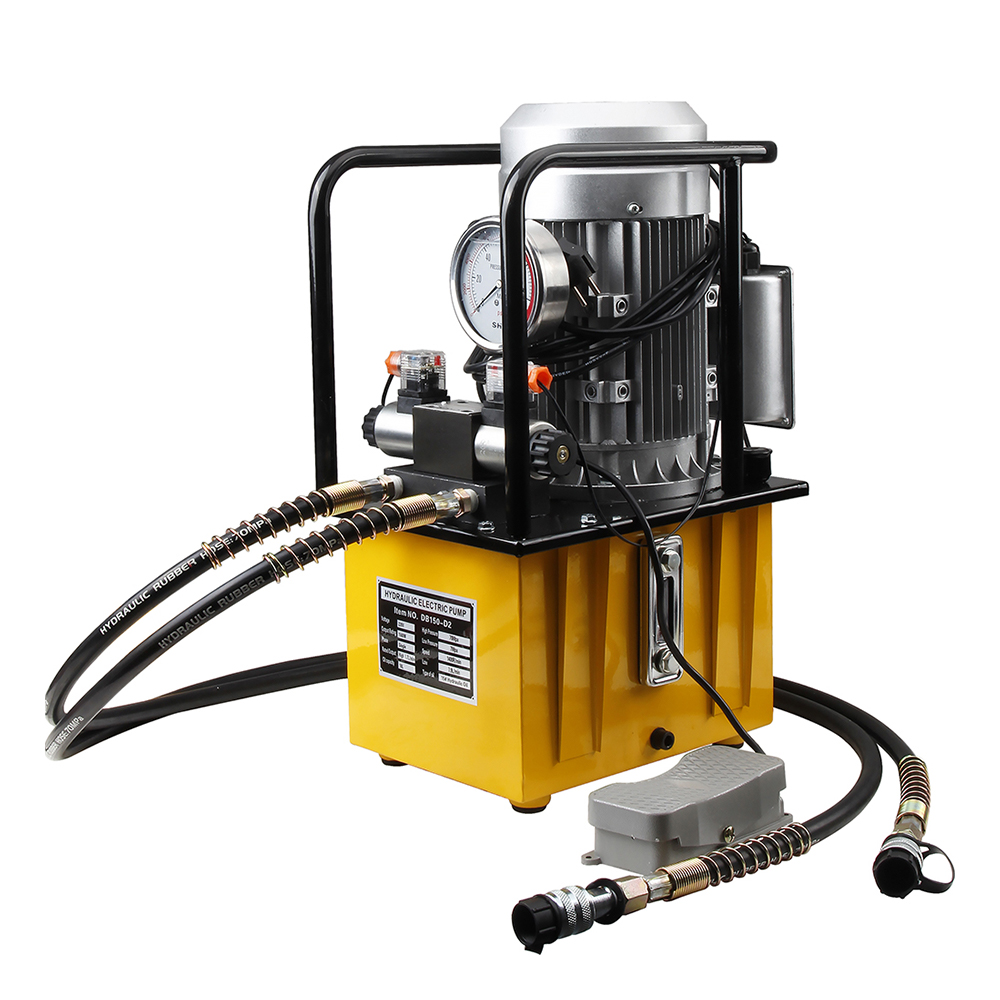

Double Acting Hydraulic Electric Pump 700 Bar High Pressure Power Pack 750W–3KW

When your tools need to push and pull — not just push — you need a double-acting hydraulic electric pump. This power pack drives both the advance and return strokes of your hydraulic cylinder automatically, saving time and eliminating manual reset on every cycle. Whether you're running a crimping machine, steel bar bender, channel steel cutter, punching machine, or hydraulic jack, this pump keeps up without slowing you down.
Power options that match your application.
Available in 750W, 1500W, and 3000W motor configurations, this double-acting hydraulic electric pump scales to your workload. High-pressure output reaches 70 MPa (10,000 PSI) across all models, while low-pressure flow ranges up to 14 L/min on the 3kW version — giving you both the force for heavy-duty work and the speed to move through jobs efficiently.
Dual-solenoid valve control — smarter than manual switching.
The double-circuit electromagnetic valve configuration means that switching between advance and return is handled electrically, not manually. Wiring control makes commutation faster, easier, and far less physically demanding than traditional manual double-circuit valves — a real difference when you're running the pump all day.
Manual pressure relief valve included.
For applications requiring precise pressure control, the manual relief valve gives you direct, instant override — pull up to hold pressure, pull down to release. Simple, reliable, no electronics required.
Instrument reliability you can trust under vibration.

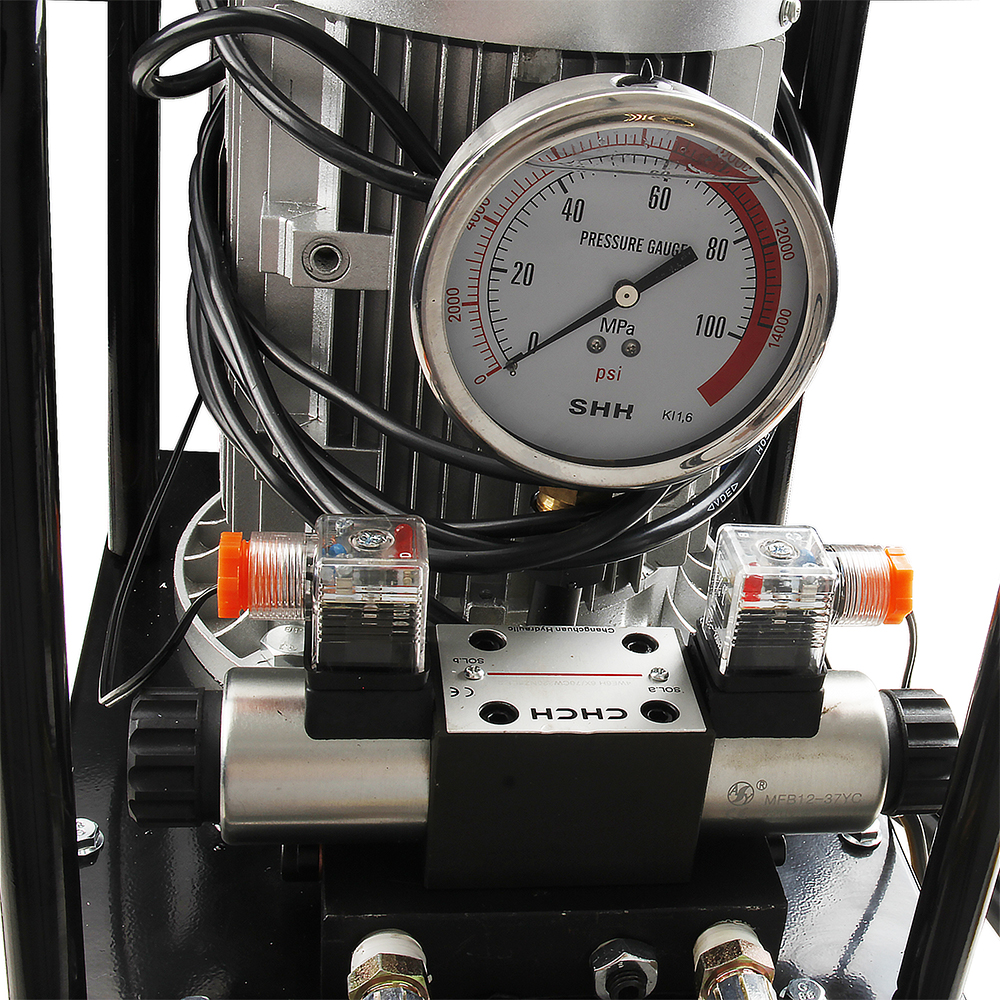

The shockproof pressure gauge maintains a stable, clear reading even when the machine and workpiece are shaking. You always know your exact working pressure without stopping to wait for the needle to settle.
Monitor everything at a glance.
The built-in oil level window lets you verify hydraulic fluid levels in real time. The integrated thermometer continuously monitors fluid temperature in the tank, protecting your pump from thermal damage during extended operation.
Hardware that outlasts the competition.

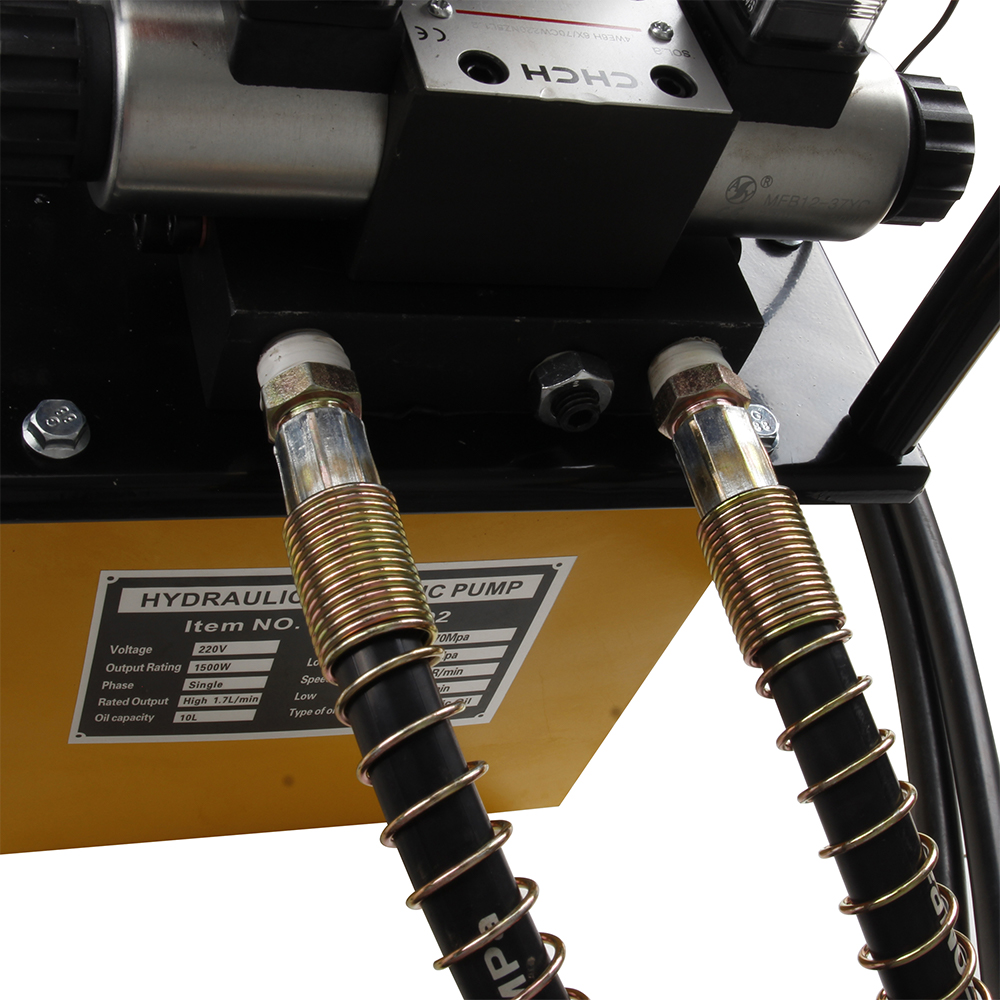

All connection interfaces are solid copper — high hardness, rust-resistant, and built for thousands of cycles. The motor features an aluminum casing with a copper core for efficient heat dissipation and long-term stability.
Easy to maintain, easy to fill.
Compatible with standard 15#–46# anti-wear hydraulic oil. The wide-mouth oil filler port makes refilling clean and fast. Always fill above the oil window line before operation. Oil tank capacity ranges from 7L to 30L depending on the model — customizable for high-demand applications.
Motor: 750W / 1500W / 3000W | Voltage: 220V / 380V | Max Pressure: 70 MPa / 10,000 PSI | High Pressure Flow: 0.9–2.8 L/min | Low Pressure Flow: 5–14 L/min | Oil Capacity: 7L–30L (customizable)
