EP-510 Hydraulic Press Tool Manual Hydraulic Hose Crimping Tool

Home / Products / Crimping Tools / Hydraulic Crimping Tool / EP-510 Hydraulic Press Tool Manual Hydraulic Hose Crimping Tool
EP-510 Hydraulic Press Tool Manual Hydraulic Hose Crimping Tool
EP-510 Hydraulic Press Tool Manual Hydraulic Hose Crimping Tool
EP-510 Hydraulic Press Tool Manual Hydraulic Hose Crimping Tool
EP-510 Hydraulic Press Tool Manual Hydraulic Hose Crimping Tool
EP-510 Hydraulic Press Tool Manual Hydraulic Hose Crimping Tool
EP-510 Hydraulic Press Tool Manual Hydraulic Hose Crimping Tool
EP-510 Hydraulic Press Tool Manual Hydraulic Hose Crimping Tool
EP-510 Hydraulic Press Tool Manual Hydraulic Hose Crimping Tool
EP-510 Hydraulic Press Tool Manual Hydraulic Hose Crimping Tool
EP-510 Hydraulic Press Tool Manual Hydraulic Hose Crimping Tool
EP-510 Hydraulic Press Tool Manual Hydraulic Hose Crimping Tool
EP-510 Hydraulic Press Tool Manual Hydraulic Hose Crimping Tool

EP-510 Hydraulic Press Tool Manual Hydraulic Hose Crimping Tool

Product Description

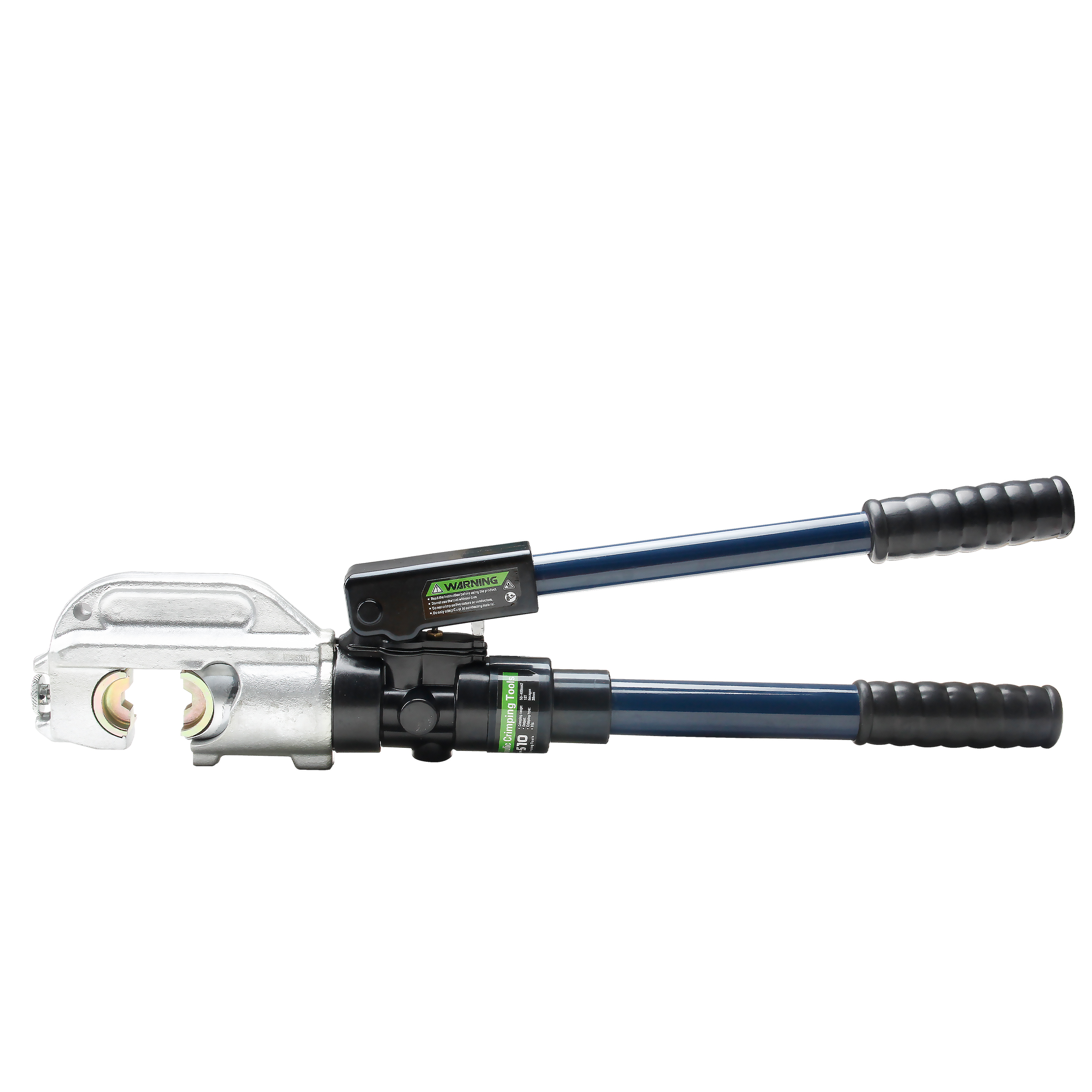

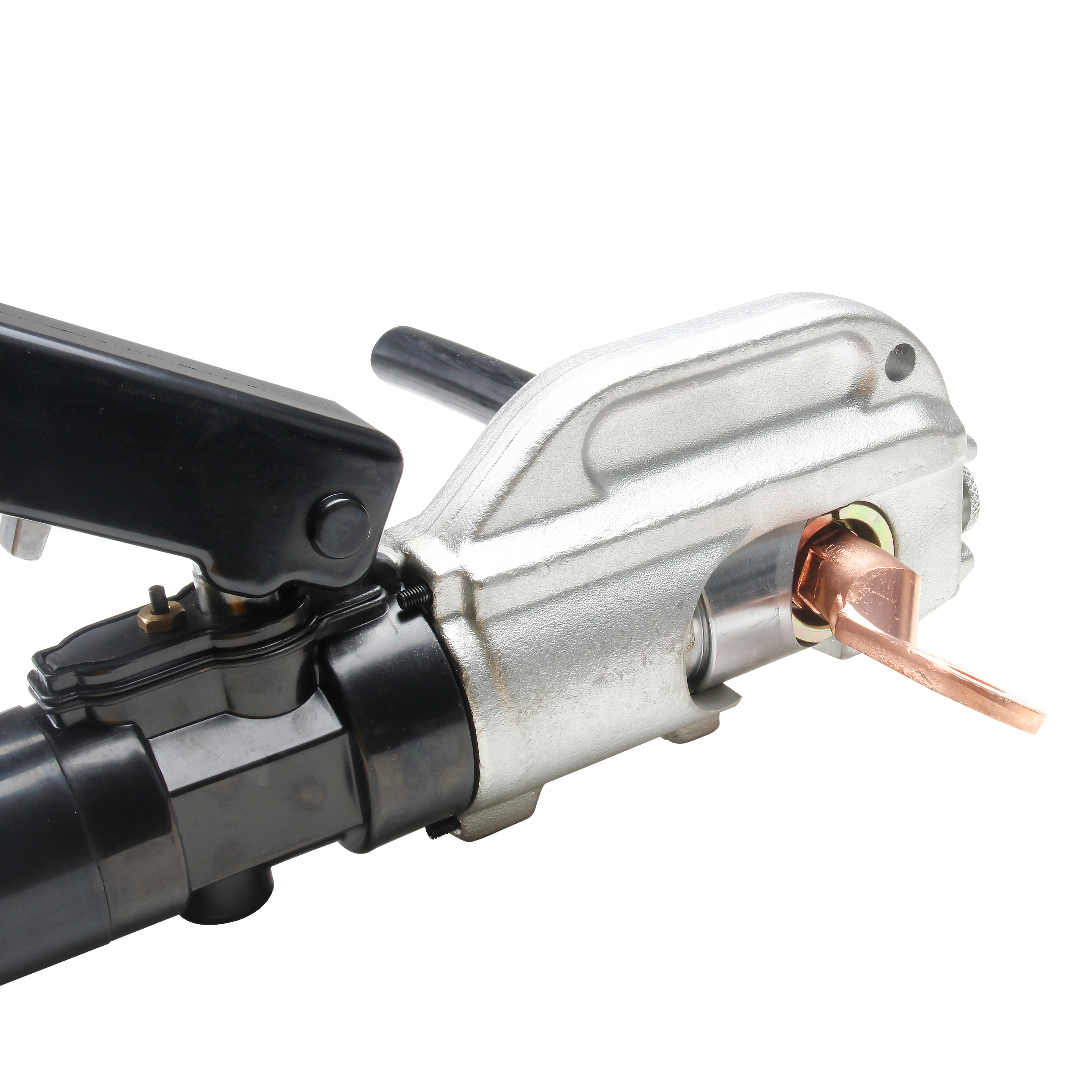

The EP-510 integrated hydraulic crimping tool is a semi-automatic solution designed for copper and aluminum terminals, with a crimping range of 50–400mm². Its C-shaped head and 180° rotatable clamp allow easy insertion and removal of terminals, providing flexible operation even in confined spaces.
Equipped with a built-in safety device and shockproof pressure gauge, the EP-510 ensures operational safety and reliable readings during vibration-prone work environments. The semi-automatic pressure relief and quick reset features make operation fast and simple, reducing operator fatigue and improving efficiency.

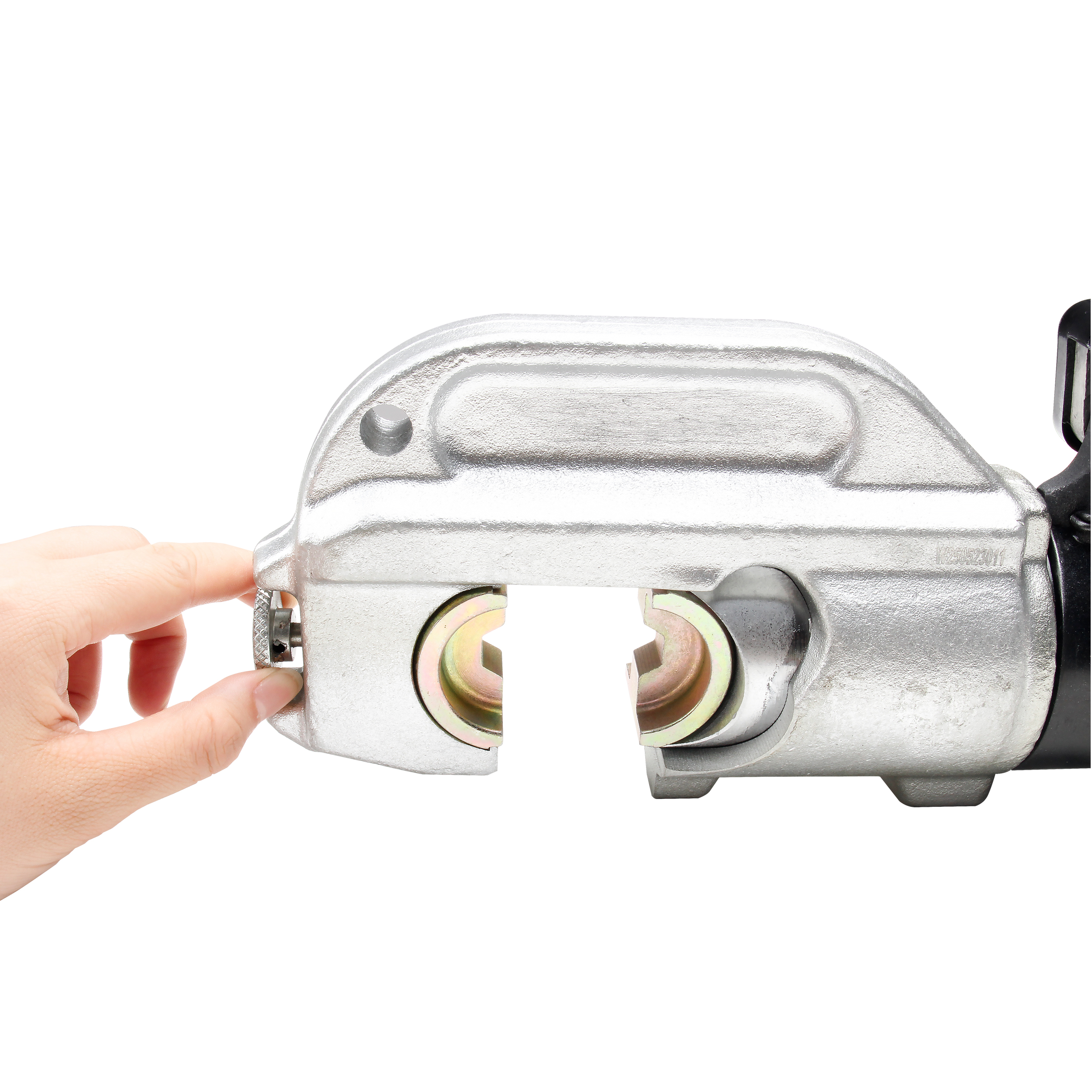

The high-quality steel construction of the C-shaped head and replaceable molds ensures firm and precise crimps. The insulated operating handle withstands up to 20kV for 5 minutes, making it suitable for high-voltage work. The upper mold can be replaced by pulling the latch, while the lower mold is easily replaced directly, providing versatility for different terminal sizes.
With a maximum pressure of 13T and standard crimp sizes from 50mm² to 400mm², the EP-510 is ideal for industrial, power, chemical, steel, and machinery applications, providing a reliable hydraulic crimping solution for electricians, technicians, and industrial operators.

Contact Us
PREV：All-in-One Handheld Hydraulic Cable Crimper 4–400mm²NEXT：No next article
  • Specification
  • Contact Us
Model EP-510 Maximum pressure 13T
Crimp range 50-400mm² Opening distance 38mm
Crimping form Hexagonal surround pressure Net weight/ gross weight 6.96kg/10.56kg
Standard mold 50、70、95、120、150、185、240、300、400mm²

Key Features
Semi-automatic hydraulic crimping tool for copper and aluminum terminals
Crimping range: 50–400mm²
C-shaped head with 180° rotation for flexible terminal placement
Built-in safety device and smart prompts for safe operation
Shockproof pressure gauge for stable readings in vibration-prone environments
Quick semi-automatic pressure relief and reset
Replaceable upper and lower molds for versatile applications
High-quality steel construction for durable and precise crimps
Insulated handle withstands up to 20kV for 5 minutes
Maximum pressure: 13T
Standard crimp sizes: 50, 70, 95, 120, 150, 185, 240, 300, 400mm²
