Output:	35T
copper busbar bending thickness:	4/6/8/10/12mm
Model Number:	PLW-125
copper busbar bending max:	40/50/60/80/100/120mm

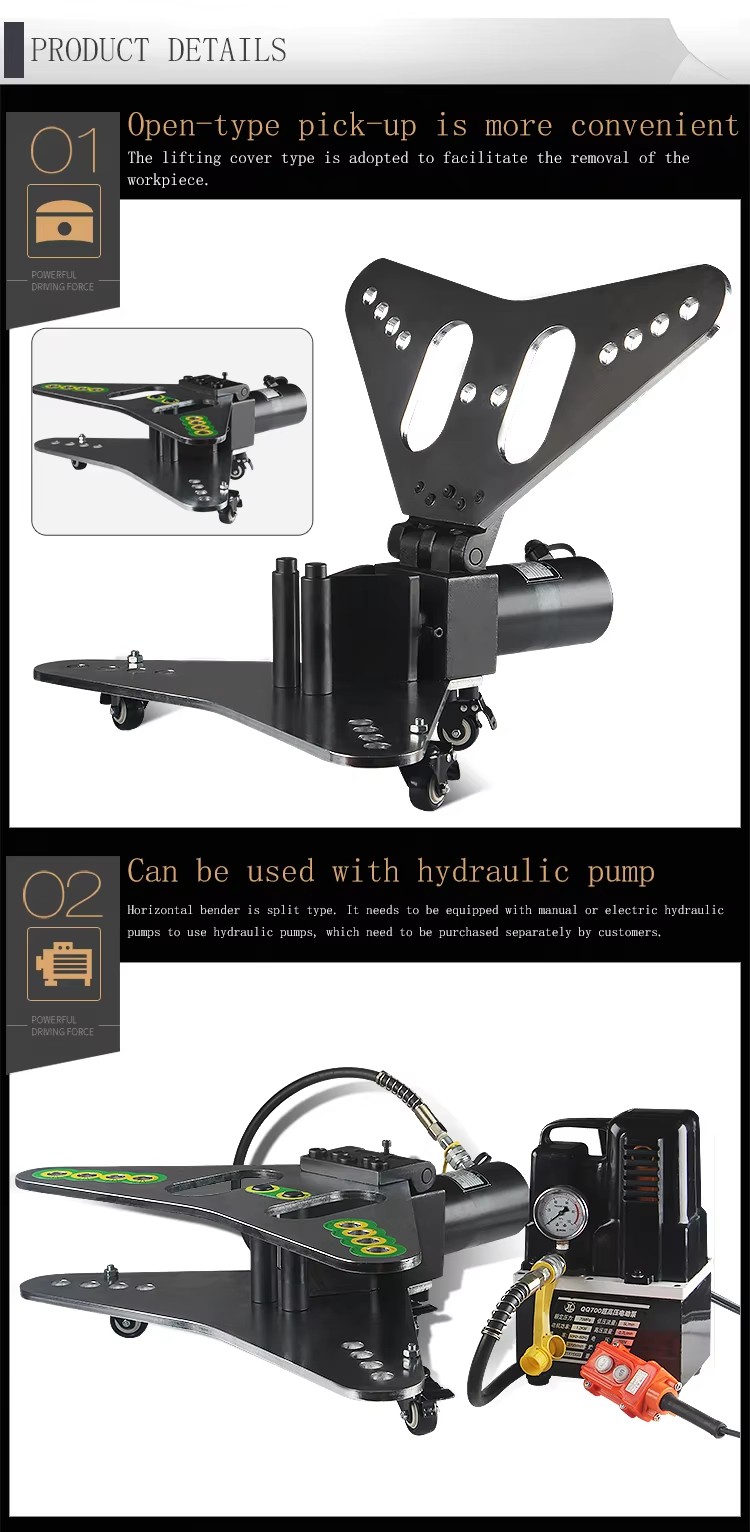

Open-type pick-up is more convenient The lifting cover type is adopted to facilitate the removal of the workpiece.

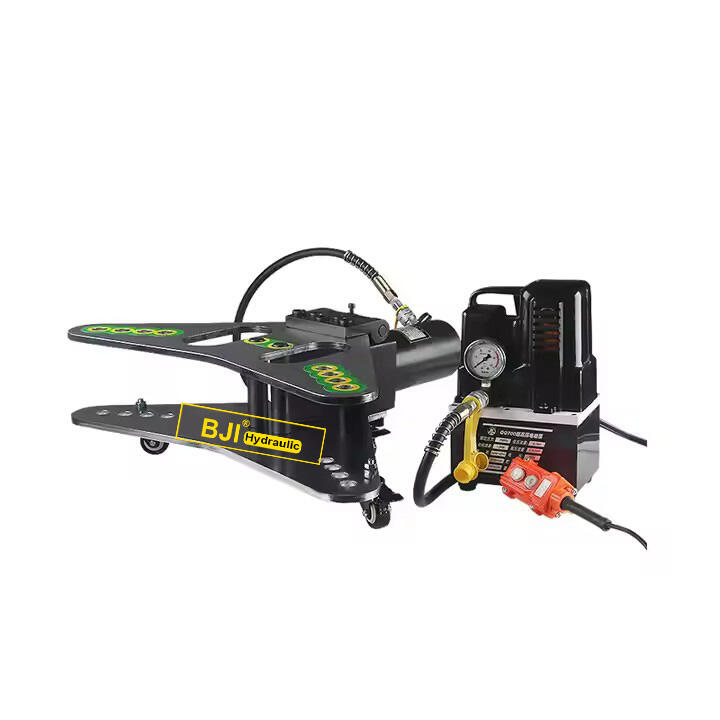

Can be used with hydraulic pump Horizontal bender is split type, It needs to be equipped with manual or electric hydraulic pumps to use hydraulic pumps, which need to be purchased separately by customers.

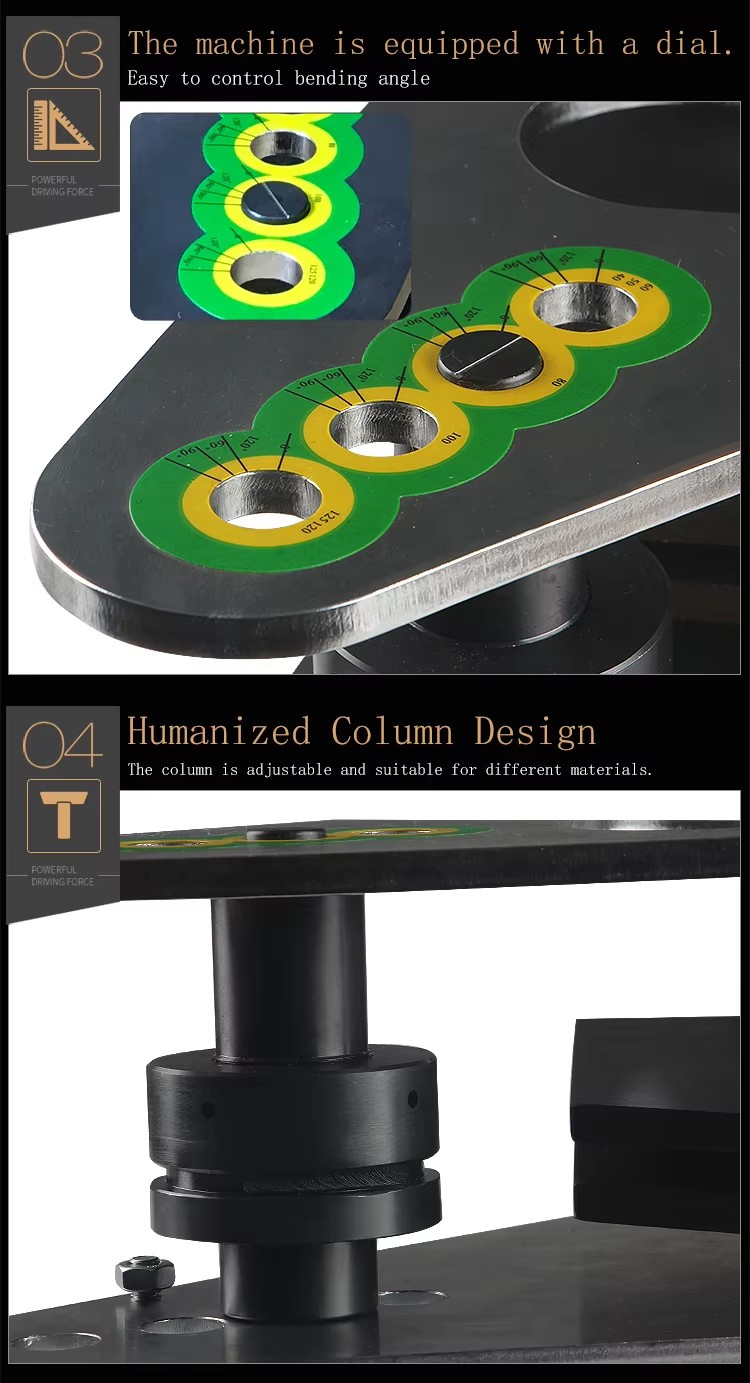

The machine is equipped with a dial Easy to control bending angle
Humanized Column Design The column is adjustable and suitable for different materials.

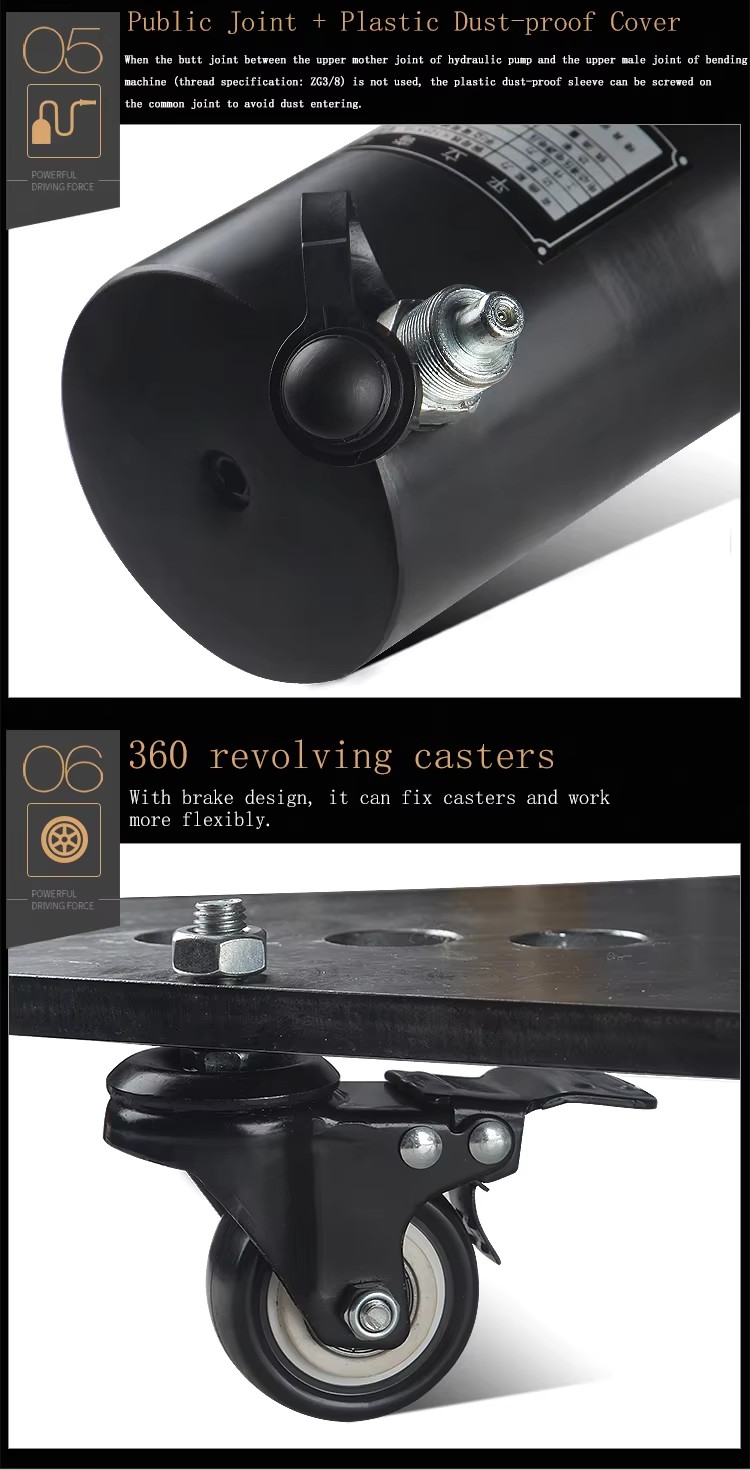

Public Joint + Plastic Dust proof Cover When the butt joint between the upper mother joint of hydraulic pump and the upper male joint of bending machine (thread specification: 2G3/8) is not used, the plastic dust proof sleeve can be screwed on the common joint to avoid dust entering.
360 revolving casters With brake design, it can fix casters and work more flexibly.

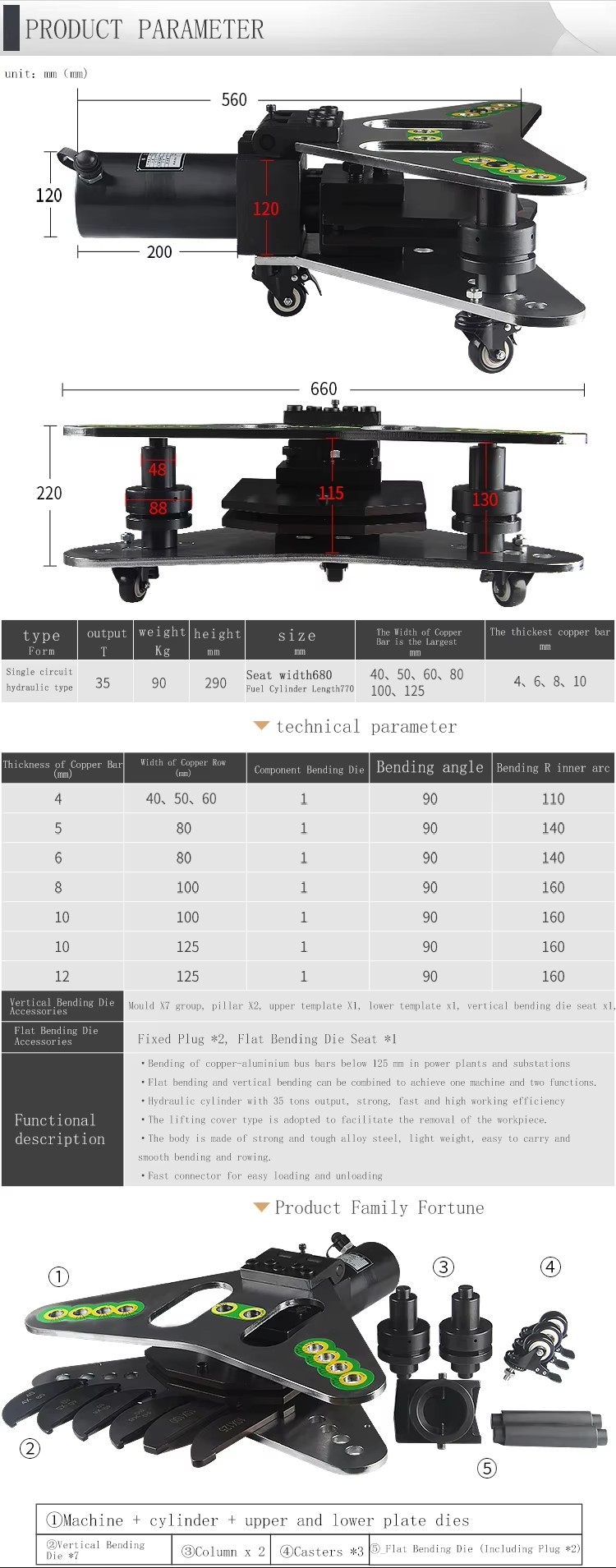

type Form	output	weight	height	size	The width of Copper Bar is the largest	The thickest copper bar
Single circuit hydraulic type	35	90	290	Seat width 680 Fuel Cylinder length770	40、50、60、80、100、125	4、6、8、10

Thicknessof Copper Bar（MM）	Width of Copper Row(mm)	Component Bending Die	Bending angle	Bending R inner arc
4	40、50、60	1	90	110
5	80	1	90	140
6	80	1	90	140
8	100	1	90	160
10	100	1	90	160
10	125	1	90	160
12	125	1	90	160

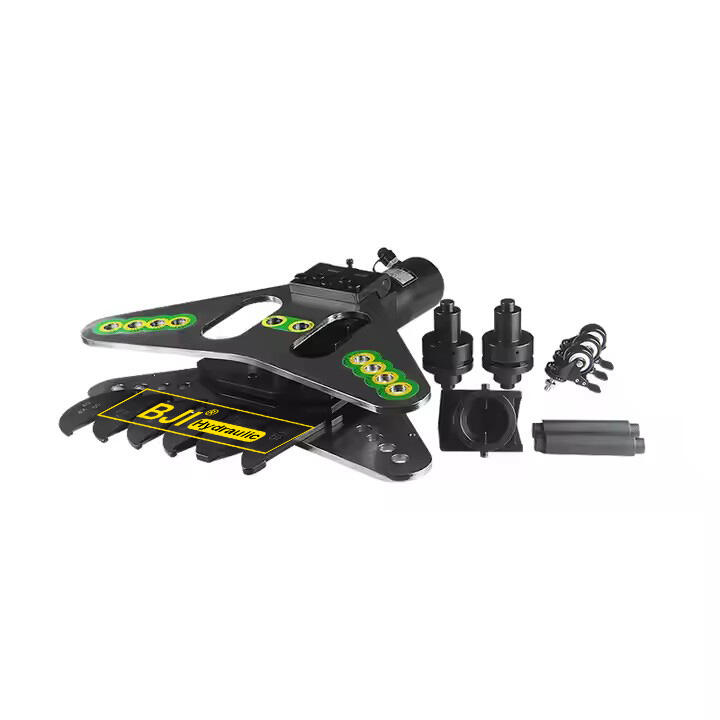

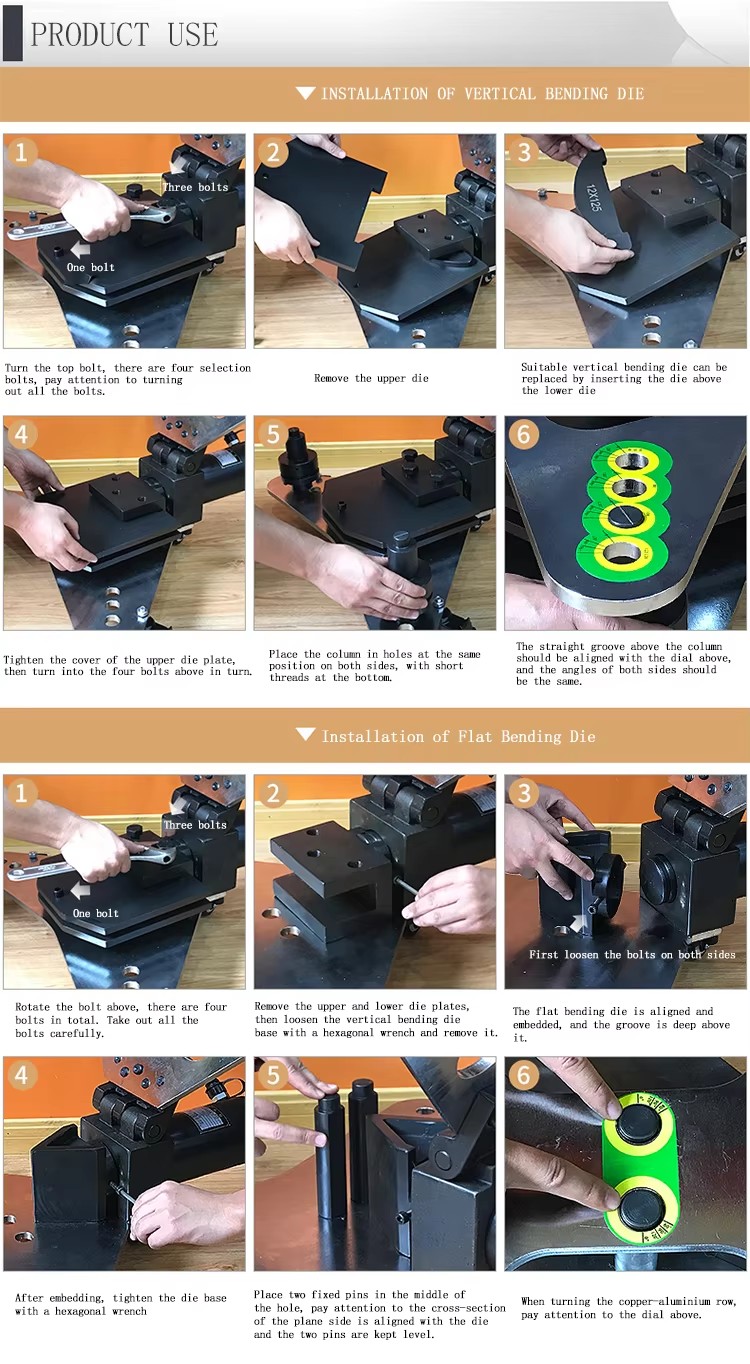

Vertical Bending Die Accessories	Mould X7 group, pillar X2, upper template X1, lower template x1, vertical bending die seat x1,
Flat Bending DieAccessories	Fixed Plug 2,Flat Bending Die Seat 1

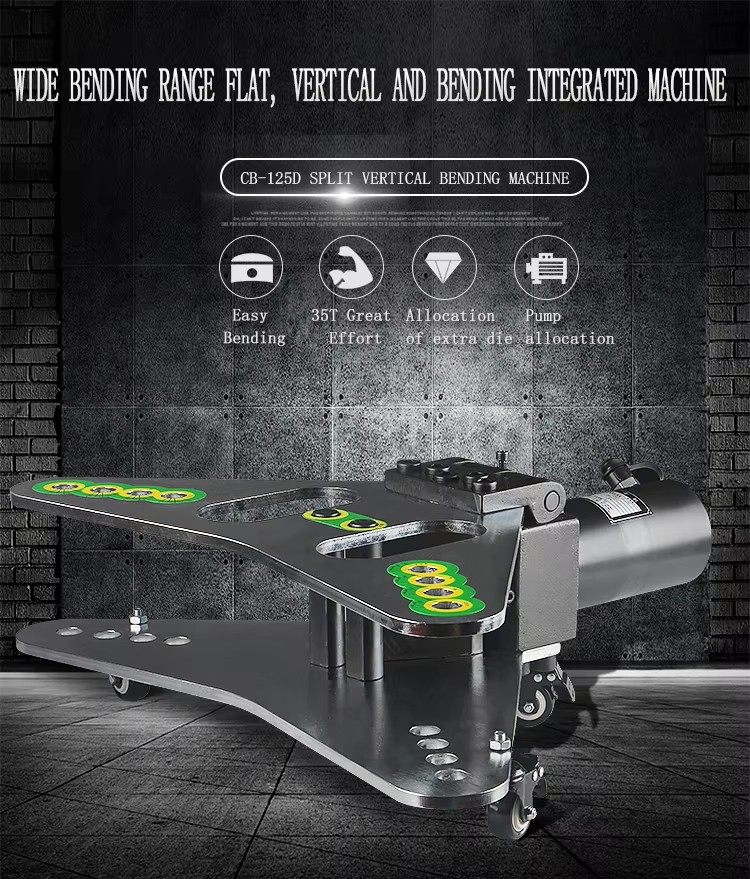

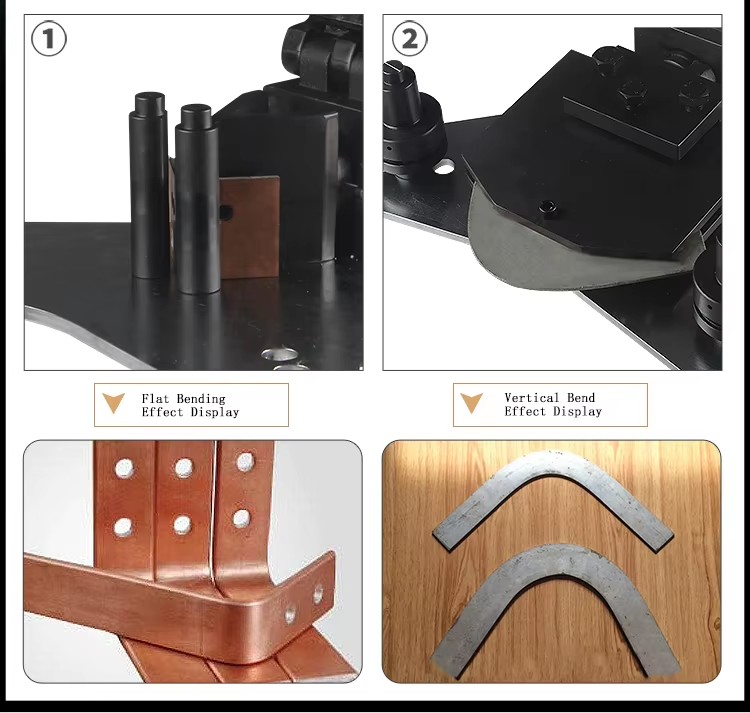

Functional description	"Bending of copper-aluminium bus bars below 125 mm in power plants and substations* Flat bending and vertical bending can be combined to achieve one machine and two functions. Hydraulic cylinder with 35 tons output, strong, fast and high working efficiency The lifting cover type is adopted to facilitate the removal of the workpiece. The body is made of strong and tough alloy steel, light weight, easy to carry andsmooth bending and rowing. Fast connector for easy loading and unloading
