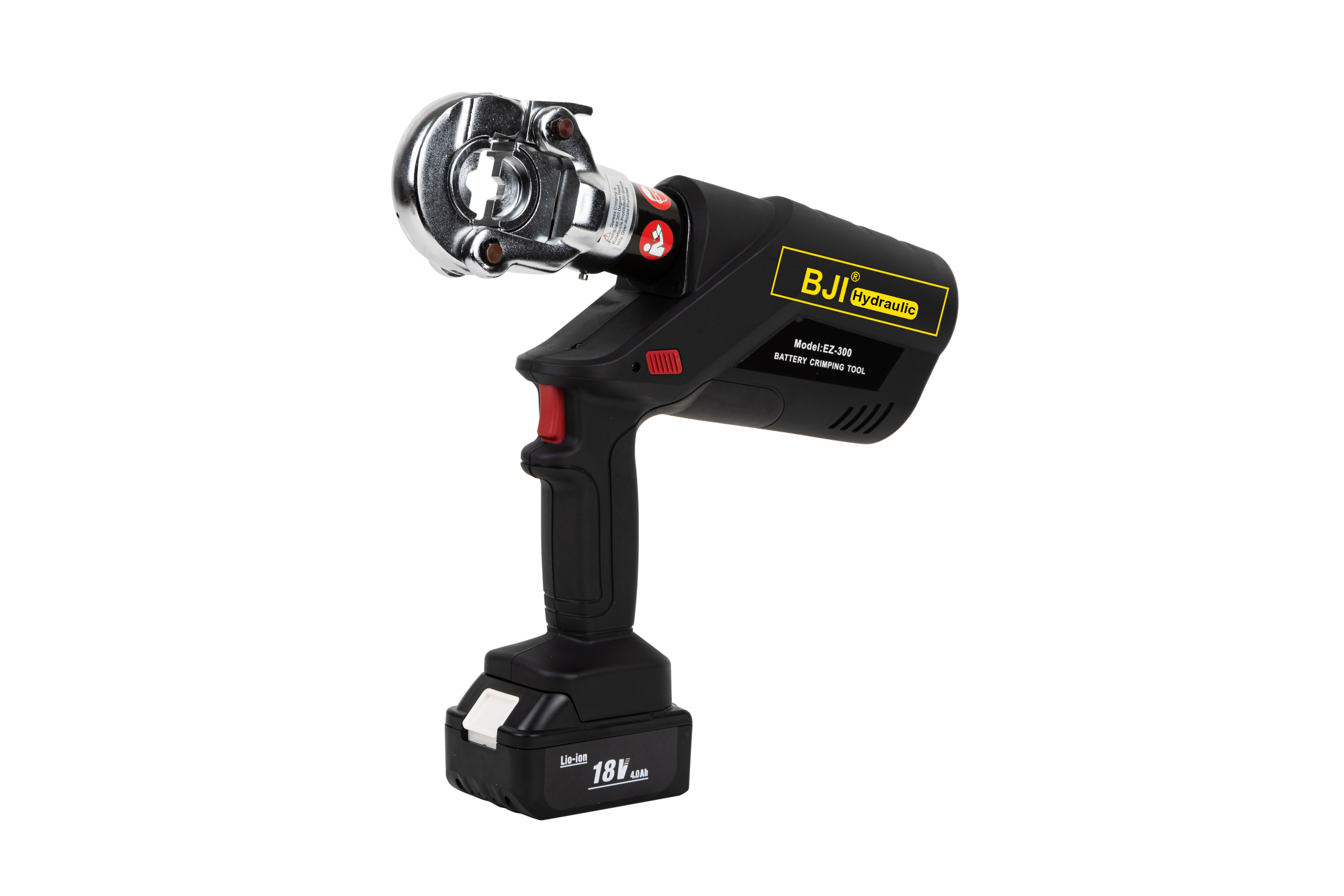

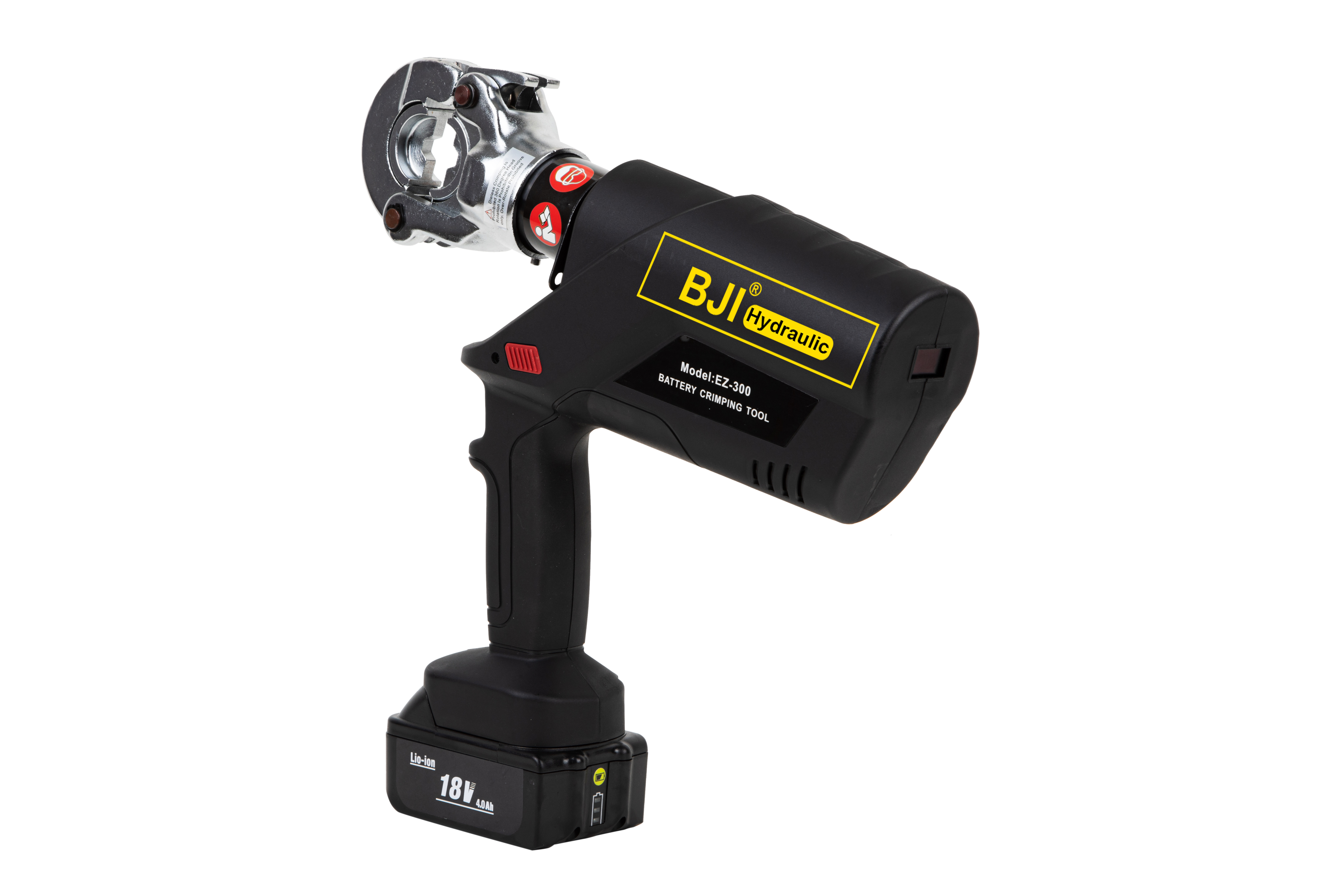

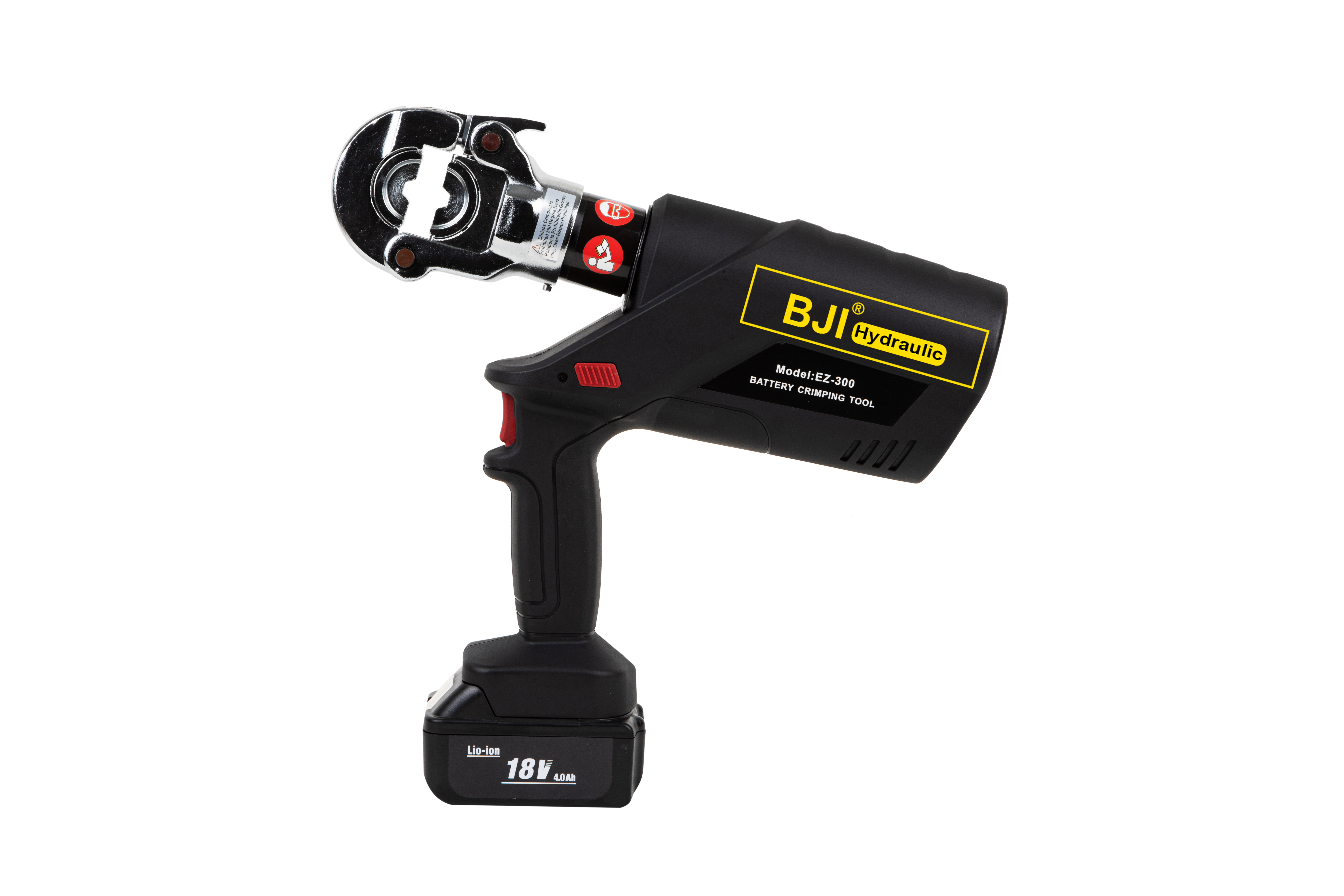

EZ-300 Electric Power Cable Crimping Tool Battery Hydraulic Crimping Tool for 10-300mm2 Hydraulic Crimper
|
Output: |
60kn |
|
Crimping range: |
10-300mm² |
|
Model Number: |
EZ-300 |
|
Weight: |
6.8KGS |
|
Minimum Order Quantity: |
2 set |
|
Price: |
US$180.00 |
|
Packaging Details: |
Plastic box |
|
Delivery Time: |
≥3 day |
|
Payment Terms: |
customizable |
|
Supply Ability: |
Available |
- Overview
- Description
- Specifications
- Recommended Products

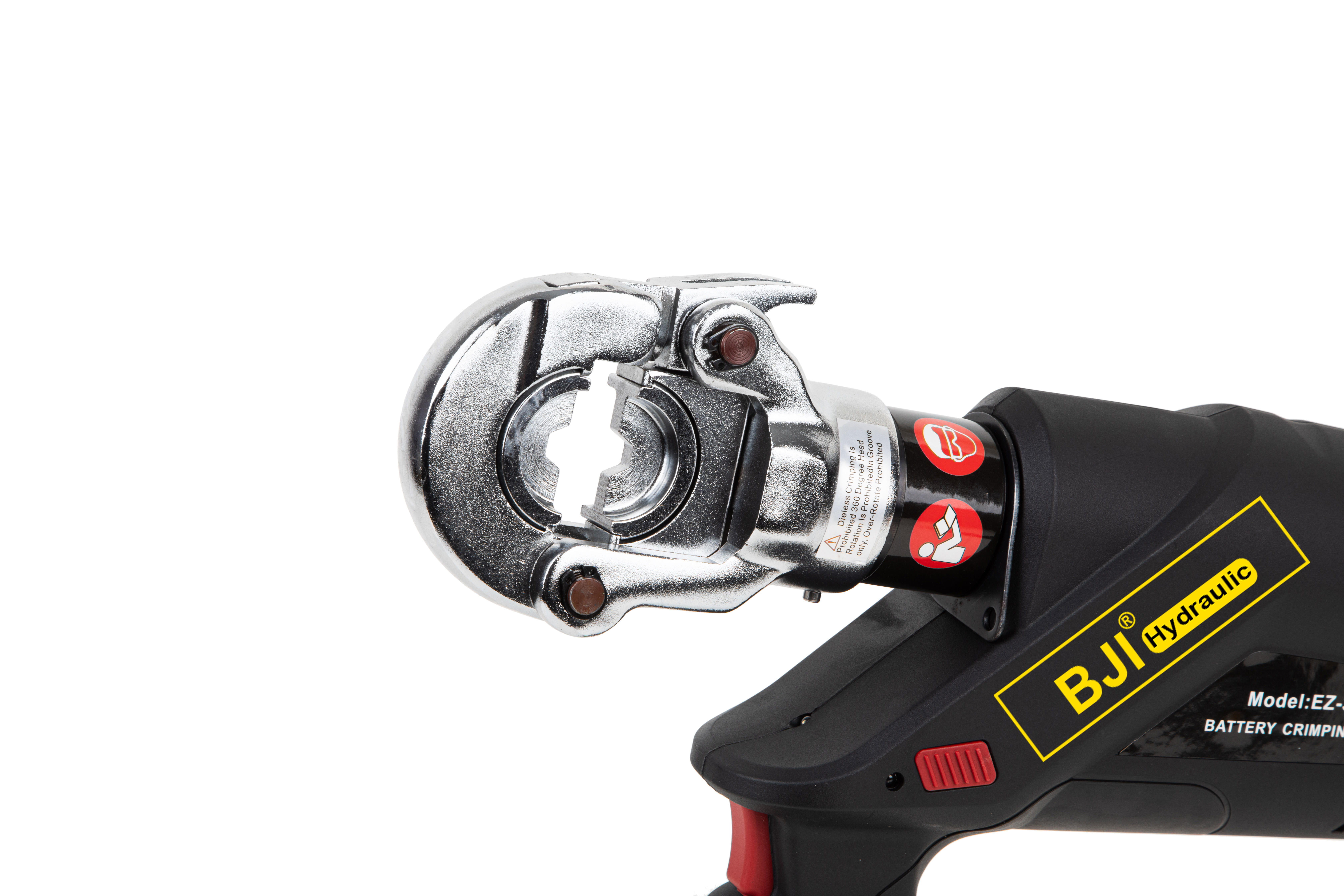

- 350° Rotating clamp head The head can rotate freely at 350°,which is suitable for various angle operations.
- Easy to Change Mold Easily press to open the clamp head for easy mold replacement
- One Key Control The operation is simple and convenient,one key cancomplete the operation.
- One Key Reset When there is an error in the crimping process you can easily reset by pressing the trigger.
- Battery upgrade to 5.0AH.Two batteries can work in turn
| Model | EZ-300 | Output | 60KN |
| Stroke | 17mm | Crimping range | 16-300mm² |
| Battery voltage | 18V | Battery capacity | 5.0Ah |
| Charging time | 2 hours | Weight | 4.6Kg |
| Crimping times | 320 times per saturation voltage(copper wire:150mm²) | ||
| Crimping time | 3-6 seconds (according to the diameter of the cable) | ||
