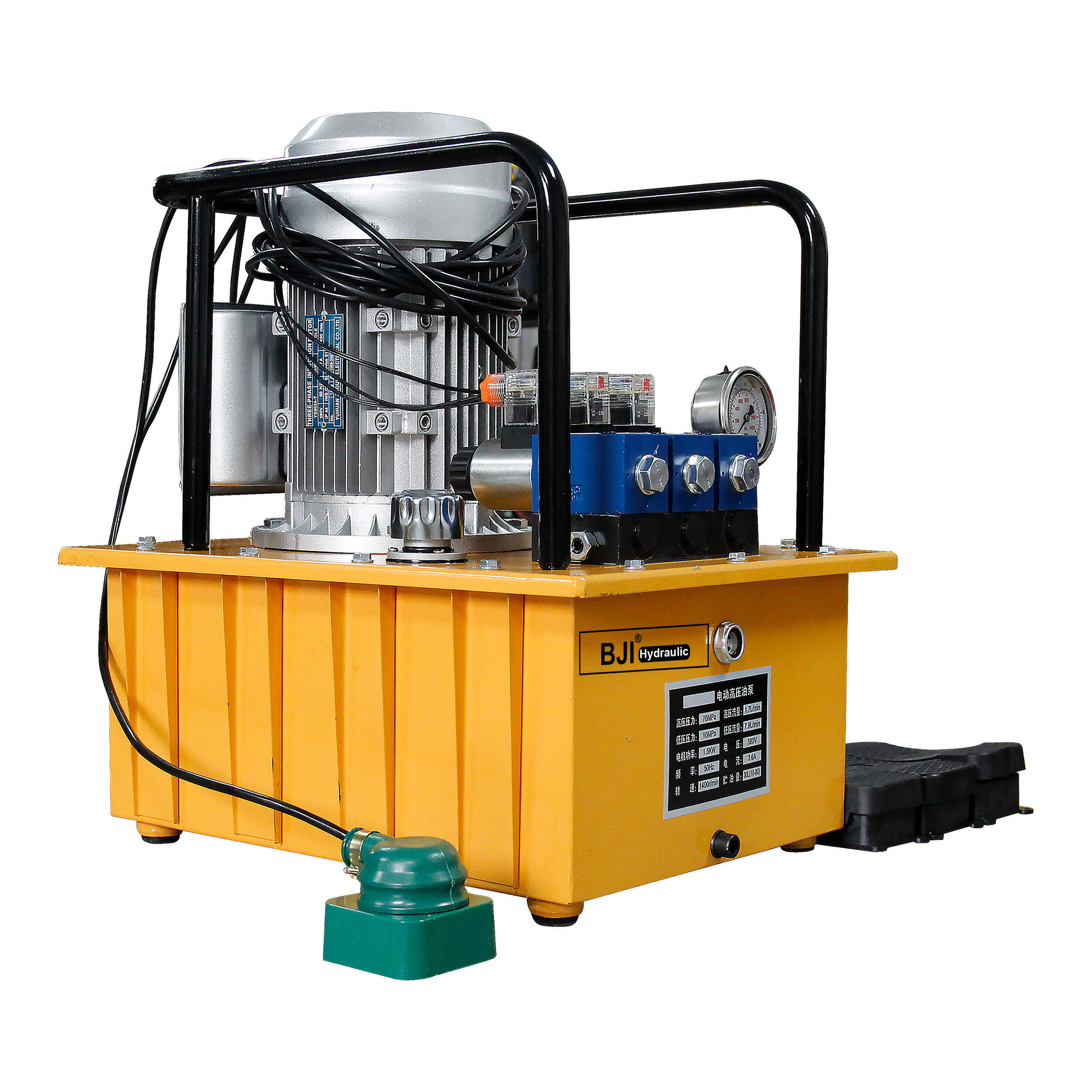

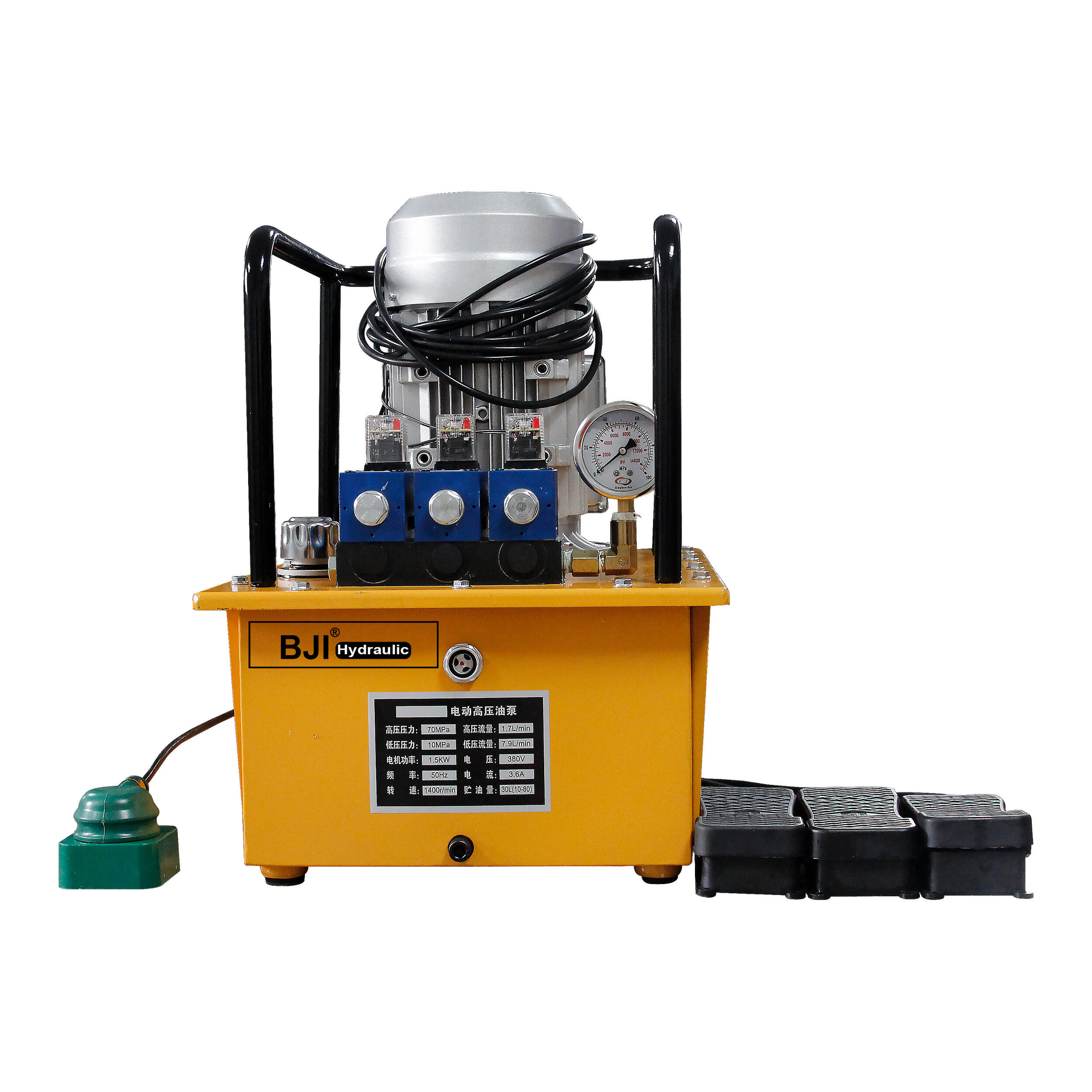

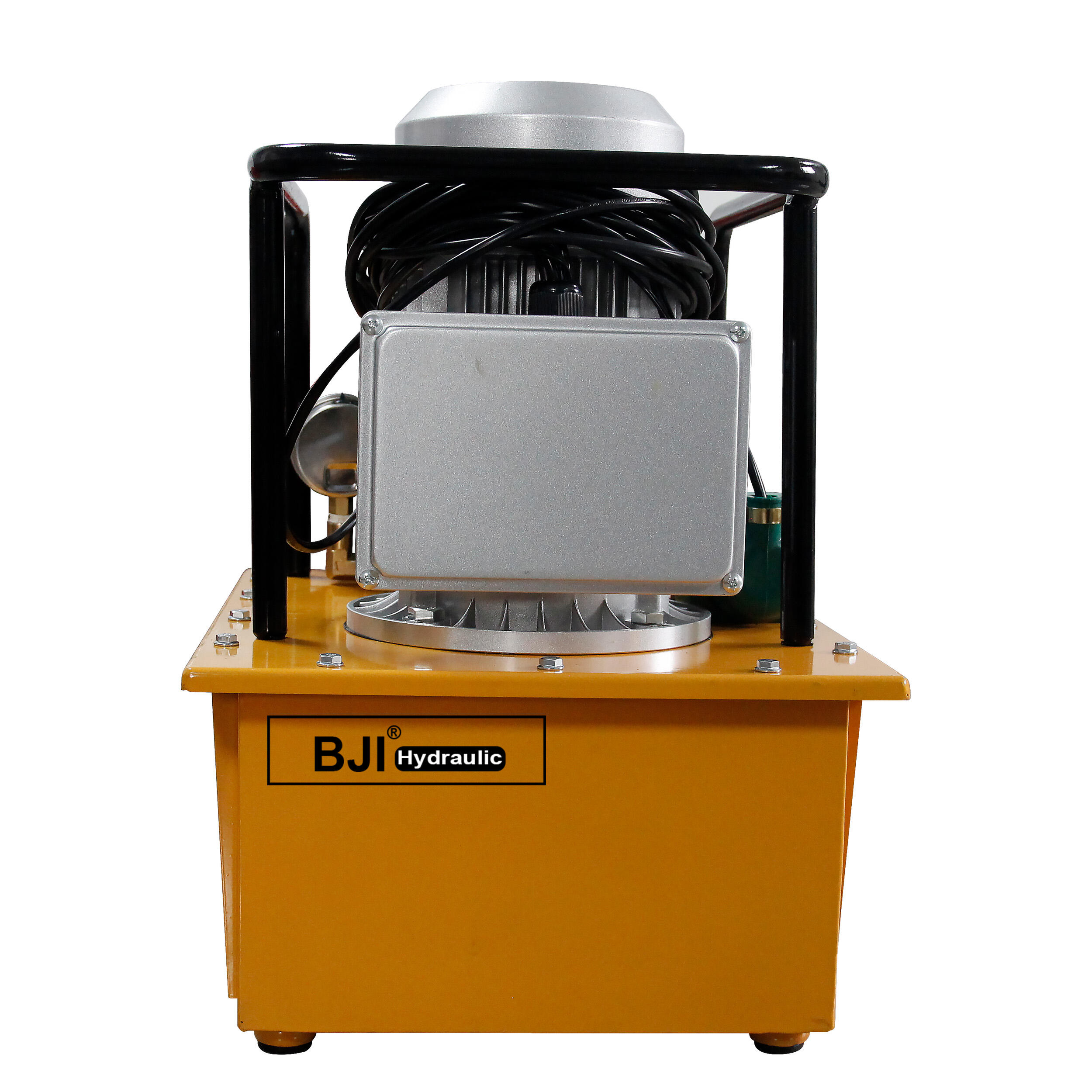

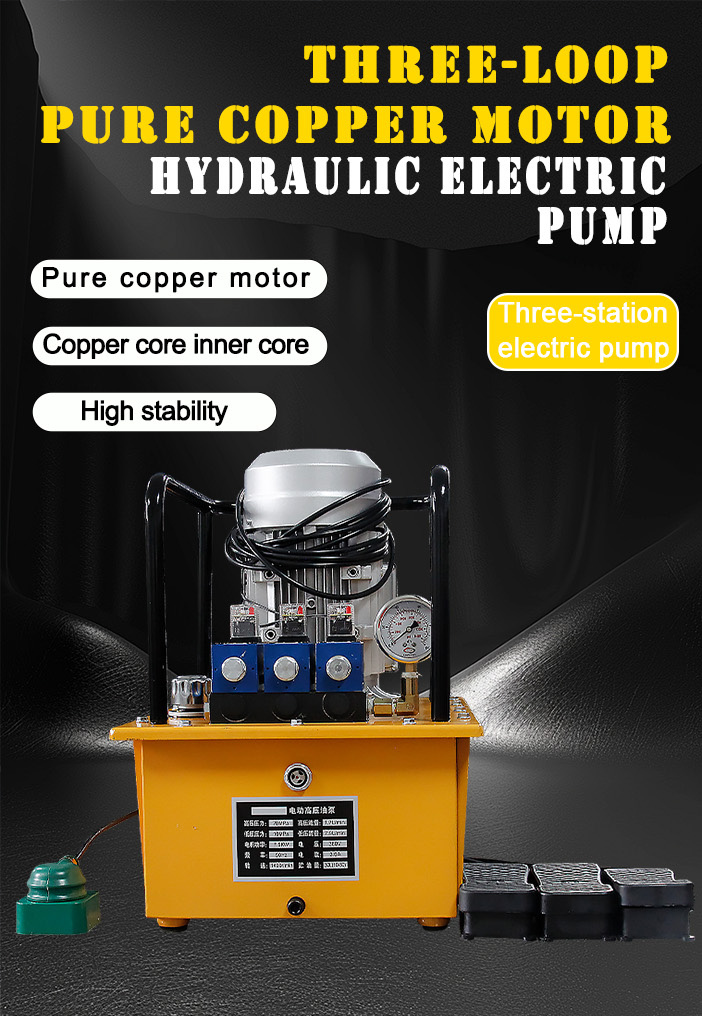

DB150-Z3 Electric Pump High Pressure 700 Bar Three-Action Hydraulic Power Pack

db150 z3 electric pump high pressure 700 bar three action hydraulic power pack-1

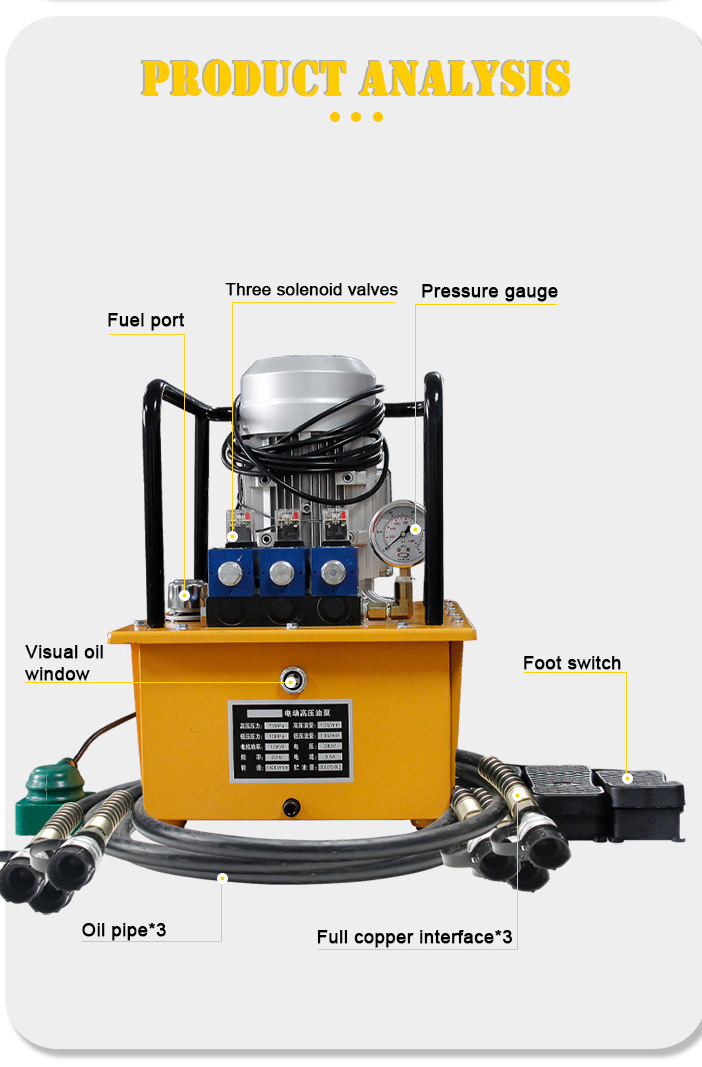

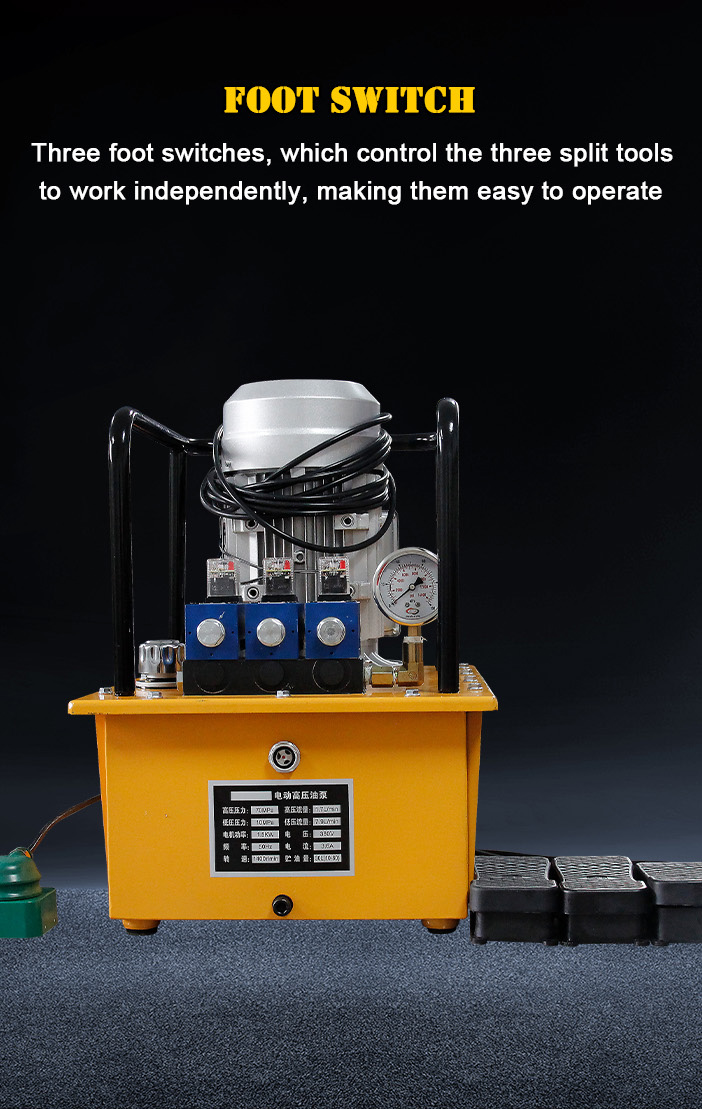

FOOT SWITCH Three foot switches, which control the three split tools to work independently, making them easy to operate

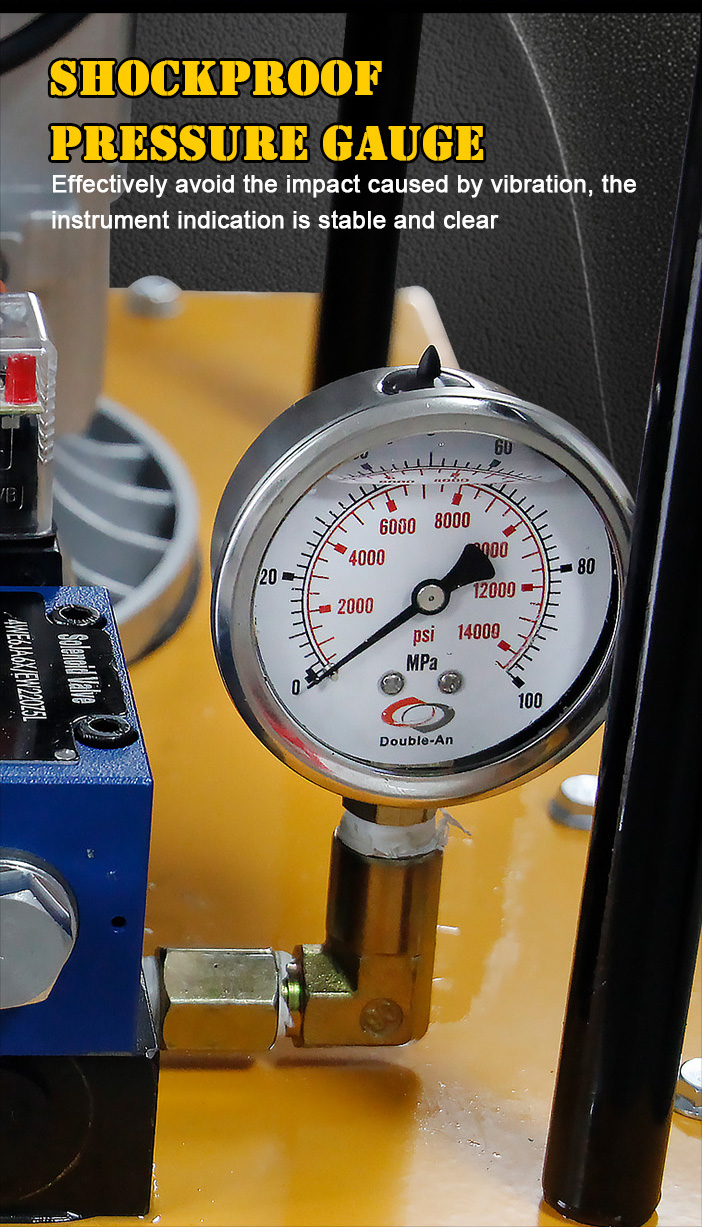

SHOCKPROOFPRESSURE GAUGE Effectively avoid the impact caused by vibration, theinstrument indication is stable and clear

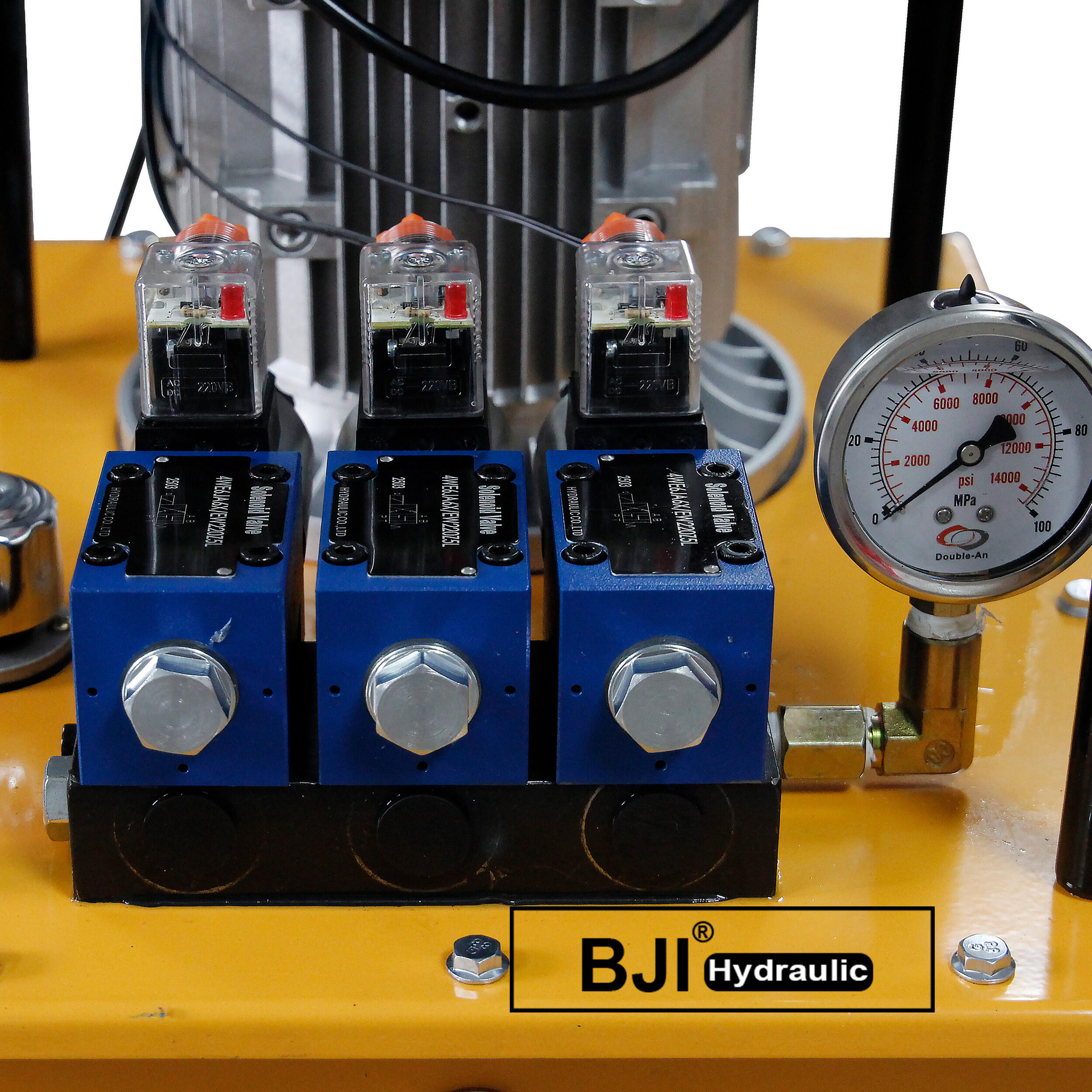

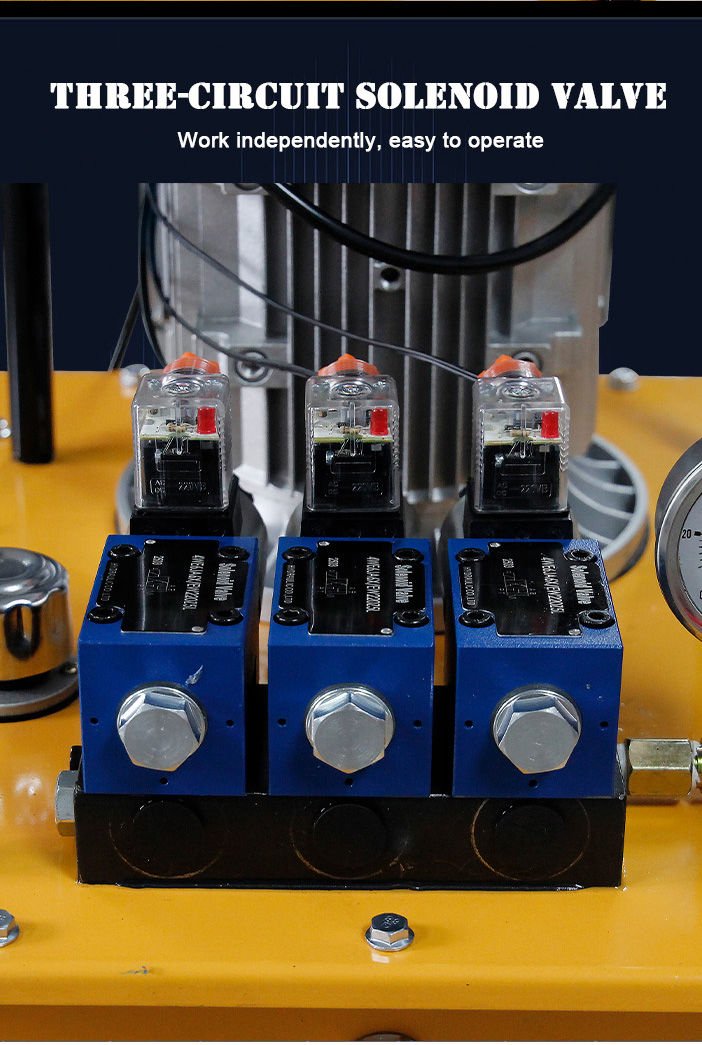

THREE-CIRCUIT SOLENOID VALVE Work independently, easy to operate

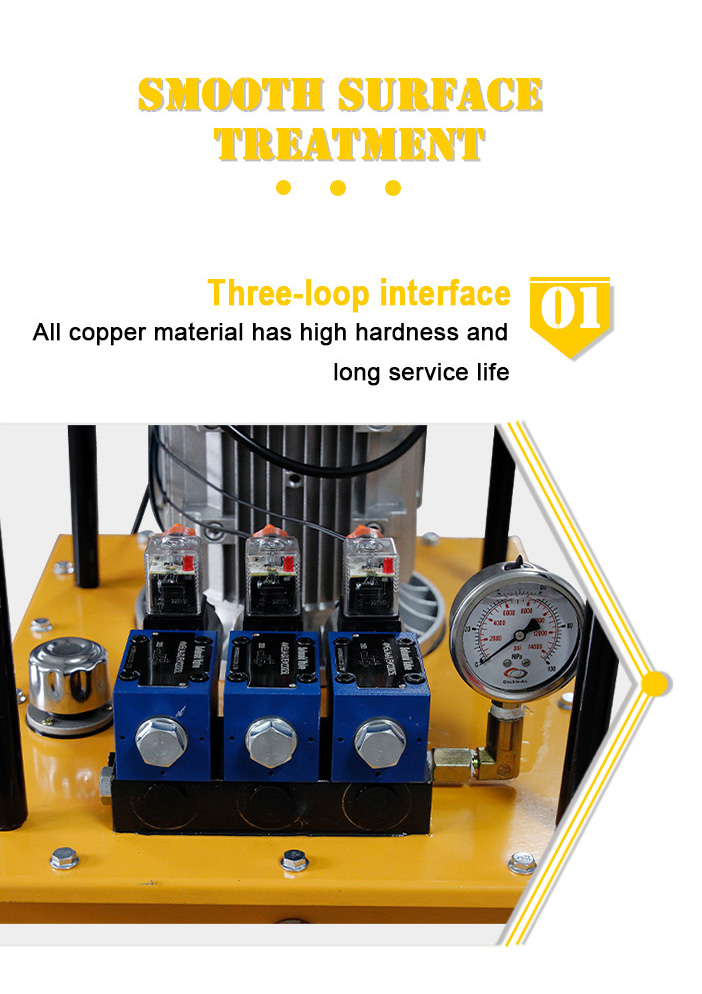

Three-loop interface All copper material has high hardness and long service life

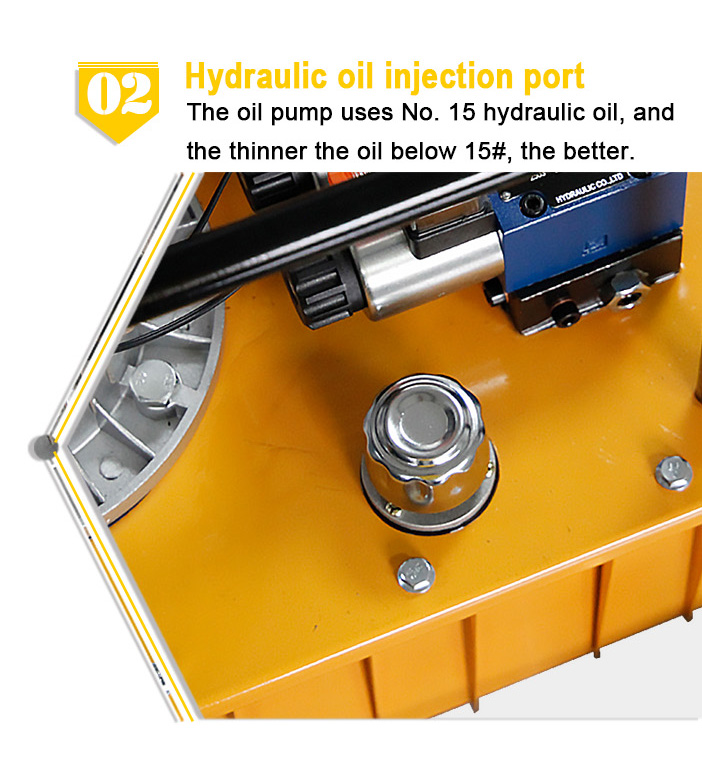

Hydraulic oil injection port The oil pump uses No. 15 hydraulic oil, and the thinner the oil below 15#, the better.

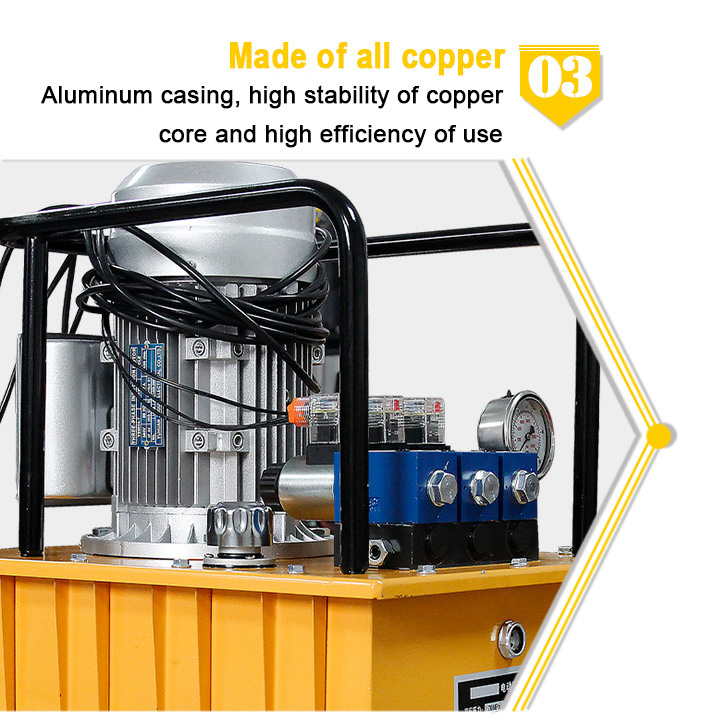

Made of all copper Aluminum casing, high stability of copper core and high efficiency of use

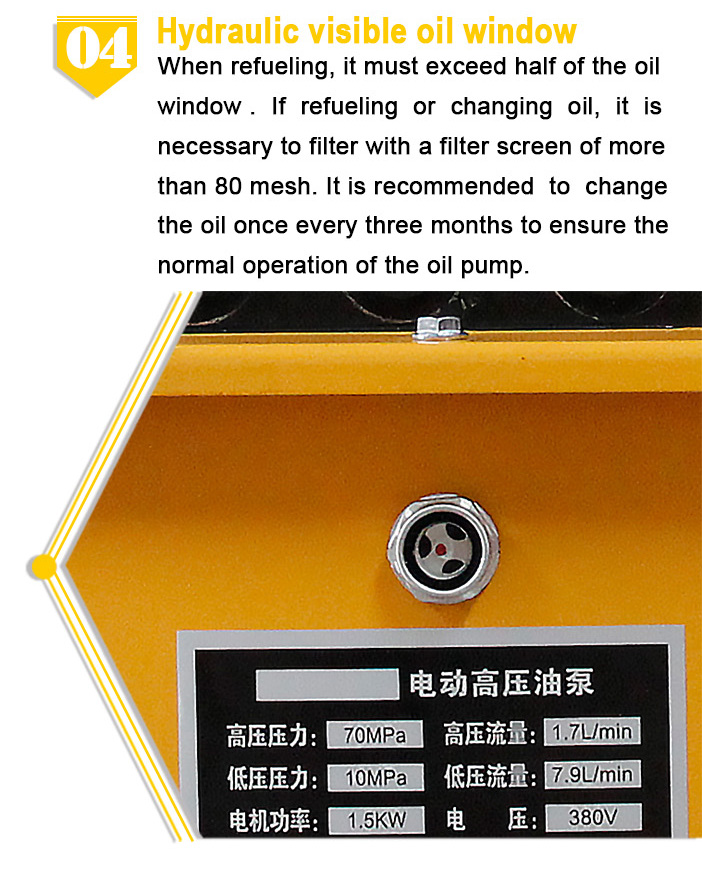

Hydraulic visible oil window When refueling, it must exceed half of the oil window .lf refueling or changing oil, it is necessary to filter with a filter screen of more than 80 mesh.lt is recommended to change the oil once every three months to ensure the normal operation of the oil pump

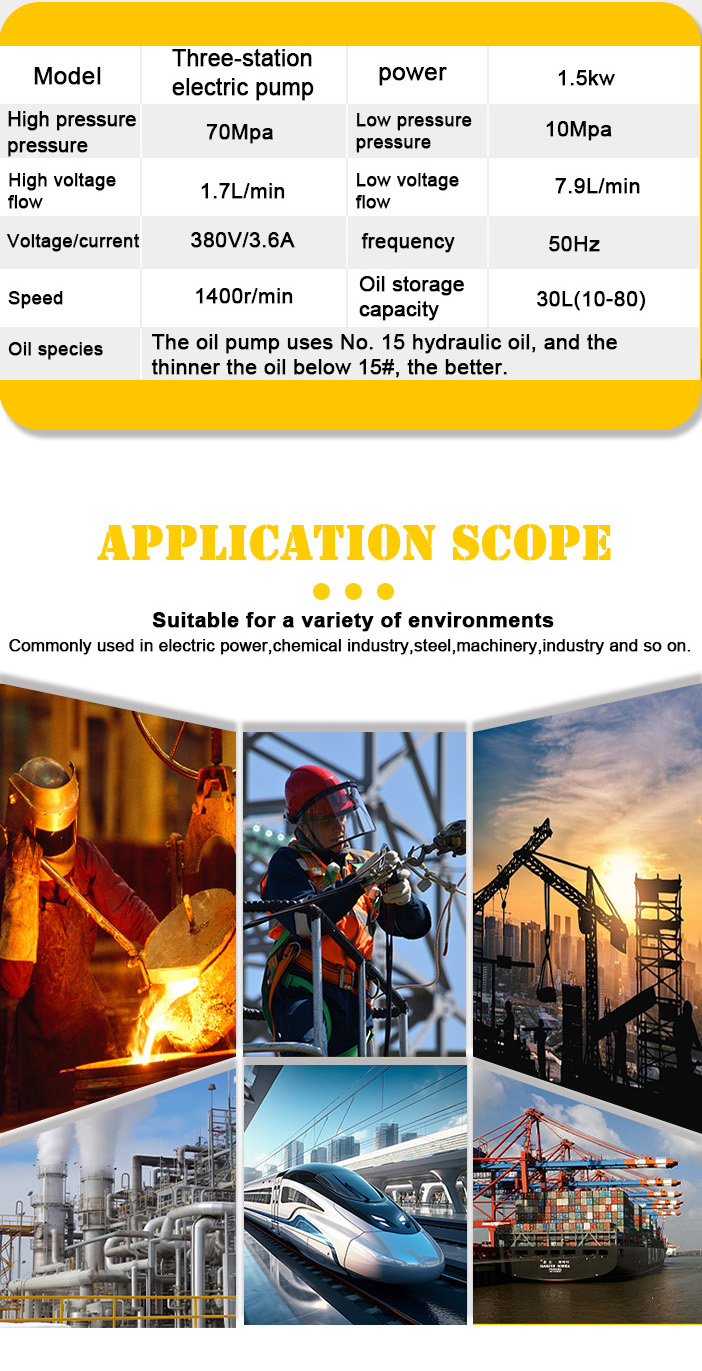

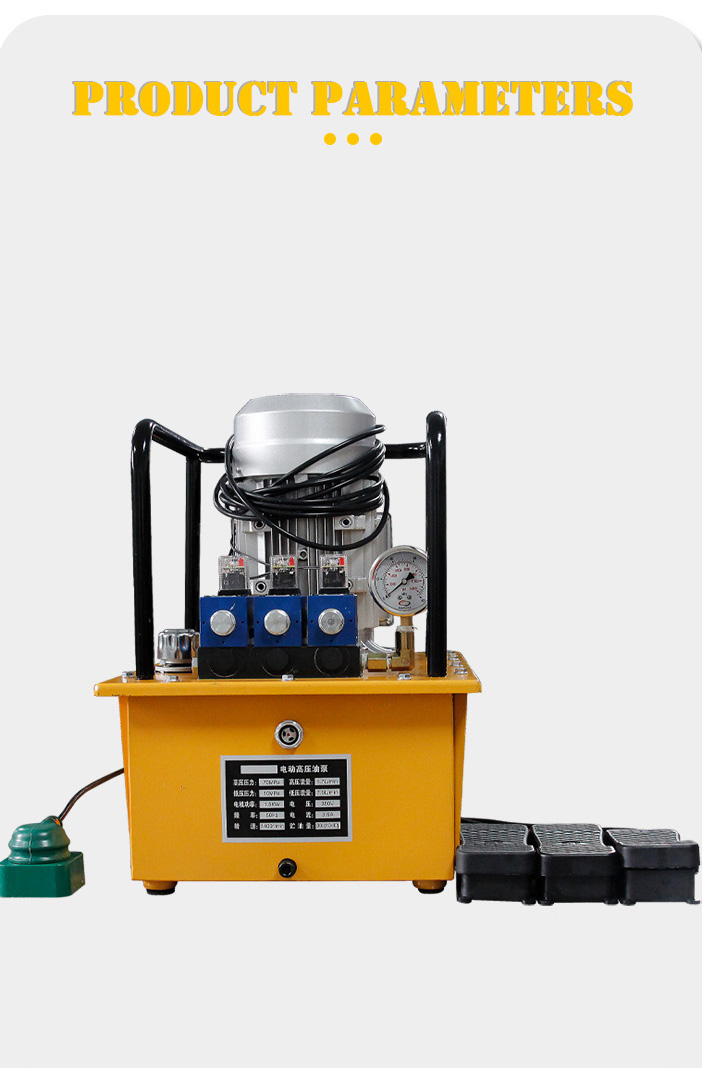

Model	Three-station electric pump	power	1.5kw
High pressure pressure	70Mpa	Low pressure pressure	10Mpa
High voltage flow	1.7L/min	Low voltage flow	7.9L/min
Voltage/current	380V/3.6A	frequency	50Hz
Speed	1400r/min	Oil storage capacity	30L(10-80)
Oil species	The oil pump uses No.15 hydraulic oil, and thethinner the oil below 15#, the better.
