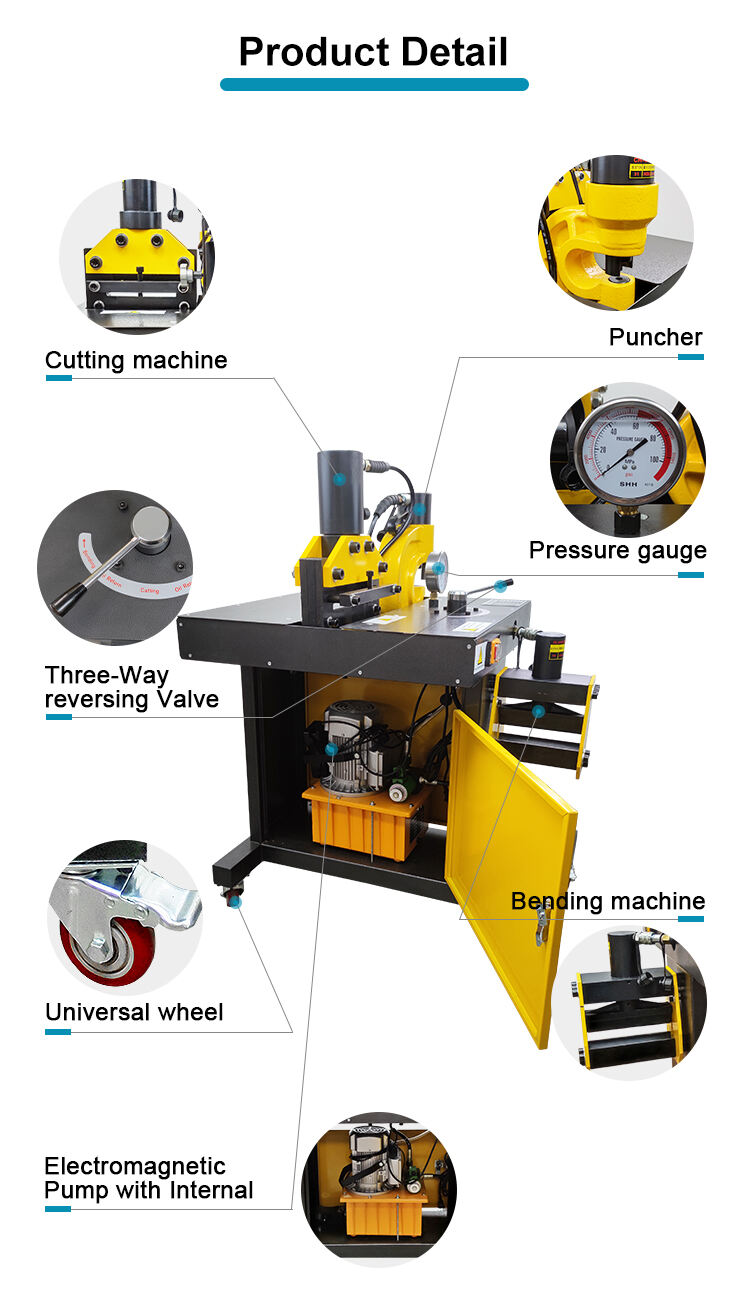

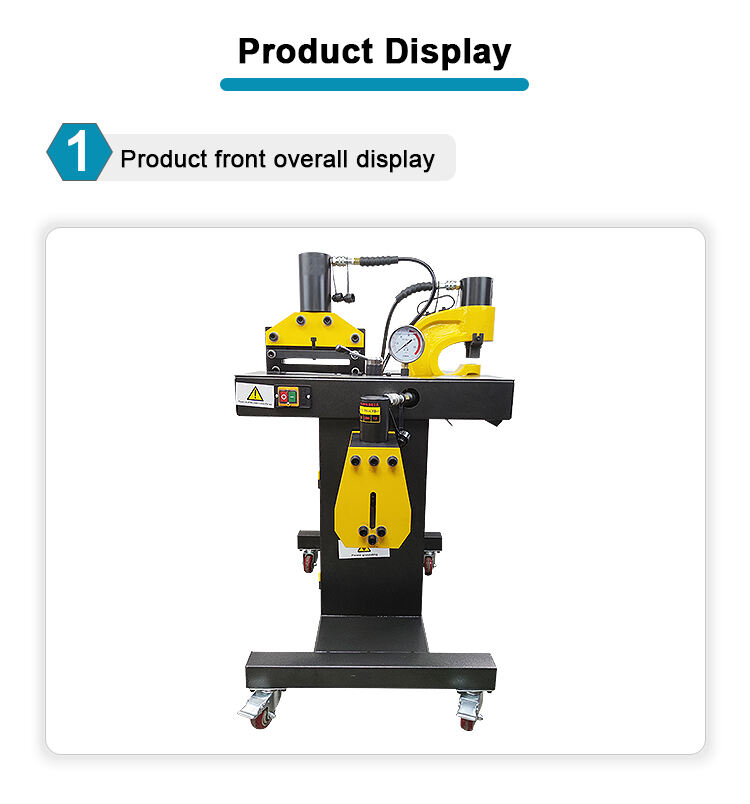

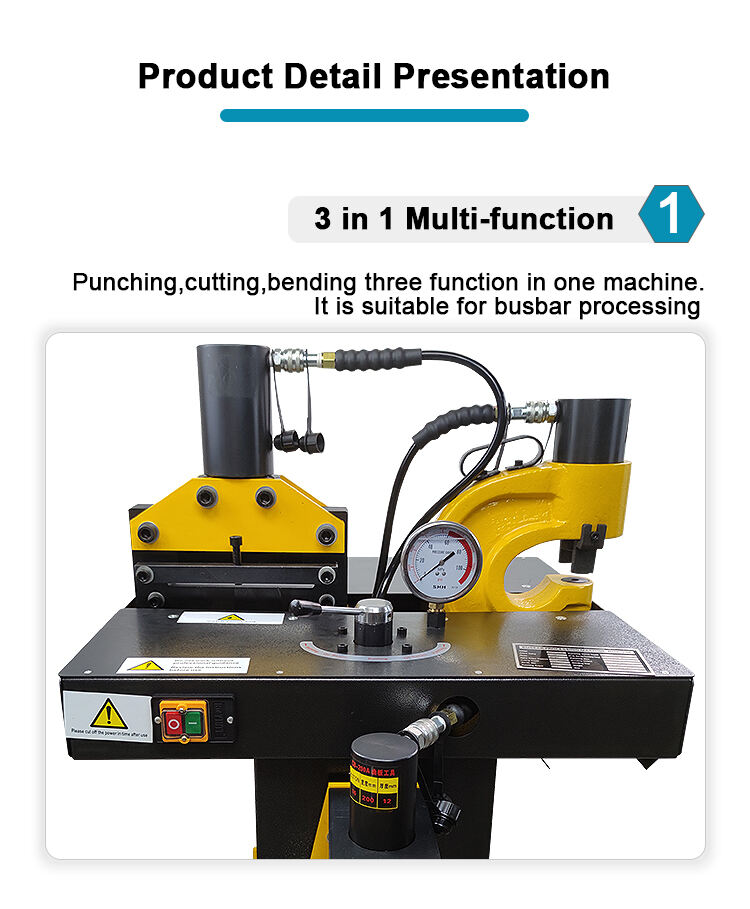

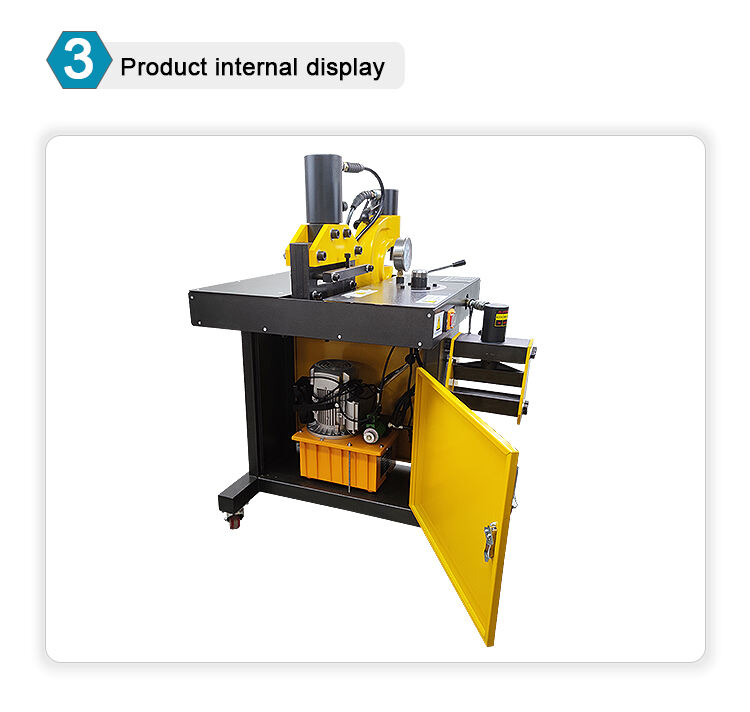

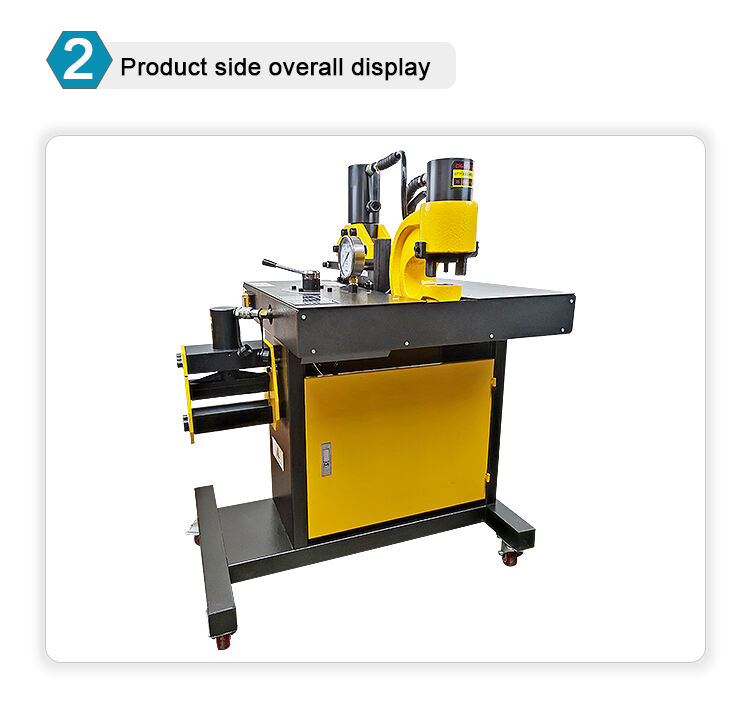

DHY-200 three-in-one hydraulic punching bending cutting busbar processing machine
|
Standard punching die: |
Φ7,Φ9,Φ10.5,Φ13.8,Φ17,Φ20.5 |
|
|
Distance from hole center to edge: |
110mm |
|
|
Model Number: |
DHY-200 |
|
|
Rated working oil pressure: |
700Kgf/cm210000Psi |
|
|
Minimum Order Quantity: |
1 set |
|
|
Price: |
US$700.00 |
|
|
Packaging Details: |
Wooden box |
|
|
Delivery Time: |
≥3 day |
|
|
Custom made: |
customizable |
|
|
Supply Ability: |
Available |
|
- Overview
- Specifications
- Recommended Products
|

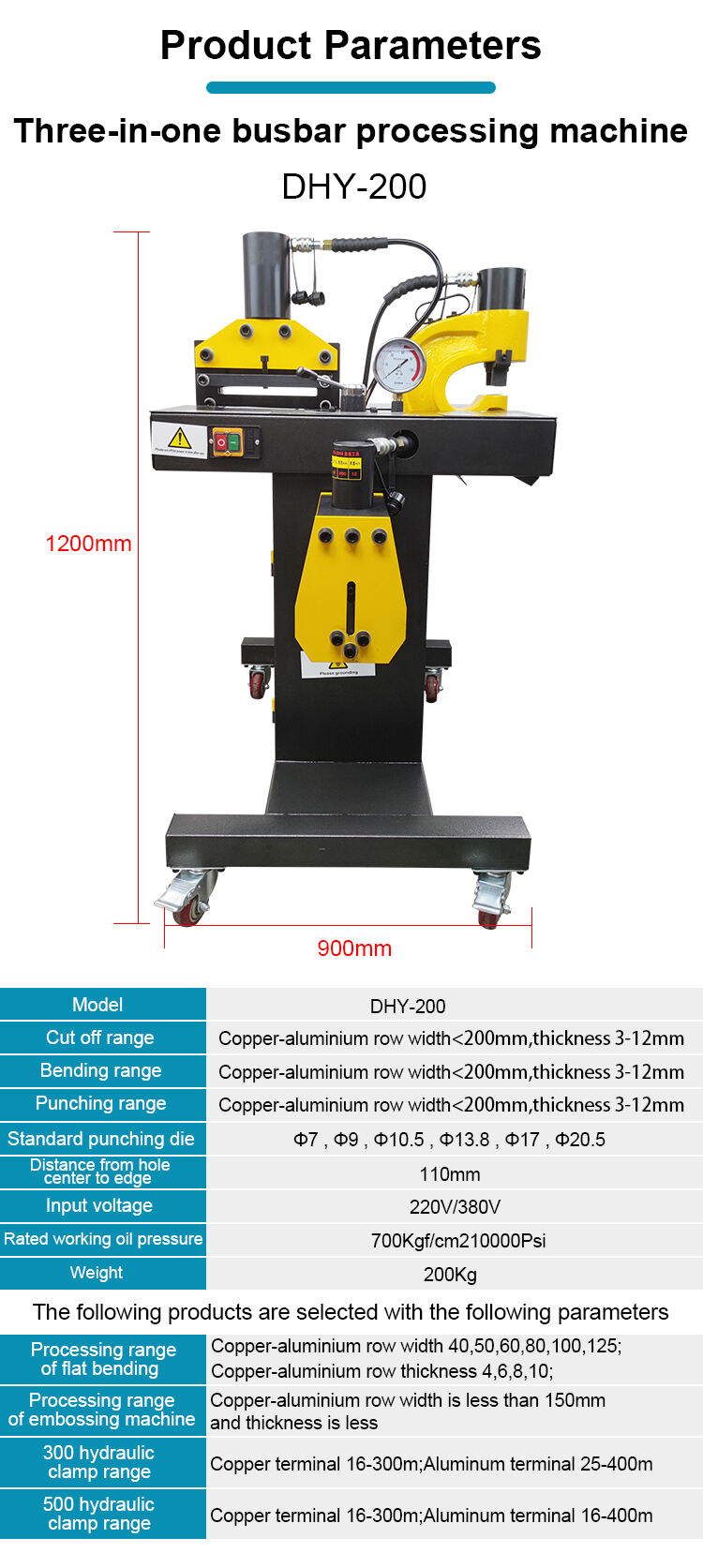

Model |
DHY-200 |
|
Cut off range |
Copper-aluminium row width<200mm,thickness 3-12mm |
|
Bending range |
Copper-aluminium row width<200mm,thickness 3-12mm |
|
Punching range |
Copper-aluminium row width<200mm,thickness 3-12mm |
|
Standard punching die |
Φ7,Φ9,Φ10.5,Φ13.8,Φ17,Φ20.5 |
|
Distance from hole center to edge |
110mm |
|
Input voltage |
220V/380V |
|

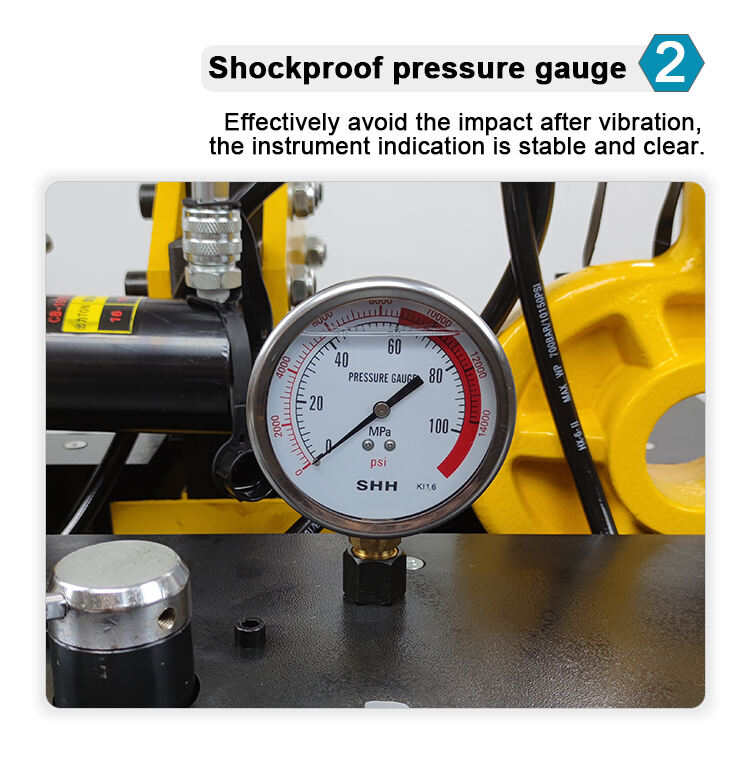

Rated working oil pressure |
700Kgf/cm210000Psi |
|
Weight |
200Kg |
|
The following products are selected with the following parameters |
|
|
Processing range of flat bending |
Copper-aluminium row width 40,50,60,80,100,125; Copper-aluminium row thickness 4,6,8,10; |
|
Processing range of embossing machine |
Copper-aluminium row width is less than 150mmand thickness is less |
|
300 hydraulic clamp range |
Copper terminal 16-300m;Aluminum terminal 25-400m |
|
500 hydraulic clamp range |
Copper terminal 16-300m;Aluminum terminal 16-400m |
