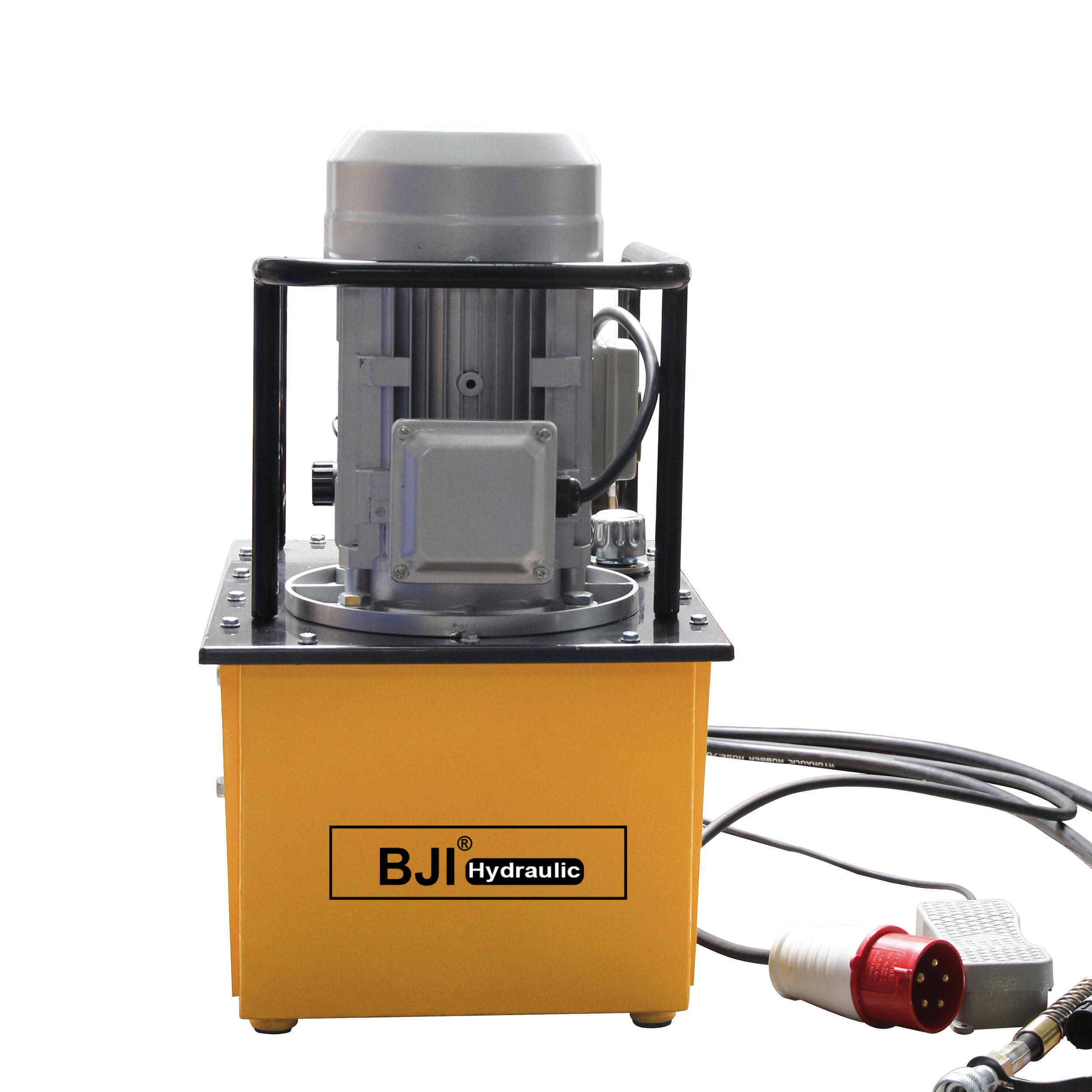

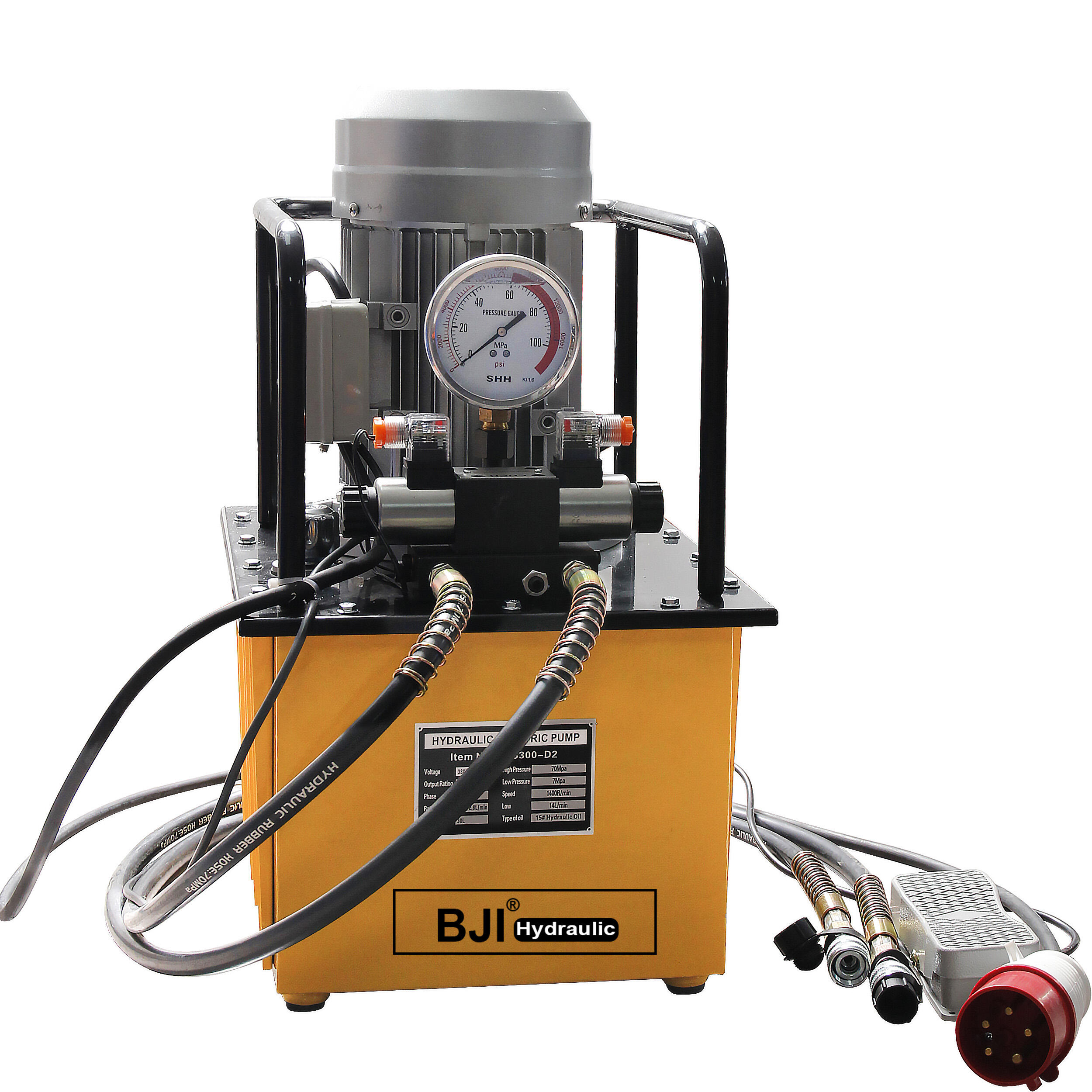

DB300-D2 3KW Double-Acting High Power Electromagnetic Electric Pump Metal Magnetic Drive Pump Oils 60Hz Application

db300 d2 3kw double acting high power electromagnetic electric pump metal magnetic drive pump oils 60hz application-1

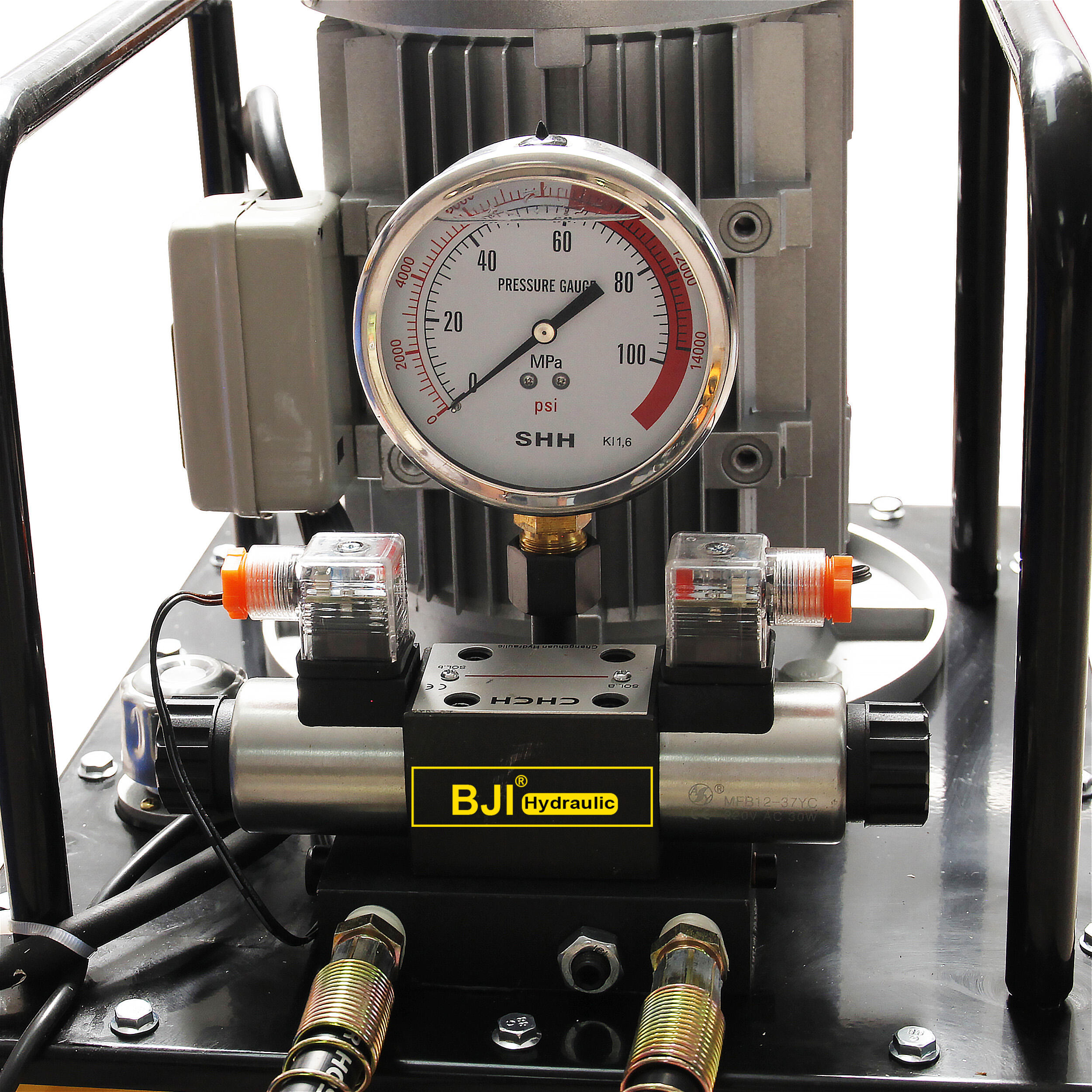

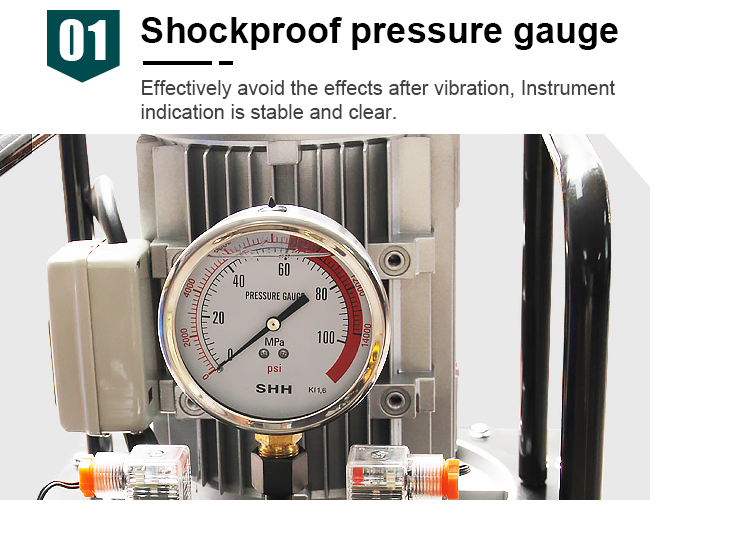

Shockproof pressure gauge Effectively avoid the effects after vibration, Instrument indication is stable and clear.

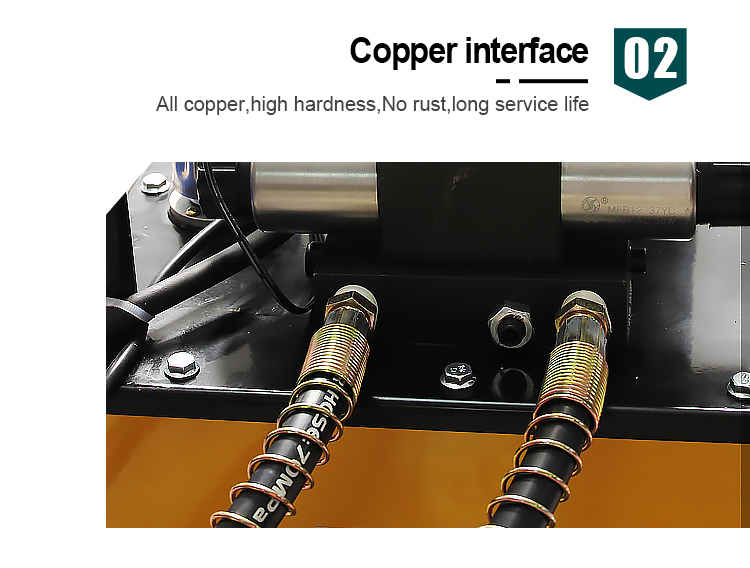

Copper interface All copper,high hardness,No rust,long service life

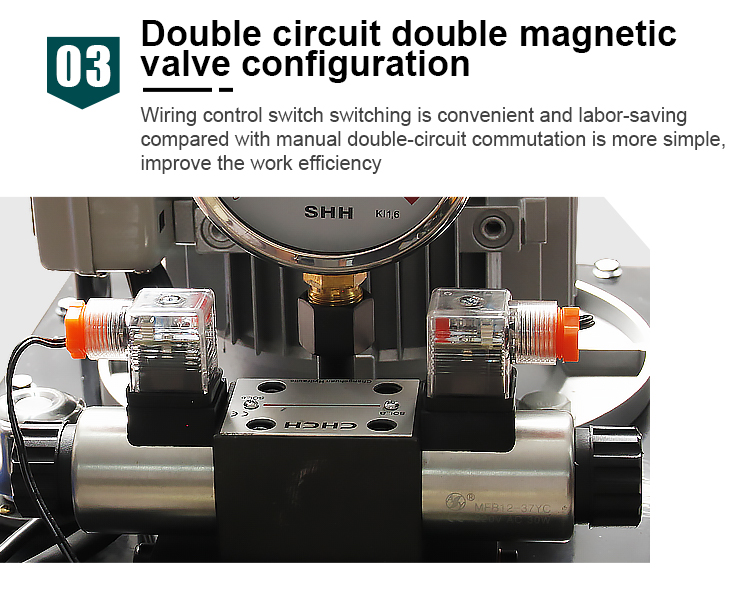

Double circuit double magneticvalve configuration Wiring control switch switching is convenient and labor-saving compared with manual double-circuit commutation is more simple improve the work efficiency

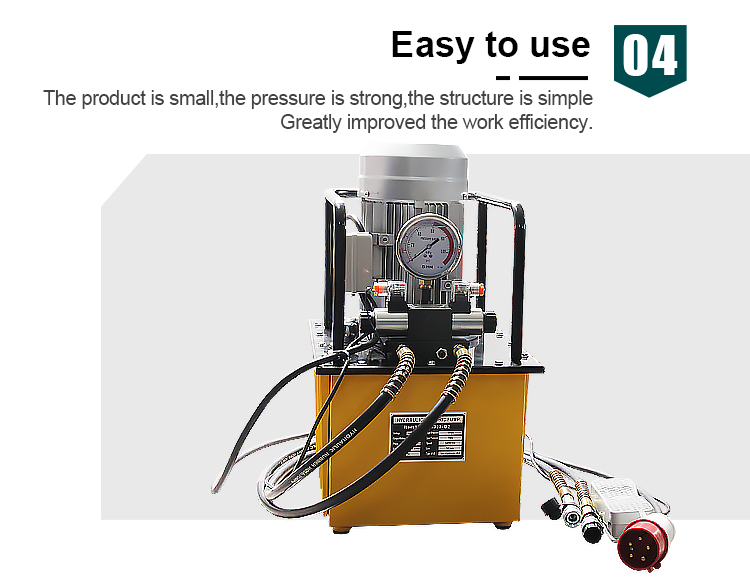

Easy to use The product is small,the pressure is strong,the structure is simple Greatly improved the work efficiency.

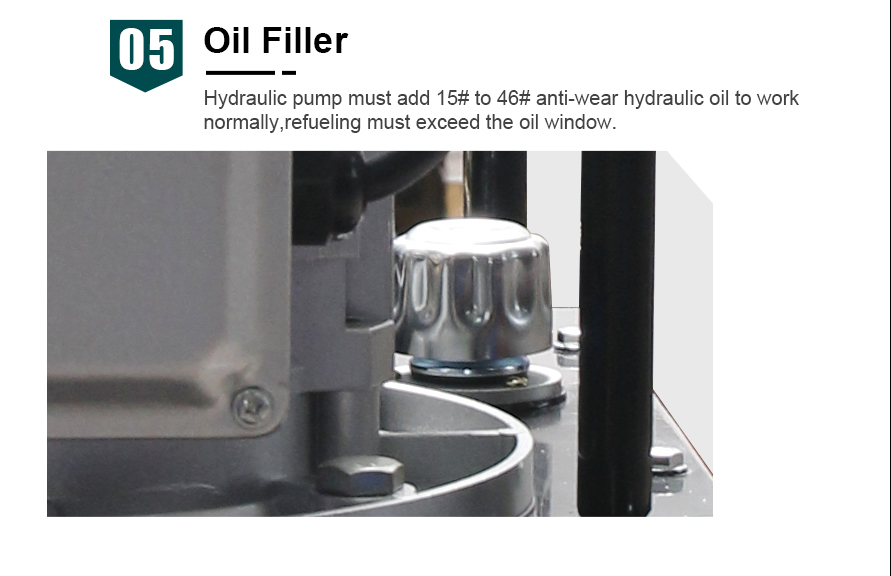

Oil Filler Hydraulic pump must add 15# to 46# anti-wear hydraulic oil to work normally,refueling must exceed the oil window.

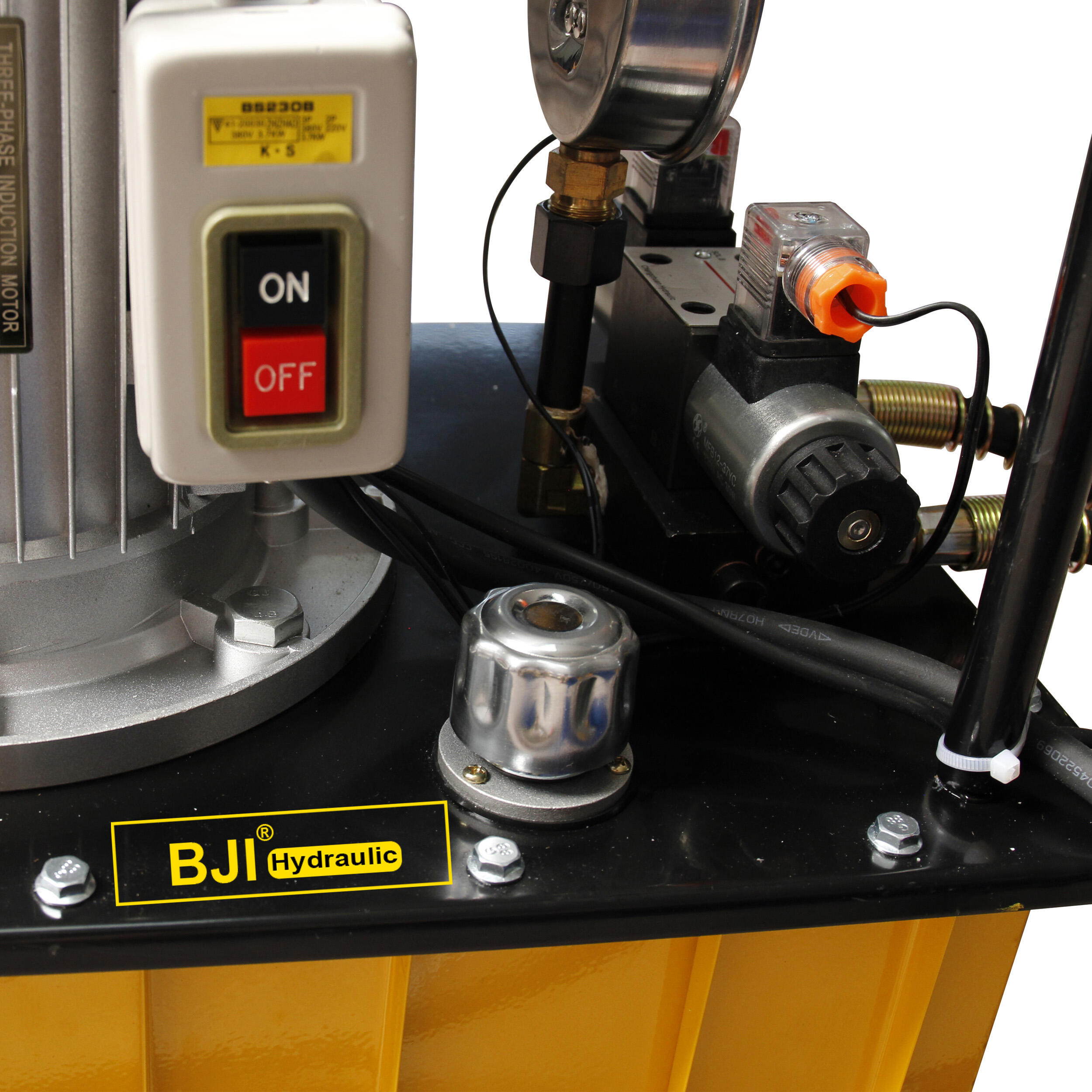

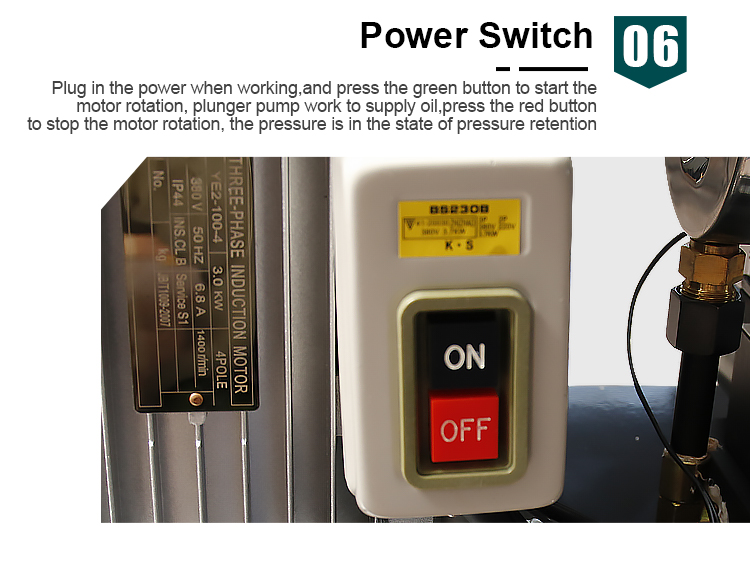

Power Switch Plug in the power when working,and press the green button to start themotor rotation, plunger pump work to supply oil,press the red buttonto stop the motor rotation, the pressure is in the state of pressure retention

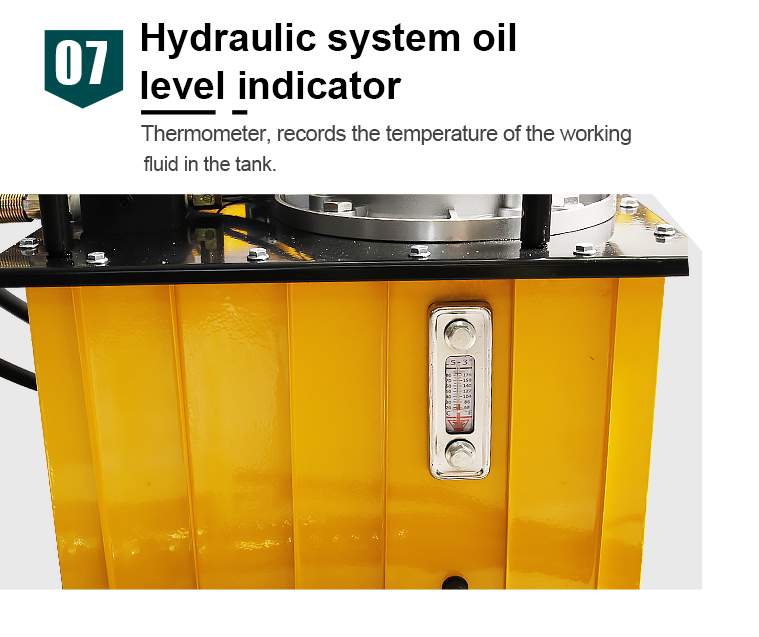

Hydraulic system oilevel indicator Thermometer, records the temperature of the working fluid in the tank.

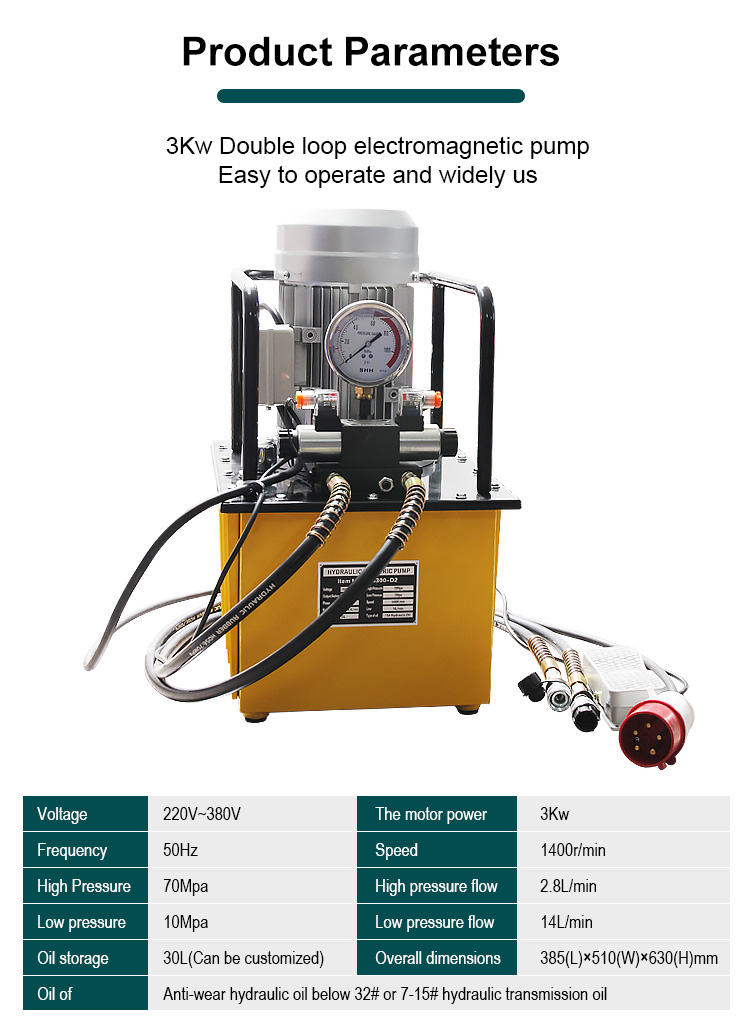

Voltage	220V-380V	The motor power	3Kw
Frequency	50Hz	Speed	1400r/min
High Pressure	70Mpa	High pressure flow	2.8L/min
Low pressure	10Mpa	Low pressure flow	14L/min
Oil storage	30L(Can be customized)	Overall dimensions	385(L)x510(W)x630(H)mm
Oil of	Anti-wear hydraulic oil below 32# or 7-15# hydraulic transmission oil
