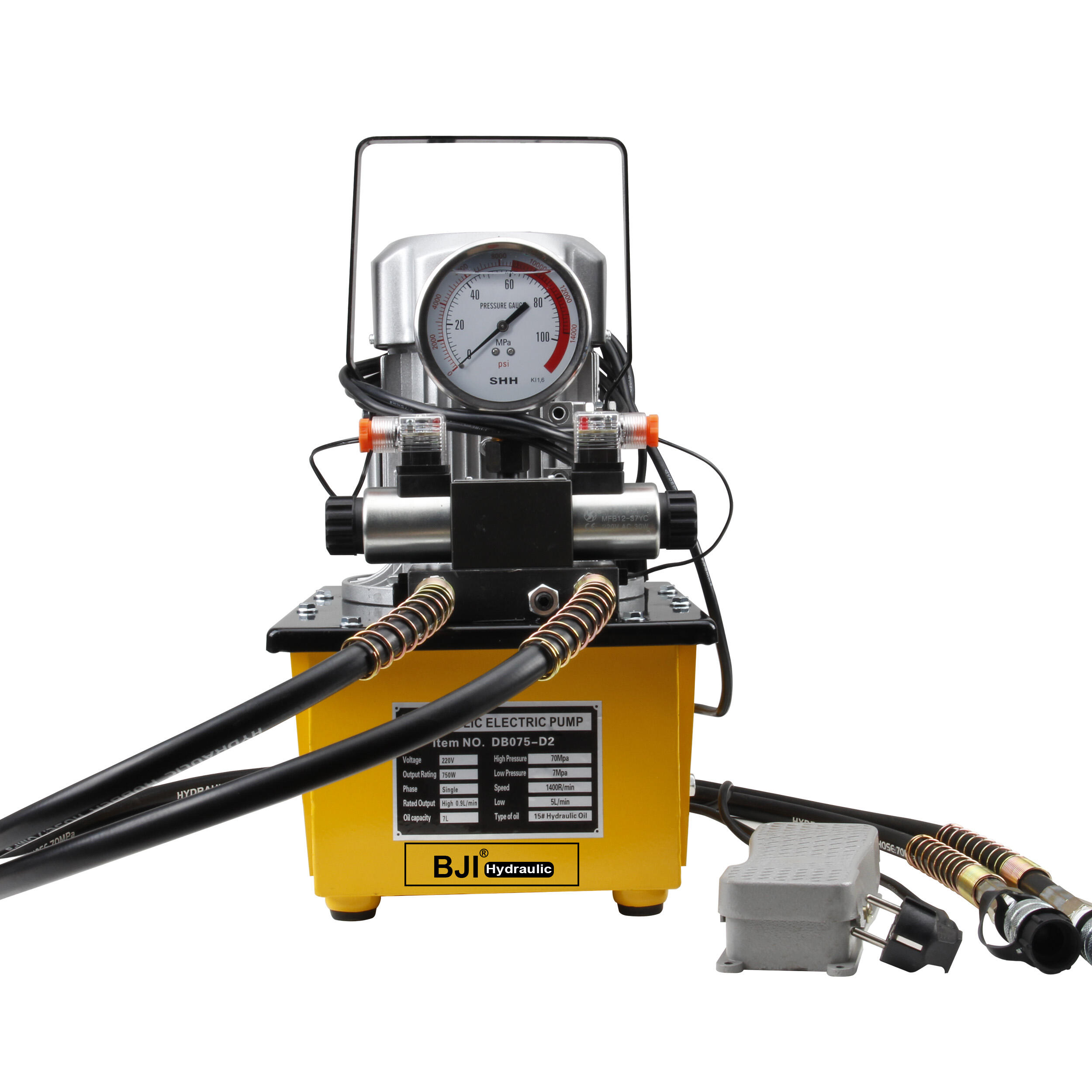

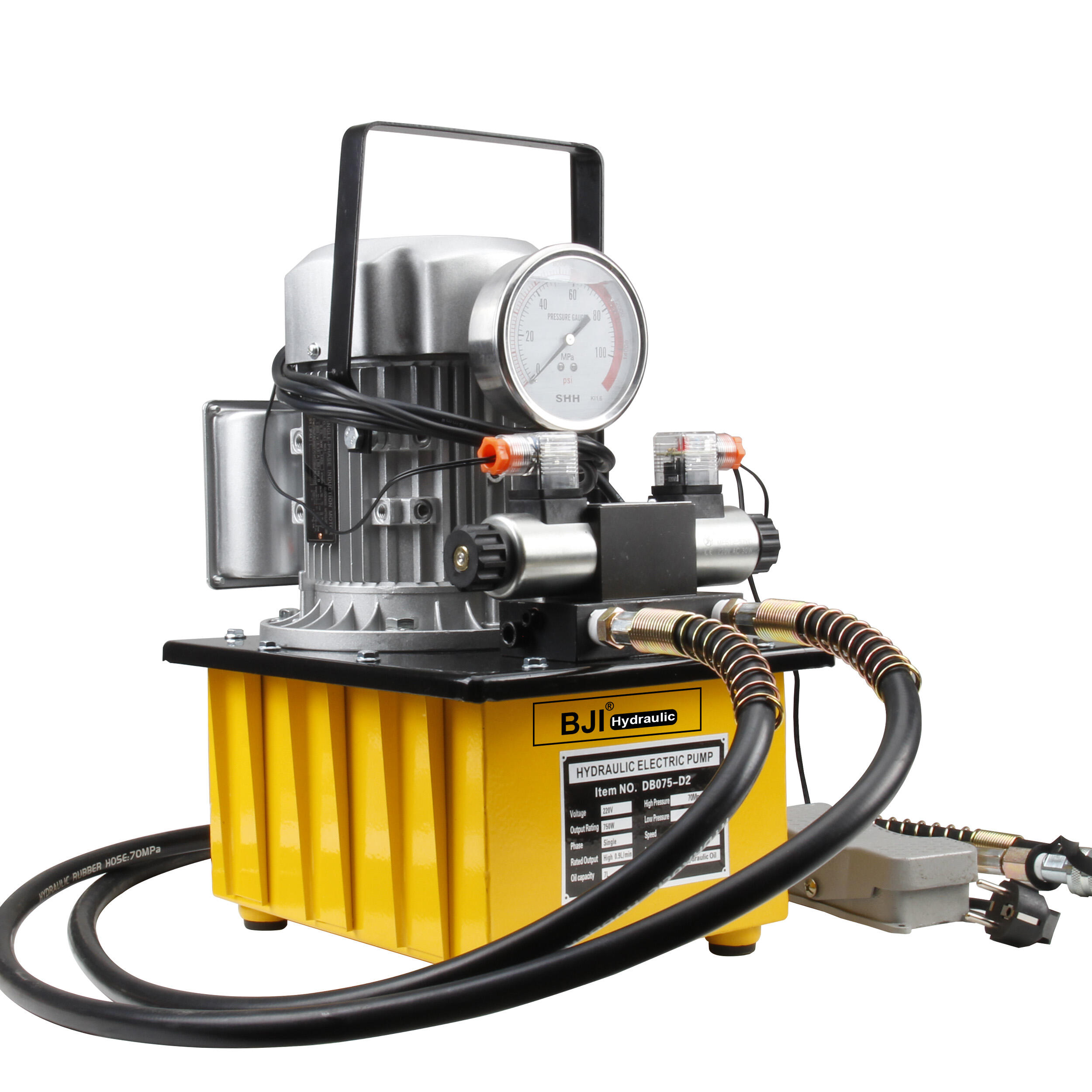

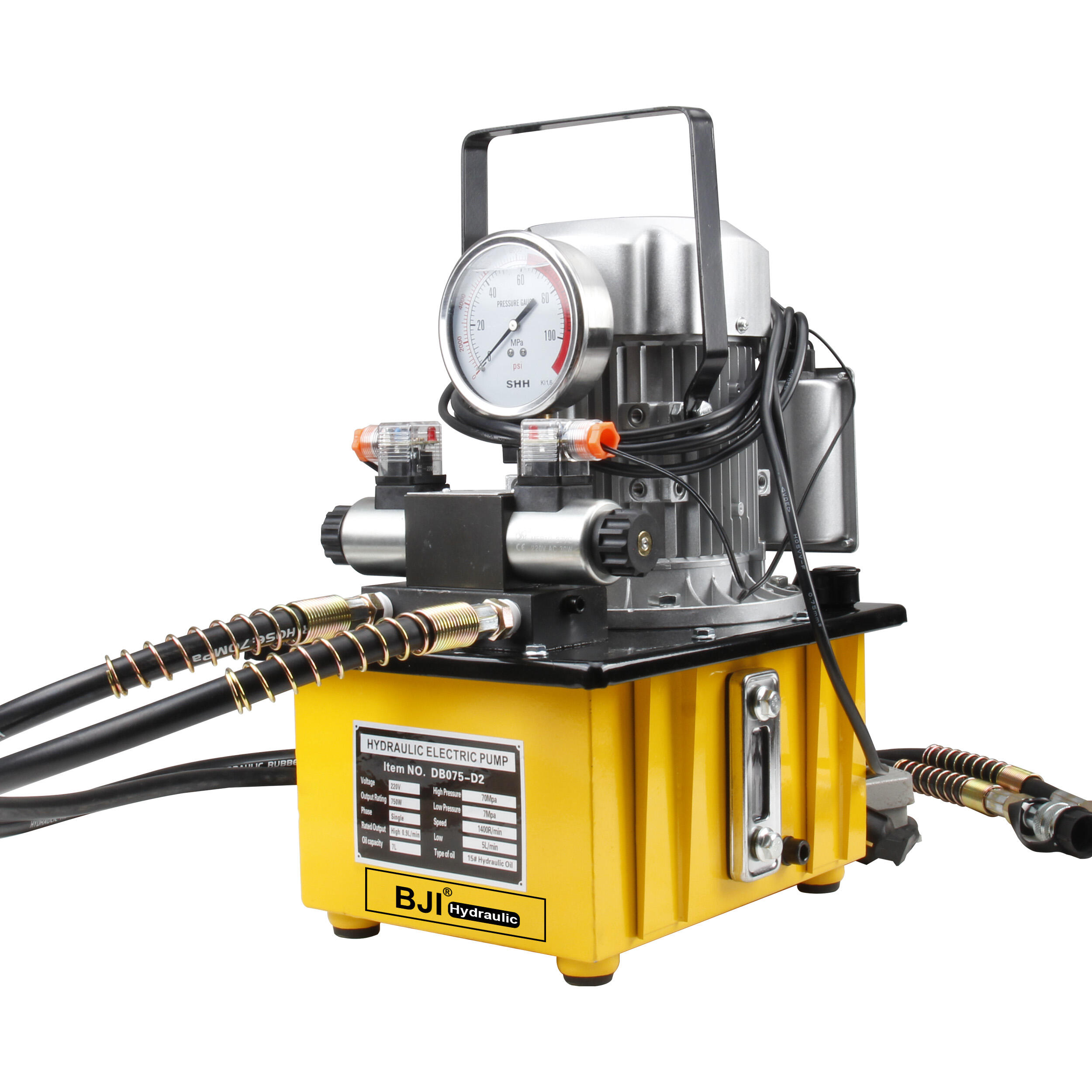

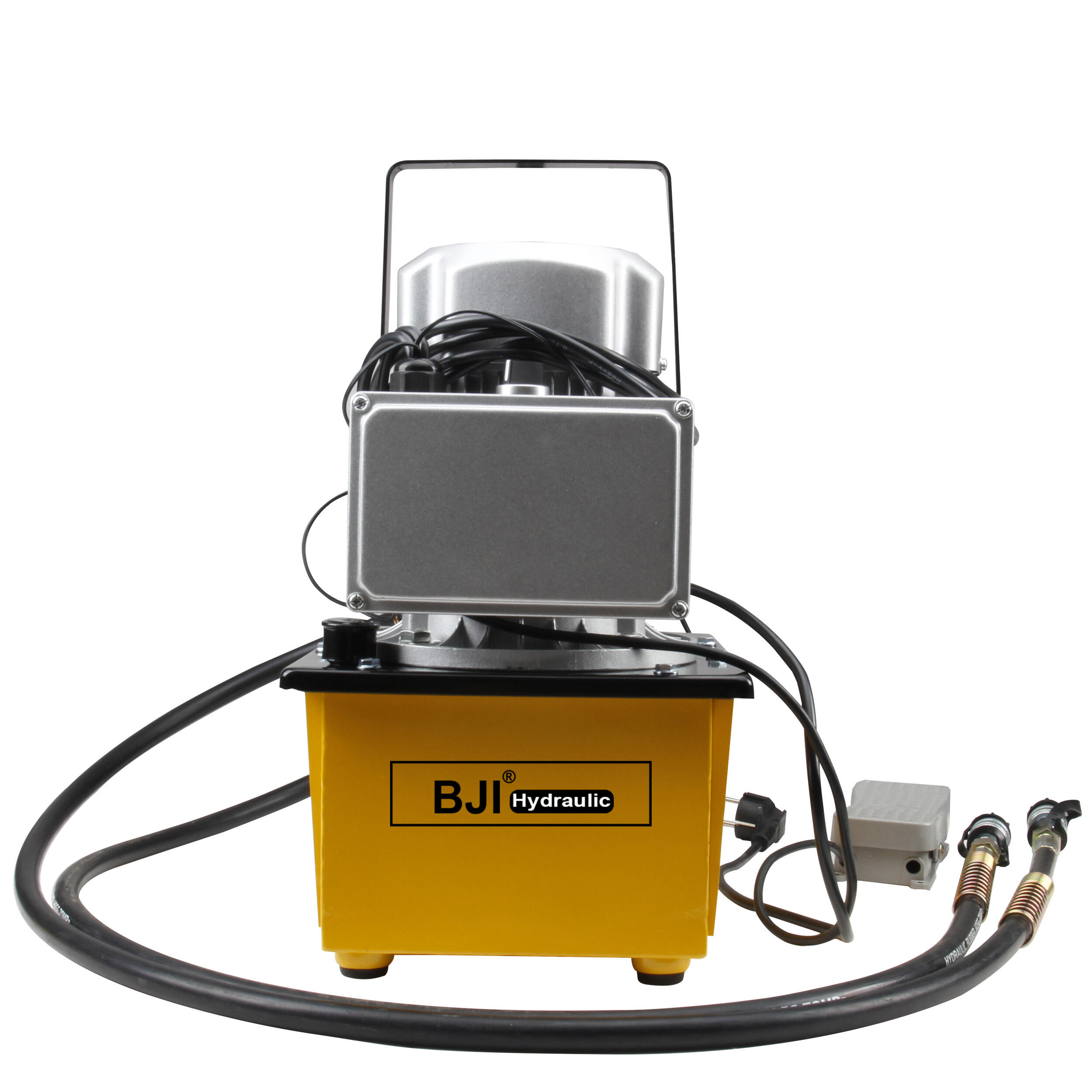

DB075-D2 Double Action Pedal Switch Control 220V / 380V 700 Bar Electric Hydraulic Oil Pump
|
High Pressure: |
70Mpa |
|
Motor Power: |
0.75KW |
|
Model Number: |
DB075-D2 |
|
Oil Reserves: |
7L |
|
Minimum Order Quantity: |
1 set |
|
Price: |
US$245.00 |
|
Packaging Details: |
Wooden box |
|
Delivery Time: |
≥3 day |
|
Payment Terms: |
customizable |
|
Supply Ability: |
Available |
- Overview
- Description
- Specifications
- Recommended Products

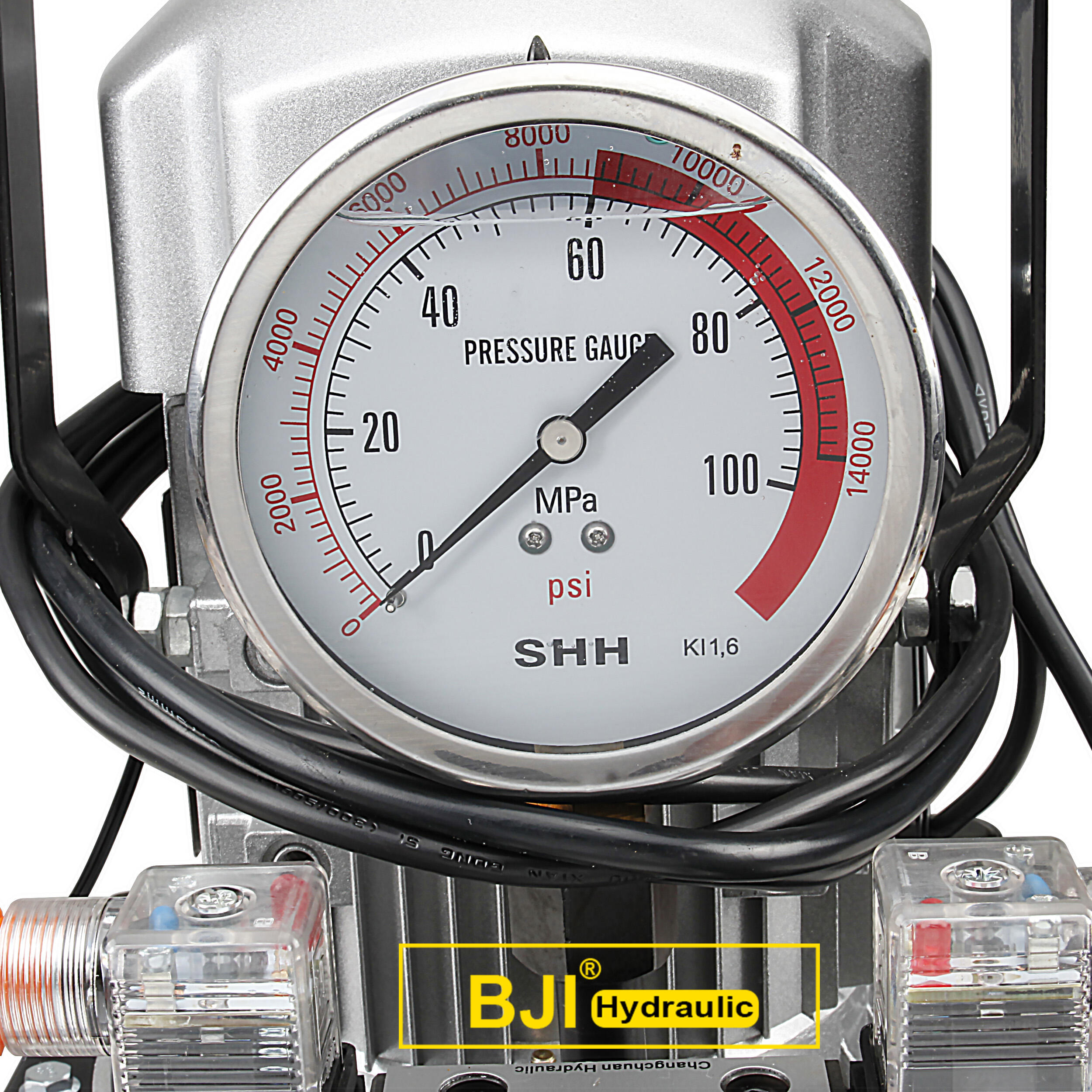

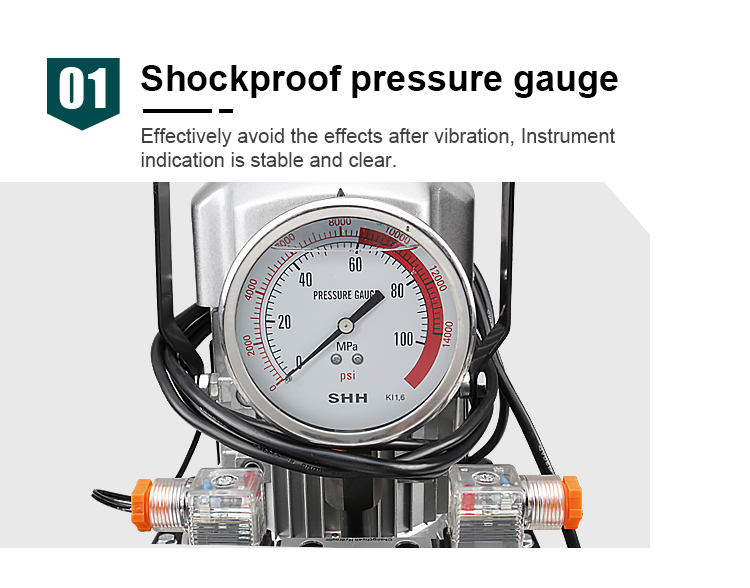

- Shockproof pressure gauge Effectively avoid the effects after vibration, Instrument indication is stable and clear.

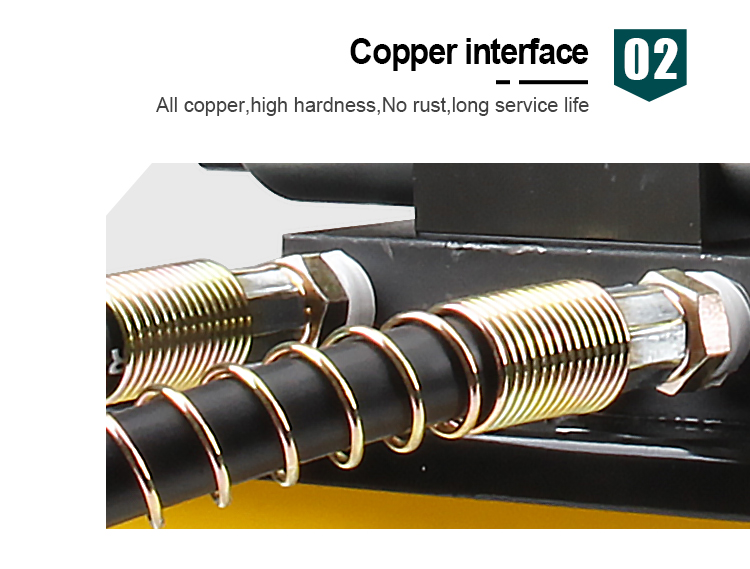

- Copper interface All copper,high hardness,No rust,long service life

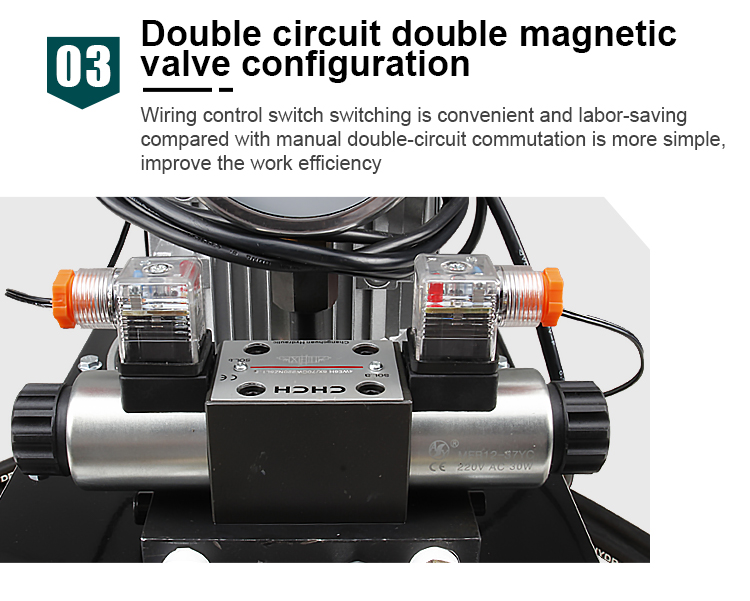

- Double circuit double magneticvalve configuration Wiring control switch switching is convenient and labor-saving compared with manual double-circuit commutation is more simple improve the work efficiency

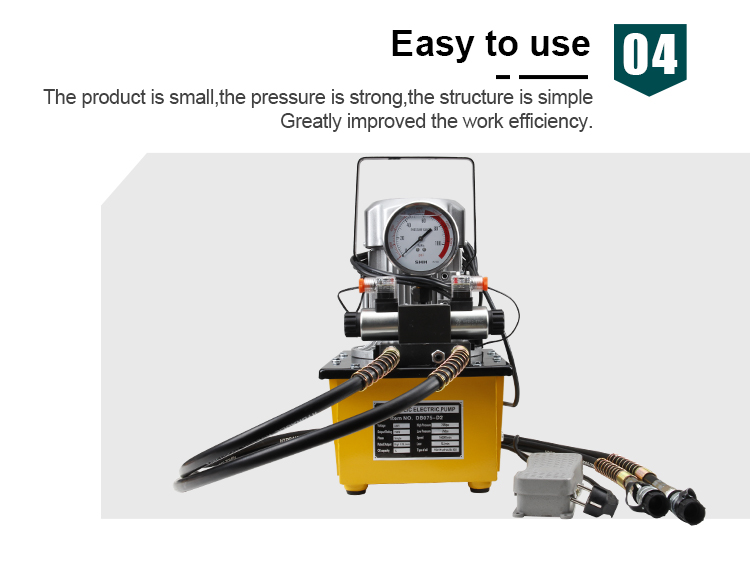

- Easy to use The product is small,the pressure is strong,the structure is simple Greatly improved the work efficiency.

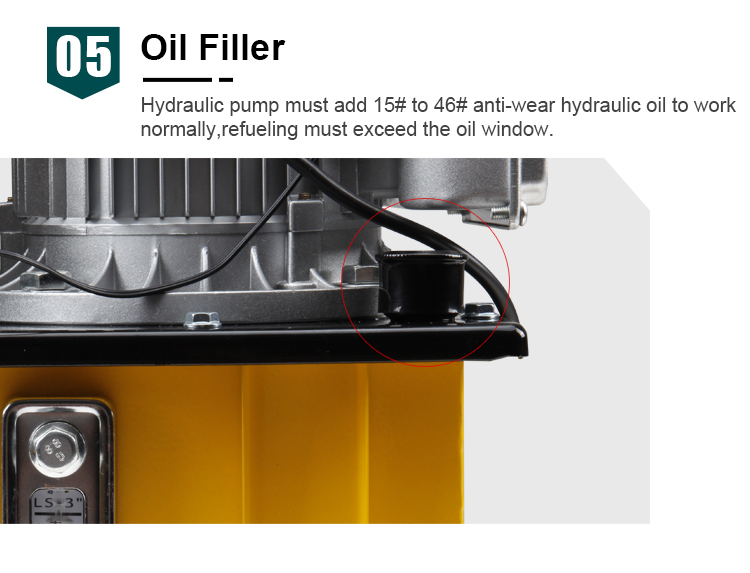

- Oil Filler Hydraulic pump must add 15# to 46# anti-wear hydraulic oil to work normally,refueling must exceed the oil window.

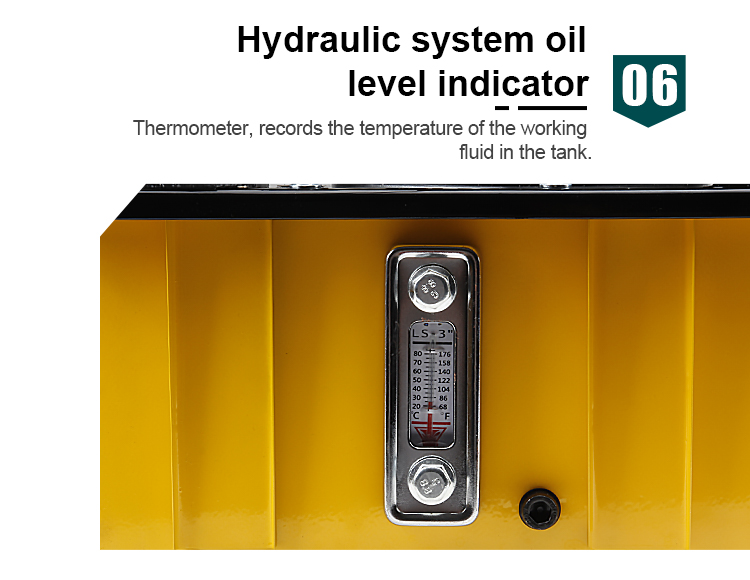

- Hydraulic system oil level indicator Thermometer, records the temperature of the working fluid in the tank.

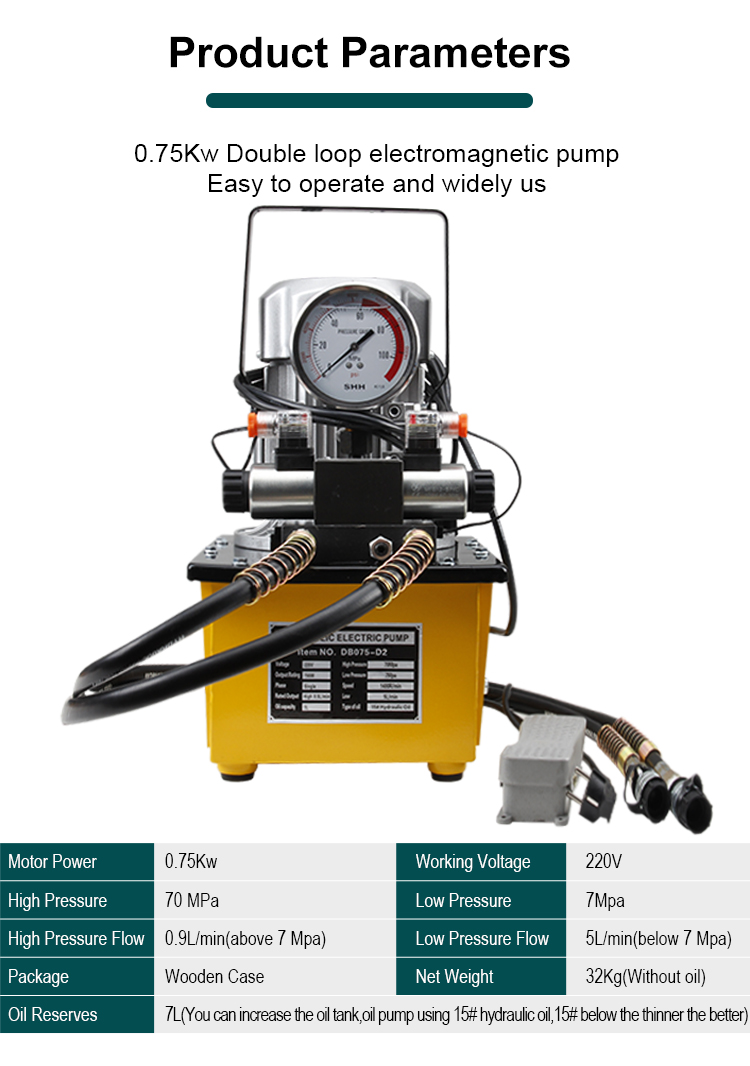

| Motor Power | 0.75Kw | Working Voltage | 220V |
| High Pressure | 70 MPa | Low Pressure | 7Mpa |
| High Pressure Flow | 0 .9L/min(above 7 Mpa) | Low Pressure Flow | 5L/min(below 7 Mpa) |
| Package | Wooden Case | Net Weight | 32Kg(Without oil) |
| Oil Reserves | 7L(You can increase the oi tank,oil pump using 15# hydraulic oi, 15#f below the thinner the better) | ||
