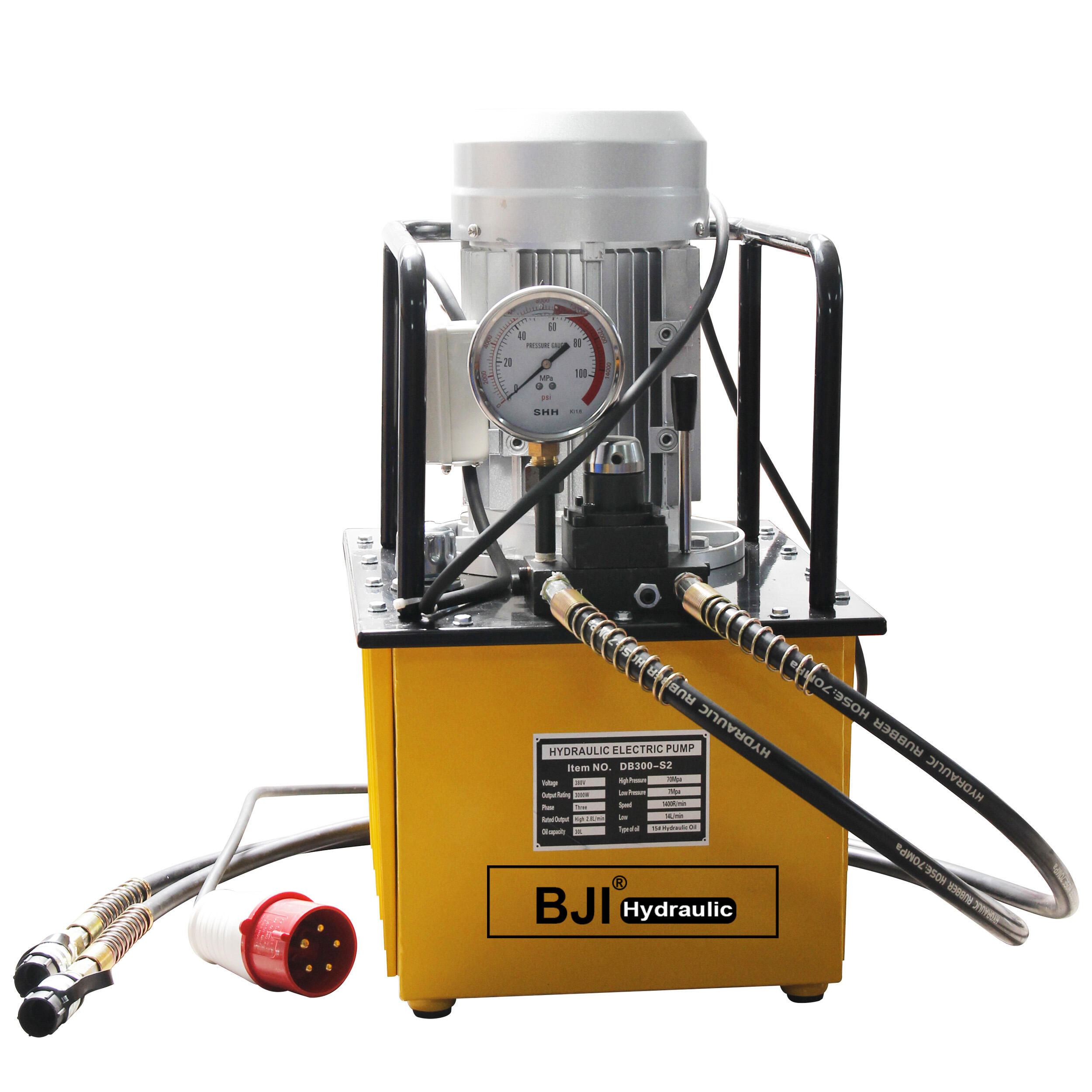

Hydraulic Electric Pump Solenoid Valve 700 Bar DB300-S2
|
Minimum Order Quantity: |
1 set |
|
Price: |
US$410.00 |
|
Packaging Details: |
Wooden box |
|
Delivery Time: |
≥3 day |
|
Payment Terms: |
customizable |
|
Supply Ability: |
Available |
|
High Pressure: |
70Mpa |
|
Speed: |
1400r/min |
|
Model Number: |
DB300-S2 |
|
frequency: |
50Hz |
- Overview
- Description
- Specifications
- Recommended Products

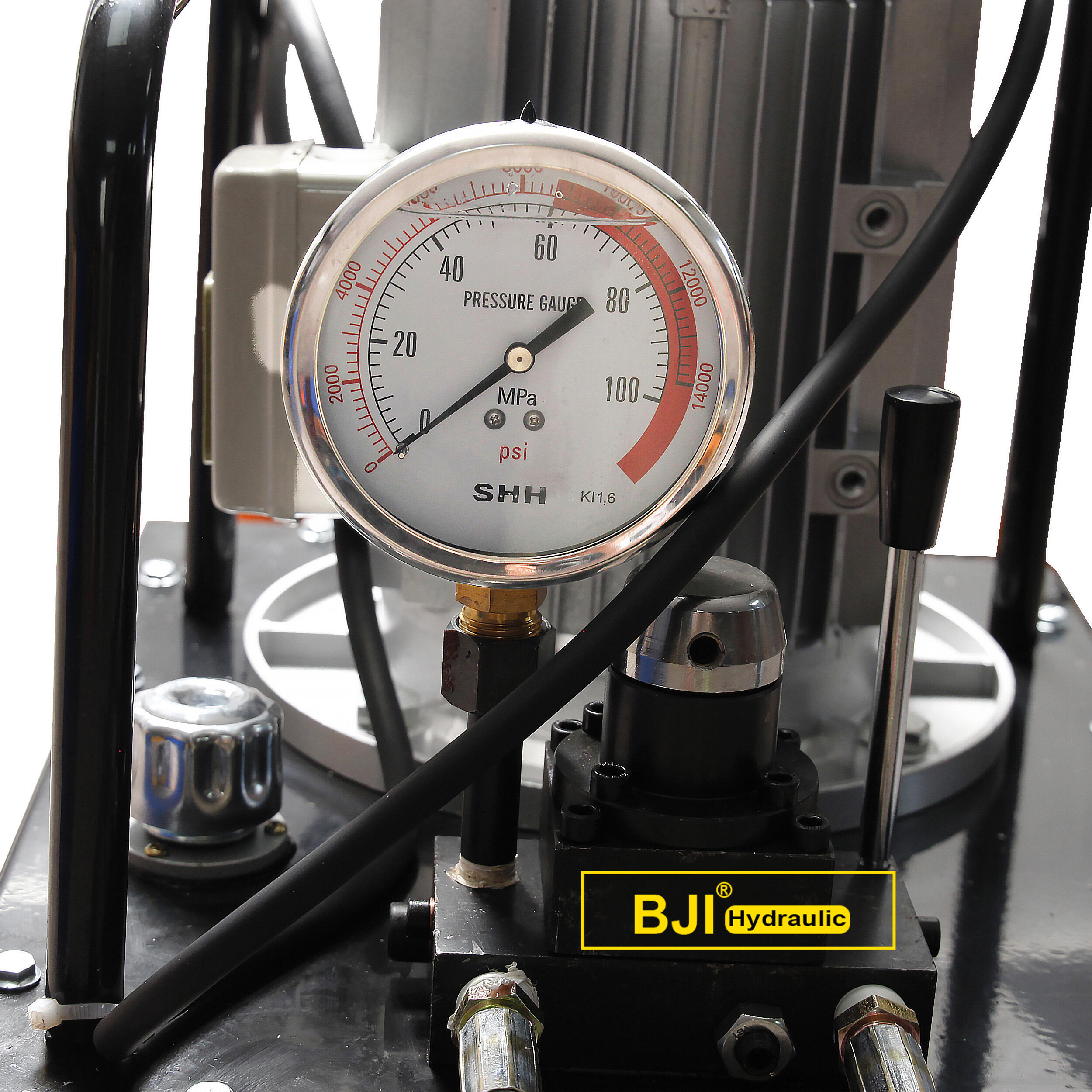

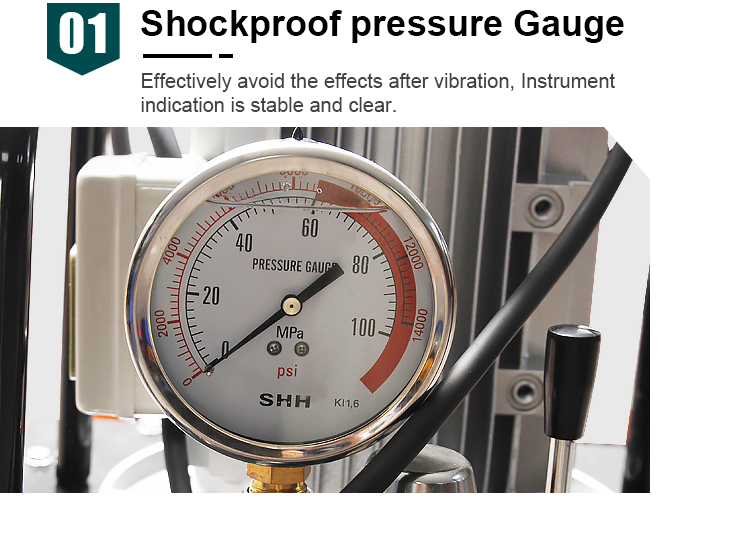

- Shockproof pressure Gauge Effectively avoid the effects after vibration, Instrument indication is stable and clear.

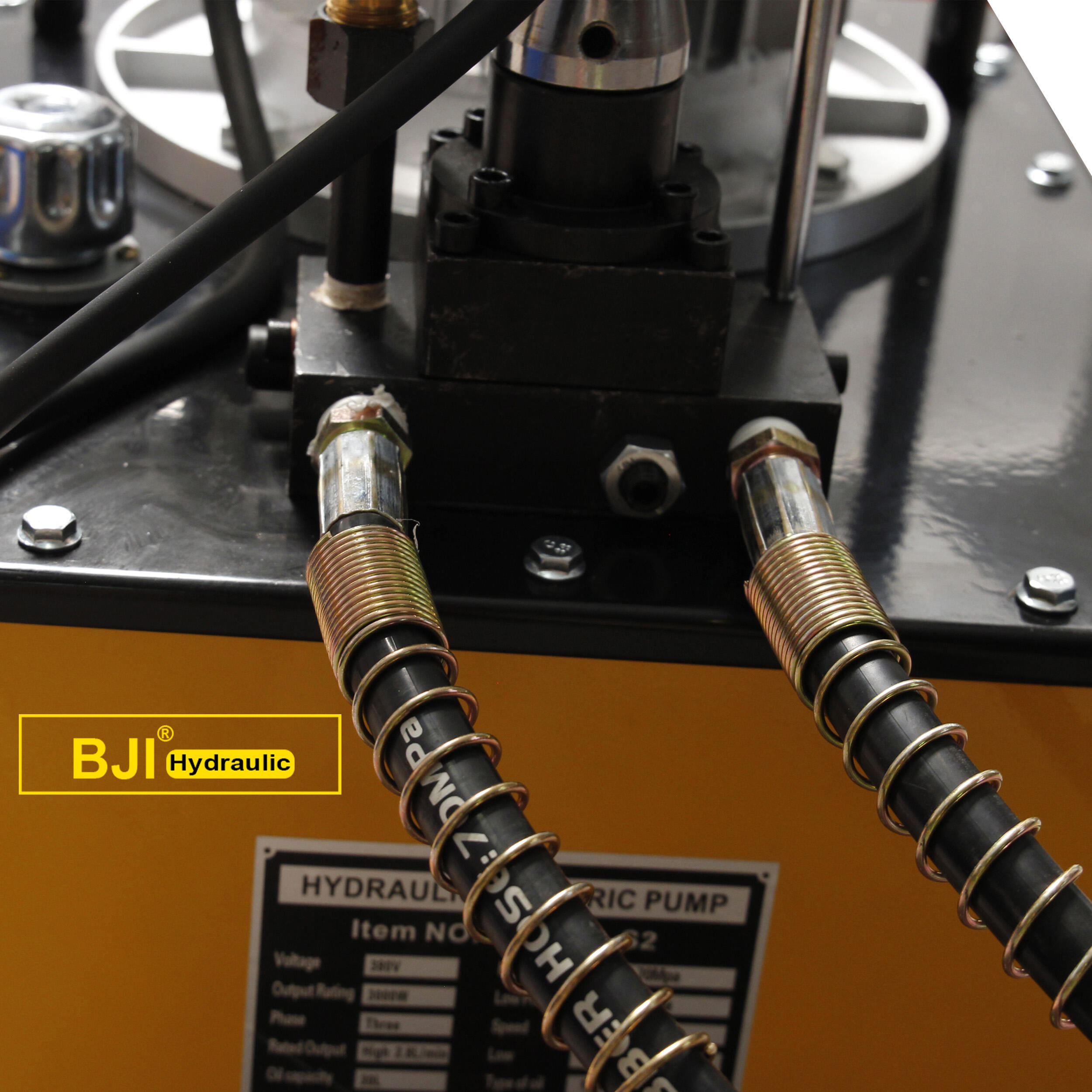

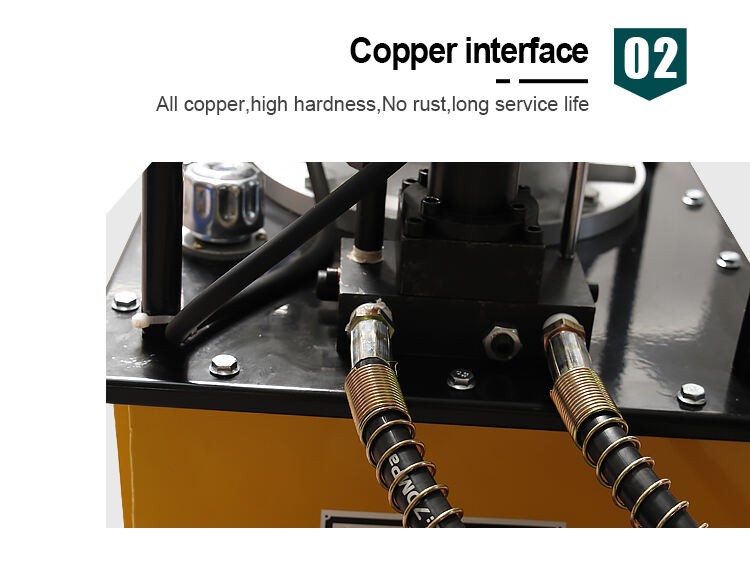

- Copper interface All copper,high hardness,No rust,long service life

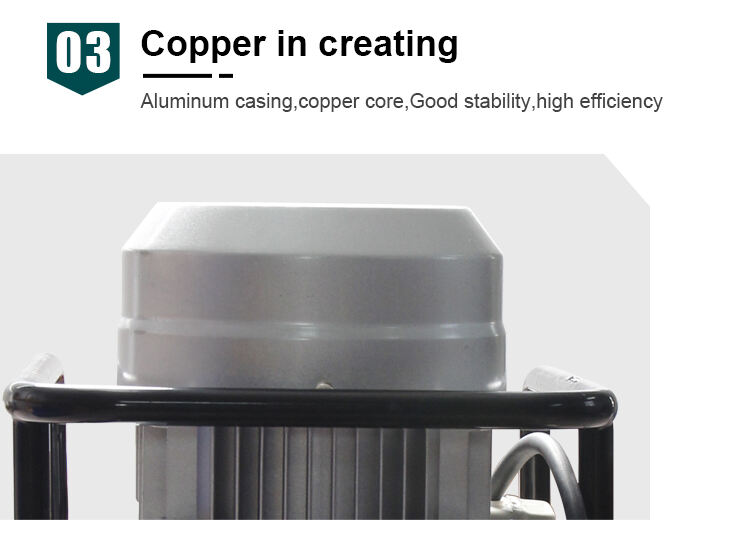

- Copper in creating Aluminum casing,copper core,Good stability,high efficiency

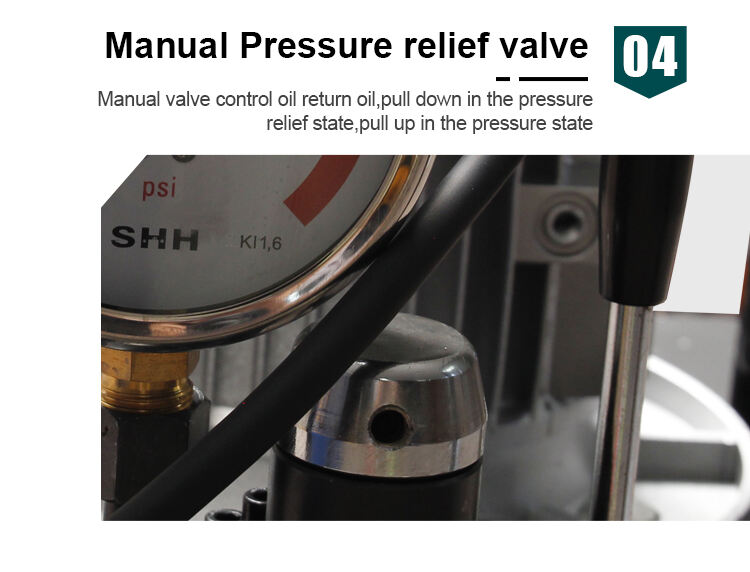

- Manual Pressure relief valve Manual valve control oil return oil,pull down in the pressure relief state,pull up in the pressure state

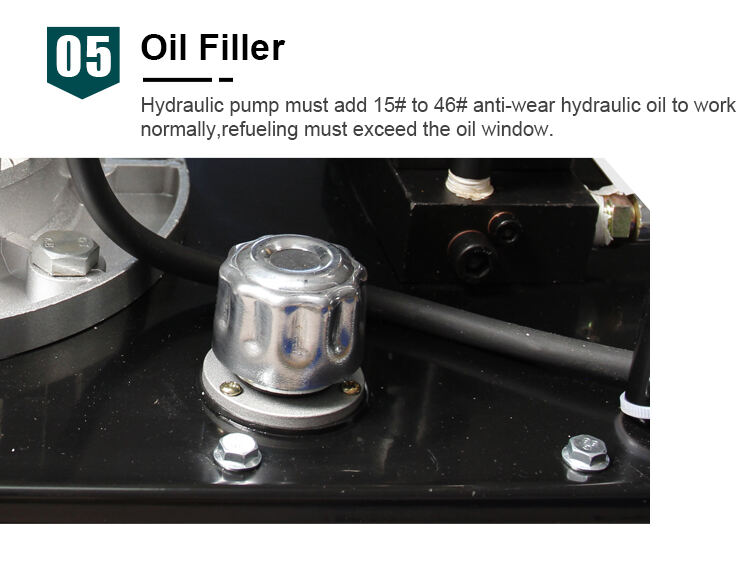

- Oil Filler Hydraulic pump must add 15# to 46# anti-wear hydraulic oil to work normally,refueling must exceed the oil window.

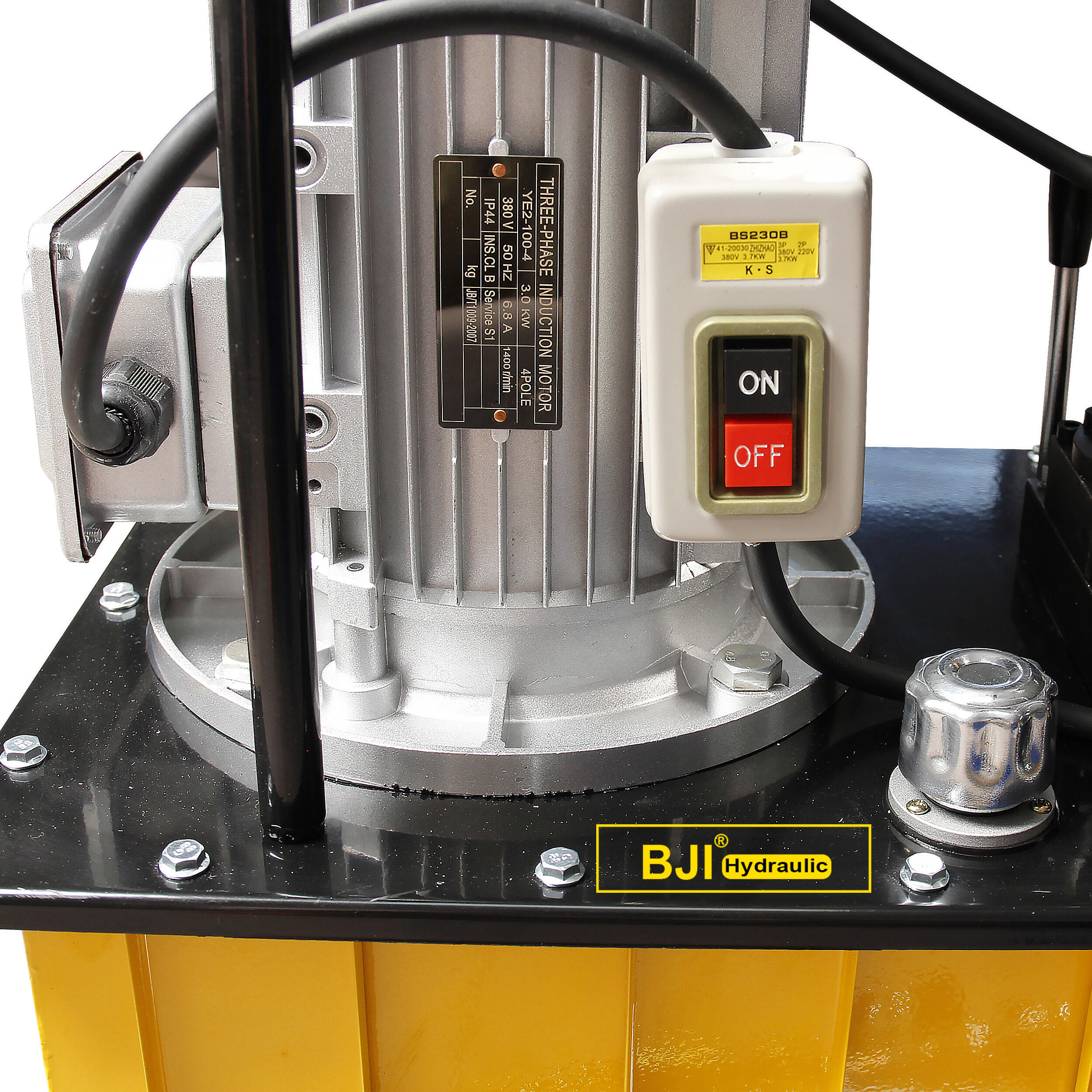

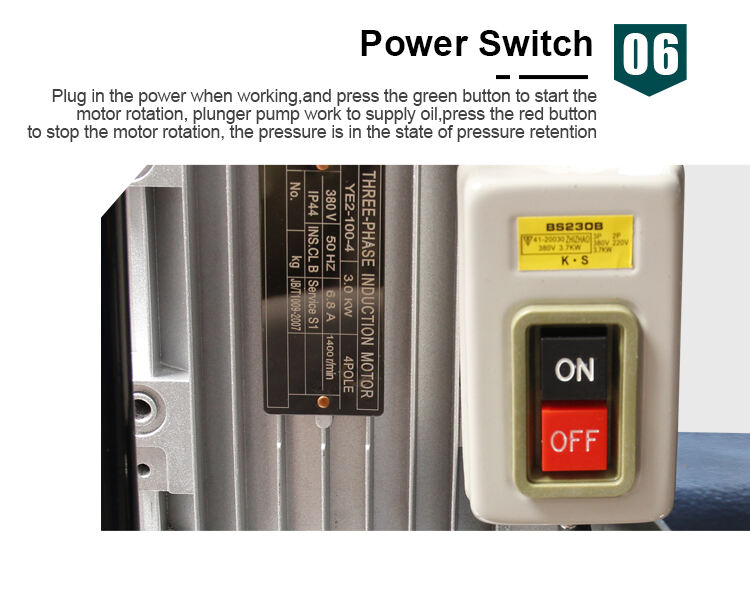

- Power Switch Plug in the power when working,and press the green button to start the motor rotation, plunger pump work to supply oil,press the red button to stop the motor rotation, the pressure is in the state of pressure retention

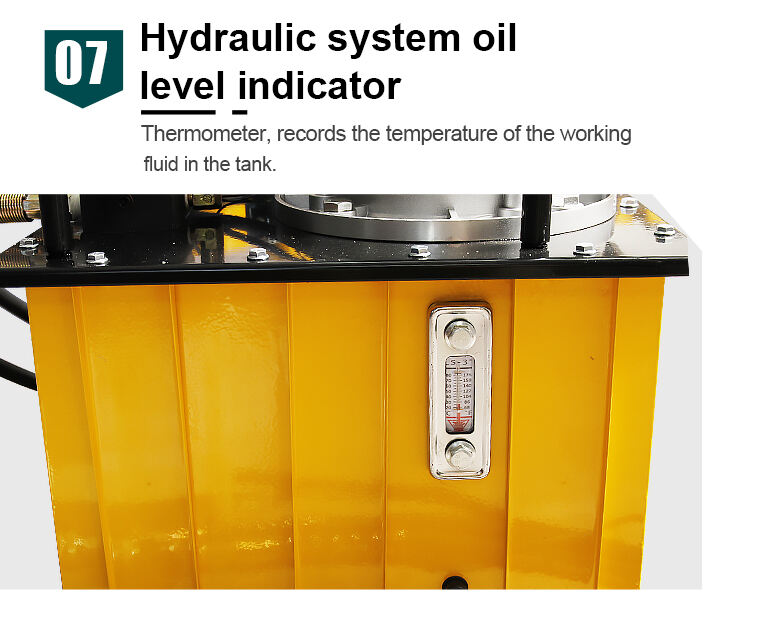

- Hydraulic system oillevel indicator Thermometer,records the temperature of the working fluid in the tank.

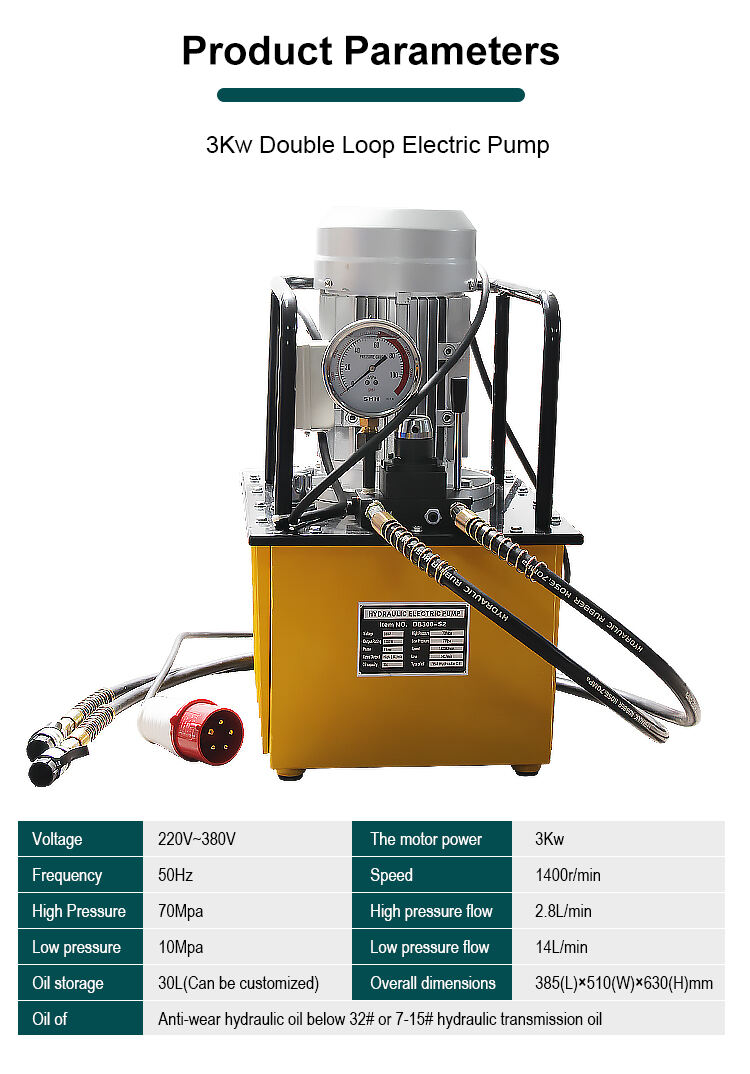

| Voltage | 220V~380V | The motor power | 3Kw |
| Frequency | 50Hz | Speed | 1400r/min |
| High Pressure | 70Mpa | High pressure flow | 2 .8L/min |
| Low pressure | 10Mpa | Low pressure flow | 14L/min |
| Oil storage | 30L(Can be customized) | Overall dimensions | 385(L)x510(W)x630(H)mm |
| Oil of | Anti-wear hydraulic oil below 32# or 7-15# hydraulic transmission oil | ||
