High Pressure: |
70Mpa |
Speed: |
1400r/min |
Model Number: |
DB150-S2 |
voltage: |
110v-380v |
Minimum Order Quantity: |
1 set |
Price: |
US$275.00 |
Packaging Details: |
Wooden box |
Delivery Time: |
≥3 day |
Payment Terms: |
customizable |
Supply Ability: |
Available |

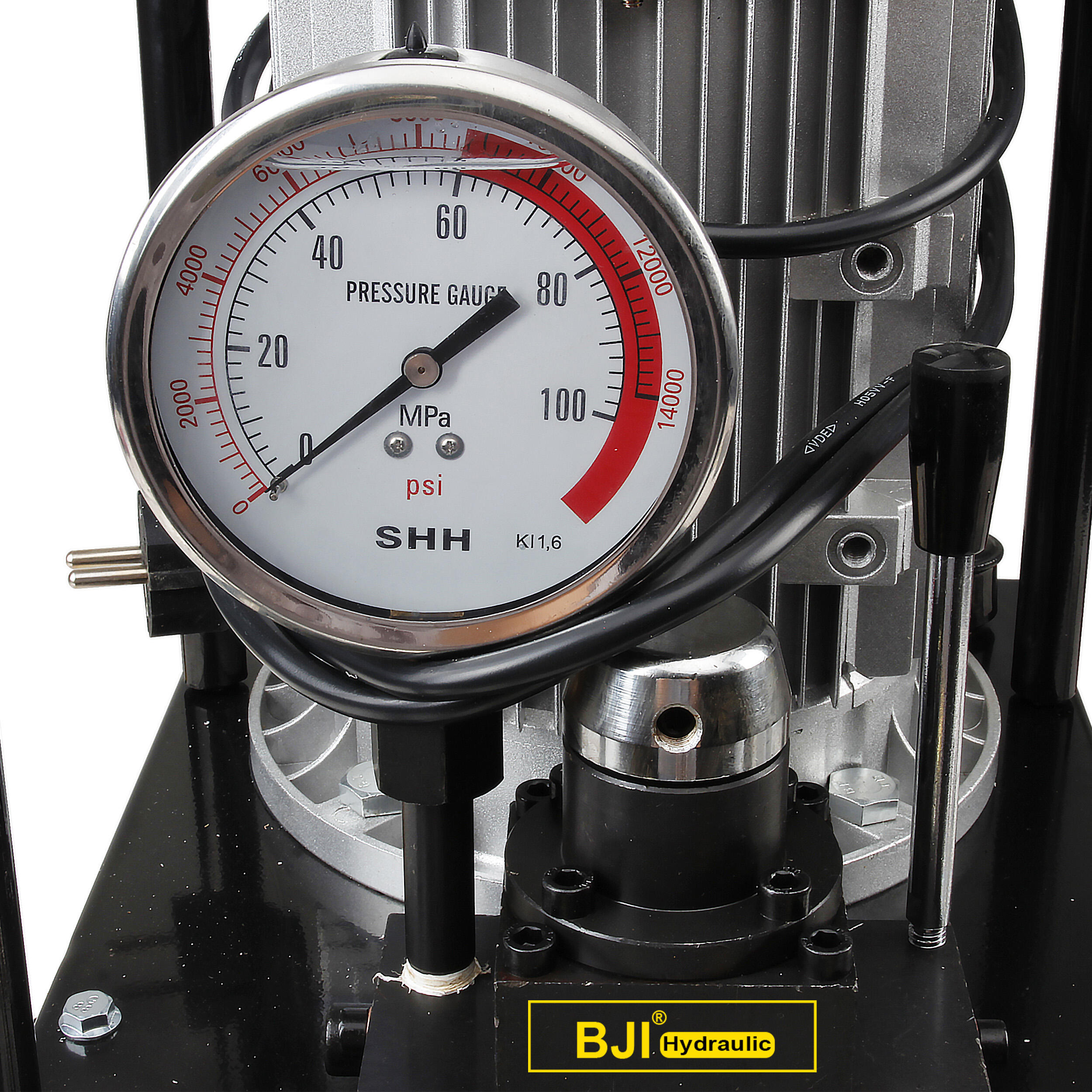

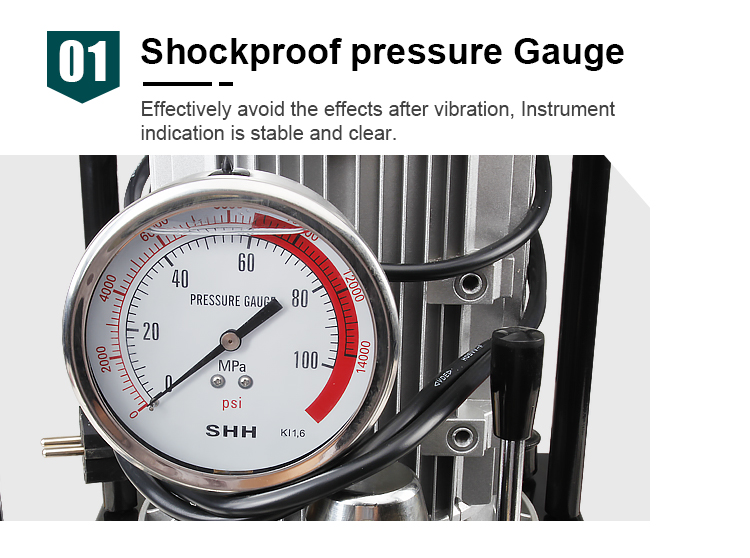

Shockproof pressure Gauge Effectively avoid the effects after vibration, Instrument indication is stable and clear.

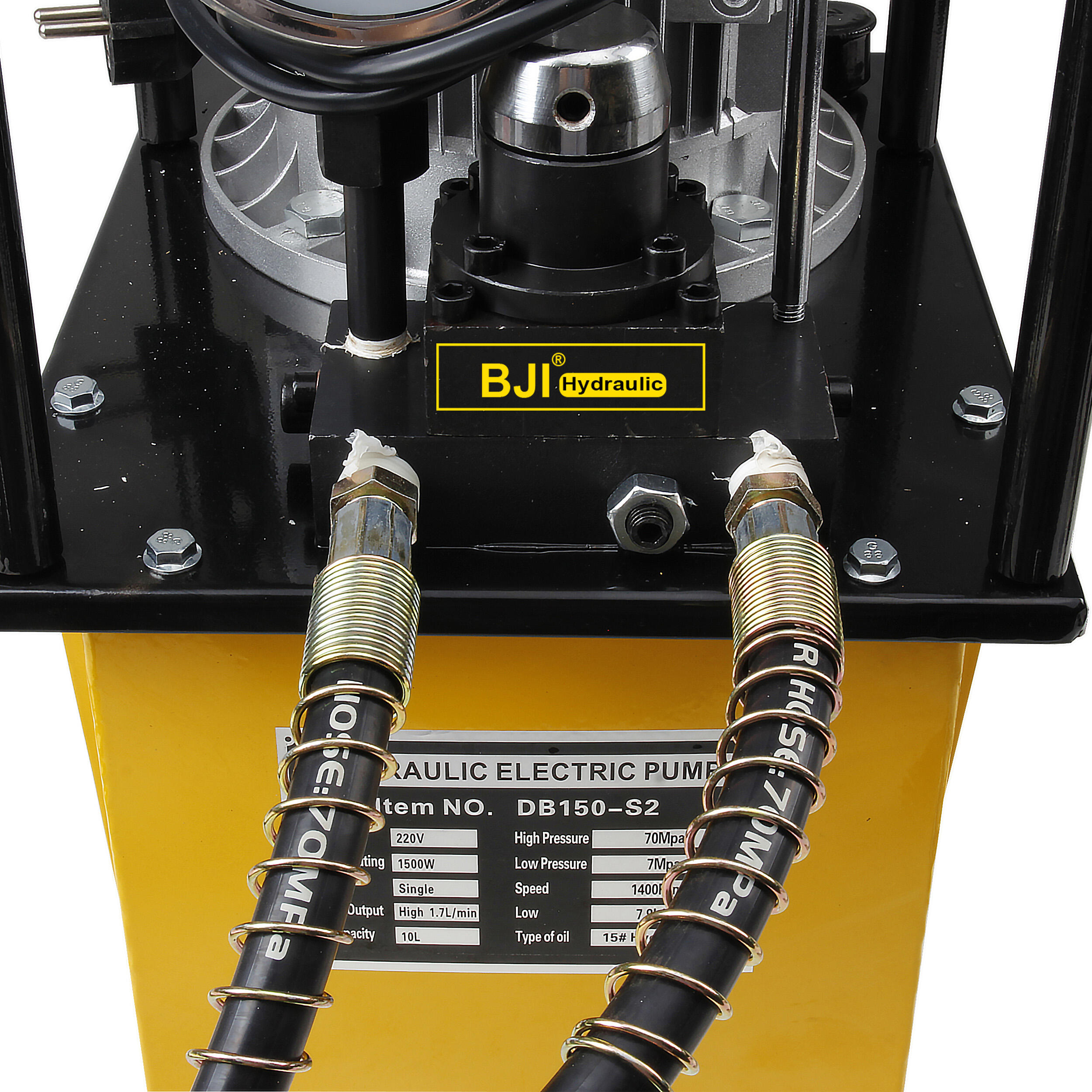

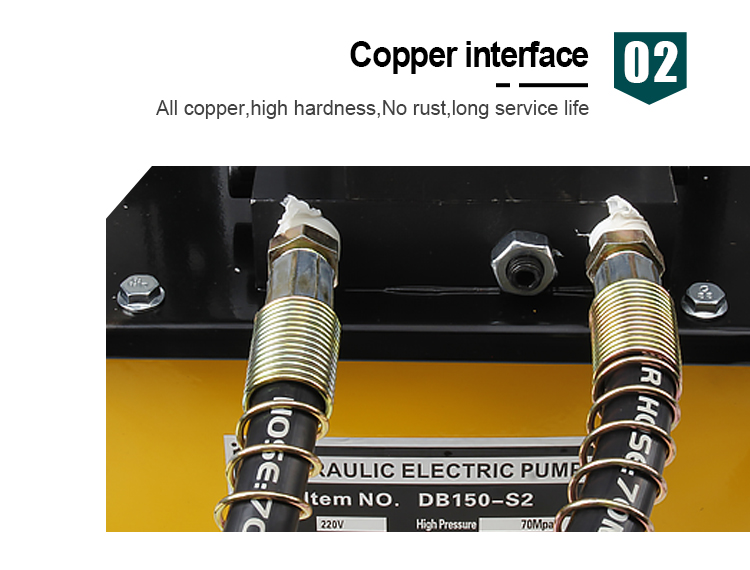

Copper interface All copper,high hardness,No rust,long service life

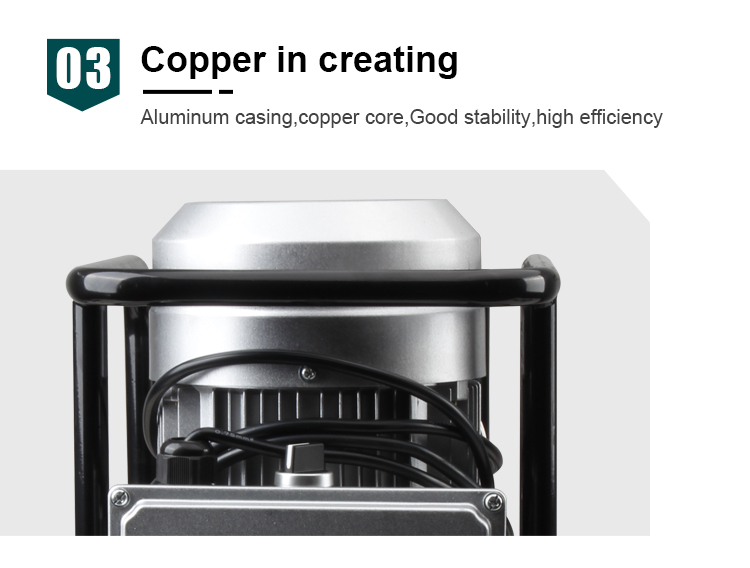

Copper in creating Aluminum casing,copper core,Good stability,high efficiency

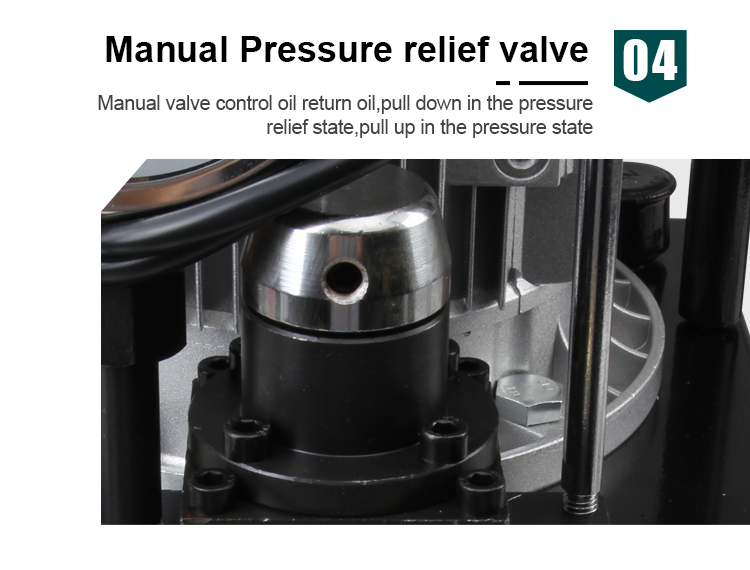

Manual Pressure relief valve Manual valve control oil return oil,pull down in the pressurerelief state,pull up in the pressure state

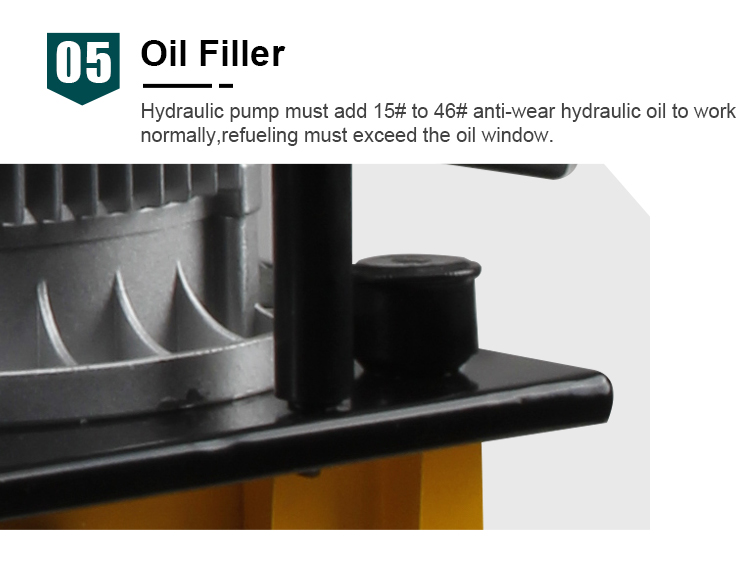

Oil Filler Hydraulic pump must add 15# to 46# anti-wear hydraulic oil to work normally,refueling must exceed the oil window.

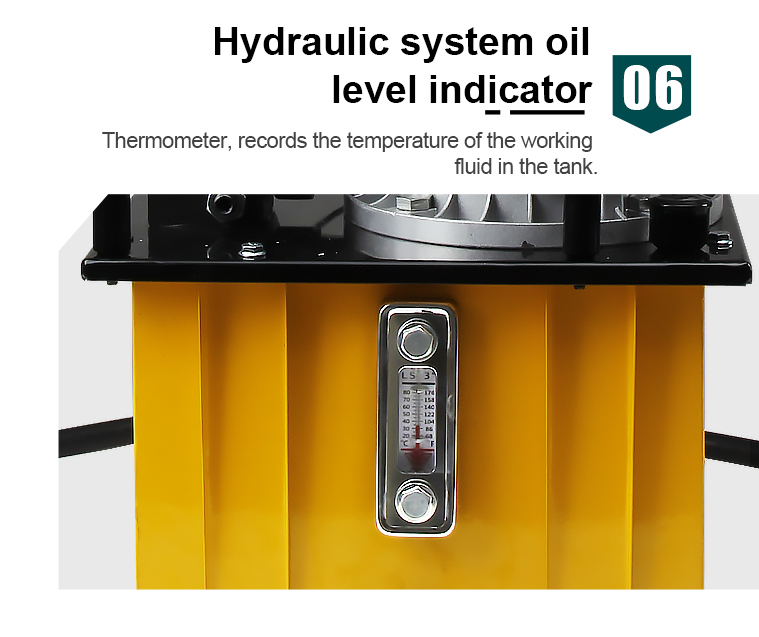

Hydraulic system oilevel indicator Thermometer, records the temperature of the working fuid in the tank.

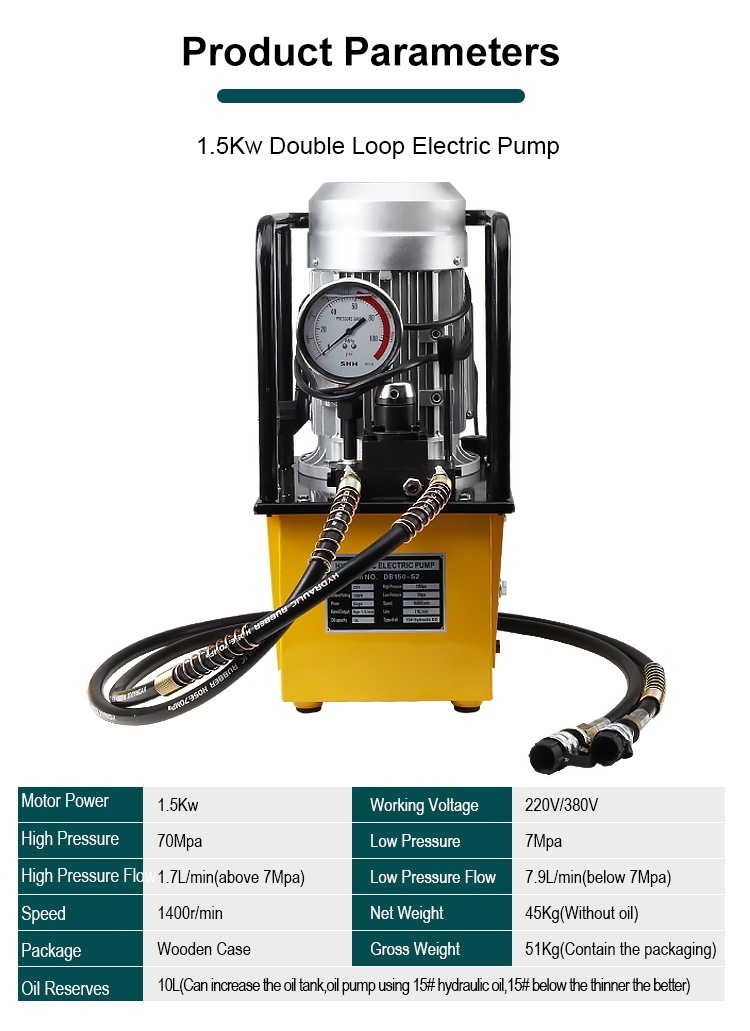

| Motor Power | 1.5Kw | Working Voltage | 220V/380V |
| High Pressure | 70Mpa | Low Pressure | 7Mpa |
| High Pressure Flow | 1.7L/min(above 7Mpa) | Low Pressure Flow | 7.9L/min(below 7Mpa) |
| Speed | 1400r/min | Net Weight | 45Kg(Without oil) |
| Package | Wooden Case | Gross Weight | 51Kg(Contain the packaging) |
| Oil Reserves | 10L(Can increase the ol tank,oil pump using 15# hydraulic oil, 15#f below the thinner the better) | ||
